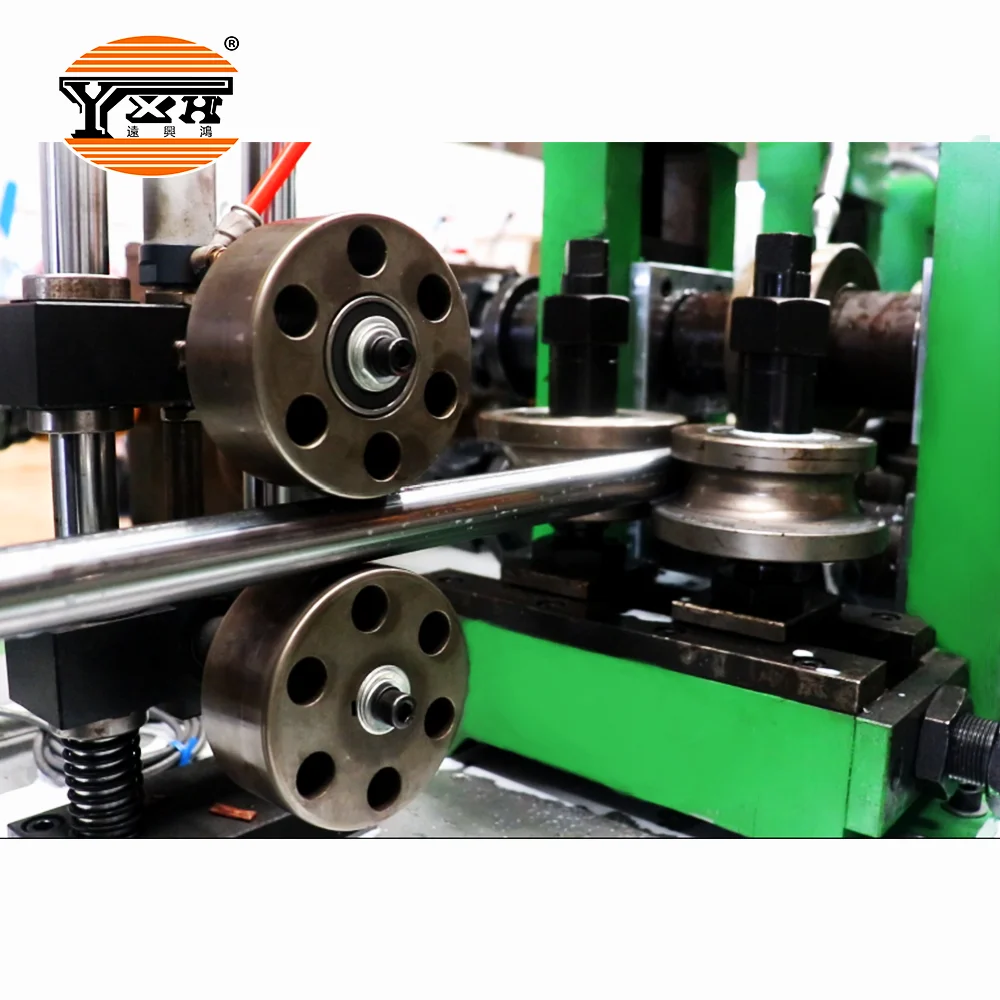

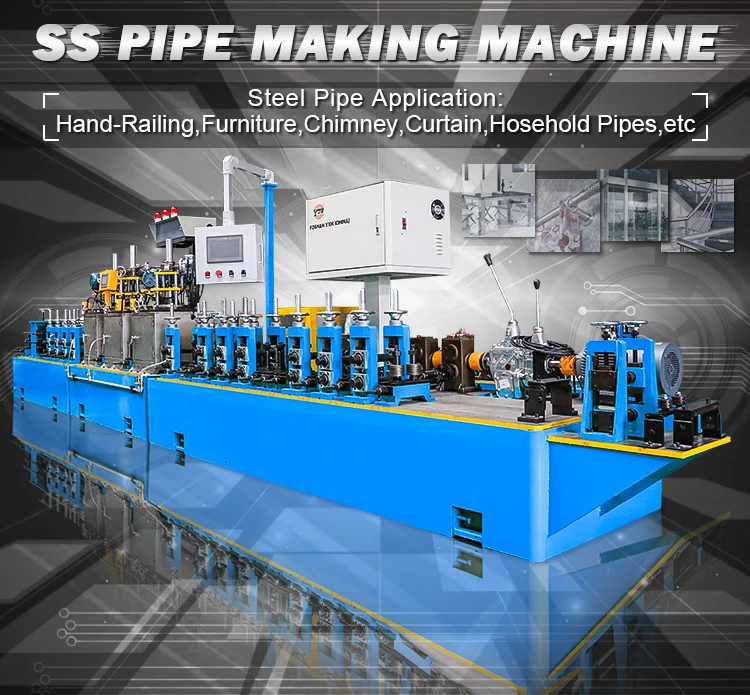

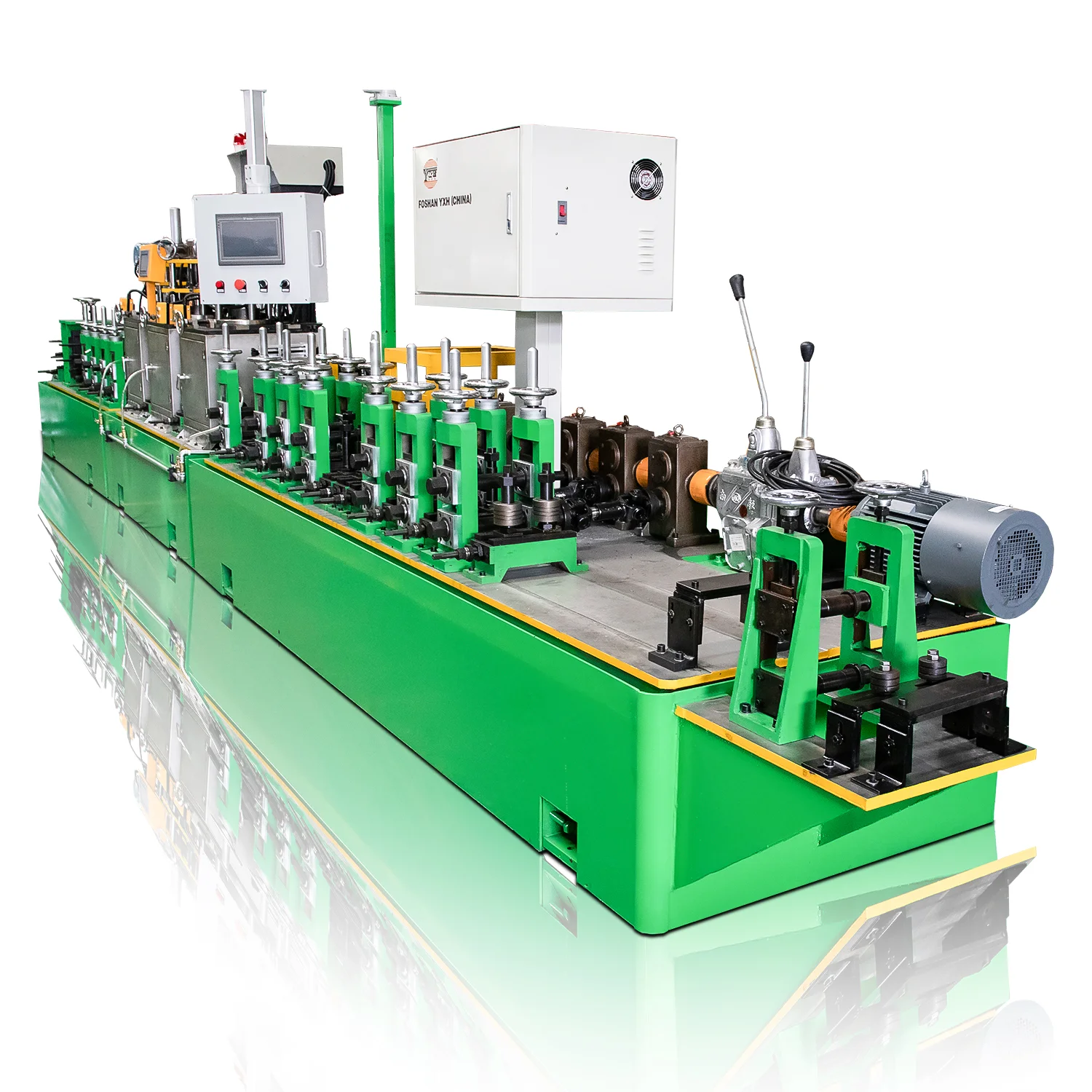

GY60 pipe fittings stainless steel pipe cutting machine and iron pipe manufacturing machine
- Category: >>>
- Supplier: Foshan YXH Tube Mill & Mould Co. Ltd.Foshan Ltd.
Share on (1600520942939):
Product Overview
Description
Company Profile
We are one of the largest stainless steel pipe making machine manufacturers in China. Having imported advanced technology, management system and equipment from abroad, we have established a perfect production system which includes R&D, production, management and service. Our products have obtained ISO9001:2000 International Quality System Certificate.
We have over 20 years of production experience.Our products have been exported to more than 60 countries ,such as India, Vietnam,Bangladesh,Thailand,Pakistan,South Africa and so on.
Products Description
Foshan YXH Tube Mill & Mould Co.,Ltd
Offer different tube mill.Can make round pipe, square pipe, rectangle pipe, oval pipe and other irregular pipe as well.
Type | Pipe Diameter (mm) | Pipe Thickness (mm) | Capacity (m/min) | |
GY40 | 12.7-50.8 | 0.3-2.0 | 1-15 | |
BGY40 | 25-63.5 | 0.4-2.0 | 1-10 | |
GY50 | 25.4-76.2 | 0.5-3.0 | 1-7 | |
GY60 | 38.1-114 | 0.5-4.0 | 1-5 | |
GY80 | 50.8-168 | 1.0-5.0 | 1-3 | |
GY100 | 133-273 | 1.5-8.0 | 1-3 | |
GY120 | 159-325 | 2.0-8 | 1-3 |

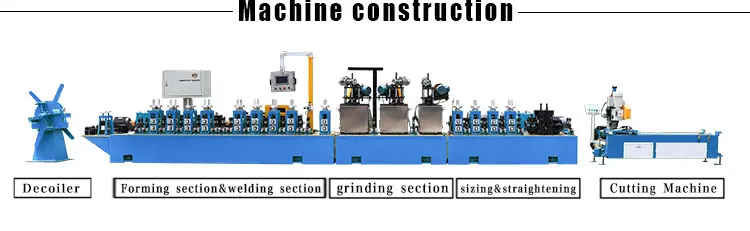

Machine parts

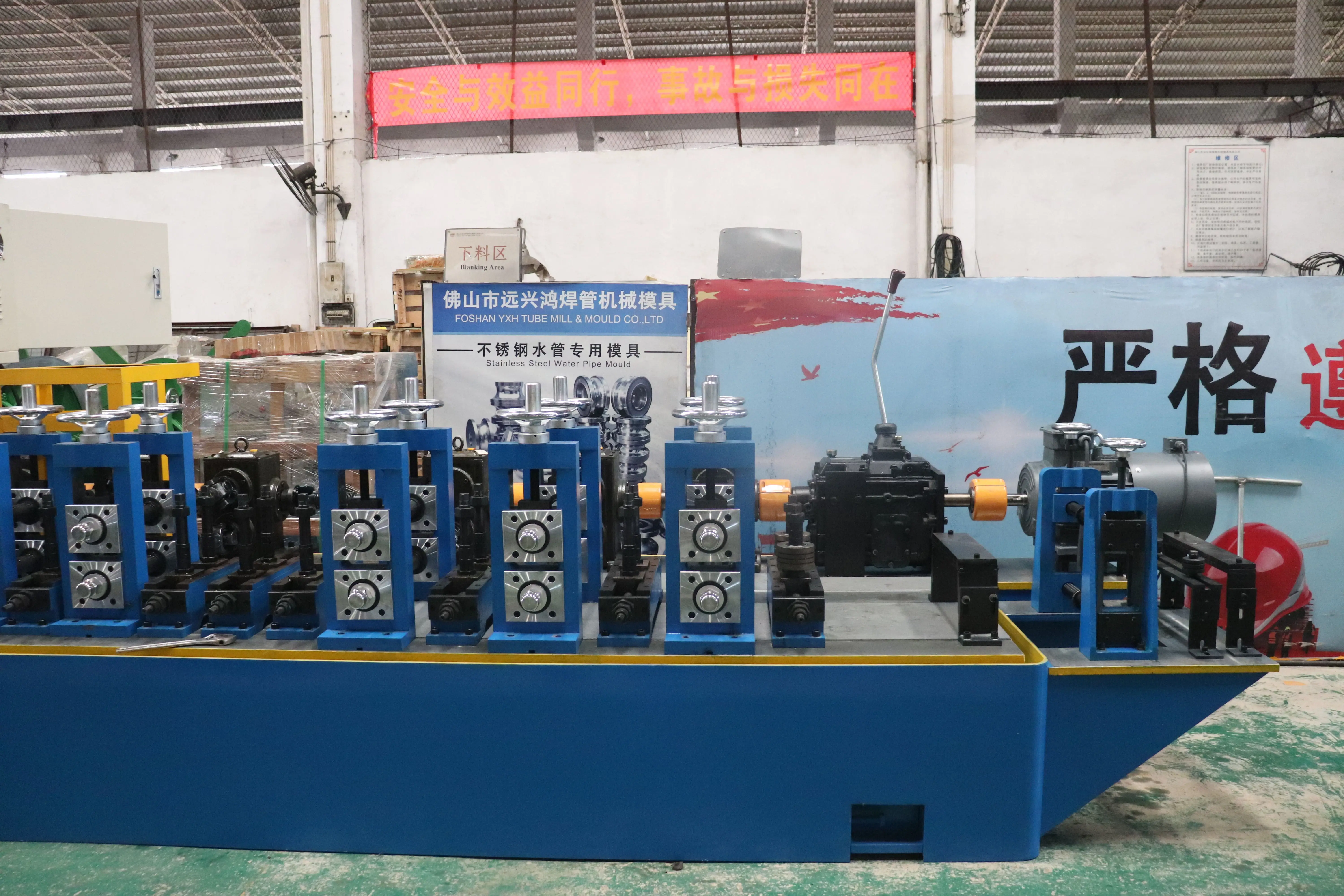

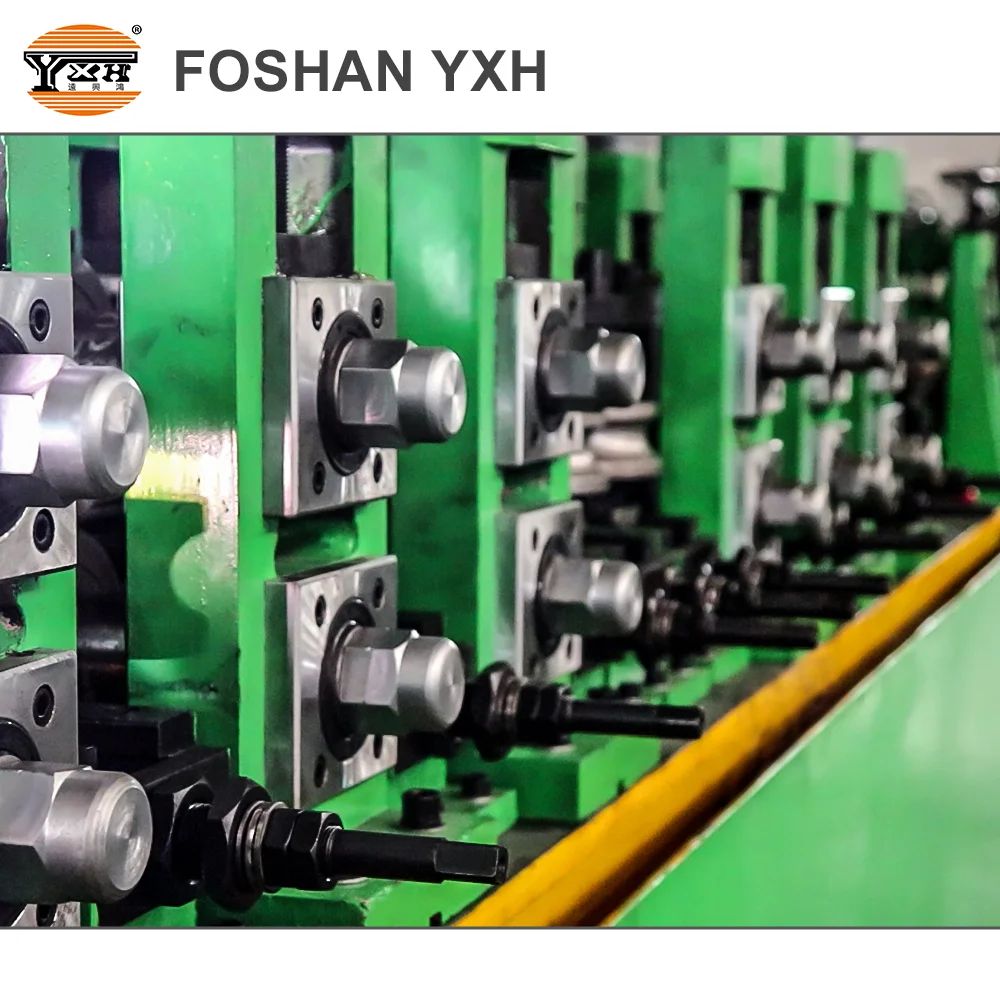

Decoiler&Forming section
The steel coil is installed on the decoiler, which content and transports the steel strip to the forming section, and the steel strip passing through the forming section is formed into a pipe.

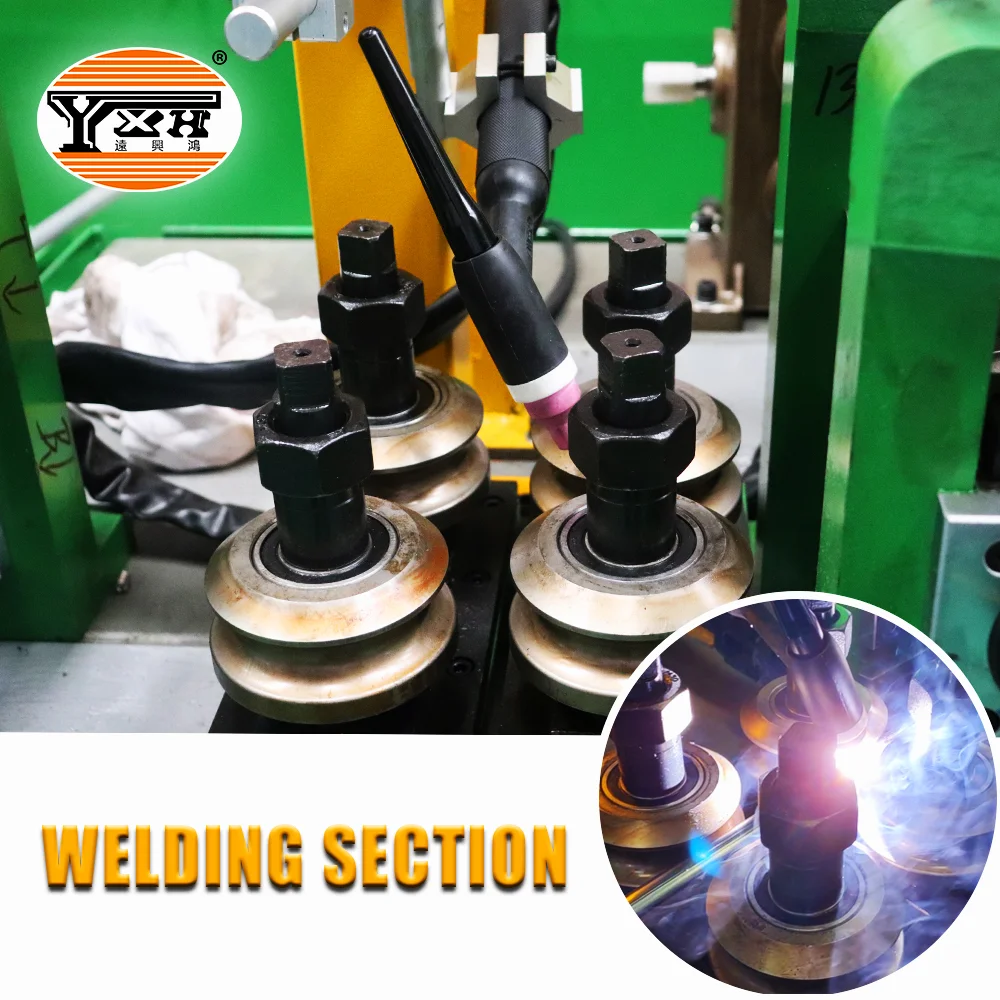

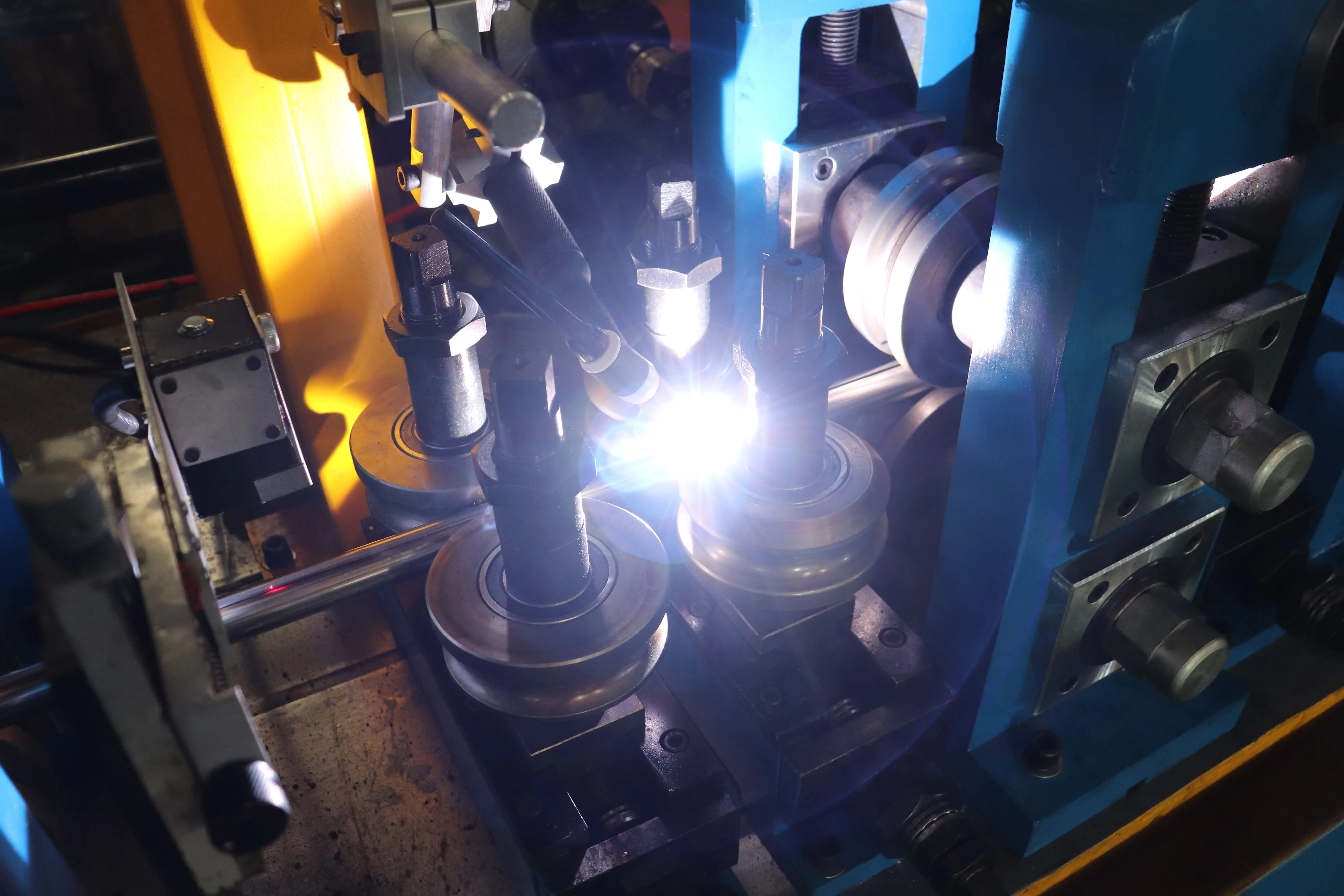

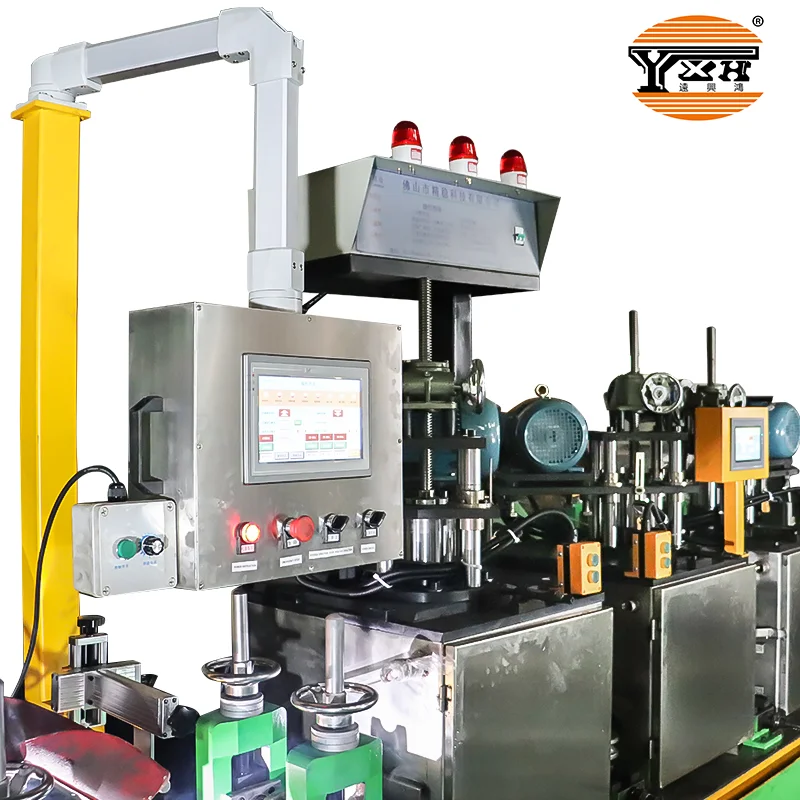

Welding section
The formed pipe will have a gap, reach the welding section, and connect the weld through the welding gun. Become a sealed tube.

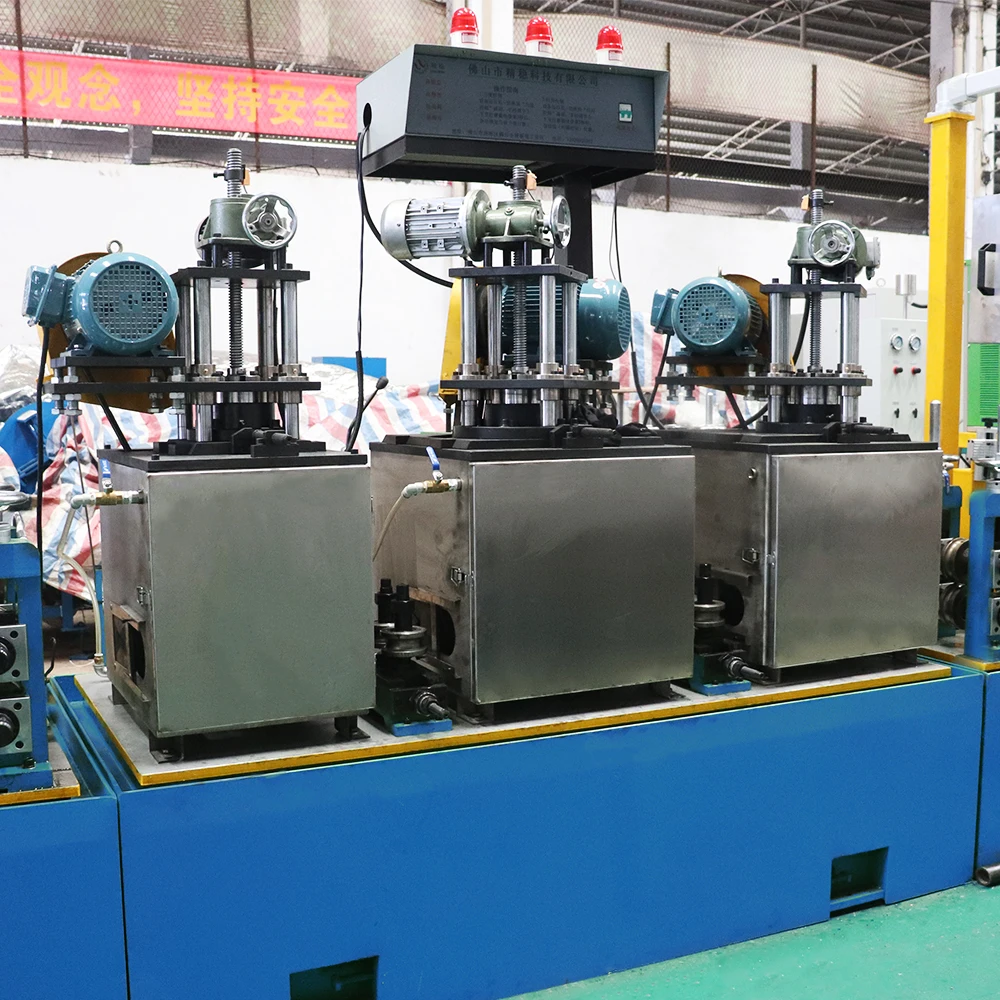

Grinding section
After welding, the weld will be slightly raised, after grinding section, the surplus part will be polished off. The tube will become smooth.

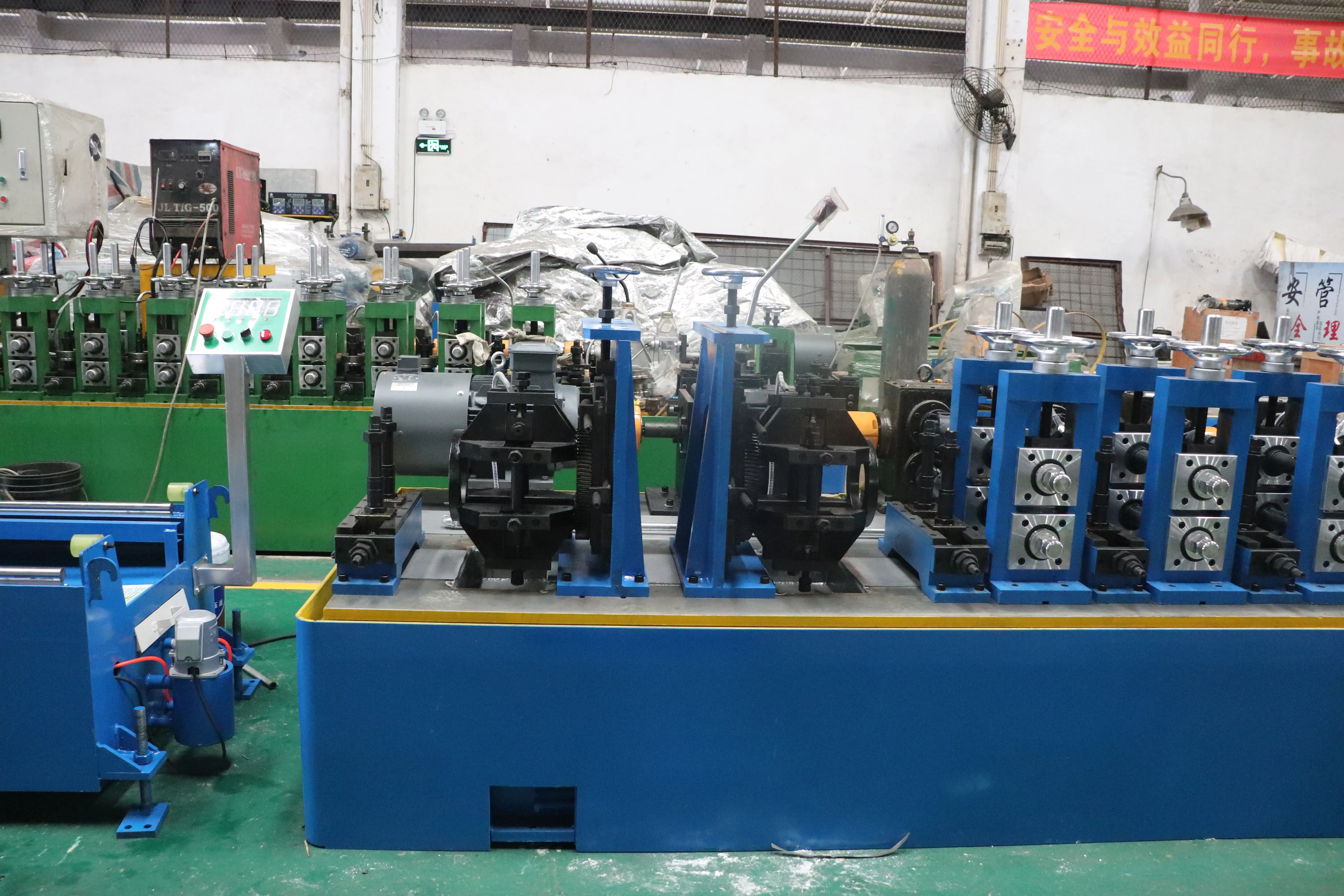

Sizing,Straightening&Cutting
The pipe is further fixed in the sizing,straightening section, passes through the tukey head, and finally enters the cutting section to cut off the pipe.
Turkey head:
Machine advantage
First Parts:Pipe scratches solution
Pipe Scratches Problem Solution:
Our 4414 arrangement design can highly reduce scratches and also our moulds use the best materials to produce.and special mould install arrangement design.
Second Parts:Machine design advantage
Why Choose Us
Experience Export team:
Our foreign trade team has more than 10 years of export experience. Don't worry about any export clearance issues.
24*7 hours service
Quality packing & delivery
We use steel wire and wooden frame to fix the pipe making machine;In addition, used shockproof film to protect the main motors.
We use the container to deliver goods to our customer. Generally speaking, we start at FOSHAN port, but we also can start at other port according to customer's need.
One-stop shopping
No need to search more suppliers.Related products we can offer.FAQ
Q1:Are you manufacturer?
A1:Yes, We are the manufacturer and trading company.
Q2:What can we provide for you ?
A2: YXH products include: coil slitting machine , ss tube mill , pipe polishing machine ,roller set, pipe embossing machine , full automatic cutting machine ,loading and unloading machine ,dust collect system etc. Finally we have 10 years Export experience.
Q3:How to tube mill order?
A3:Please send us your purchase order by email, whatsapp or we chat. We need to know the following information for your order:
(1)Tube Mill Information: Pipe material (stainless steel , carbon steel , galvanized steel); Pipe Diameter, Pipe Thickness ,monthly production;
(2)Price Item, Destination Port, Delivery time required;
(3)Shipping information: Company Name , Address, Phone Number , Destination Seaport/Airport
Q4:What are the payment terms?
A4:For orders, we can accept T/T, D/P, L/C at sight
Q5:Whole Process for doing business with us ?
A5:(1)Please provide details of the tube mill product you need we quote for you
(2)if you Require order, we will provide Performa invoice for you ,and we will arrange to produce at once when we get 30% deposit.
(3)We will send photos of all goods ,packing ,detail ,and B/L copy for you after goods are finished, we will arrange shipment and provide original B/L when you pay the balance.
A1:Yes, We are the manufacturer and trading company.
Q2:What can we provide for you ?
A2: YXH products include: coil slitting machine , ss tube mill , pipe polishing machine ,roller set, pipe embossing machine , full automatic cutting machine ,loading and unloading machine ,dust collect system etc. Finally we have 10 years Export experience.
Q3:How to tube mill order?
A3:Please send us your purchase order by email, whatsapp or we chat. We need to know the following information for your order:
(1)Tube Mill Information: Pipe material (stainless steel , carbon steel , galvanized steel); Pipe Diameter, Pipe Thickness ,monthly production;
(2)Price Item, Destination Port, Delivery time required;
(3)Shipping information: Company Name , Address, Phone Number , Destination Seaport/Airport
Q4:What are the payment terms?
A4:For orders, we can accept T/T, D/P, L/C at sight
Q5:Whole Process for doing business with us ?
A5:(1)Please provide details of the tube mill product you need we quote for you
(2)if you Require order, we will provide Performa invoice for you ,and we will arrange to produce at once when we get 30% deposit.
(3)We will send photos of all goods ,packing ,detail ,and B/L copy for you after goods are finished, we will arrange shipment and provide original B/L when you pay the balance.
