Hot Sale heat exchanger manufacturer cooling coil stainless steel heat exchanger for air cooling
- Category: >>>
- Supplier: Wuxi New Wuhuan Energy Saving Technology Co. Ltd.
Share on (1600520979368):
Product Overview
Description
Products Description

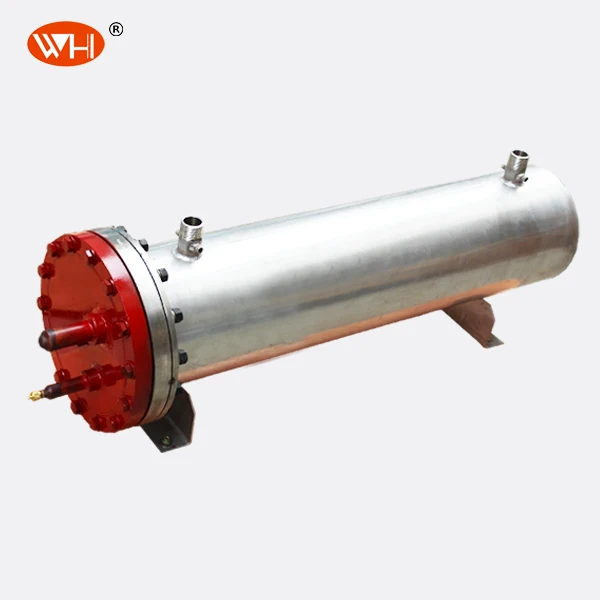

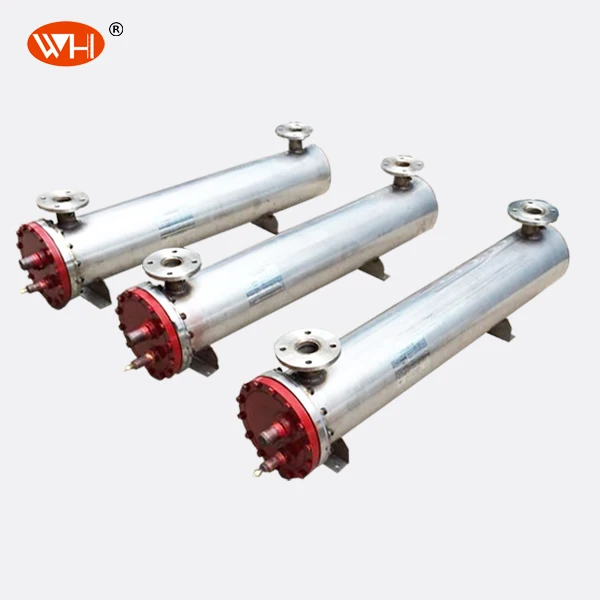

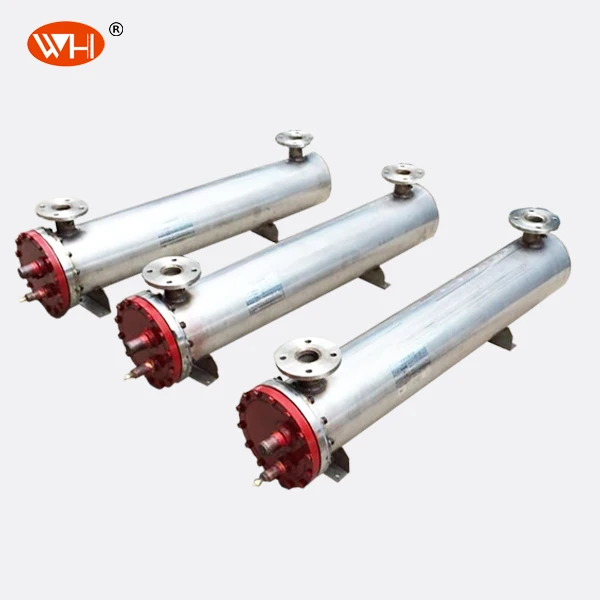

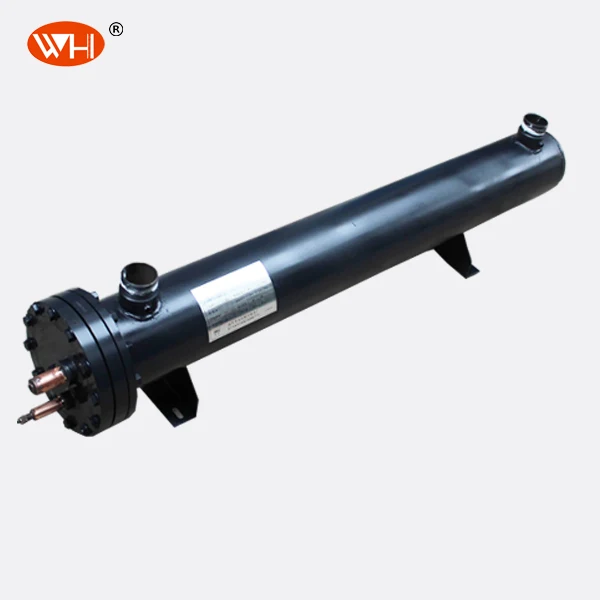

Corrosion Resistant U Shaped Shell And Tube Evapopator
Work Condition:
1)Refrigerant side: R22,R134a,R407c,R410a etc.
2)Water side: fresh water, nature water, drink water, seawater, saltwater, ground water etc .
Material:
1)Heat transfer Tube: 316L / SUS304 / Copper / Titanium
2)Shell: 316L / SUS304 / Carbon steel / PP / PVC
1)Refrigerant side: R22,R134a,R407c,R410a etc.
2)Water side: fresh water, nature water, drink water, seawater, saltwater, ground water etc .
Material:
1)Heat transfer Tube: 316L / SUS304 / Copper / Titanium
2)Shell: 316L / SUS304 / Carbon steel / PP / PVC
Model | Capacity | Water Flow | Extemal and Installation Dimensions | Freon Out | Freon In | Water In/Out | N.W |
KW | m³/h | A B C D E F G H R L | a | b | w1/2 (Rp) | Kg | |
WHFF-5.0DKG | 11.6 | 2.0 | 620 159 80 480 100 400 60 140 35 35 | 22 | 19 | 1-1/2 | 33 |
WHFF-8.0DKG | 18.6 | 3.2 | 930 159 80 790 160 600 60 140 35 35 | 28 | 19 | 1-1/2 | 42 |
WHFF-10DKG | 23.2 | 4.0 | 1140 159 80 1000 320 600 60 140 35 35 | 28 | 19 | 1-1/2 | 46 |
WHFF-12DKG | 27.9 | 4.8 | 750 219 80 610 180 400 60 140 40 40 | 28 | 22 | 1-1/2 | 55 |
WHFF-15DKG | 35.0 | 6.0 | 900 219 80 760 150 600 60 180 40 40 | 28 | 22 | 2 | 62 |
WHFF-20DKG | 46.5 | 8.0 | 1160 219 80 1020 200 800 60 180 43 43 | 38 | 22 | 2 | 73 |
WHFF-25DKG | 58.1 | 10.0 | 1430 219 80 1290 250 1000 60 180 200 43 | 38 | 22 | 2 | 86 |
WHFF-30DKG | 69.7 | 12.0 | 1670 219 80 1530 380 1000 60 180 53 53 | 38 | 28 | 2 | 97 |
WHFF-40DKG | 93.0 | 16.0 | 1520 254 90 1360 160 1200 60 240 5353 | 54 | 28 | 2-1/2 | 126 |
WHFF-50DKG | 116.3 | 20.0 | 1860 254 90 1700 400 1200 60 240 53 53 | 54 | 28 | 2-1/2 | 142 |
WHFF-60DKG | 139.5 | 24.0 | 2000 273 110 1820 450 1200 60 240 65 60 | 76 | 38 | 2-1/2 | 198 |
WHFF-70DKG | 162.8 | 28.0 | 2310 273 120 2130 500 1200 60 240 65 60 | 76 | 38 | DN80 | 228 |
WHFF-80DKG | 186.0 | 32.0 | 2000 306120 1810 260 1500 60 300 70 70 | 76 | 38 | DN80 | 278 |
WHFF-90DKG | 209.3 | 36.0 | 2220 306 120 2030 400 1500 60 300 70 70 | 89 | 38 | DN80 | 303 |
WHFF-100DKG | 232.6 | 40.0 | 2450 306 120 2260 600 1500 60 300 70 70 | 89 | 38 | DN80 | 326 |
Product Feature
TUBE
1. Internal enhanced groove, ensure high heat transfer efficiency;
2. SS304 food grade tubes are available for mile or drink water application;
2. SS304 food grade tubes are available for mile or drink water application;
3. Cooling capacity from 2.5TR to 1,000TR;
4. One to eight refrigerating circuits available;
4. One to eight refrigerating circuits available;
5. CE ,ASME and BR1 certificate are optional;
6. Specification and performance can be customized as per requirements.
6. Specification and performance can be customized as per requirements.

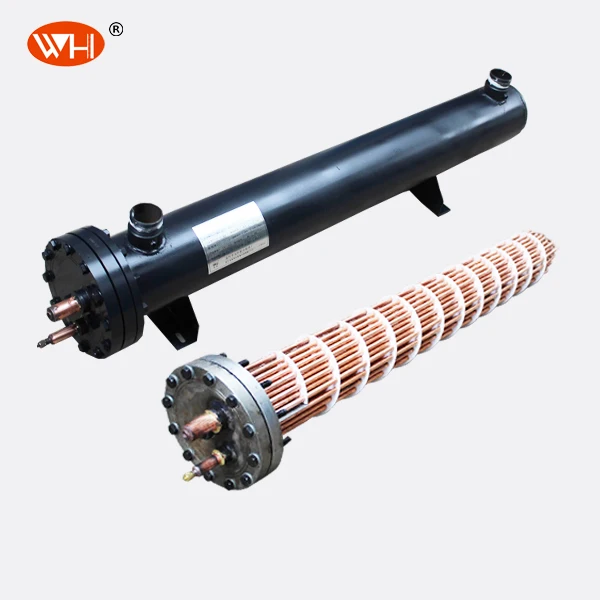

Removable Easy To Clean
You can take tube bundle out of shell, it can be easily claned.

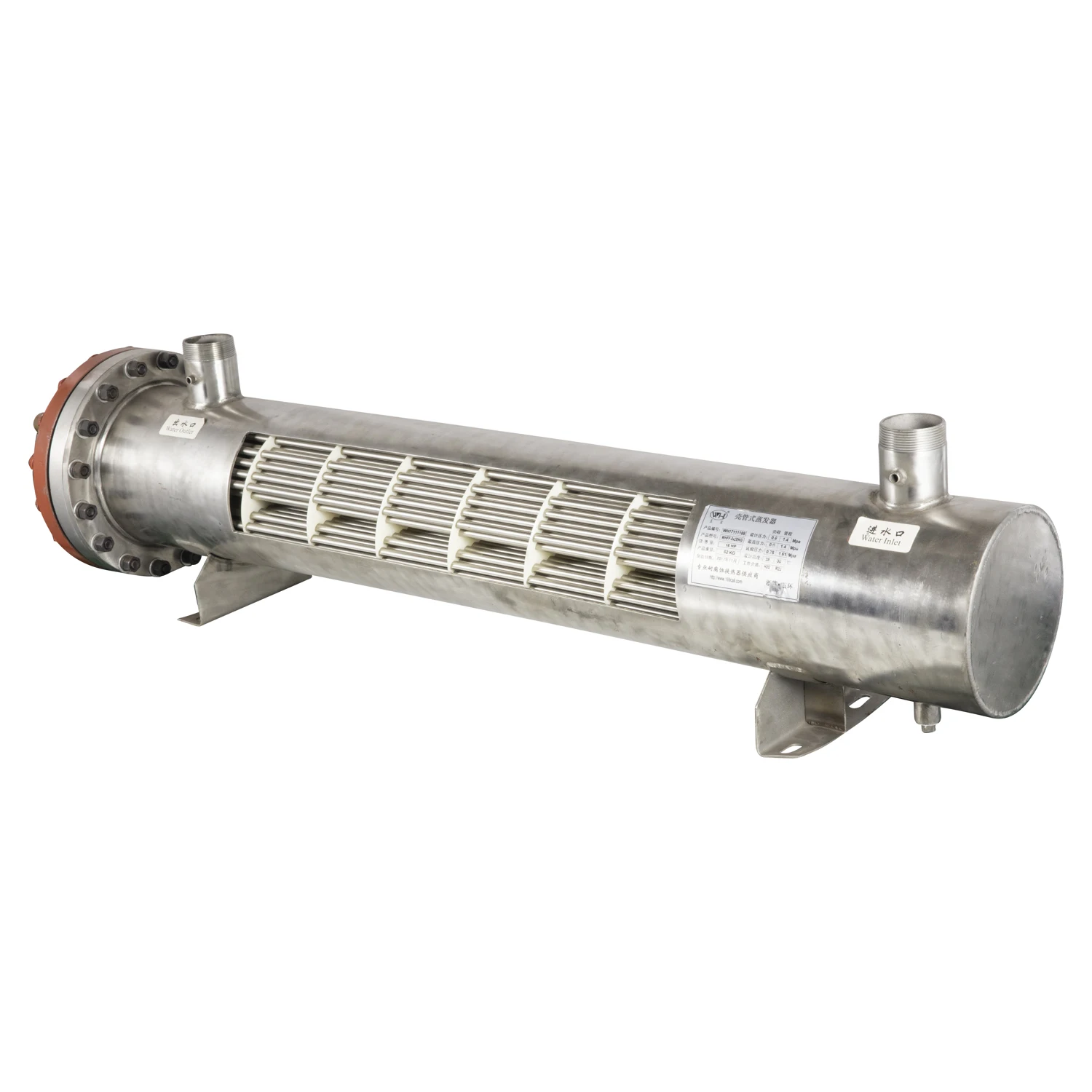

The spiral baffle makes the shell side fluid flow in a continuous spiral shape.
Wuxi New Wuhuan Engery Saving Technology Co.,Ltd.designs and manufactures a wide range of heat exchangers for refrigeration, industrial and special applications .Our evaporators and condensers can be manufactured with different materials and can work with all types of fluids and with duty up to 6000 kW. We are prepared for the solution of different heat exchange problems, thanks to the widest experience of technical departments able to suggest technical solutions best suited to each customer's need.
Our Service
Hot Products
FAQ
1.Are you factory?
Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China.
2.Are there any discount for the heat exchangers?
Yes. Bigger quantity will enjoy lower discount!
3.What information needed if I want a quotation?
Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon Type, Quantity, or any requirements in size.
4.What is the MOQ?
We accept loose quantity order,mixed order,any trial orders.
5.When can I get the price?
We usually quote within 8 hours after we get your inquiry.
Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China.
2.Are there any discount for the heat exchangers?
Yes. Bigger quantity will enjoy lower discount!
3.What information needed if I want a quotation?
Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon Type, Quantity, or any requirements in size.
4.What is the MOQ?
We accept loose quantity order,mixed order,any trial orders.
5.When can I get the price?
We usually quote within 8 hours after we get your inquiry.
