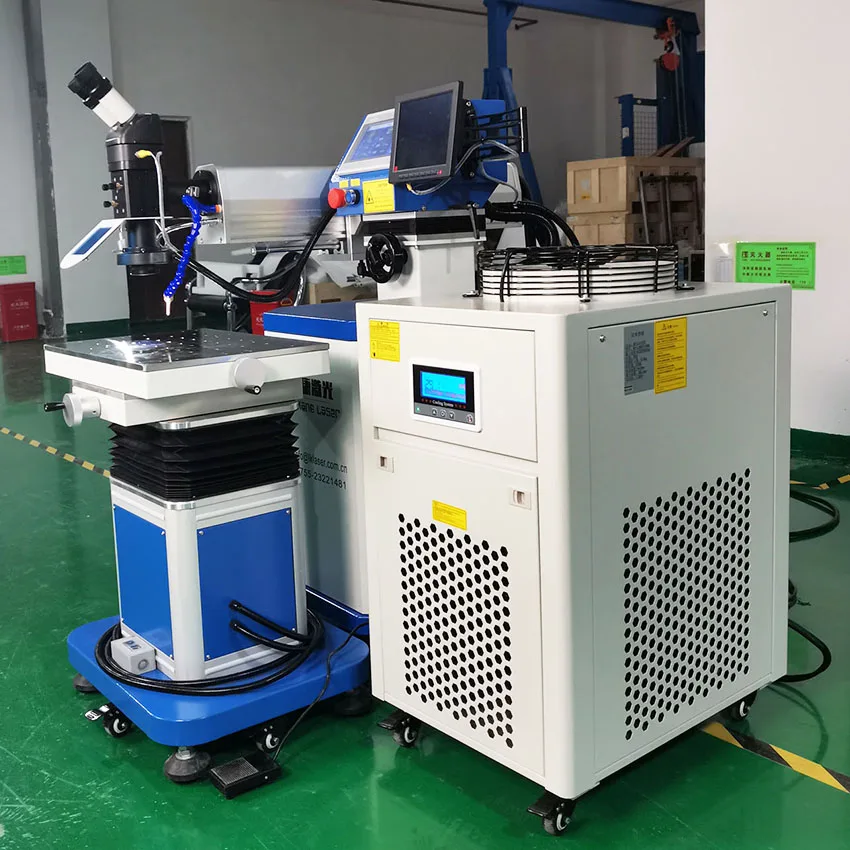

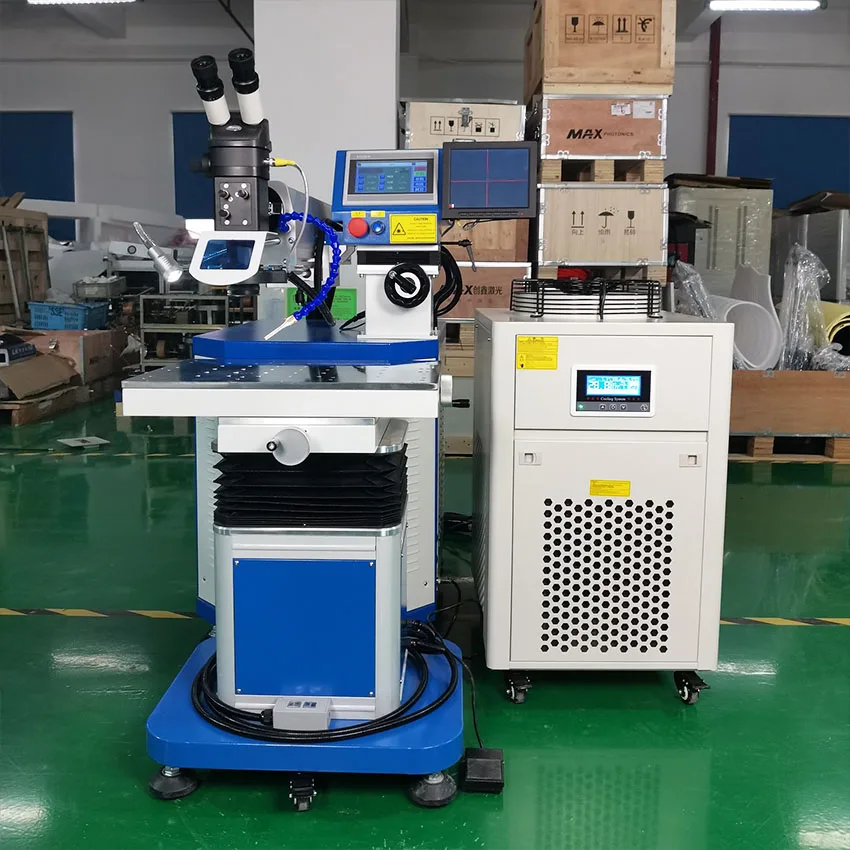

Water Cooling YAG HD CCD Stainless Steel 200W 300W 400W 600W Repair Mould Laser Welding Machine
- Category: >>>
- Supplier: Shenzhen Lei Kang Machinery Equipment Co. Ltd.
Share on (1600520985592):
Product Overview
Description
Products Description

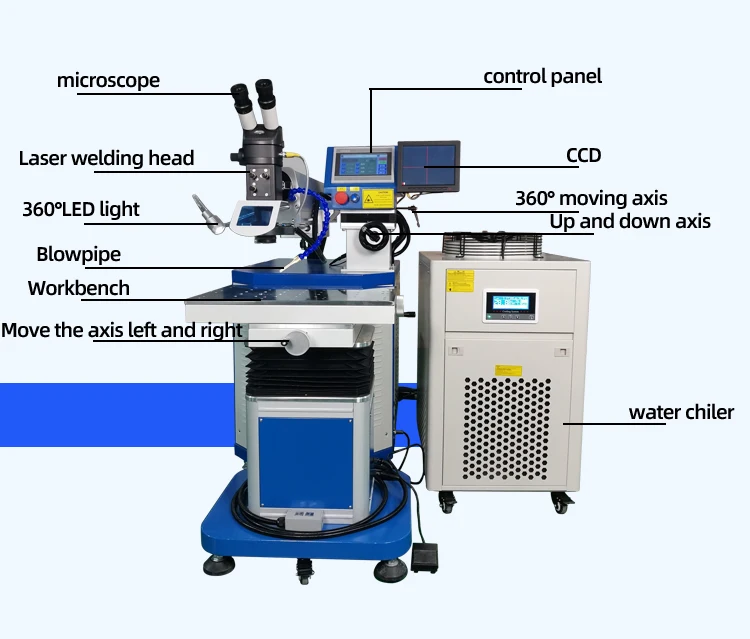

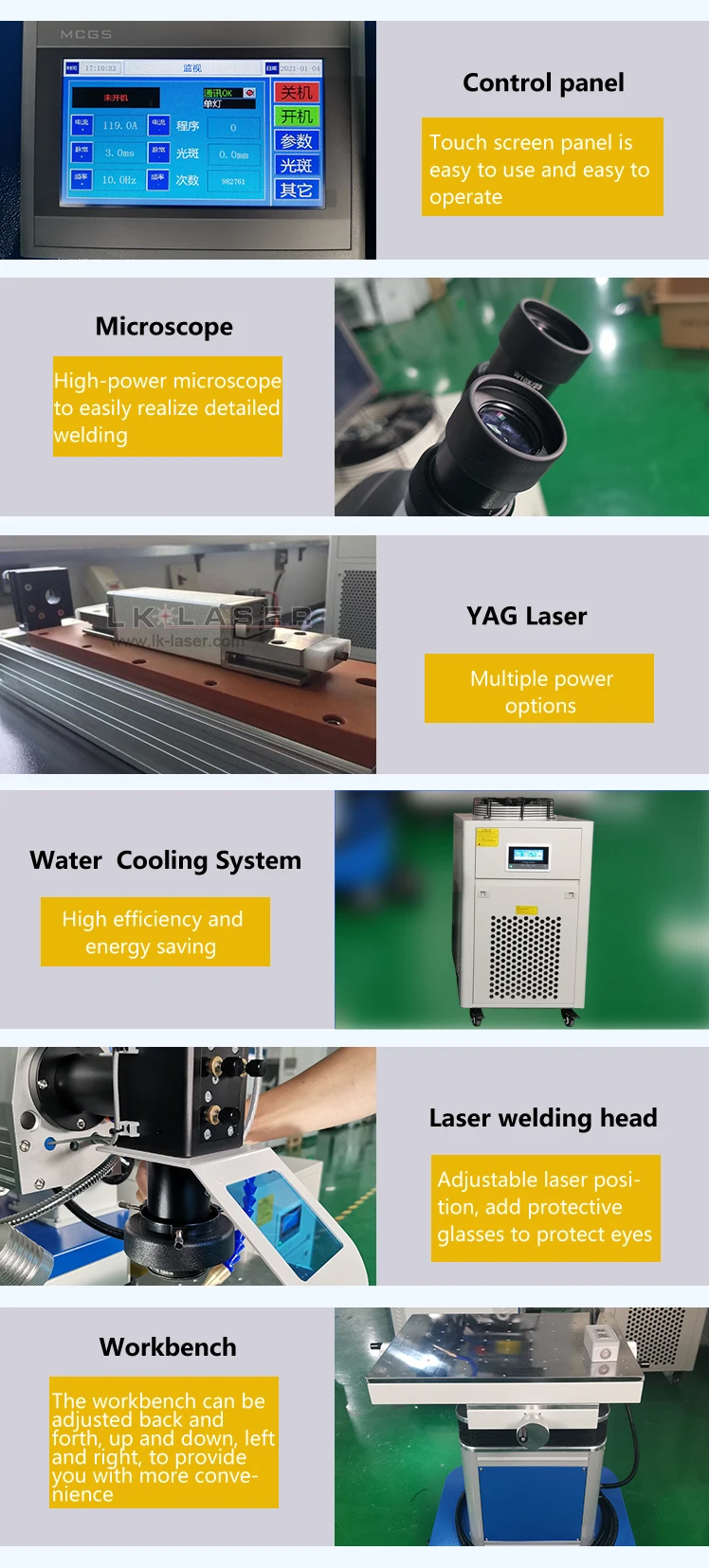

Main Features
1) Ceramic converging cavity is corrosion resistant and high temperature resistant, and has 8-10 years service life. The life of xenon lamp is more than 8 million times.
2) Using the most advanced light shielding system to eliminate the irritation to eyes by light during working.

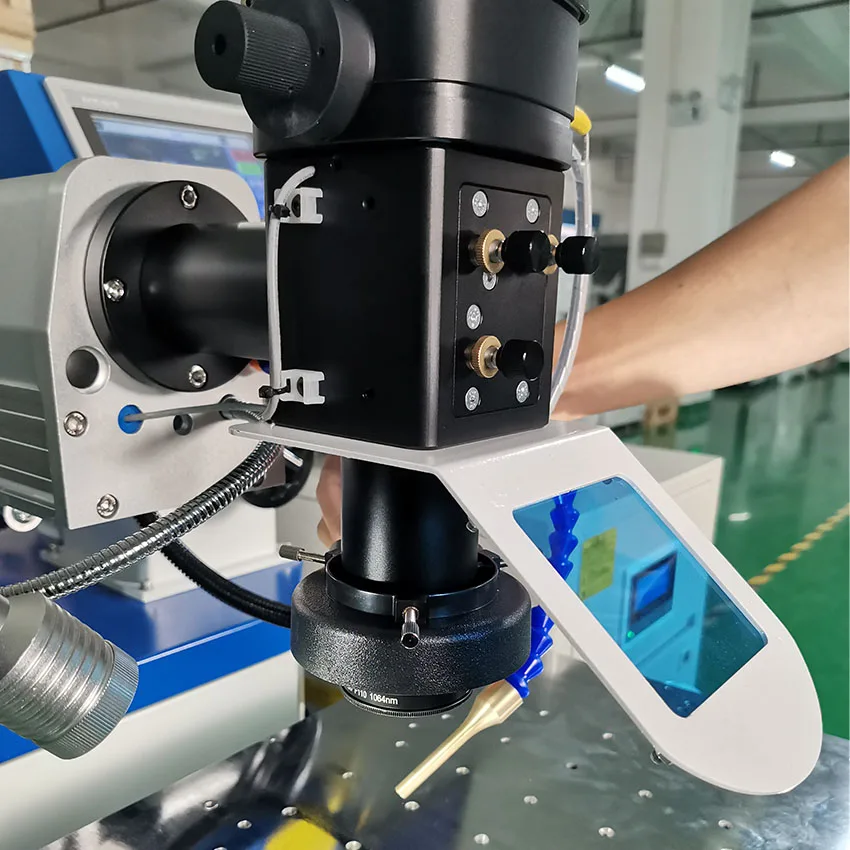

3) The laser head and optics part can be rotated for 360°,upward/downward lifting and forward/backward pushing, suitable for repairing of large, medium and small moulds.
4) The parameters are controlled by intelligent remote controller, which is simple and convenient.
5) The work bench can be lifted, and moved in three dimensions.
6) The size of light spot can be adjusted.
2) Using the most advanced light shielding system to eliminate the irritation to eyes by light during working.
3) The laser head and optics part can be rotated for 360°,upward/downward lifting and forward/backward pushing, suitable for repairing of large, medium and small moulds.
4) The parameters are controlled by intelligent remote controller, which is simple and convenient.
5) The work bench can be lifted, and moved in three dimensions.
6) The size of light spot can be adjusted.
Technical Parameters
Model | LK-MW | ||||||
Max Laser Power | 200W、300W、400W、600W | ||||||
Laser Wavelength | 1064nm | ||||||
Size of welding Spot | 0.2mm-0.6mm | ||||||
Repeat Frequency | 0-50HZ | ||||||
Laser Type | YAG | ||||||
Pulse width | 0.1ms-20ms | ||||||
Light Spot Adjustment Range | 1.8mm | ||||||
Workbench Load | 100KG | ||||||
Visual System | HD- CCD | ||||||
Colling System | Water Cooling | ||||||
Single Pulse Eerger | 80J | ||||||
Machine Size | 1100*600*1250mm | ||||||
Working Voltage | AC220VAC/380VAC±15%/50HZ/25A | ||||||

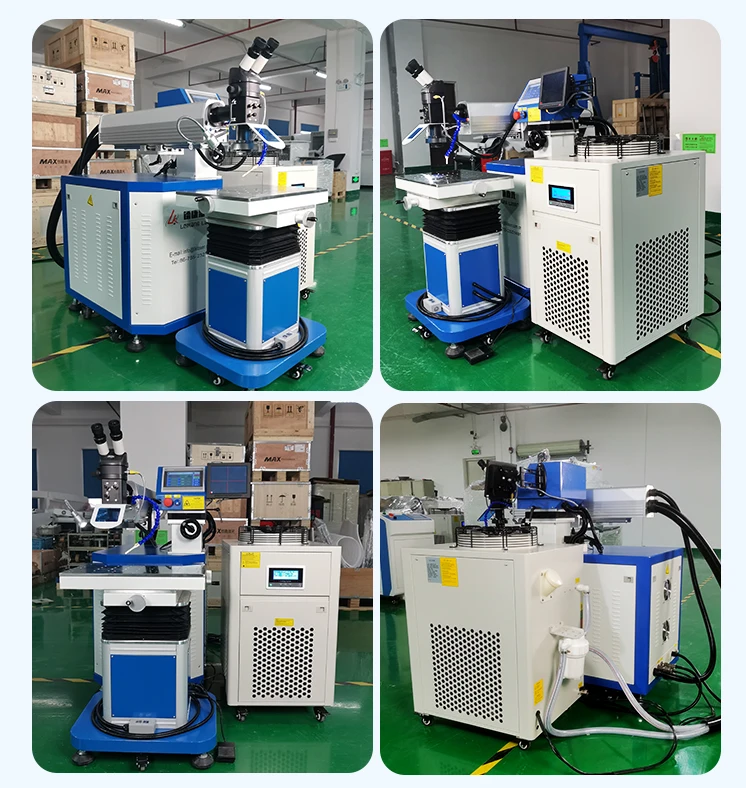

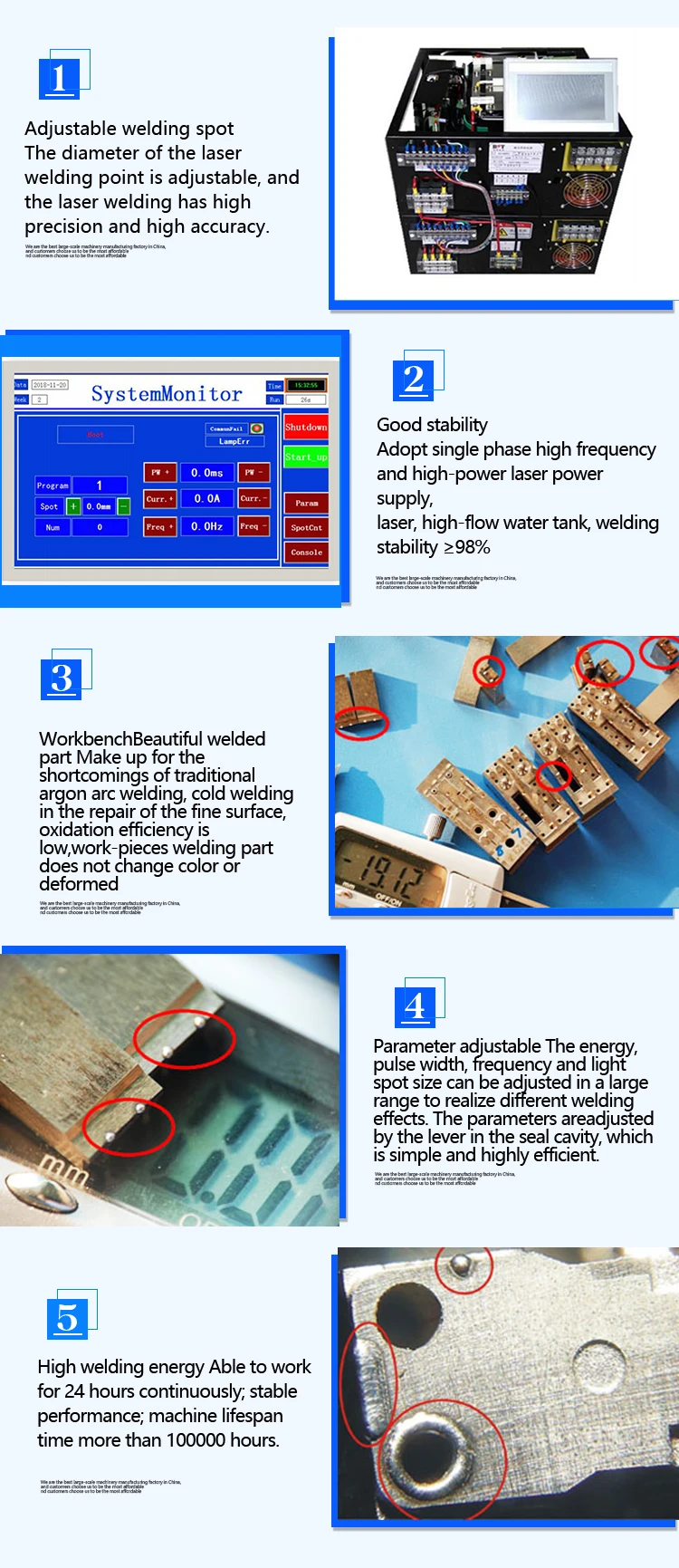

Details Images
Product Application
Application& Material
Mold laser welding machine specialized in mold repair,,which can be better merge welding wire and broken mold,fit for stainless steel ,Iron, alloy, mold material:S316,NAK80,718,738,P20,SKD 11,H13,W302,CS2344,GS2343,GS2082...
Mold laser welding machine specialized in mold repair,,which can be better merge welding wire and broken mold,fit for stainless steel ,Iron, alloy, mold material:S316,NAK80,718,738,P20,SKD 11,H13,W302,CS2344,GS2343,GS2082...
Recommend Products
Company Profile
Welcome to Shenzhen Leikang Machinery Equipment Co., Ltd.! Our company has 13 years of experience in laser welding, laser marking, laser cutting, laser cleaning, laser engraving and laser cladding.
We have the ability to independently develop, produce, supply and sell laser machines. We can provide customers with customized services, and provide an efficient and advanced laser production chain, which improves customers' production efficiency and production capacity. LK Laser continuously strives to improve quality, technological innovation and production improvement, and enjoys a high reputation in the international market. Our customers are all over the world, such as: Australia, Pakistan, the United States, Singapore, the Philippines, Italy, India, Brazil, Egypt..
Company website: www.lk-laser.com
Company website: www.lk-laser.com

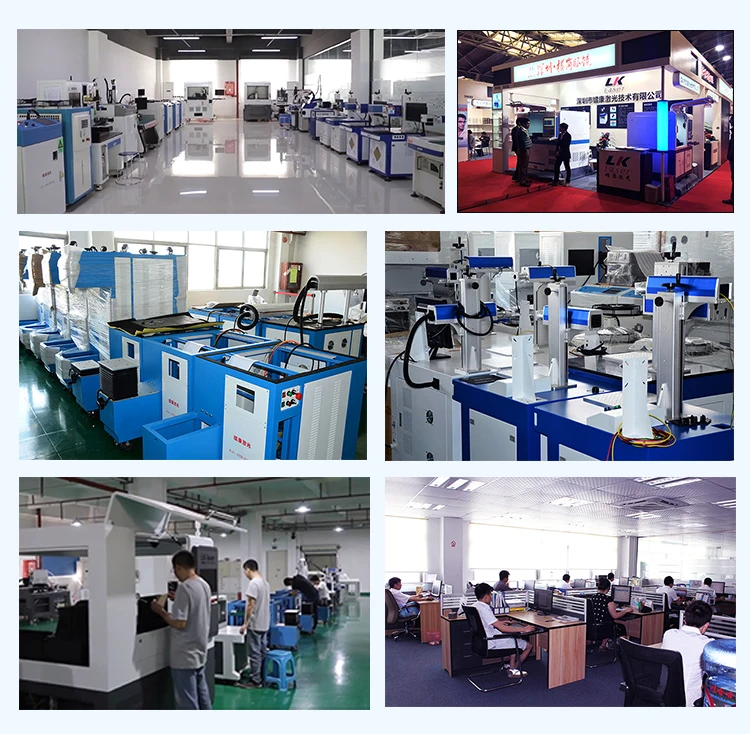

Production Process
