USFULL IP65 waterproof 1000VDC 1KW 2KW 3KW 5KW 10KW PV Combiner Box 10 input 1 output

Share on:

Price in USD:Details


Product Overview


USFULL IP65 waterproof 11.01000VDC 1KW 2KW 3KW 5KW 10KW PV Combiner Box 10 input 1 output

1.04 (2)

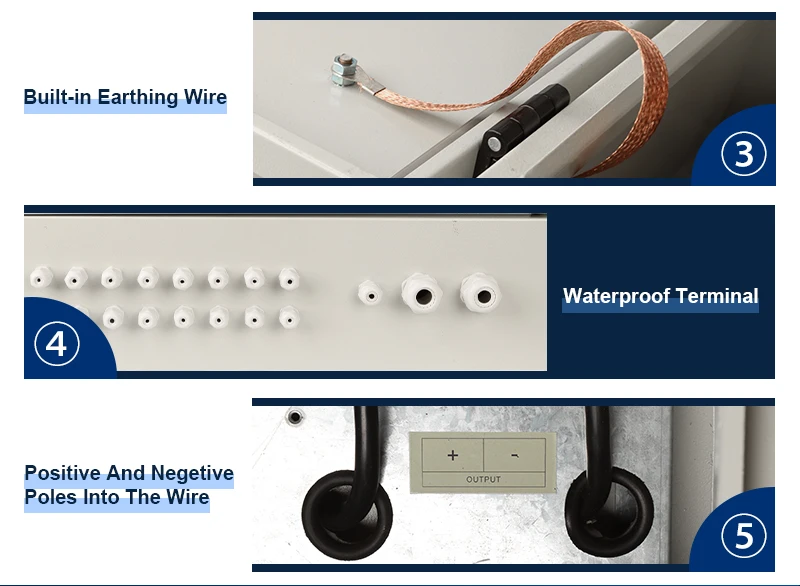

 (3) (4) (5)1.09 (6)01_0501_069000s_03

Input channel number17-2413-169-125-81-4
Max. input voltage1000Vdc
Input current of each channel0-20A
Max.output current250A160A/200A100A/125A/160A96A48A
Monitoring module(optional)Detect current of each channel,bus voltage,status of circuit breaker and lightning protector,box temperature
Communication mode/ protocol(optional)Rs485 bus/standard MODBUS-RTU protocol
Prevent-reverse functionCan be equipped with modularized and encapsulated prevent-reverse diode(optional)
Temperature and humidityOperating temperature:-40~ +85ºC,humidity 95%,places free of dew or corrosive gas.
Power consumption of monitoring moduleWorking hours≤8W
Auxiliary power supplyAuxiliary power supply:AC85V-265V/DC24V(±10%)/DC200V-1000V
Box materialHot galvanized steel/stainless steel/cold rolled sheet/engineering plastics
Protection levelIP65
