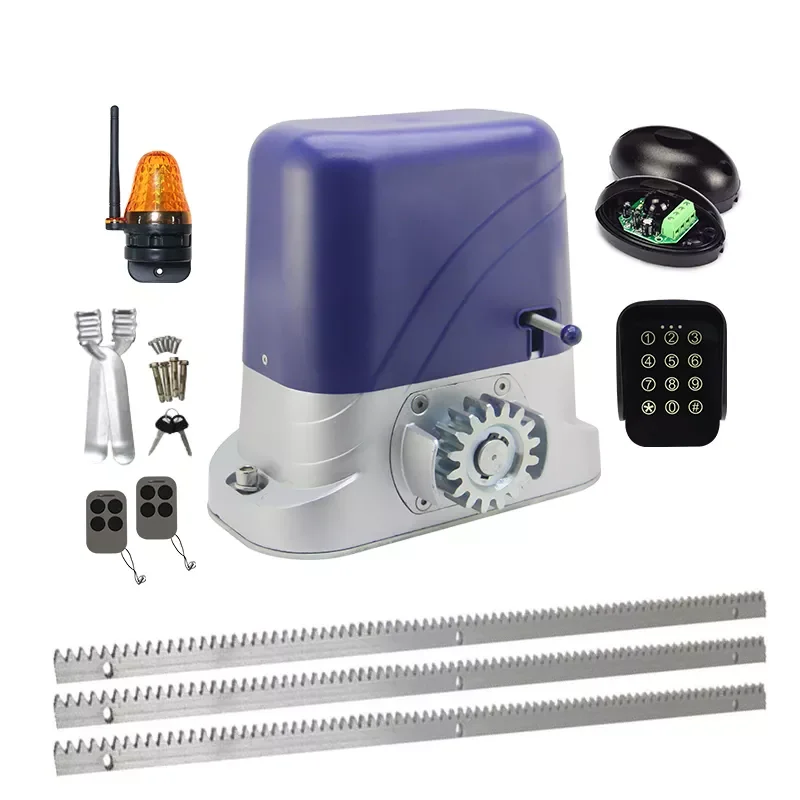

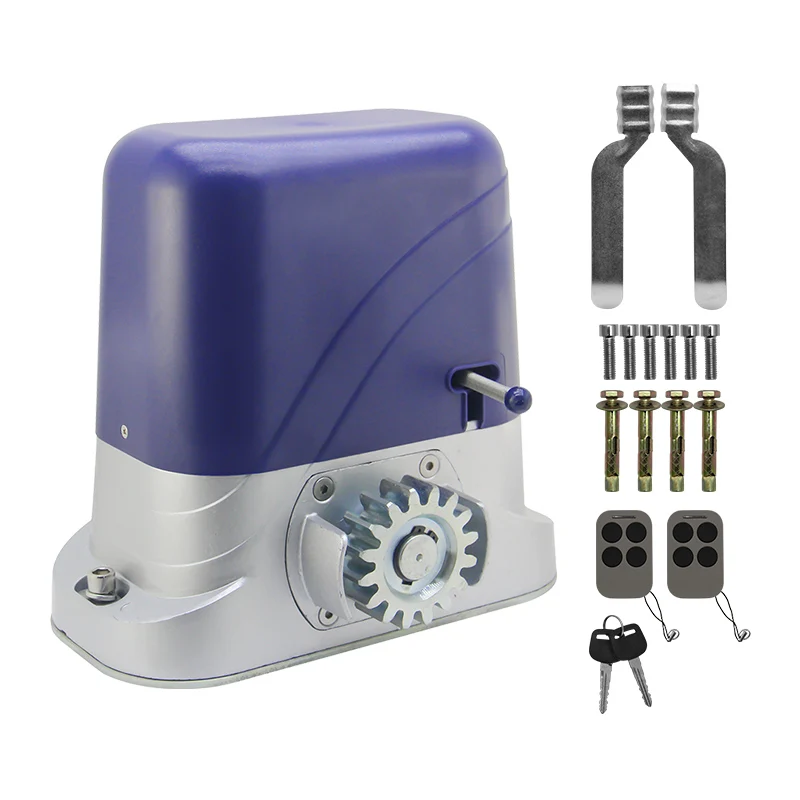

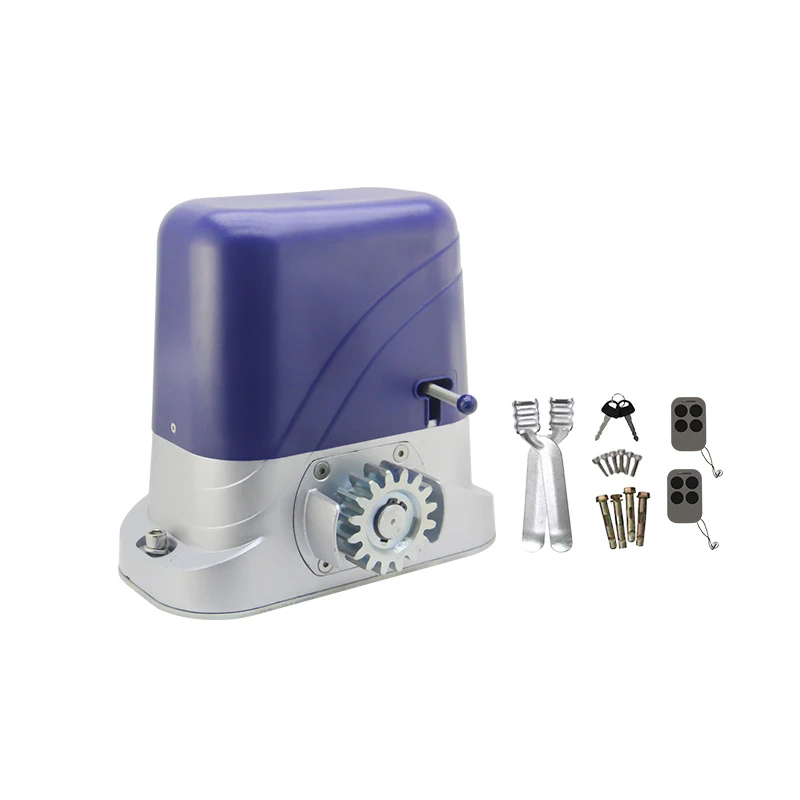

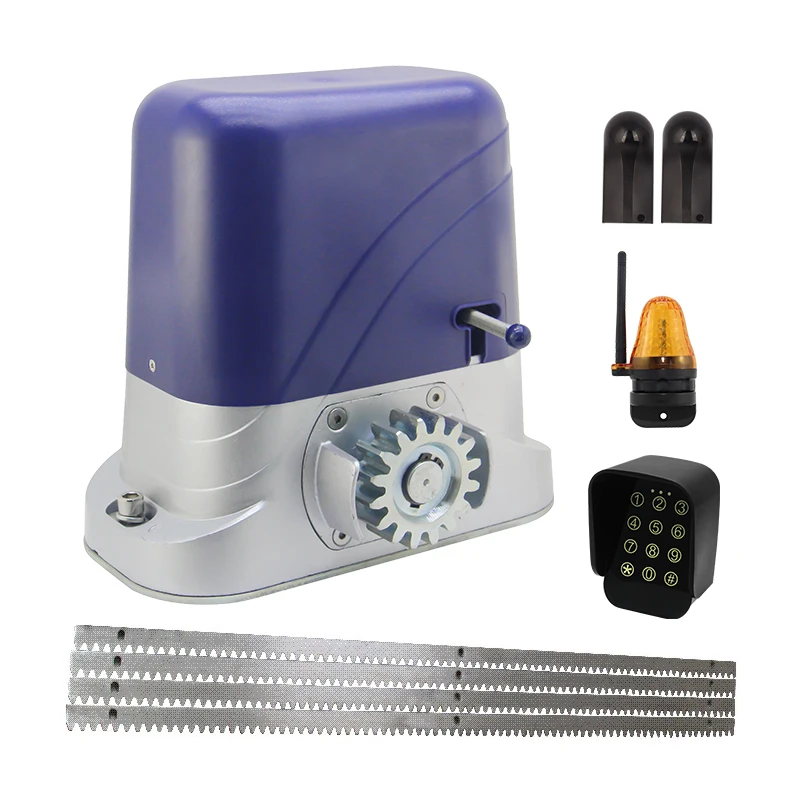

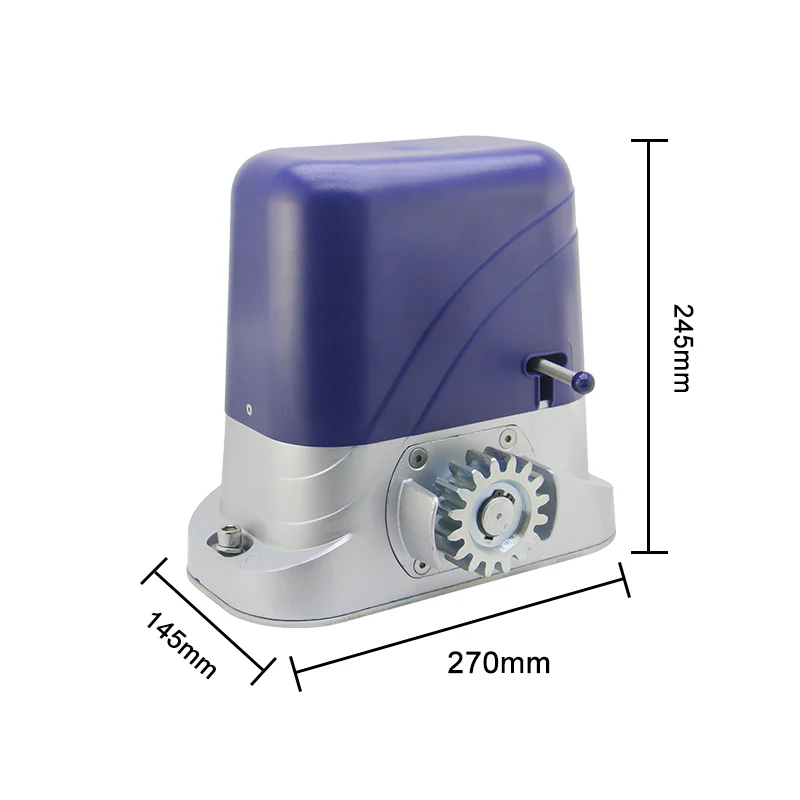

Heavy duty 800kg automatic sliding gate opener /sliding gate motor
Technical data:
| PYM A2201 | PYM A2202 | PYM-A2203 | |
| Rated Voltage | 220V±10%/110V±10% 50HZ/60HZ | 220V±10%/110V±10% 50HZ/60HZ | 220V±10%/110V±10% 50HZ/60HZ |
| Electric motor | 220VAC /110VAC | 220VAC /110VAC | 220VAC/110VAC |
| Rated Motor Power | 250W2 | 280W | 380W |
| Gear Modulus | M=4 | M=4 | M=4 |
| Max Loading Weight | 600KG | 800KG | 1300KG |
| Open/Close Speed | 12m/min | 12m/min | 12m/min |
| Output Speed | 50r/min±10% | 50r/min±10% | 50r/min±10% |
| Output Torque(N.m) | 16.8-32.0N.m | 16.8-32.0N.m | 16.8-32.0N.m |
| Limit Switch Type | Magnetic/spring | Magnetic/spring | Magnetic/spring |
| Max.Pull Force | 1100N | 1100N | 1100N |
| Noise | ≤55dBa | ≤55dBa | ≤55dBa |
| Working Temperature | -20°C ~ +55°C | -20°C ~ +55°C | -20°C ~ +55°C |
Sliding gate motor main features
1.The structure of integrated mechanic part and electronic part with built-in control panel, no any external controllers needed;

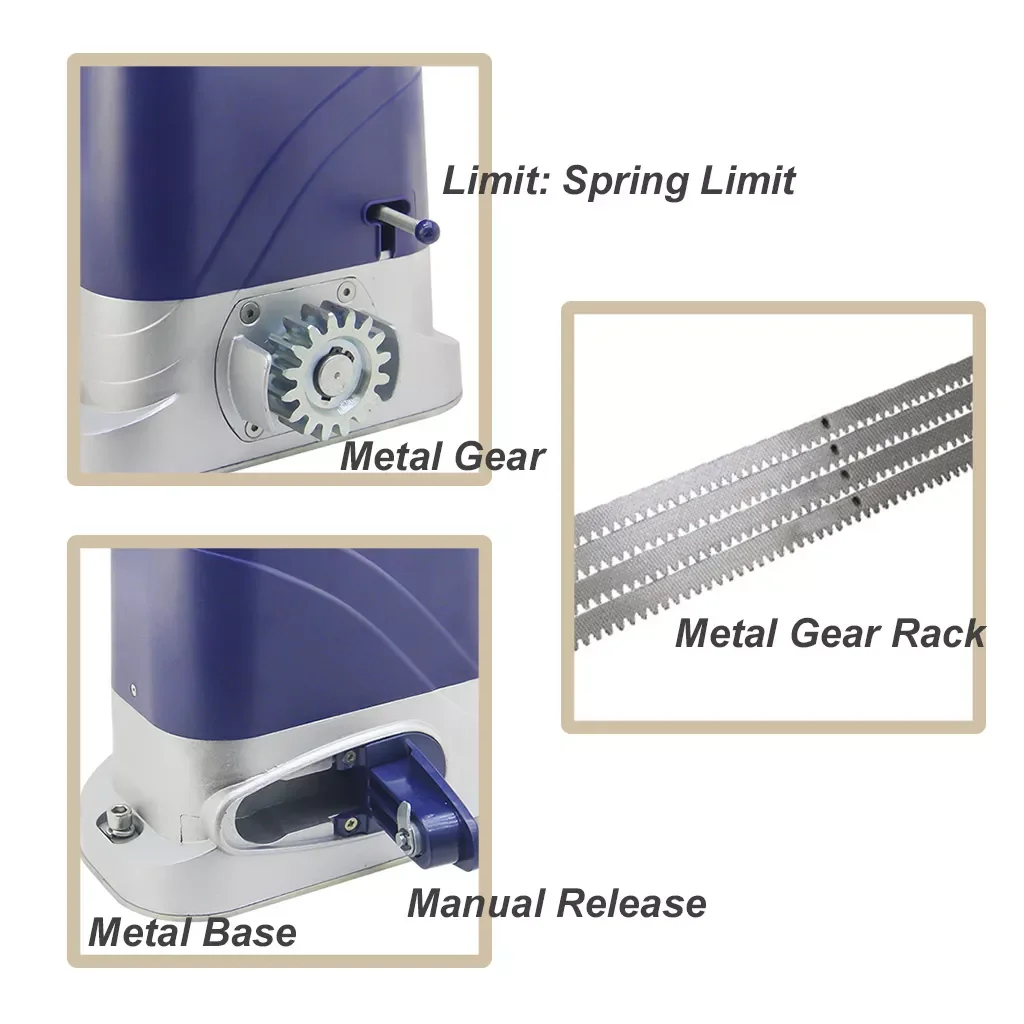

2.When power failure , use a allen key to release clutch,and push the door manually.
3.Gate auto stop and re-open when an obstacle is encountered
4.Auto close time can be adjusted from approximately 3 to 120seconds
5.Nice desin,heavy duty working with copper motor (many supplier use allumium motor ), copper worm gear,
6. Dc type can put transformer and back up battery inside.

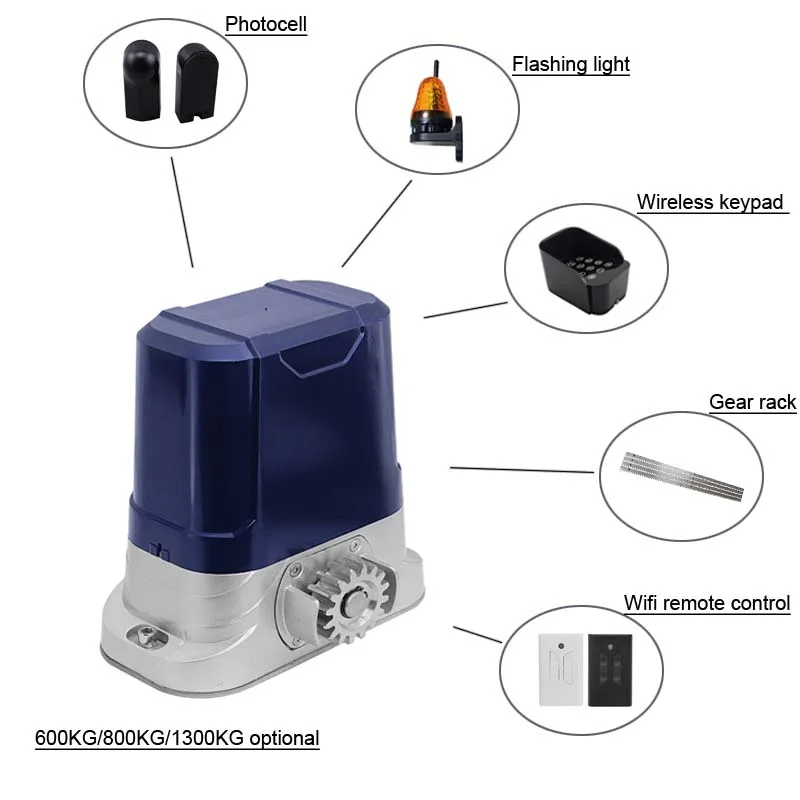

7. AC system have 600KG ,800KG , 1300KG for your optional

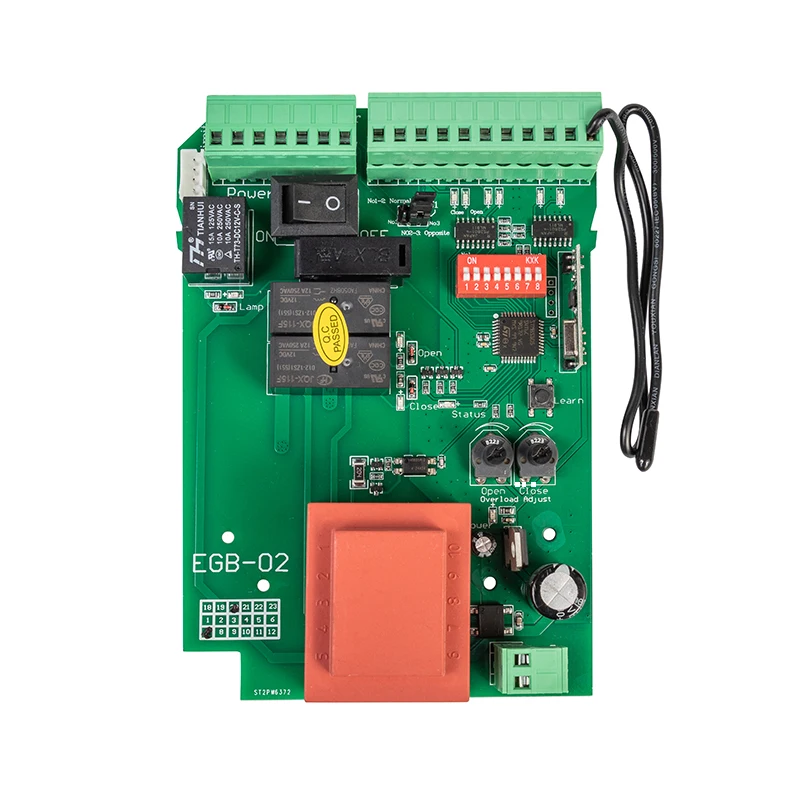

8.Control board have function for Pedestrian mode and condominium mode
Motor details :
1. Single button can finish all the control command(such as close,open,stop.)
2 Can adjust the output power of motor
3. Can adjust the working time of motor
4. Can program the time of auto close
5. Can set auto close when restored power after power off
6. Have the terminals for photocell, loop detector,IC card reader ,alarm light etc
7. Can match 30 remote controls at most
2 Can adjust the output power of motor
3. Can adjust the working time of motor
4. Can program the time of auto close
5. Can set auto close when restored power after power off
6. Have the terminals for photocell, loop detector,IC card reader ,alarm light etc
7. Can match 30 remote controls at most
Installation
Packing & Delivery

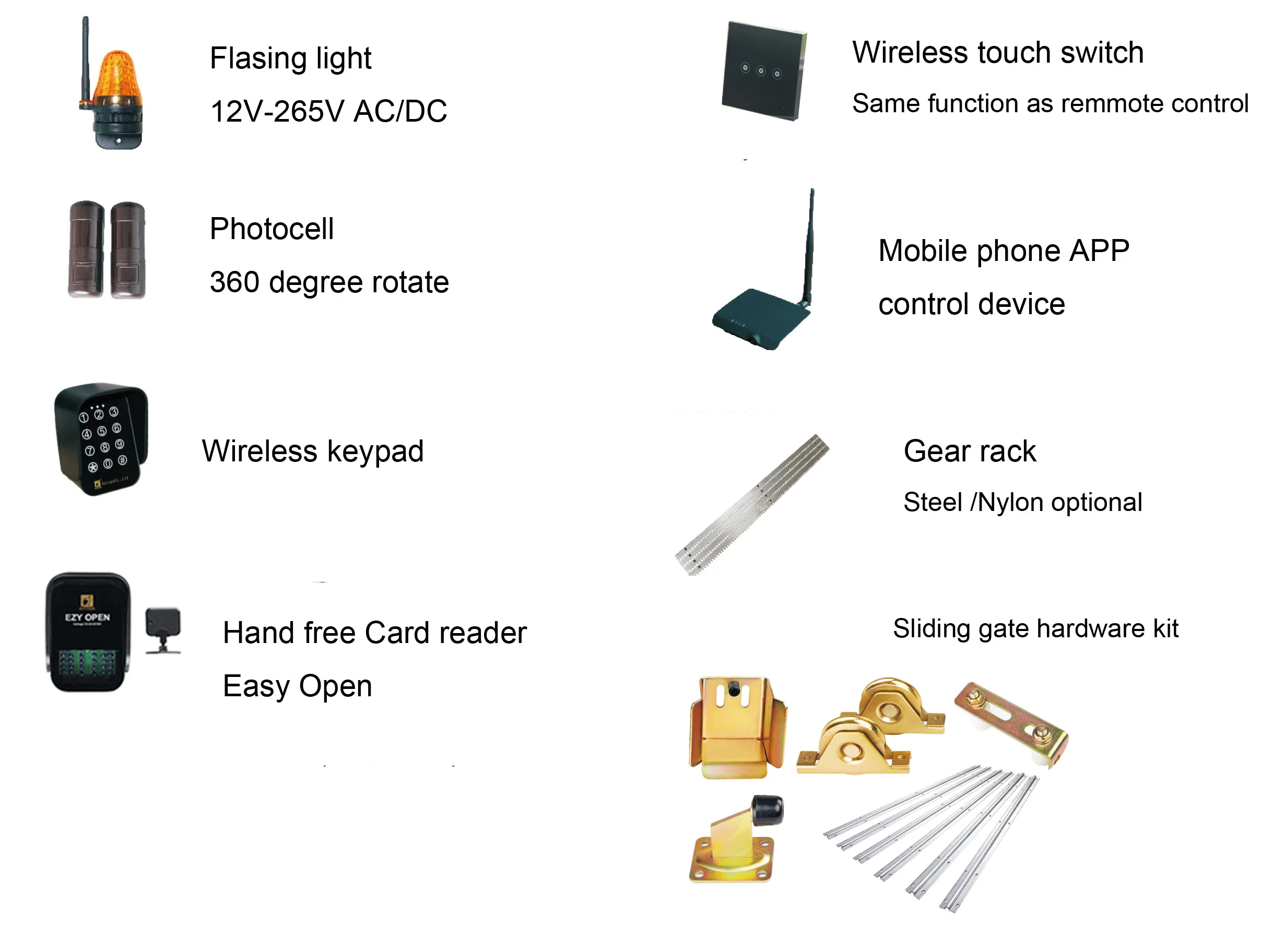

Optional accessories
with our wifi system , the gate can be monitor and controlled to open/close by mobile phone app
