Provide Good Service Wire Mes stainless steel cable tray making equipment roll forming machine

Share on:

Price:$58,000.00 - $60,000.00
Price in USD:Details


Product Overview

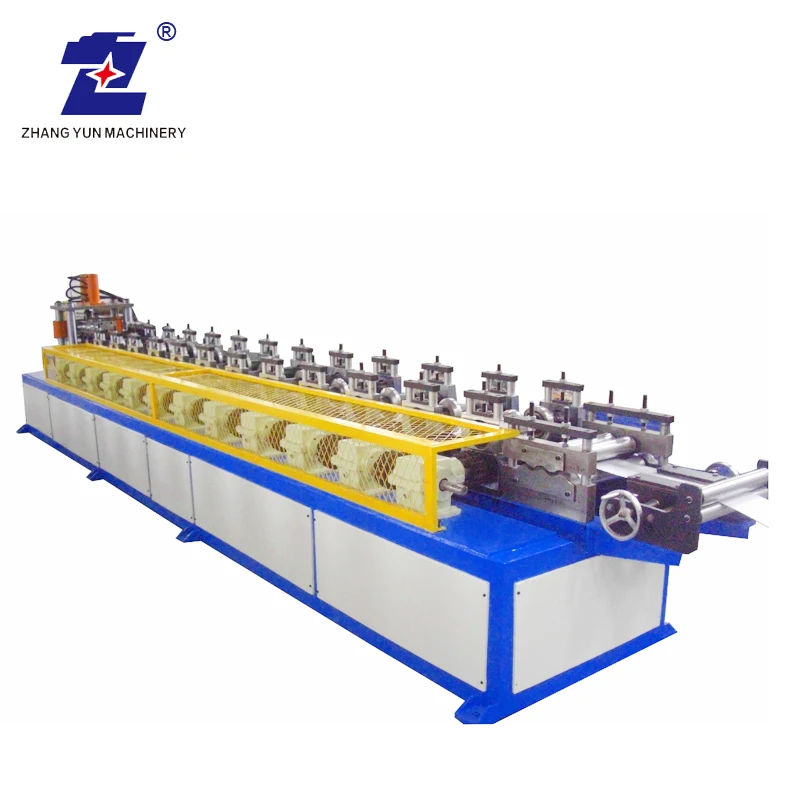

Galvanized Steel Wire Mesh Cable Tray Perforated Ladder Type Cable Tray Cable Tray Roll Forming Machine

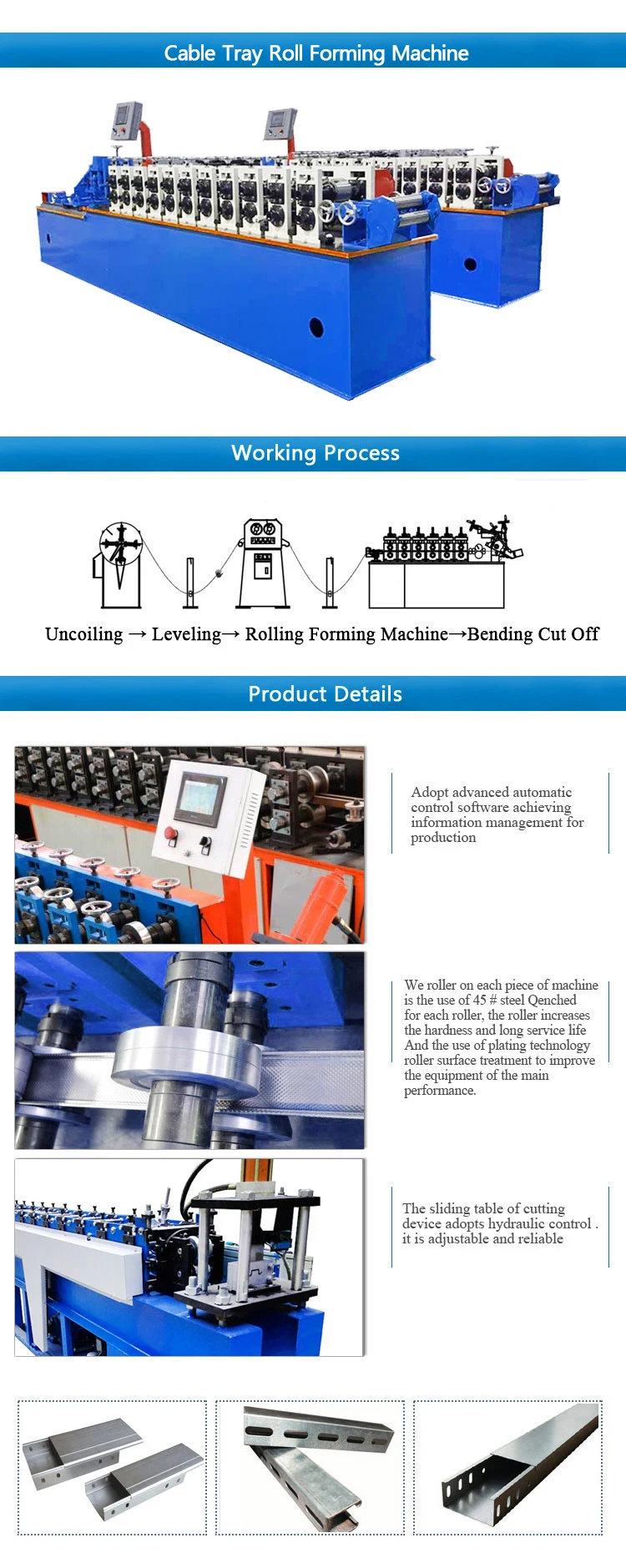

The production line is highly integrated by uncoiling, leveling, forming, cutting off, punching. The whole production line is controlled by PCL program. Operators can select a preset program to run the whole line automatically by using touch screen. The methods of operation include automatic control, manual control, separate operation and emergency stop.

1.  Equipment Technical Specifications:

1.1 Equipment Technical Conditions:

1.1.1 Floor Space: 30×3×3(L×W×H)m

1.1.2 Feed Direction: left to right

1.1.3 Voltage parameters: 380V/3PH/50Hz

1.1.4 Compressed Air: Flow Rate: 0.5m3/min

Pressure: 0.6MPa

Hydraulic Oil: 46# hydraulic oil

Gear Oil: 18# Hyperbolic gear oil

1.2   Main Technical Specifications:

1.2.1  Width of Strip: ≤500mm

1.2.2  Thickness of strip: ≤2.0mm

1.2.3 Material of strip: Carbon Steel

1.2.4 Forming Speed:4~5m/min

1.2.5 Length: 6000mm

1.2.6 Total Power: Approve 50Kw




               contact us  back to home


                1_05    1_06    1_07


1.Q: Are you manufacturer or trading company?

A: We are manufacture and trading company.

2.Q:What info you need before you make the proposal?

A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.

3.Q: what is the MOQ?

A: One set

4.Q: Do you provide installing and debugging overseas?

A: Overseas machine install and worker training services are optional.

5.Q: Can you make the machine according to my design or prototype?

A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

6.Q: How does your factory do regarding quality control?

A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.

7.Q: How can I trust you that machines pasted testing running before shipping?

A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?

A: we provide technical support on line as well as overseas services by skillful technicians.

9.Q: What should I do if I just start a new business?

A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.

10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?

A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.


Welcome to visit our factory!Hopefully to be your honest dealer and trustworthy supplier in China.
