5HP Chiller Industrial Cooling Air Cooled Chiller Brand Prices
5HP Chiller Industrial Cooling Air Cooled Chiller Brand Prices
5HP Chiller Industrial Cooling Air Cooled Chiller Brand Prices
5HP Chiller Industrial Cooling Air Cooled Chiller Brand Prices
5HP Chiller Industrial Cooling Air Cooled Chiller Brand Prices
5HP Chiller Industrial Cooling Air Cooled Chiller Brand Prices
5HP Chiller Industrial Cooling Air Cooled Chiller Brand Prices

5HP Chiller Industrial Cooling Air Cooled Chiller Brand Prices

Share on (1600521390325):


Price:$2,000.00 - $2,500.00

Quantity:


Product Overview

Description



Product Description

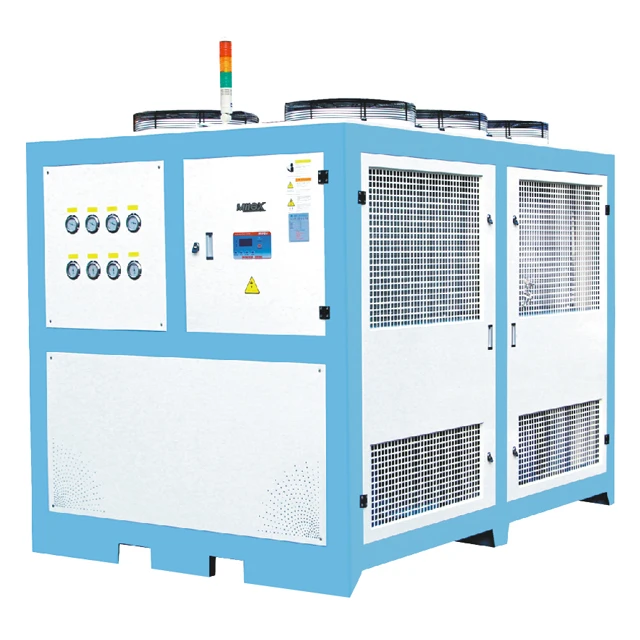

MIC-40A
MIC-5A~30A


Equipment
1.The chiller is deployed with P.I.D microcomputer controller, it can control the temperature between +5℃ and +25℃ exactly.
2.All electric parts are "Schneider" "Siemens" and "OMRON" brand etc.
3.Compressor is used "COPELAND" brand which is made in USA "Danfoss" brand from Denmark or "Panasonic" brand which is made in Japan also newly imported license together with the chiller.
4.High efficiency cooler and evaporator are passed ISO9002 certification, and also able to save more than 30%of electricity.
5.Complete with safety protection and error indication system, so it is convenience for operation and maintenance.
6.The copper tube is used the product of oxygen free welding method for reducing impurities in the interior portion of the tube and increasing the efficiency also the lifetime of compressor.


Stainless steel water tank

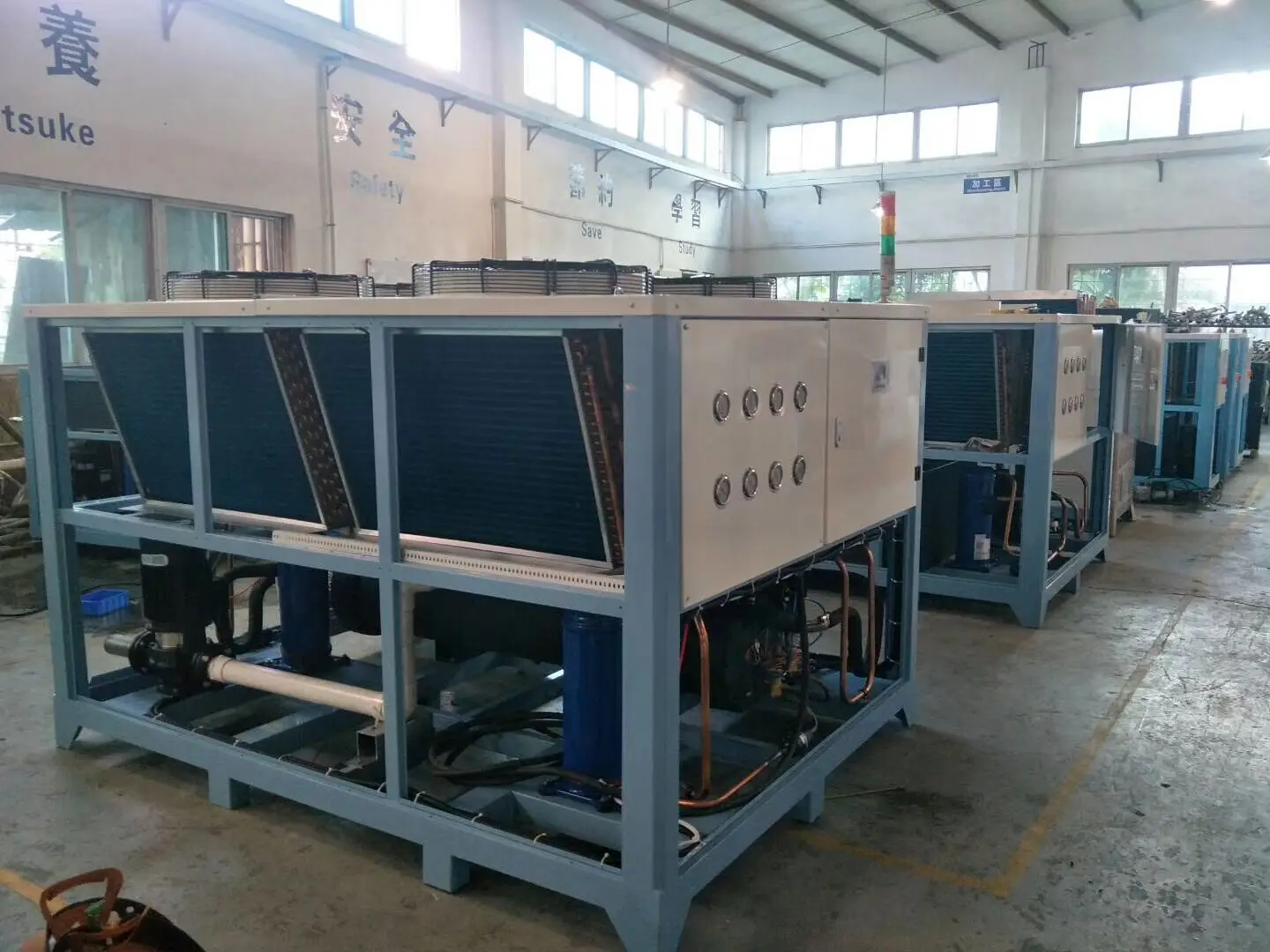

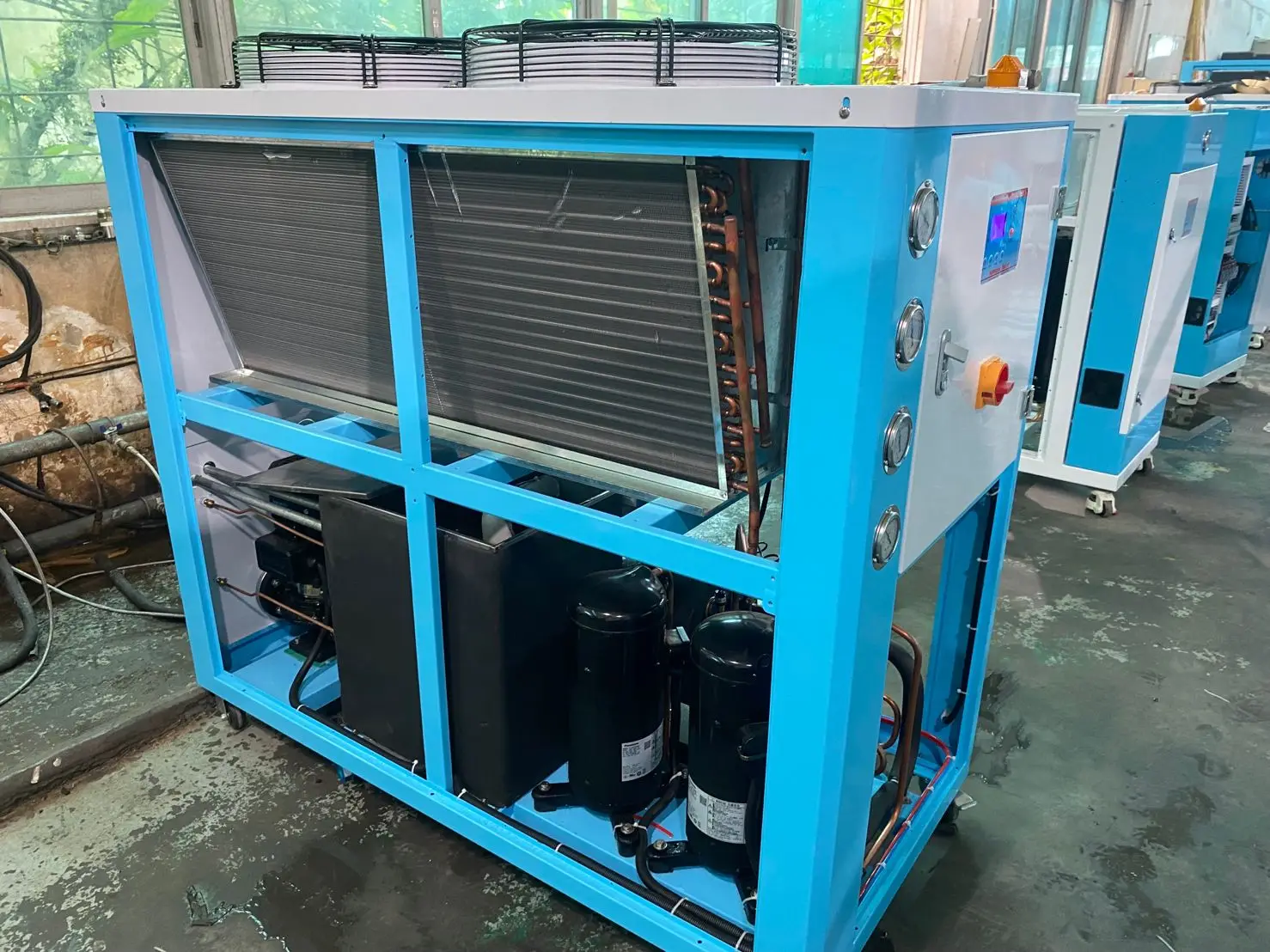

Fin type condenser , tube in shell evaporator


Panasonic brand compressor
Minamoto brand water pump
Electrics


Details Images












Product Paramenters


Model
5A
10A
15A
20A
25A
30A
Freezing capacity
KW
15.6
31.2
46.8
7862.4
93.6
93.6
Kcal/hr
13416
26832
40248
53664
67080
80496
Btu/hr
532354
106469
159704
212938
266173
319408
Compressor
power (KW)
3.95
2 x 3.95
2 x 6.3
2 x 7.95
2 x 9.1
 3 x 7.95
Refrigerant
Weight KW
2.5
2 x 2.5
2 x 5.5
2 x 6.0
2 x 7.5
3 x 6.0
Control mode
Thermostatic expansion valve
type
R22/ R407C (customized)
Evaporator
Type
Tube in shell
Condenser
Type
Fin style
Fan (KW)
0.38
2 x 0.38
2 x 0.78
2 x 0.78
2 x 0.78
3 x 0.78
Water tank
L
62
79
150
175
175
220
Pump
Power (KW)
0.75
1.5
1.5
2.2
3
4
Flow rate (L/min)
75
120
208
330
330
550
Pressure (kg/cm2)
2
2
2
2
2
2
Pipe Coupling
Chillerd water outlet (inch)
1
1.5
2
2
2
2.5
Chilled water inlet (inch)
1
1.5
2
2
2
2.5
Water supply port (inch)
0.5
0.5
1
1
1
1
Over flow port of water tank (inch)
0.5
0.5
0.5
0.5
0.5
0.5
Drainage port of water tank (inch)
0.5
0.5
1
1
1
1
Protective device
Compressor
Overload relay
Pump
Overload relay
Refrigerant circuit
HIgh and low pressure switches
Cooling water circuit
Water level switch / water flow switch (for option)/ by-pass valve (for option)
Power specification
380v, 3 phase , 50hz (can be customized )
Measures exchange
1KW=860kcal/hr  1RT=3024 kcal/hr     10000 btu/hr= 2520 Kcal/hr
Dimension
LXWXH MM
1450x765x1500
1750x765x1500
2150x1005x1700
2150x1005x1700
2550x1005x1700
3150x1005x1800
