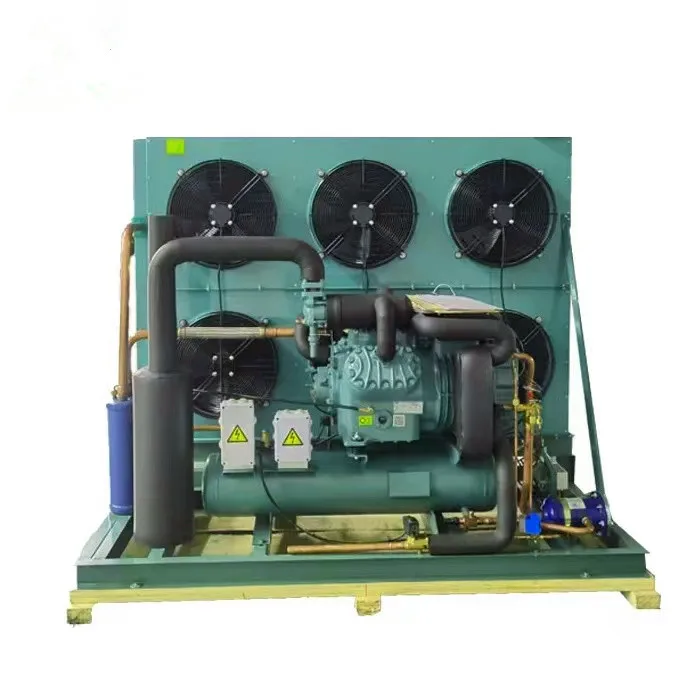

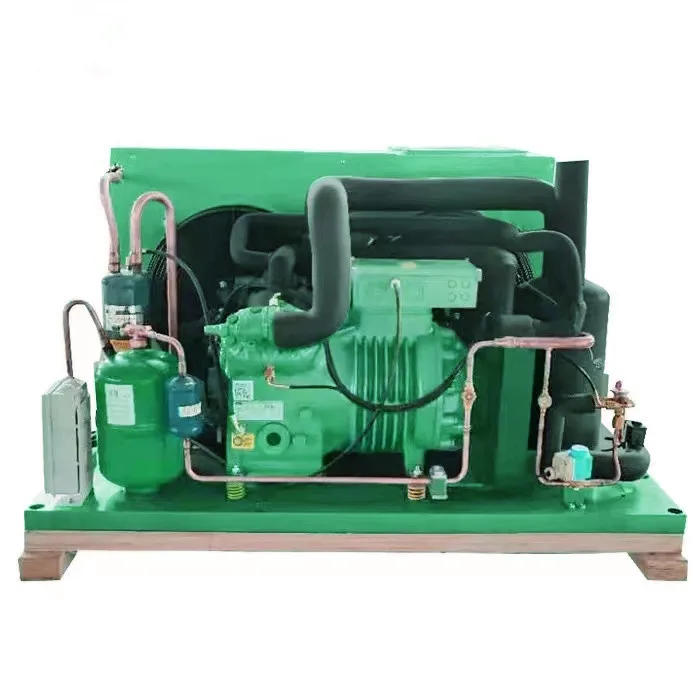

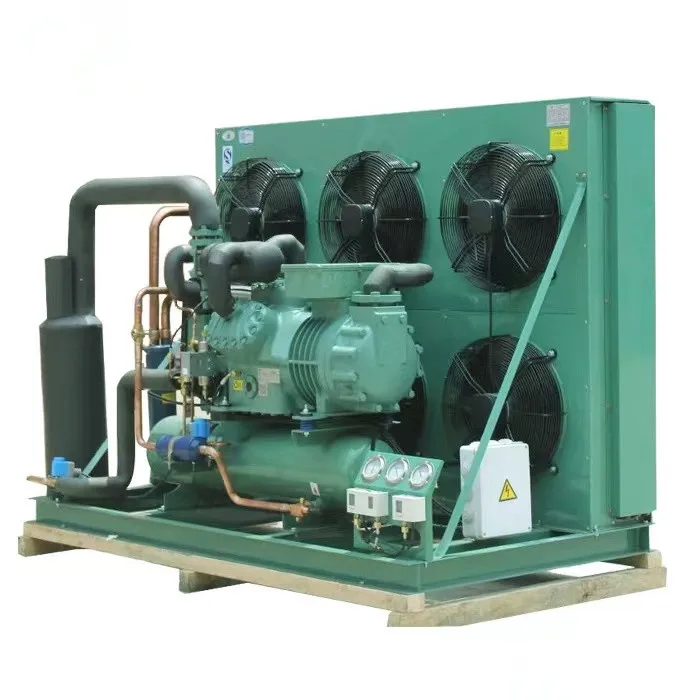

10 ton condensing unit cold room blast freezer condensing unit made in china compressor unit
- Category: Other Refrigeration & Heat Exchange Equipment >>>
- Supplier: Hangzhou Xuantong Machinery Co. Ltd.
Share on (1600521413636):
Product Overview
Description
Product Description
10 ton condensing unit 15 tons cold room blast freezer condensing unit compressor unit with best price
Products Description
air conditioning compressor condensing unit 10hp with best quality

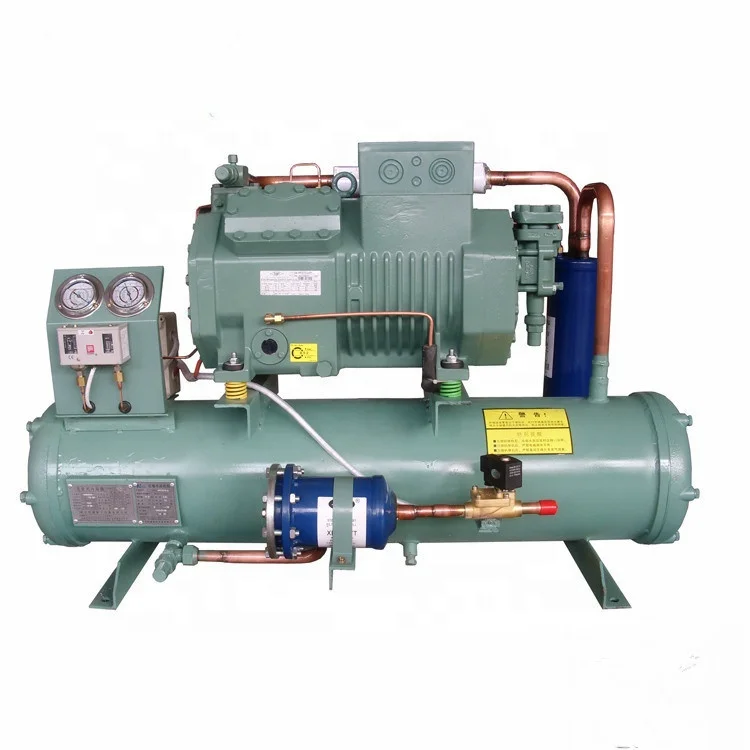

Main components of this 5HP Piston Water cooled Condensing unit:
1.Semi-Hermetic Piston Compressor
2.Water-cooled Condenser (Combined with Liquid Reservoir)
3.High and low pressure gauge
4.Pressure controller
5.Solenoid valve
6.Dying Filter
7.Refrigeration Oil
Liquid Sight Glass, Oil separator, Liquid-gas separator and Electric control box can be configured
1.Semi-Hermetic Piston Compressor
2.Water-cooled Condenser (Combined with Liquid Reservoir)
3.High and low pressure gauge
4.Pressure controller
5.Solenoid valve
6.Dying Filter
7.Refrigeration Oil
Liquid Sight Glass, Oil separator, Liquid-gas separator and Electric control box can be configured

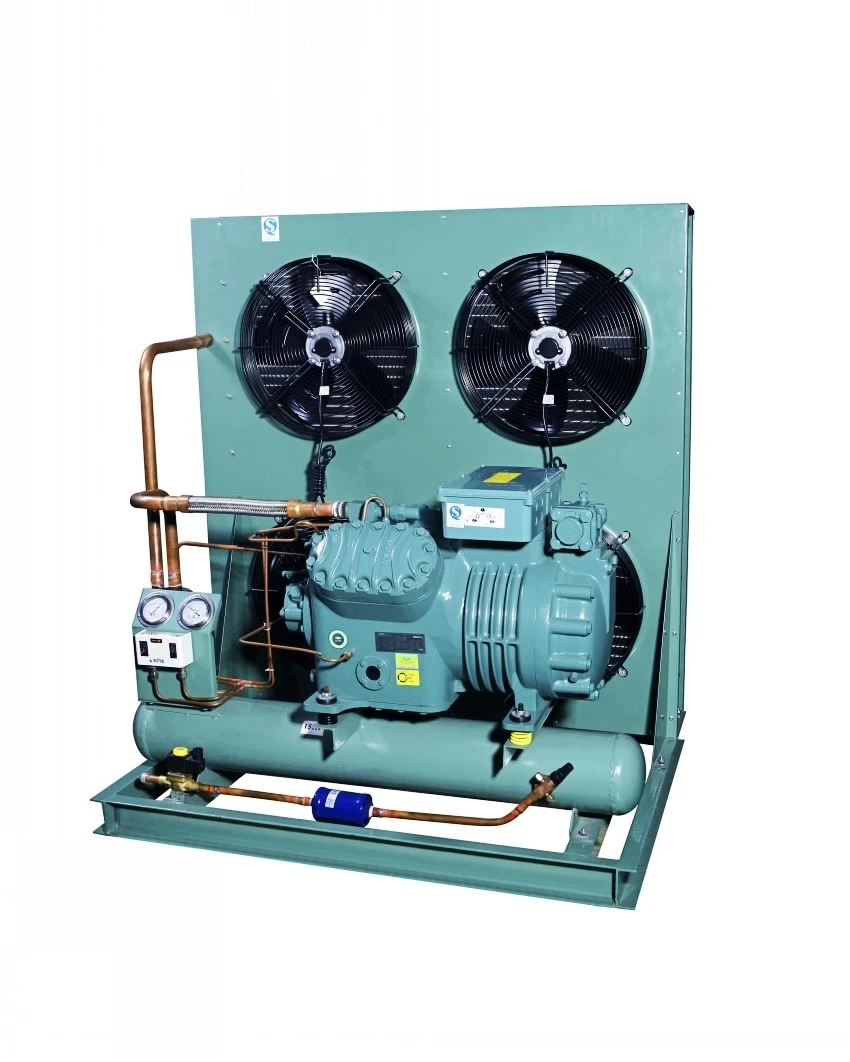

min&high temp.bitzer semi-hermetic reciprocation air cooled condensing unit | ||||||||||||||||||
model | 005BZA | 007BZA | 010BZA | 015BZA | 020BZA | 025BZA | 030BZA | 045BZA | 050BZA | |||||||||
compressor model | 4FES5 | 4DES-7 | 4VES-10 | 4PES-15 | 4NES-20 | 4HE-25 | 4GE-30 | 6GE-40 | 6FE-50 | |||||||||
cooling capacity W | 11.54 | 17.5 | 23.2 | 32.1 | 37.9 | 50.4 | 58.4 | 86.8 | 104.5 | |||||||||
power w | 3.6 | 5.42 | 6.81 | 9.49 | 11.12 | 14.89 | 17.14 | 25.7 | 31.3 | |||||||||
refrigerant | R22 | |||||||||||||||||
power supply | 380v/3ph/50hz | |||||||||||||||||
air flow | 6000 | 7200 | 12000 | 18000 | 24000 | 24000 | 27000 | 36000 | 48000 | |||||||||
receiver volume | 10 | 15 | 17 | 22 | 25 | 40 | 40 | 45 | 75 | |||||||||
mounting size | 960*445 | 1140*755 | 1140*805 | 1140*805 | 1500*885 | 1260*420 | 1260*420 | 1000*420 | 1000*420 | |||||||||
min&low temp.bitzer semi-hermetic recriprocating air cooled condensing unit | ||||||||||||||||||
model | 003LBZA | 004LBZA | 005LBZA | 008LBZA | 010LBZA | 015LBZA | 020LBZA | 030LBZA | 040LBZA | |||||||||
compressor model | 4EES-4 | 4DES-5 | 4TES-9 | 4PES-12 | 4HE-18 | 4GE-23 | 6HE-28 | 6GE-34 | 6FE44 | |||||||||
3.84cooling capacity w | 3.84 | 4.68 | 7.33 | 8.5 | 12.48 | 14.52 | 18.72 | 21.8 | 26.4 | |||||||||
power w | 2.75 | 3.36 | 5.2 | 5.79 | 8.92 | 10.77 | 13.37 | 16.13 | 19.42 | |||||||||
refrigerant | R22 | |||||||||||||||||
power supply | 380V/3PH/50HZ | |||||||||||||||||
air flow | 6000 | 6000 | 6000 | 7200 | 12000 | 12000 | 24000 | 27000 | 36000 | |||||||||
receiver volume | 6 | 8 | 10 | 12 | 17 | 22 | 25 | 40 | 45 | |||||||||
mounting size | 960*445 | 960*445 | 960*445 | 1140*775 | 1140*775 | 1140*805 | 1500*865 | 1260*420 | 1000*420 | |||||||||
