F670L GPON ONU ONT modem 4GE 1POTs 1USB Dual Band 2.4G&5.8G AC WIFI6 GPON router for ZTE
- Category: >>>
- Supplier: Microlink Electronics Co. Ltd.
Share on (1600521909600):
Product Overview
Description
F670L GPON ONU ONT modem 4GE+1POTs+ 1USB+ Dual Band 2.4G&5.8G AC WIFI6 GPON router for ZTE
Product Description
DESCRIPTION

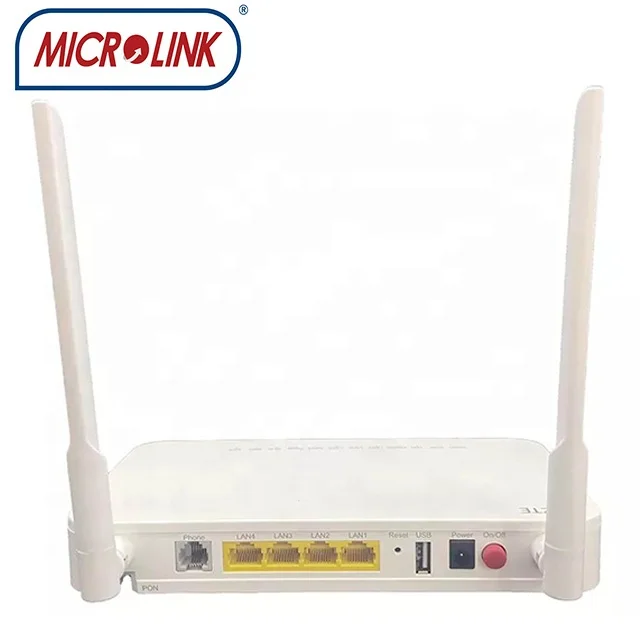

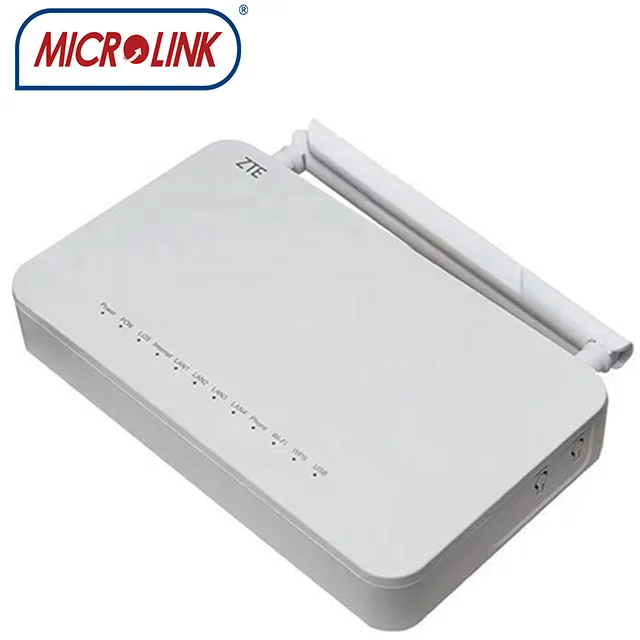

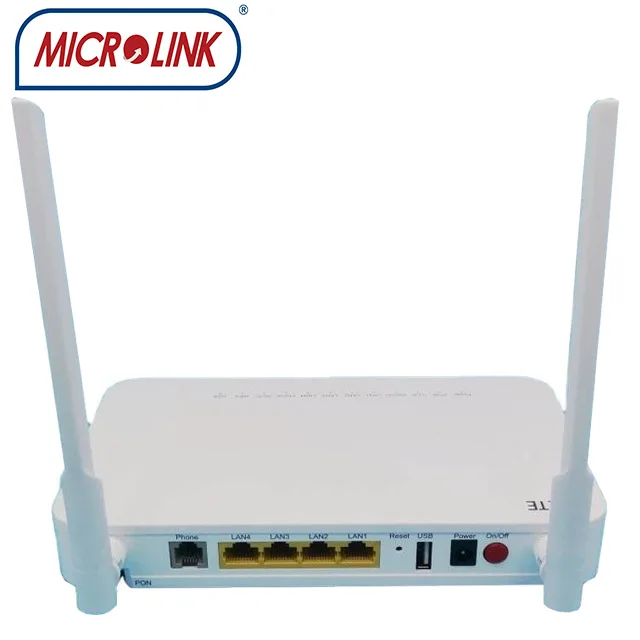

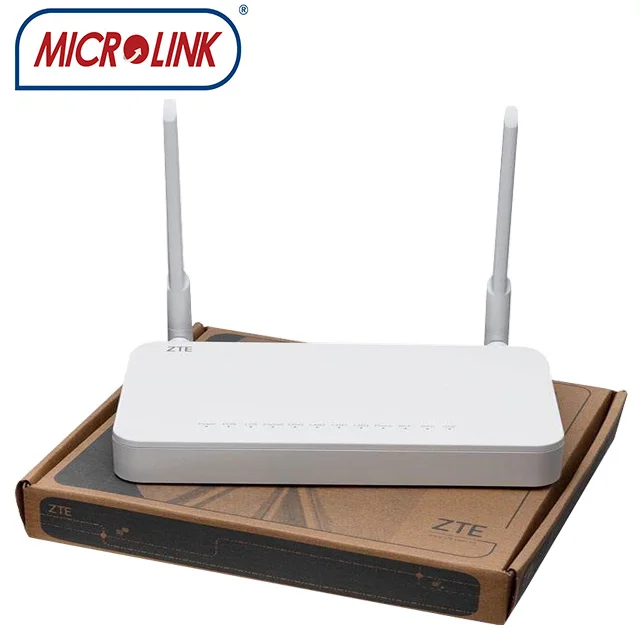

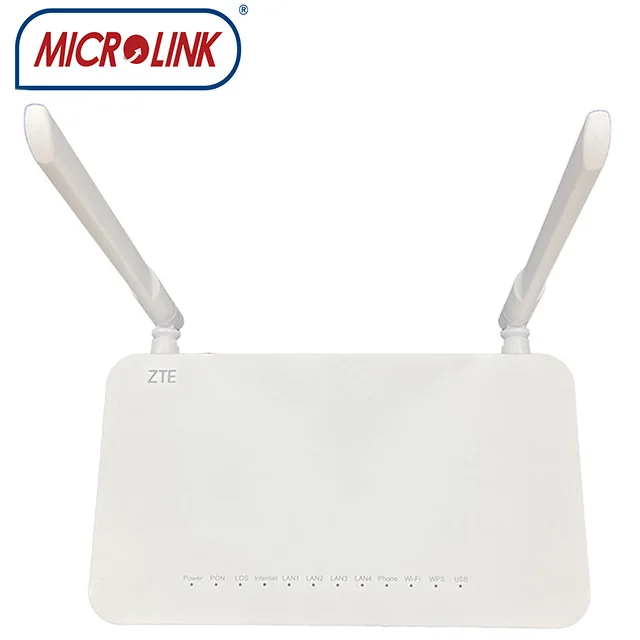

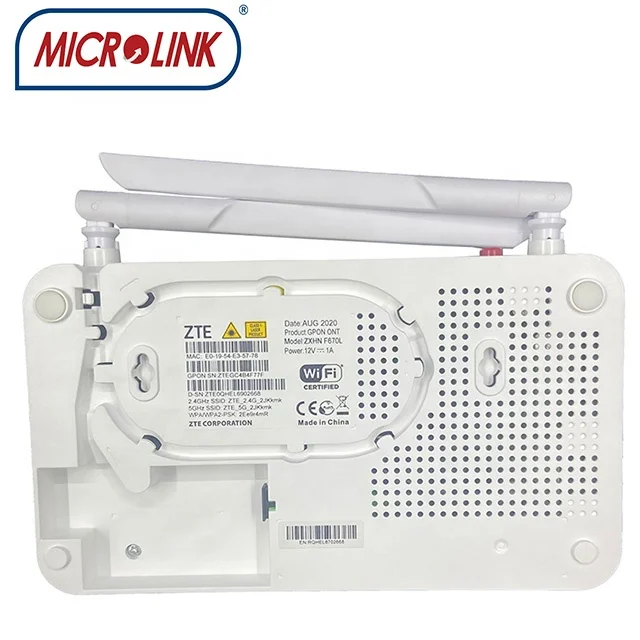

ZTE ZXHN F670L FTTH is a dual band Gigabit Premium triple-play GPON gateway. It comes with 4GE
LAN ports, one phone port and next generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz
2×2 over 802.11n and 5GHz 2×2 over 802.11ac. Based on customer requirements, the maximum 5dBi
gain antennas can enhance the Wi-Fi coverage area and improve the performance.
FEATURE
Meeting different scenarios requirements to provide different interfaces such as FE, GE, VoIP, E1 WiFi
USB and other interfaces to meet the requirements of FTTH, FTTO and FTTB application modes, not
only for the home user but also for commercial users.
Easy for deployment Mounting mode and fibre coiling make installation very easy, with the batch
configuration on EMS to ensure zero configurations on the ONT side.
Easy for troubleshooting Supporting ONT signal tracing and performance monitoring, and quickly locate
the fault on ONT.
Particular power saving Supporting status monitoring when ONT is free, and enter low power consumption
state;
Optical module can also enter a low-power state when the battery is working.
DATASHEET
Wavelength | Insertion force | Receiving: 1480nm~1550 nm Transmitting: 1290nm~1330 nm | |||||||
GPON PORT | |||||||||
Downstream rate: 1.244GHz | |||||||||
Upstream rate: 2.488 GHz | |||||||||
Receiving sensitivity: -28dBm | |||||||||
Transmitting optical power :0.5dBm~5dBM | |||||||||
Transmission distance :0~20KM | |||||||||
Optical Interface | SC/UPC connector | SC/APC Connector | |||||||
Wifi external | IEEE 802.11b/g/n @2.4GHz;IEEE 802.11a/n/ac @5GHz | ||||||||
USB Interface | 1x USB2.0 host | ||||||||
POTS interface | 1x FXS | ||||||||
LAN Interface | 4 x10/100/1000Mbps auto adaptive ethernet interfaces | ||||||||
rj45 connector ,Full/Half duplex mode, Auto negotiation;Auto MDI/MDIX | |||||||||
MAIN FUNCTION | Router mode | ||||||||
Support Service | VoIP, Internet, IPTV,CATV | ||||||||
Gpon | 8 T-CONTs, 32 GEM Ports | ||||||||
Vlan | 802.1Q, 802.1P, 802.1ad | ||||||||
MAC address table | 1024 | ||||||||
Mode | Bridge, Router, AP | ||||||||
L3 function | DHCP server/Client, DNS Client, NAT | ||||||||
IPv6 | Dual Stack, DS-Lite | ||||||||
VoIP | SIP/H.248, G.711/G.722/G.729, T.30/T.38 | ||||||||
Wi-Fi | 4 SSIDs, 2x2 MIMO(2.4GHz), 2X2MIMO (5GHz),WPS | ||||||||
Wi-Fi authentication | Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + | ||||||||
WPA2-PSK, WPA2-Enterprise | |||||||||
Multicast | IGMP v1/v2/ Snooping/Proxy, MLD v1 Snooping | ||||||||
Multicast group/User port | 256 | ||||||||
QoS | service flow classification based on physical port, MAC address, VLAN ID | ||||||||
VLAN priority level, IP address; SP/WRR/SP+WRR | |||||||||
USB | DLNA DMS, USB backup, 3G/LTE dongle | ||||||||
Management | local web management, OMCI, TR069 | ||||||||
LED | PWR,PON,LOS,WIFI,PHONE,LAN1~LAN4, WPS, USB, Internet 12 LEDs | ||||||||
Push-Button | Reset, WLAN, WPS (3 buttons for setting) | ||||||||
Power Supply | DC 11V~14V /1.5A | ||||||||
Power Consumption | ≤10W | ||||||||
Dimension | 205mm(W) * 28mm(H)*120mm(D) ( exclude antenna and base) | ||||||||
Weight | 630g (include package) | ||||||||
Operating Condition | Temperature:0°C – 40°C | ||||||||
Humidity : 5% ~95%RH | |||||||||
