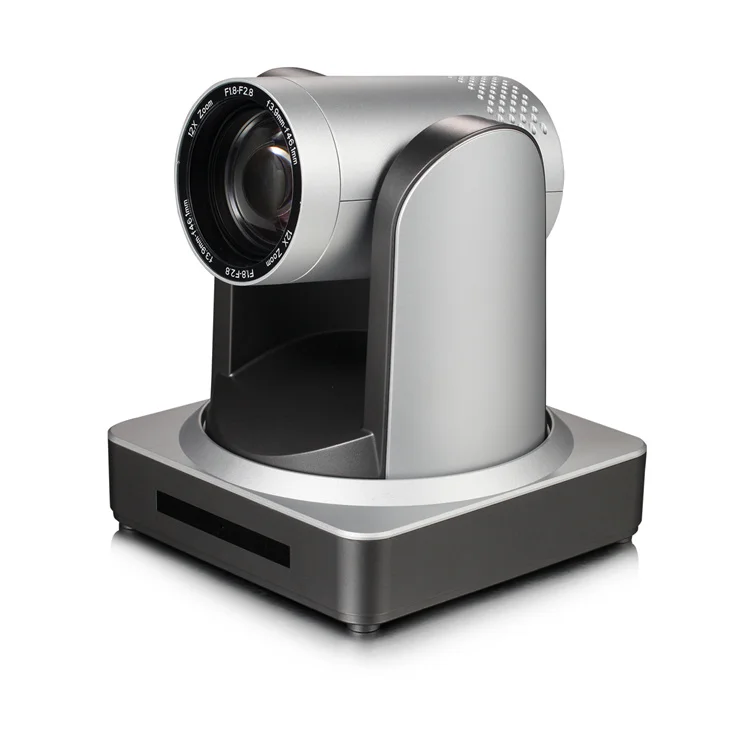

Large Room 30X Optical Zoom 65.1 View Angle PC TV Monitor PTZ Camera for Live Streaming Lecture Video Conferencing
- Category: >>>
- Supplier: Shenzhen Panda Cloud Industry Co. Ltd.
Share on (1600521936282):
Product Overview
Description
Product Description

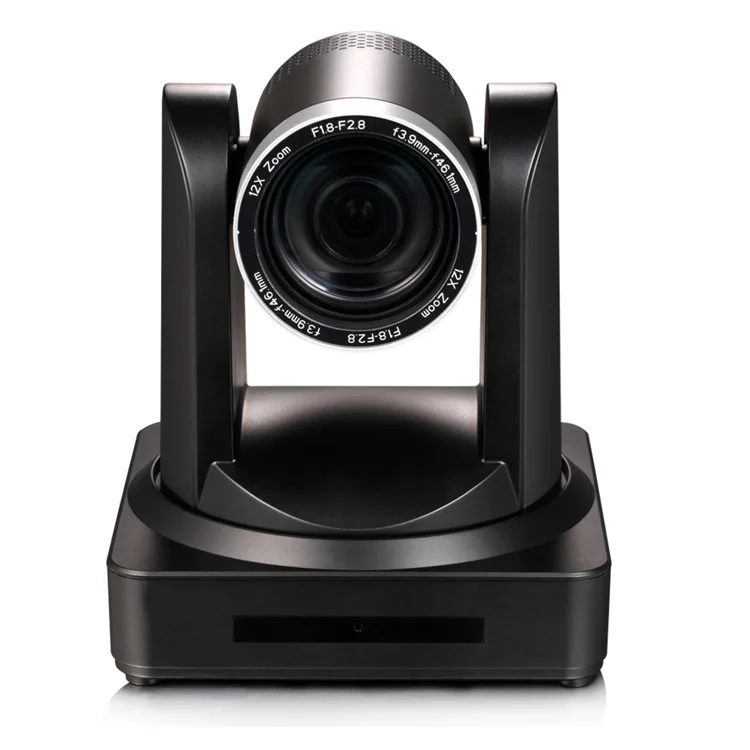

Large Room 30X Optical Zoom 65.1 View Angle PC TV Monitor PTZ Camera for Live Streaming Lecture Video Conferencing
Model: UVC30X-SDI
Selling Points:

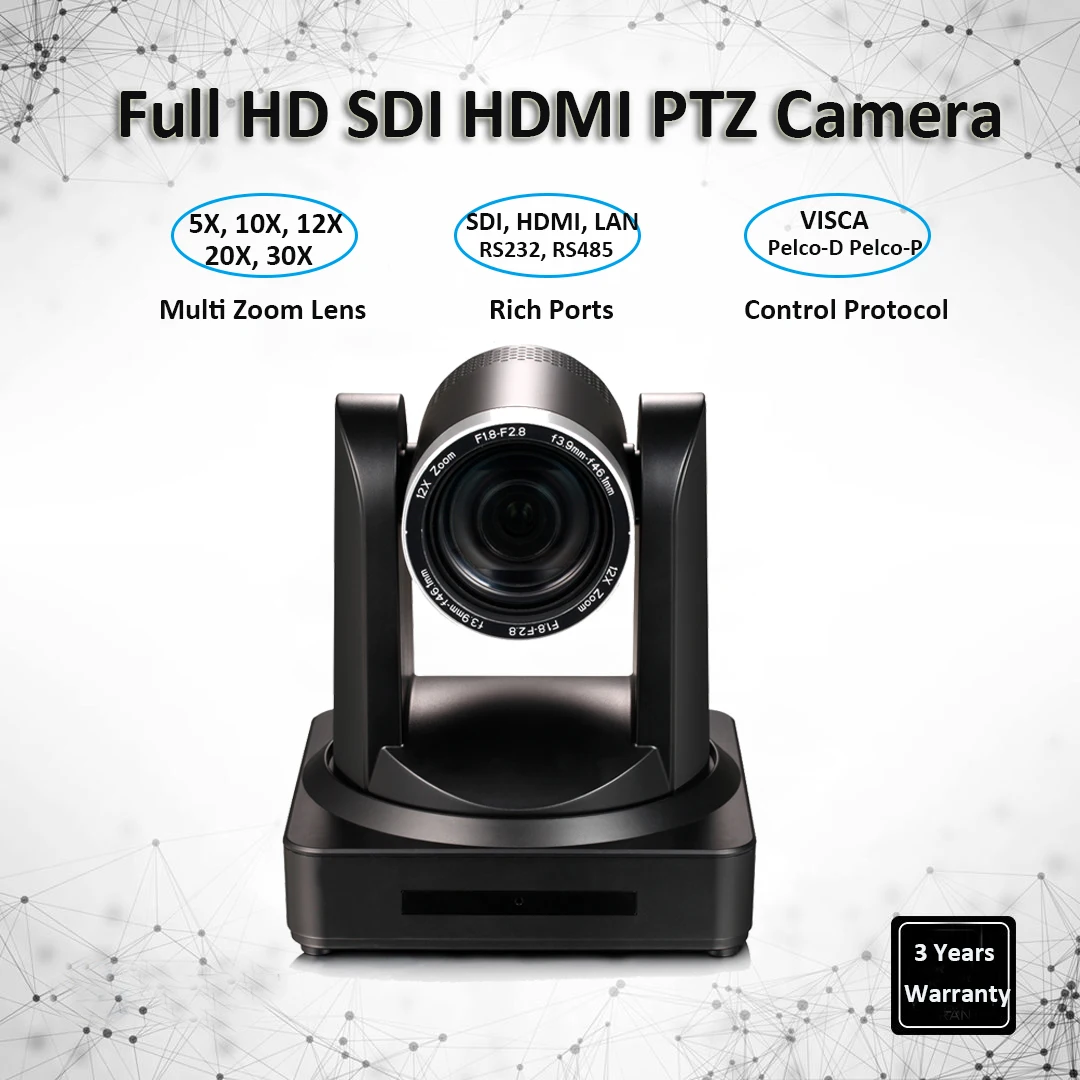

1. Multiple Lens：5X, 10X, 12X, 20X, 30X Optical Zoom.
2. Multiple Video Output Interfaces: 3G-SDI, HM, LAN (IP).
3. POE Power Supply supported.
4. Low Light Performance. The video image is same good at night and day.

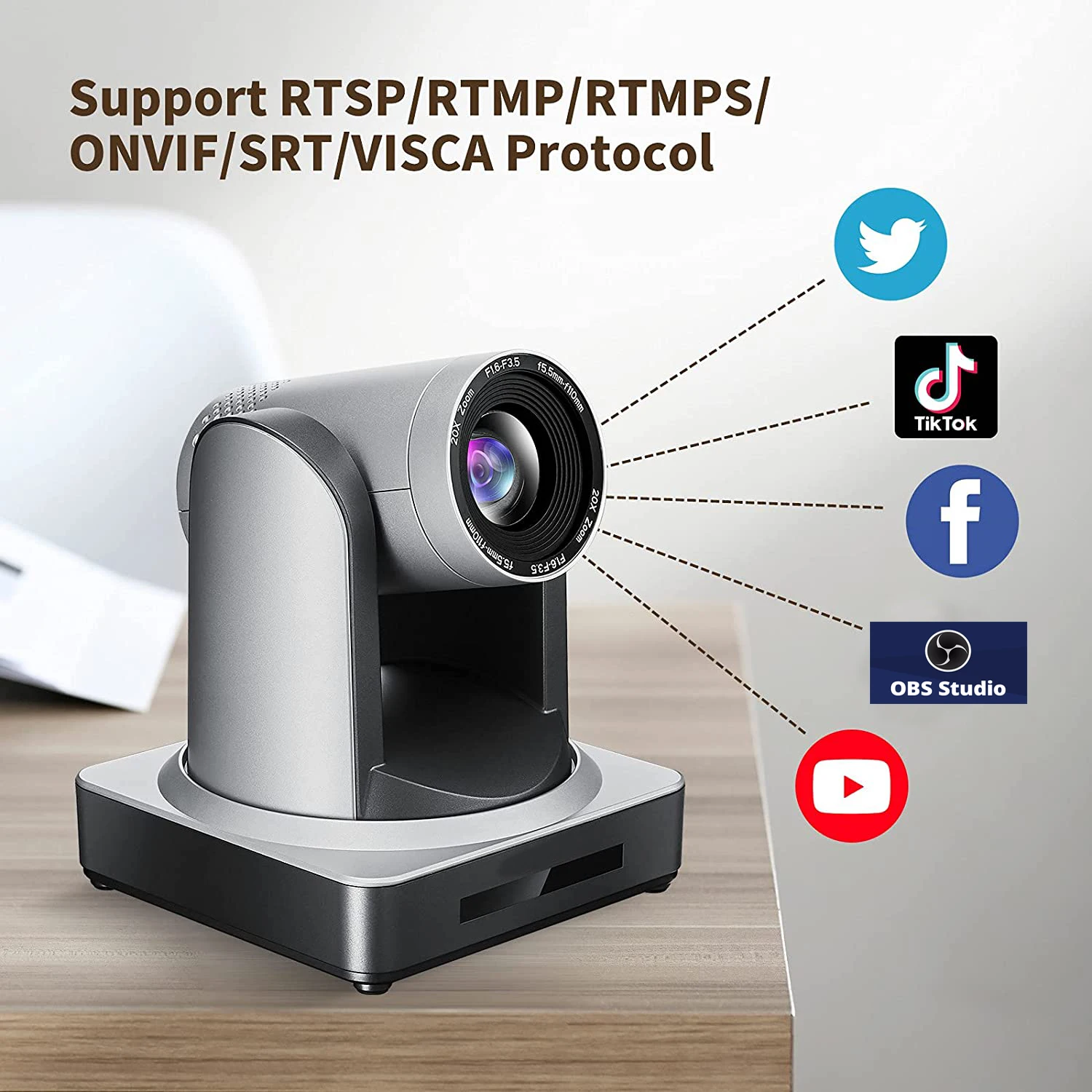

5. Multiple Network Protocol: ONVIF, RTSP, RTMP, GB/T28181, visca, RTP
6. Superb High-definition Image: 2.8 inch high quality CMOS sensor
Details Images
Specification
Model | UVC30X-SDI | |
Product Name | SDI PTZ Camera for Broadcast Live Streaming | |
Camera | ||
Effective Pixels | 2.07MP | |
Video Format | 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97 | |
Lens | 30X Optical Zoom | |
View Angle | 65.1° | |
WDR | OFF/ Dynamic level adjustment | |
Digital Zoom | 10X | |
Minimal Illumination | 0.05Lux(F1.8, AGC ON) | |
White Balance | Auto / Manual/ One push | |
Digital Noise | 2D, 3D digital noise reduction | |
SNR | ≥55dB | |
Pan Rotation | -170°+170° | |
Tilt Rotation | -30° +90° | |
Preset Number | 255 presets (10 presets by remote controller) | |
Interfaces and Key Features | ||

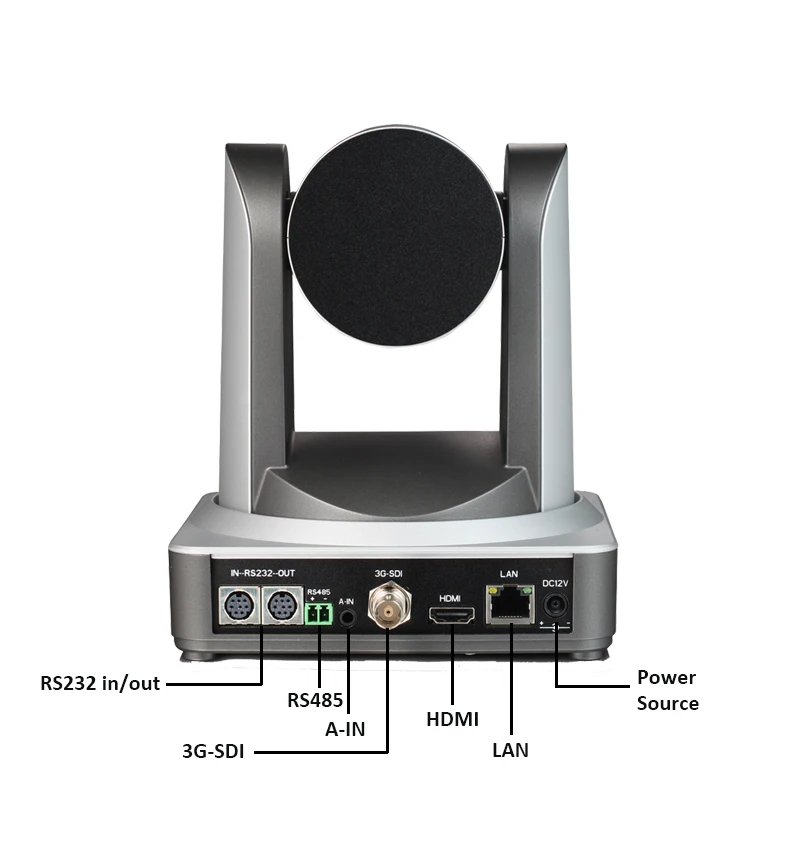

Video Interface | 3G-SDI, HM, LAN, RS 232 ( input & output), RS 485 , A-IN | |
Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps | |
Video Compression Format | H.265 H.264 | |
Network Protocol | RTMPS, RTSP, RTMP, ONVIF, GB/T28181, NDI, Network VISCA Control Protocol | |
Audio input | Double track 3.5mm linear input | |
Audio Compression Format | AAC/MP3/PCM Audio compression | |
Others | ||
Dimension | 150mmX150mmX167.5mm | |
Weight | 1.4kg | |
MTBF | 30000h | |

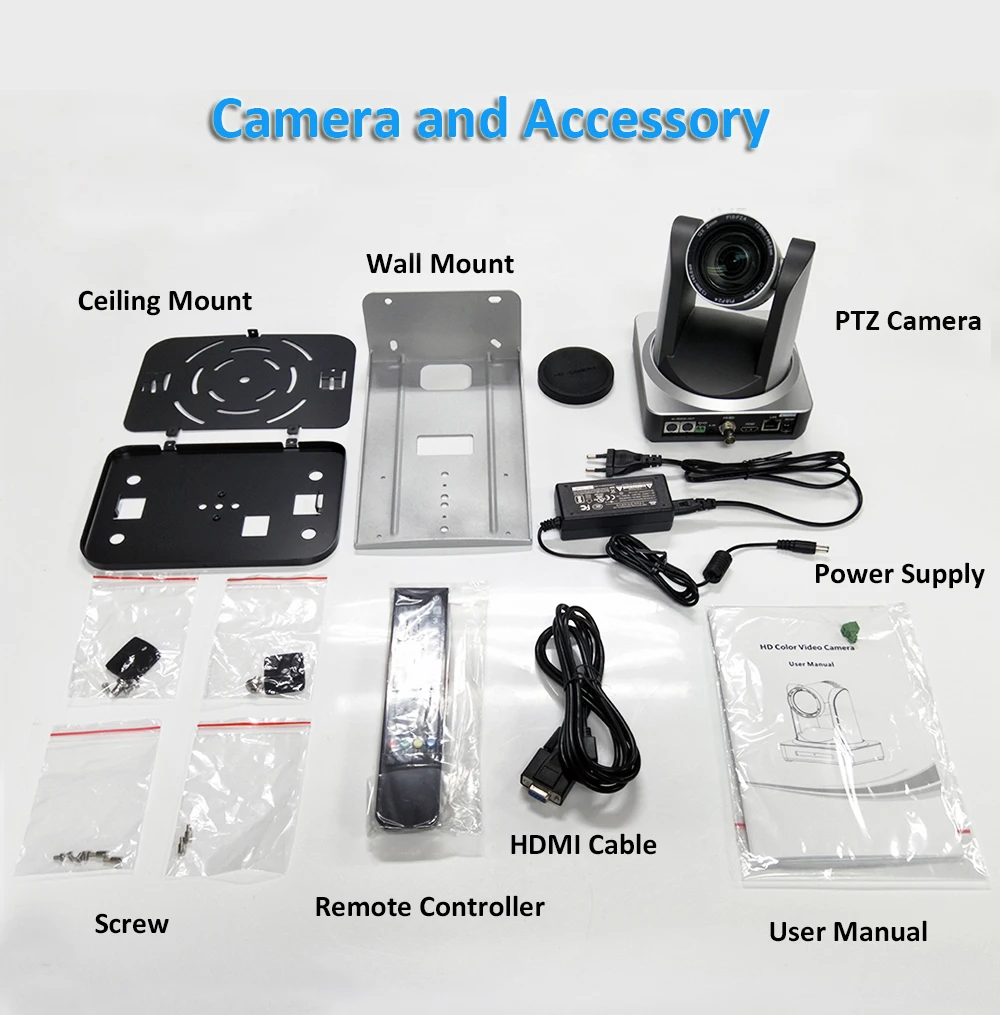

Accessory | Power supply, RS232 control cable, Remote controller, User manual | |
Warranty | 3 years | |
Certification | CE, FCC, ROHS, UL | |
Application | Video Conference, Broadcast, Education, Tele-medicine | |
Compatible with various video conference software
Shenzhen Panda Cloud Industry Co.,Ltd is leading manufacturer for video conferencing products in China. We have strong R&D and production team to provide high technical and high quality products. We are specialized in USB camera, NDI camera, AI tracking camera and speakerphone for video conferencing, live streaming, tele-medicine and distance learning.
Our Vision is to concentrate video products and provide perfect service and professional products to realize win-win.
Our Vision is to concentrate video products and provide perfect service and professional products to realize win-win.
