100 Квар низковольтная компенсация реактивной мощности, качественный продукт, статический Квадрокоптер генератор
- Category: >>>
- Supplier: Anhui Zhongdian Electric Co. Ltd.
Share on (1600522129825):
Product Overview
Description

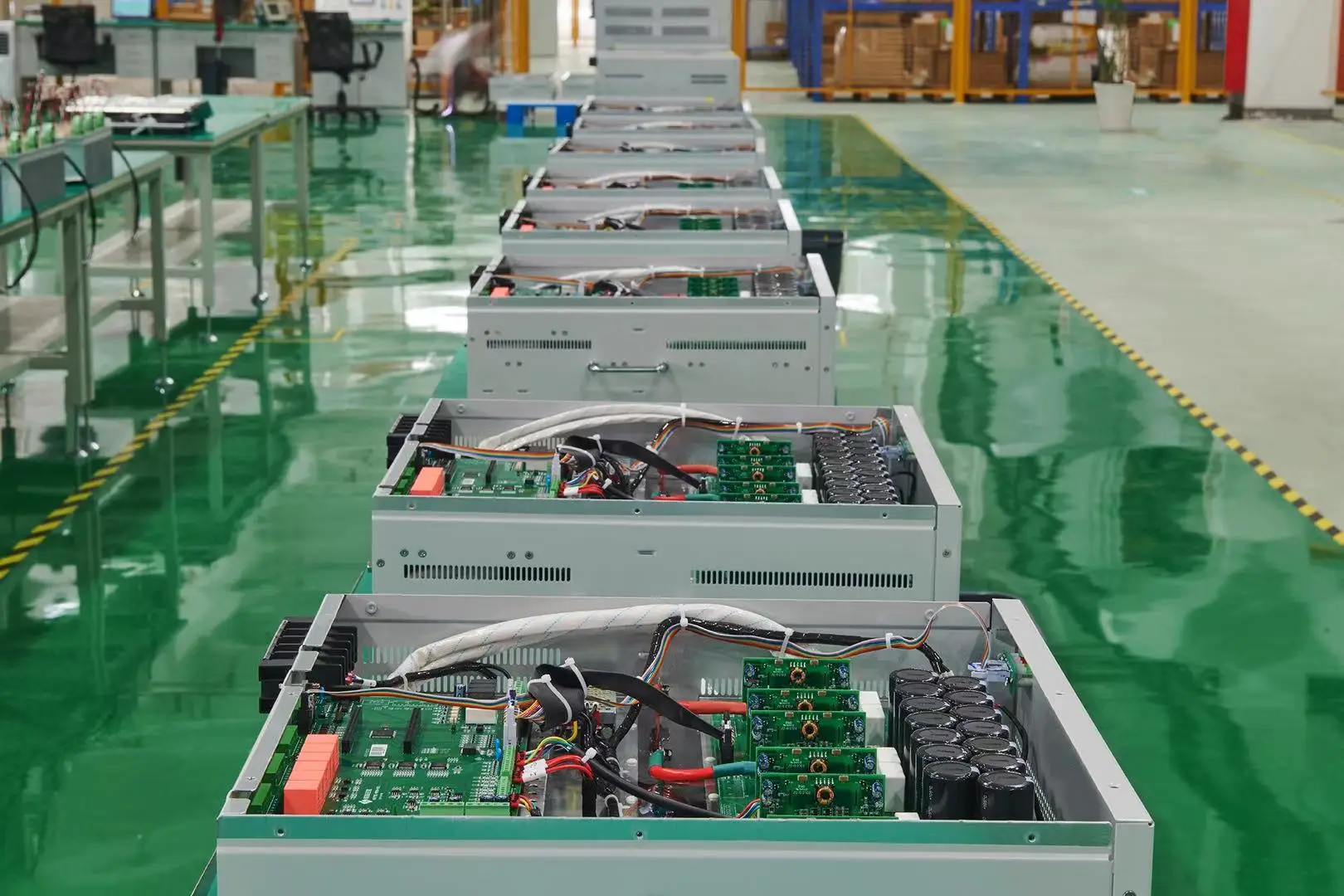

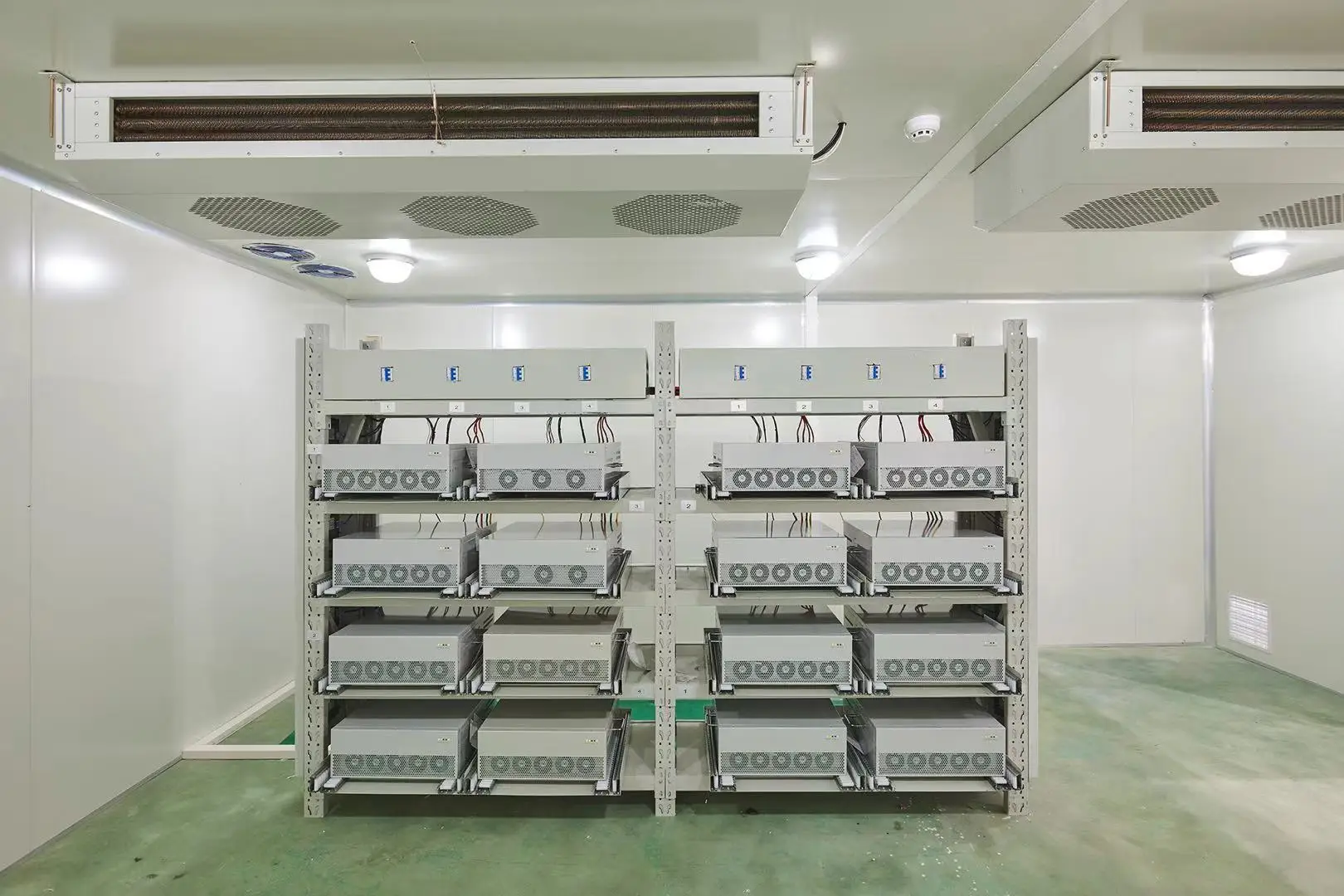

ZDDQ Factory
Anhui Zhongdian(ZDDQ) Electric Co., Ltd. established in 2001. ZDDQ Technology Park locates in Bengbu City of Anhui Province. We're professional and leading manufacture, focus on advanced power quality improvement and power factor correction. APF, SVG, APFC are our main products. ZDDQ has a leading independent R&D team and quality supervision system, and maintain long-term cooperative relations with China University of Science and Technology, Zhejiang University and a number of well-known institutions.
We insists on customers’ demand as the guide, with the technology innovation as the drive, through 20 years technology accumulation, has already owned a series of power quality products including:
Which are widely used in many countries and industries such as power grid, hospital, sewage plant, railway, subway, airport, seaport, oil and chemical industry, metallurgy, coal mine, tele-communication and high buildings.
Our products has been installed in Australia, EU, Asia, South America and Africa.
Products Description

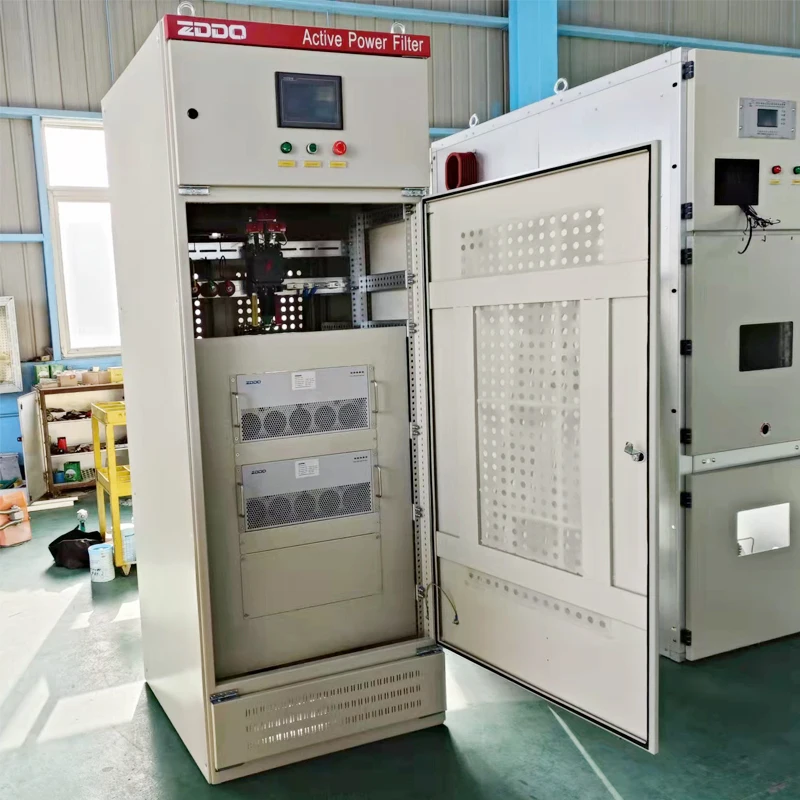

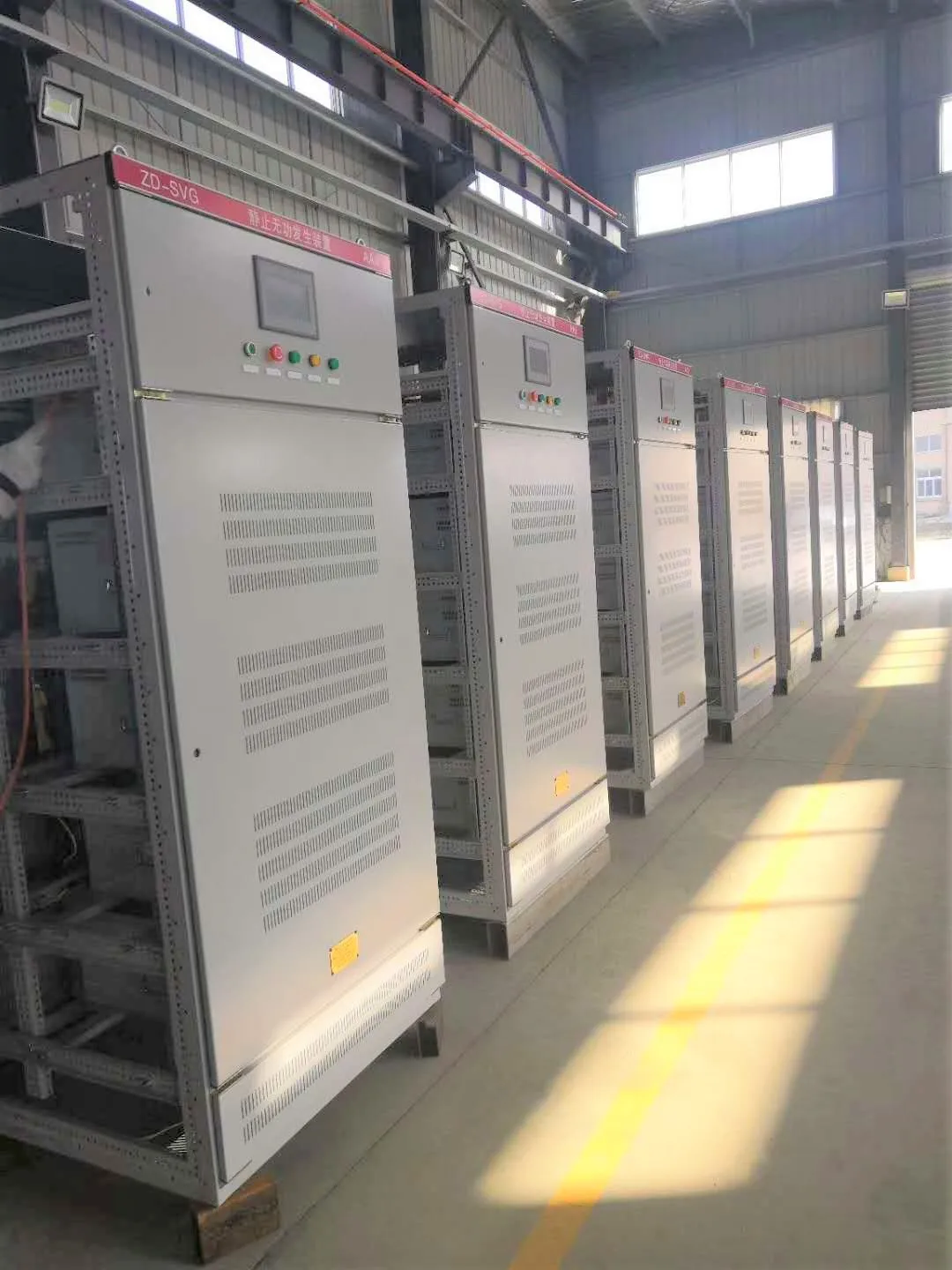

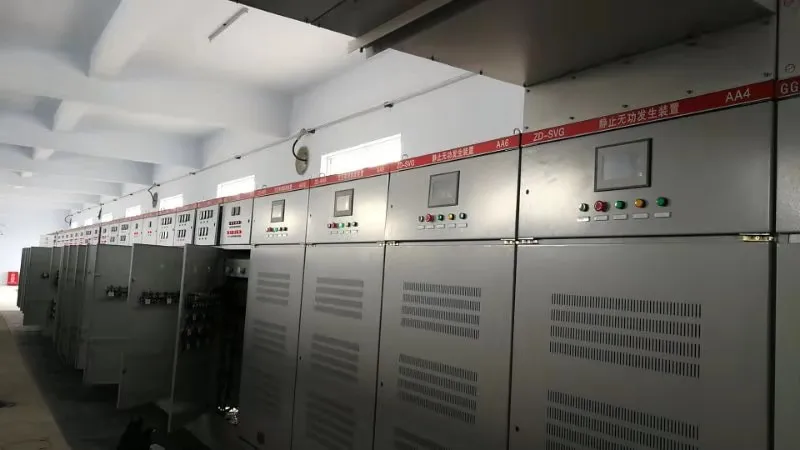

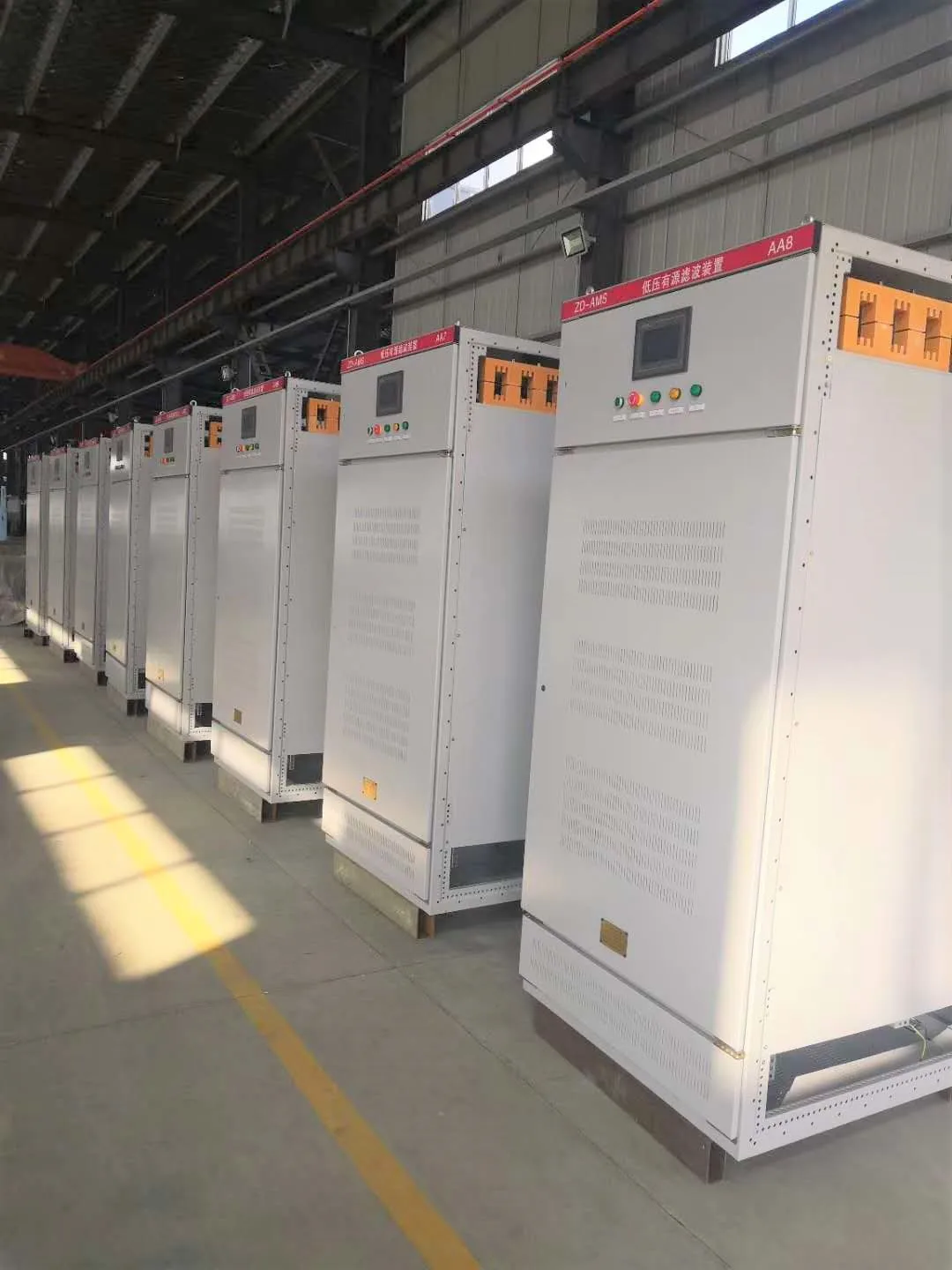

Static Var Generator/SVG/STATCOM
Static var generator/SVG/STATCOM is the new standard in reactive energy compensation. This power electronic current source is the accurate and highly reliable solution for today’s networks characterised by significant increase in harmonics, voltage variations caused by intermittent renewable sources connected to the network and voltage level due to the smart grid development. The DSP controlled IGBT topology enables a perfect compensation on each phase for both inductive and capacitive loads. It also correct phase unbalance where necessary. Immune to harmonics, resonance and voltage level, it offers a maintenance free solution reusable in any network configuration.

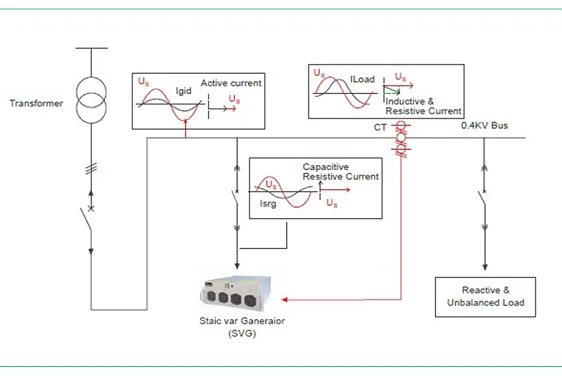

SVG Principle
ZDDQ Static var generator/SVG/STATCOM (SVG for short), based on voltage type inverter principle, uses the isolated gate binary transistor (IGBT) to control the value and phase of AC voltage of inverter, so as to serve the purpose of reactive and harmonic compensation. As the switching frequency of IGBT is very high (dozens of kHz), SVG can realize fast compensation for reactive load, and achieve very high compensation precision.
ZDDQ SVG is currently the best solution in reactive power control filed. Compared with the traditional SVC represented by TSC, the regulation speed of SVG is faster (the response speed is within 5ms), its compensation precision is high (the power factor after compensation is over 0.99), the compensation method is flexible (SVG can compensate both inductive reactive power and capacitive reactive power), and SVG also has the function of active filtration of harmonic current.
Specification
Electrical properties | Rated voltage | 220/400V/600VAC | ||||
Operating frequency | 50Hz/60Hz | |||||
Electrical connection | Three-phase Four-wire | |||||
Capacity of whole cabinet | 30~1000kvar | |||||
Compensation mode | Stepless compensate both inductive and capacitive power | |||||
Compensation effect | ≥0.99 | |||||
SVG module response time | <5ms | |||||
Active loss of system | <3% | |||||
Number of units connected in parallel | ≤10 units | |||||
MTBT | >100,000 hours | |||||
Control characteristics | Controller | DSP+FPGA | ||||
Switching frequency | 12.8K | |||||
Capacitor control interface | 14 ways | |||||
Communication mode | Adopt Modbus remote | |||||
Control connection | Fiber or electrical | |||||
Structural characteristics | Weight | Refer to the model | ||||
Level of protection | IP20 | |||||
Cooling method | Air cooling | |||||
Noise | <50db | |||||
Installation method | Cabinet mounting | |||||
Environmental requirements | Ambient temperature | -20~55℃ | ||||
Relative humidity | Maximum 95%, without | |||||
Altitude above sea level | ≤2,000m | |||||
Main Function
■Multifunctional: Reactive power and imbalance compensation
■Excellent reactive compensation: High speed, Precise (-0.99≤Cosφ≤0.99), Step-less, Bi-directional (capacitive and inductive) compensation
■Excellent imbalance correction: Both negative and zero sequence, mitigates neutral current
■Wide input voltage & frequency range, adapts to tough electrical environment
■Low thermal loss (≤3% of rated SVG capacity), efficiency ≥ 97%
■High stability: Infinite impedance to grid, avoids harmonic resonance problem
■Flexible application: Modular design, embedded in standard or customized cabinet
■Easy installation and maintenance: Easy installation for SVG module replacement and expansion
■Wide capacity range: 50kvar~600kvar for a single cabinet, up to 10 cabinets in parallel
■Environmental adaptability: -10~50°C temperature, compatible with diesel generators
■Complete protection: Grid over/under voltage, SVG over current, over temperature, and others. All faults recorded inevent log, convenient for failure analysis.
Applied Type | Connection Type | Model | Rated Voltage | Rated Capacity |
SVG Module | Three-phase four-wire | ZD-SVGM/35-4-4L-R | 208V 400V 690V | 35kvar |
ZD-SVGM/50-4-4L-R | 208V 400V 690V | 50kvar | ||
ZD-SVGM/75-4-4L-R | 208V 400V 690V | 75kvar | ||
ZD-SVGM/100-4-4L-R | 208V 400V 690V | 100kvar |
