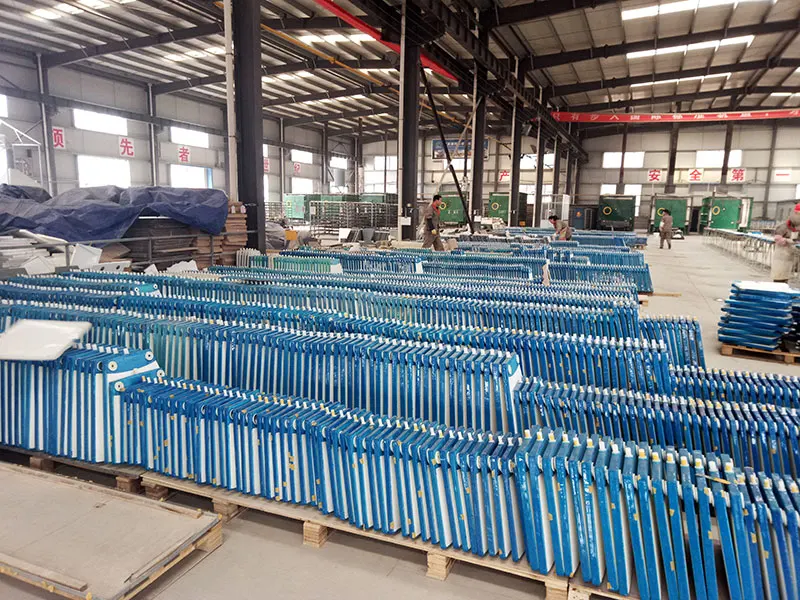

ceramic filter plate corundum plate disc vacuum filter plate
- Category: Other Filter Supplies >>>
- Supplier: Woking Environmental Technology Co. Ltd.
Share on (1600522154771):
Product Overview
Description
Product Description

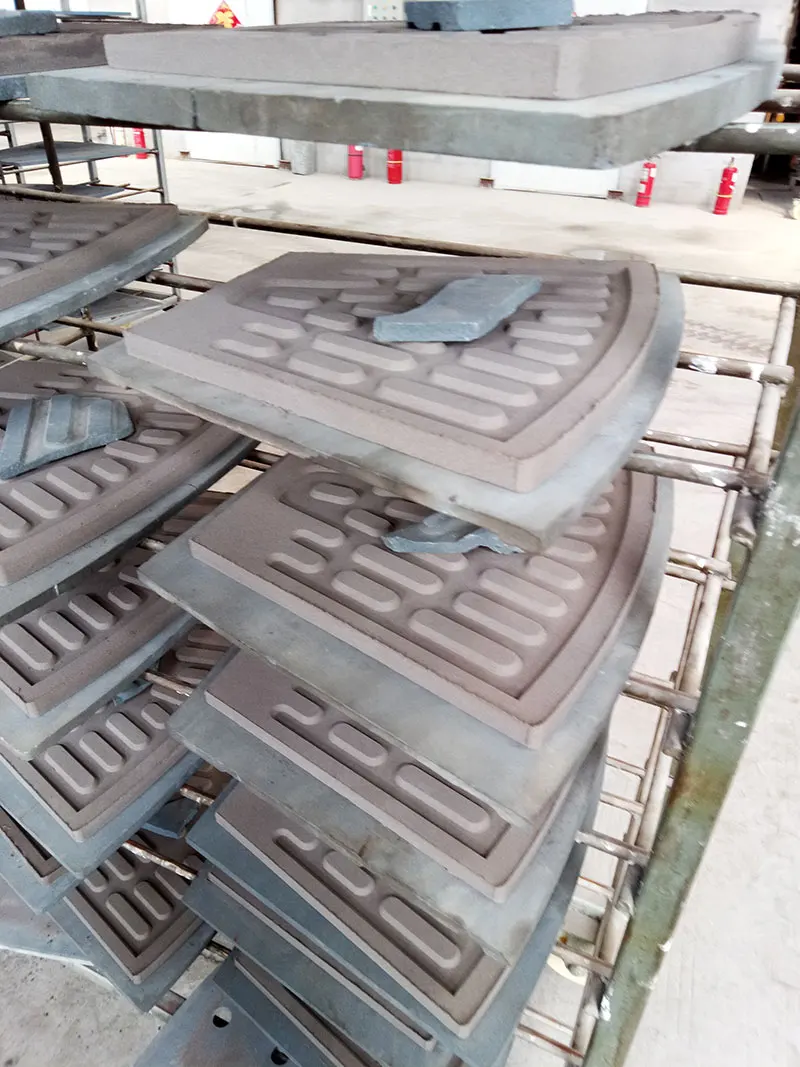

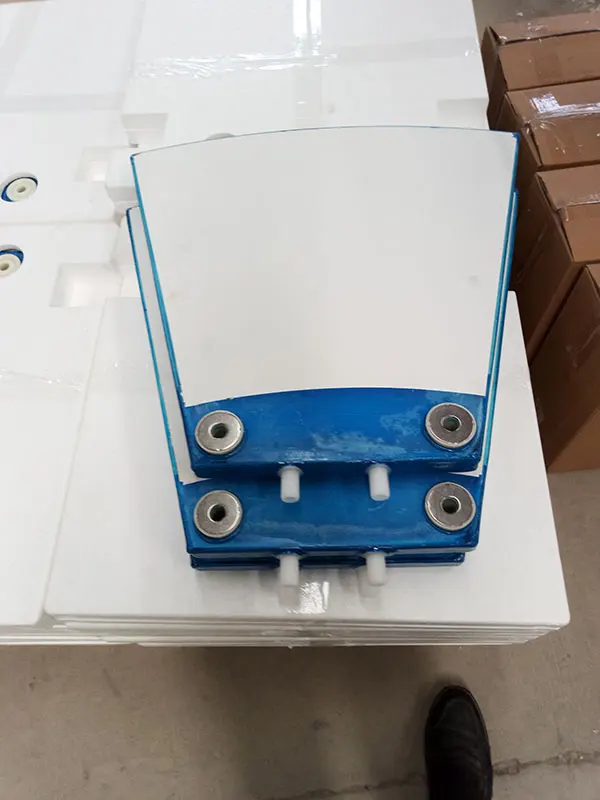

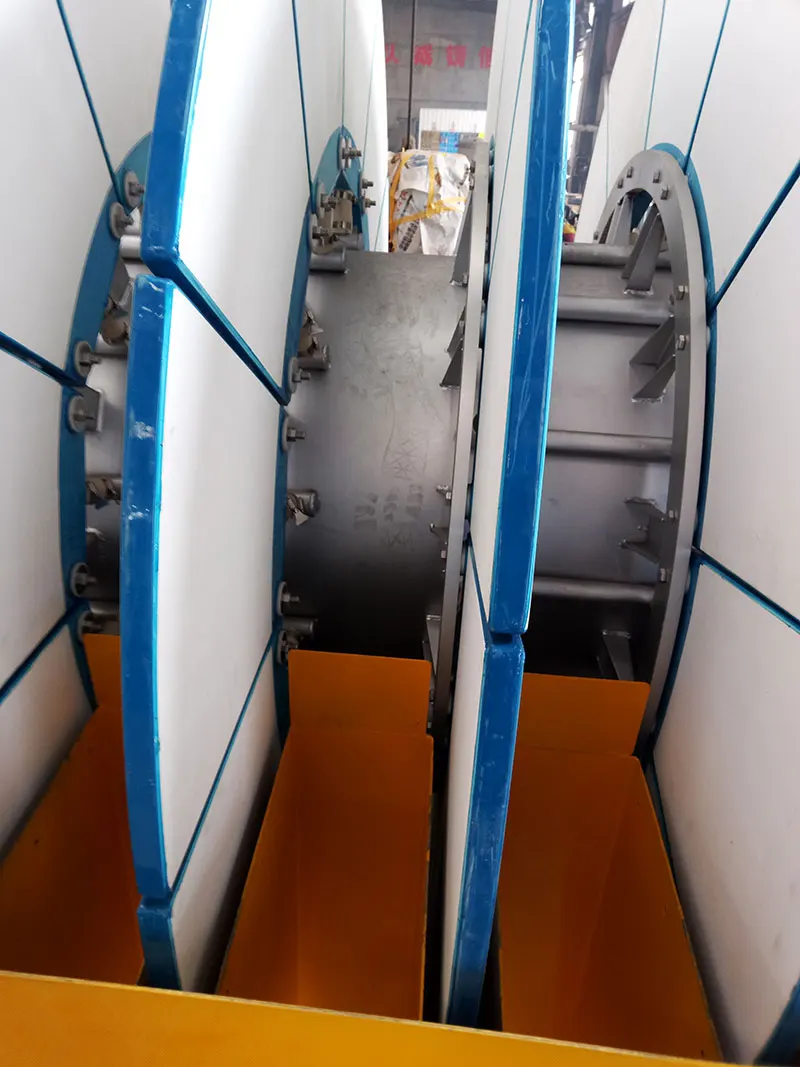

Alumina porous foam corundum ceramic plate
Due to the countless capillary in this kind of porous material, it can develop the capillary functionAs a consequence, only the water can pass through the filter plate due to the capillary function inthe whole process, but the air and solid never pass through, thereby to achieve the filtration task.
The vacuum degree can reach -O.O97Mpa.
The vacuum degree can reach -O.O97Mpa.
The Function of the Ceramic Filter Plate:
1. High skeleton density, high tdm’s strength, wdhstanding pressure and corrosion
2. High pocosty. large production capacity, high filtration preasion, low vacuum consumption energy, fine matenal, the wtole compound, no use of adhesive.
3. The ceramic plate has many regeneration methods, and can be cleaned In high temperature and high pressure and organic solvents. Regeneration effect is good and the seMce Irle is greatly prolonged.
Specifications | The size of the ceramic plate | |
1m²/12 | L1=128 L2=98 L3=250 B=250 C=24 | |
2m²/12 | L1=225 L2=165 L3=380 B=320 C=25 | |
3m²/12 | L1=295 L2=239 L3=485 B=395 C=25-30 | |
4m²/12 | L1=338 L2=276 L3=555 B=441 C=30 | |
5m²/12 | L1=300 L2=240 L3=568 B=550 C=35 | |
6m²/12 | L1=294 L2=235 L3=603 B=619 C=32 | |
Note :the unit is mm L1=under width of the ceramic sector plate L2=center distance of the installation L3=over width of the ceramic sector plate B=total height of the ceramic sector plate C=thickness of the ceramic sector plate | ||
