Factory Direct Sell Muiti Functional Coffee Capsule Filling Sealing Machine for nespresso
- Category: >>>
- Supplier: Jiangsu Sunyi Machinery Co. Ltd.
Share on (1600522163666):
Product Overview
Description
Product Overview

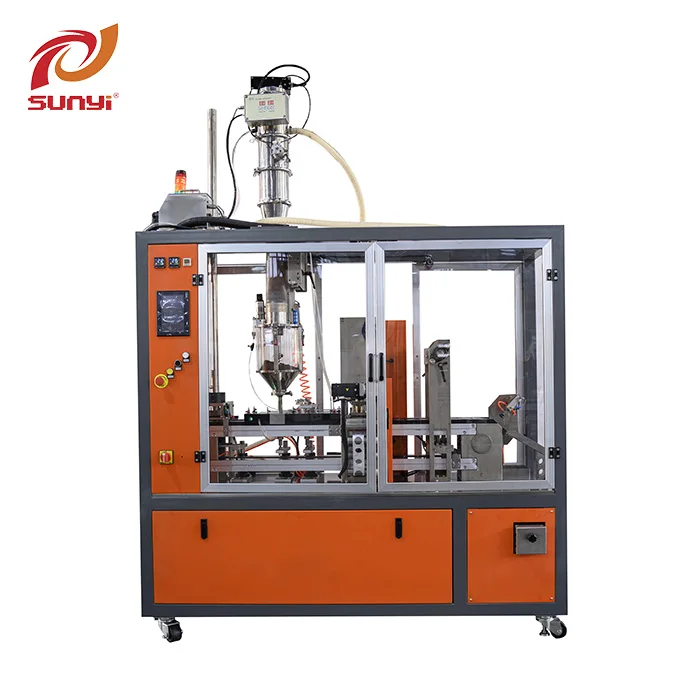

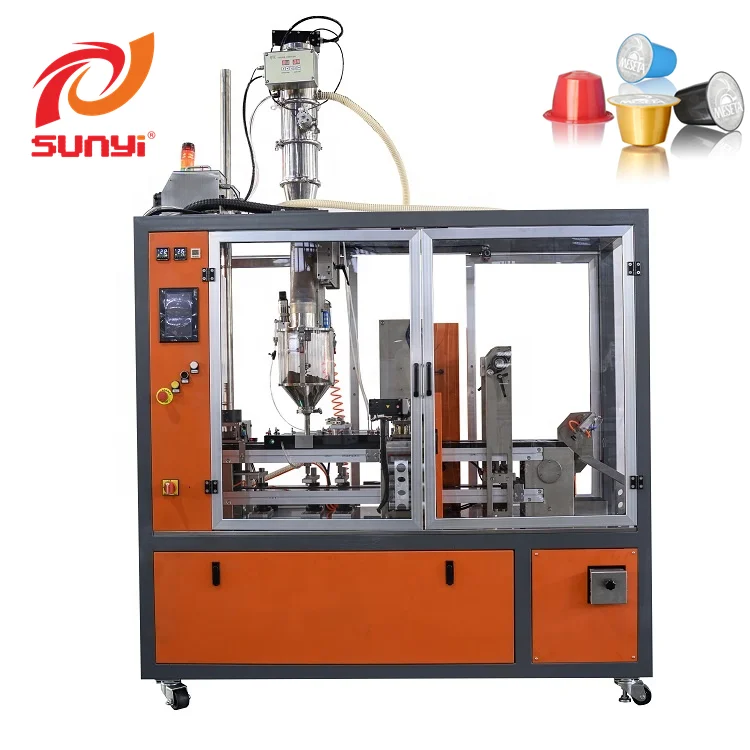

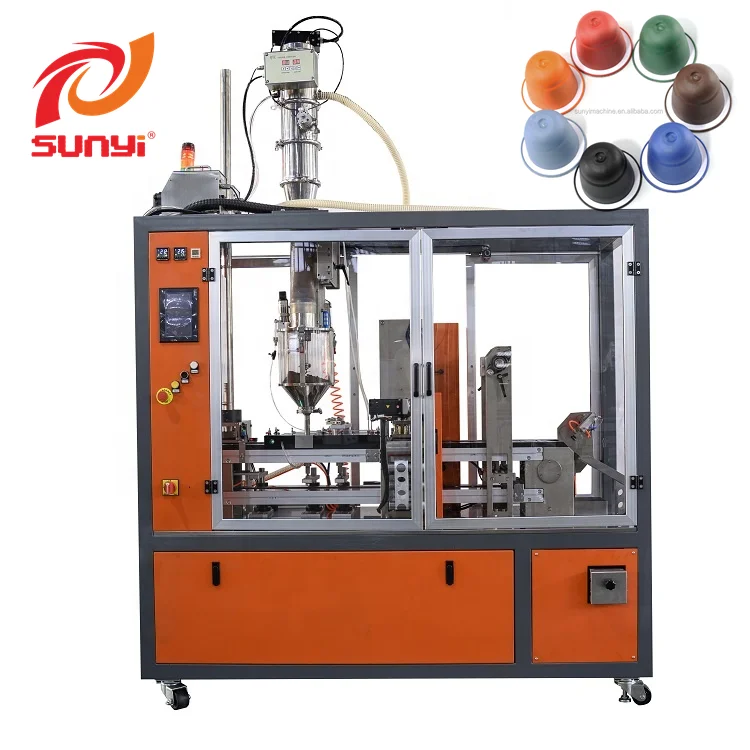

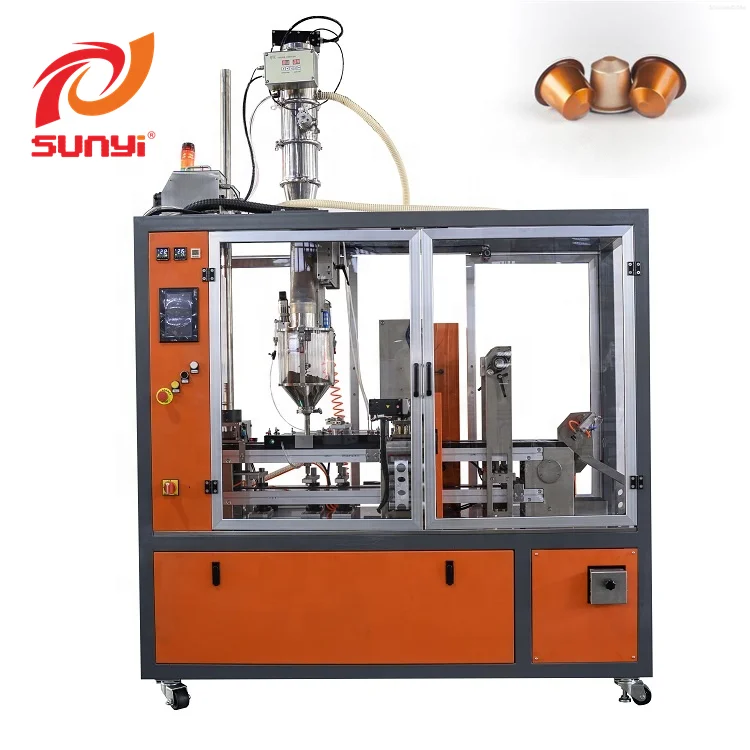

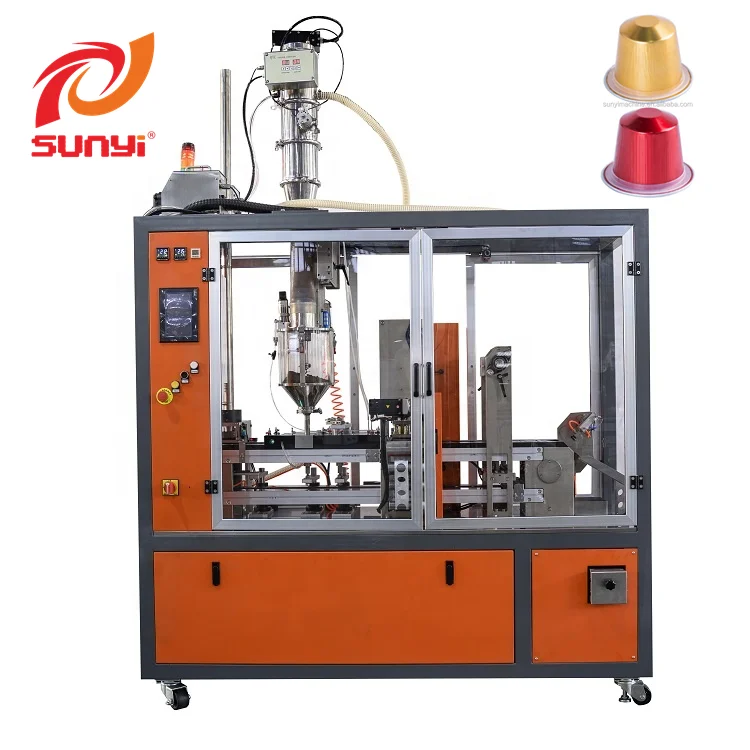

Factory Direct Sell Muiti-Functional Coffee Capsule Filling Sealing Machine for nespresso
This machine is fully automatic, so it can save lots of human labor cost. Its size is small and doesn't need to occupy much field. The PLC remote controller is used, people can operate it through APP whenever and wherever.
It is suitable for various kinds of materials, such as coffee, milk powder, tea, yogurt and many other granule, powder and liquid materials. It can achieve 40-50 capsules per minute.
Details Description

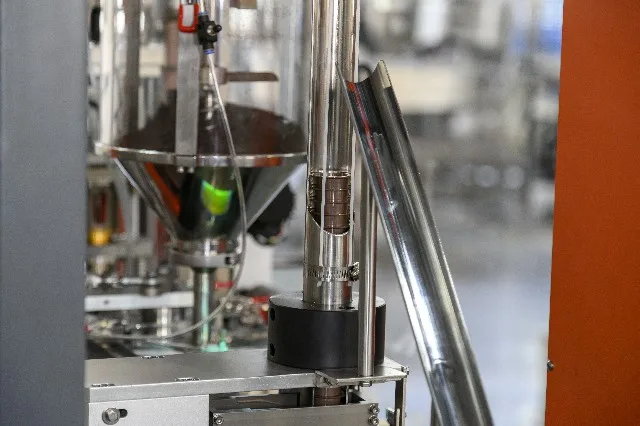

Vertical capsules/cups loading
Shelves for auxiliary storage capsules/cups. Storage bin for 150-200 pcs capsules/cups.
Stable separation system.
Capsule/cup bottom holding device with vacuum.
Stable separation system.
Capsule/cup bottom holding device with vacuum.

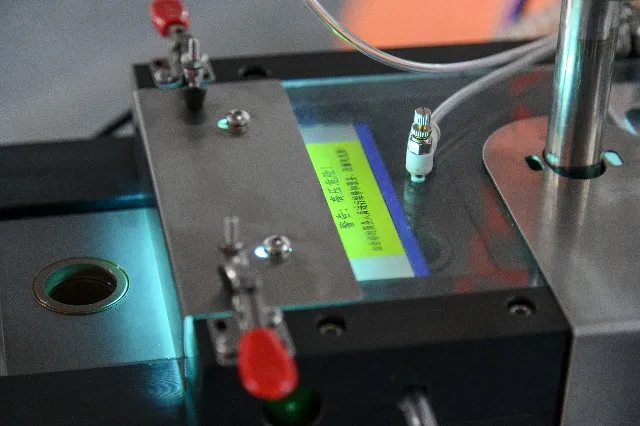

Empty Capsule detection
The light sensor is used to identify whether
there are empty capsules in the holes of the mold plate for packaging, and to judge whether a series of mechanical actions such as subsequent filling are performed.
there are empty capsules in the holes of the mold plate for packaging, and to judge whether a series of mechanical actions such as subsequent filling are performed.

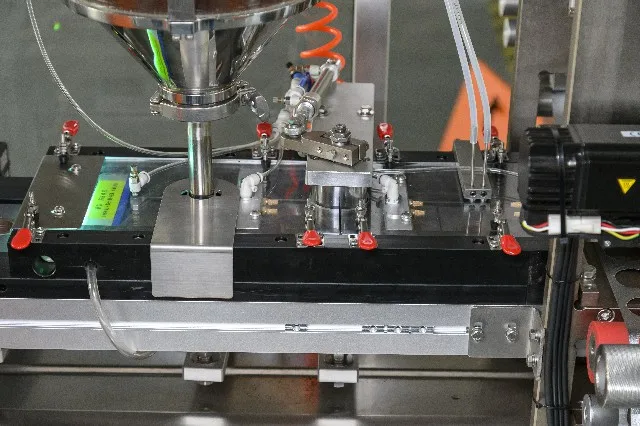

Filling system
Auger filler driven by Servo motor.
Constant speed mixing device ensures that the density of coffee is always uniform and there is no cavity in the hopper.
Visualized hopper.
The whole hopper can be pull out and moved for easy cleaning.
Special filling outlet structure ensures stable
weight and no powder spreading.
Powder level detection and vacuum feeder
automatically convey powder
Constant speed mixing device ensures that the density of coffee is always uniform and there is no cavity in the hopper.
Visualized hopper.
The whole hopper can be pull out and moved for easy cleaning.
Special filling outlet structure ensures stable
weight and no powder spreading.
Powder level detection and vacuum feeder
automatically convey powder

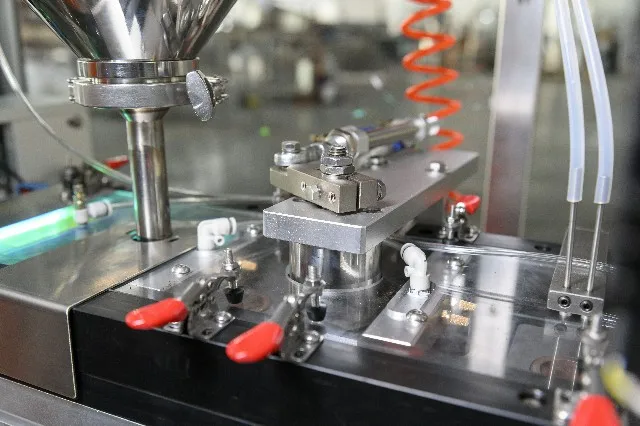

Capsule/cups top edge clean-up and Tamping
Powerful vacuum clean-up device for top edge of capsules/cups to get a good sealing effect
Pressure adjustable stamping, it compacting powder strong, when brew coffee, it will get a good espresso.
extrac more crema.
Pressure adjustable stamping, it compacting powder strong, when brew coffee, it will get a good espresso.
extrac more crema.
Nitrogen input system and protected device
Use organic glass to cover the mold, from empty capsule feeding station to sealing lids station ,all process are flushed with nitrogen. Besides, powder hopper also have nitrogen inlet, it can guarantee coffee production is under the motified atmoshpere, it will reduce each capsule's residual oxygen content lower than 1% , keep coffee aroma, prolong coffee shelf life.
Roll films
Automatically punching and cutting rolled film,
forming circle lids, and at the same time, sealing lids on the capsule’s top. Positioning lids accurately. In the long run, save materials.

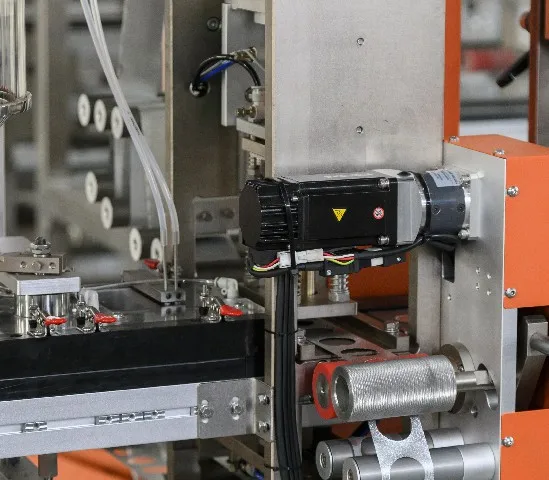

With Schneider brand servo motor and servo
driver to unwind the film and scroll the waste film accurately, which can make sure the good sealing effect.
With Omron brand temperature control module, the temperature can be adjusted on the Schneider/Siemens HMI.
forming circle lids, and at the same time, sealing lids on the capsule’s top. Positioning lids accurately. In the long run, save materials.
With Schneider brand servo motor and servo
driver to unwind the film and scroll the waste film accurately, which can make sure the good sealing effect.
With Omron brand temperature control module, the temperature can be adjusted on the Schneider/Siemens HMI.

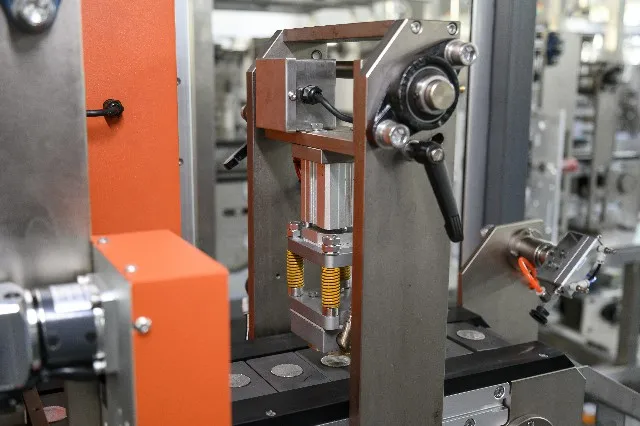

Heat sealing Station
After lid was placed on the capsule's top, it will has lid sensor to check if has lid on the capsule's top, then heat seal lid on the capsule's top, sealing temperature and pressure can be adjusted.

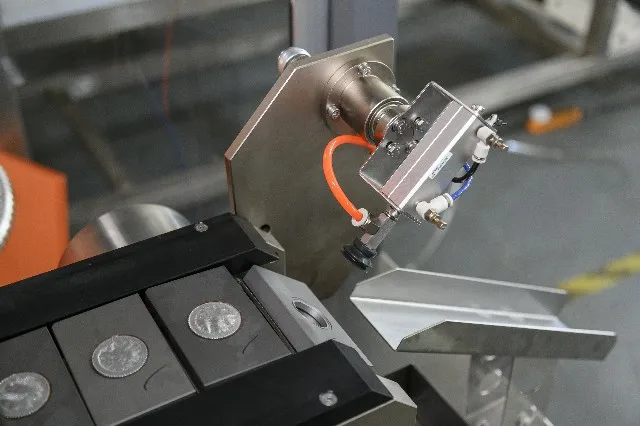

Finished capsules/cups discharging
Stable and orderly grab system.
Precise rotation and placement system.
Vacuum or mechanical claws. Pick and
place finished capsule on the 1.8 meters
conveyor belt.
Precise rotation and placement system.
Vacuum or mechanical claws. Pick and
place finished capsule on the 1.8 meters
conveyor belt.

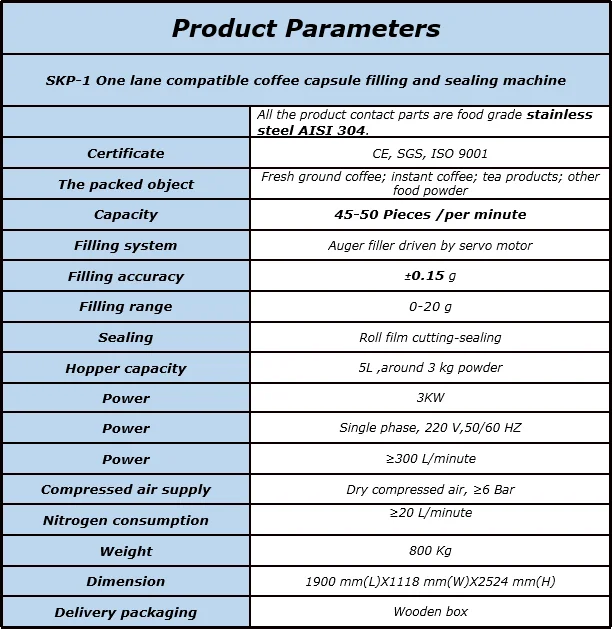

Parameters
Sales and service
Company Profile
JIANGSU SUNYI MACHINERY CO.,LTD
Since 2011, our company has been committed to providing one-stop food packaging production line services for various companies around the world. Especially in the field of cup capsule packaging food, after more than ten years of unremitting efforts, we have raised our technical level to the first-class level in China, catching up with Europe, and the cost performance is far higher than similar European machinery.
Liquid cup filling and sealing machine
Paste cup filling and sealing machine
Powder cup / capsule filling and sealing machine
Particle cup / capsule filling and sealing machine
Subsequent bag packing machines, cartoning machines, packing machines and complete packaging production lines.
Quality and service have always been the tenet of our company.
Excellent design team, many years of practical experience, excellent hardware processing facilities, and efficient team cooperation make our company a leader in the industry.
What we are good at:
Coffee capsule filling and sealing machineLiquid cup filling and sealing machine
Paste cup filling and sealing machine
Powder cup / capsule filling and sealing machine
Particle cup / capsule filling and sealing machine
Subsequent bag packing machines, cartoning machines, packing machines and complete packaging production lines.
Quality and service have always been the tenet of our company.
Excellent design team, many years of practical experience, excellent hardware processing facilities, and efficient team cooperation make our company a leader in the industry.
Choose Sunyi, choose the best quality,
choose the best life-long service,
choose a good team partner!
FAQ
1.Delivery time:
After receiving client’s deposit and capsule samples, film, within 30 working days, we will finish the machine.
2.Term of Payments:
At first client shall pay 30% deposit of Purchase order total amount, then we start to produce machine.
After machine is finished, we will invite client to test machine in our factory.
After successful checking, client shall pay the remaining 70% of total amount before shipping.
3.Quote Valid time:
50 days
4.Ship Packing:
Using standard export wooden box to pack machine, prohibiting corrosion and damage during the transportation.
5.Port of Shipment:
Shanghai Ship port.
After receiving client’s deposit and capsule samples, film, within 30 working days, we will finish the machine.
2.Term of Payments:
At first client shall pay 30% deposit of Purchase order total amount, then we start to produce machine.
After machine is finished, we will invite client to test machine in our factory.
After successful checking, client shall pay the remaining 70% of total amount before shipping.
3.Quote Valid time:
50 days
4.Ship Packing:
Using standard export wooden box to pack machine, prohibiting corrosion and damage during the transportation.
5.Port of Shipment:
Shanghai Ship port.
