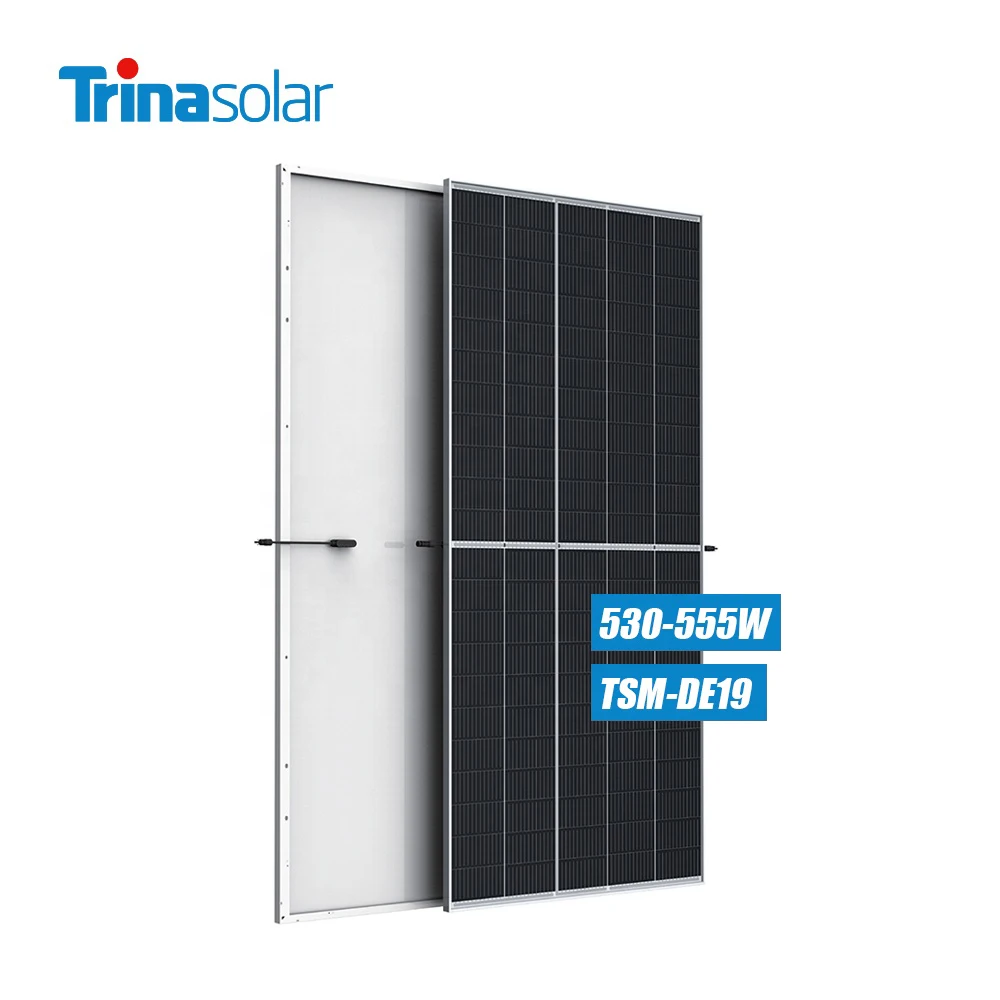

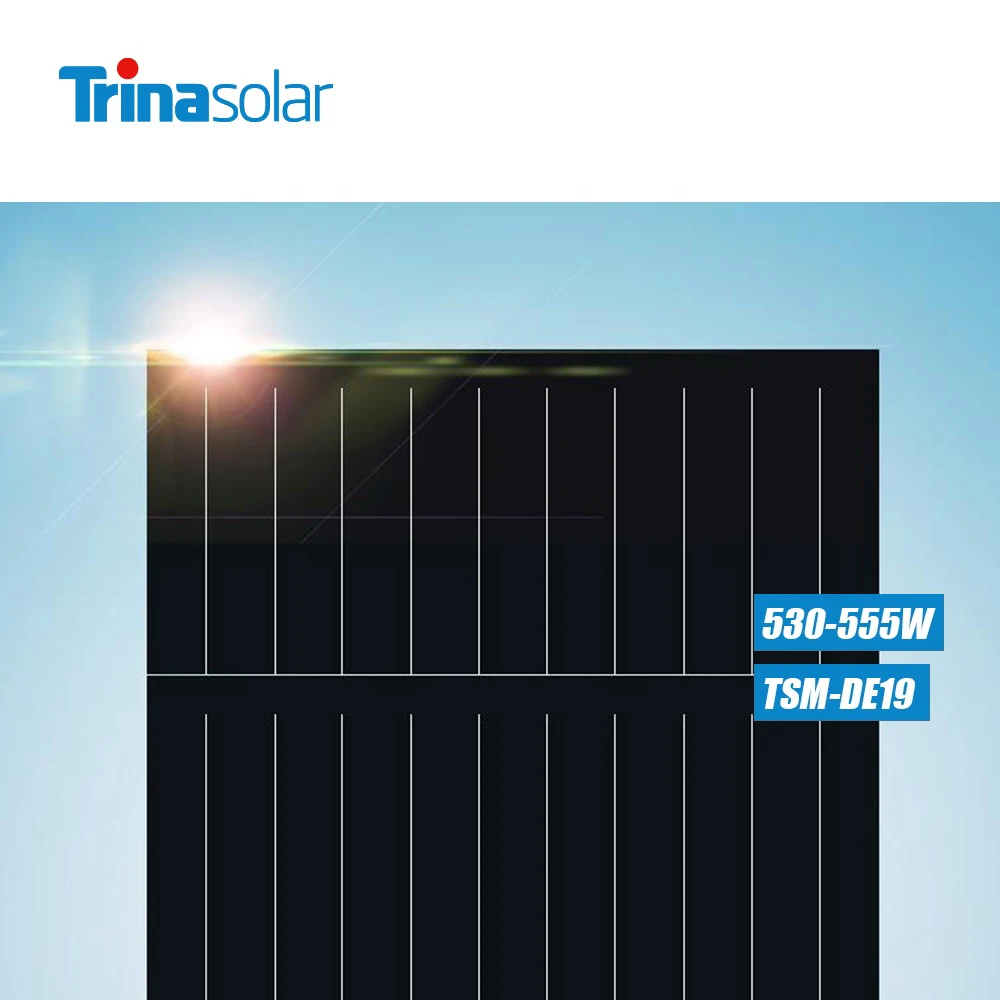

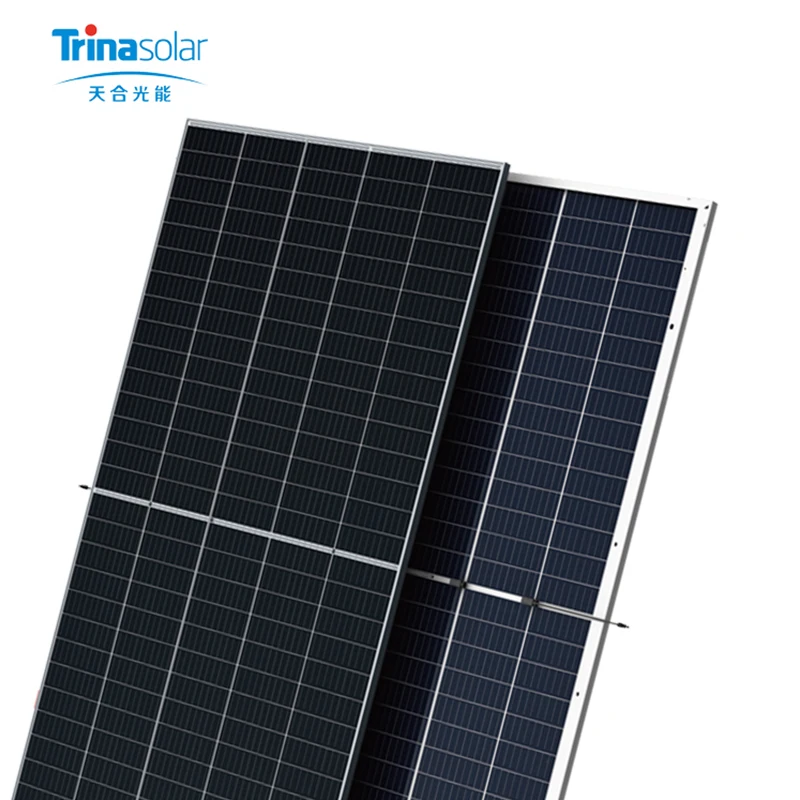

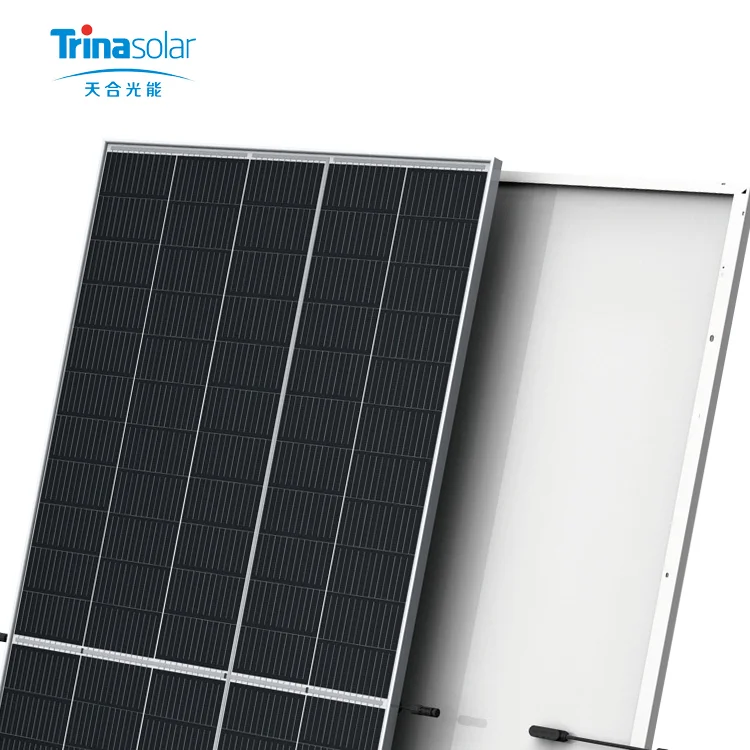

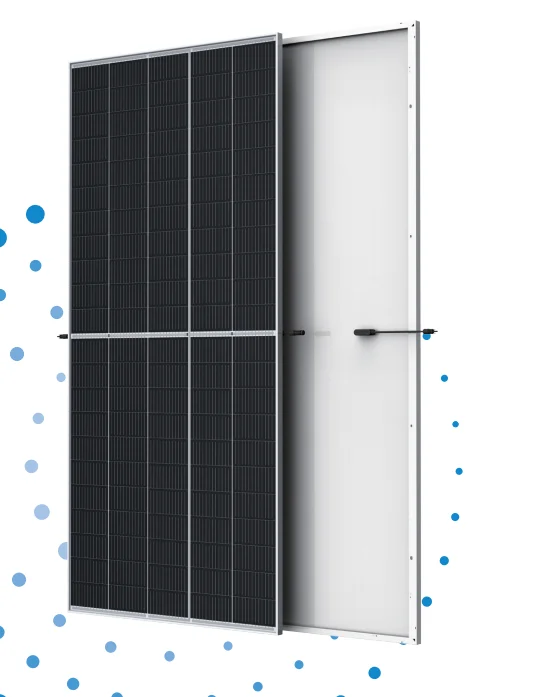

Trinasolar 545w 550w 555w Trina TSM DE19 Solar Energy Panel 545w 550w 555w half Cell Trina Solar Panel Price
- Category: >>>
- Supplier: Changzhou Enew Energy Technology Co. Ltd.
Share on (1600522187755):
Product Overview
Description
Product Description
High customer value
• Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time
• Lowest guaranteed first year and annual degradation;
• Designed for compatibility with existing mainstream system components• Higher return on Investment
• Lowest guaranteed first year and annual degradation;
• Designed for compatibility with existing mainstream system components• Higher return on Investment
High power up to 555W
• Up to 21.2% module efficiency with high density interconnect technology
• Multi-busbar technology for better light trapping eect, lower series resistance and improved current collection
• Multi-busbar technology for better light trapping eect, lower series resistance and improved current collection
High reliability
• Minimized micro-cracks with innovative non-destructive cutting technology
• Ensured PID resistance through cell process and module material control
• Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load
• Ensured PID resistance through cell process and module material control
• Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load
High energy yield
• Excellent IAM (Incident Angle Modifier) and low irradiation performance, validated by 3rd party certiffications
• The unique design provides optimized energy production under inter-row shading conditions
• Lower temperature coefficient (-0.34%) and operating temperature
• The unique design provides optimized energy production under inter-row shading conditions
• Lower temperature coefficient (-0.34%) and operating temperature
Product parameters

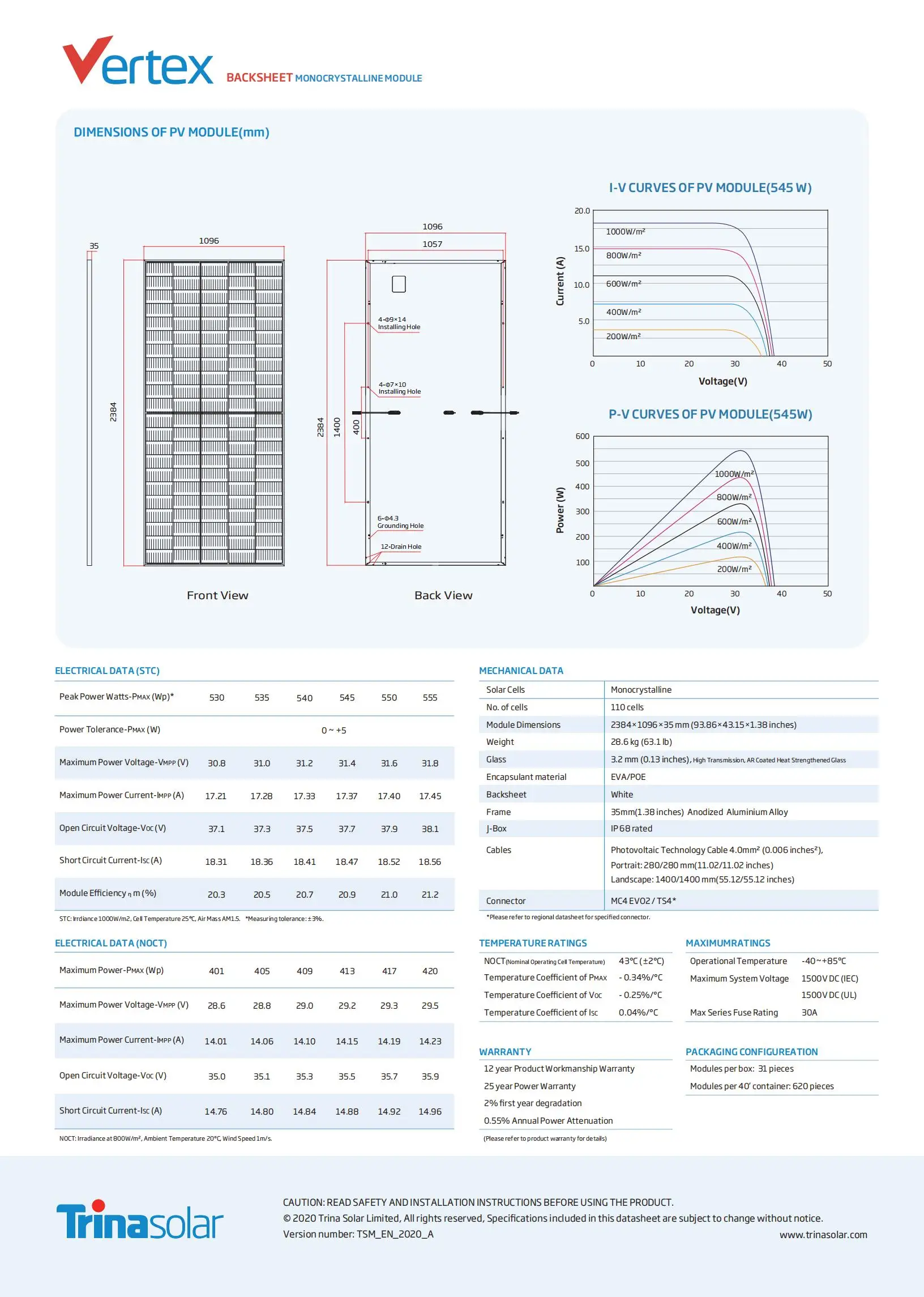

Specification
MECHANICAL DATA | ||
Solar Cells | Monocrystalline | |
No. of cells | 110 cells | |
Module Dimensions | 2384×1096×35 mm | |
Weight | 28.6kg | |
Glass | 3.2 mm (0.13 inches), High Transmission, AR Coated Heat Strengthened Glass | |
Encapsulant material | EVA/POE | |
Backsheet | White | |
Frame | 35mm(1.38 inches) Anodized Aluminium Alloy | |

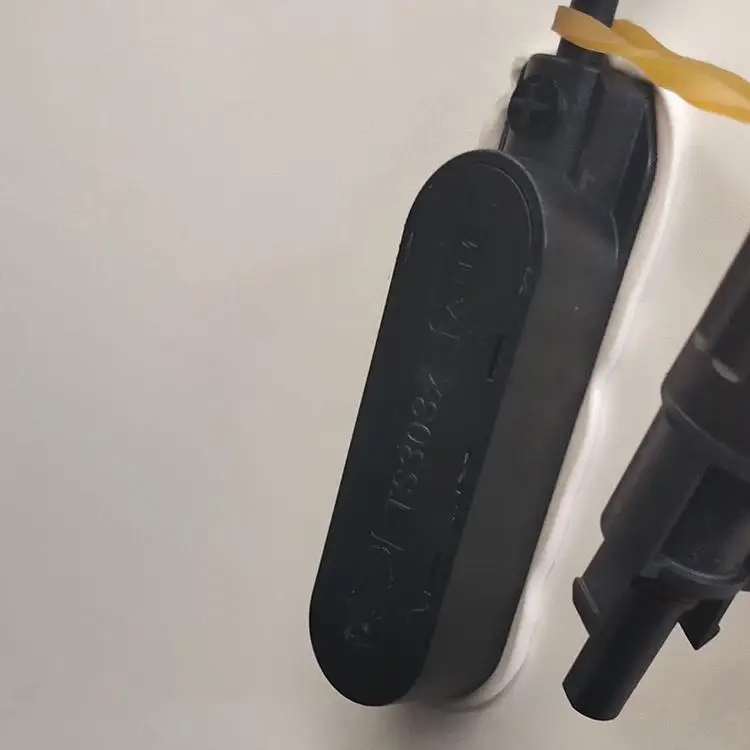

Junction Box | IP68 rated | |
Cable | Photovoltaic Technology Cable 4.0mm2 (0.006 inches2),Portrait: 280/280 mm(11.02/11.02 inches) Landscape: 1400/1400 mm(55.12/55.12 inches) | |
Connector | MC4 EVO2 / TS4* | |
PACKING CONFIGURATION | ||
Module per pallet | 31pcs/pallet | |
Module per 40'HQ container | 620pcs/40hq | |
ELECTRICAL DATA (STC) | ||||||||||||
Peak Power Watts-PMAX (Wp) | 535W | 540W | 545W | 550W | 555W | 560W | ||||||
Maximum Power Voltage-VMPP (V) | 31.0 | 31.2 | 31.4 | 31.6 | 31.8 | 32.0 | ||||||
Maximum Power Current-IMPP (A) | 17.28 | 17.33 | 17.37 | 17.40 | 17.45 | 17.49 | ||||||
Open Circuit Voltage-VOC (V) | 37.3 | 37.5 | 37.7 | 37.9 | 38.1 | 38.3 | ||||||
Short Circuit Current-ISC (A) | 18.36 | 18.41 | 18.47 | 18.52 | 18.56 | 18.6 | ||||||
Module Efficiency(%) | 20.5 | 20.7 | 20.9 | 21.0 | 21.2 | 21.4 | ||||||
TEMPERATURE RATINGS | |||||||
NOCT(Nominal Operating Cell Temperature) | 43°C (±2°C) | ||||||
Temperature Coeffcient of PMAX | - 0.34%/°C | ||||||
Temperature Coeffcient of VOC | - 0.25%/°C | ||||||
Temperature Coeffcient of ISC | 0.04%/°C | ||||||
Operational Temperature | -40~+85ºC | ||||||
Maximum System Voltage | 1500V DC (IEC) | ||||||
Max Series Fuse Rating | 30A | ||||||

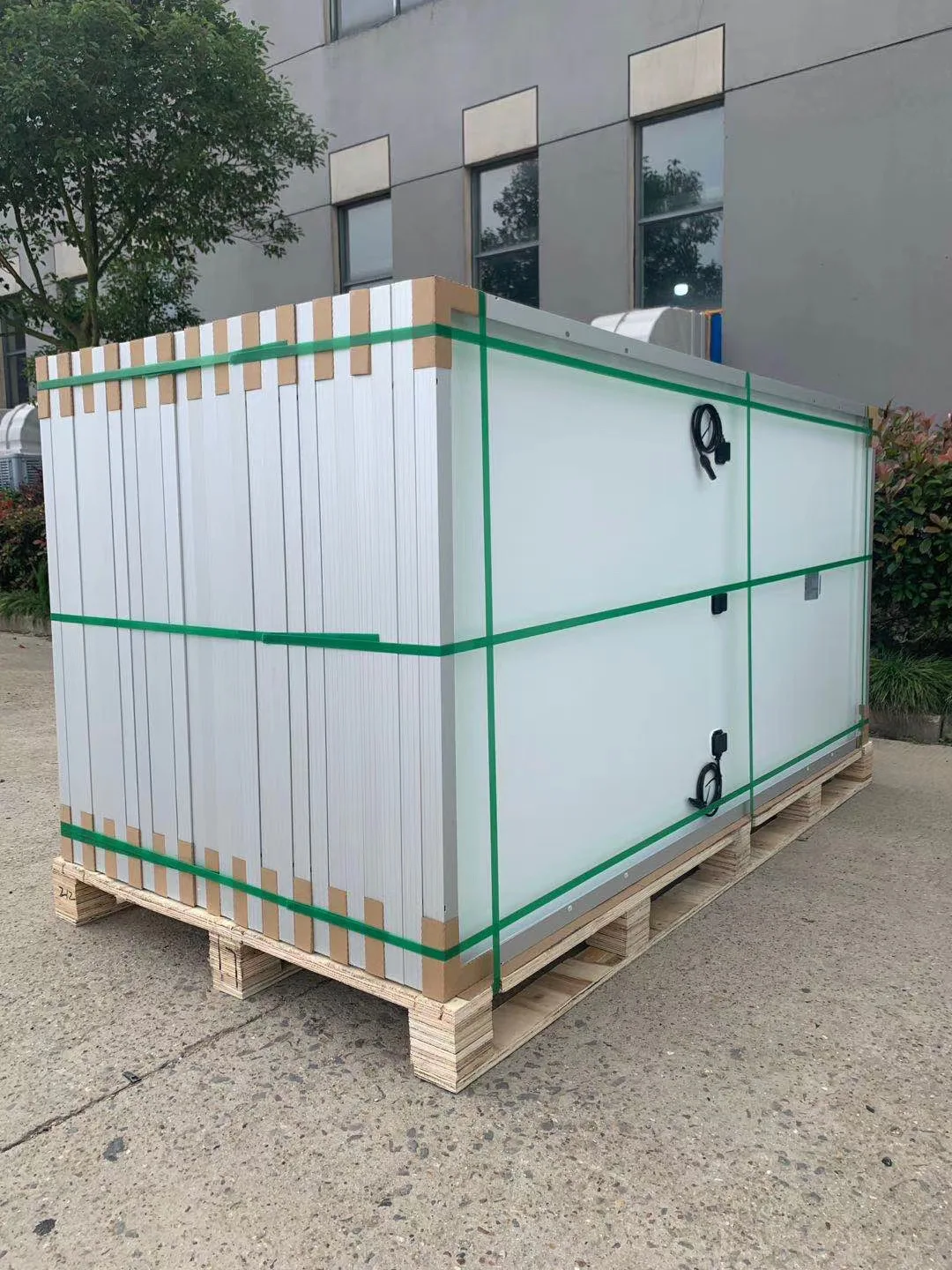

Packing & Delivery

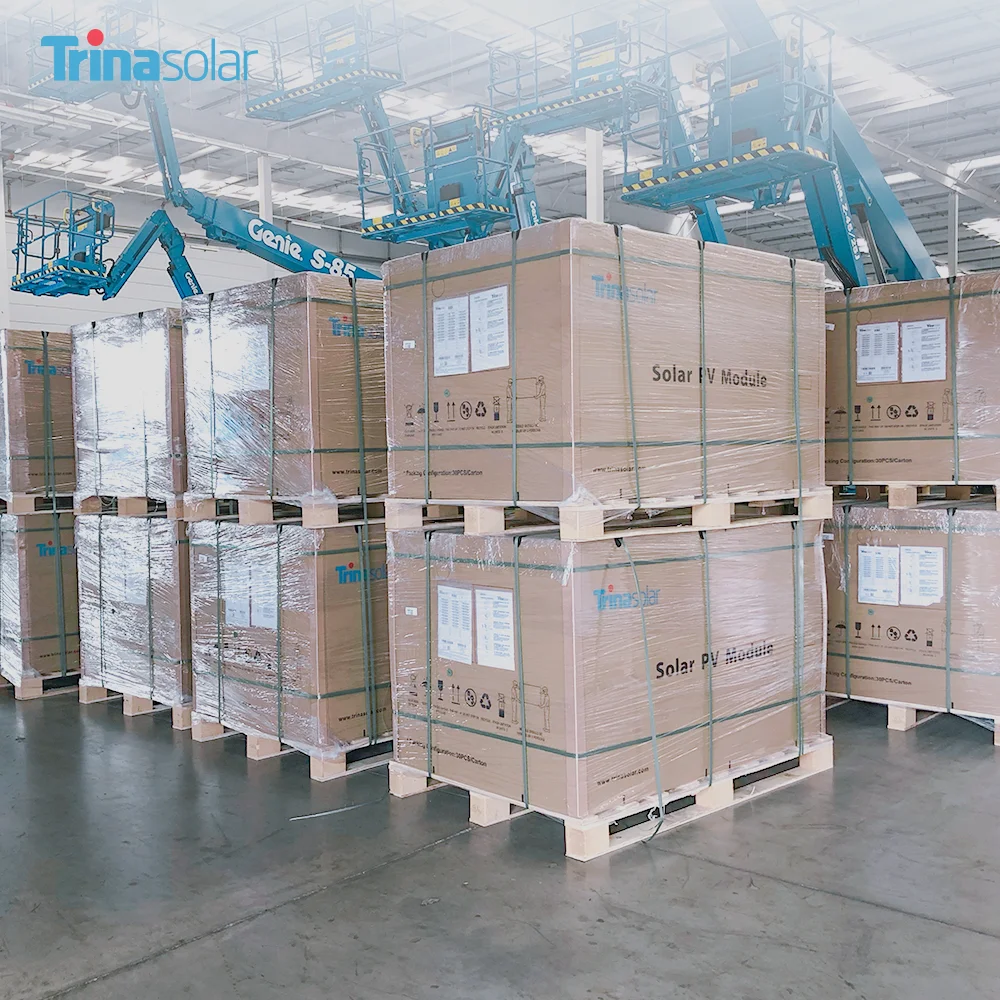

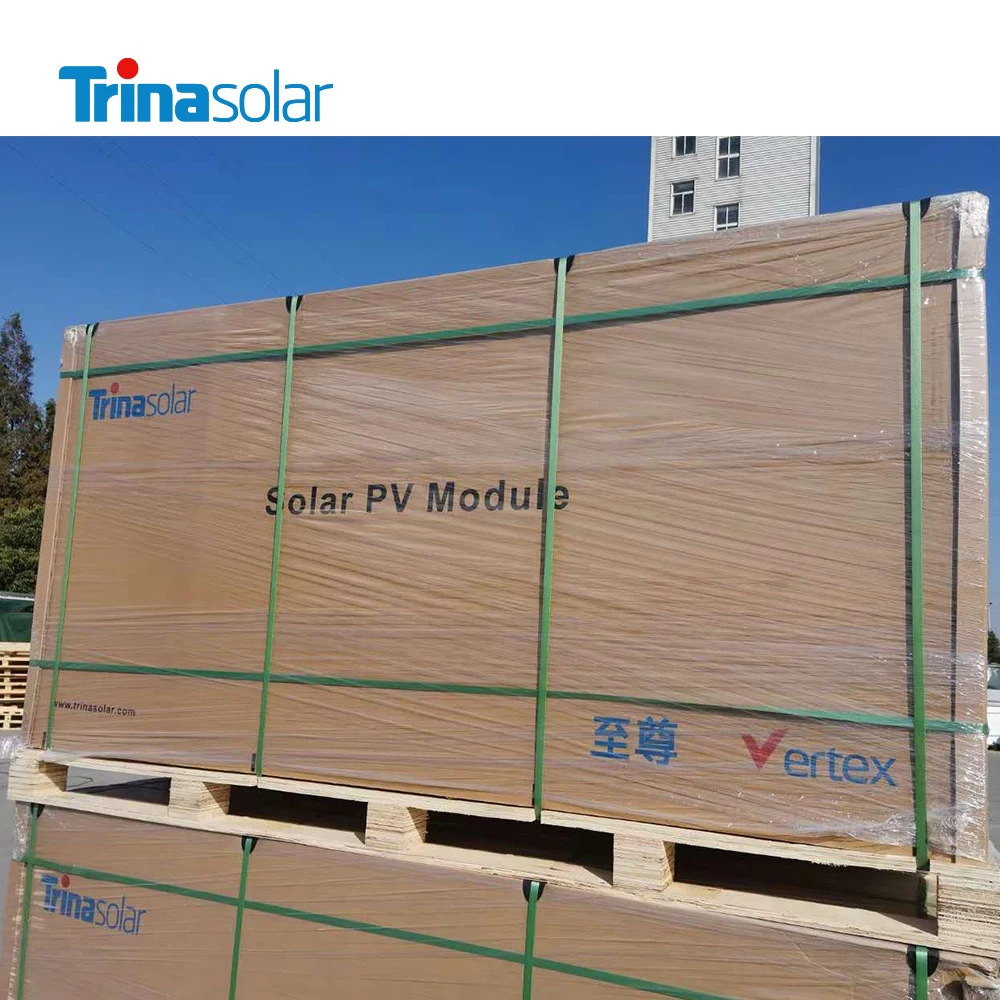

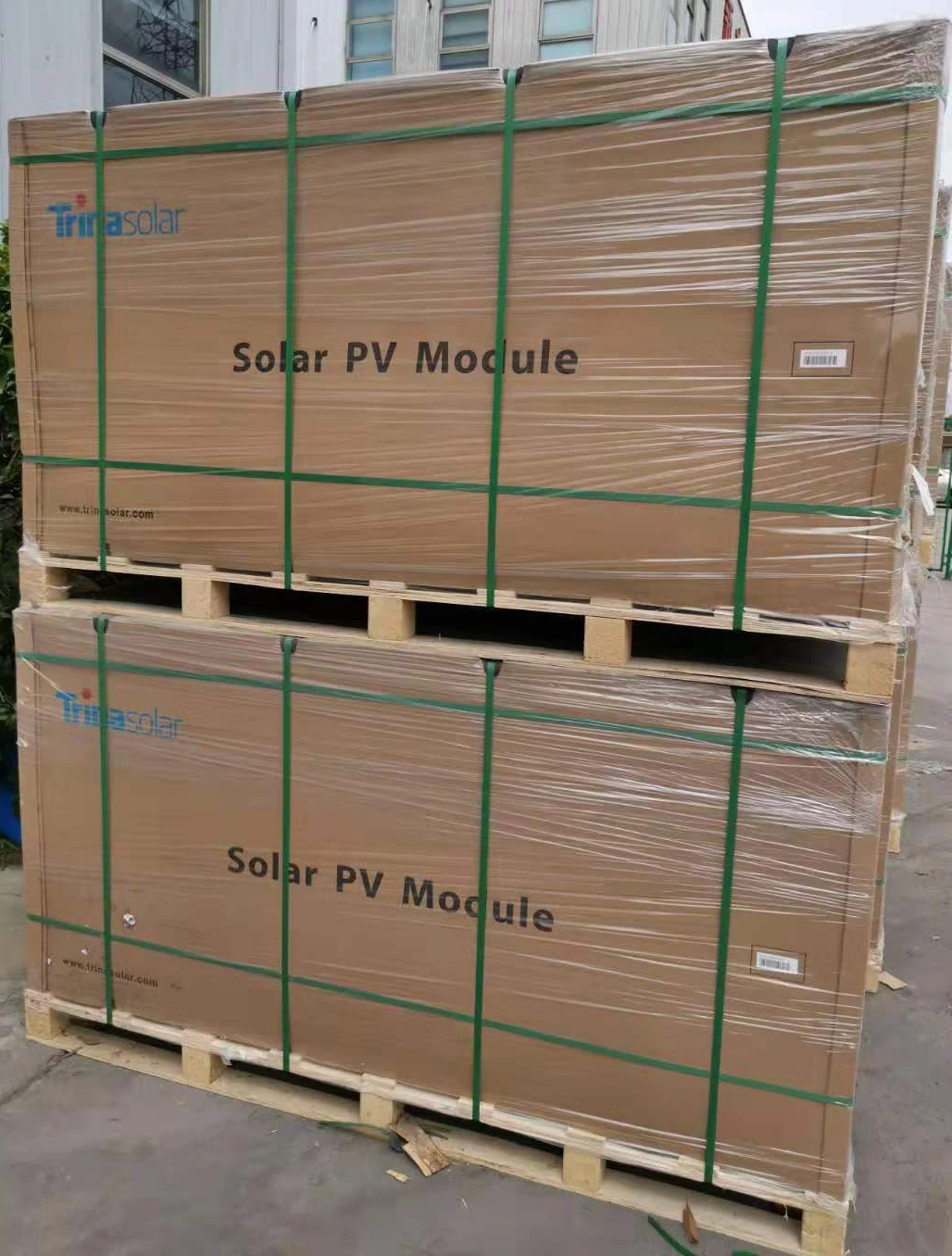

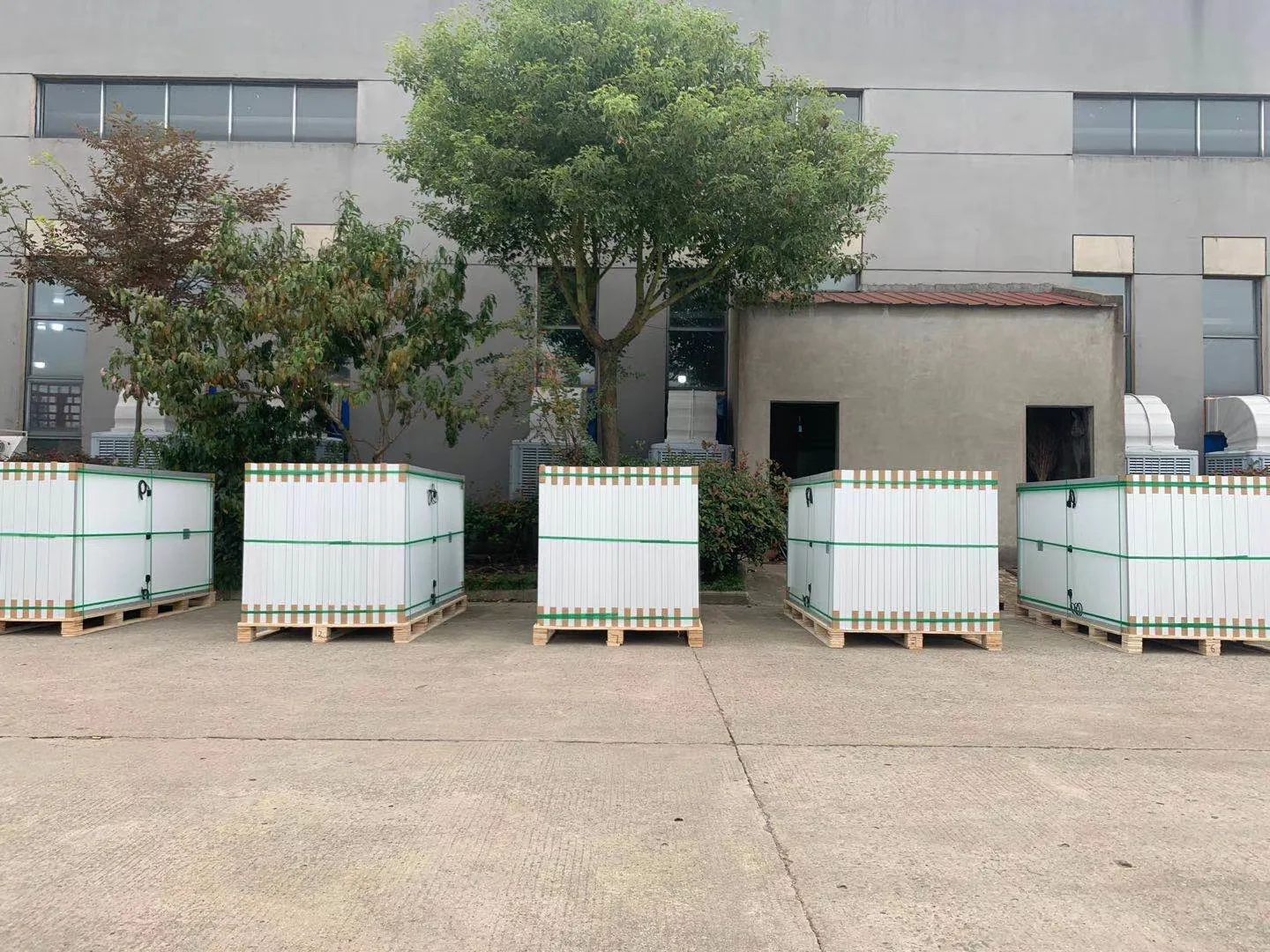

Product packaging

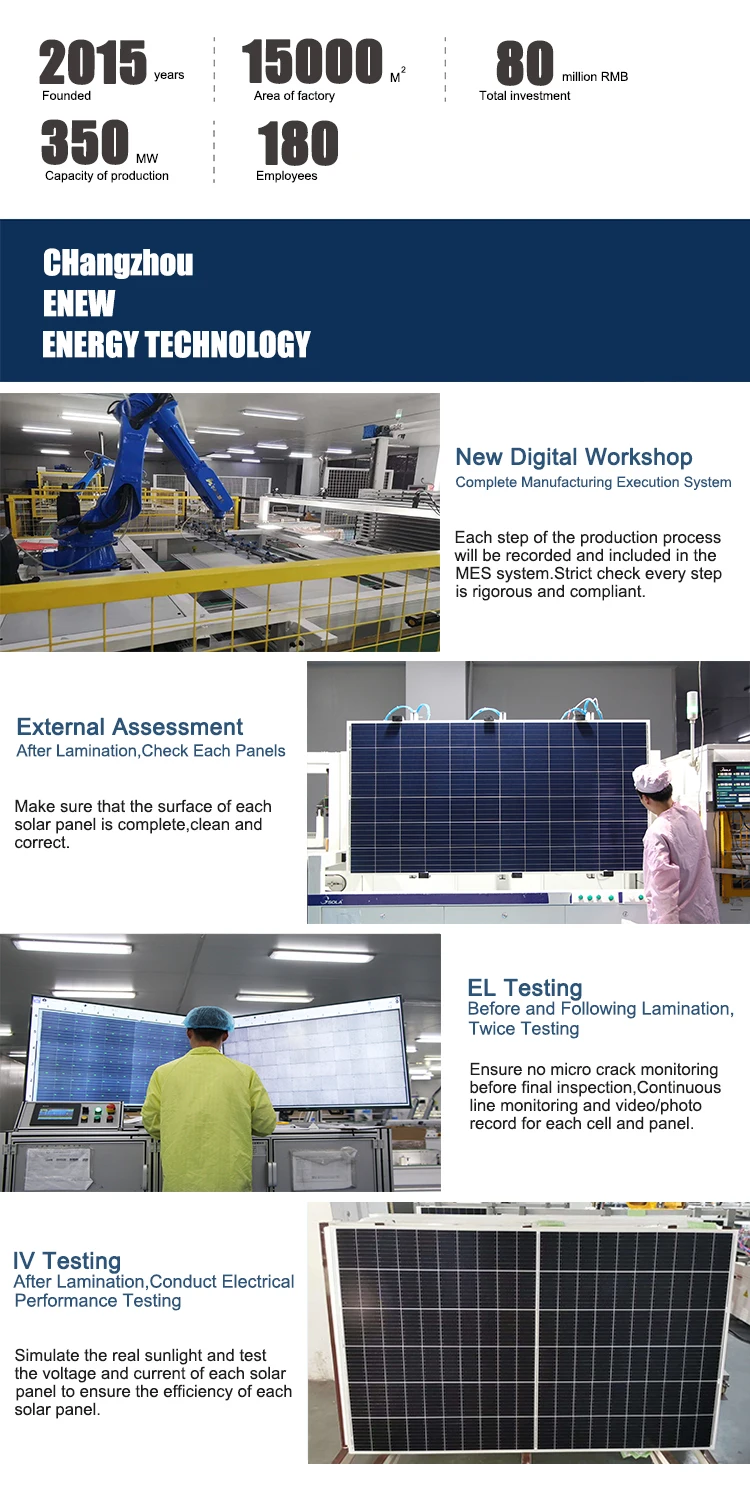

Company Profile
Certifications
Our project
Mexicanos Chiapas
110KW
Morocco
78KW
Oledmarkt in the Netherlands
750KW
Australia Northern Territory
5.2KW
Packing Configuration
Payment term | T/T | 20% T/T in advance, the banlance will be paid before goods arrive at discharge port. | |
L/C | 20% T/T in advance, the banlance will be against L/C 30 days | ||
Delivery mode | By sea | Depart from Shanghai seaport | |
Delivery time | 20-30 days on receipt of advance payment | ||
FAQ
Q1. Can I have a sample order for solar panel?
A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.
Q3. Do you have any MOQ limit for solar system order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping also
optional.
Q5. How to proceed an order for solar panel&solar system?
A: Firstly let us know your requirements or application.
Secondly We quoteaccording to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on solar panel & solar system product?
A: Yes, we could print logo on somesolar light. Please inform us formally before our production and confirm the design firstlybased on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 10 year warranty to our products
Q2. What about the lead time?
A:Sample needs 1-7 days, mass production time needs 15- 30 days
A:Sample needs 1-7 days, mass production time needs 15- 30 days
Q3. Do you have any MOQ limit for solar system order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping also
optional.
Q5. How to proceed an order for solar panel&solar system?
A: Firstly let us know your requirements or application.
Secondly We quoteaccording to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on solar panel & solar system product?
A: Yes, we could print logo on somesolar light. Please inform us formally before our production and confirm the design firstlybased on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 10 year warranty to our products
