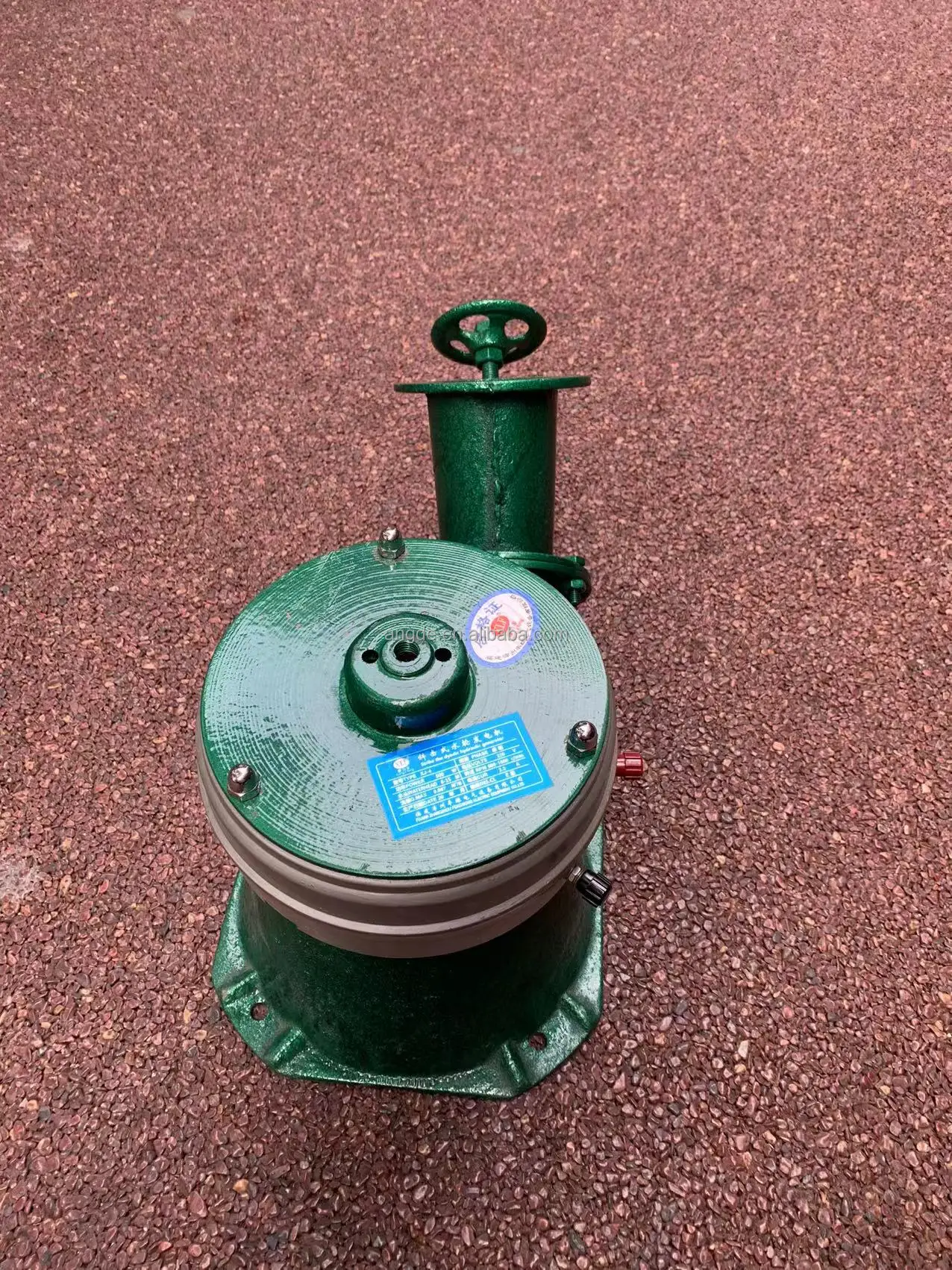

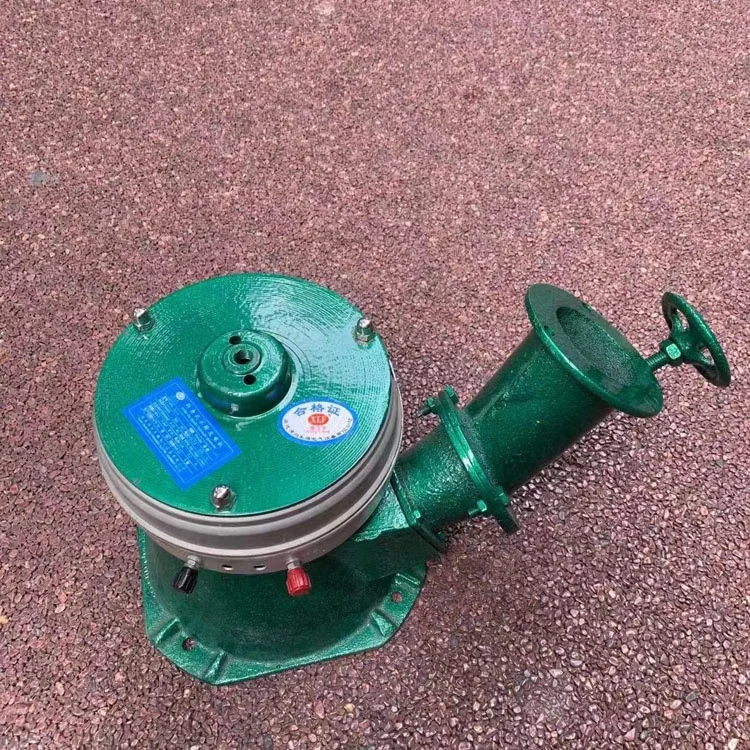

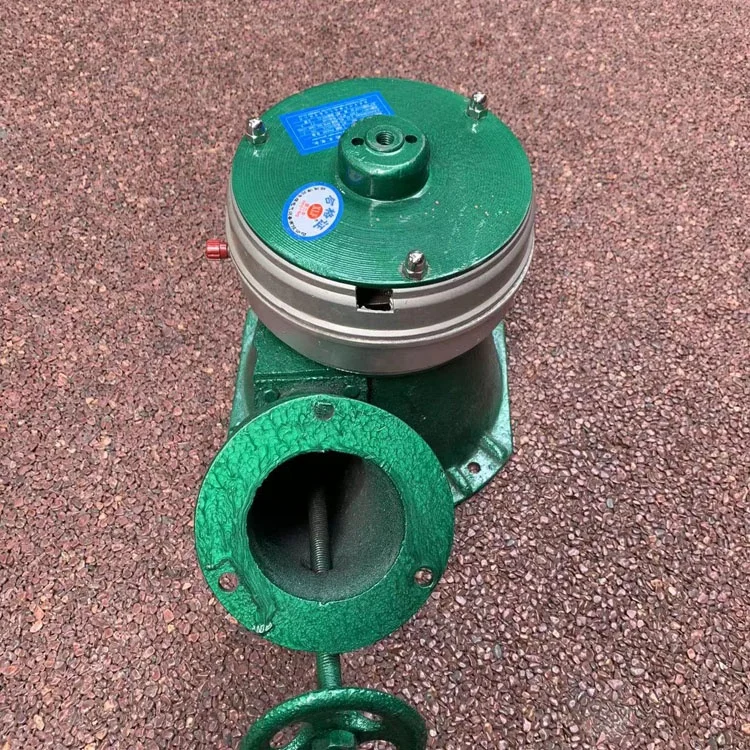

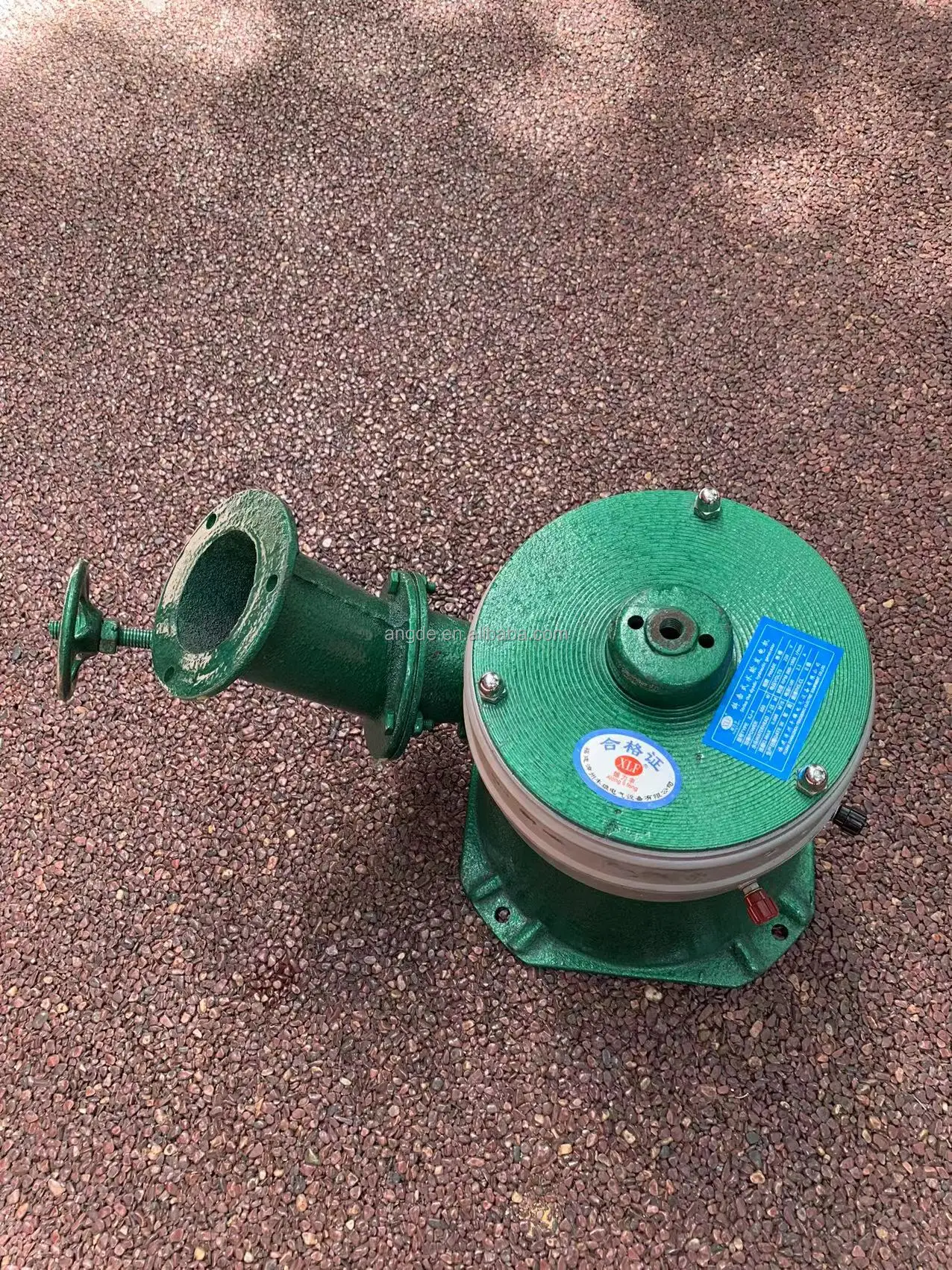

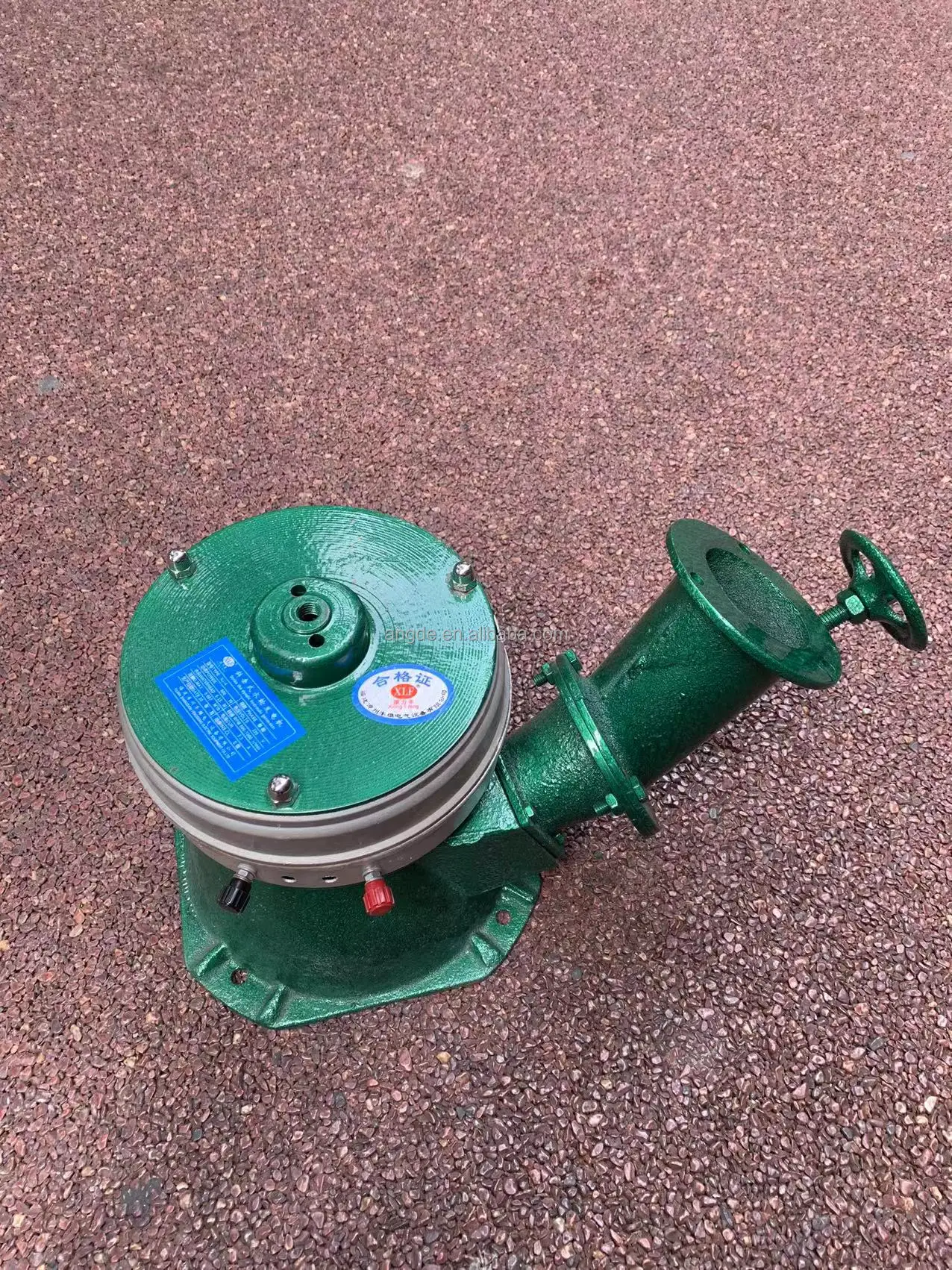

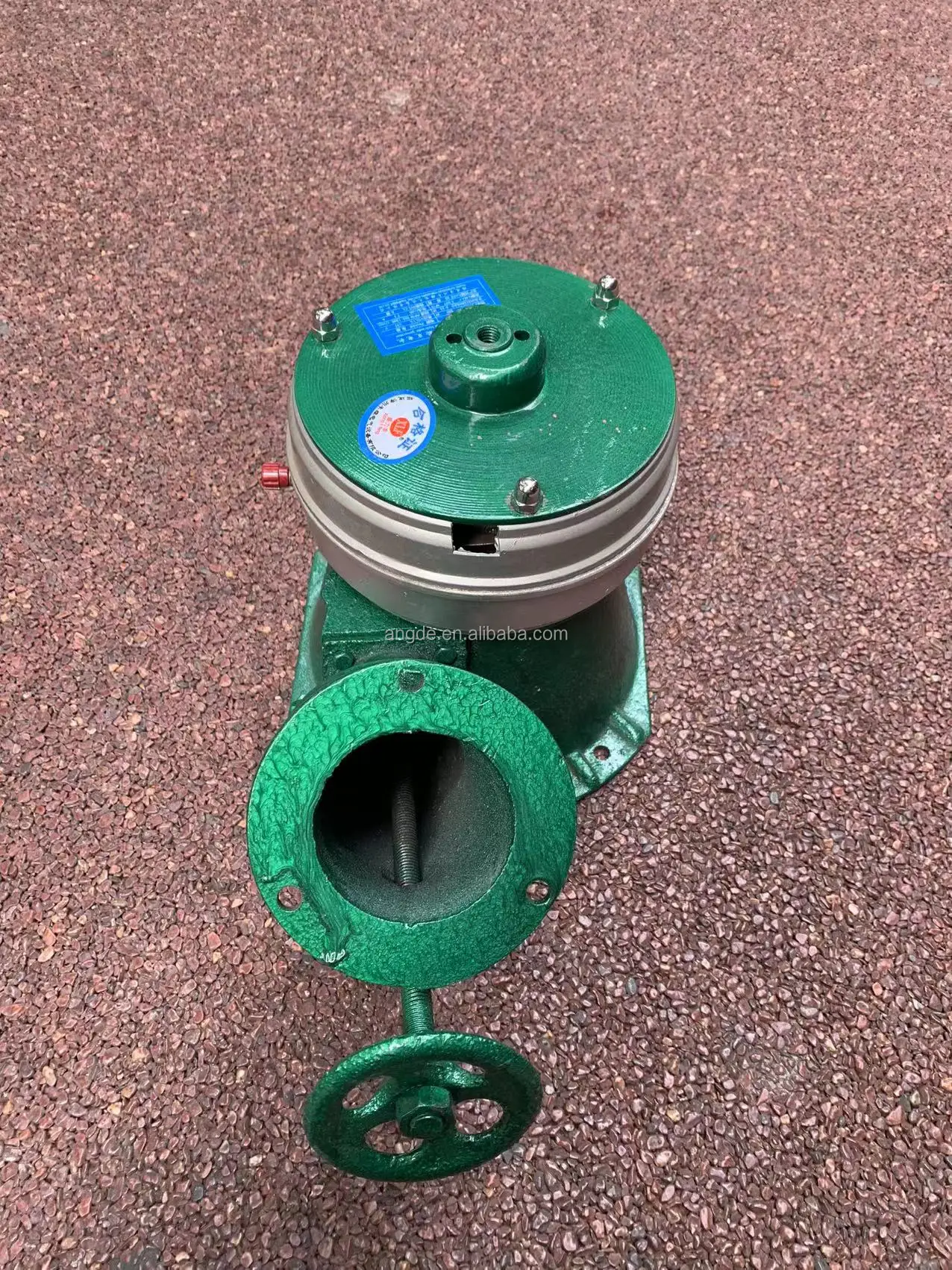

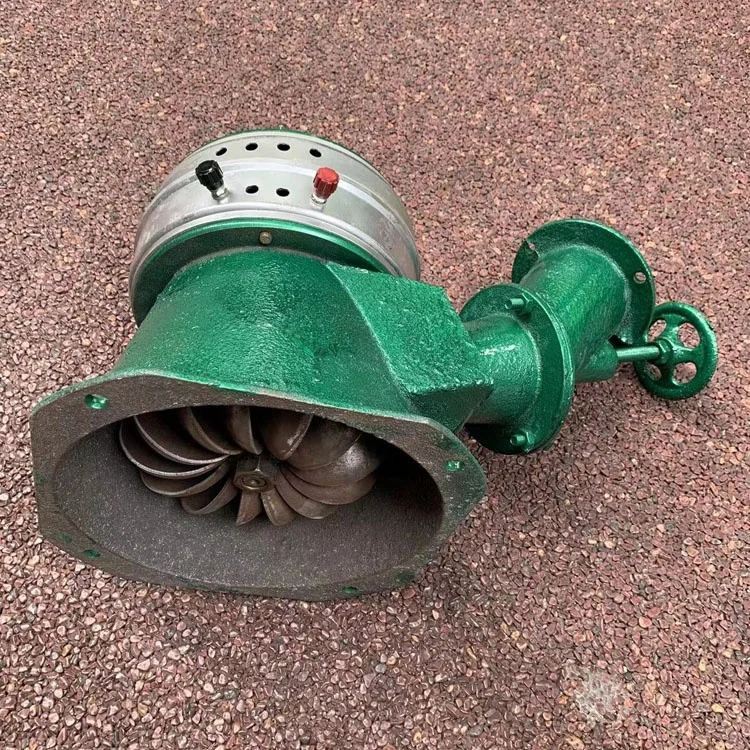

high quality Micro Hydrogenerator Set /Mini Electric Generator Hydroelectric Generator for sale
- Category: >>>
- Supplier: Zhengzhou Angd Machinery Co. Ltd.Zhengzhou Ltd.
Share on (1600522222714):
Product Overview
Description
Product Description
1.With the best NdFeB Permanent Magnet, high-grade pure copper winding, the generator can product power stably and high efficiently.

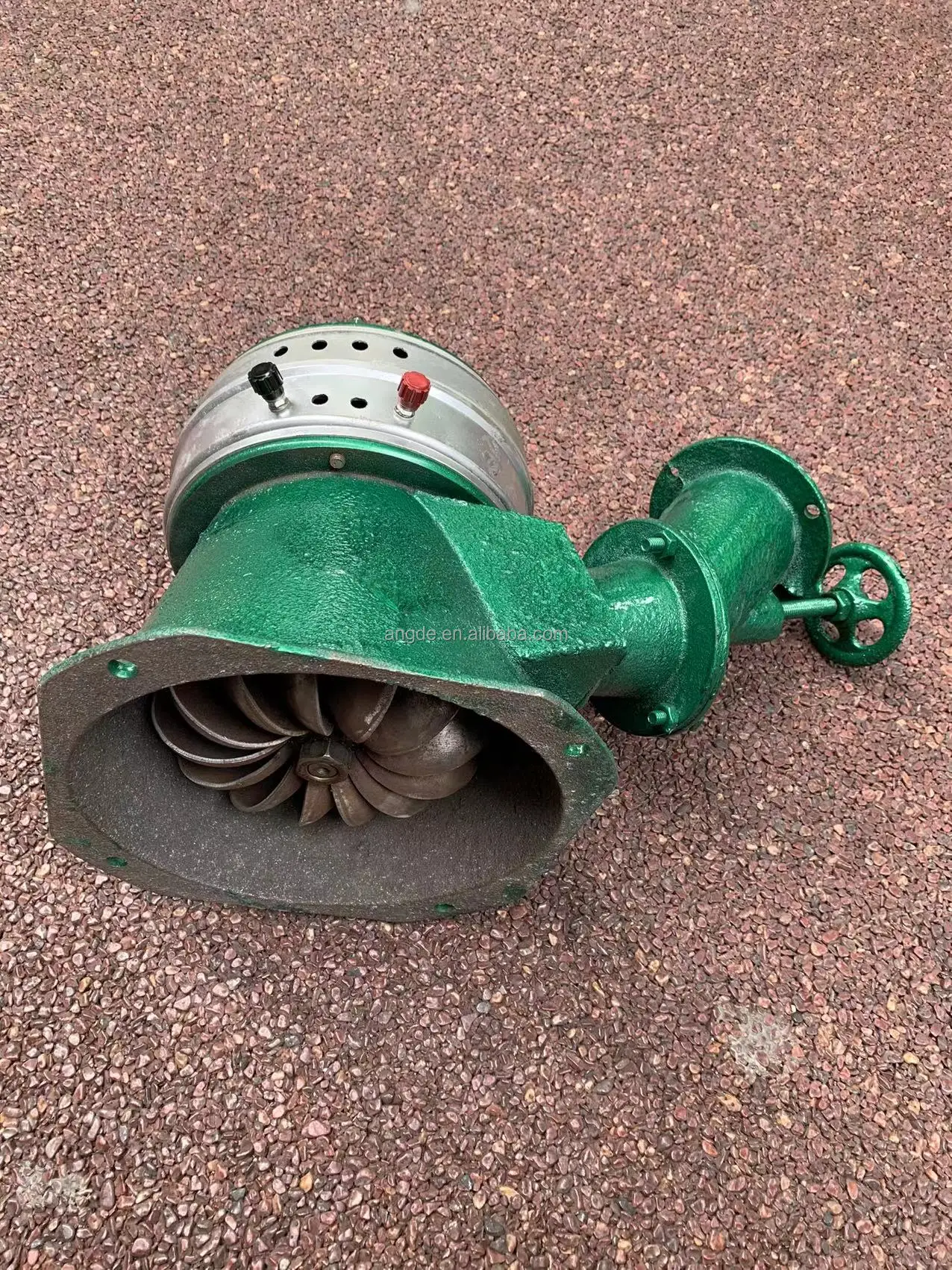

2. Specially-designed rotor and rotator, low resistancemoment in start-up, good at cooling
3. Gearless, direct-drive, and low rare earth Permanent Magnet Generator, easy and safe for operating and maintainance.
4. Die casting alluminum alloy case, anti- corrosion, acid and alkali resistant, anti salt corrosion

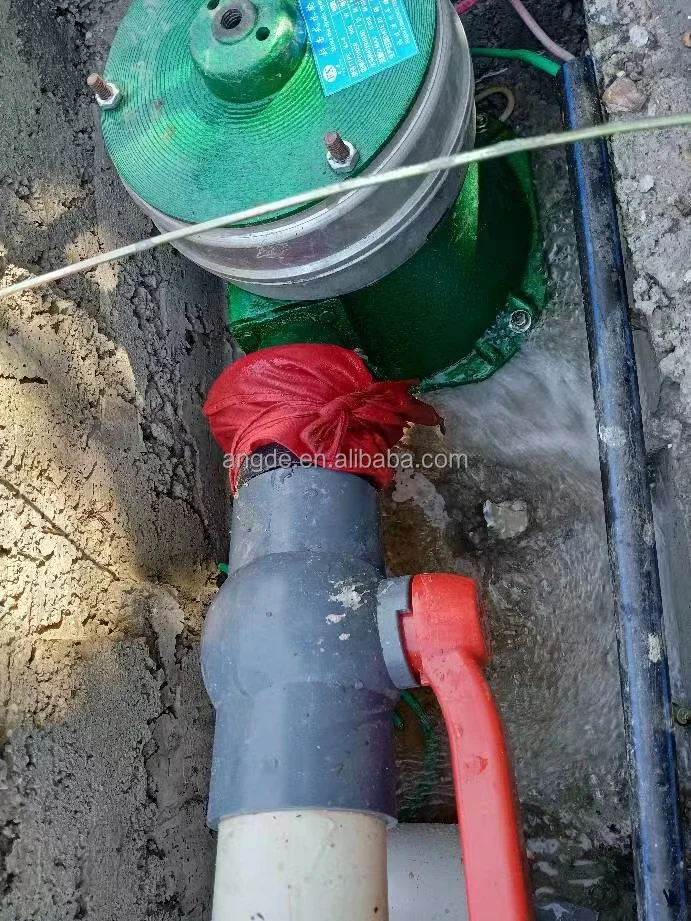

Application: This unit can be used in remote areas for temporary power. Customers have connected this unit to collapsible hose (fire hose) for temporary power while camping. Suitable for household lighting, TV, electric furnace and other pure resistance household appliances NOT suitable for household appliances
such as refrigerators, washing machines, pumps, etc.
such as refrigerators, washing machines, pumps, etc.

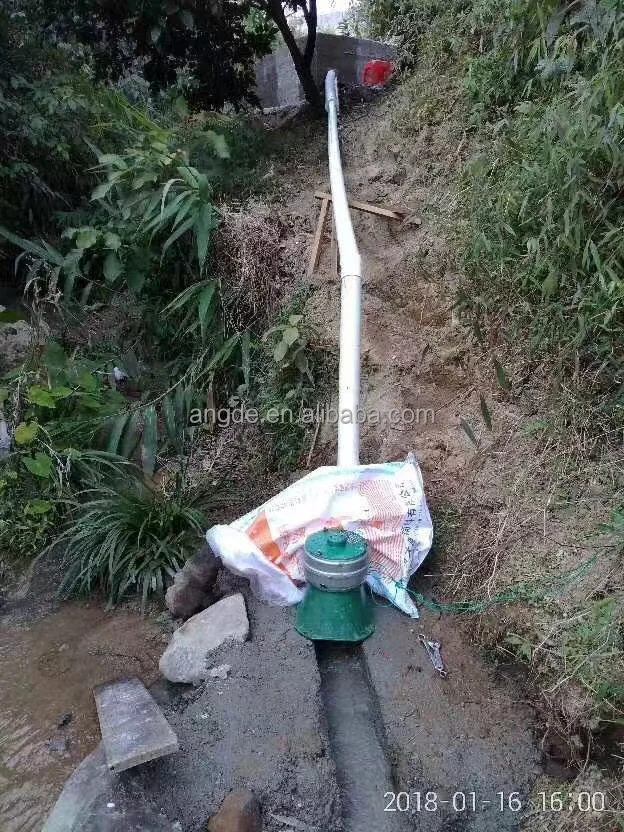

Installation Procedure: After the unit foundation be poured with concrete is solidified, the unit is installed in place and then watered in sequence. The water level must be measured with a level gauge to
ensure that the unit is fixed in a horizontal position. The gap between the unit and the floor should be sealed with cement, and no water seepage is allowed. After the unit is installed, check again and turn the turbine shaft of the turbine by hand. If the machine is flexible, the installation is finished. Installation requirements: The bottom plane of the turbine in close contact with the foundation plane.
ensure that the unit is fixed in a horizontal position. The gap between the unit and the floor should be sealed with cement, and no water seepage is allowed. After the unit is installed, check again and turn the turbine shaft of the turbine by hand. If the machine is flexible, the installation is finished. Installation requirements: The bottom plane of the turbine in close contact with the foundation plane.
NOTE: 500w hydro generator only can be used with the following two conditions:.
1) The vertical Water level difference between the unit foundation and the hydro generator must be in this range:7-15M
2) The water flow must can fully fill the water tube that is above 7.5cm diameter all the time
Specification
| Power: | 600w |
| Flow rate | 0.008m3/s |
| Water head | 7-15m |
| Speed | 500-1500 rpm |
| Current | 2.6 A |
| Material | Copper+Metal |
| Weight | 21KG Package |
| Included | 1x Micro Hydro Generator |
Packaging & Shipping
Packing & Delivery
1.Packed by standard import & export wooden cases or carton boxes.
2. Shipping:Courier service,Air transport,Sea Transport
Company Information
Our Company
FAQ
Q1: What’s the delivery time?
A : 5-10 work days after receiving client’s payment
Q2: What’s package?
A: wooden box packaging
Q3: Do you have any timely technology supports?
A: we have a professional technology supporting team for your timely services. We prepare the technical documents for you, also you can contact us by telephone, online chat (googletalk, MSN, skype, yahoo…).
Q4: What’s the payment method?
A: T/T, WESTERN UNION, MONEY GRAM, ESCROW,LC...
Q5: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
