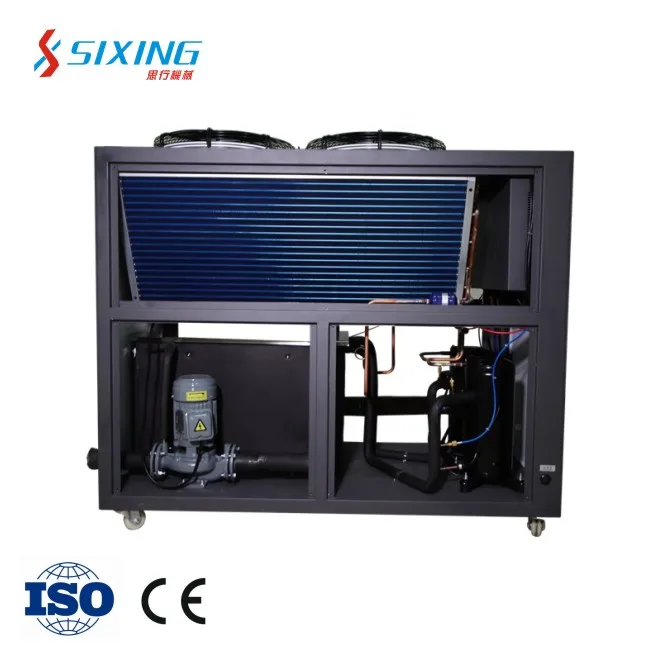

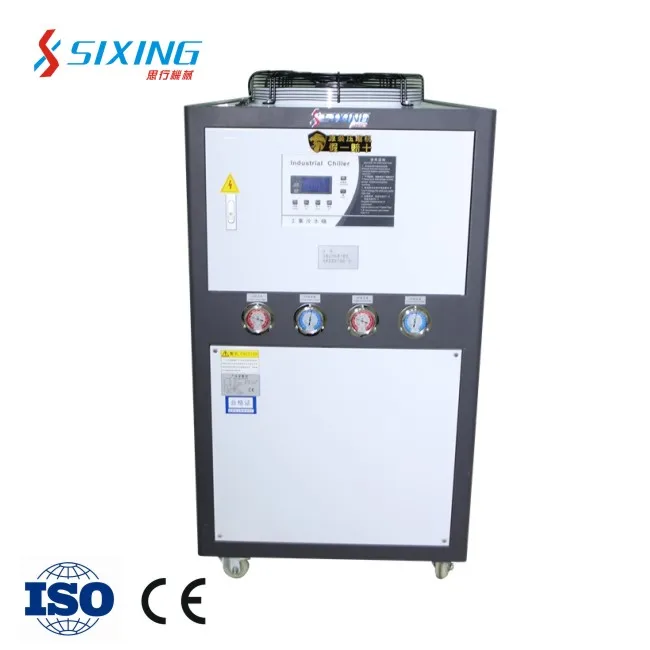

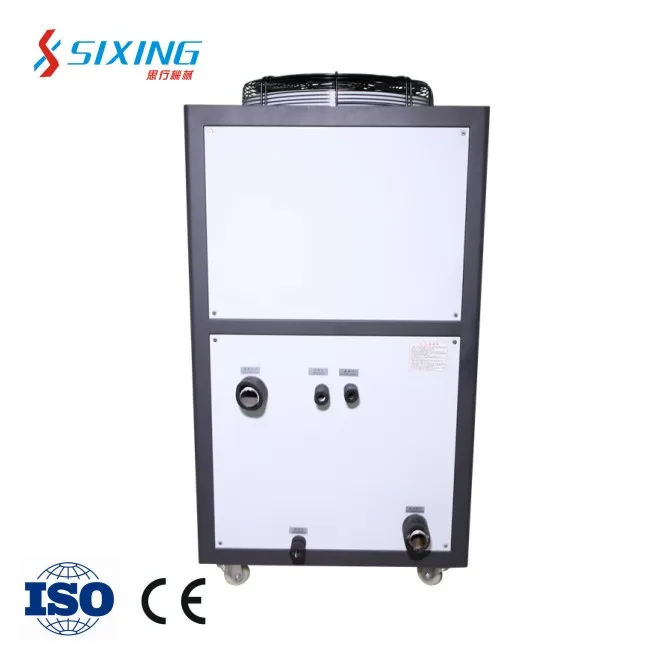

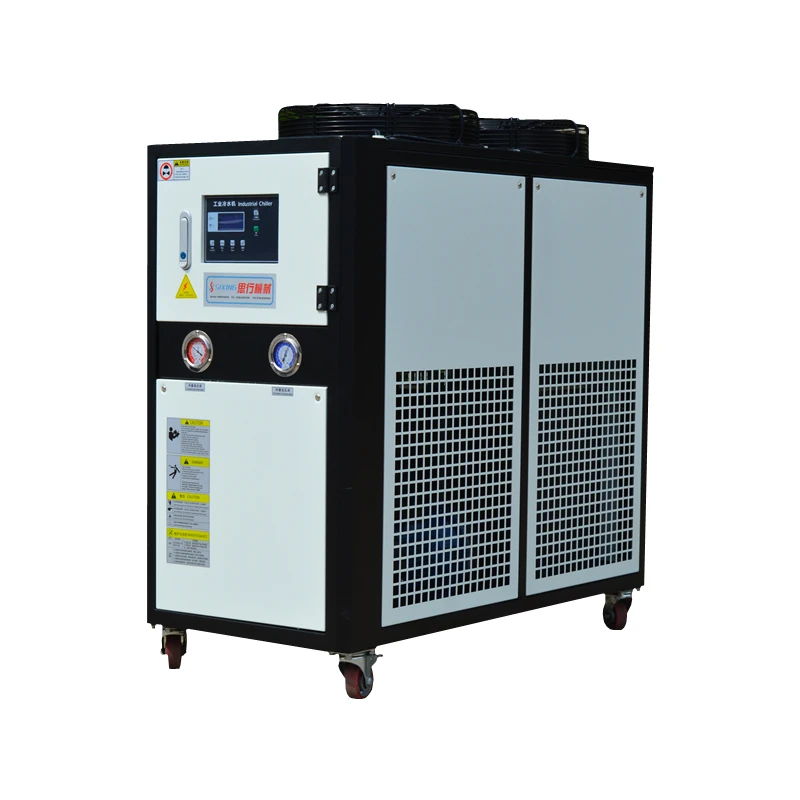

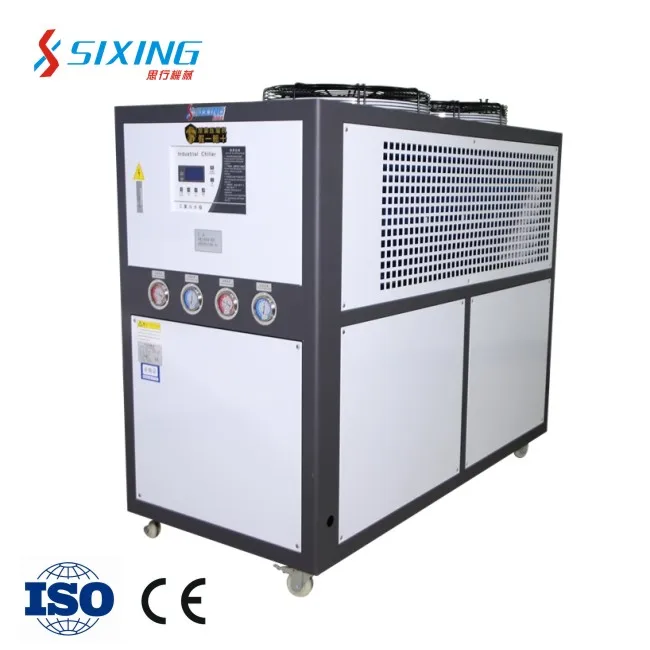

3HP to 30HP air cooled scroll water tank industrial chiller for injection molding machine
- Category: >>>
- Supplier: Dongguan Sixing Machinery Manufacturing Co. Ltd.
Share on (1600522229014):
Product Overview
Description
SX-5A
Name： air cooled chiller
Cooling capacity：12.9kw
Power: 4.5kwRefrigerant：R-134A/R-404A/R-407A

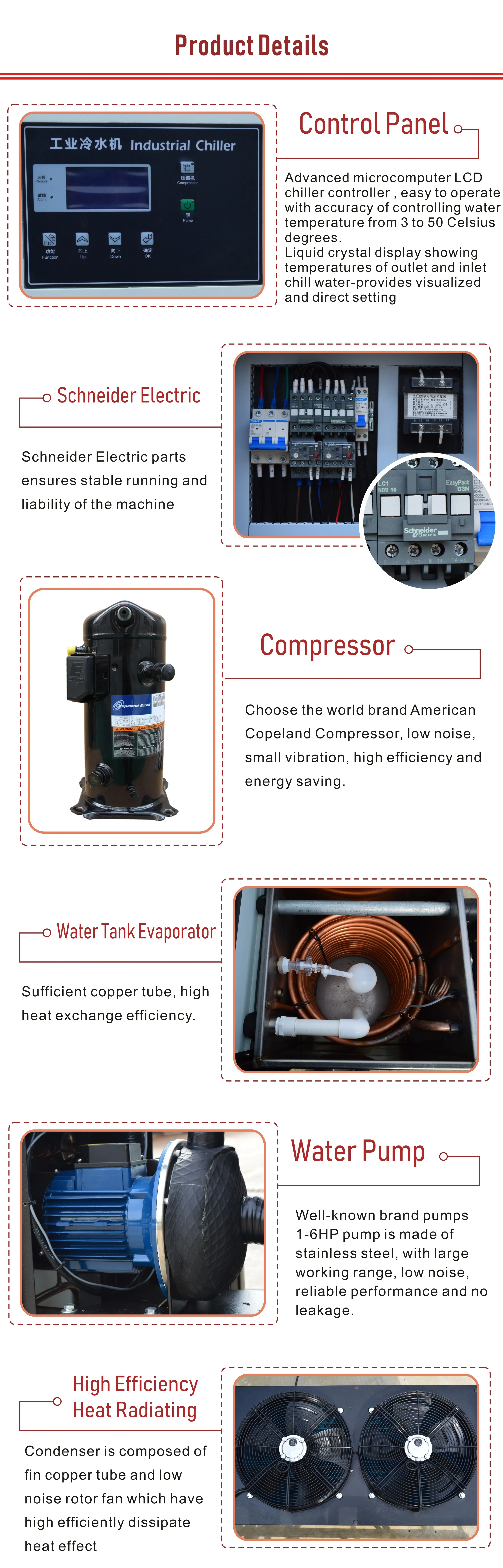

Control panel：PLC
Voltage:Customized
Electrical appliance brand：SCHNEIDER
Dimension: 1200 * 630 * 1240mm
Weight: 170kg
Electrical appliance brand：SCHNEIDER
Dimension: 1200 * 630 * 1240mm
Weight: 170kg

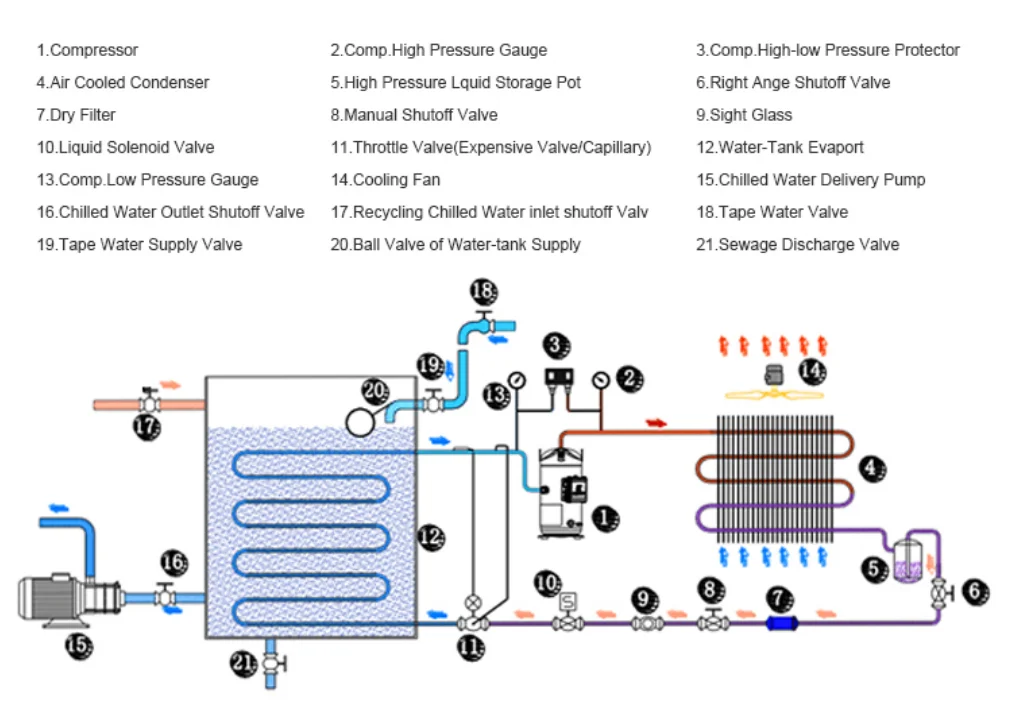

The function of air-cooled chiller is to reduce the temperature of normal temperature water or high temperature water. It is widely used in plastic, chemical, food and other industries.
Model | Cooling capacity | Power | Pump distance | Tank capacity | Dimensions | Weight |
SX-5A | 12.9kw | 4.5kw | 35m | 70L | 1250*630*1240mm | 170kg |
SX-8A | 23.8kw | 6kw | 35m | 110L | 1500*730*1400mm | 350kg |
SX-10A | 30.5kw | 9kw | 15m | 110L | 1500*730*1400mm | 450kg |
SX-12A | 34.3kw | 10kw | 15m | 110L | 1550*830*1508mm | 520kg |
SX-15A | 45kw | 13.5kw | 16m | 200L | 1850*830*1670mm | 650kg |
SX-20A | 61kw | 18kw | 16m | 350L | 1850*850*17500mm | 840kg |
SX-25A | 69kw | 20kw | 16m | 350L | 2400*850*1750mm | 900kg |
SX-30A | 92kw | 27kw | 16m | 420L | 2650*850*1750mm | 980kg |
