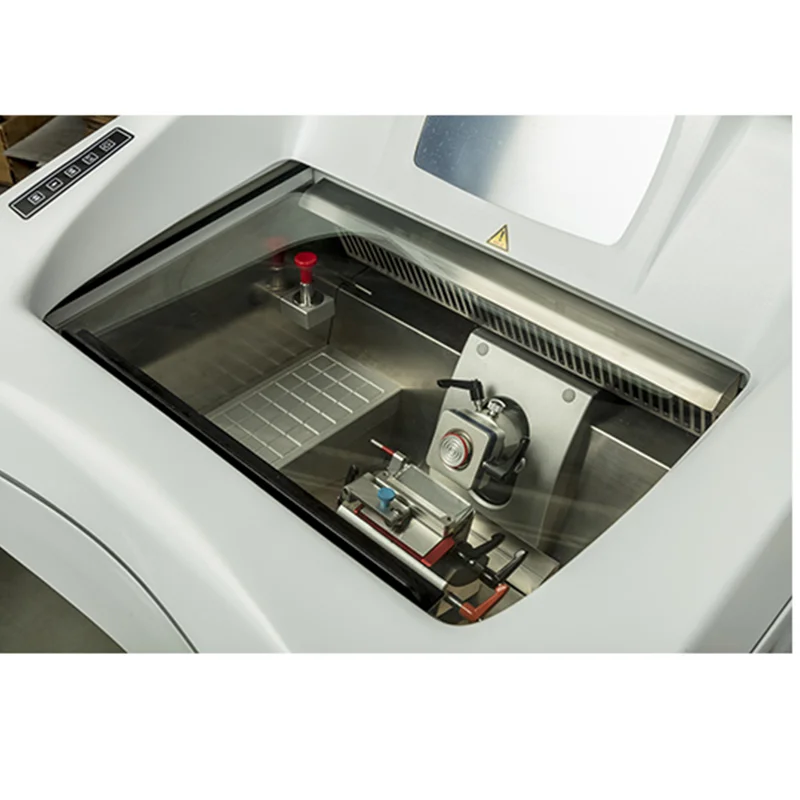

Factory Price Roundfin RD 2260 Hospital Equipment Semi auto Manual Tissue Freezing Cryostat Microtome
- Category: >>>
- Supplier: Shenyang Roundfin Technology Co. Ltd.
Share on (1600522241822):
Product Overview
Description
Product Description

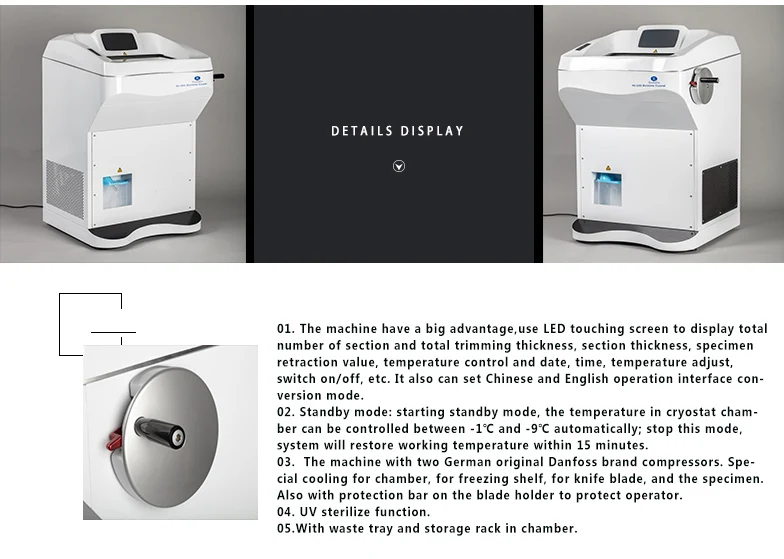

Details Images
Specification

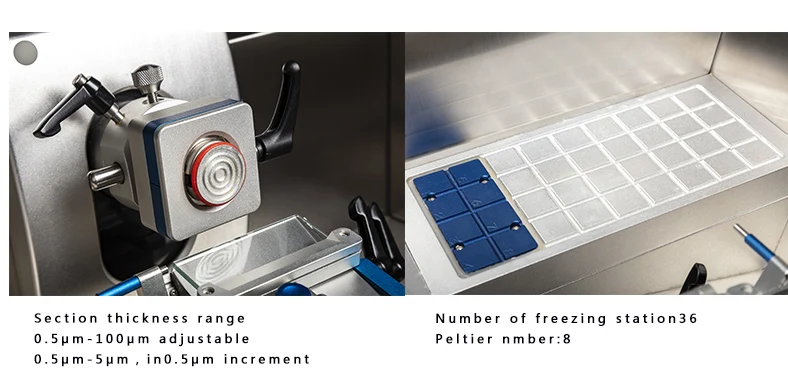

Parameter | Section thickness range | 1-100 μm adjustable |
1-20 μm increment : 1 μm | ||
20-40 μm increment :2 μm | ||
40-100 μm increment :5 μm | ||
Trimming thickness range | 5-500 μm adjustable | |
5-50 μm increment : 5 μm | ||
50-100 μm increment :10 μm | ||
100-500 μm increment :50 μm | ||
Specimen retraction | 0-90 μm adjustable | |
0-60 μm increment :5 μm | ||
60-90 μm increment :10 μm | ||
Maximum specimens size | 55*60 mm | |
Horizontal strocke | 22mm | |
Vertical stroke | 72mm | |

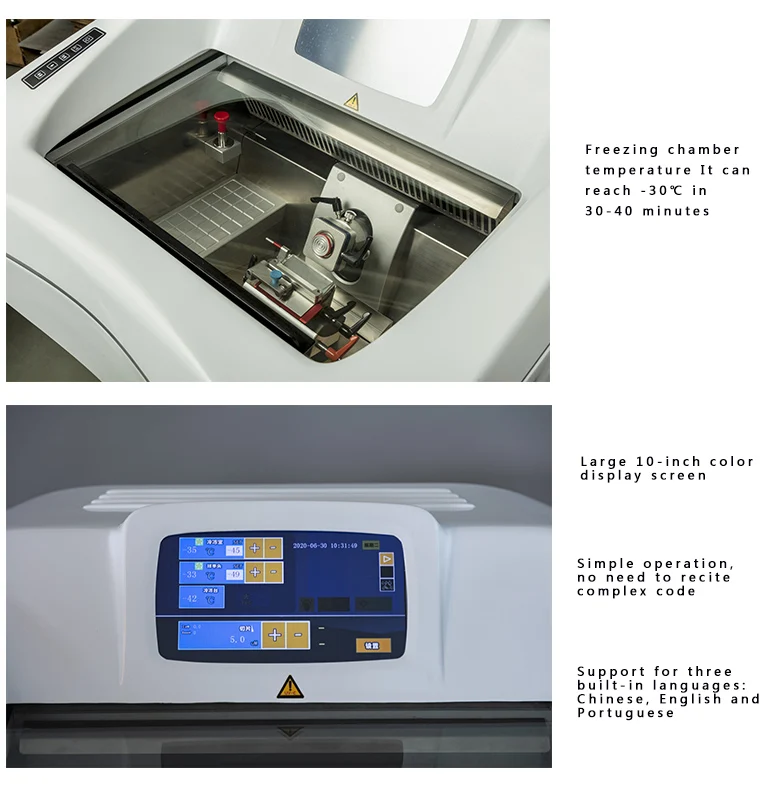

Freezing chamber temperature | -10 ℃ to -40 ℃ adjustable | |

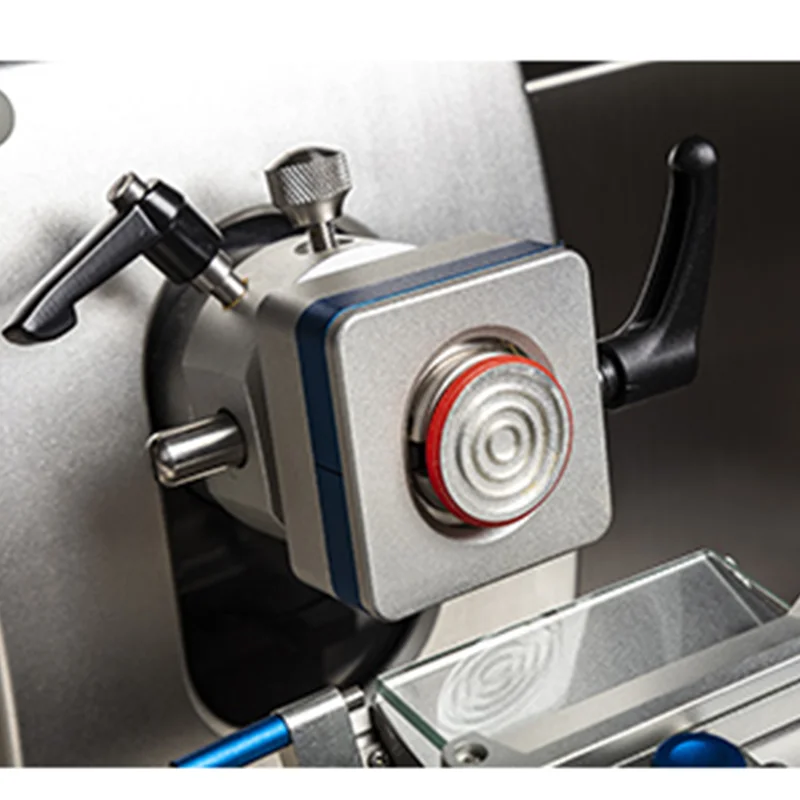

Specimen head rotary angle | X- axis , Y-axis :12 ° Z-axis :360 ° | |

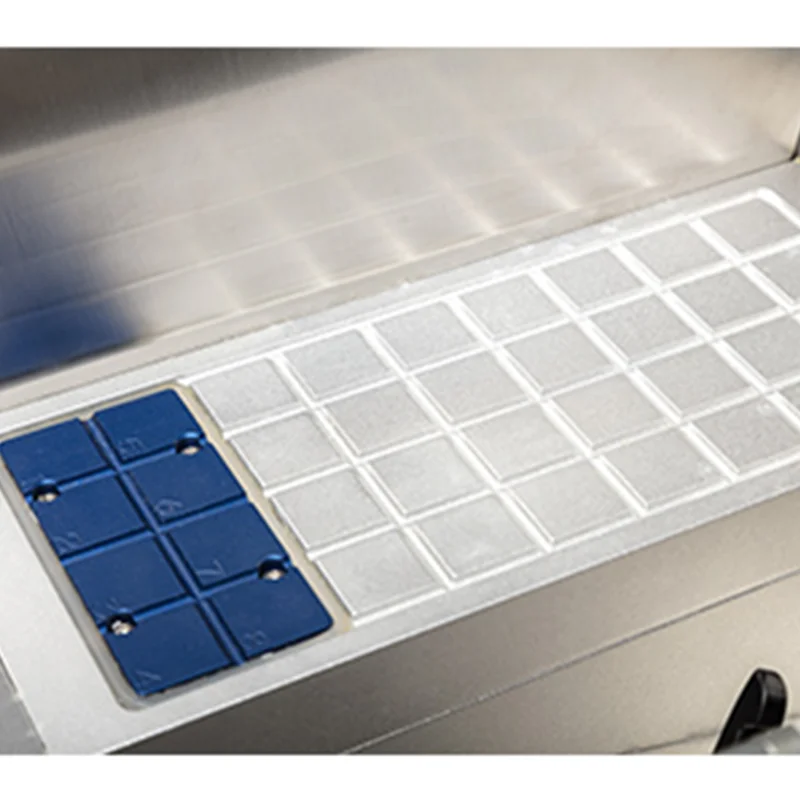

Feature | Freezing shelf | Minimum freezing shelf temperature :- 45 ℃ |
Number of freezing station :26 | ||
Peltier | Minimμm Peltier shelf temperature :- 65 ℃ | |
Number of freezing station :2 | ||
Working time to reach -60 ℃ : 15 min | ||
Compressor type | Double Danfoss compressor | |
Dimension | Net weight | 150 kg |
Size | 800*700*1190 mm | |
Gross weight | 175 kg | |
Packing size | 860*920*1480 mm | |
Technical Date | Voltage and frequency | AC220V±10%,50Hz(Standard) |
AC110V±10%,60Hz | ||
Power | 500W | |
Noise | 50Db(A） | |
Refrigerany | R404A | |
Safety | Type for blade holder | yes |

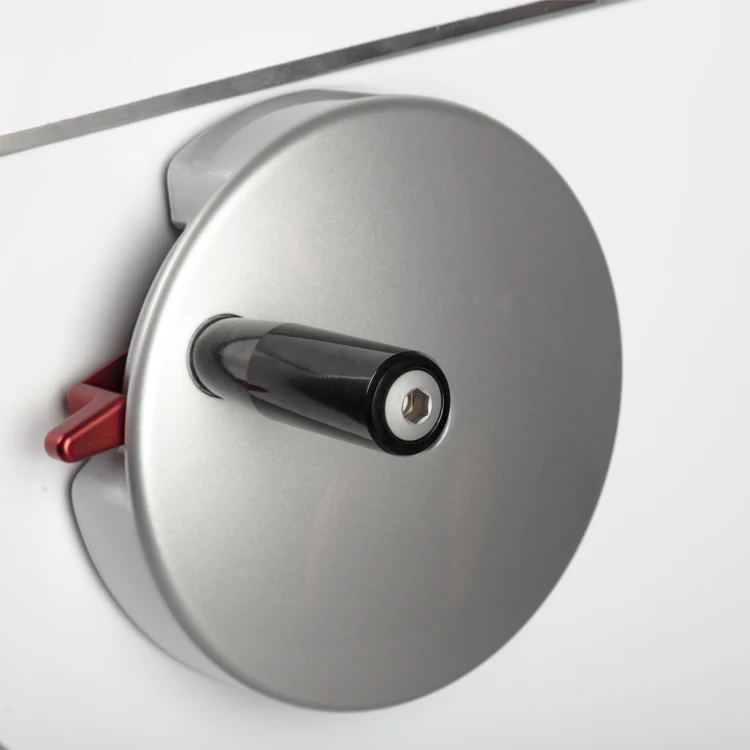

Handwheel lock | 16 positions locked | |
Others | Certification | CE |
Other remarks | OEM/custom-made accepted | |
Waste Cleaner | YES |
Company Profile
FAQ
1. What is your main product
A: Pathology equipment and funeral products, such as microtome, embedding machine, floating bath, tissue oven/dryer, morgue refrigerators, mortuary lifting trolley, autopsy tables, etc.
2. Are you a factory or a trader
A: We have both our own factories and our own trading partners
3. Can you customize products
A: We can customize the appearance and function of the product according to customers' requirements
4. How about the quality of your products
A: We mainly deal in high-quality products, the purpose is to make customers feel at ease in the process of use, in order to achieve a win-win result for both parties
A: Pathology equipment and funeral products, such as microtome, embedding machine, floating bath, tissue oven/dryer, morgue refrigerators, mortuary lifting trolley, autopsy tables, etc.
2. Are you a factory or a trader
A: We have both our own factories and our own trading partners
3. Can you customize products
A: We can customize the appearance and function of the product according to customers' requirements
4. How about the quality of your products
A: We mainly deal in high-quality products, the purpose is to make customers feel at ease in the process of use, in order to achieve a win-win result for both parties
