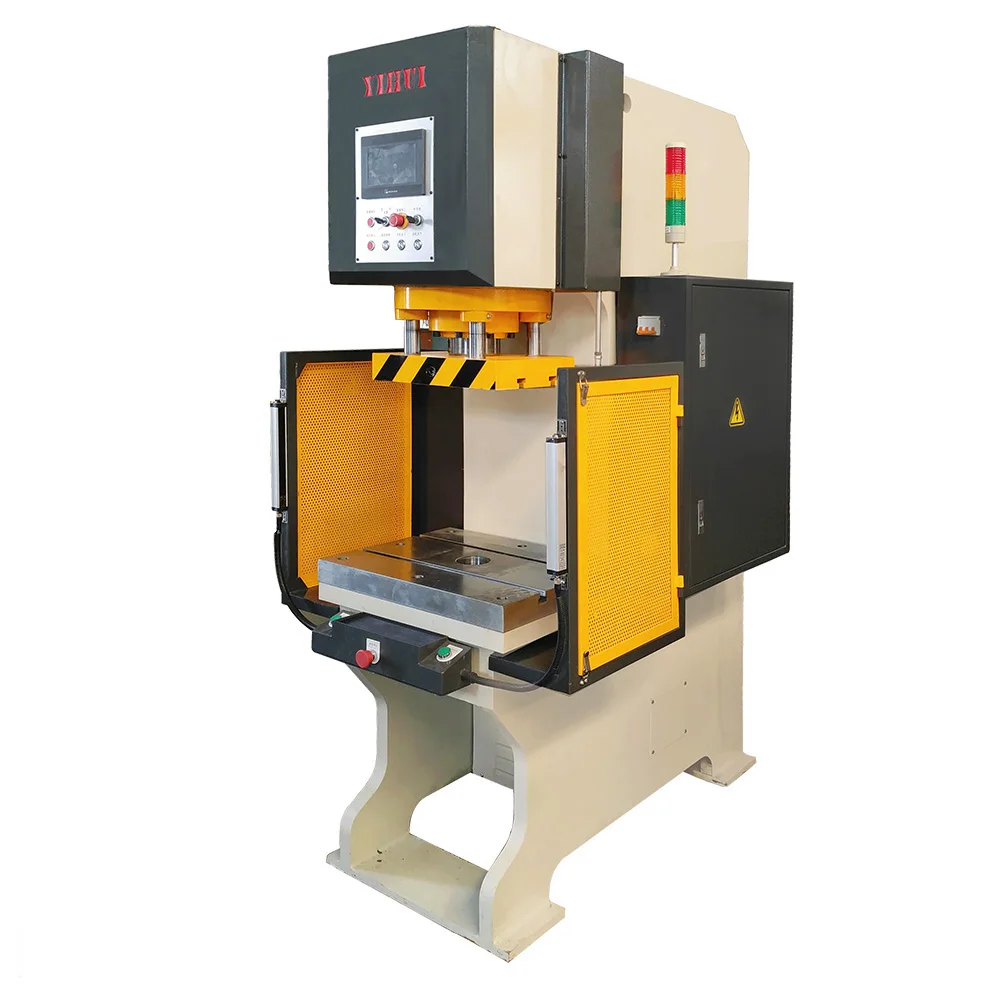

CE Certificated Servo stator press riveted joint c type hydraulic machine
- Category: >>>
- Supplier: Dongguan Yihui Hydraulic Machinery Co. Ltd.
Share on (1600522247076):
Product Overview
Description
Product Description
Multifunctional 150 Ton Hydraulic Bearing Press Parts And Accessories Machine made in China
We can provide total solutions, including machines, molds, product processing technology, automated production lines.
Technical Features
1. Using built-in high speed cylinder, has fast falling speed and high production efficiency.
2. C frame structure design enables wholly accessible operating space, long stroke distance and enough opening height.
3. Pressure, stroke and pressurizing time can be adjusted according to processing requirement.
4. Optional configuration: protective shield, anti-drop device, LED lighting and infrared grating, etc.
1. Using built-in high speed cylinder, has fast falling speed and high production efficiency.
2. C frame structure design enables wholly accessible operating space, long stroke distance and enough opening height.
3. Pressure, stroke and pressurizing time can be adjusted according to processing requirement.
4. Optional configuration: protective shield, anti-drop device, LED lighting and infrared grating, etc.

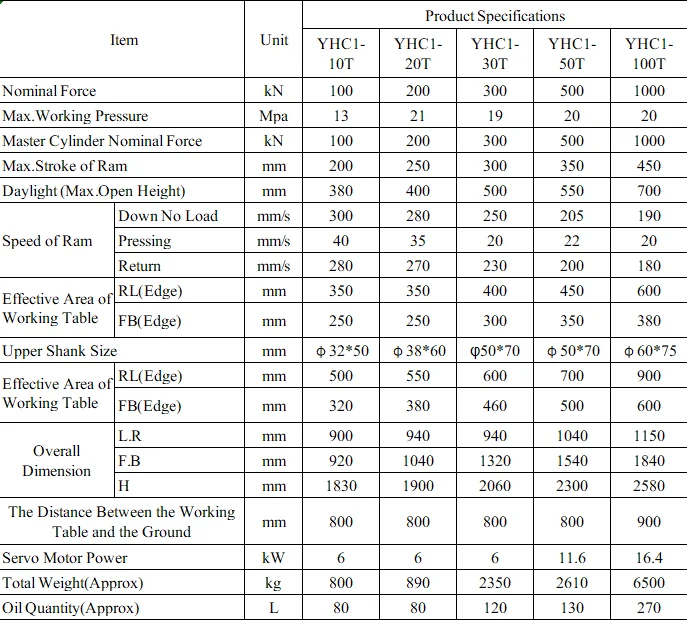

Standard Specification
We could customize for your special requirement

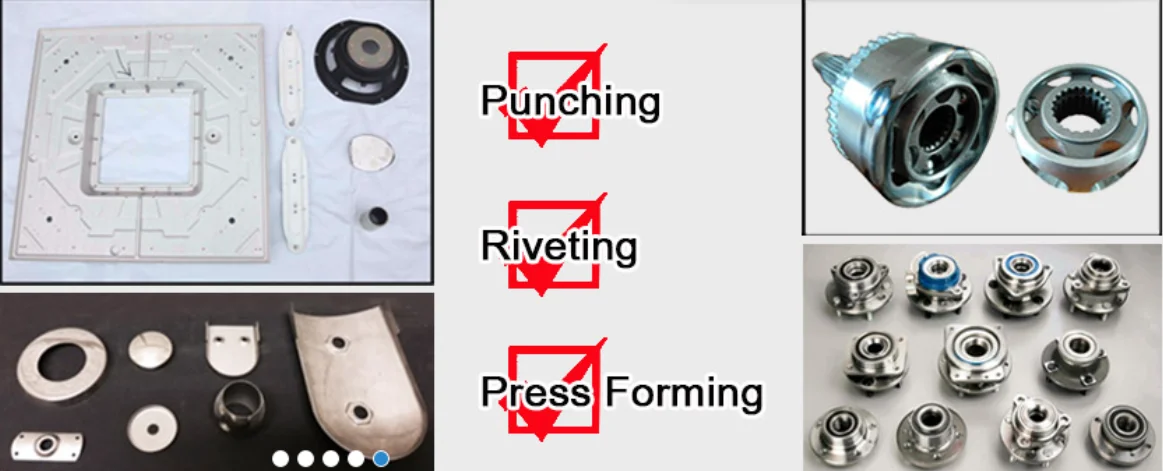

Product Application
1. Punching forming, cutting forming, riveting, half and full cutting of thin sheet, press point forming of locknut, etc.
���
2. Shaping and punching for metal and nonmetal parts.
���
Components Detail
Production Processes
View More
Response Rate 100%
China hot sale 4 column rubber compression molding heat hydraulic press cutting machine
Response Rate 100%
Full automatic four column auto parts brass bolt cold forging press hydraulic machinery
Company Introduction
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Dongguan Yihui Hydraulic Machinery Co., Ltd, is experienced in designing and manufacturing various types of hydraulic press
machines and stamping machines,especially specialized in manufacturing servo hydraulic press machine. The plant is established in
1999 ,covers an area of 5,000 square meters.
We are strictly implement the ISO9001 , CE, and SGS management standards.
YIHUI brand presses have been exported to over 40 countries, such as Germany, USA, UK, Sweden, Japan, Slovenia, Saudi Arabia, El
Salvador, Togo, Malaysia, Singapore, Australia ,Vietnam, Pakistan, South Africa, and so on.Hydraulic press machine mainly applied
to hardware, automotive, die casting, electronic, cookware, paper and other industries.
We can provide total solutions, including machines, molds, product processing technology, automated production lines.
machines and stamping machines,especially specialized in manufacturing servo hydraulic press machine. The plant is established in
1999 ,covers an area of 5,000 square meters.
We are strictly implement the ISO9001 , CE, and SGS management standards.
YIHUI brand presses have been exported to over 40 countries, such as Germany, USA, UK, Sweden, Japan, Slovenia, Saudi Arabia, El
Salvador, Togo, Malaysia, Singapore, Australia ,Vietnam, Pakistan, South Africa, and so on.Hydraulic press machine mainly applied
to hardware, automotive, die casting, electronic, cookware, paper and other industries.
We can provide total solutions, including machines, molds, product processing technology, automated production lines.
Certifications
Our Advantages
1. Working table is made of No. 45 steel. It is processed with heating treatment and precision grinding, so it has good flatness
and good hardness, and there is no deformation.
2. Columns are made of high-strength alloy steel. The column surface is hard chrome plated and processed with medium-frequency
treatment. It has very good oriented capability and abrasion resistance.
3. Piston is made of seamless steel. The surface of the piston is hard chrome plated and processed with medium-frequency
treatment. Therefore it possesses good hardness and high strength. And the speed is fast with mother-son type structure.
4. Oil circuit is integrated manifold block type and it is easy for maintenance and repair.
5. Oil tube is clip-on type. Comparing with traditional welded type, there is no oil leakage.
6. Main machine constitution is made of A3 (common carbon steel). The machine base is one-piece bending type, so it is strong and
stable.
and good hardness, and there is no deformation.
2. Columns are made of high-strength alloy steel. The column surface is hard chrome plated and processed with medium-frequency
treatment. It has very good oriented capability and abrasion resistance.
3. Piston is made of seamless steel. The surface of the piston is hard chrome plated and processed with medium-frequency
treatment. Therefore it possesses good hardness and high strength. And the speed is fast with mother-son type structure.
4. Oil circuit is integrated manifold block type and it is easy for maintenance and repair.
5. Oil tube is clip-on type. Comparing with traditional welded type, there is no oil leakage.
6. Main machine constitution is made of A3 (common carbon steel). The machine base is one-piece bending type, so it is strong and
stable.
Customer&Exhibition
Why so many famous brand company cooperate with us ?
1.Our factory have specialized in independent development and producing hydraulic press for 19 years.
So the product is stable and high quality.
2. Machine body, we use bending structure , much stronger than the common welding structure .
3. Oil pipe, we use Clip-on structure , much tight than common welding structure. Prevent oil leakage.
4. We take integrated oil manifold block, much easier to check machine and repair machine.
5.The main components are imported from Germany, Italy and Japan . So the quality is near the Japan production, but the unit price
is lower than Japan production.
6.Our factory can offer full set line service, such as the mould,process technology, and other relative machines.
1.Our factory have specialized in independent development and producing hydraulic press for 19 years.
So the product is stable and high quality.
2. Machine body, we use bending structure , much stronger than the common welding structure .
3. Oil pipe, we use Clip-on structure , much tight than common welding structure. Prevent oil leakage.
4. We take integrated oil manifold block, much easier to check machine and repair machine.
5.The main components are imported from Germany, Italy and Japan . So the quality is near the Japan production, but the unit price
is lower than Japan production.
6.Our factory can offer full set line service, such as the mould,process technology, and other relative machines.
Packing&Shipping
Size | Accordingly |
Weight | Accordingly |
Packaging Details | The normal package is wooden case(Size: L*W*H). The wooden case will be fumigated if needed. If container is too tight, we will use PE film for packing or pack it according to customers special request. |
