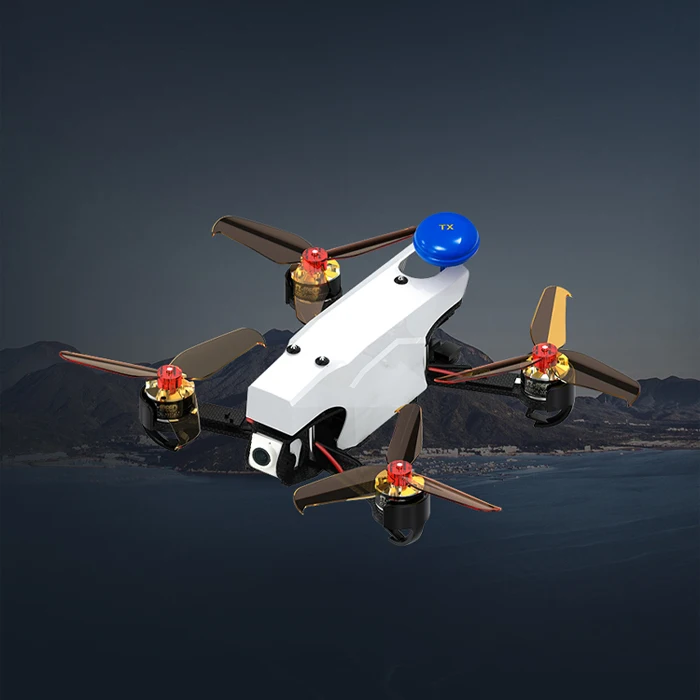

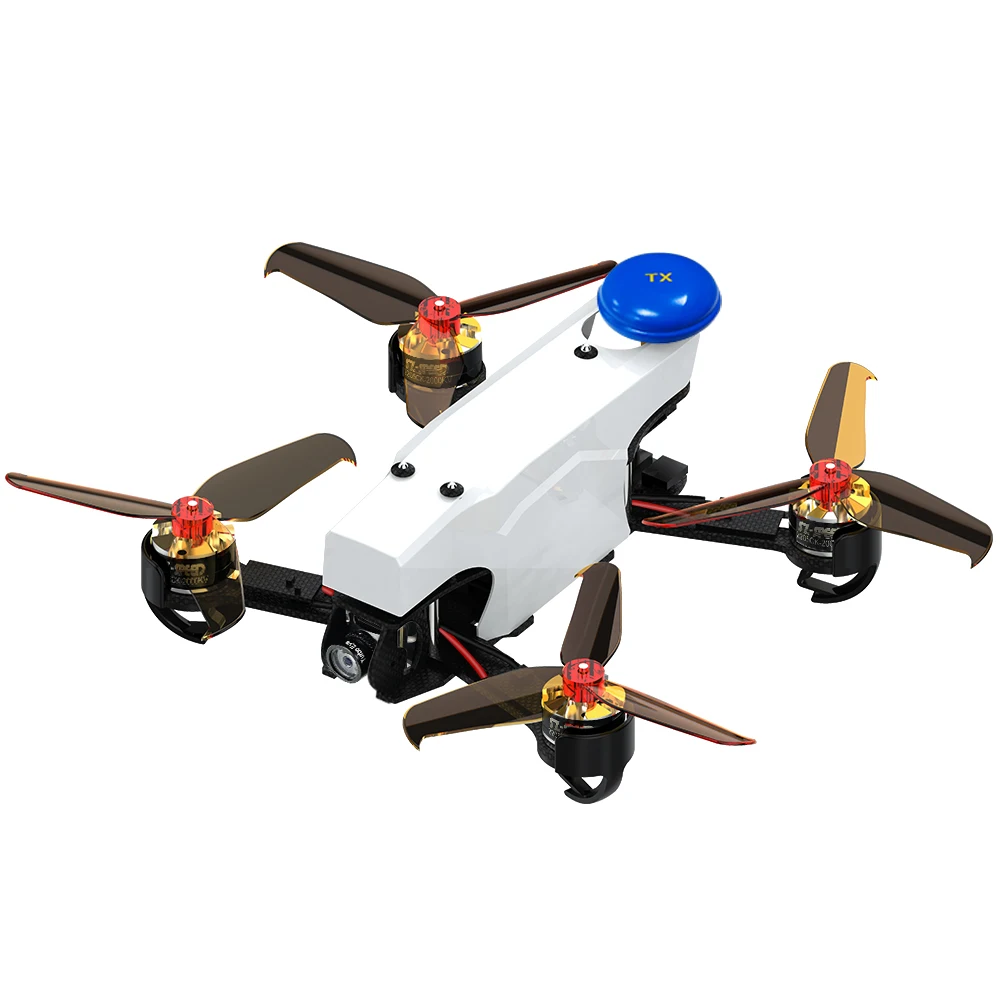

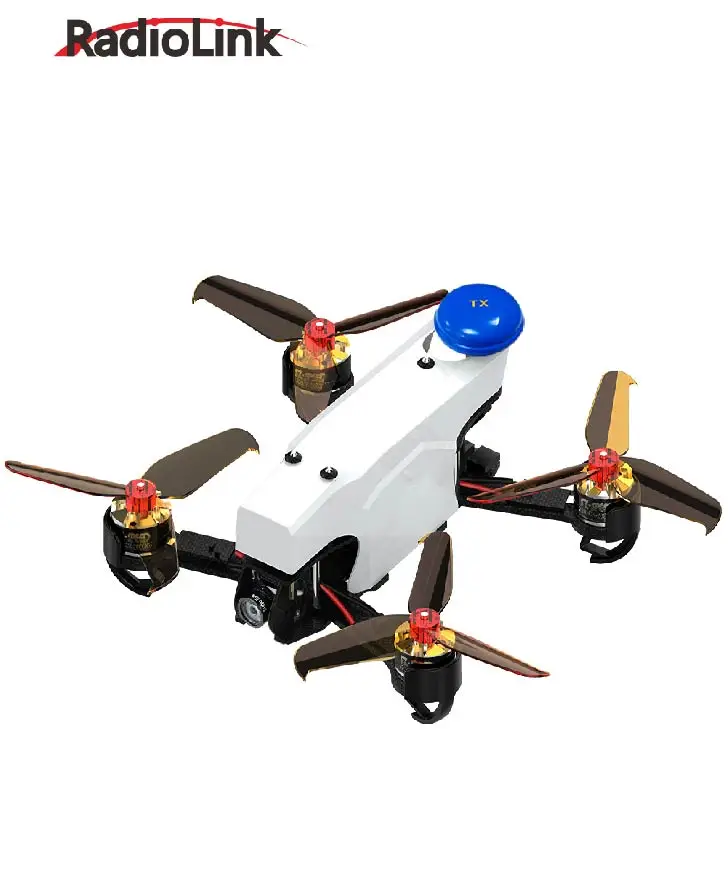

Radiolink Wolf QAV210 Drone with Mini Pix 1080P HD Camera and GPS Real time Image Transmission Photography Quadcopter Kit
- Category: >>>
- Supplier: Radiolink Electronic Limited
Share on (1600522268225):
Product Overview
Description
Factory Profile
Founded in 2003, RadioLink Electronics Co., Ltd is a high technology manufac-turing company dedicated to researching,manufacturing and marketing of RC model radio transmitters. Based on solid technical know-how and expertise accumulated over the years, we have established our position as the top radio control provider, offering the turn-key solution for hardware and software designing.
Our products portfolio includes model RF systems and independent balance chargers for different RC airplanes, helicopters,air-crafts, cars and boats.
We take the lead in conforming to the certification of FCC, CE, RoHS and ISO9001 standard in the industry. We execute strictly the IQC、IPQC、QC、CFQC、QA in each step of quality control engineering and supply chain management in the technological pro-cess.
RadioLink has strong manufacturing capability to meet the various software and hardware engineering needs, and we accept OEM projects to grow and fly together with our worldwide clientele.
Our products portfolio includes model RF systems and independent balance chargers for different RC airplanes, helicopters,air-crafts, cars and boats.
We take the lead in conforming to the certification of FCC, CE, RoHS and ISO9001 standard in the industry. We execute strictly the IQC、IPQC、QC、CFQC、QA in each step of quality control engineering and supply chain management in the technological pro-cess.
RadioLink has strong manufacturing capability to meet the various software and hardware engineering needs, and we accept OEM projects to grow and fly together with our worldwide clientele.

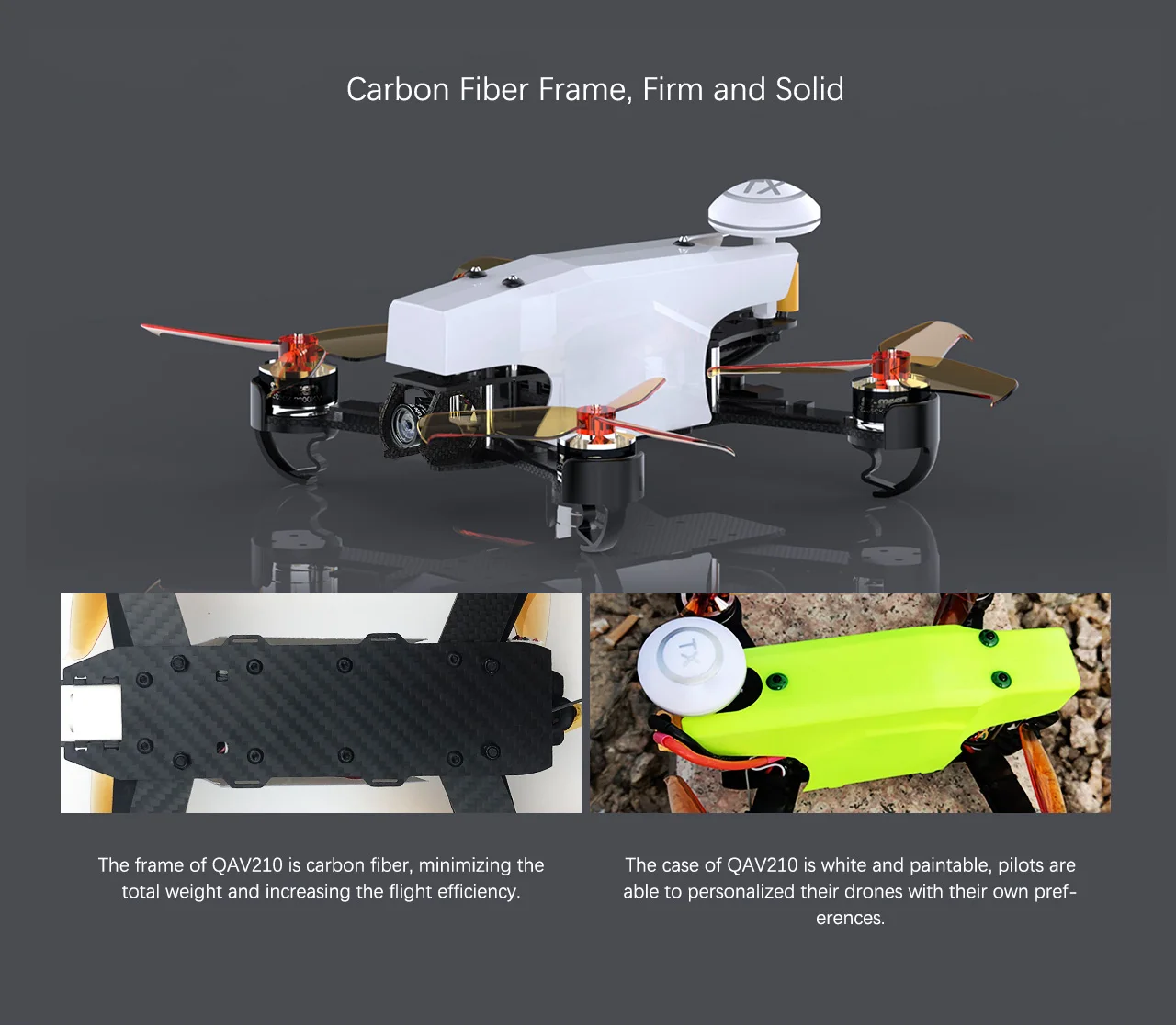

WOLF QAV210 Specifications
Size | 210mm(8.27") |
Weight | 506.5g(1.12lb) |
Battery Capacity | 1500mAh |
Radio Frequency | 2.4G |
Image Transmission Frequency | 5.8G |
Transmitter Output Power | <100mW(20dBM) |
Image Transmission Output Power | 200mW |
Flight Time | 10 minutes |
Control Range | 3400m(2.11Miles) in the air (Maximum range tested in unobstructed areas free of intererence) |
GPS | M8N GPS TS100 |
Camera | 720P，FPV&DVR dual-function camera |
Camera Max Memory Space | 32G |
Memory format | NTSC |
MINI PIX USB port | General USB |

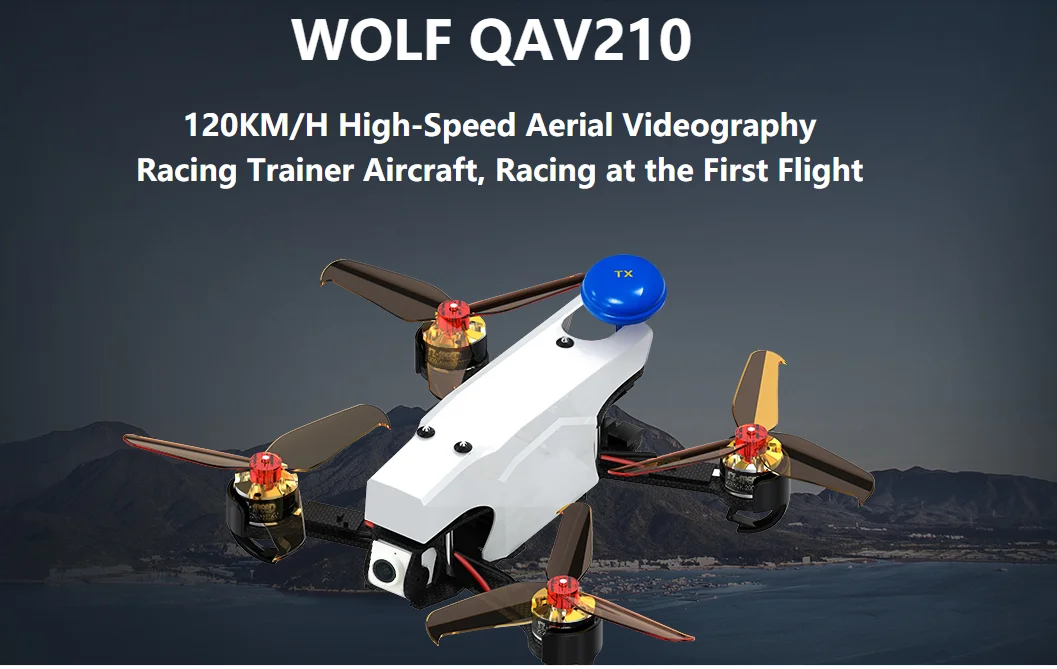

High-Speed Aerial Videography Drone
QAV210 uses RADIOLINK flight controller MINIPIX, which has a series of powerful functions, such as Pos-Hold, Auto Flight Mode, Waypoints Mode and RTL, perfectly works with RADIOLINK GPS with centimeter position accuracy to realize the pos-hold videography.
The Kalman Filter Algorithm applied in MINIPIX correctly calculates the value changes of acceleration and gravity at high speed and makes QAV210 possible to realize fast elevation at Alt-hold mode and well record every moment with super-fast movements.
The Kalman Filter Algorithm applied in MINIPIX correctly calculates the value changes of acceleration and gravity at high speed and makes QAV210 possible to realize fast elevation at Alt-hold mode and well record every moment with super-fast movements.
Beginners can start from Pos-Hold Mode to Stablize Mode to Acro Mode, easy and handy.
Competitive pilots can choose Manual Mode to compete or make freestyle and fully enjoy the challenge and passion of air F1 with the up to 120km/h maximum speed.

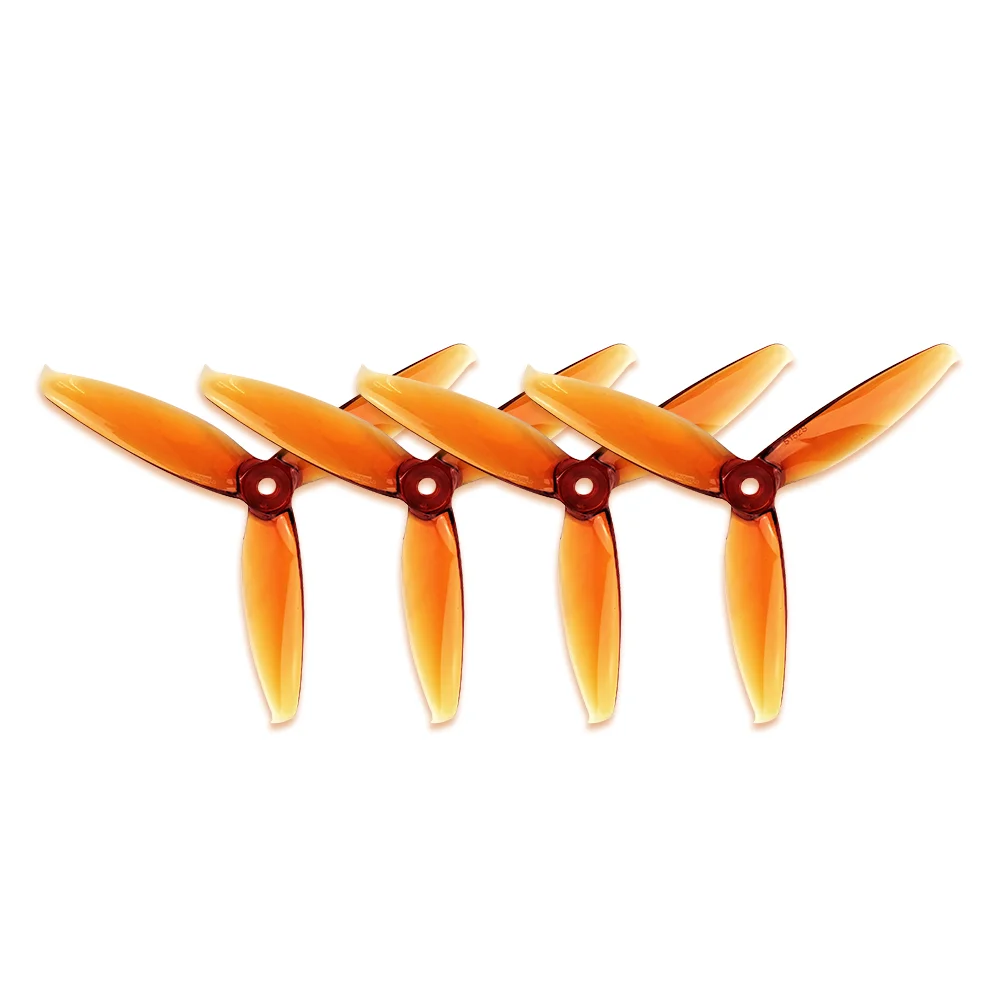

GEMFAN Propeller
The FLASH 5152S propeller from GEMFAN takes full advantages of aerodynamics and is repeatedly tested and modified, basing on its weight and the effects from thickness distribution on rotary inertia.
The propellers use polycarbonate and are bending resistant. The fold-down design decreases the vortex downwash effect of propeller tip. Every detail from appearance to function is carefully polished to achieve high efficiency and increase the continuous pulling force up to 898g. With extremely fast response and no vibration under high speed, the propellers offer pilots unforgettable flight experience.
The propellers use polycarbonate and are bending resistant. The fold-down design decreases the vortex downwash effect of propeller tip. Every detail from appearance to function is carefully polished to achieve high efficiency and increase the continuous pulling force up to 898g. With extremely fast response and no vibration under high speed, the propellers offer pilots unforgettable flight experience.
SZ-SPEED Motor
The motor of QAV210 is 2205CK－2000KV from SZ-SPEED. With direct cooling from propeller wind and NSK bearing, the heat dissipation ability is enhanced when motors run at high speed and motors’ lifespan is extended. Each motor weights 24g and closely works with the magnet to achieve high performance. The maximum thrust of 5152S propellers is 650g with linear output power to ensure the steady flight and clear videography.
Extensive testings of rough flights and falling prove that the motors can bear the repeated violent collision at high speed, which relieves the worries from drone damage during practices and competitions.
Extensive testings of rough flights and falling prove that the motors can bear the repeated violent collision at high speed, which relieves the worries from drone damage during practices and competitions.
FLYCOLOR ESC
Electronic Speed Control (ESC) is 30A FAIRY from FLYCOLOR. With more than 10 years of R&D experience in electric industry, FLYCOLOR decreases the ESC dimension to minimize the weight of ESC and the whole drone and ensures the playtime. As the ESC is upgraded both on circuit and PCB layout, the propellers will stop running when encounter obstacles to realize the defensive function of locked rotor and offer maximum protection to both drone and pilot.
FULLYMAX Battery
The battery of QAV210 is 11.1V 1500mAh 25C lithium battery from FULLYMAX with high quality cell. The strong power and good heat dissipation effect ensure longer playtime and lifespan.
Image Transmission with long distance
The image transmission function of QAV210 adopts EWRF Tech 5.8G 200mW, ensuring stable transmission with distance of 2km and good video photography.
OSD Real-time Display Module
The integrated backhaul module of Image Transmission OSD works with English parameter setup app, whose parameter display can be personalized.
Real-time visualization of flight gestures makes pilots easier to follow the battery voltage and longitude/latitude information to ensure safer flight.
Online upgrade with USB port always ensures the latest functions and better flight experience.
Real-time visualization of flight gestures makes pilots easier to follow the battery voltage and longitude/latitude information to ensure safer flight.
Online upgrade with USB port always ensures the latest functions and better flight experience.

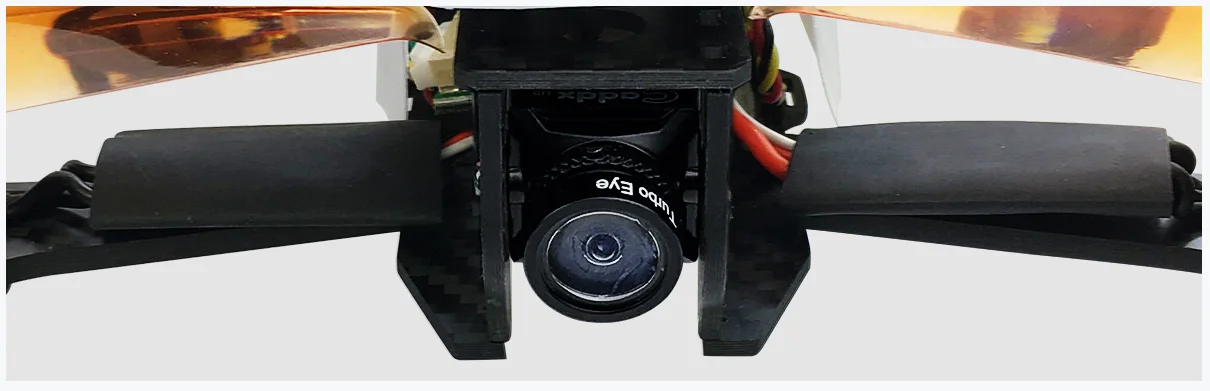

CADDX FPV&DVR Dual Function Camera
Specially for racing drone, Caddx 1080P 60fps mini video camera (Model: TURTLE) has acute light sensation and is clear even in backlighting. Pilots can record HD images in any angles. The DVR transmits the images and records simultaneously, memorizing every exciting moment.
F121 Pro | F450 | QAV210 version | |
Dimensions | 121*55mm | 450mm(17.72") | 210mm(8.27") |
Weight | 74.5g(2.63oz) | 996g(2.2lb With battery)，686g(1.51lb, Without battery) | 506.5g(1.12lb) |
Battery | FULLYMAX 1S 3.7V 660mA 25C Li-Po battery | 3700mAh 11.1V 35C XT60 | 1500mAh |
Flight Time | 8 minutes | 14-15 minutes | 10 minutes |
Transmitters | T8S BT | AT9S Pro | AT9S Pro |

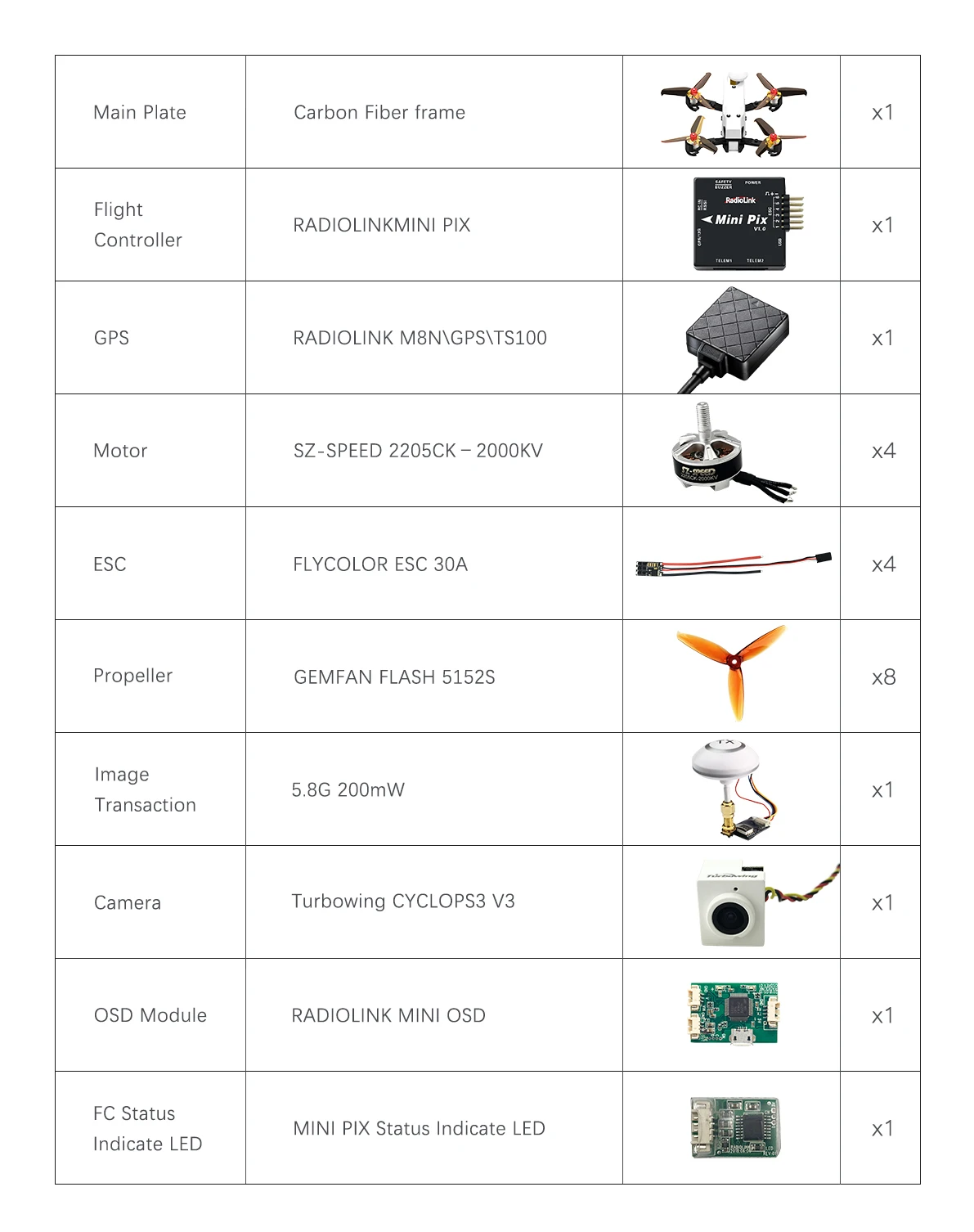

Packaging List
Trademark registration
Honor&Awards
AT9 (same appearance as AT9S/AT9S Pro) won the German RedDot Design Award.
Certifications
Subsidiary DUMBORC
DUMBORC, as the subsidiary of RadioLink, is responsible for the processing and assembly of all RadioLink products.
RadioLink products for the retail market, products more tend to premium products. More and more car manufacturers suggest us to design a transmitter without a screen, this transmitter designed for car/boat manufactures that with high-end performance while low price to make sure the customers enjoy the most cost-effective RTR car/boat. So, we let our subsidiary DUMBORC launched a new period transmitters X4, X5, X6 since July 2019.
Within the second half of 2019, this period transmitters have been quickly adopted (as RTR) by domestic RC car brands like River Hobby and HNR HOBBY and produced as ODM transmitter by more and more international brands such as TRAXXAS, TAMIYA, CARSON, ABSIMA, LRP, CML, etc.
RadioLink products for the retail market, products more tend to premium products. More and more car manufacturers suggest us to design a transmitter without a screen, this transmitter designed for car/boat manufactures that with high-end performance while low price to make sure the customers enjoy the most cost-effective RTR car/boat. So, we let our subsidiary DUMBORC launched a new period transmitters X4, X5, X6 since July 2019.
Within the second half of 2019, this period transmitters have been quickly adopted (as RTR) by domestic RC car brands like River Hobby and HNR HOBBY and produced as ODM transmitter by more and more international brands such as TRAXXAS, TAMIYA, CARSON, ABSIMA, LRP, CML, etc.
