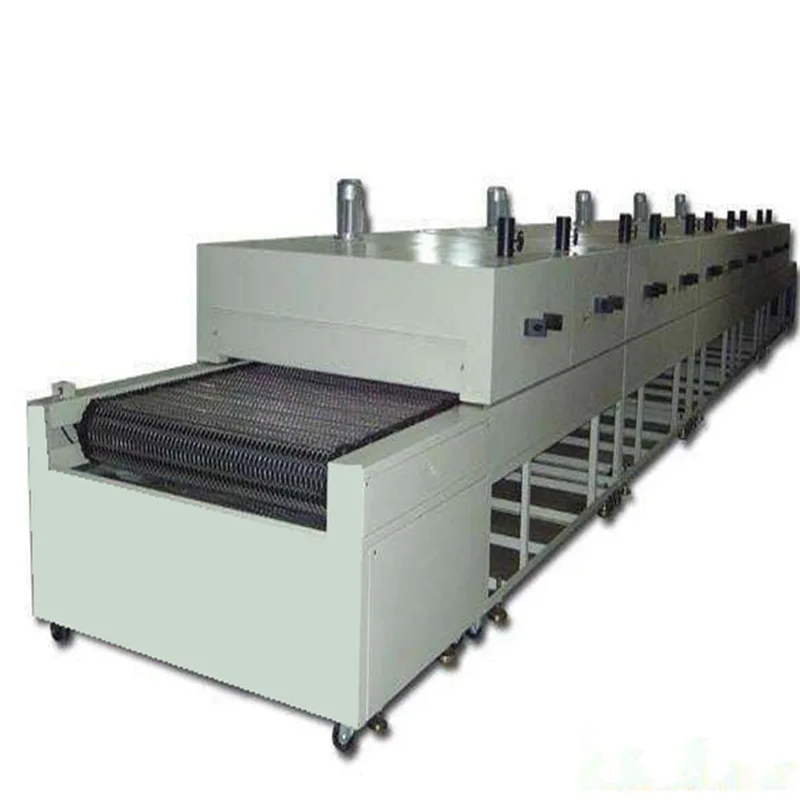

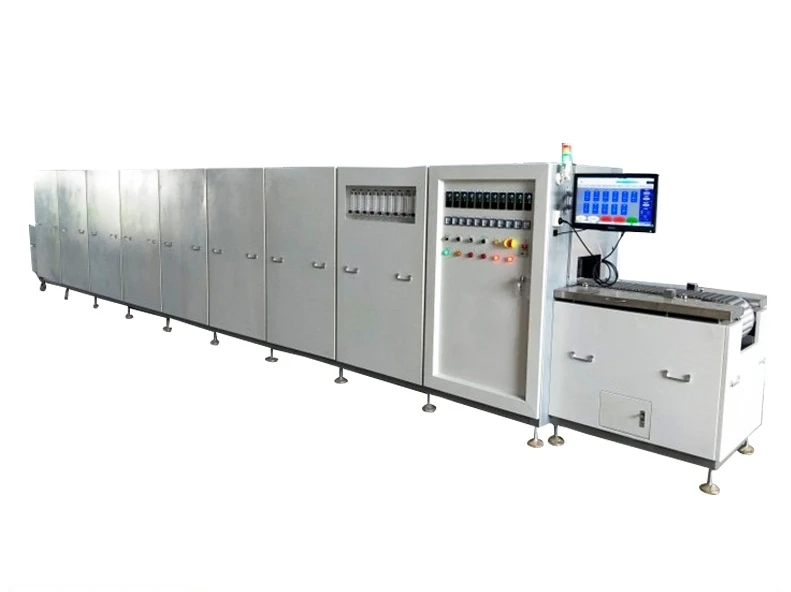

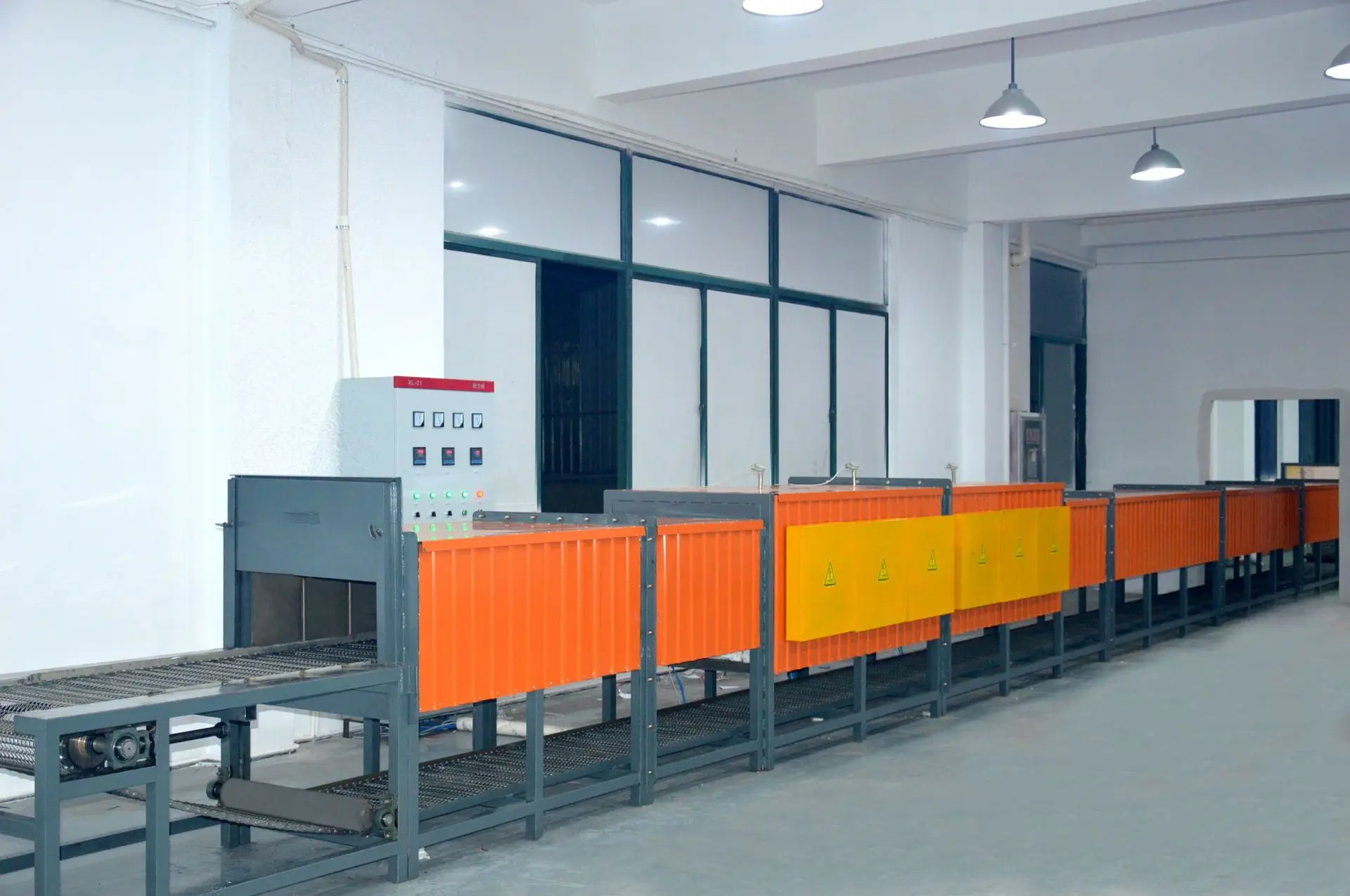

Glass annealing furnace
- Category: >>>
- Supplier: Hengshui Yuanbo Import And Export Co. Ltd.
Share on (1600522274024):
Product Overview
Description
Product Introduction

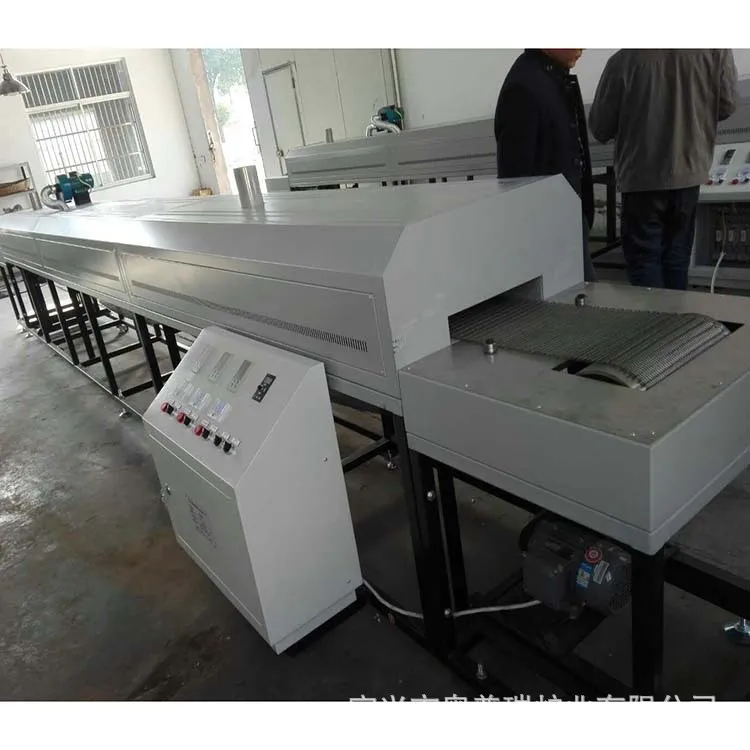

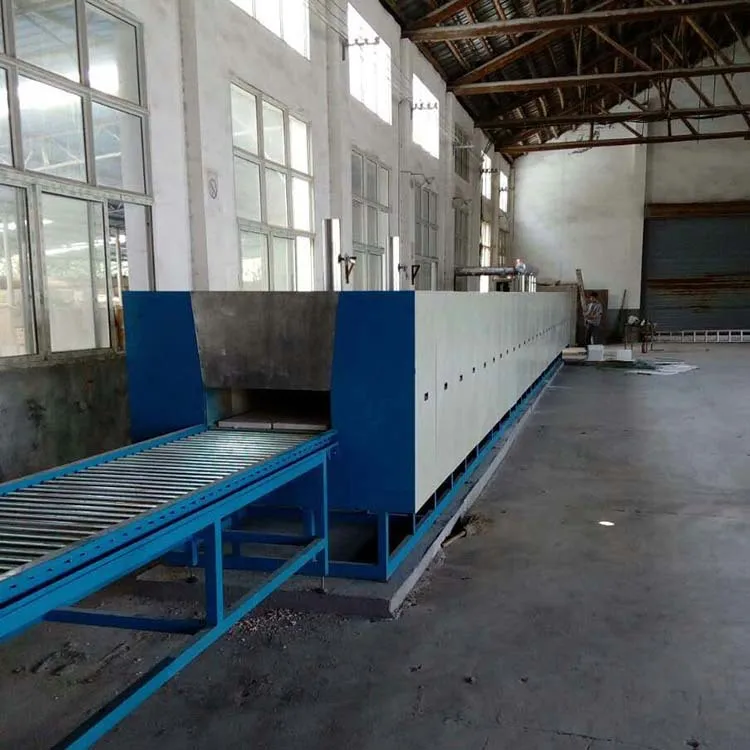

Natural gas heating Spindle Type Annealing Lehr Tempering Line:
Usage:
This series of tempering lehrs are suitable for the tempering of hollow glassware with wide-open mouth(glass bowl,glass basin,glass cover etc.)
Characteristics:
The glassware are loaded on a conveyor belt,and then are heated (by gas burners or electrical heaters) to a suitable temperature at the heating zones.The the glassware passes the homogenous zones to make sure a uniform temperature at different layers through the bottom and the wall of the glassware.Then the glassware passes the tempering zones to be tempered.The blowing air pressure at the tempering zones can be adjusted to match different types of glassware and achieve the best tempering effect.The heating processing are carried out continually by this type of tempering lehr with a higher efficiency and productivity.
Technical parameter:
| Tempering products thickness: | 2-8mm |
| Belt width: | 300-1200mm |
| Tempering products weight range: | 200-1500g/pc |

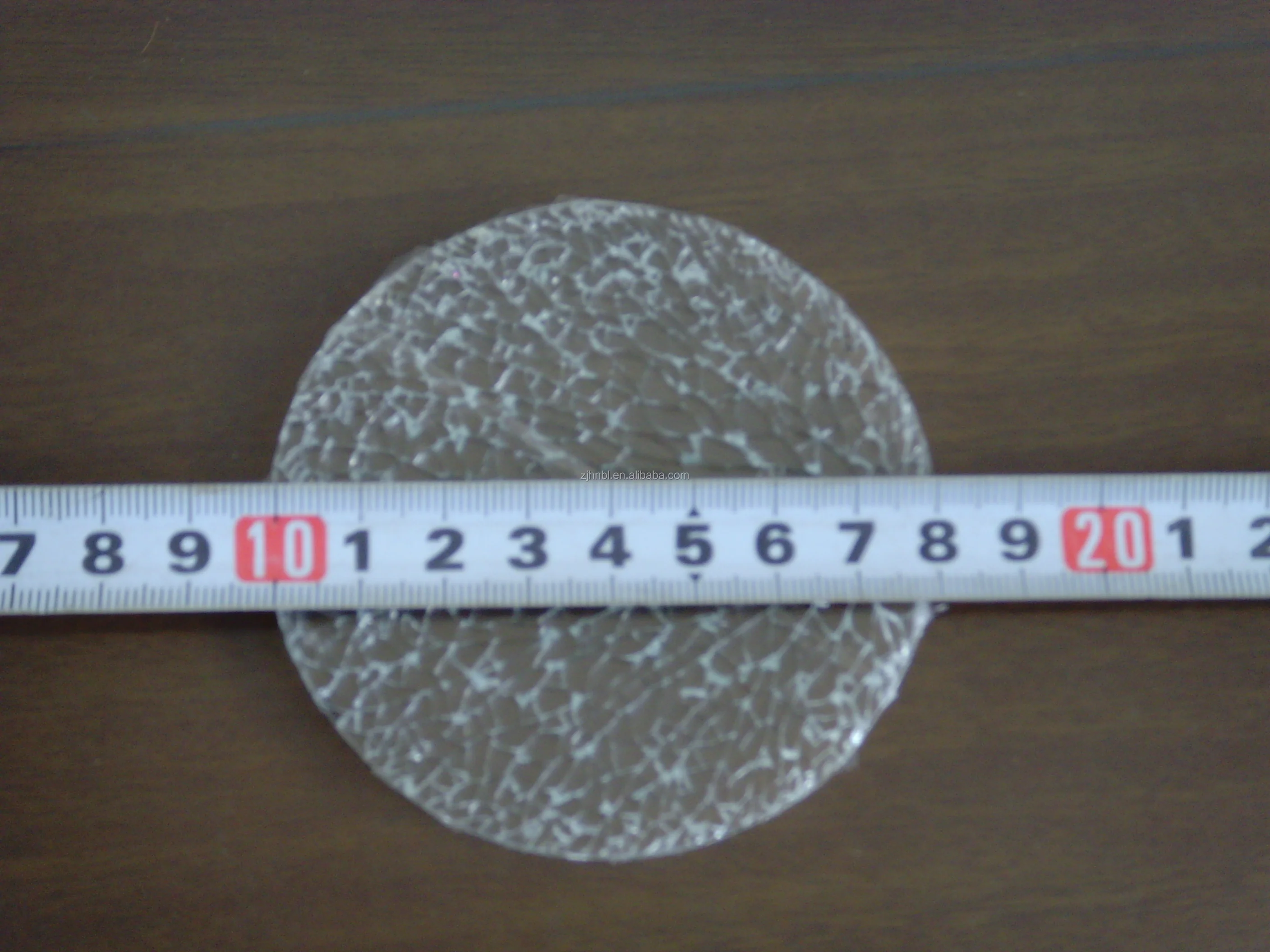

| The tempered article can resist thermal shock of temperature | 120℃-160℃Treatment |
Treatment
Loading : Cold loading, 25°C
Heating up : 650 to 700°C approx.
Homogenisation :700°C
Tempering : 350° C approx.
Cooling : ambient temperature +20°C
Product to be treated
Type of glass
Supply network for power
Electricity 380V – tri-phase - 50 Hz + neutral wire
Power inputs
Gas Heating power 1280000 kcal/h (1488kW) (Installed )
16burners with capacity of:80000 kcal/each
Electricity power for blower : 347kw

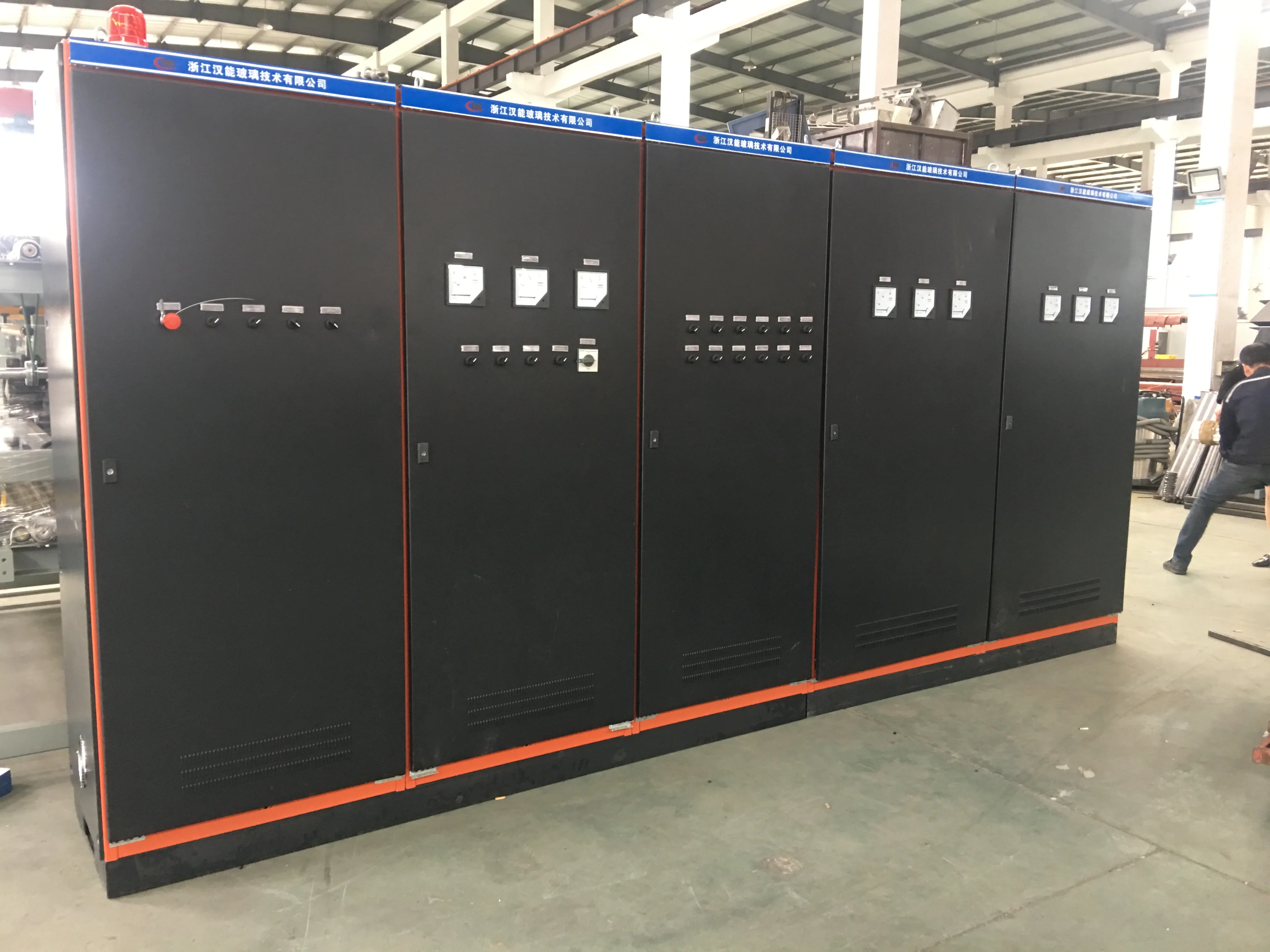

Electricity power for control cabinet : 26 kw.
Including mainly:
Belt drive 1.5 kW
Convection fans 16 x 1.5 kW =24 kW
Main dimensions of the line
· Loading table 1000 mm
· Heating and homogenising zones 36000 mm
· Tempering 2500 mm
· Cooling 9750mm
· Traction and exit table 4250mm
· Total length 53500mm
· Belt level above floor 900 mm
· Free space above belt (in furnace) 250 mm.
The entry of the line
It is composed of one loading table. This table is equipped with an entrance door.
Description of heating and homogenising zones (16 modules)
These modules are made of one outside frame in which is located the inside stainless tunnel and isolation fibre.
Each module is 2.25 meters long.
External casing
It is made of steel sheet (thickness = 2 mm) and reinforced with profile bar.
These parts are painted with rust proof painting.
The roofs where the fan is located can be removed for yearly maintenance.
Internal casing
It allows convection air to discharge the air flow in two side ducts connected under the conveyor belt and get up through the articles.
It is made of stainless steel sheet (thickness = 2~3 mm AISI 304, and AISI310S).
The structure is designed to stand at 750 °C and allow expansion.
. Insulating
Ceramic and mineral wool are used to insulate all sidewalls. The minimal thickness is 350 mm.
Belt support
For the forward way, the belt is supported by V structure. The quality is specially designed to maintain a good plainness of the article during heating.
For the backward way, rollers and V structure carry the belt outside the furnace.
Note:
1) All above data is measured by millimeter.
2)Not all models are listed in this form for reason of space, please contact us for more details.
Packing&Delivery
Our services
Pre-sales Service
1.Fastly and professional reply to you about your questions for our napkin folding paper production machine.
2.Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines
3.Detailed and clearly explain to you when you come to our factory for visiting before contract
In-sales service
One-stop and customize service for you, all napkin paper processing related machines are available from us
24 Hours online service, 7 Days one week support for you if any technical questions or problems about toilet tissue paper making machine.
After sales service
1.Engineers overseas installation and trainning, all our engineers are rich experience for overseas working
2.Guarantee you steady supply for the spare parts with the lower prices
Company Introduction
Hengshui Yuanbo Import & Export Co., LTD., formerly known as Dongyue Industrial Co., LTD. (Hong Kong), was established in early spring of 2017. It is located in Hengshui lake City, which has the reputation of being the first lake in south Beijing. It is a professional foreign trade company authorized by the State Foreign Trade and Economic Cooperation Bureau and the General Administration of Customs to operate import and export trade. The company has a strong historical accumulation, strong relationship network, complete technology and personnel allocation. The company has Marketing Department, network department, service department, comprehensive department, after-sales department, technology department and so on. In recent years, through the joint efforts of all staff, gradually become a well-known foreign trade enterprises in the industry, in good faith, positive development, quality service spirit and professional, careful, responsible concept began to flourish in the new period, in the exploration of development, in innovation. We continue to improve our professional standards and expand our service scope to provide customers with scientific advice and solutions that can improve their work efficiency. To carry out domestic and foreign trade, sino-foreign joint venture, cooperative production, entrepot trade and other ways of business. Trade scale is expanding day by day, customers all over the world, with a good reputation to get the trust of customers at home and abroad, committed to our country's modernization, promote economic and technological exchanges with the world, mutual benefit of the people of all countries.
Glass Can Be Tempered: Building glass, home applicant glass, decoration glass, Low-E glass, furniture glass, etc
Turbo Blower Advantage: 1.Better finished glass quality compared compressed air. 2.Longer life span compared common blower. 3.Energy saving. 4.Easy controlling

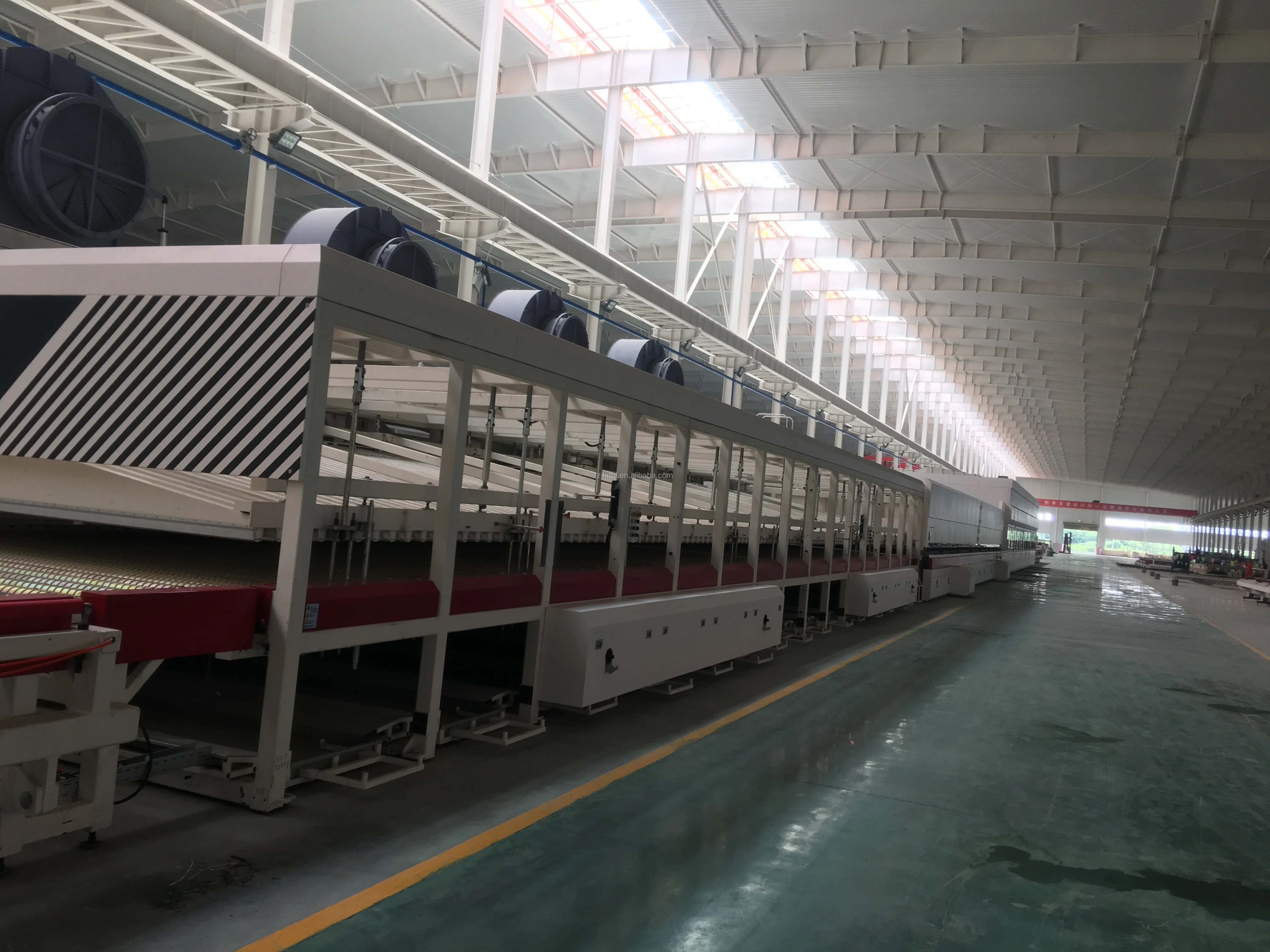

Features of the glass tempering furnace.
Features at glance: 1.Super Flatness: 0.05/300mm Knife Ruler 2.Spotless glass: 20pieces glass folded without spot 3.Cross bending, Length bending, double curved bending, Reverse bending, Shaped bending 4.Turbo blower convection which can save 30% power. 5.Easy Operation 6.Spaceless heating wires
Supply Scope:
1. Loading table 2. Heating section
Force convection system as option ( Compressed air or Turbo Blower )
Vesuvius ceramic roller as option 3. Flat tempering & cooling section 4. Bent tempering & cooling section 5. Unloading table 6. Blower system with Frequency converter 7. Electrical & control system (Siemens PLC, Computer, etc) 8. Technical documents
Company Culture
Company vision: to become the most valuable foreign trade enterprise in China
Company mission: focus on the core demands of customers, raise prices competitive product supply and demand solutions and services. Continue to create maximum value for customers
Core concept: focus on efficiency, unity benefit, forward-looking and pragmatic
Enterprise spirit integrity, team, service, brave, clear, professional
Staff spirit: Advanced management style ensures that staff can demonstrate their full range of professional skills and talents. Encourage creative thinking and "positive, innovative, pioneering" spirit, continuous learning, innovation, further improve our own professional skills.
Three cultural concepts (treat people with generosity, dealing with things tolerant, loose environment),Three forces (centripetal force, cohesion, affinity)
Corporate culture Core values performance, harmony, responsibility company culture: people-oriented, harmonious development. Strive to create "four harmonies", namely: harmony with nature and good use of resources; Harmony with society, service construction; Harmony with competitors, win-win, multi-win and win-win; Harmony with employees, let employees and the enterprise grow together. Speaking of performance, it means to pursue continuous first-class performance and strive for domestic leading and top. Speaking of responsibility, means that the company should assume social responsibility.
Management Mode
The pursuit of ambitious, realistic style The success of a business, rooted in entrepreneur's courage and the pursuit, is the entrepreneur's values and mind, entrepreneurs to establish fair according to their own pursuit and value standard value value system and distribution system, and with this system and the system to attract and accumulate talents, to establish a rigorous, have a high energy organization, Build a highly cohesive and highly civilized enterprise. Respect for Individuality and Collective StruggleWe will resolutely refrain from idolatry or advocating individualism and emphasize collective struggleto give individuals a platform to give full play to their talents. The vitality of an enterprise lies in innovation, and breakthrough innovation and creativity are essentially a kind of individual behavior. This requires respect for talent, knowledge and individuality. However, excellent enterprises require a high degree of solidarity and cooperation, and must rely on teamwork to succeed. An enterprise is a profit-seeking organization, but the problem of whose interests it seeks must be solved, otherwise the enterprise will not have a long-term development. The enterprise pursues the principle of community of interests to satisfy customers, employees and co-authors. Relying on community of interests and profit-driven mechanism, the enterprise constantly promotes the coordinated development of the entire organization. Iv. Fair competition and reasonable distribution of the company's value evaluation system and value distribution system are the keys to success. In line with the principle of seeking truth from reality, I realize from my own practice: Knowledge, entrepreneur's management, risk and labor work together to create all the value of the company, the company is in the way of capital to make labor, knowledge, entrepreneur's management and risk accumulation contribution to be reasonably reflected and compensated. The company.Try to make the value distribution system as reasonable as possible from the following four aspects: (1) Follow the law of value and decide the company's value distribution policy according to the competition law of the external talent market. (2) The introduction of internal fair competition mechanism, to ensure equal opportunities, and fully open the gap in distribution. (3) Establish common values so that employees can identify with the company's value evaluation standards. (4) Take the company's achievements and employees' contributions as the final standard to measure the rationality of value distribution.
FAQ
What is the voltage & frequency of furnace?
Normally, the voltage and frenquency is 380v 50hz or 220v 50hz. And 110v 60hz are avaiable to chose.
Usually I only need 900"C to conduct my experiment,can I have a furnace with max temperature of 1000C?
Yes, we can custom-made the fumace according to your need.
How about the temperature/time control?
The Temperature controller Ïs programmable controlled by PID with 30 program, easy to operate. And Touch
screen temperature controller is optional.
How about the dellvery perlod?
The delivery period is depends on the order quantity, in ordinary wehave 1~3 sets in stock.It can be delivery
within 10 working days.
