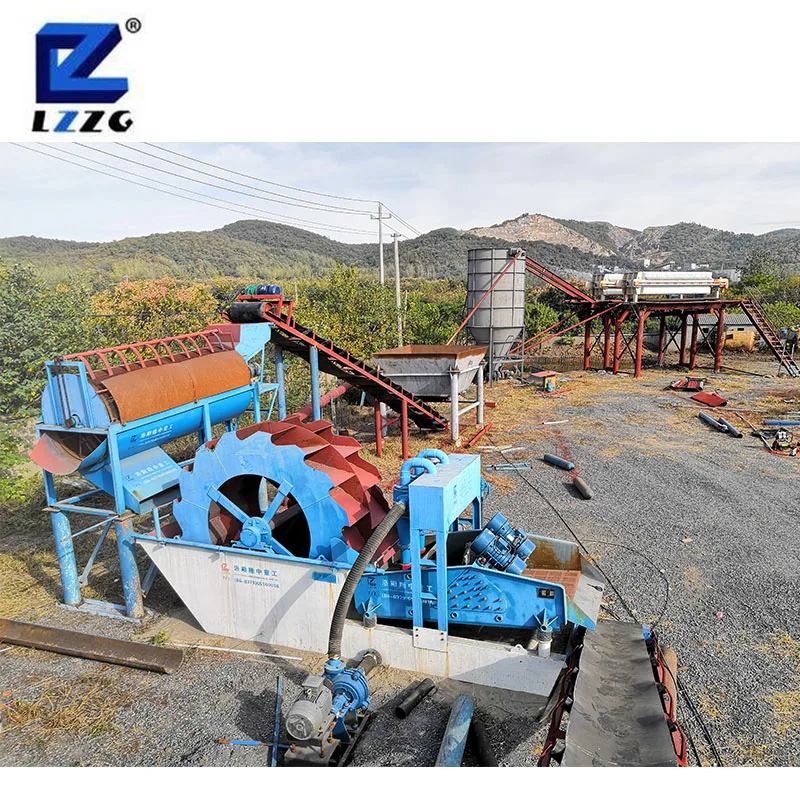

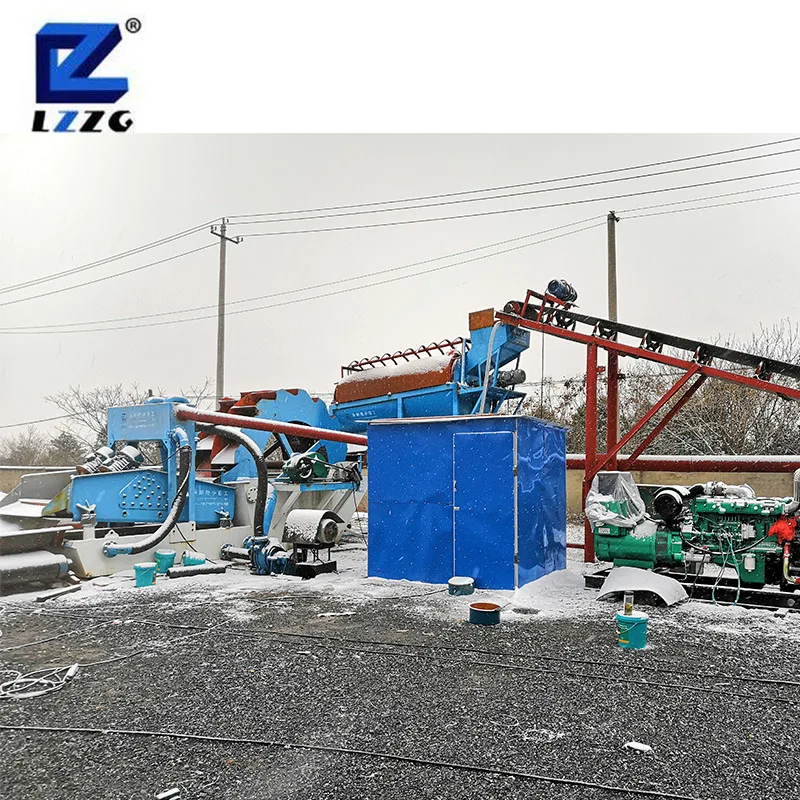

professional wheel washer recovery system second hand sand washing machine
- Category: >>>
- Supplier: Luoyang Longzhong Heavy Machinery Co. Ltd.
Share on (1600522281012):
Product Overview
Description
Product Description

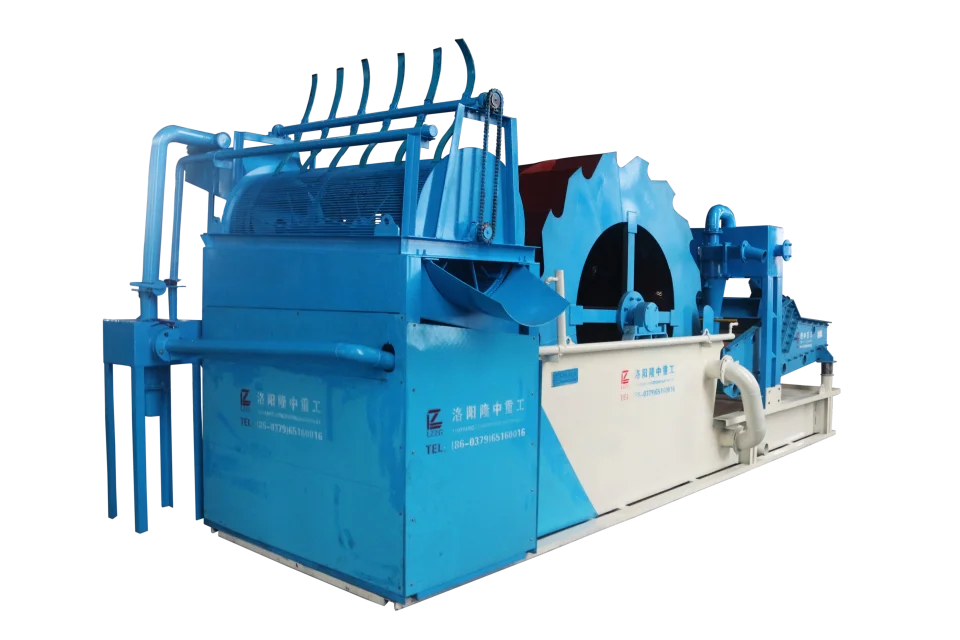

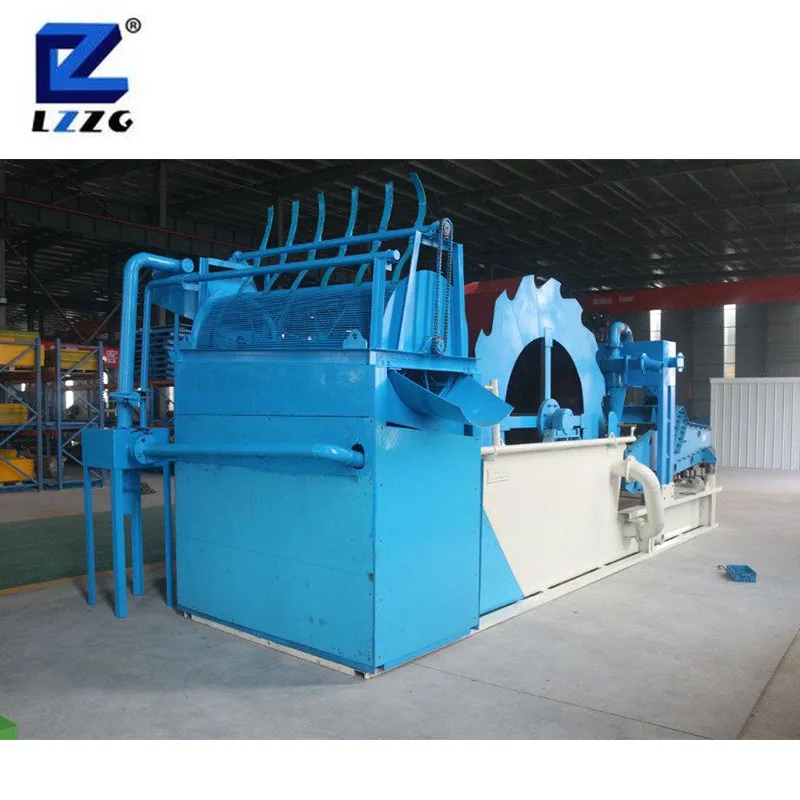

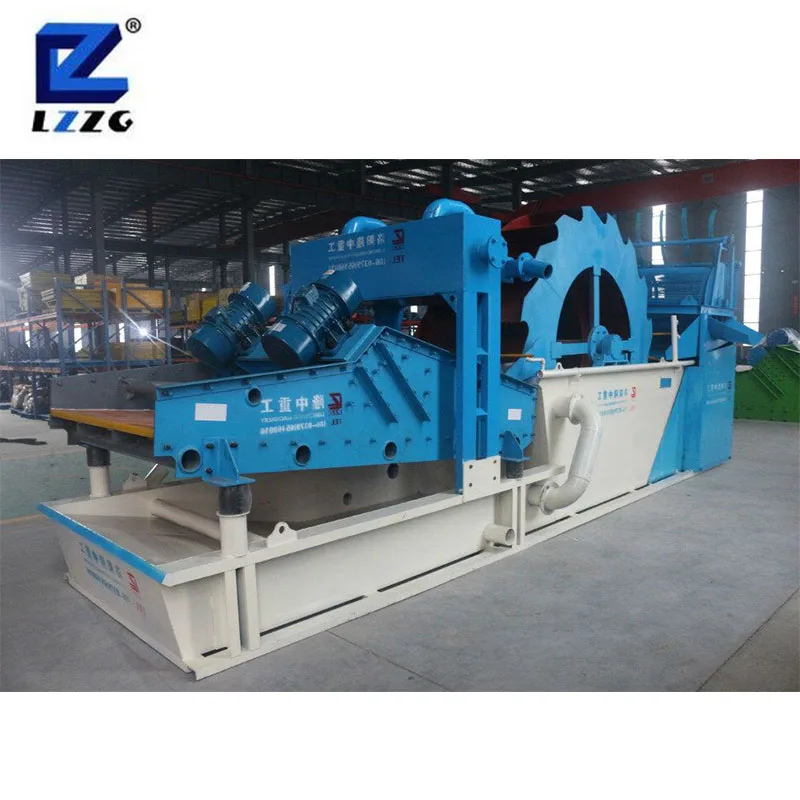

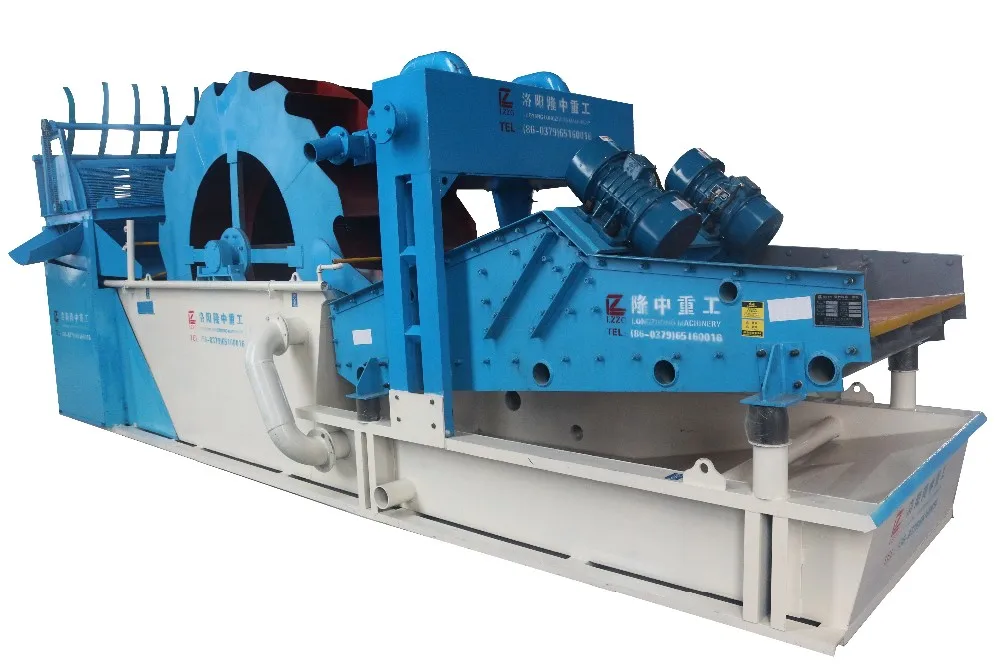

Factory price sand washer trommel screen sand washing machine for sale
Brief Introduction
It is a compact multiple function sand washer: separating the large stone, washing, recycling & dewatering the sand . It is new hot type in 2018.
Working principle

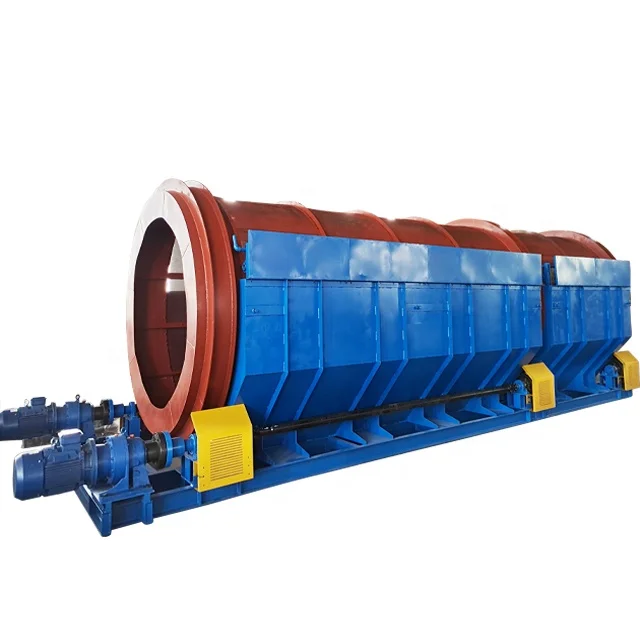

1. Separating: We use rotary screen to separate out the stone >5mm, to protect the washing and recycling part work. Rotary screen using the carbon steel plate.
2. Washing: Material from underflow of rotary screen will enter into the bucket washing part, the bucket rotate by the power of motor, and pick up the cleaned material to the dewater screen.
3. Recycling: Flowing slurry from bucket washer will be extracted by slurry pump, collected by the hydro-cyclone, so that fines 0.16-3mm sand will be recycled.
4. Dewatering: All the sand will be fed onto the polyurethane screen to do the dewater work, so you get the final output sand within the water content <15%.
Technical Parameters | ||||||||||||
Model | Power (kw) | Cyclone Specs (mm) | Feeding Size(mm) | Capacity (t/h) | Water Consumption (m³/h) | Overall Dimension (L*W*H)(mm) | ||||||
SX26-10-55 | 35.9 | 250*2 | ≤40 | 20~60 | 90~150 | 6200*2150*2670 | ||||||
SX30-12-65 | 52.5 | 300*2 | ≤40 | 50~120 | 100~180 | 6200*2150*2670 | ||||||
SX36-15-75 | 67.5 | 350*2 | ≤40 | 120~150 | 150~260 | 7200*2900*3070 | ||||||
Main Features
1. Energy-Saving about 20%~35%;
2. Most professional sand washing equipment;3. Recycling 0.16-0.3mm fine sand;
4. High productivity and 95% fine particles in the material can be recycled;
5. Solving cleaning problem of sedimentation tank and improving economic performance at the same time.
Detailed Images
Machine Parts

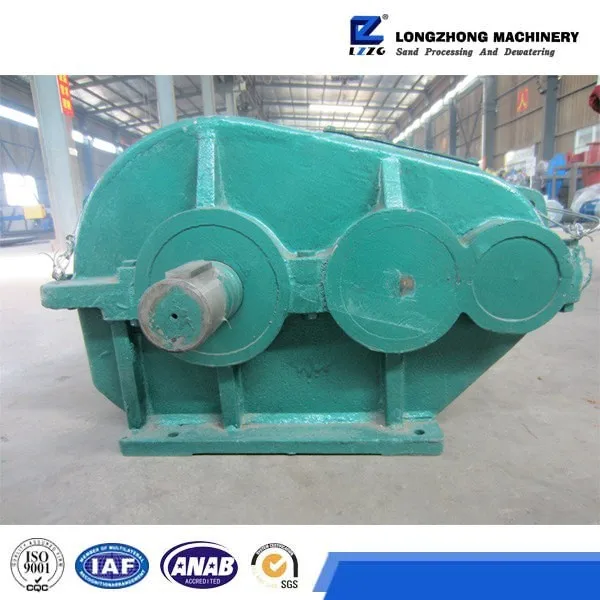

Name: Gear Box
The impeller runs in about 2r/min(different machine size will be little different in speed ) after decelerated by belt, gears wheel and mainly the gear box.
Machine Parts

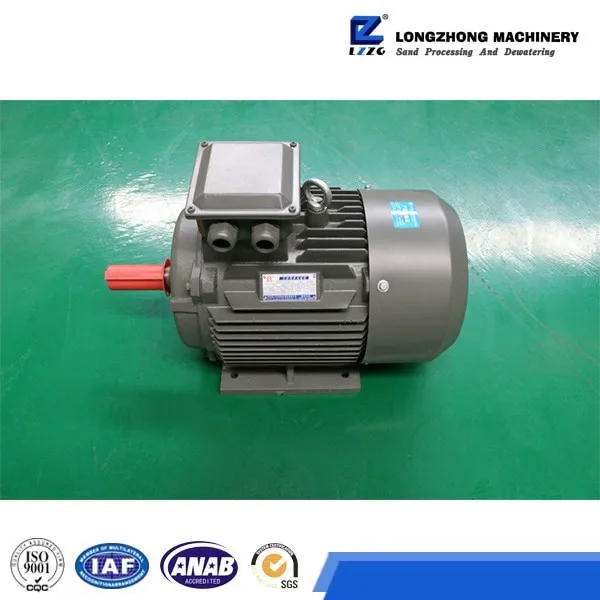

Name: Motor
All our motors are from famous brand in China or worldwide, customers can choose as their requirements.
Machine Parts

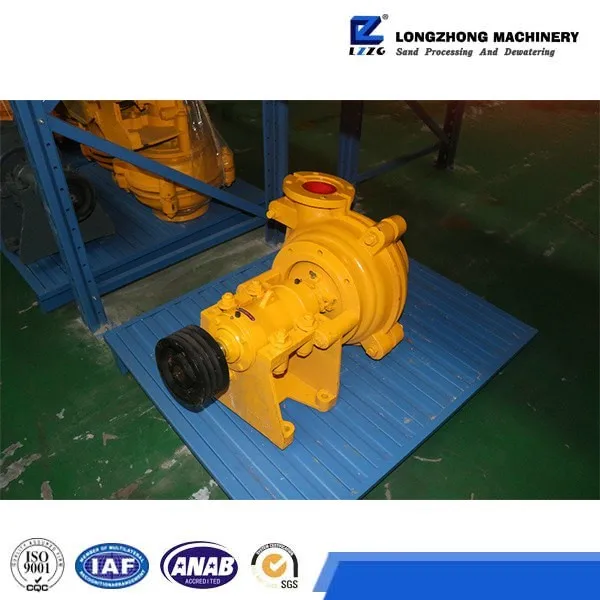

Name: Slurry Pump
Take the new advanced type of slurry pump, which is high efficiency, wearable, and energy saving.
Machine Parts

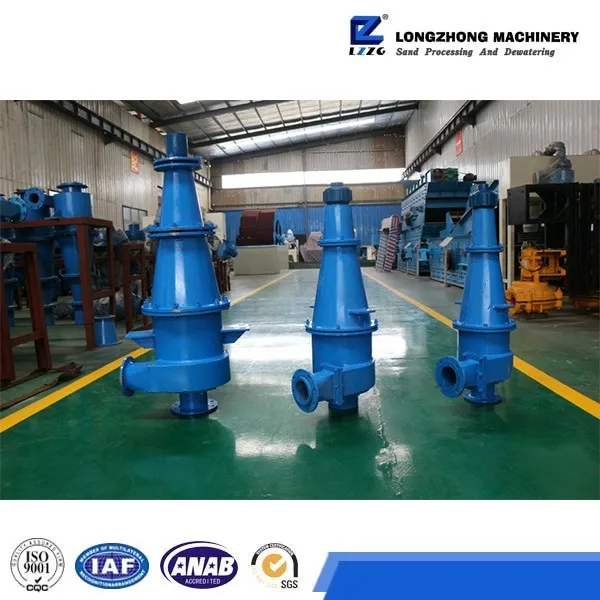

Name: Cyclone
The fine sand is collected by the centrifugal force of cyclone, which takes highly wearable material with a long lifetime.
Machine Parts

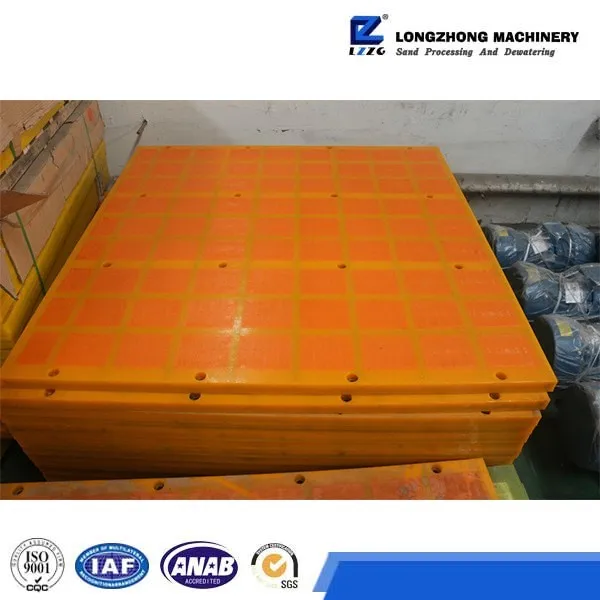

Name: Polyurathane Screen
Imported polyurethane which is of high aperture ratio and wear resistance,inside the screen there is steel frame to support, and the hole is a cone shape which can prevent blocking.

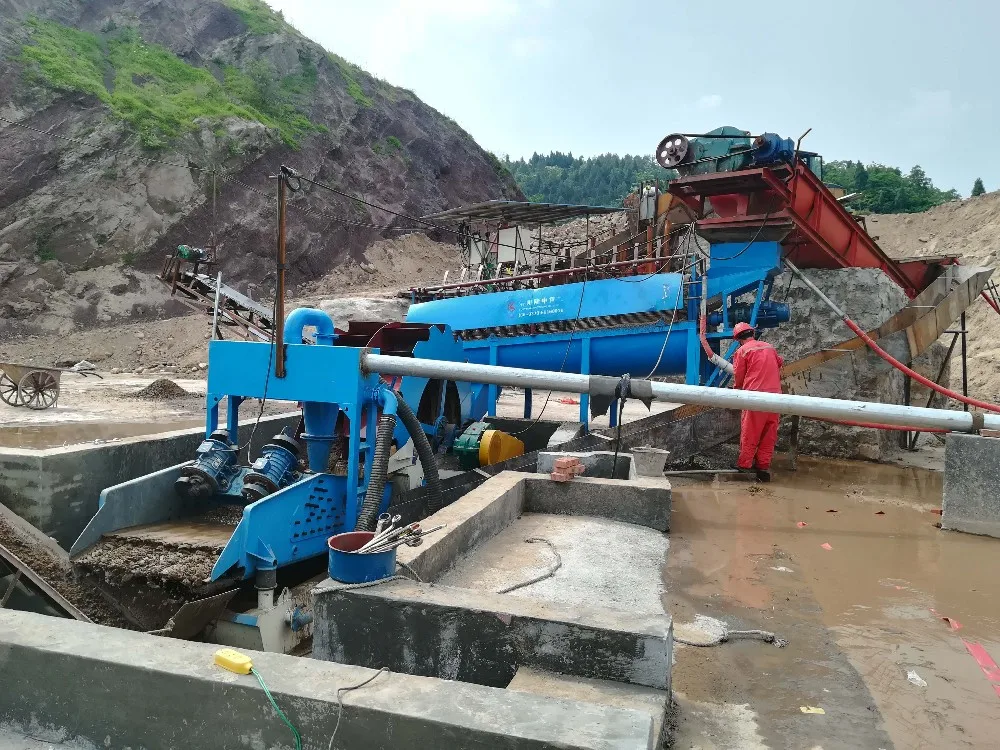

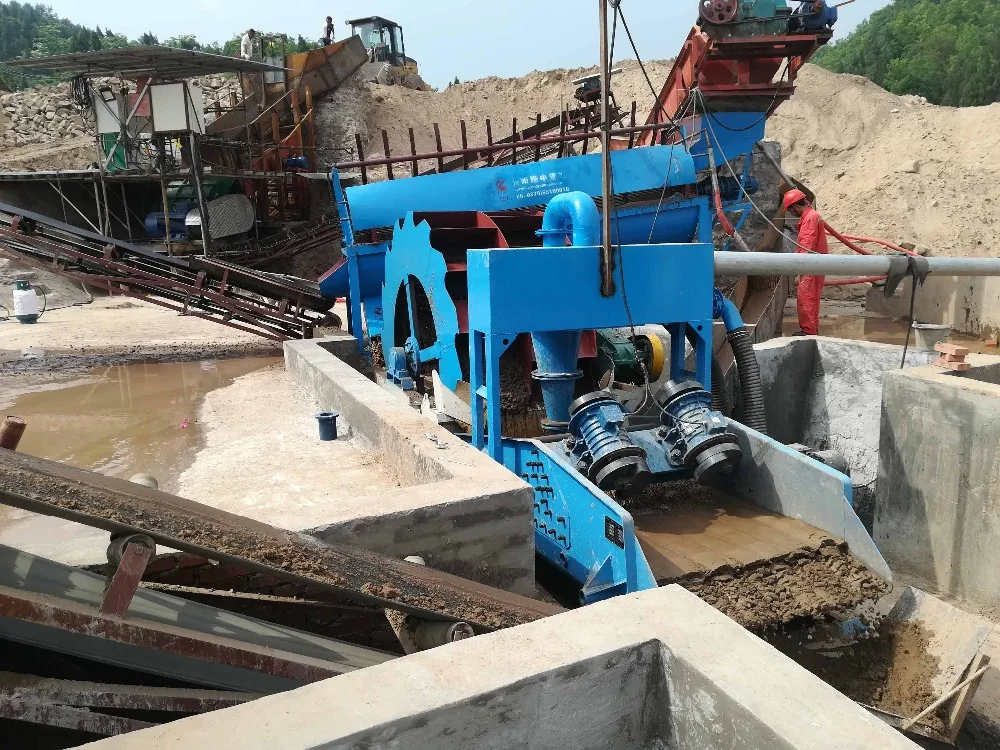

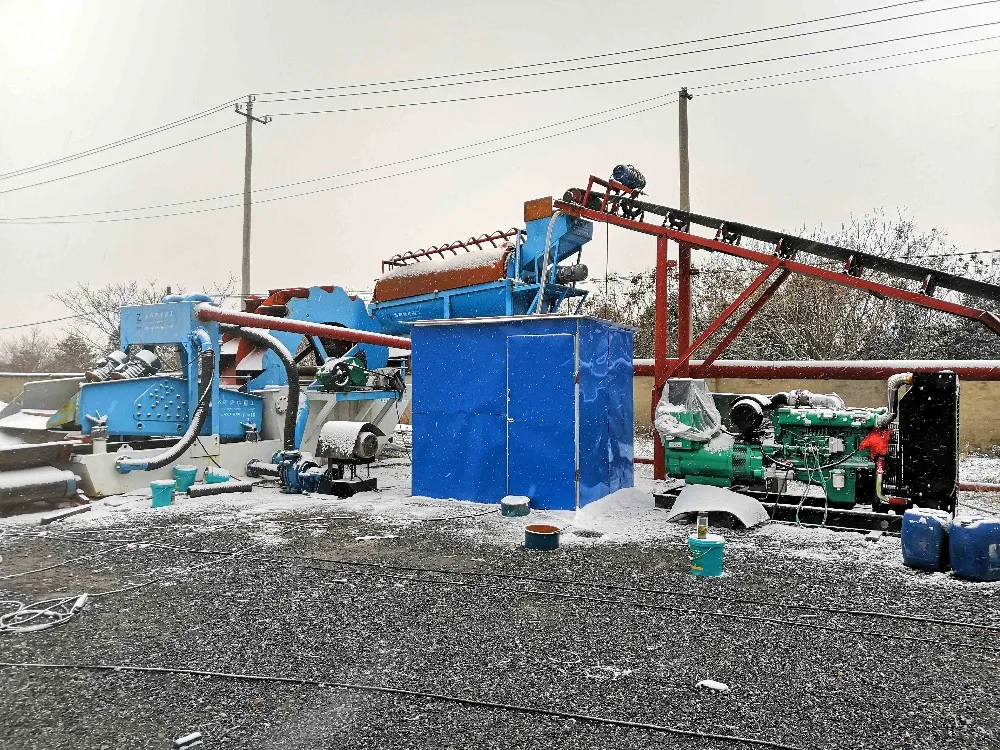

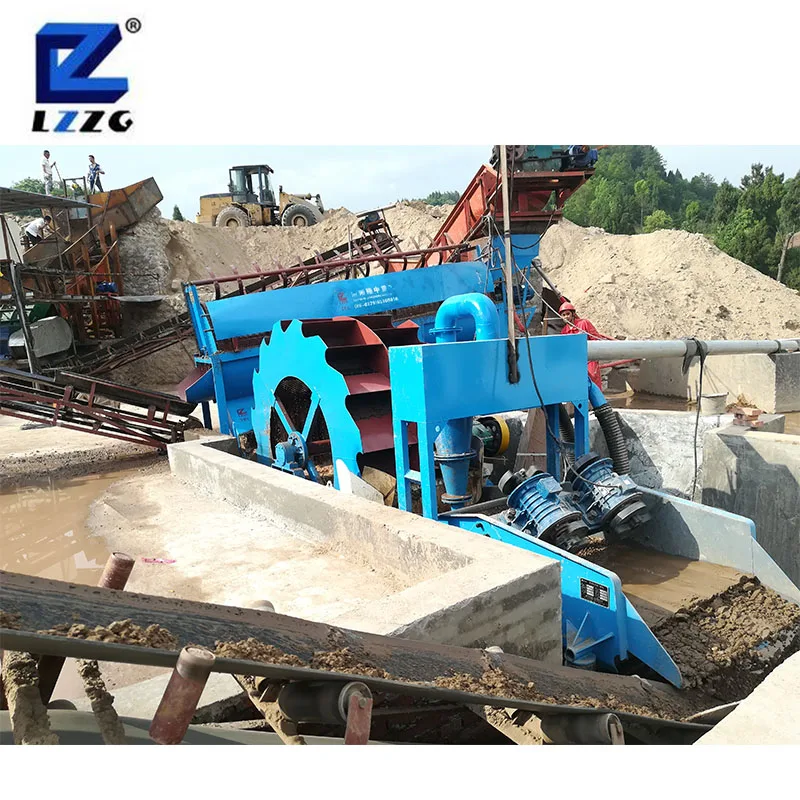

Working Site
Packing & Delivery
Packaging | ||
Model | SX30-12-65 | |
Weight | 10950KG | |
Packaging Details | The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request. | |
Related Products
Crusher: Jaw crusher, Impact crusher, Cone Crusher,Roller crusher,etc
Vibrating screen: YA series,1 layer, 2 layers, 3 layers,4layers...
Sand washing machine: XSD wheel bucket sand washer,LSX spiral sand washer
Dewatering screen: TS series,the final water content down to 12-15%
Sand recycling system: 0.16-3mm fines recycling machine, LZ sand washing and recycling machine
Vibrating screen: YA series,1 layer, 2 layers, 3 layers,4layers...
Sand washing machine: XSD wheel bucket sand washer,LSX spiral sand washer
Dewatering screen: TS series,the final water content down to 12-15%
Sand recycling system: 0.16-3mm fines recycling machine, LZ sand washing and recycling machine
//lylongzhong.en.alibaba.com/ Click here to view more related products
Company Profile
Luoyang Longzhong Heavy Machinery Co., Ltd is an international company, which specialized in researching, marketing and selling mining and powder-making machines for decades. Our products are mainly used in mining, metallurgy, construction, chemistry, electrics and steel industries. Our clients are widely distribute in Australia, Europe, North America, South America, Southeast Asia, Middle East and Africa.
Most of our staffs are graduated in well-known universities from all over the wold, they provide the sustainable development for company with endless driving force and already made great effort to ensure the efficiency and perfection of the research and sales service procedures.
In feature, we will continually improve R&D team and improve producte and service.
In Stock
About Us

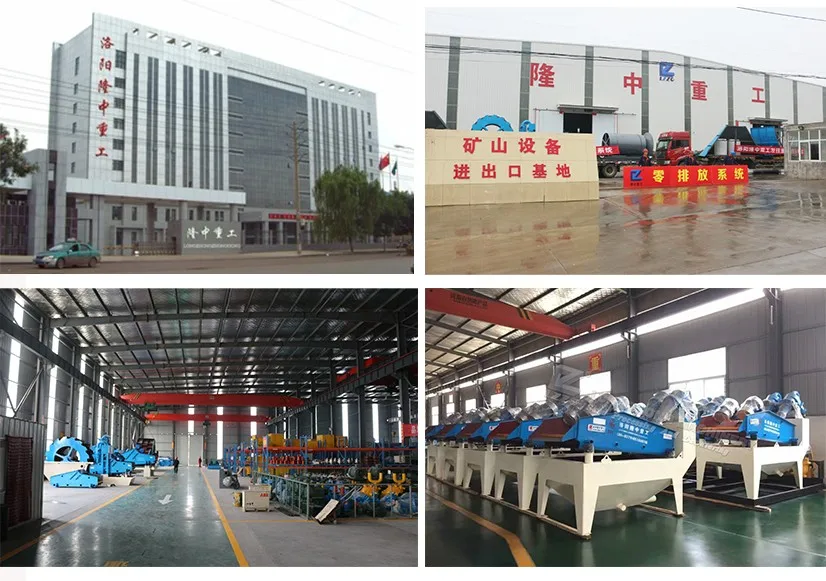

Factory
