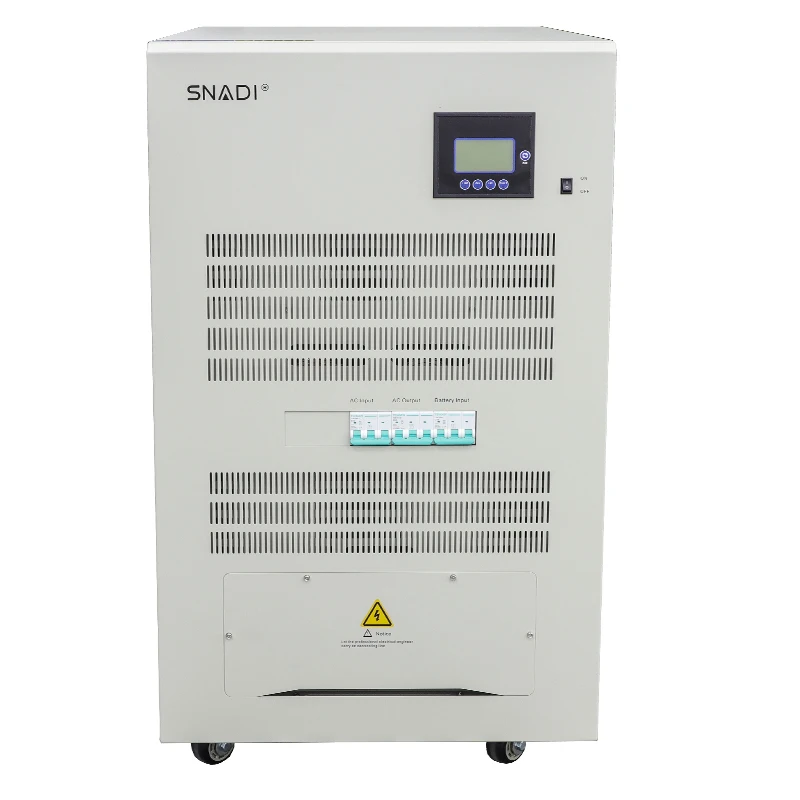

20KW Three Phase DC/AC Solar Power Frequency Inverter
20KW Three Phase DC/AC Solar Power Frequency Inverter
20KW Three Phase DC/AC Solar Power Frequency Inverter
20KW Three Phase DC/AC Solar Power Frequency Inverter
20KW Three Phase DC/AC Solar Power Frequency Inverter
20KW Three Phase DC/AC Solar Power Frequency Inverter
20KW Three Phase DC/AC Solar Power Frequency Inverter

20KW Three Phase DC/AC Solar Power Frequency Inverter

Share on:


Price:$2,368.00 - $2,388.00
Price in USD:Details

Quantity:


Product Overview

Description









Detail information




Specification


Model-TP
10KW
20KW
30KW
40KW
60KW
80KW
100KW
150KW
200KW
Rated capacity
10kW
20kW
30kW
40kW
60kW
80kW
100kW
150kW
200kW
Operation mode
and principle
PWN (pulse width modulation)based on DSP accurate control technology and double
built-in MCUs complete isolation of the output
power supply
AC input phase number
three-phase + N+G
AC input voltage
AC 220V/AC 382V±20%
AC input frequency
50hz/60hz±5%
DC voltage
DC 192V/DC 220V/DC 240V/DC 384V(16 to 32 pieces of 12V batteries)
Floating battery
13.6V of each battery*battery quantity (13.6V*16 batteries=217.6)
Cut-off voltage
10.8v of each battery *battery quantity (10.8V*16 batteries=172.8V)
Phase number
three-phase +N+G
AC output voltage
AC 220V/AC 380V±1% (steady load)
AC output frequency
50hz/60hz±5% (main supply) 50hz±0.01%
Efficiency
≥95% (load:100%)
output waveform
sine wave
THD
linear load:<3%.non-linear load:<5%
Dynamic load voltage transient
<±5%(jump from 0 to 100%)
Instant recovery time
<10ms
time of switching between
the battery and the mains supply
3s-5s
Unbalanced voltage
<±3% <±1% (balanced load voltage)|
Overload capacity
120%,20s;>150%,100ms
Operation efficiency
≥95% (load: 100%)
Computer communication interface
RS232/RS485(SNMP remote monitoring network adapter)
Operating temperature
-10-40℃
Relative humidity
0-90% (no condensation)
Noise
40-50dB
50-60dB
60-70dB
