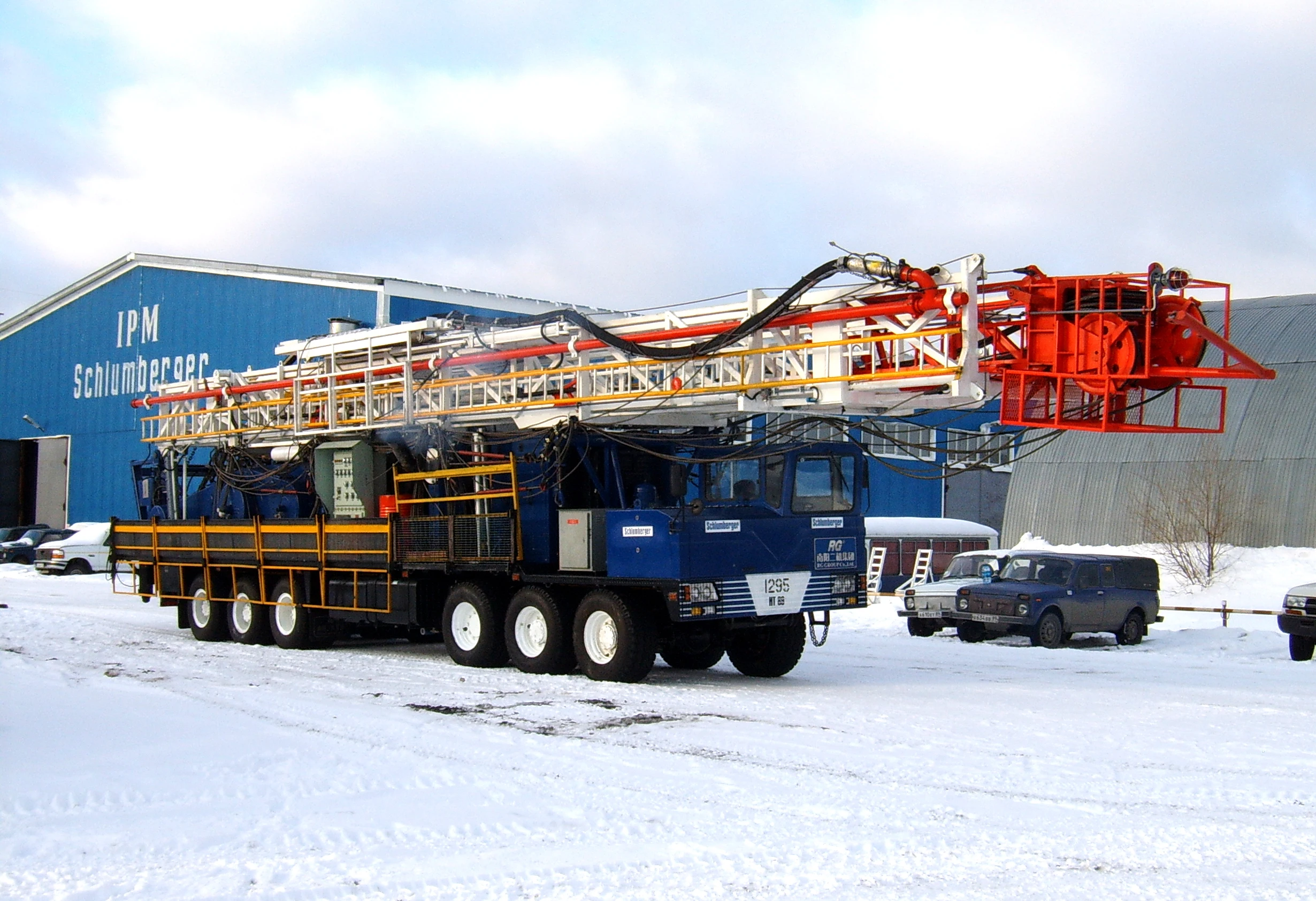

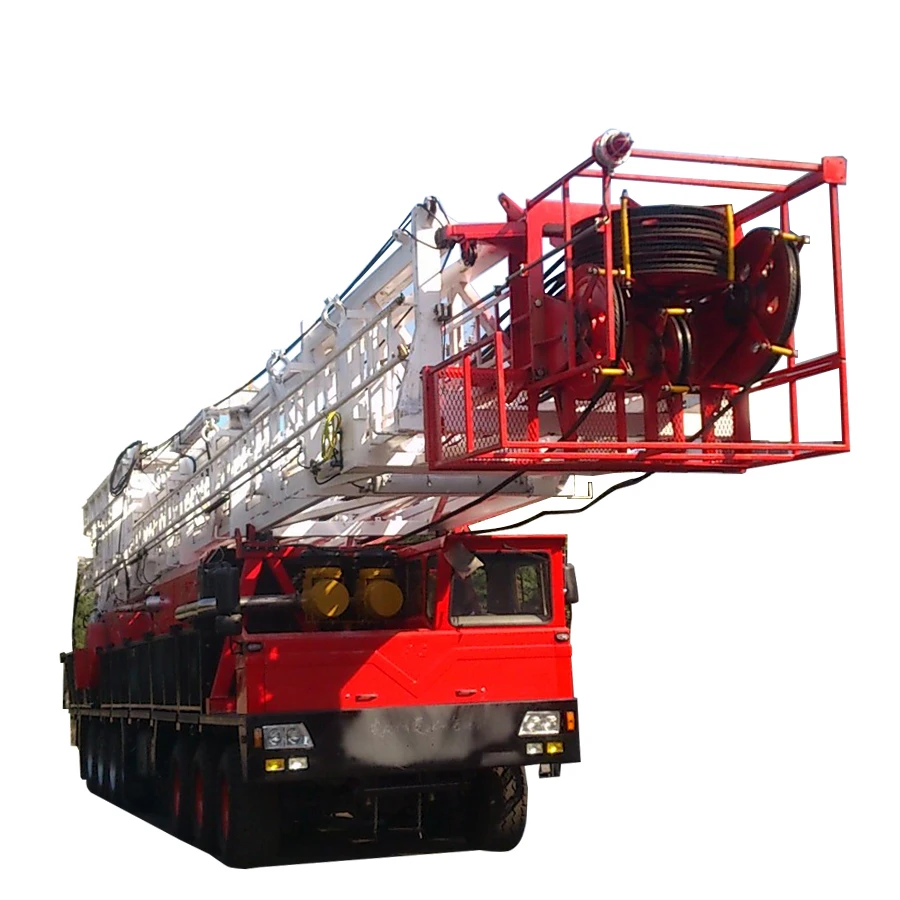

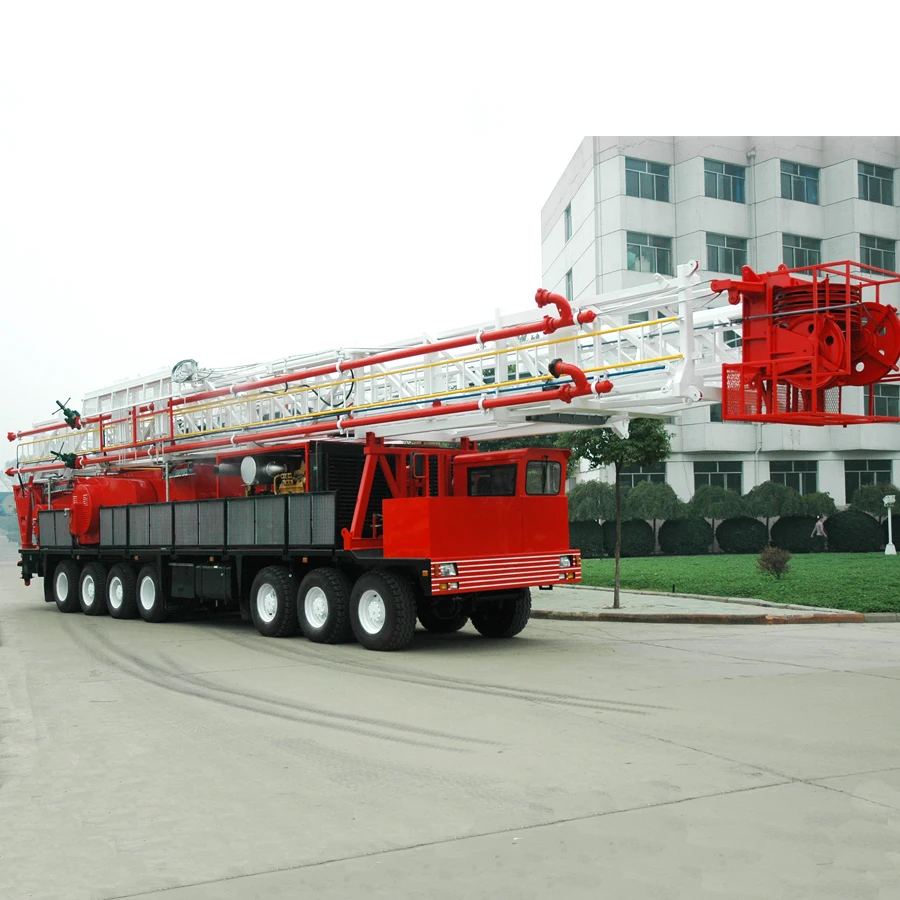

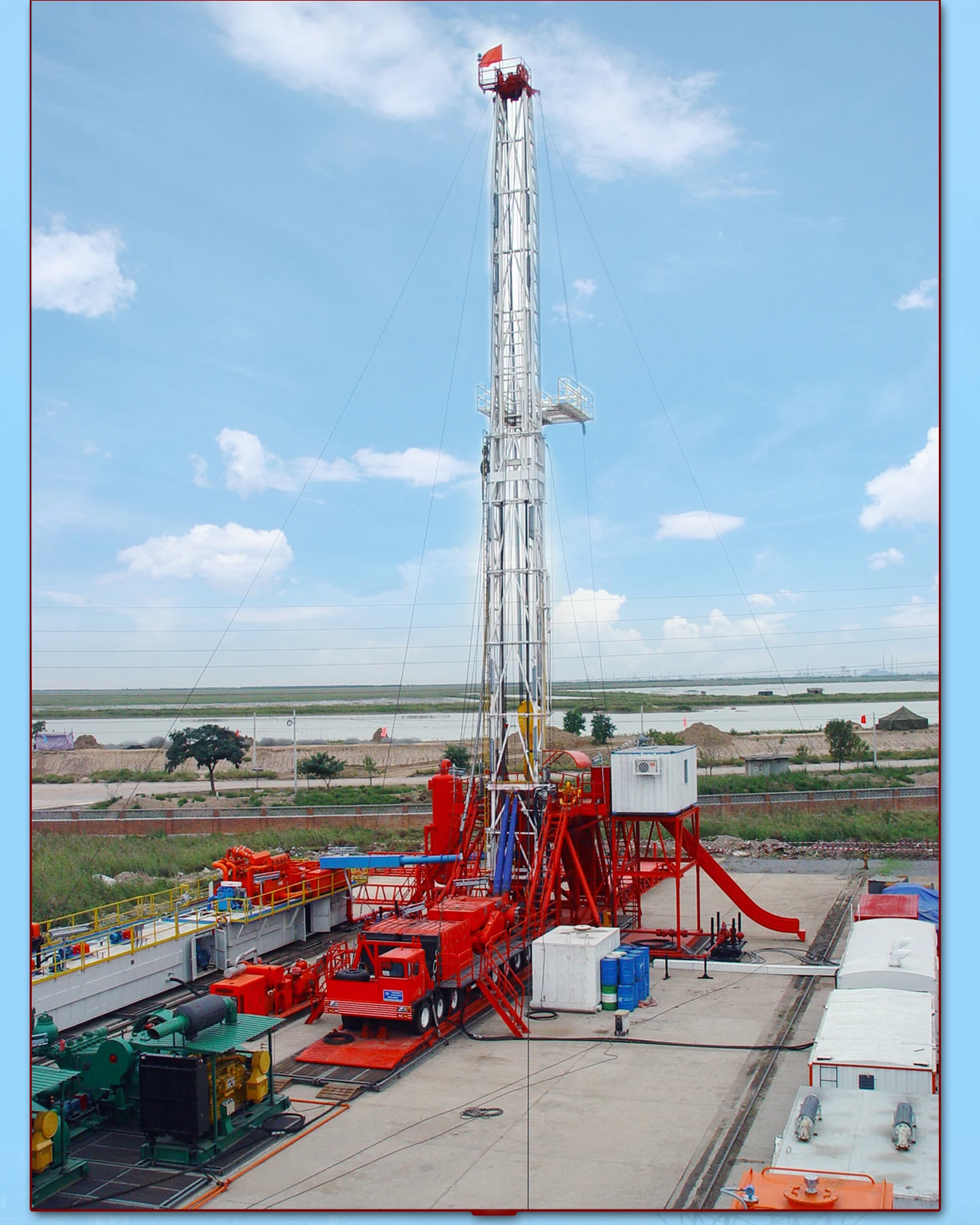

RG API Standard Oil Field Oil and Gas Well Bore Hole Truck Mounted Mobile 1000hp ZJ40 Drilling and Workover Rig
- Category: >>>
- Supplier: Beijing Rg Oil& Gas Technology Development Co. Ltd.
Share on (1600522287130):
Product Overview
Description
| Nominal drilling depth | (114mm DP)3500m~5000m (127mm DP)2000m~3200m |
| Max. hook load | 3150kN |
| Max. drill string weight | 150t |
| Rated power of drawworks | 1500hp |
| Drawworks shift | 4+4R Stepless speed regulation |
| Brake style | Hydraulic disc brake |
| Auxiliary brake | ABC electromagnetic eddy current brake |
| Wire line Dia. | 35mm(1-3/8″) |
| Useful height of mast | K-type,45m |
| Traveling system rope Qty | 6×7 |
| Height of rig floor | 9m |
| Transmission type | AC-VFD |
| MCC Mcc power supply system | 600V(3 Phase)/400V(3Phase) /230V(2Phase),50Hz |
| Rotary table open dia | 952.5mm(37-1/2″) |
| Drive type | YJ AC Motor |
| Gear of rotary table | 2 seamlessly Speed regulation |
| Mud high pressure manifold | 5 1/2″×35MPa |
| Volume of air tank | 4.75m3(1.75+3m3) |
| Volume of fuel tank | 50m3×2 |
| Number of main diesel power (sets×power ) | 4×1040kW |
| Number of auxiliary diesel power (sets×power ) | 1×400kW |
