Wholesale Prices Kozoni QS Series 55 65 75 86 98 Inch Electronic Whiteboard Clever Touch Interactive Whiteboard For Sale
- Category: Touch Screen Monitors >>>
- Supplier: Kozoni,Education,Technology,(shenzhen),Co.,Ltd.
Share on:
Product Overview
Description
Product Description

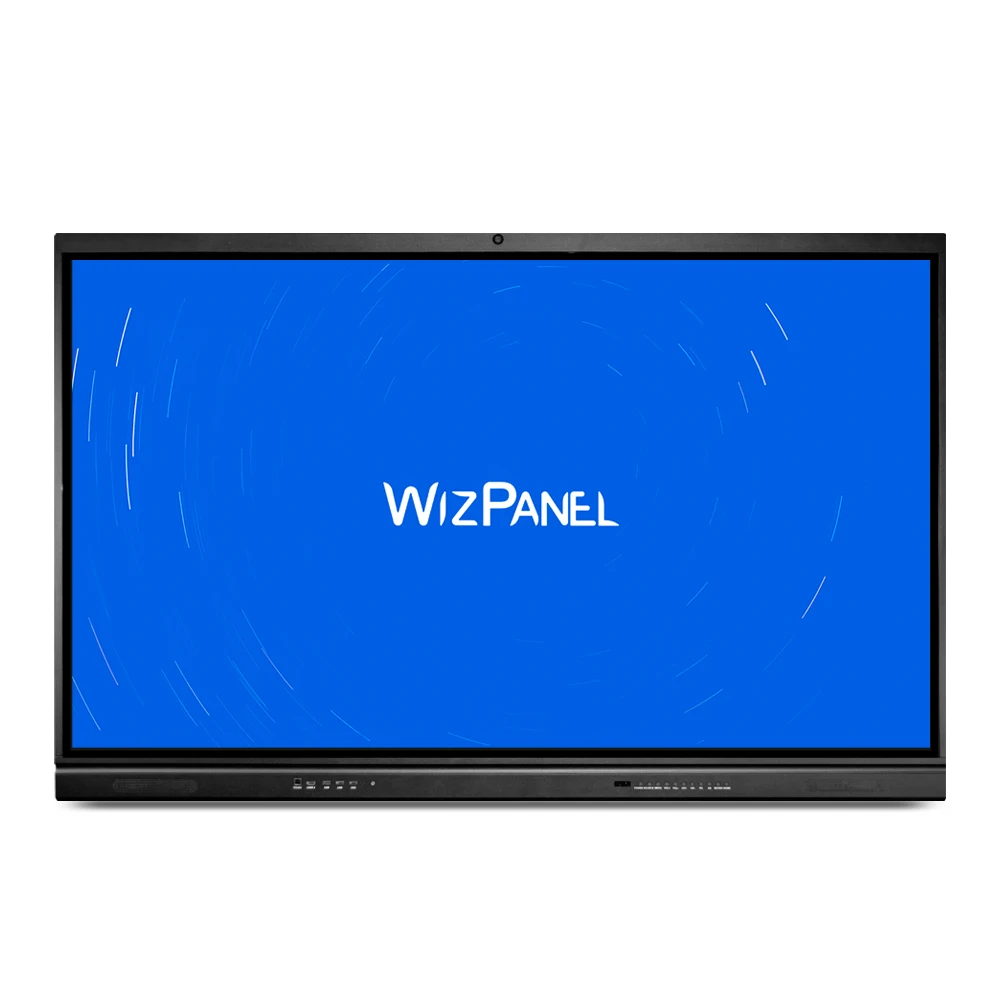

QS series Interactive flat panel
The QS Series is a plug and play interactive led display with 20 touch points, the leading infrared touch technology. It's available from 65", 75'' to 86". The WizPanel all with HD resolution and 4K resolution is optional. All the display panel is A+ standard, better view and better protection. It allows you to perform mouse functions with your finger, write with pen and you can use variety of guestures in applications, meanwhile, 20 users can write or draw and the same time.
More details please don't hesitate to contact us. We are always ready to serve you.
Specification
More Details
Place of Origin | Guangdong,China | ||||||
Brand Name | Kozoni | ||||||
PHYSICAL SPECIFICATIONS | Model Number | ILD-65QS | ILD-75QS | ILD-86QS | |||
Dispaly Size | 65” | 75" | 86" | ||||
Active Area (mm) | 1428.48*803.52 (64.53’’) | 1650.24*928.26 (74.52’’) | 1895.04*1065.9 (88.56’’) | ||||
Display Ratio | 16:9 | 16:9 | 16:9 | ||||
Brightness | 370 cd/m2 | 370 cd/m2 | 400 cd/m2 | ||||
Physical Dimension (mm) | 1507.2*932.6*89.2 | 1729.4*1057.6*89.2 | 1975.6*1196.3*89.2 | ||||
Packing Size (mm) | 1646*1074*240 | 1873*1204*240 | 2120*1353*240 | ||||
NW(Kg) | 42 | 55 | 71 | ||||
GW(Kg) | 55 | 71 | 94 | ||||
DISPLAY | Resolution | 4K UHD (3840*2160 @ 60 Hz) | |||||
Display Colors | 10 Bit + FRC (1.07 Billion) | ||||||
Response Time | 8 ms | ||||||
Panel Refresh Rate | 60 Hz | ||||||
LED Lifespan | 50,000 hours | ||||||
LCD Viewing Angle | 178 ̊ | ||||||
Contrast Ratio | 4000:01:00 | ||||||
Ambient Light Sensord | Yes | ||||||
Glass Hardness | 9H (Pencil), 7 (Mohs) | ||||||
Glass Type | 3mm Heat-tempered, Anti-Glare | ||||||
INTERACTIVITY | Touch Technology | Ultra Precise Infrared Touch Sensor | |||||
Continuous Touch Points | Up to 20 Points | ||||||
Console Buttons | Power, Source, Menu, VOL,CH, PC,Enter, Home | ||||||
Touch Resolution | 32768*32768 px | ||||||
Response Time | ≤ 5 ms | ||||||
Touch Accuracy | 1 mm | ||||||
Tracking Rate | 6 m/s | ||||||
Scan Rate | 200 Hz | ||||||
Gestures and Edge Swipes | Windows® Supported | ||||||
Pen Type | Battery-less Pen | ||||||
Pen Tip Diameter | 3 mm | ||||||
Palm Detection | Yes | ||||||
Annotation Over Any Source | Yes | ||||||
CAMERA AND MIC | Color bit | 24 bit | |||||
4K Resolution | 3840*2160 /Opt. 20fps | ||||||
Image format | YUV2, MJPG | ||||||
Viewing angle | Fixed-focus 94° | ||||||
MIC QTY | 4 | ||||||
Sampling res. | 16/24 bit | ||||||
Sampling rate | 16KHz – 48KHz | ||||||
AEC Algorithm sampling rate | 4 GB | ||||||
COMPUTING | Operating System | Android™ 8.0 | |||||
RAM | 4 GB | ||||||
Internal Storage | 32 GB | ||||||
CPU | Quad Core: 2*ARM Cortex A73, 2*ARM Cortex A53 | ||||||
GPU | ARM Mali- 51450MH | ||||||
AUDIO | Dual Front Facing Speakers | 2*20 Watts | |||||
Audio Stereo | Balance, Auto Volume Control, Surround Sound | ||||||
ENVIRONMENTAL | Operating Temperature | 0°C to 40°C (32°F to 104°F) | |||||
Storage Temperature | -15°C to 55°C (-5°F to 131°F) | ||||||
Operating Humidity | 20% to 80% non-condensing humidity | ||||||
Storage Humidity | 20% to 90% non-condensing humidity | ||||||
CONNECTIVITY | Front | HDMI® 2.0 In*1, USB 2.0*2, USB TOUCH*1, USB 3.0*1, USB Type-C*1 | |||||
Wi-Fi®*1, RJ45*1, HDMI® 2.0*1, VGA In*1, Audio In*1, RS232*1, SD Card*1, YPbPr*1, HeadPhone Out*1, AV In*1, AV Out*1, SPDIF Out*1, USB 2.0*1, USB TOUCH*1, USB 3.0*1 | |||||||
Wireless, 2*2 | Included | ||||||
OPS Slot | 1 | ||||||
PACKED CONTENTS | 1*WizPanel | ||||||
1*2M Length HDMI Cable | |||||||
1*1.5M Length USB Cable (A-B) | |||||||
1*1.8M Regional Power Cable | |||||||
1*Remote Controller | |||||||
2*Wzipanel Pens | |||||||
1*VESA mount screws (M6) | |||||||
1*Wall Mount | |||||||
2*Antenna | |||||||
1*Quick Install Guide | |||||||
Company Profile
One of most influential manufacturer in the field of interactive led display, all in one teaching system and interactive whiteboards, vying for innovative interactive teaching solution, stable quality and cost-effective educational equipment.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2016,sell to Domestic Market(40.00%),Southeast Asia(15.00%),Mid East(15.00%),North America(10.00%),South America(5.00%),Eastern Europe(5.00%),Eastern Asia(5.00%),Western Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
interactive whiteboard,interactive led display,all in one smart podium,visualizer
4. why should you buy from us not from other suppliers?
One of most influential manufacturer in the field of interactive led display, all in one teaching system and interactive whiteboards, vying for innovative interactive teaching solution, stable quality and cost-effective educational equipment.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic
We are based in Guangdong, China, start from 2016,sell to Domestic Market(40.00%),Southeast Asia(15.00%),Mid East(15.00%),North America(10.00%),South America(5.00%),Eastern Europe(5.00%),Eastern Asia(5.00%),Western Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
interactive whiteboard,interactive led display,all in one smart podium,visualizer
4. why should you buy from us not from other suppliers?
One of most influential manufacturer in the field of interactive led display, all in one teaching system and interactive whiteboards, vying for innovative interactive teaching solution, stable quality and cost-effective educational equipment.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic
