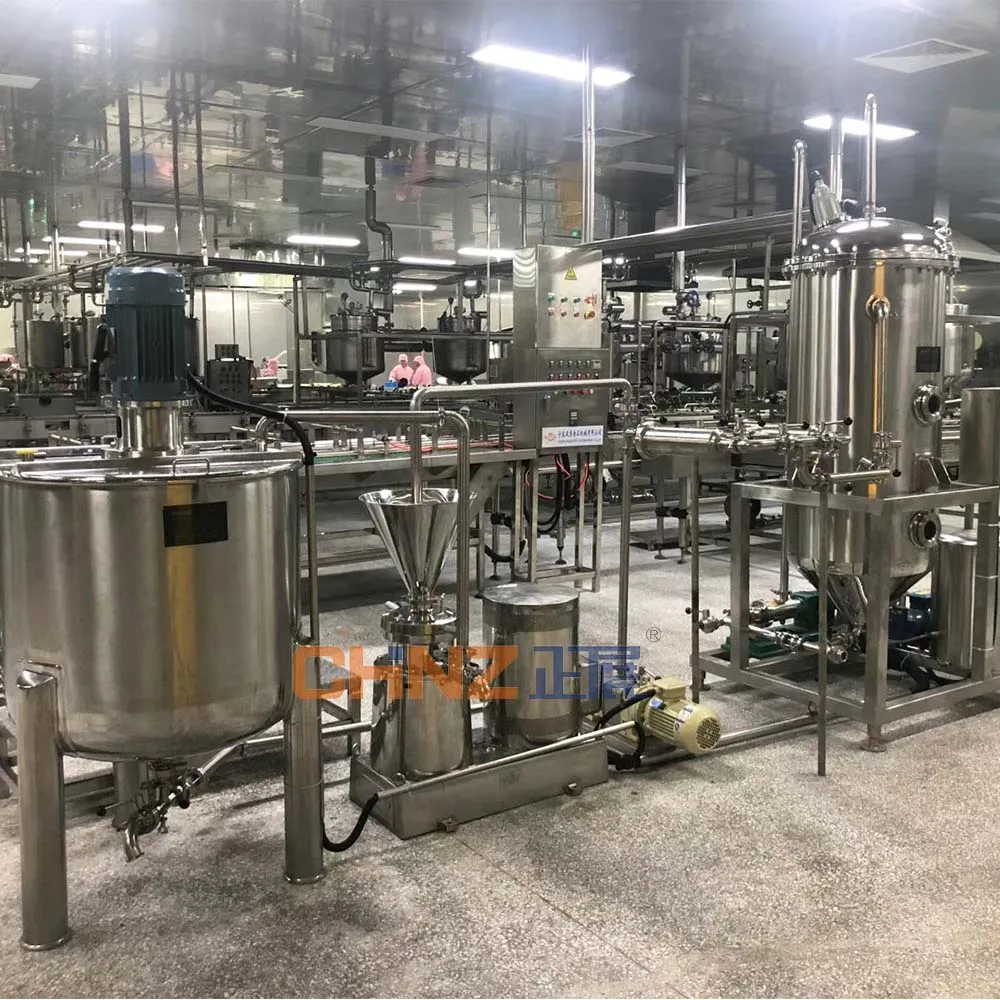

Stainless steel cosmetic cream and Lotions homogeneous emulsion mixing tank with agitator blender
- Category: >>>
- Supplier: Wenzhou Chinz Machinery Co. Ltd.
Share on (1600522289306):
Product Overview
Description
Products Description
Application
Used as blending tank, mixing tank, preparation tank fermentation tank and disinfection tank.
Ideal in fields such as food, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Ideal in fields such as food, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Description
It can be made into 3 layers, inner layer was the contact part with your raw material such as milk, juice or any other liquid product… outside the inner layer, there is a heating / cooling jacket for steam or hot water / cooling water. Then comes the outer shell. Between outer shell and the jacket, there is a 50mm thickness temperature preservation layer.

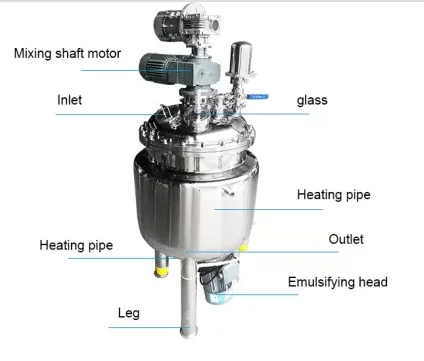

Structure characteristics
1. Made of single-layer,double layer or three layer stainless steel structure.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Features
◭stainless steel mixing tank could be used in food, beverage, pharmacy, chemical industry,wine and alcohol etc industries.
◭The tank body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing or matte finish , which fully conforms to GMP requirements.

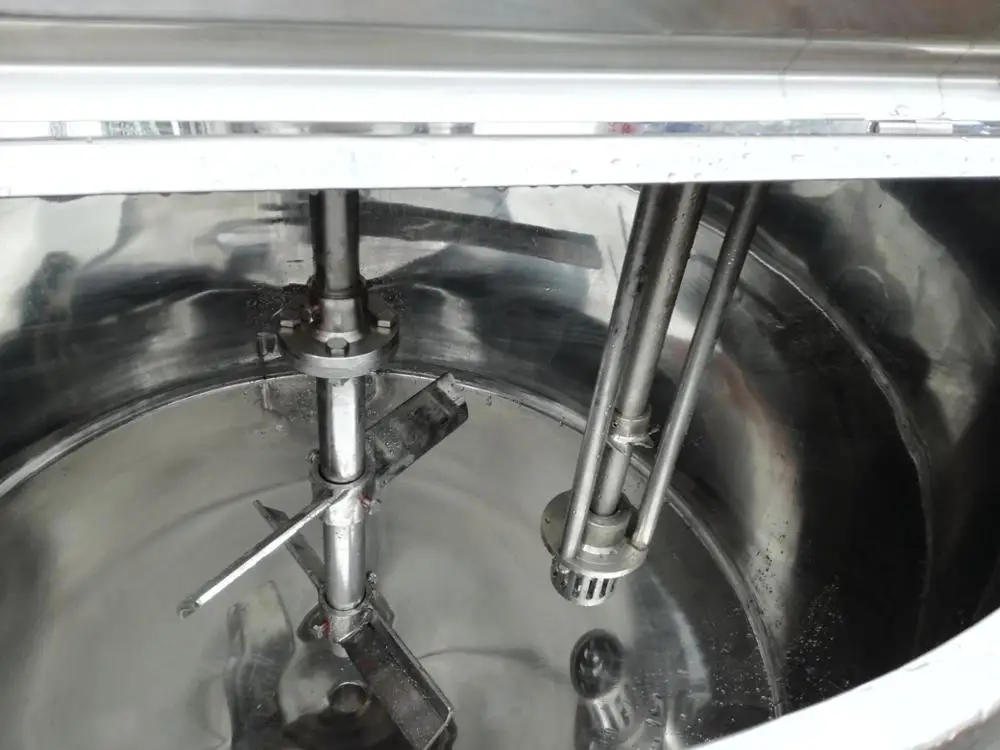

◭There are various agitator options of stainless steel mixing tank: impeller type, Anchor type, Turbine type, High shear mixer,magnetic mixer. The mixing tank could be made with or without jacket. The scraper type agitator mixing adopts the frequency converter for speed adjustment , so that high quality products of different processes according to customer requirements.

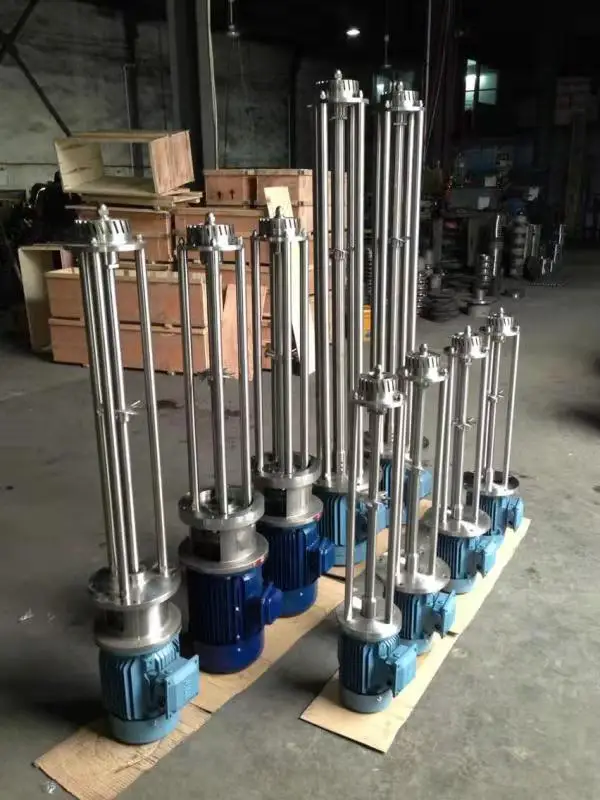

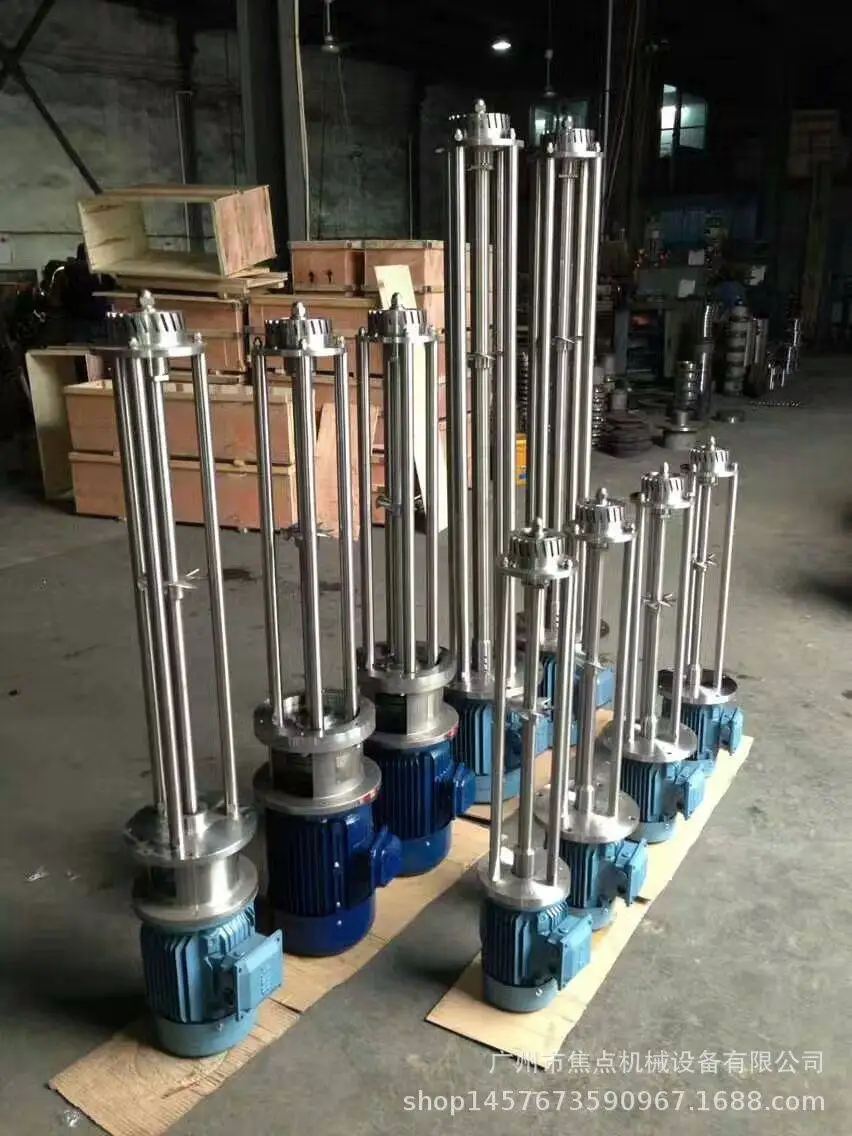

◭The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many indissoluble materials. during the liquid detergent production process so as to save energy consumpion and shorten production period. High Shear Homoegnizer adopts German Technology, 0~2900 rpm variable speed.
◭The tank body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing or matte finish , which fully conforms to GMP requirements.
◭There are various agitator options of stainless steel mixing tank: impeller type, Anchor type, Turbine type, High shear mixer,magnetic mixer. The mixing tank could be made with or without jacket. The scraper type agitator mixing adopts the frequency converter for speed adjustment , so that high quality products of different processes according to customer requirements.
◭The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many indissoluble materials. during the liquid detergent production process so as to save energy consumpion and shorten production period. High Shear Homoegnizer adopts German Technology, 0~2900 rpm variable speed.
◭According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric heating. Easy to discharge , bottom direct discharge or by transfer pump.
Product Paramenters
Heating mothed | By electricity , by steam |
Material: | SS304/SS316L |
jacket: coil jacket,integral jacket and honeycomb jacket | |
insulation layer: rock wool,PU foam or pearl cotton | |
as to the thickness, we can make it according to your requirement. | |
Capacity: | 50L-20000L |
Agitator Type: | With agitator or not |
Agitator power: | 0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …we can make it according to your requirement. |
Voltage: | 220V, 380V, 420V,we can make it according to your requirement. |
Motor: | we can make it according to your requirement. |
Surface treatment: | Inner polished and outside polished |
Availably connection: | Clamp, Thread Butt weld, Flange |
Availably standard: | GB150-1998,HG/T20569,HG20583,HG20584,GMP,CE,ISO |
Application scope: | Dairy, food, beverage, pharmacy, cosmetic, etc |
Packaging Details: | standard export package. Or as per the request of customers |

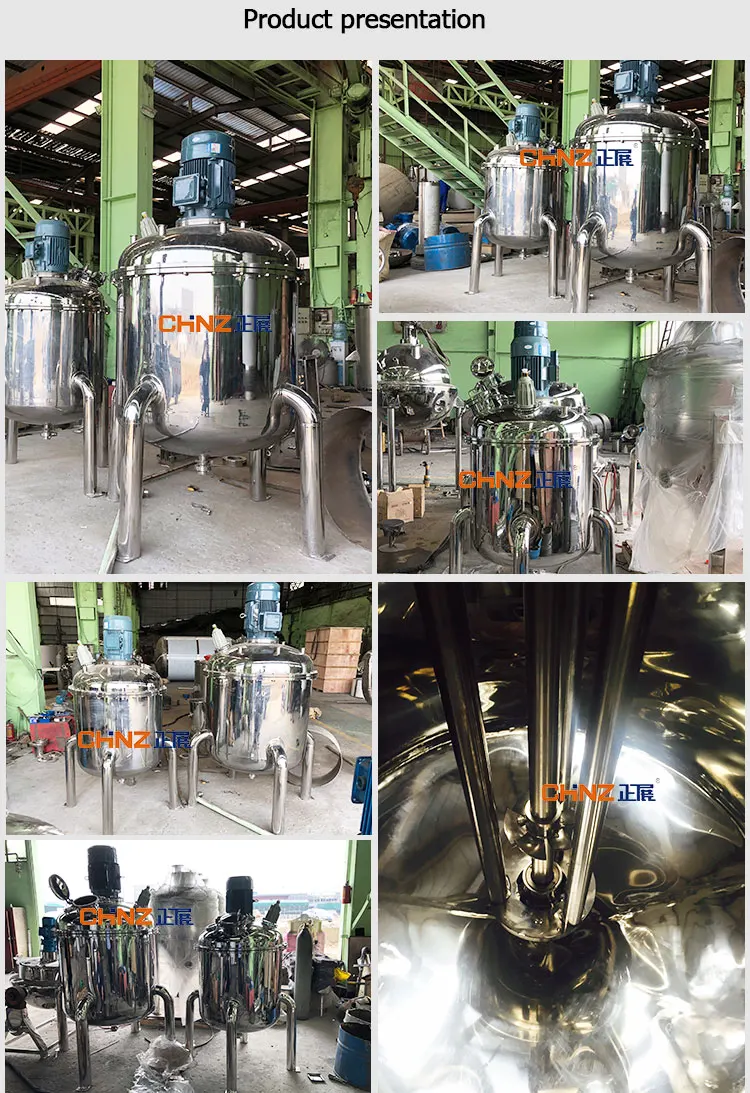

Details Images
Certifications

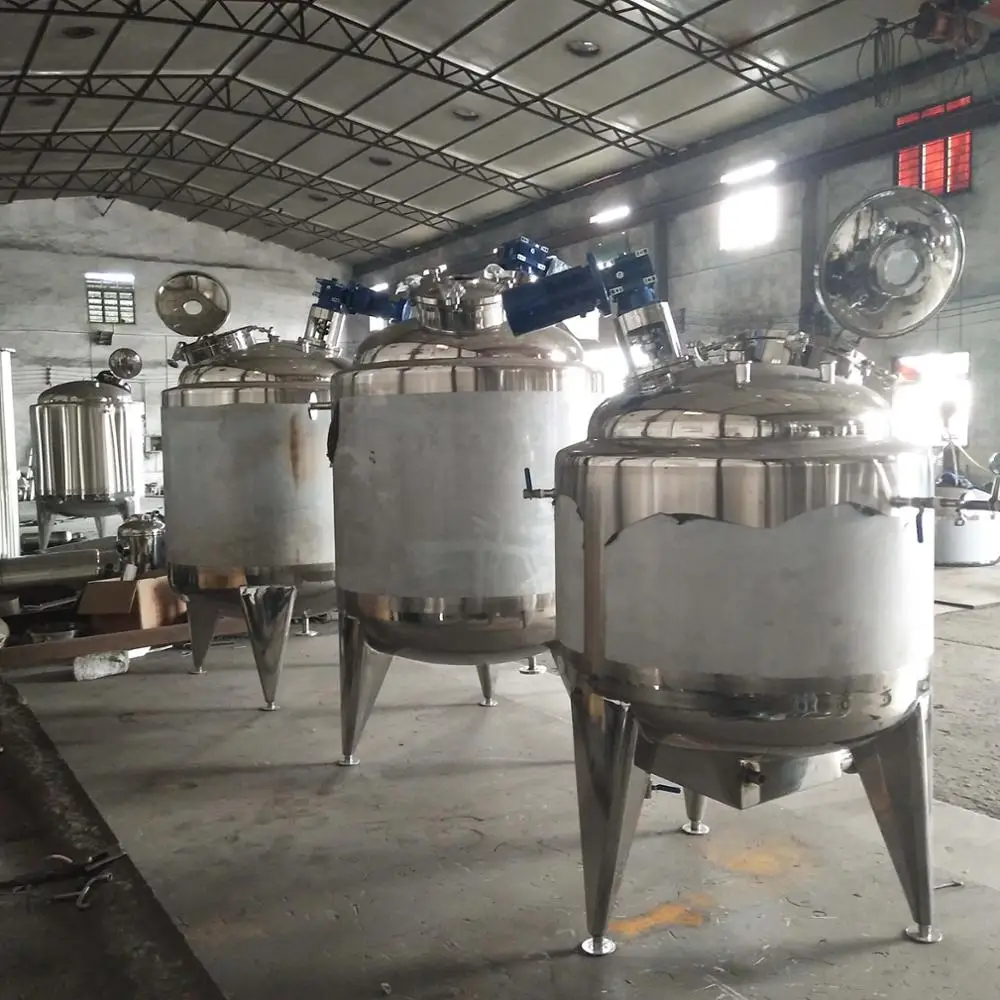

Customer Photos
Product packaging
FAQ
1. What about your factory?
Our factory is located in Wenzhou and have more than 15 years experience on machinery making .
2. How will you control the quality and delivery?
All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise that our wooden packaging is strong enough and safety for long delivery .
3. How to finish installing?
We can guide you through the video or photos first . If the customer need to installing on site that our engineer can be sent to your country. but customer should pay the air tickets. besides, customer should arrange the accommodation for them during the trip.
4. What do we do if we encounter problem about the machine ?
Showing us the picture or video of the problem. If the problem can be solved by your workers, we will send you solution by video or pictures. If the problem out of your control, our engineer will be sent to your factory (customer will pay the fee during the trip).
5. How about warranty and spare parts?
We provide 1years warranty for the machine,and most of the parts can be found in local market or you also can buy the parts from us .
Our factory is located in Wenzhou and have more than 15 years experience on machinery making .
2. How will you control the quality and delivery?
All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise that our wooden packaging is strong enough and safety for long delivery .
3. How to finish installing?
We can guide you through the video or photos first . If the customer need to installing on site that our engineer can be sent to your country. but customer should pay the air tickets. besides, customer should arrange the accommodation for them during the trip.
4. What do we do if we encounter problem about the machine ?
Showing us the picture or video of the problem. If the problem can be solved by your workers, we will send you solution by video or pictures. If the problem out of your control, our engineer will be sent to your factory (customer will pay the fee during the trip).
5. How about warranty and spare parts?
We provide 1years warranty for the machine,and most of the parts can be found in local market or you also can buy the parts from us .
