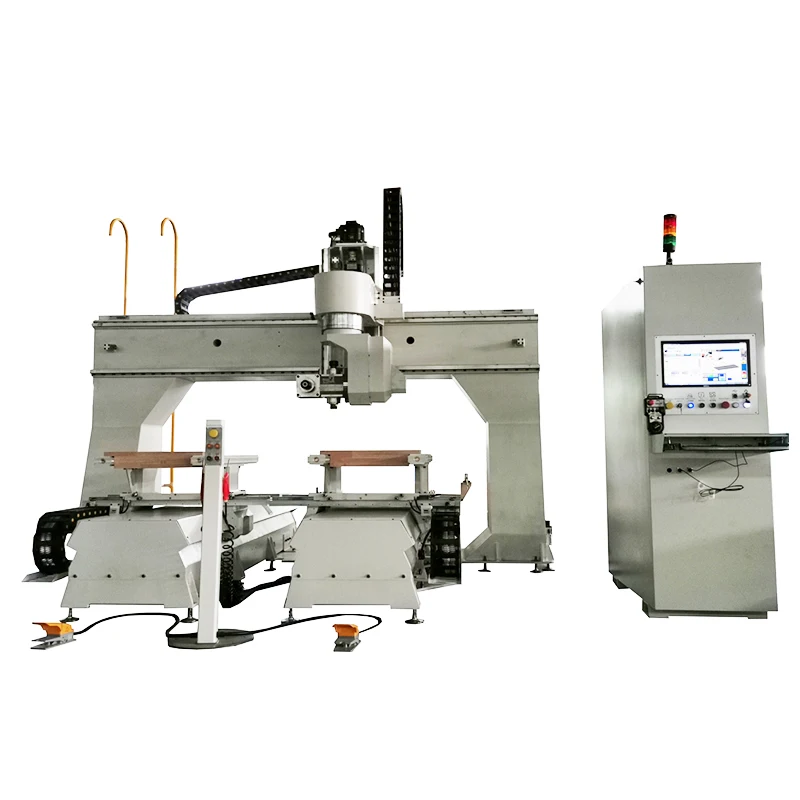

QCM MDK8511 5 axis linkage machine center solid wood 4D carving CNC router
- Category: >>>
- Supplier: Hangzhou Smart Panther Tech Ltd.
Share on (1600522294845):
Product Overview
Description
QCM MDK8511 5 axis linkage machine center solid wood 4D carving CNC router
Product Paramenters

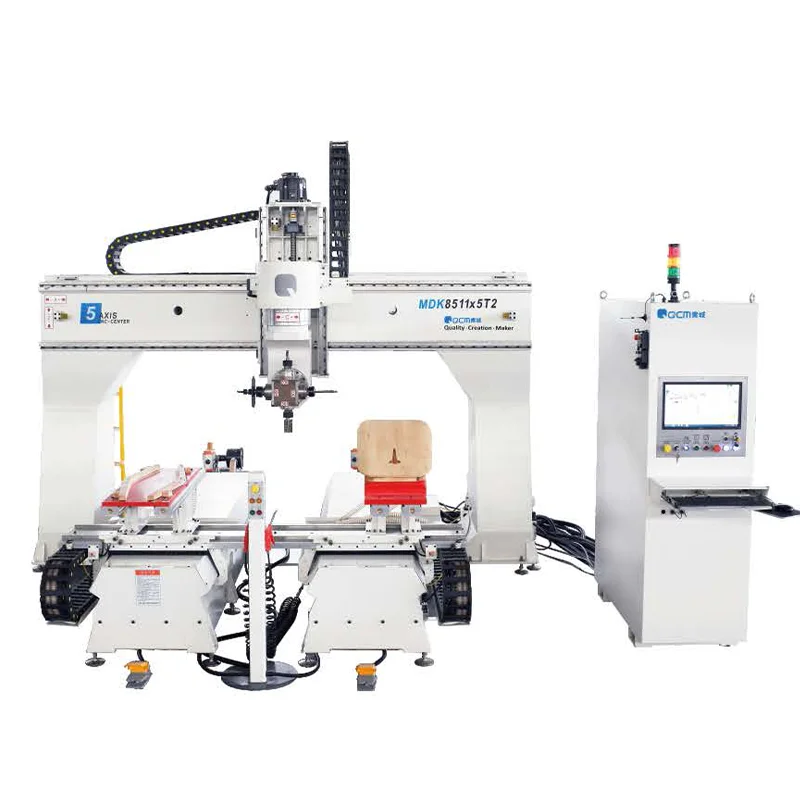

MDK8511*5T2 Five-axis linkage machining center | ||||
Technical Parameter | ||||
Specifications | Unit | MDK8511*5T2 | ||
X-axis route | mm | 3025 | ||
Y-axis route | mm | 1890 | ||
Z-axis route | mm | 760 | ||
V-axis route | mm | 1890 | ||
A-axis route | mm | 360° | ||
C-axis route | mm | +/-200° | ||
X-axis speed | m/min | 40 | ||
Y-axis speed | m/min | 40 | ||
Z-axis speed | m/min | 30 | ||
V-axis speed | m/min | 40 | ||
A-axis speed | r/min | 22.5 | ||
C-axis speed | r/min | 22..5 | ||
Single table processing range | mm | 1130*1130*500 | ||
Full table processing range | mm | 3000*1130*500 | ||
Main spindle rotation | rpm | 18000 | ||
Motor power of main spindle | kW | 7.5*2 | ||
Overall dimensions | mm | 3700*2785*3100 | ||
Weight | kg | 5000 | ||
Details Images
Feature
1. The frame and the beam are welded with high-strength steel plates, with reinforcing ribs distributed inside, and are treated with high temperature annealing and vibration aging treatment.
2. The strength of the frame structure is mechanically analyzed to ensure the design strength.
3. Servo drive and motor use Japan Yaskawa Σ7 series. The motor is an absolute encoder, which has stronger anti-interference ability, and does not need to go back to the origin every time the device is powered on.
4. Cross spindle, ER40×4, 18000rpm, 7.5kW×2. Four tools (including saw blades) can be equipped at the same time.The spindle support arm is made of high-strength aluminum alloy, which reduces the weight and improves the running stability.
5. Double station. There are two working modes: Alternate use alone; Linked use at the same time.

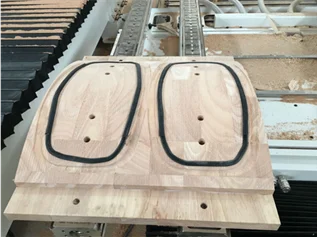

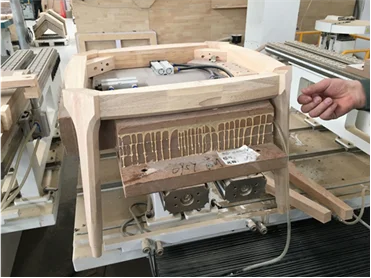

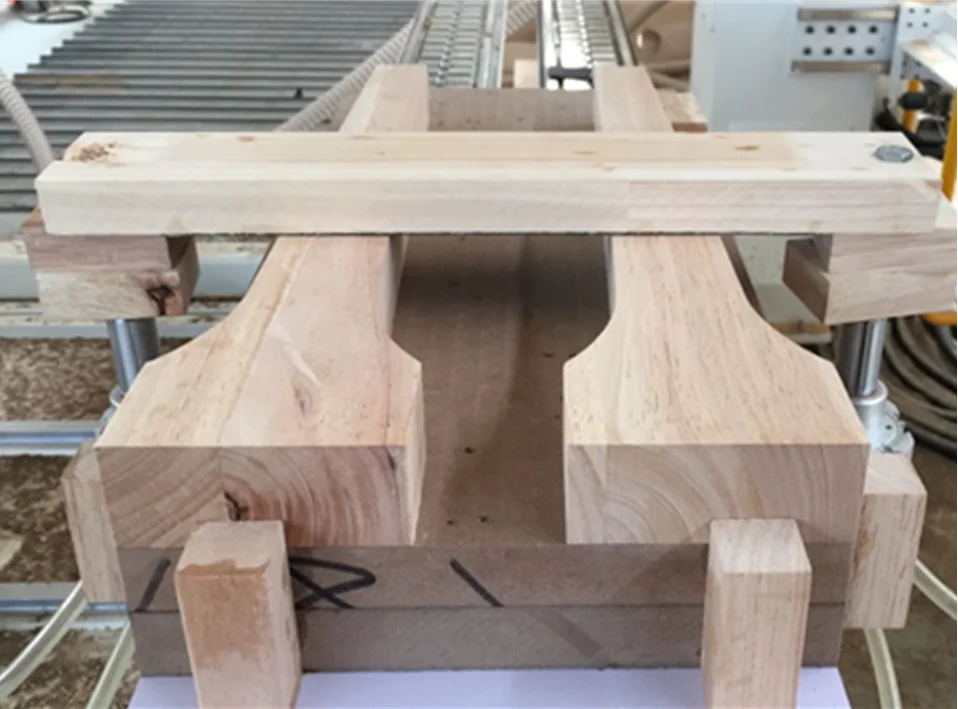

Movable vacuum adsorption + pneumatic clamp. It can realize the adsorption and fixation of panel workpieces and the clamping and fixation of bar-shaped workpieces.
Movable vacuum adsorption + pneumatic clamp. It can realize the adsorption and fixation of panel workpieces and the clamping and fixation of bar-shaped workpieces.
6. OSAI control system.
Related Products
Company Information
FAQ
1. Manufacturer or Trading company?
QCM (Qingcheng Machinery) is a professional manufacturer of woodworking machinery since 1970. With more than 50 years experience, we have developed to be the top and most powerful manufacturer of woodworking machinery in China.
2. Payment Term?
TT , 50% advance payment and 50% balance before delivery.
3. Lead Time?
Within 15 days for regular stock machine after receiving advance payment. 45-60 days for customized machines.
4. Warranty ?
3 years for machine, 3 years for the core components.
5. Spare Parts?
Unified standards spare parts are available anytime. It will not be a problem if you want to replace spare parts of the machine you bought anytime.
6. Pre-sale Service?
As a leader in woodworking machinery field for more than 50 years, professional and efficient proposals can be provided anytime. Our strong R&D team with more than 50 persons are also your team.
7. After-sale Service?
Professional after-sales service team, 24 hours technical support by email, call and video. If remote support is not workable, our engineer is available to visit at your expenses of accommodation and round tickets.
8. Why us?
(1)50 years experience in wood working machinery since 1970.
(2)Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity by standard configuration.
(3)All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy. Spindle is processed in constant temperature workshop to insure high precision and stability, +-0.1mm high accuracy.
(4)Warranty: 3 years for machine, 3 years for the core3 years for machine, 3 years for the core components.
