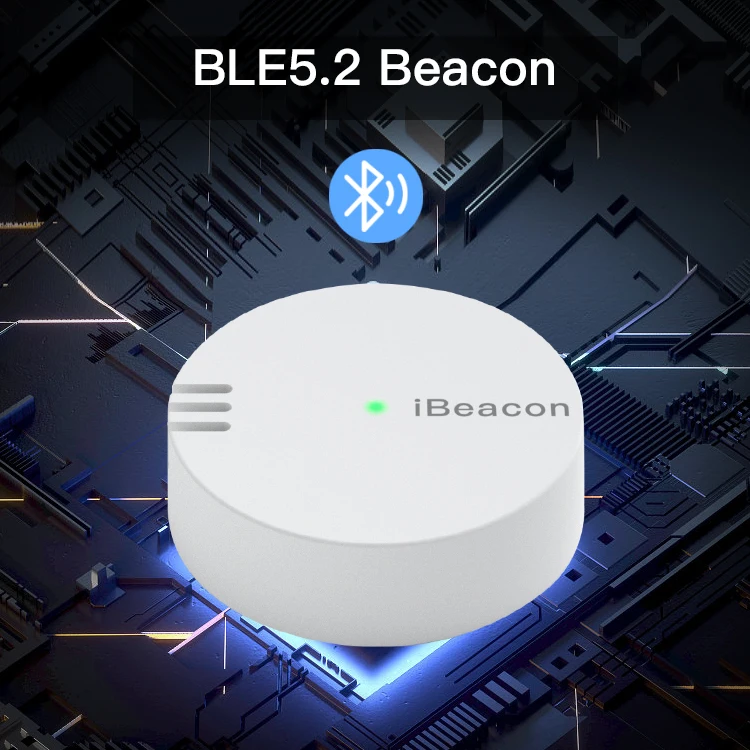

DS Portable Locator Beacon Bluetooth 6axis Accelerometer Gyro Sensor Ble5.2 Programmable Small Beacon
- Category: >>>
- Supplier: Shenzhen Deasino Technology Co. Ltd.
Share on (1600522301100):
Product Overview
Description
Products Description

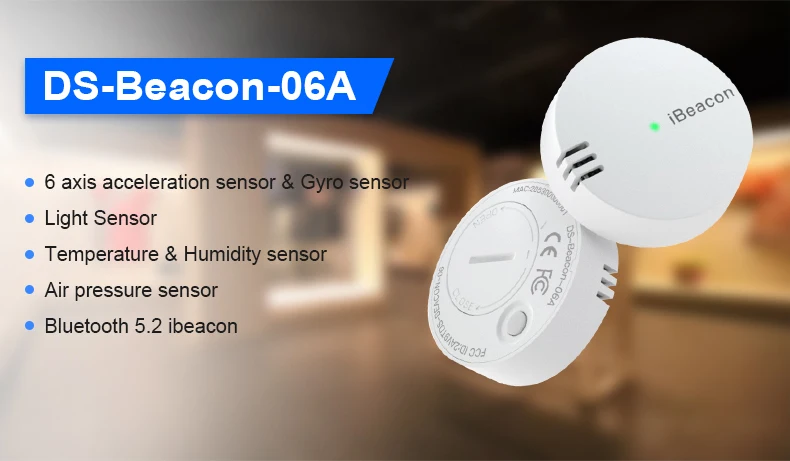

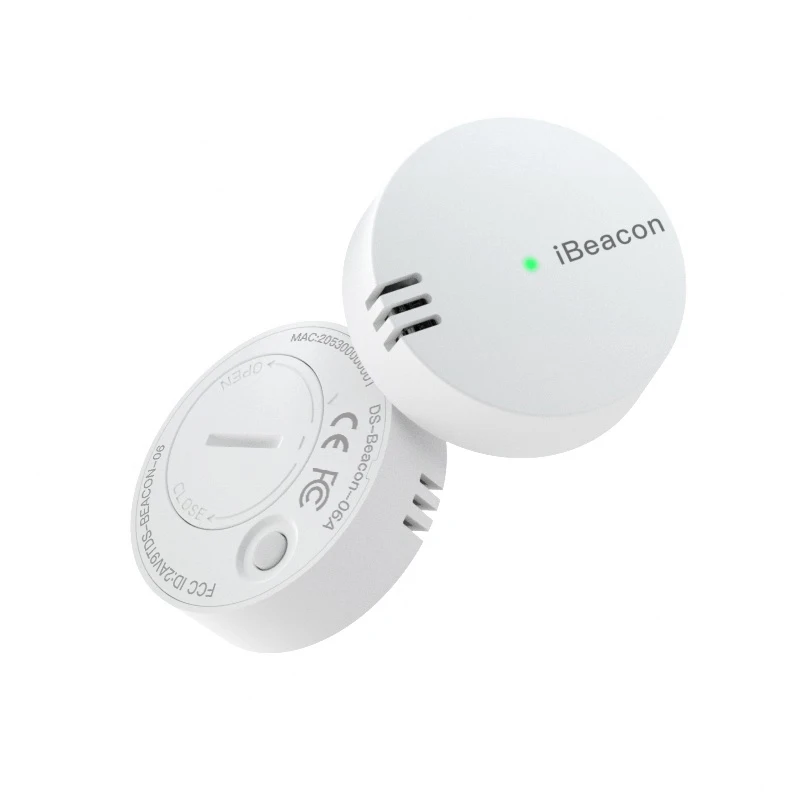

DS-Beacon-06A
Bluetooth Low Energy 5.2 Chipset
# Basic 2 years Standby Time
# Long Transmission Distance : ≥50m
# Long Transmission Distance : ≥50m
# Certificate: CE FCC
# APP Tool: Deasino in App store
# Firmware update over the air
# Set Bluetooth broadcast parameters and sensor sampling time
# Non-waterproof.
# Set User Name
DS-Beacon-06A | DS-Beacon-05A | |

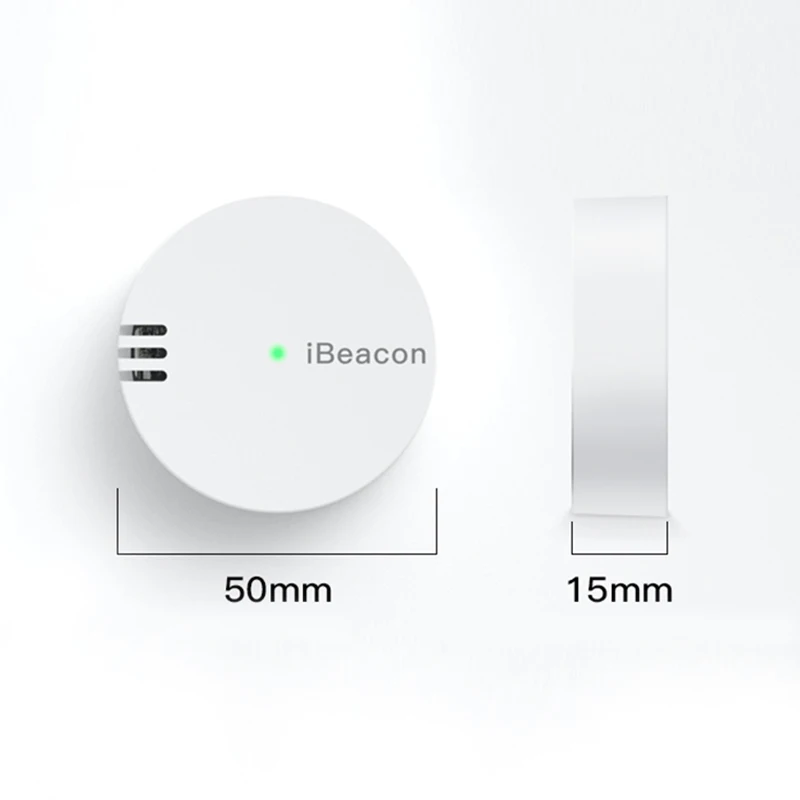

Size ( D * H) | 50*15mm | |
Battery | Replaceable; CR2450 | |
Product Weight | 24g | |
Operating Temperature | -20°C ~+60°C | |
Housing Material | ABS Plastic + Easy to print logo | |
Bluetooth Stack | Bluetooth Low Energy 5.2 ibeacon | |
Broadcasting Power | -40 +4dBm, Default 0 dBm | |
Broadcast Frequency | 20ms~20s, Default 1000ms | |
Transmission Distance | ≥50 M in open environment | |

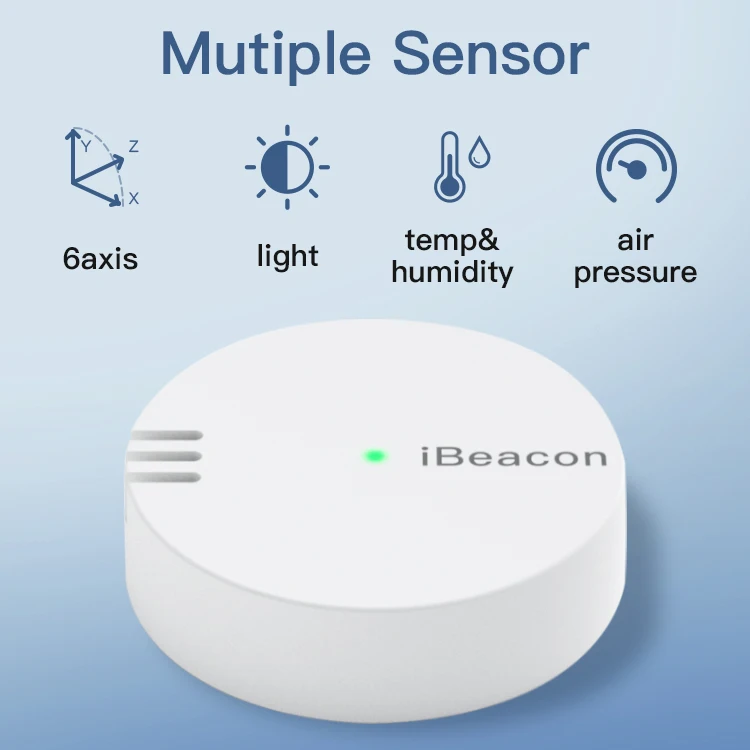

Sensor | Acceleration sensor, Gyro sensor, Temperature&Humidity sensor, Light sensor, Air Pressure sensor | |
Customized | Support Customized Service | |

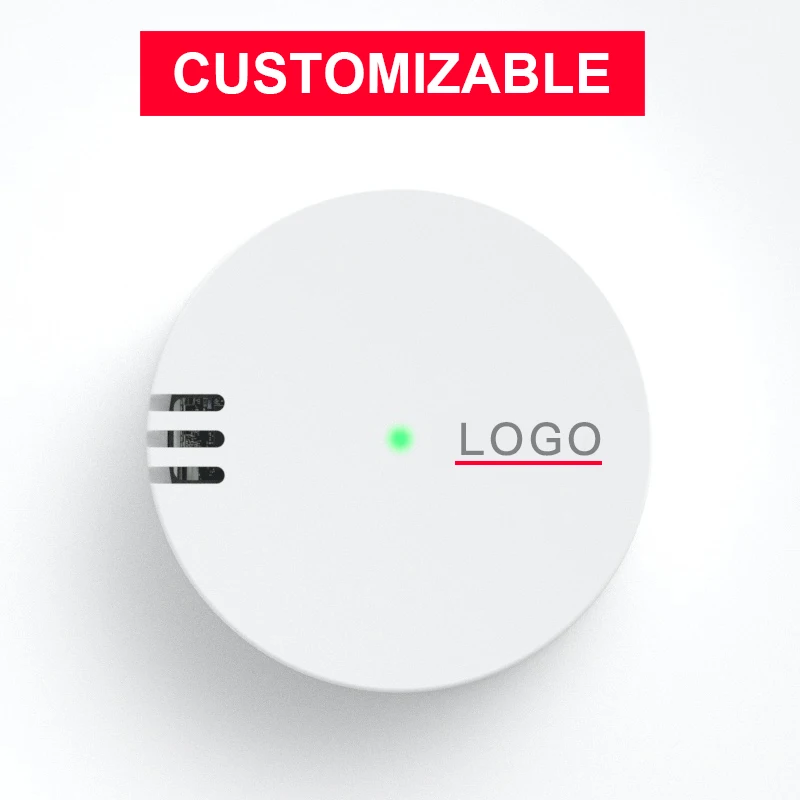

Custom Service - Logo/Color/Button

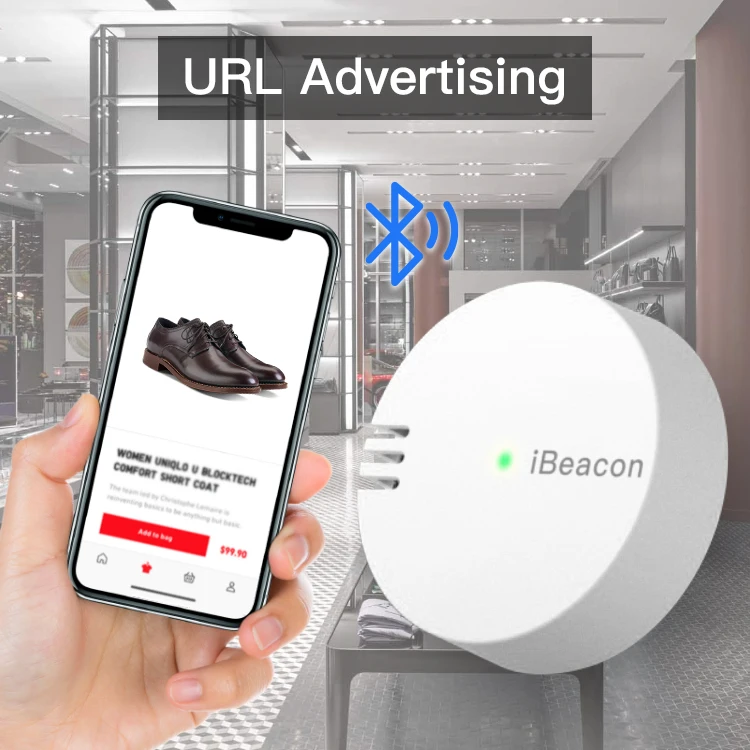

URL Advertising

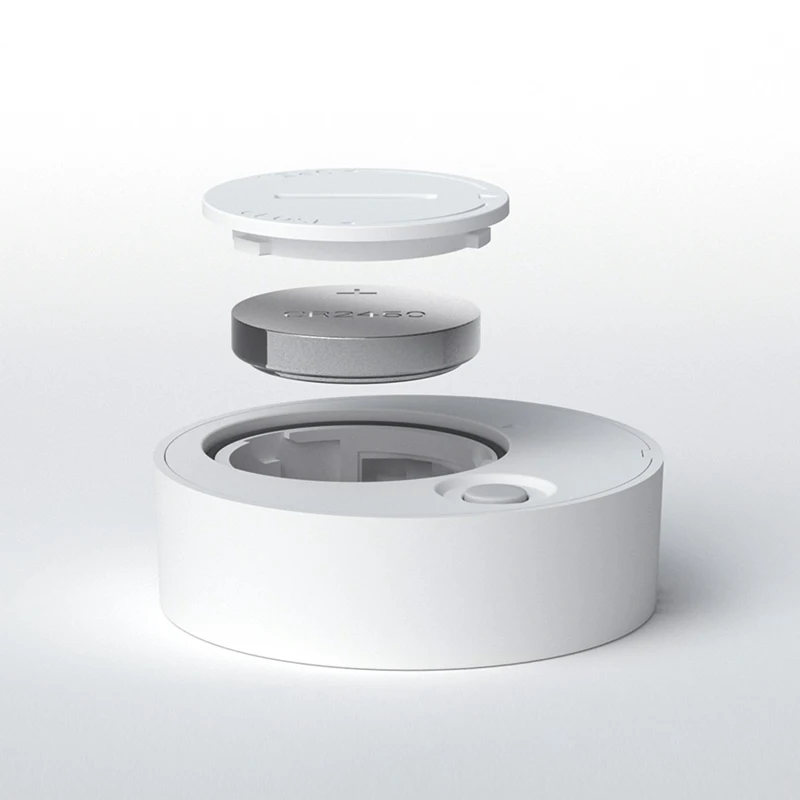

Replaceable Long Life Battery

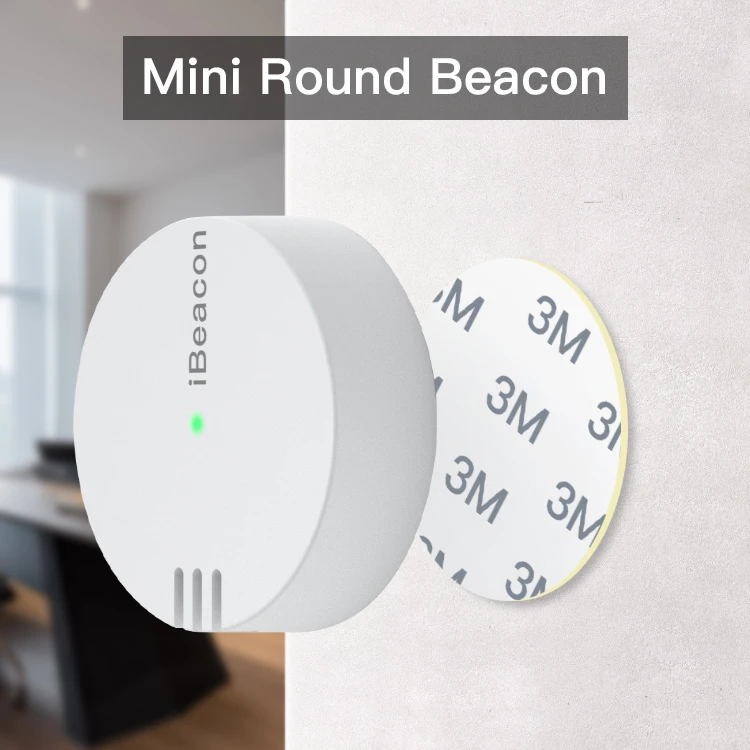

Mini Size Easy to Put it on the product
Application
DS-Beacon-06A Features:
- Support iBeacon protocol
- Use Silabs Series Chip
- The broadcasting distance ≥50 M
- Switching function、Low voltage alarm function、Support Sensors
- Support sensor data broadcast
- Set Bluetooth broadcast parameters and sensor sampling time
- Use Silabs Series Chip
- The broadcasting distance ≥50 M
- Switching function、Low voltage alarm function、Support Sensors
- Support sensor data broadcast
- Set Bluetooth broadcast parameters and sensor sampling time
- Set User Name and URL link
- Please contact me to get the data sheet(specification) of DS-Beacon-06
Asset Tracking: Location based real-time message push, such as live information, conference process sharing, etc.,
Data Transfer: Online explanation of tourist attractions, museums, etc.,

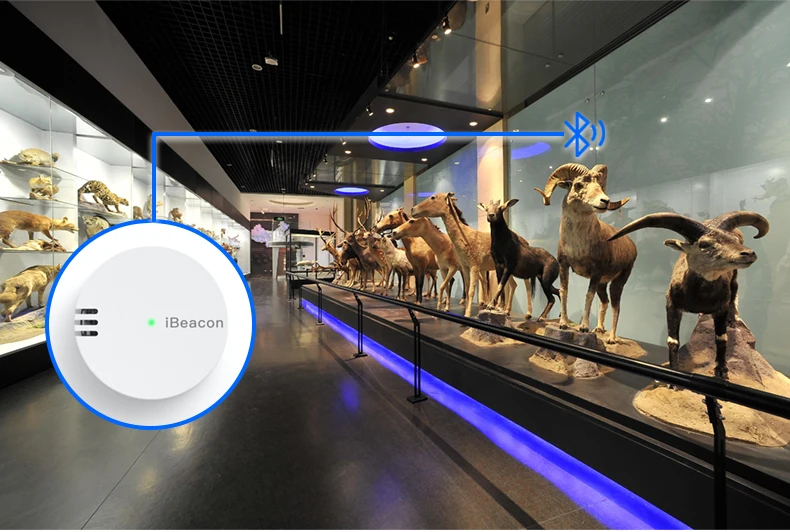

Mesuem: Online explanation of tourist attractions, museums, etc.,
*The above functions require the customer to independently develop an app or platform for use. Beacon only provides basic Bluetooth broadcast packet broadcast information.
How to Use
On/off function:
Open: Long press for 3 seconds.
Close: Under the power on state, hold down for three seconds and the green light will flash five times. During the green light flashing, click the button, the light will be on for one second and the power off will be successful.
Connect: Connected to Bluetooth successfully, LED flash twice;
Disconnect Bluetooth and the LED light will flash three times.
Recommend Products
DS-Beacon-01 DS-Beacon-04 DS-Beacon-05A

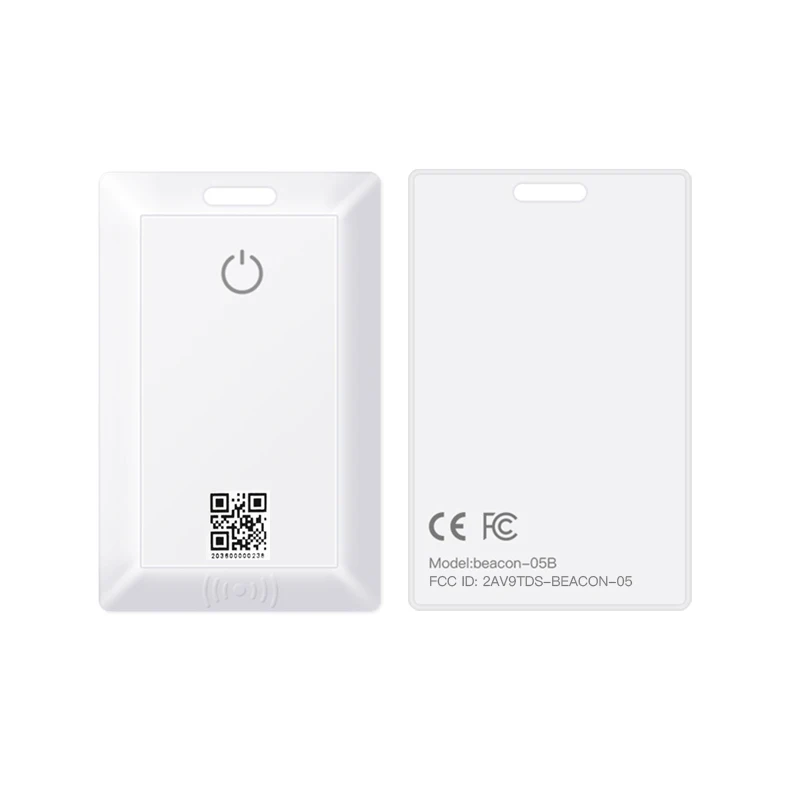

DS-Beacon-05B DS-Beacon-06A DS-Beacon-06C

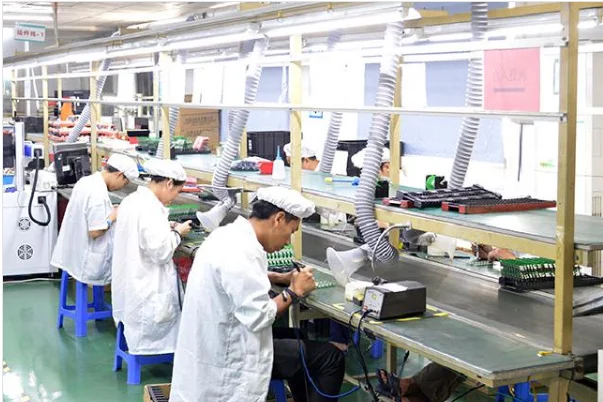

Company Profile
Deasino Technology Co., Ltd. is a enterprise "based in Shenzhen and facing the world". with more than 50 employees. In the 14 years of rapid development of the company,Deasino has gradually developed into a high-tech enterprise with more than ten national intellectual property patents, utility model patents and software copyrights in six major industries.
FAQ
Q1.What documents will you provide after I buy your samples?
A1.1.Configuration App 2.Instruction 3. User Manual( data sheet/app protocol)
Q2. How to ship ?
A2.We have forwarder in China, can shipping to Any countrys. You can chose DHL, FedEx, UPS, EMS, Special Line, etc. we have profession assistance track for you until delivery.
Q3. Can I change the some parameters, like URL, PASSWORD?
A3:Yes,you can change what you want to set.
Q4. Do you have SDK or the source code?
A4: We can provide the Standard SDK and the protocol of our beacon to help you develop your own APP and platform.
Q5. How long will the order shipping?
A5:for samples,we will shipping within 1-2days after received the payment.
for bulk order,like 1000-5000pcs,the leadtime is 3-4weeks
For more questions, Welcome to contact us.
A1.1.Configuration App 2.Instruction 3. User Manual( data sheet/app protocol)
Q2. How to ship ?
A2.We have forwarder in China, can shipping to Any countrys. You can chose DHL, FedEx, UPS, EMS, Special Line, etc. we have profession assistance track for you until delivery.
Q3. Can I change the some parameters, like URL, PASSWORD?
A3:Yes,you can change what you want to set.
Q4. Do you have SDK or the source code?
A4: We can provide the Standard SDK and the protocol of our beacon to help you develop your own APP and platform.
Q5. How long will the order shipping?
A5:for samples,we will shipping within 1-2days after received the payment.
for bulk order,like 1000-5000pcs,the leadtime is 3-4weeks
For more questions, Welcome to contact us.
