Small and medium size domestic biogas digester Custom PVC red mud biogas storage tank Cooking fuel holding bag
- Category: >>>
- Supplier: Chongqing Veniceton Technology Co. Ltd.
Share on (1600522345420):
Product Overview
Description
Small and medium size domestic biogas digester Custom PVC red mud biogas storage tank Cooking fuel holding bag
Product Introduction
Product Introduction
Red mud soft biogas plant, the tank body is provided with an air outlet hole, inlet, outlet, with the pipe assembly forming
connection, inlet and outlet can be made of 200mm-300mm, caliber, not easy to plug, the inlet and outlet are integrally welded

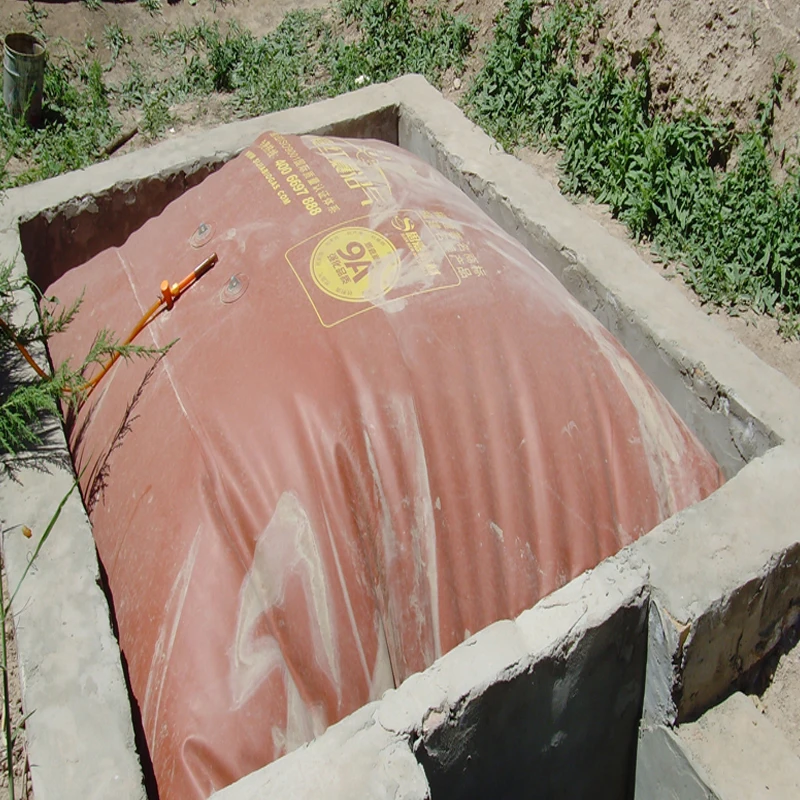

(non bolt connection), light weight and good seal. Generally speaking there are buried, half buried, placing three forms.
According to user needs.
connection, inlet and outlet can be made of 200mm-300mm, caliber, not easy to plug, the inlet and outlet are integrally welded
(non bolt connection), light weight and good seal. Generally speaking there are buried, half buried, placing three forms.
According to user needs.
Name | Specification | Material thickness | Material |
4m3 biogas plant | 2X2X1m | 1.0-1.2mm | Red mud PVC+MESH |
6m3 biogas plant | 3X2X1m | 1.0-1.2mm | Red mud PVC+MESH |
8m3 biogas plant | 3X2X1.33m | 1.0-1.2mm | Red mud PVC+MESH |
10m3 biogas plant | 4X2X1.33m | 1.0-1.2mm | Red mud PVC+MESH |
20m3 biogas plant | 6X2.5X1.33m | 1.0-1.2mm | Red mud PVC+MESH |
50m3 biogas plant | 6X3.3X2.5m | 1.2mm | Red mud PVC+MESH |
100m3 biogas plant | Custom | 1.2mm | Red mud PVC+MESH |
Product Features
The characteristics of red mud biogas plant
(1)Lightning protective, anti-seismic, anti-aging, pressure and abrasion resistant, puncture resistant, corrosion resistant,
impermeable
(2)Convenient to carry and install, foldable and light
(3)Easy and quick to install
(4)Generate much marsh gas without stirring for excellent sealing performance
(5)Extensive sources of fermented raw material
(6)Safe to use
(7)Sanitary and environment-friendly
(8)Easy to operate and maintain
(9)Easy for industrial production and business operation
impermeable
(2)Convenient to carry and install, foldable and light
(3)Easy and quick to install
(4)Generate much marsh gas without stirring for excellent sealing performance
(5)Extensive sources of fermented raw material
(6)Safe to use
(7)Sanitary and environment-friendly
(8)Easy to operate and maintain
(9)Easy for industrial production and business operation
Product Details
Material for biogas production
1.Animal and people manure
2.Food waste
3.Straw powder
4.Palm oil / palm nut
2.Food waste
3.Straw powder
4.Palm oil / palm nut
Attention: Please do not put chemical material in the biogas digester.
Work Flow of the Biogas Plant
Family Biogas Plant
This is our family size, we suggested that for family size, we have offer 6m3, 8m3 , 10m3 , 20m3
6m3 can be used for 3-4 people in Family Daily using.
8m3 can be used for 5-8 people for cooking food and heating the water
10m3 can be used for 8-15people for cooking food heating the water
Instructions
Inlet and Outlet Install
Outlet install
Brick with consturction
Body Making
Filling the inlet pool
After waiting for 3days
Product Details Show
This is our pvc material. All home use biogas bag is made of 1.0mm or 1.2mm pvc. our material at high quality side. Meanwhile, the
material include Mesh cloth in it, it make the bag more durable.
This is our heating machine. This system is advanced technology.
You can see the joint is very good. At the lefe corner, you also can find the watermark.
This is on testing
Every biogas bag before send to clients, we will test it first.
About us
Certicates
Our Producing Machine
The Auto Producing Line
Our Materials Producing Line
Professional Worker
PVC Materials Stock Huge
Quality Control Carefully
Pallet with Film
Wooden Box
Express/Air Transport
1.How does the biogas production?
Organic matter (such as human, animal dung, crop residues, grass, leaves and plant organic waste, etc.) under anaerobic
conditions, a flammable gas through the interaction generated by a variety of microorganisms, we call this the flammable gas as
biogas.
Organic matter (such as human, animal dung, crop residues, grass, leaves and plant organic waste, etc.) under anaerobic
conditions, a flammable gas through the interaction generated by a variety of microorganisms, we call this the flammable gas as
biogas.
2.What the main components of biogas?
Biogas is mainly methane, a flammable gas mixed. General biogas containing 55-70% methane, 25-40% carbon dioxide, and small
amounts of hydrogen sulfide, nitrogen, hydrogen, carbon monoxide, oxygen.
3.What are the application of biogas?
The biogas can be used for cooking, lighting, power generation, Boiler, for the plastic greenhouses and barns warming and
insulation, provide fertilizer for the vegetable greenhouse gas carbon dioxide, it can also be used to fresh fruit.
4.Basic condition should be for biogas fermentation?
(1)Enough biogas raw materials;
(2)A certain amount of anaerobic activated sludge;
(3)Appropriate temperature;
(4)Suitable pH (pH value and alkalinity)
(5)Fermentation of raw materials is essential to have a microbial growth nutrients;
(6)Suitable stirring;
(7)Prevent toxic substance to inhibit biogas fermentation process.
5.Why the using biogas need to be desulfurizer and dewater and Biogas Pump?
The Biogas including 70% CH4, CO2 and also have H2S and H2O. When the H2S Mix with H20 Will become to Sulfurous acid. Acid Gas
will destroyed the Metal Kitchen Stove, and the same time, the formation of rust fouling will block the Hole, Making the kitchen
working.
Biogas Pump Transport the biogas through the pipe, can keep the continue in 2kpa for stove.
6. Why My Biogas Digester is different with 4 season?
Biogas Micro Organism is kind of hemophilic. The Faster the biogas producing will cost the organic matter. On the countryside the
weather temperature, high the biogas will more, the low temperature, the biogas is less. So In Summer Time the producing biogas is
different with winter season.
7. How to making the biogas producing quickly and more?
The first time feeding the digester should adding some sludge around 20%
The Day during the feeding digester, should choose a highest temperature. Like Afternoon
If you didn't have enough sludge, you can add some waste warm water.
If you have more questions please feel free to contact with me ,we can share more biogas technology with you .
Biogas is mainly methane, a flammable gas mixed. General biogas containing 55-70% methane, 25-40% carbon dioxide, and small
amounts of hydrogen sulfide, nitrogen, hydrogen, carbon monoxide, oxygen.
3.What are the application of biogas?
The biogas can be used for cooking, lighting, power generation, Boiler, for the plastic greenhouses and barns warming and
insulation, provide fertilizer for the vegetable greenhouse gas carbon dioxide, it can also be used to fresh fruit.
4.Basic condition should be for biogas fermentation?
(1)Enough biogas raw materials;
(2)A certain amount of anaerobic activated sludge;
(3)Appropriate temperature;
(4)Suitable pH (pH value and alkalinity)
(5)Fermentation of raw materials is essential to have a microbial growth nutrients;
(6)Suitable stirring;
(7)Prevent toxic substance to inhibit biogas fermentation process.
5.Why the using biogas need to be desulfurizer and dewater and Biogas Pump?
The Biogas including 70% CH4, CO2 and also have H2S and H2O. When the H2S Mix with H20 Will become to Sulfurous acid. Acid Gas
will destroyed the Metal Kitchen Stove, and the same time, the formation of rust fouling will block the Hole, Making the kitchen
working.
Biogas Pump Transport the biogas through the pipe, can keep the continue in 2kpa for stove.
6. Why My Biogas Digester is different with 4 season?
Biogas Micro Organism is kind of hemophilic. The Faster the biogas producing will cost the organic matter. On the countryside the
weather temperature, high the biogas will more, the low temperature, the biogas is less. So In Summer Time the producing biogas is
different with winter season.
7. How to making the biogas producing quickly and more?
The first time feeding the digester should adding some sludge around 20%
The Day during the feeding digester, should choose a highest temperature. Like Afternoon
If you didn't have enough sludge, you can add some waste warm water.
If you have more questions please feel free to contact with me ,we can share more biogas technology with you .
