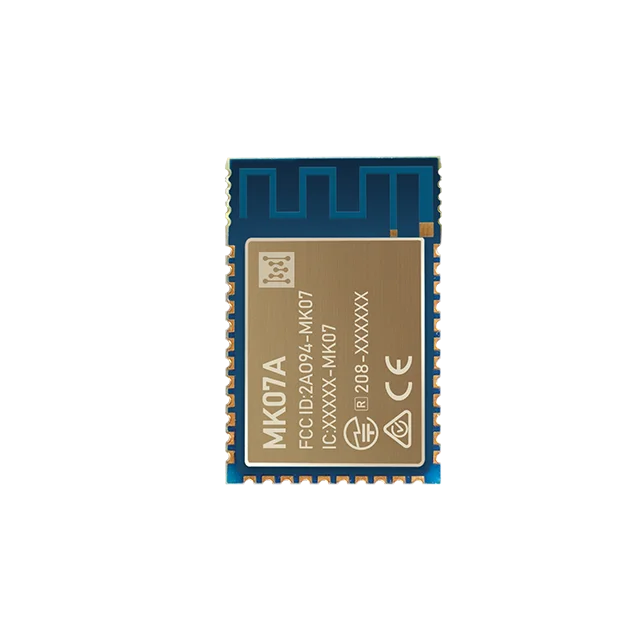

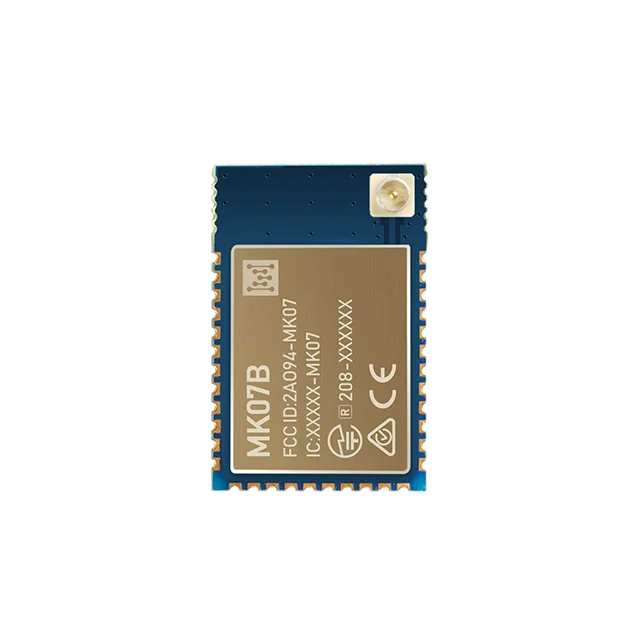

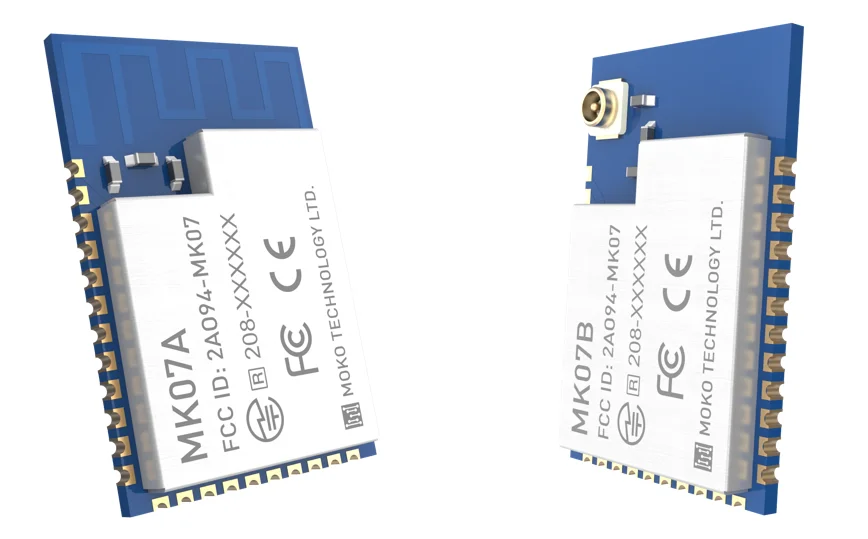

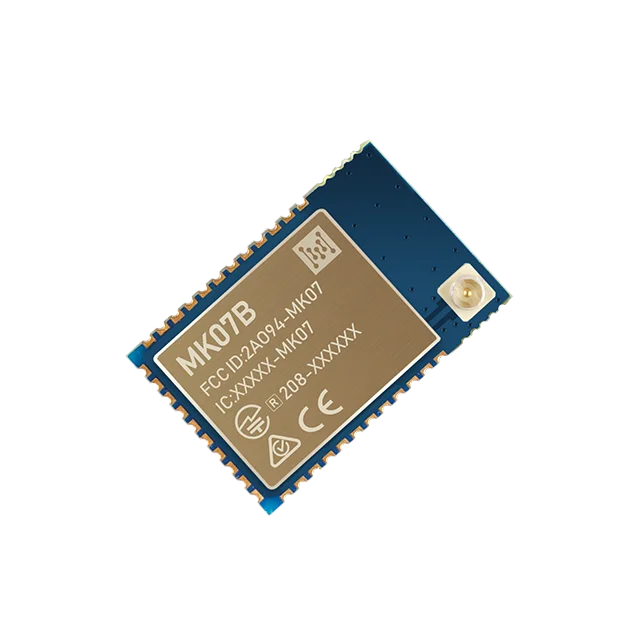

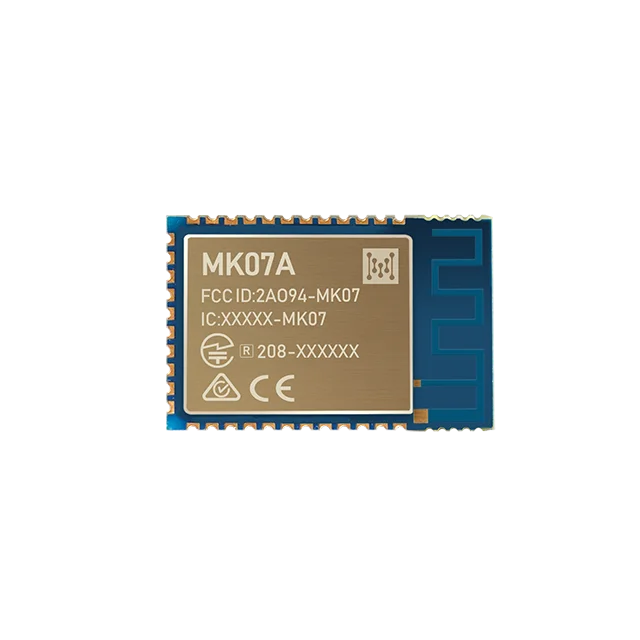

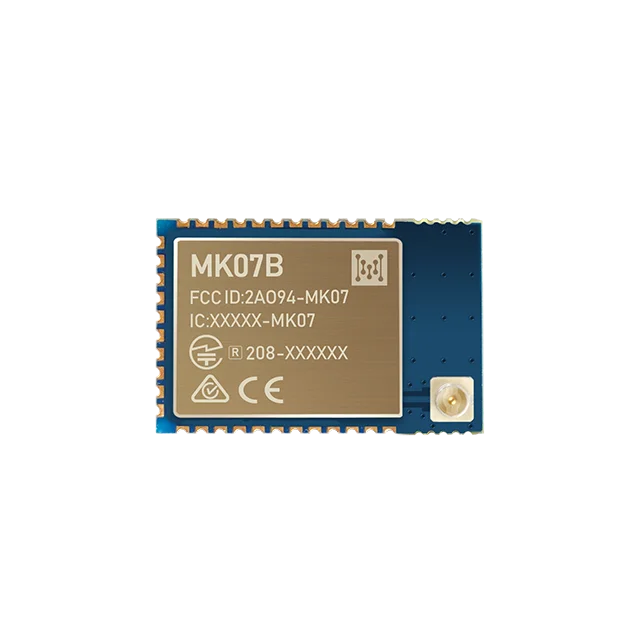

Bluetooth Module Nordic NRF52823 module MK07 ble bluetooth module for Multi-touch trackpad
MK07 series is a powerful, highly flexible, ultra low power Bluetooth 5.1 module based on world-leading Nordic RF52833 solution, which has a 32 bit Arm Cortex-M4 CPU with floating point unit running at 64 MHz. MK07 series is capable of the latest and greatest features of Bluetooth 5.1, the most prominent being Direction Finding1, taking Bluetooth positioning to new heights.


Product Description


MK07 series brings out all nRF52833 hardware features and capabilities including USB access, up to +8 dBm transmit power up to 5.5V supply considerations, and NFC tag (type 2 / 4) implementation. Complete regulatory certifications enable faster time to market and reduced development risk completes MOKO SMART’s simplification of your next Bluetooth design!
MK07 supports an extensive range of wireless protocols. It supports BLE (Bluetooth Low Energy) , and is capable of Bluetooth Direction Finding in addition Long Range and 2 Mbps. Bluetooth mesh, 802.15.4, Thread, Zigbee, proprietary 2.4 GHz protocols and NFC-A are also supported.




MK07 Series BLE module features
Dimension
21*13.8*2.3mm（with shield）
Flash/RAM
512KB/128KB
Interface
UART/SPI/HS-SPI/ TWI/ PDM/I2S/QDEC/PWM/ADC/NFC/USB
Power Supply
1.7-5.5 V
Operating temp
-40 to +85°C（-40 to +105°C can be customized）
BLE5.0/5.1 Specification
Direction Finding/2 Mbps/CSA #2/Advertising Extensions/Long Range
Cover
Metal shielding with marking
BLE Standard
BLE 5.1
46GPIOs
40
Antenna Type
PCB antenna/u.FL Connector
32.768K Crystal Oscillator
Built inside
Pad package
Land Grid Array (LGA) +Plated Half-hole
Other Feature
Bluetooth mesh, Thread, Zigbee, 2.4GHz


Module Size

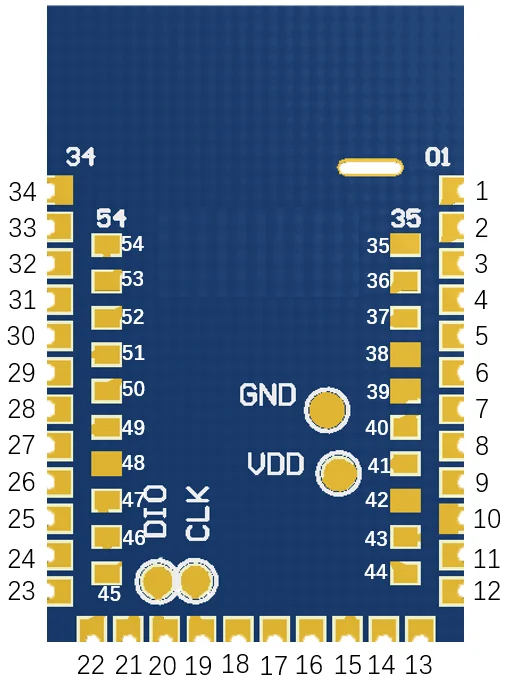

Pin Description




Pin No.
Name
Type
Description
1
P0.25
Digital I/O
General purpose I/O
AIN1
Analog input 1
SAADC/COMP/LPCOMP input
2
P0.23
Digital I/O
General purpose I/O
3
P0.03
Digital I/O
General purpose I/O
AIN1
Analog input 1
SAADC/COMP/LPCOMP input
4
P0.02
Digital I/O
General purpose I/O
AIN0
Analog input 0
SAADC/COMP/LPCOMP input
5
P0.28
Digital I/O
General purpose I/O
AIN4
Analog input 4
SAADC/COMP/LPCOMP input
6
P0.29
Digital I/O
General purpose I/O
AIN5
Analog input 5
SAADC/COMP/LPCOMP input
7
P0.30
Digital I/O
General purpose I/O
AIN6
Analog input 6
SAADC/COMP/LPCOMP input
8
P0.31
Digital I/O
General purpose I/O
AIN7
Analog input 7
SAADC/COMP/LPCOMP input
9
VDD
Power
Power Supply
10
GND
Power
Ground
11
P0.27
Digital I/O
General purpose I/O
12
P0.26
Digital I/O
General purpose I/O
13
P0.04
Digital I/O
General purpose I/O
AIN2
Analog input 2
SAADC/COMP/LPCOMP input
14
P0.06
Digital I/O
General purpose I/O
15
P0.05
Digital I/O
General purpose I/O
AIN3
Analog input 3
SAADC/COMP/LPCOMP input
16
P0.08
Digital I/O
General purpose I/O
17
P0.09
Digital I/O
General purpose I/O
NFC1
NFC input
NFC antenna connection
18
P0.10
Digital I/O
General purpose I/O
NFC2
NFC input
NFC antenna connection
19
SWDCLK
Debug
Serial wire debug clock input for debug and programming
20
SWDIO
Debug
Serial wire debug I/O for debug and programming
21
P0.07
Digital I/O
General purpose I/O
TRACECLK
Trace clock
Trace buffer clock
22
P0.11
Digital I/O
General purpose I/O
TRACEDATA[2]
Trace data
Trace buffer TRACEDATA
23
P0.12
Digital I/O
General purpose I/O
TRACEDATA[1]
Trace data
Trace buffer TRACEDATA
24
P0.13
Digital I/O
General purpose I/O
25
P0.14
Digital I/O
General purpose I/O
26
P0.15
Digital I/O
General purpose I/O
27
P0.16
Digital I/O
General purpose I/O
28
P0.17
Digital I/O
General purpose I/O
29
P0.18
Digital I/O
General purpose I/O
nRESET
Configurable as pin RESET
30
P0.20
Digital I/O
General purpose I/O
31
P0.21
Digital I/O
General purpose I/O
32
P0.22
Digital I/O
General purpose I/O
33
P0.24
Digital I/O
General purpose I/O
34,35
GND
Power
Ground
36
P1.05
Digital I/O
General purpose I/O
37
P1.03
Digital I/O
General purpose I/O
38
GND
Power
Ground
39
GND
Power
Ground
40
P0.19
Digital I/O
General purpose I/O
41
VDDH
Power
High voltage power supply
42
GND
Power
Ground
43
P1.08
Digital I/O
General purpose I/O
44
P1.09
Digital I/O
General purpose I/O
TRACEDATA[3]
Trace data
Trace buffer TRACEDATA
45
VBUS
Power
5 V input for USB 3.3 V regulator
46
D-
USB
USB D-
47
D+
USB
USB D+
48
GND
Power
Ground
49
P1.00
Digital I/O
General purpose I/O
TRACEDATA[0]/ SWO
Trace data
Trace buffer TRACEDATA/ Serial wire output
50
P1.01
Digital I/O
General purpose I/O
51
P1.02
Digital I/O
General purpose I/O
52
P1.04
Digital I/O
General purpose I/O
53
P1.06
Digital I/O
General purpose I/O
54
P1.07
Digital I/O
General purpose I/O

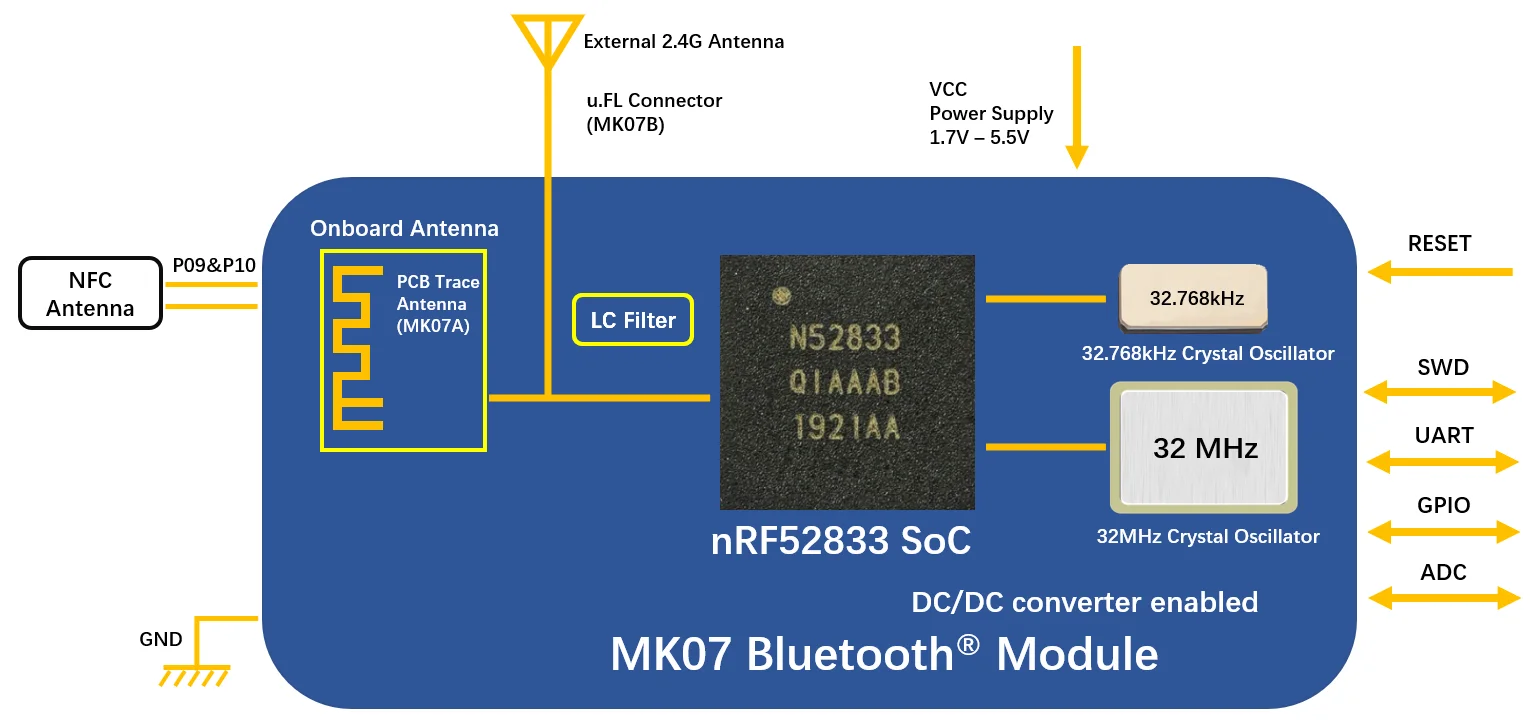

Block Diagram




Similar Products

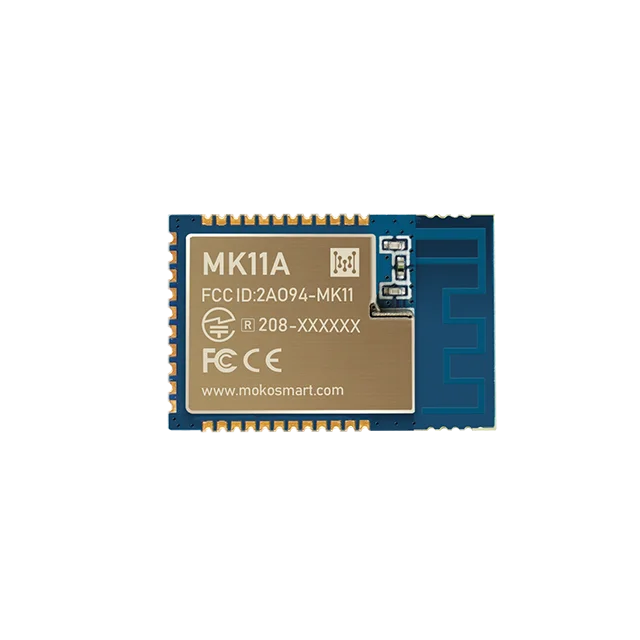

MK11A is a low-cost and low-power consumption Bluetooth® module based on Texas Instruments CC2642R SoC solution, which has a powerful 48-MHz Arm® Cortex™ M4F processor supporting Bluetooth® 5.1 Low Energy and Proprietary 2.4 GHz applications.
Bluetooth® 5.1 features of MK11A : LE Coded PHYs (Long Range), LE 2-M bit PHY (High Speed), Advertising Extensions, Multiple Advertisement Sets, CSA#2, as well as backwards compatibility and supports for key features from the Bluetooth® 4.2 and earlier Low Energy specifications.


Application and Solution




Packing & Delivery


Samples:
we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.

Orders:
bulk orders usually take about 2 to 3 weeks after payment received
