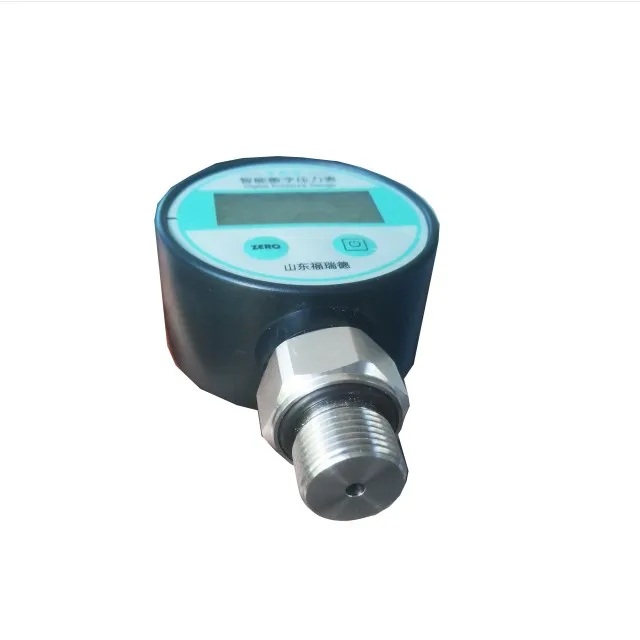

China Wireless bar mpa psi Digital Pressure Gauge 60Mpa Air Liquid Fuel Oil Water digital Pressure Manometer low pressure gauge
- Category: >>>
- Supplier: Shandong Friend Control System Co. Ltd.
Share on (1600522375651):
Product Overview
Description
Recommend Products
Products Description
Battery Powered Intelligent Digital Pressure Gauge
FD80K Digital pressure gauge has automatic turn-off function in 1~15min. The operation is very simple, and easy adjustment, safe and reliable. Digital pressure gauge is widely used in water and electricity, running water, petroleum, chemical, machinery for measurement and demonstration of fluid medium's pressure.
Feature:
* Large-screen LCD display, back light, high resolution, easy to read;
* Automatically record the maximum pressure values during the measurement;
* Pressure on the percentage of dynamic display, (the progress bar display);
* Five engineering units: psi, bar, kpa, Mpa, kg / cm2；
* 0 ~ 15min auto-off feature；
* Micro-power consumption, work over 2 years in power-saving mode, 2,000 hours continuous work；
* Parameter correction, correct zero and error in field application；
* Pressure range already set before use；
* Sampling rate: 4 times / second；
* Applicable to gases and liquids compatible with stainless steel.
* Automatically record the maximum pressure values during the measurement;
* Pressure on the percentage of dynamic display, (the progress bar display);
* Five engineering units: psi, bar, kpa, Mpa, kg / cm2；
* 0 ~ 15min auto-off feature；
* Micro-power consumption, work over 2 years in power-saving mode, 2,000 hours continuous work；
* Parameter correction, correct zero and error in field application；
* Pressure range already set before use；
* Sampling rate: 4 times / second；
* Applicable to gases and liquids compatible with stainless steel.

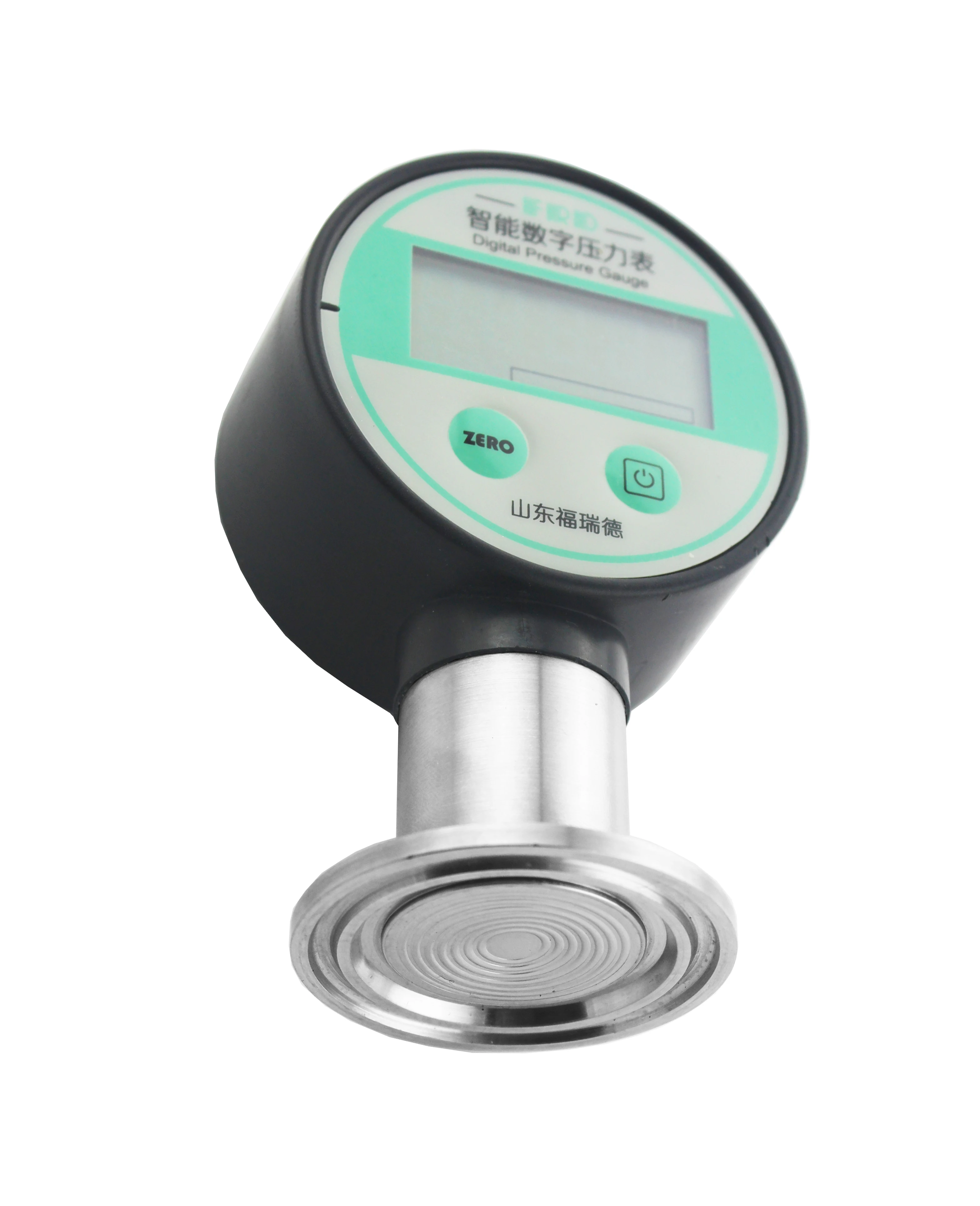

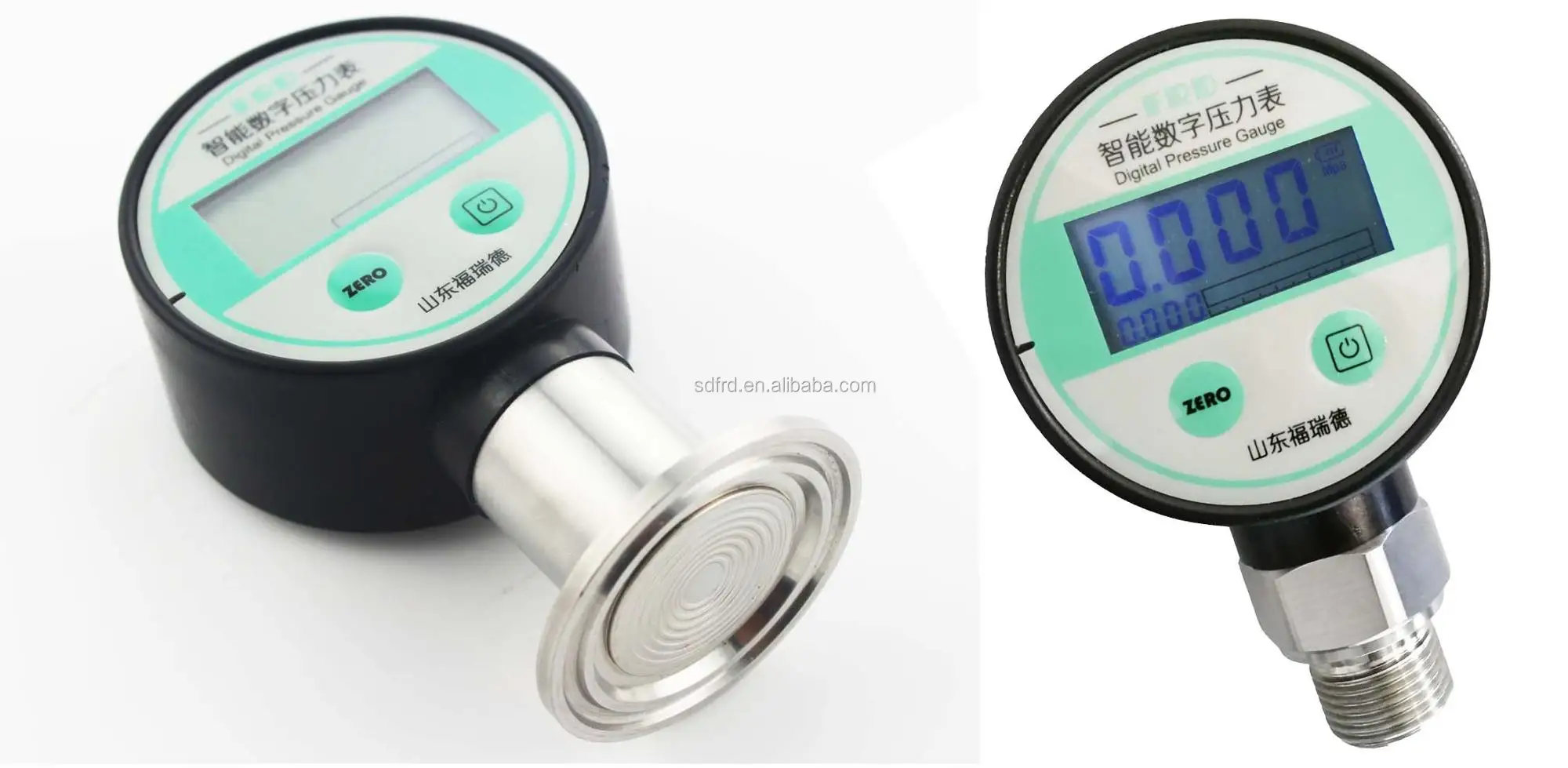

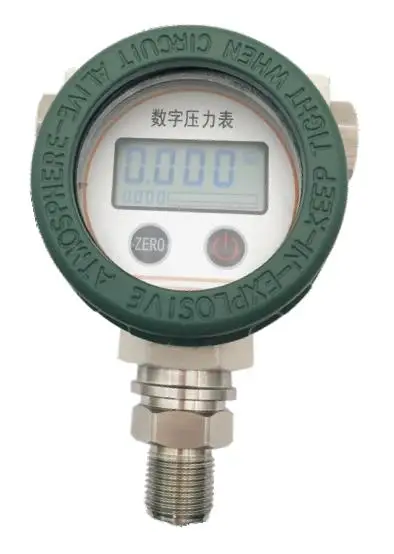

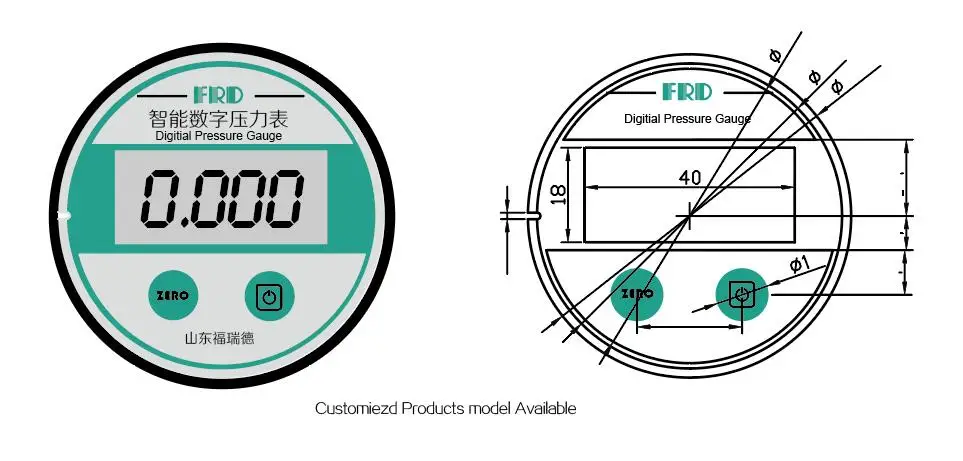

Details Images
Product Paramenters
Model | FD80K |
Accuracy | 0.5% |
Pressure Type | Gauge, Absolute |
Battery Voltage | 9VDC |
Overload capacity | Stainless steel SUS304 |
Display | LCD |
Display range | -1999~9999 |
Application Temperature | -20℃~70℃ |
Relative Humidity | ≤80% |
Mounting Thread | G1/4 ,M20*1.5 or Customized |
Interface Material | Stainless Steel |
Auto-shut off time | 1-15 minutes |
Back light time | 1-5 minutes |
Stability | ≤0.1% /year |

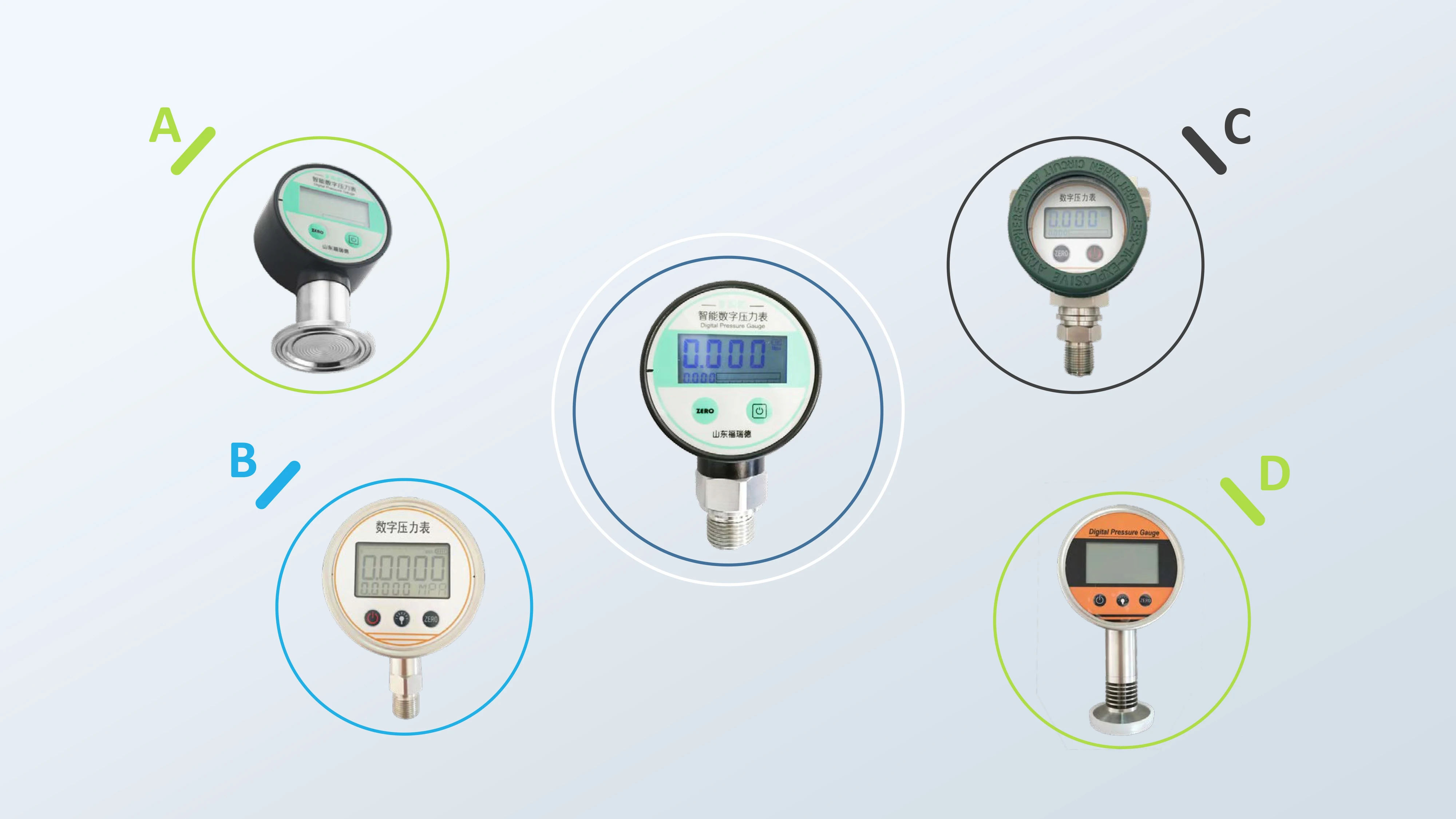

Our Advantages
Application

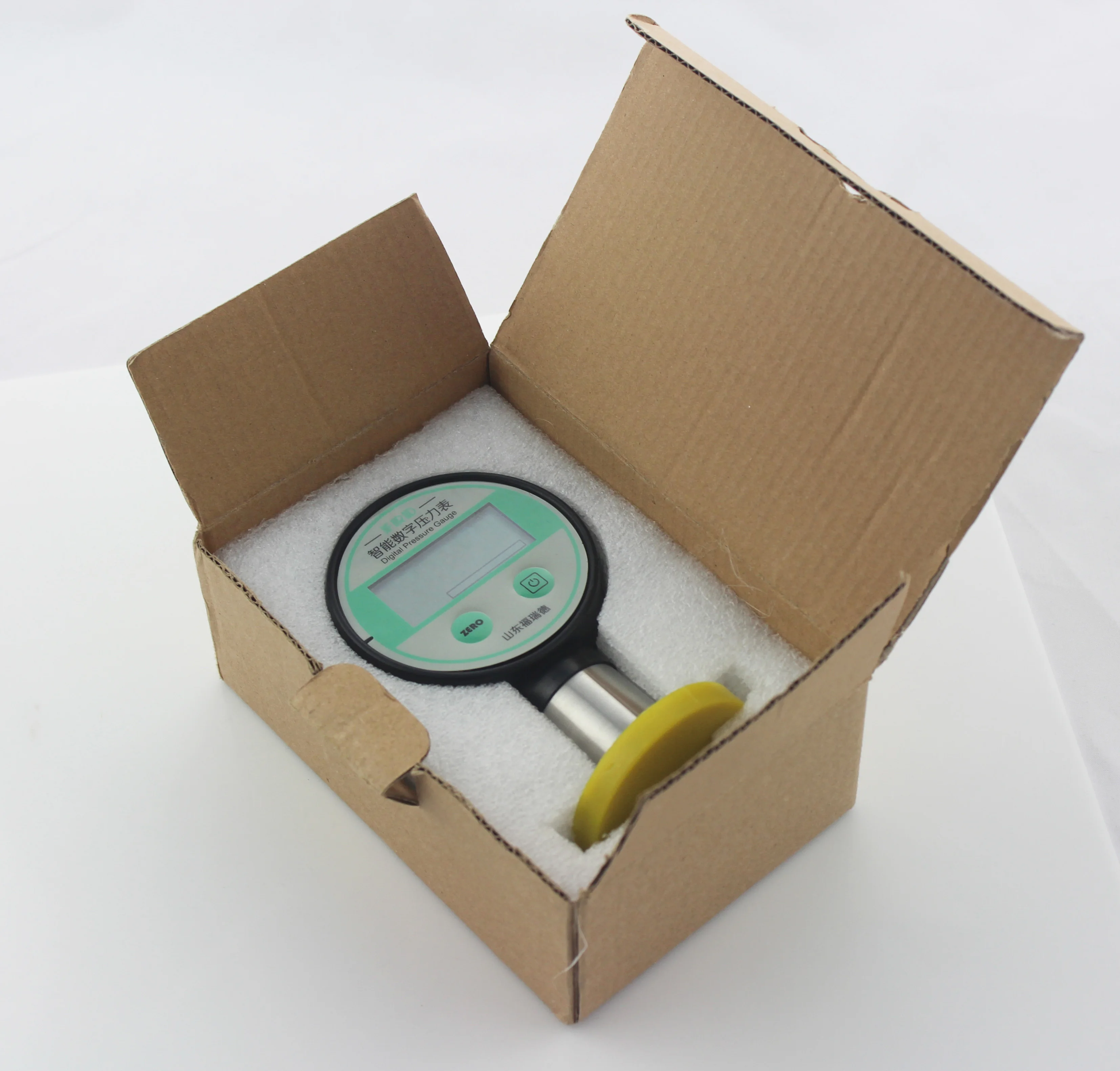

Product packaging

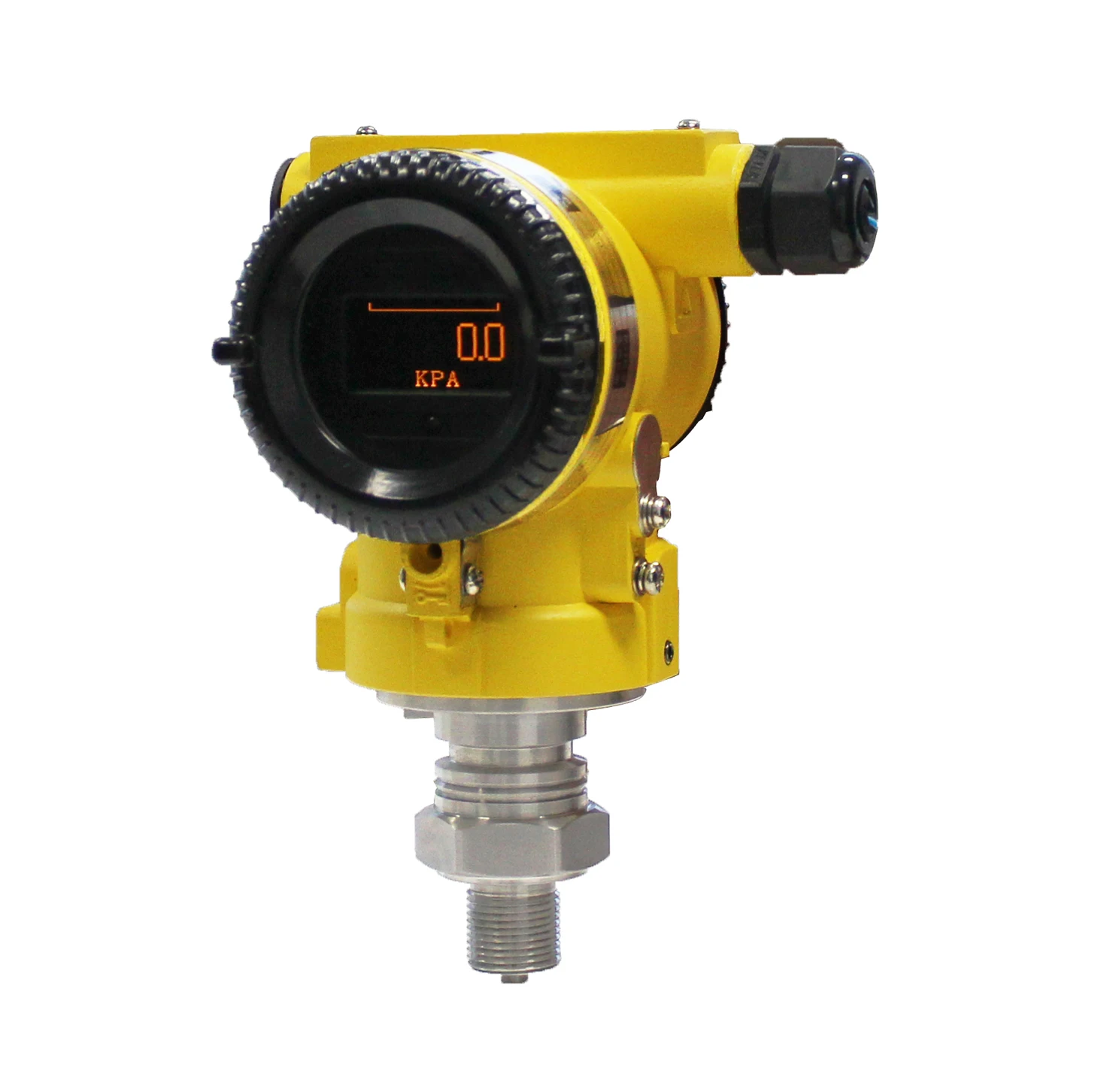

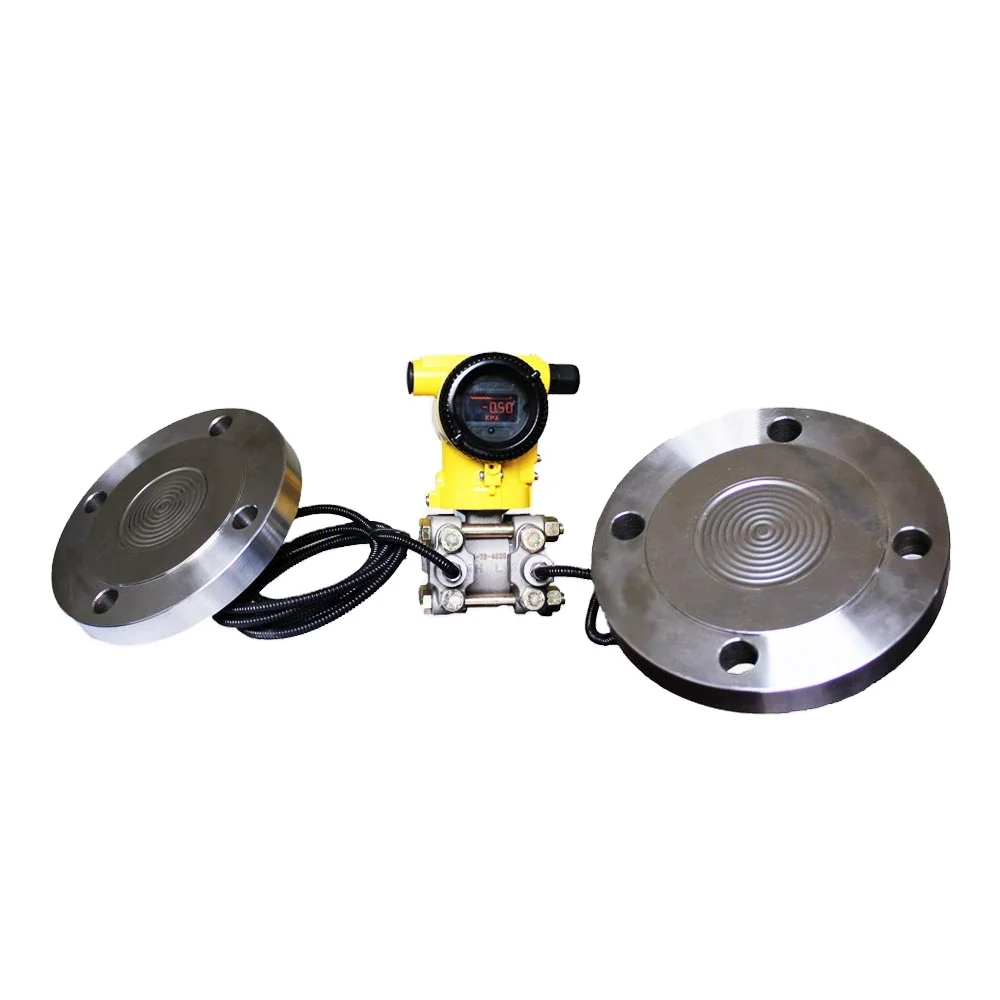

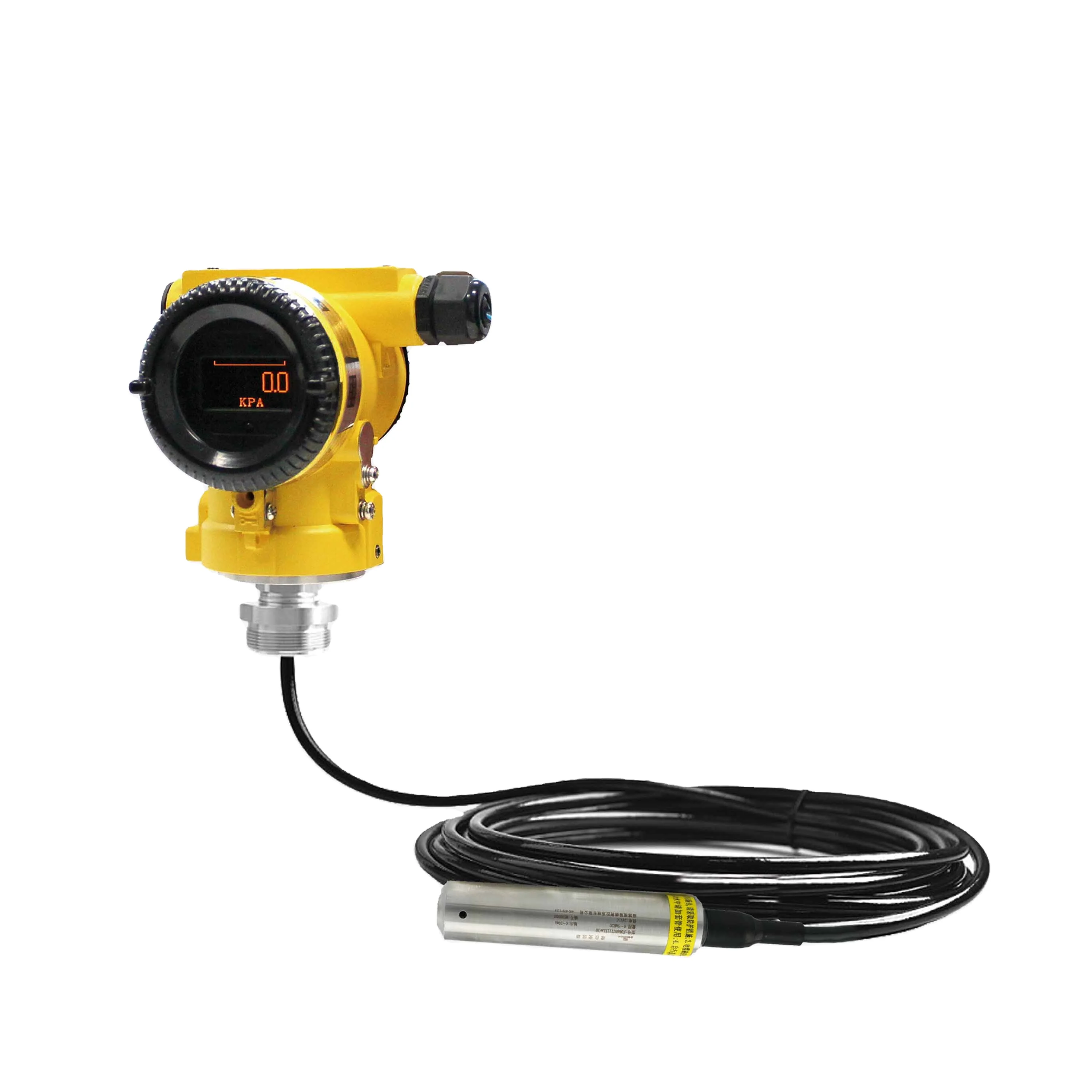

We Recommend
