2023 Hot Sale High pressure Reduce Labor And Improve Efficiency Forging Descaling Machine
- Category: >>>
- Supplier: Sunrise Mechatronic Technology Co. Ltd.
Share on (1600522391159):
Product Overview
Description
Product Description
2023 Hot Sale High-pressure Reduce Labor And Improve Efficiency Forging Descaling Machine
Why to remove scale?
In the forging production process, the metal blank need to be heated to high temperature, steel react with oxygen on the billet surface, which will generate a layer of scale.If it can’t be removed before forging production, some pits may occur on the surface, which not only affect the appearance quality, but also reduce local strength, if these pits appearing on machined parts of forging, will also reduce machining allowances, and have the risk of processing scrap.
In the forging production process, the metal blank need to be heated to high temperature, steel react with oxygen on the billet surface, which will generate a layer of scale.If it can’t be removed before forging production, some pits may occur on the surface, which not only affect the appearance quality, but also reduce local strength, if these pits appearing on machined parts of forging, will also reduce machining allowances, and have the risk of processing scrap.
Means of removing the scale
(1) Tapping on the forging equipment and using metal deformation to remove the scale can help reduce the production pace;
(2) Scale removal device. The scale generated on billet surface during heating process is removed before forging production.The use of position adjustment bolts and scraper replacement can be widely adapted to various shapes and sizes of blank.In addition, the blank of different materials can be removed by replacing the preset torsion spring.
(1) Tapping on the forging equipment and using metal deformation to remove the scale can help reduce the production pace;
(2) Scale removal device. The scale generated on billet surface during heating process is removed before forging production.The use of position adjustment bolts and scraper replacement can be widely adapted to various shapes and sizes of blank.In addition, the blank of different materials can be removed by replacing the preset torsion spring.
Advantages Of Scale Removal Device
(1) Stable equipment performance
(2) Long service life
(3) Reduce the labor intensity of operator
(4) Good effect of removing scale and fast speed
(5) Automation working, and connecting with forging production line is easy
(2) Long service life
(3) Reduce the labor intensity of operator
(4) Good effect of removing scale and fast speed
(5) Automation working, and connecting with forging production line is easy

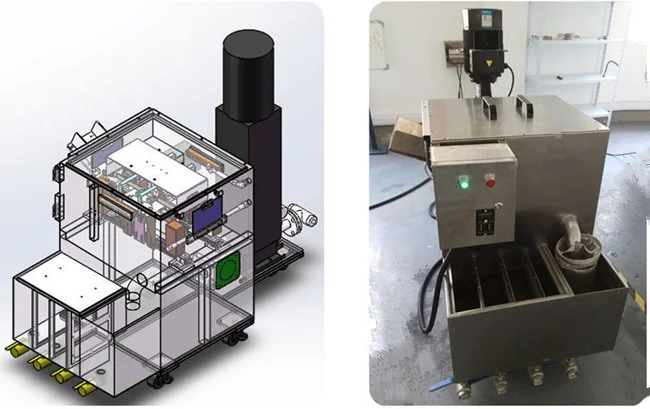

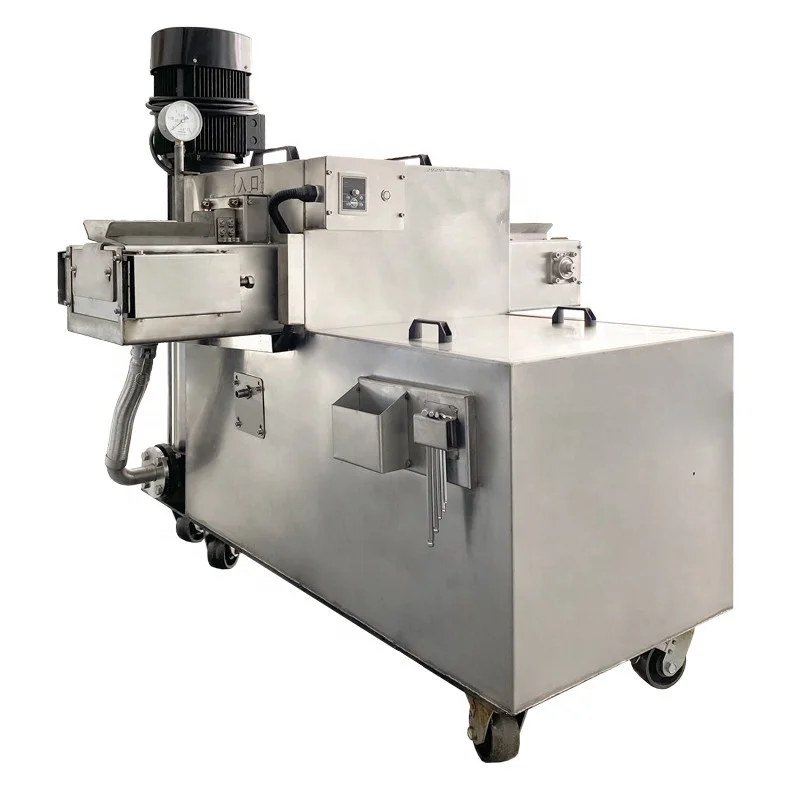

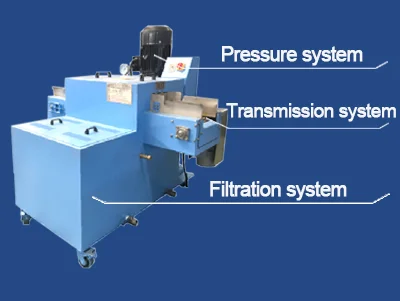

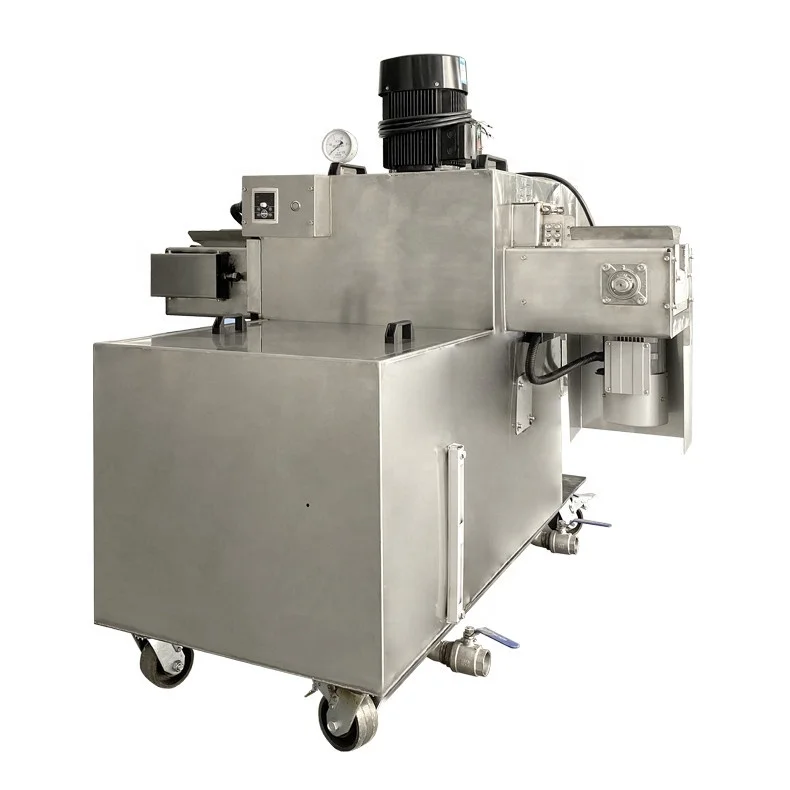

The descaling machine from Descaling technology, the main body of the equipment is composed of a pressure system, a transmission system and a filtration system. The three systems jointly use the principle of high-pressure water descaling to complete the cleaning process of the forging scale.

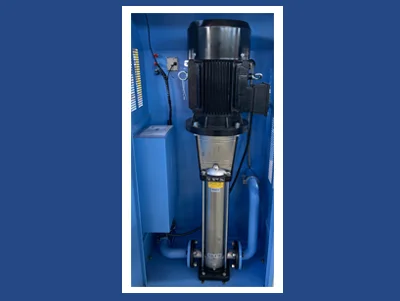

The high-pressure water descaling system is adopted, and the high-pressure water generated by the high-pressure water pump enters the descaling nozzle and is sprayed on the surface of the forging (or intermediate billet). The oxide scale has undergone the process of being cut, rapidly cooled and contracted, peeled from the base material, and washed away from the surface of the forging, thereby removing the oxide scale.

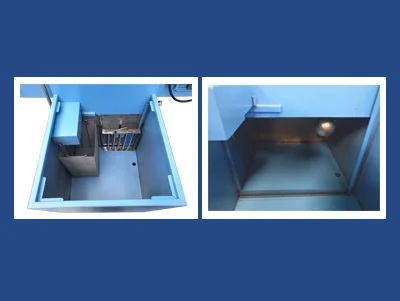

The descaling machine is equipped with two water tanks. The water tank has a built-in filter screen and a net basket to form the filter system of the equipment to prevent oxide scale from entering the water pump and affect the service life of the equipment. At the same time, it is equipped with a magnetic shovel to clean the oxide scale in the water tank.

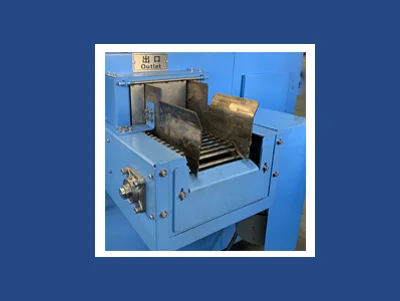

The frequency conversion motor and the chain constitute the transmission system, which is responsible for transporting the forgings for the cleaning process. The transmission speed of the chain can be adjusted to ensure that the temperature of the forgings after cleaning is small, which is conducive to subsequent forging.

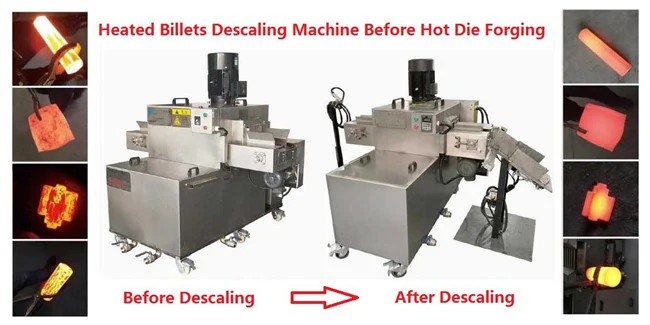

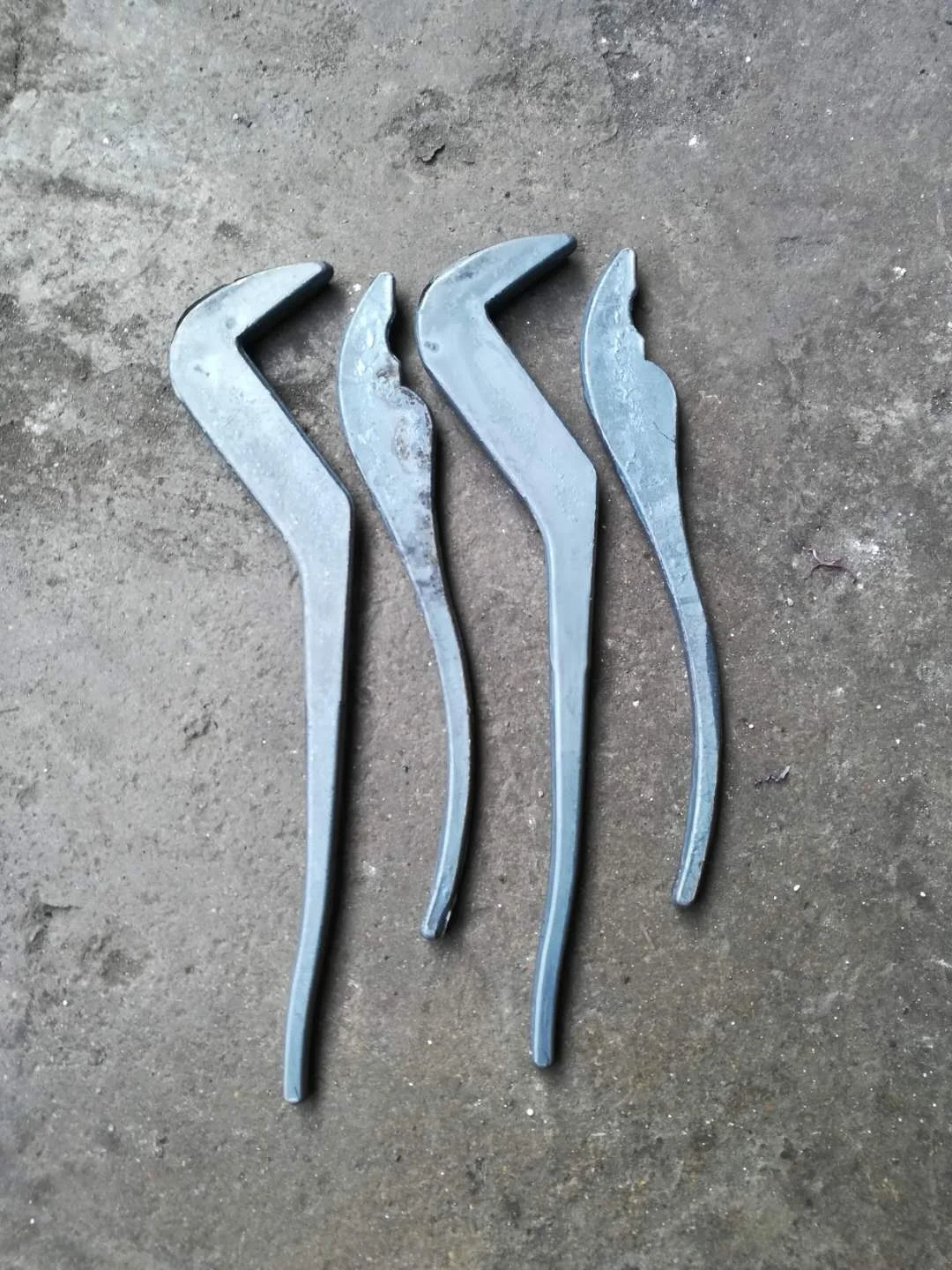

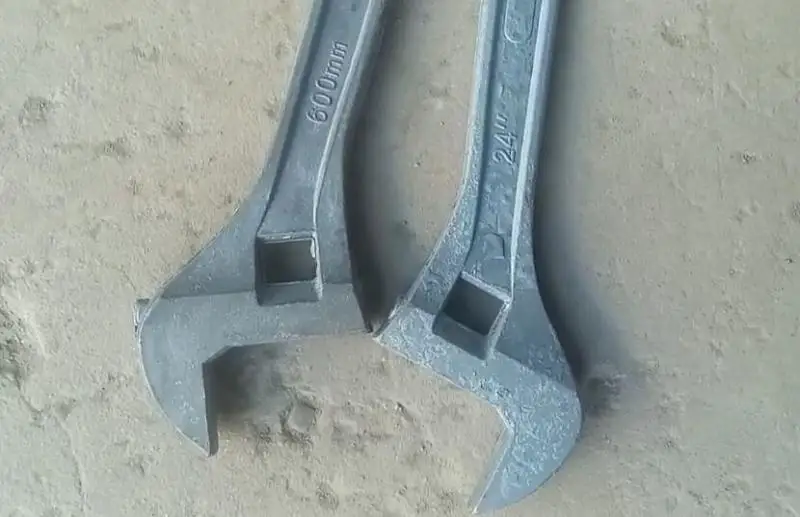

This machine can be used for the descaling the oxide skin, so that it can improve the forging quality much during the forging processing.
In the oxide skin descaling system, the high-pressure pump can generate the high-pressure water to the spray nozzle. Due to the high impact of the water curtain on the workpiece surface, the oxide skin is treated by cutting and rapid cooling shrinking, so that it will be descaling from the base.When the workpiece surface is hit by high pressure water spray, there are something happening:
1.The powerful spray will be formed to an arc shape by nozzle which is just like the cutter. It can cut the solid compact oxide skin.
2.The high-pressure water can go into the workpiece base through cracks. When the workpiece base touches the water, there is the rapid gasification of evaporation happening which can create the little explosive effects on the workpiece. In this case, the oxide skin can be removed from workpiece base.
3.When the water touches the oxide skin, there will be the rapid shrinking by cool water, so there will be transverse shear force, so the oxide skin can be also removed.
4.Due the sloping spray, the oxide skin can be removed by water force.
Parameter Specification
Rod dia | ∮20～∮60（mm） |
Length≤400（mm） | |
After forging forming | Width≤60（mm） |
Height≤50（mm） | |
Length≤400（mm） |
