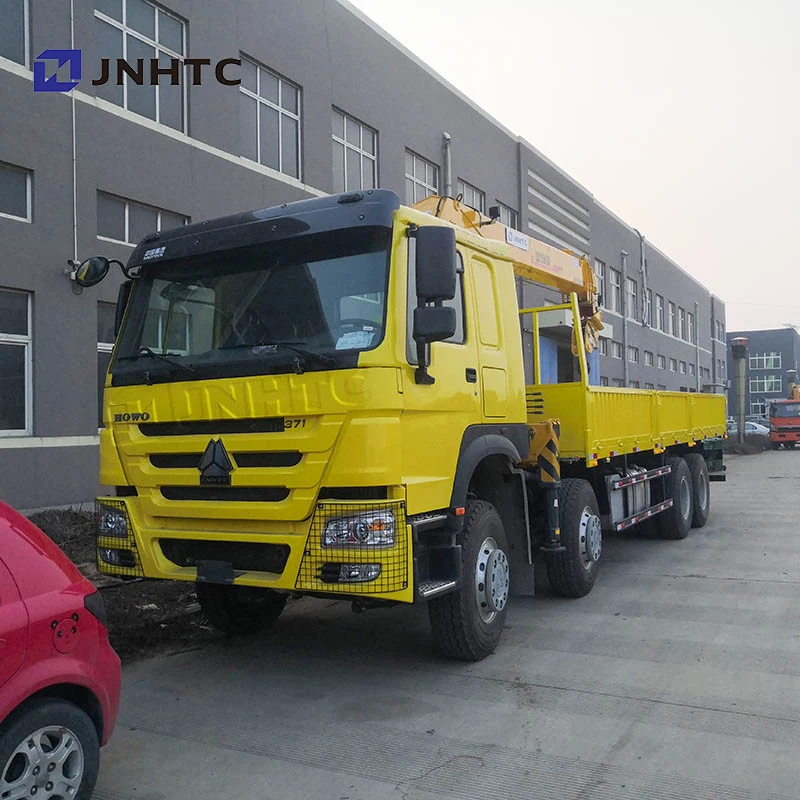

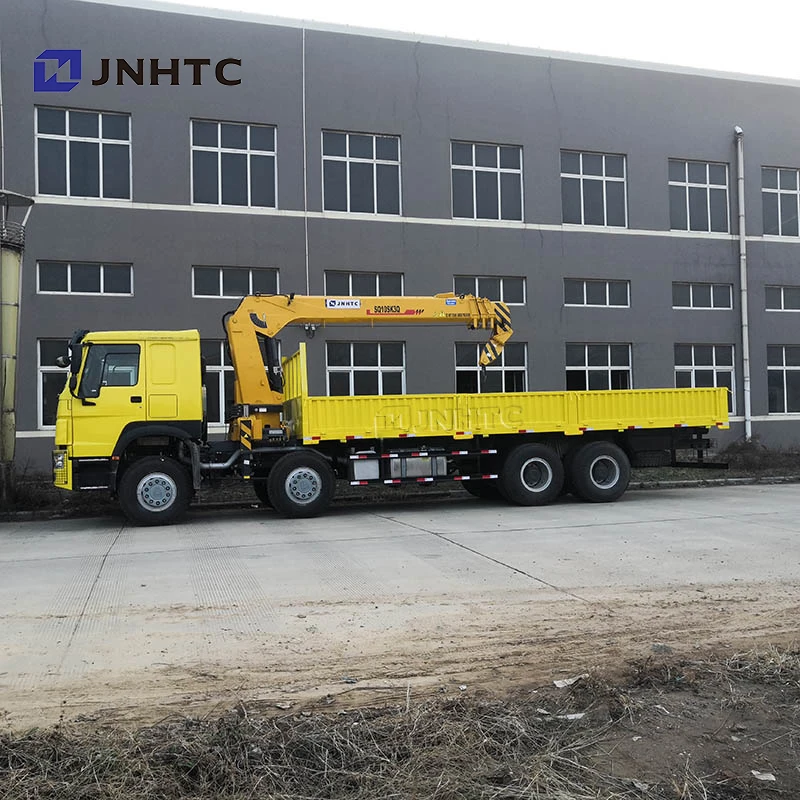

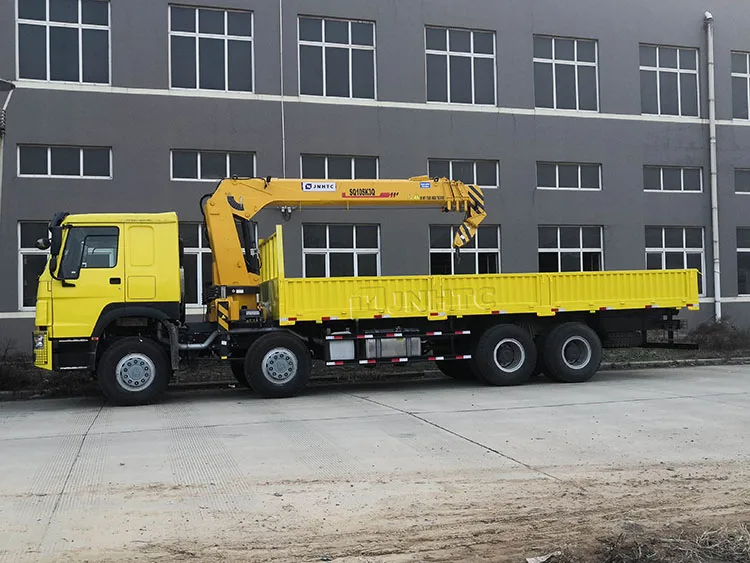

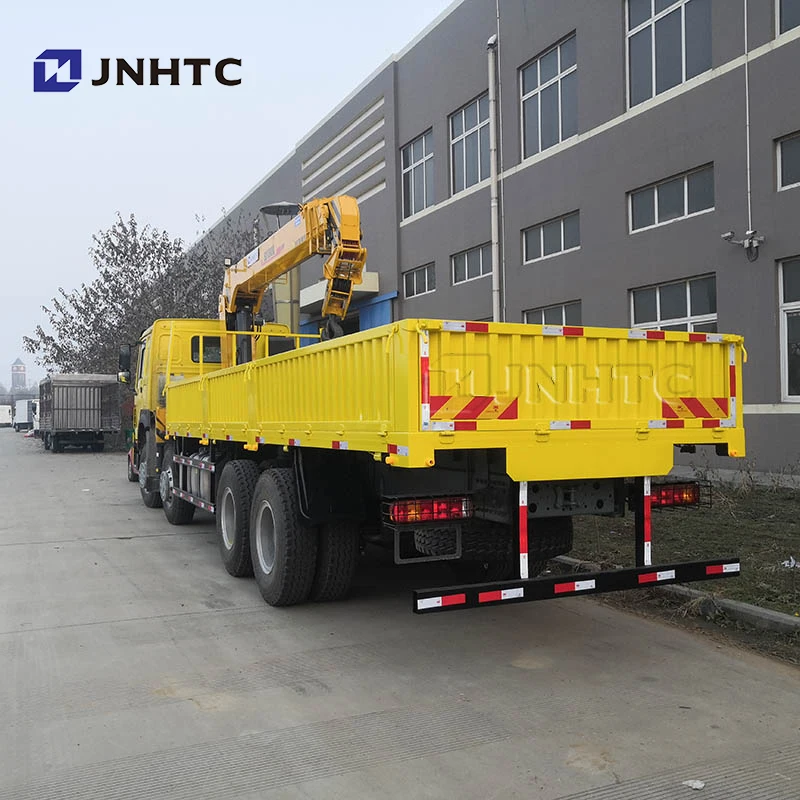

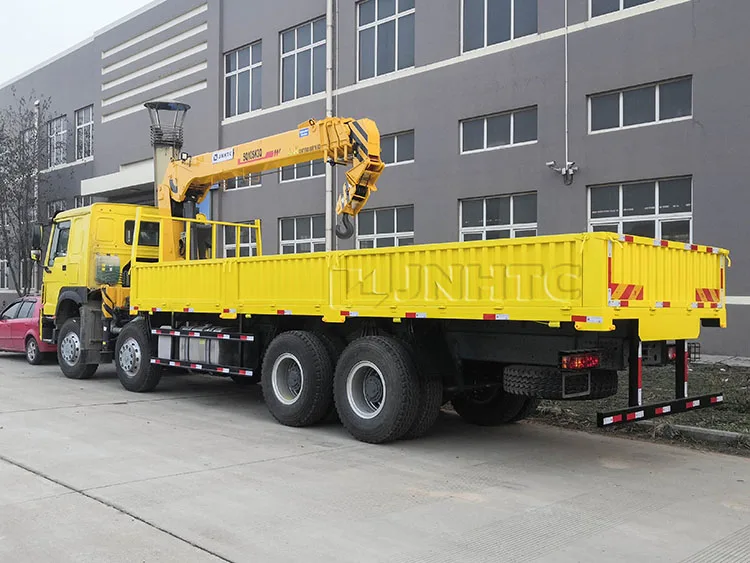

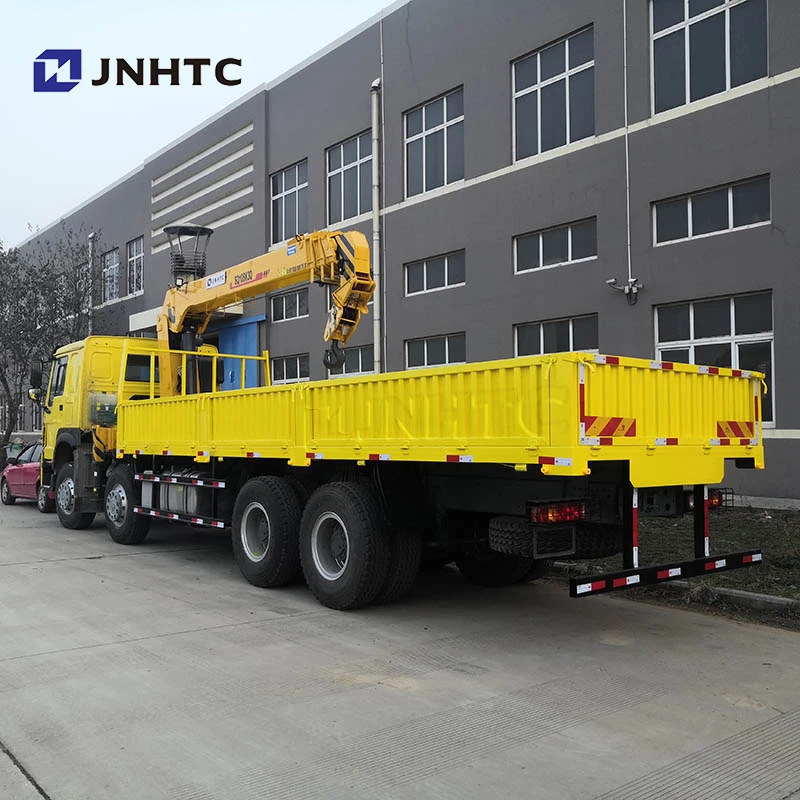

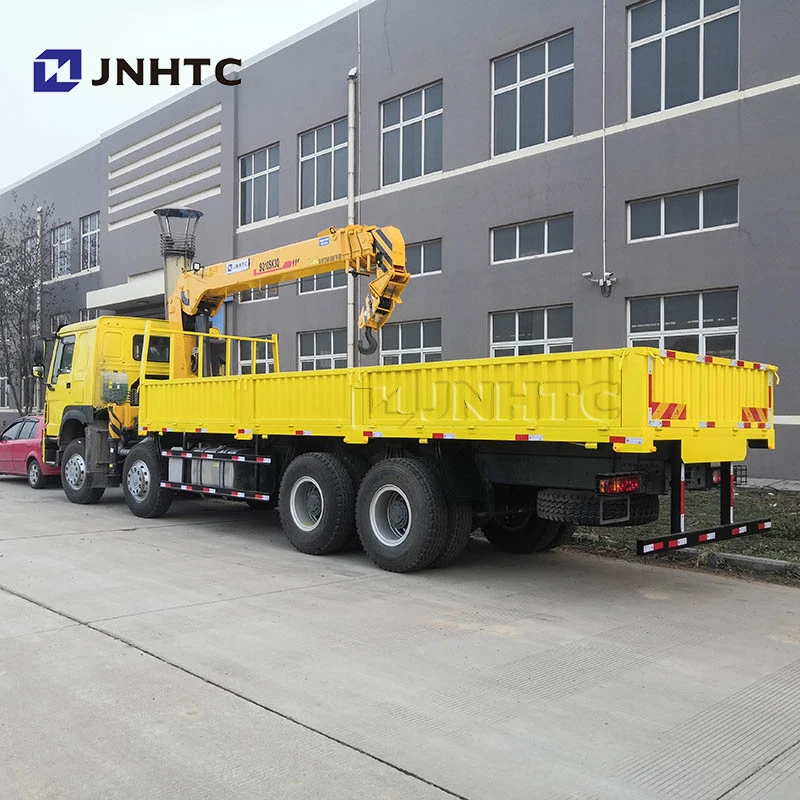

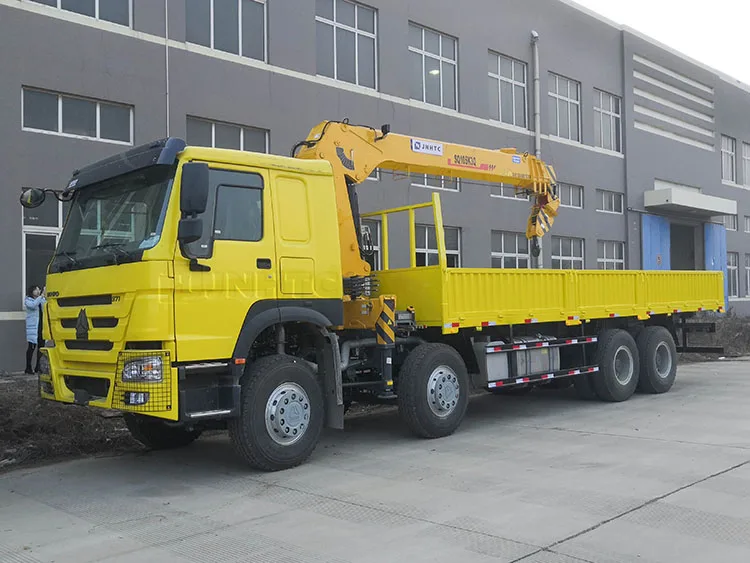

2023 Factory On Sale Sinotruk Howo 8x4 371hp Cargo Mounted With Hydraulic Straight Boom Crane Truck
- Category: >>>
- Supplier: Jinan Heavy Truck Import & Export Co. Ltd.Jinan Ltd.
Share on (1600522425836):
Product Overview
Description
Truck model | ZZ1317M4641W | |
aximum output | 371hp | |
Engine model | WD615.50, Euro II emission standard | |
Clutch | Single-plate dry coil-spring clutch, diameter 420 mm,hydraulically operating with air assistance | |
Front Axles | HF9, 9000kg | |
Rear Axles | HC16;16000kg | |
Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance Ratio: 26.2 | |
Tires | 12.00R20 others are optional | |
Air conditioner | With safety belts for driver and co-driver;With air conditioner | |
Transmission | HW19710, 10 forward&2reverse | |
Export Markets | South America, Southeast Asia, Africa, Mid East, Eastern Asia | |
Loading Capacity | 20-40 ton | |
Driver's Cab | HW76 cab，one bunk,air suspension seat is optional | |
Frame | High-strength U-profile frame, all cold riveted cross members and reinforced subframe | |
Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer | |
Rear suspension | semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer | |
Spare wheel carrier | with one spare wheel | |
Crane | ||
type | straight arm 3 section SQ10SK3Q | |
Operating weight | 10ton, others are optional | |
Maximum lifting moment (KN.m) | 25 | |
