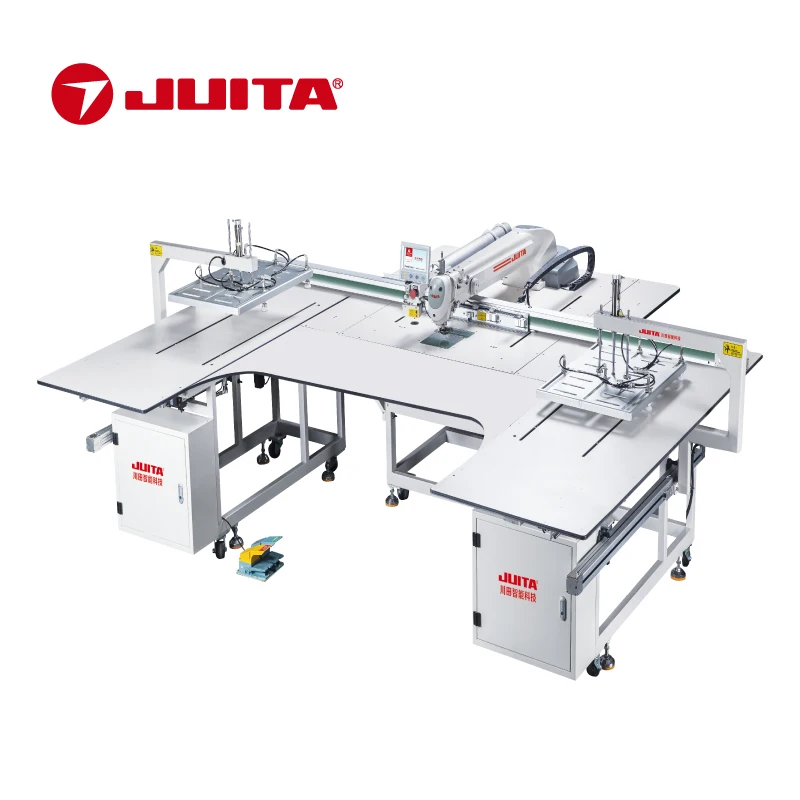

JUITA K9F 90AJWW CNC Industrial Pattern Sewing Machine Template Automatic Sewing Machine Double Screw Laser Automatic transfer
- Category: >>>
- Supplier: ZHEJIANG JUITA INTELLIGENT TECHNOLOGY CO. LTD
Share on (1600522596551):
Product Overview
Description
Specification
JTK9F-90AJWW JUITA Brand Multifunctional Automatic Cloth template Sewing Machine With Laser Two Sides Autmatic Template Transfer (Double Screw Transmission)
1) Powerful CNC system
2) The base developed by the independent patent Machine more scientific, practical and stable.
3)Screw feeding, precise and stable
4)Automatically recognize various CAD file formats of garment factories

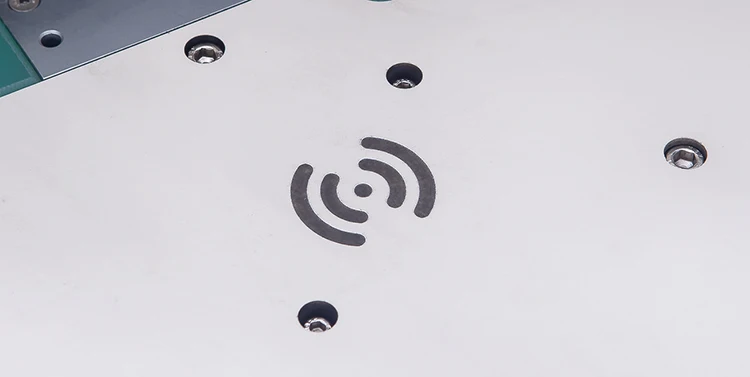

5) Template automatic identification system(RFID function)
6) Effective sewing range: X-axis 130cm, Y-axis 85cm
6) Effective sewing range: X-axis 130cm, Y-axis 85cm
7) Equipped with eight languages
8) Smart touch operation panel
9) loT capabilities required for smart factory(WIFI)
10) Laser cutting device (Faster cutting of fabrics, less loss, no burrs, improved product quality)

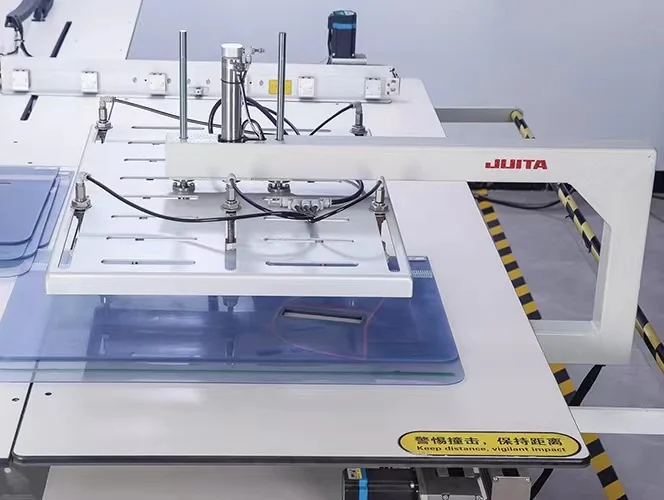

11) Two sides automatic template transfer (two workers can arrange material at same time, widely use in short sewing time but long time material arrange process, which can big improve the produce efficiency)
11) Two sides automatic template transfer (two workers can arrange material at same time, widely use in short sewing time but long time material arrange process, which can big improve the produce efficiency)
12) Imported twice as large hook, reducing the frequency of bottom thread replacement.
13) Circular knife thread trimming device
14) Bottom line detection, saving line and cloth.
15)With intelligent point and line drawing function
Products Model No: | JTK9F-90AJWW |
Product name | JUITA Brand Large Area Fully Automatic Pattern Template Sewing Machine With Laser and Double Automatic Template Feeding |
Sewing range | X: 130cm Y: 85cm |
Transmission | Double Screw |
Attachment device 1 | Laser cutting function |
Attachment device 2 | Two sides automatic template transfer |
Stitch type | Lockstitch form |
Speed | 200-2800rpm (depend on the model, gauge, material,suture situation) |
Stitch length | 0.5mm - 12.7mm |
Needle type | DPx5 (#7-#24); DPx17(#11-#24) |
Hook | Imported twice large hook |
Storage of templates/pattern | From the original 999 upgrade to unlimited |
Program input device | PC USB data cable or U disk |
Program memory carrier | EPROM memory |
File format | DXF, PLT, AI, etc. |
Power supply | 220V |
System brand | M |
Gross weight | 1350 KG |
Volume | 220*132*138cm, 215*110*157cm*2 (LxWxH)- 11.426 CBM (Total 3 Wooden Cases) |
