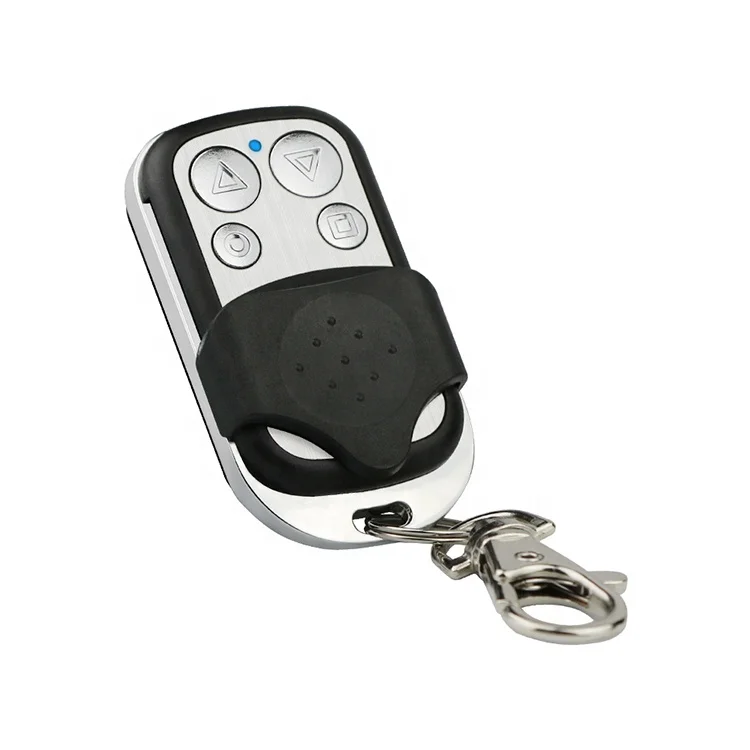

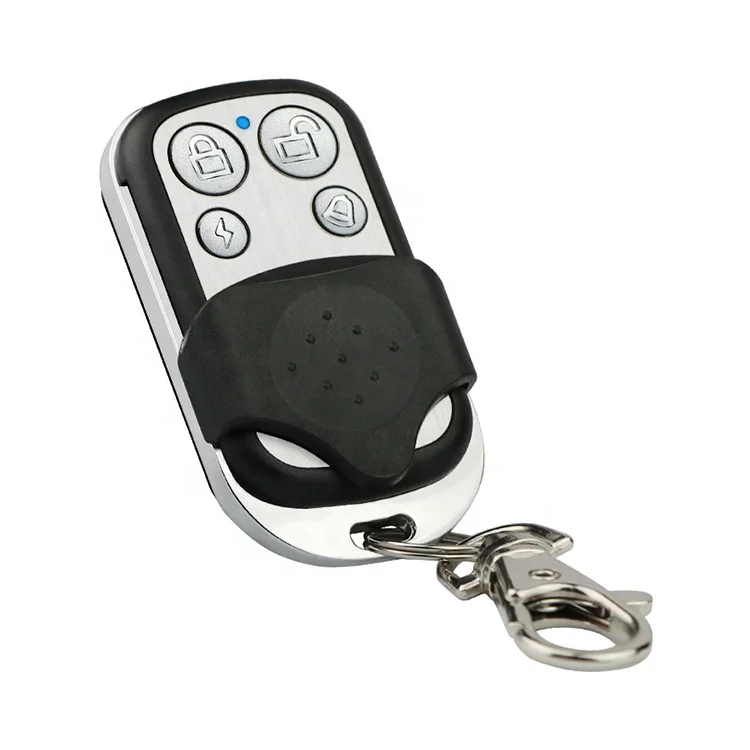

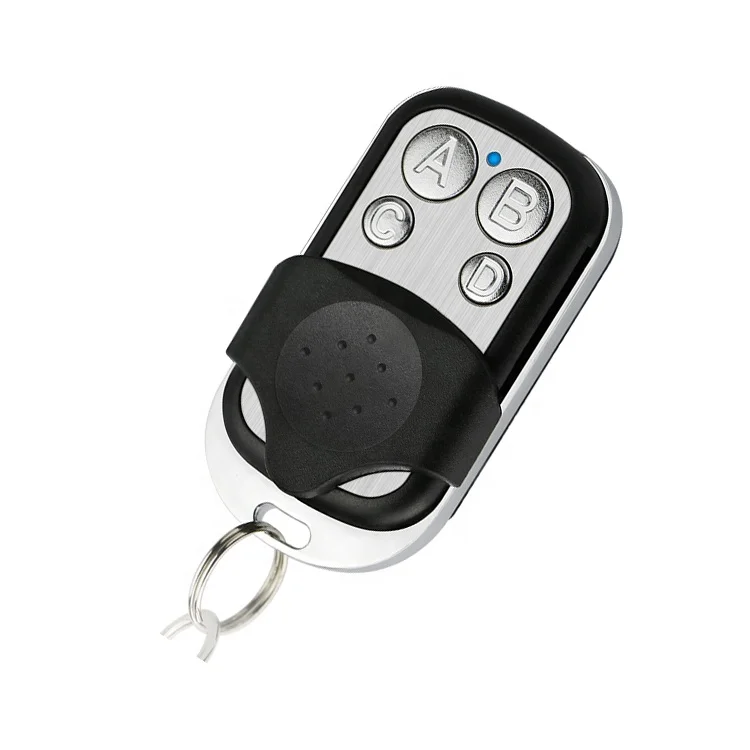

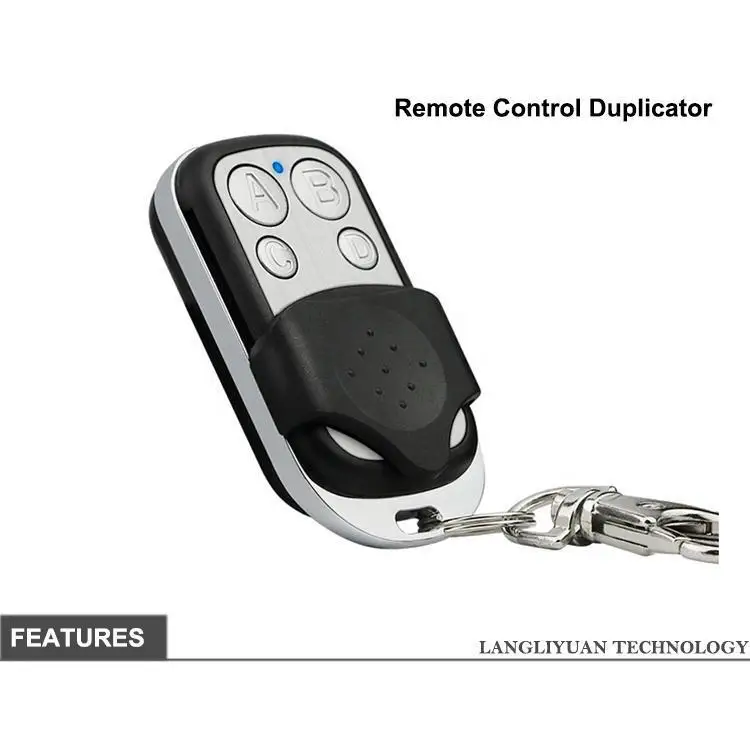

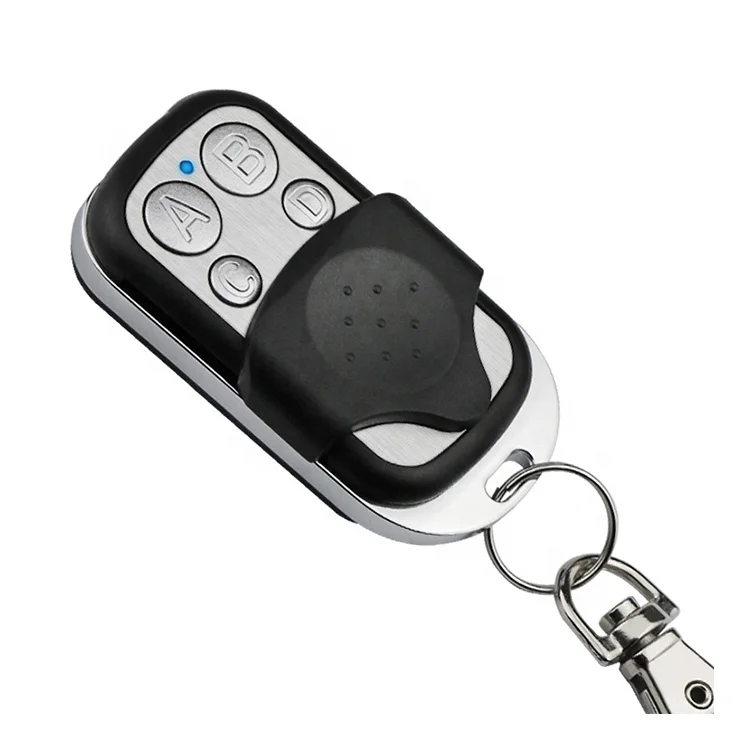

Wireless rf remote duplicator gate universal clone 433 mhz garage door remote control

Product Overview

Description







1. All of our items are brand new
2. One to one key copy
3. Each key password alone save
4. Can continuous repetitive copy use one million times
5. Privacy is strong
6. A replacement for fixed and rolling code remotes.
7. One remote control can control up to 4 different brands of remote controls.
8. Multi-functional and multi-variable, personalized and user-friendly simple design and fast to use.
9. Up to four remotes can be cloned at the same time
10. Clone most of the rolling code remotes. Clone 99% fixed code remote control

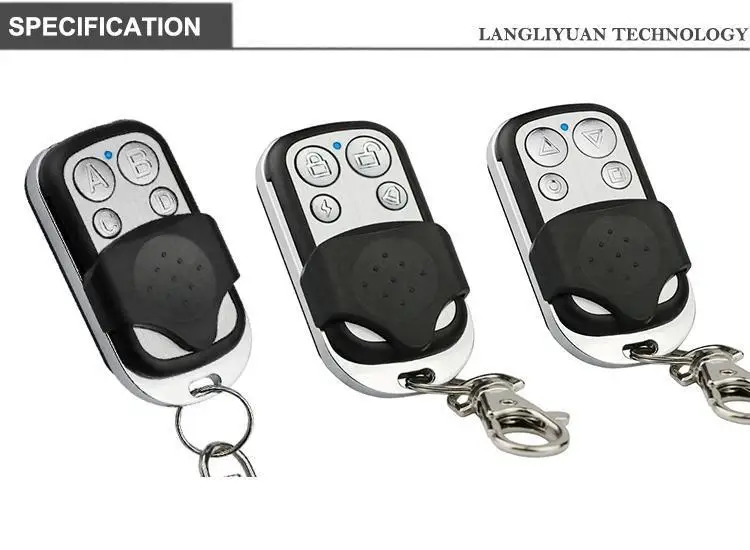

Product name	Remote control duplicator
Button	2/4 buttons
Frequency	433.92mhz, 315mhz etc. other can be customized
Frequency deviation	±75K

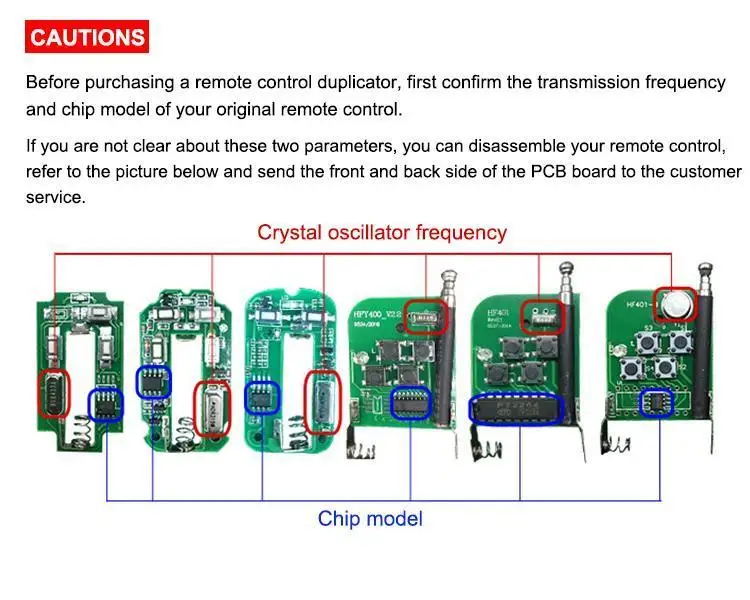

Chip	Common code: Learning code (1527, 2240, HT6P20B, HT6P20D etc.)                          Fixed code (2260, 2262, 2264, 2272 etc.)                          Rolling code (HCS301, HCS300, HCS200 etc.) Copy code: Use PIC singlechip, can copy 99% fixed code remote control and some                           rolling code remote control. Copy original remote by face to face
Battery	CR2032
Working distance	50-100 meters(open space)
Frequency Modulation	ASK / FSK
Working Temperature	-10°C~+70°C
Package	Each one in a Plastic bag or White box (according to your requirement)

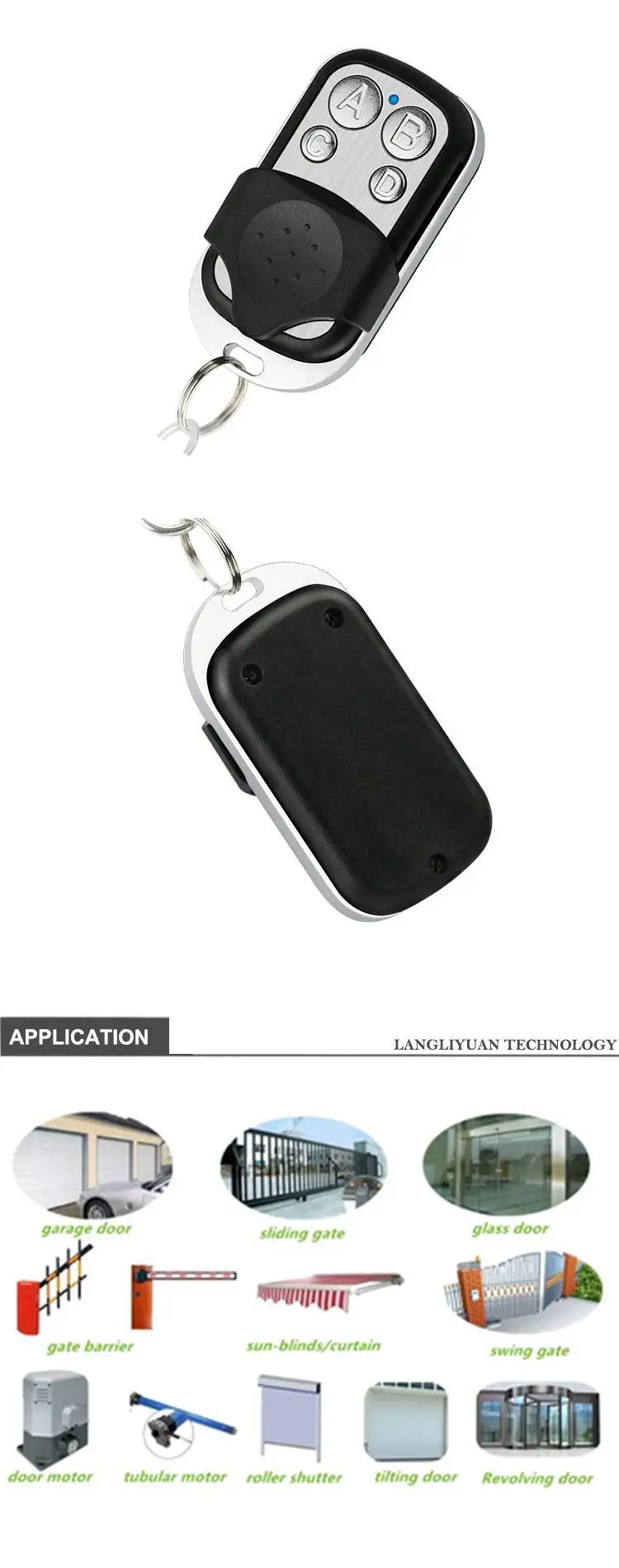

Use range	Home alarm, industrial control, motorcycle alarm system, car alarm system,auto gate, motor and other security product.











<1>Clear

Press Arming key and Disarming key of duplicator remote control at the same time , after 2s LED light flashes 3 times then flashes fast , it shows clearing successfully .



<2>Copy

Left hand is handling the original remote control, right hand is handling the duplicator remote control, keep the two close, at the same time press the Arming keys of the two remote controls, after 3s LED light of duplicating remote flashes 2 times , then flashes fast, it shows that the original control of the arming key code has been copied in to the duplicating remote control .

The other three keys are the same operation.



<3>Resume

If you clear code of duplicator remote control incautiously , you can press Starting key and Muting key at the same time , after 3s , LED light flashes 3 times then flashes fast , it shows the code of duplicating remote control is resumed .
