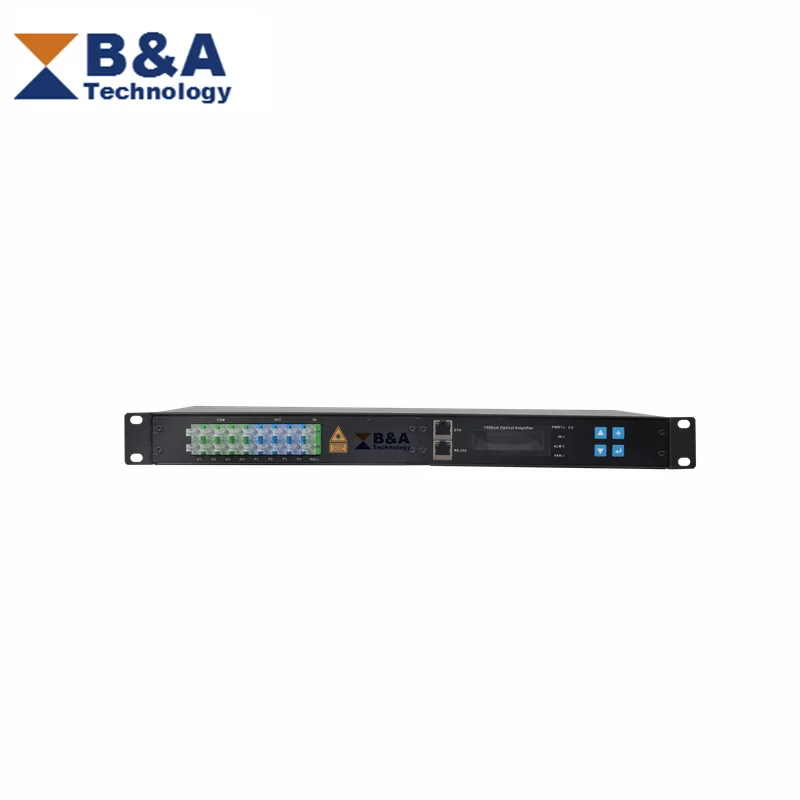

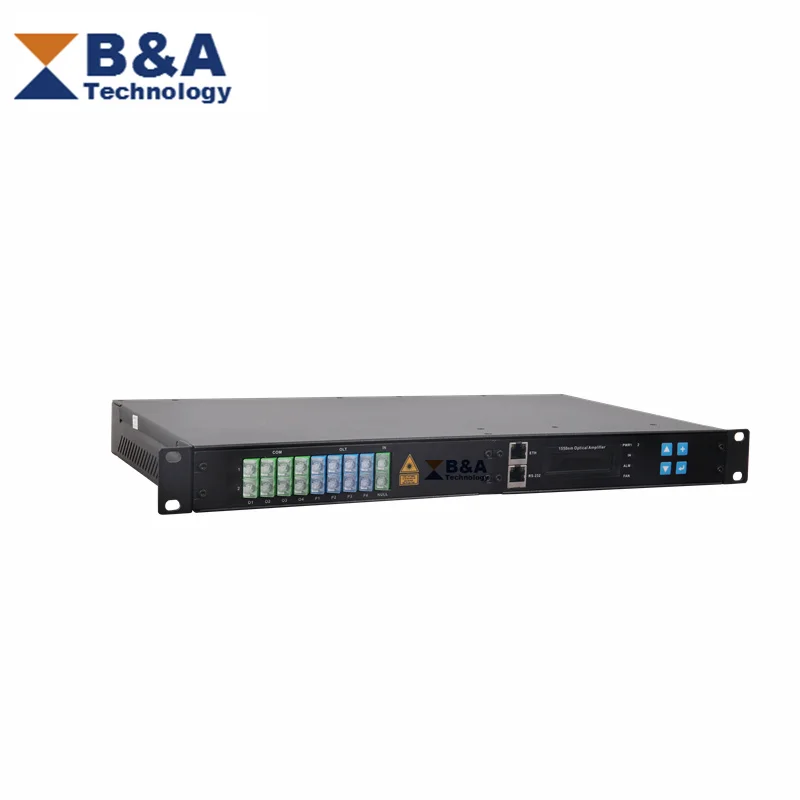

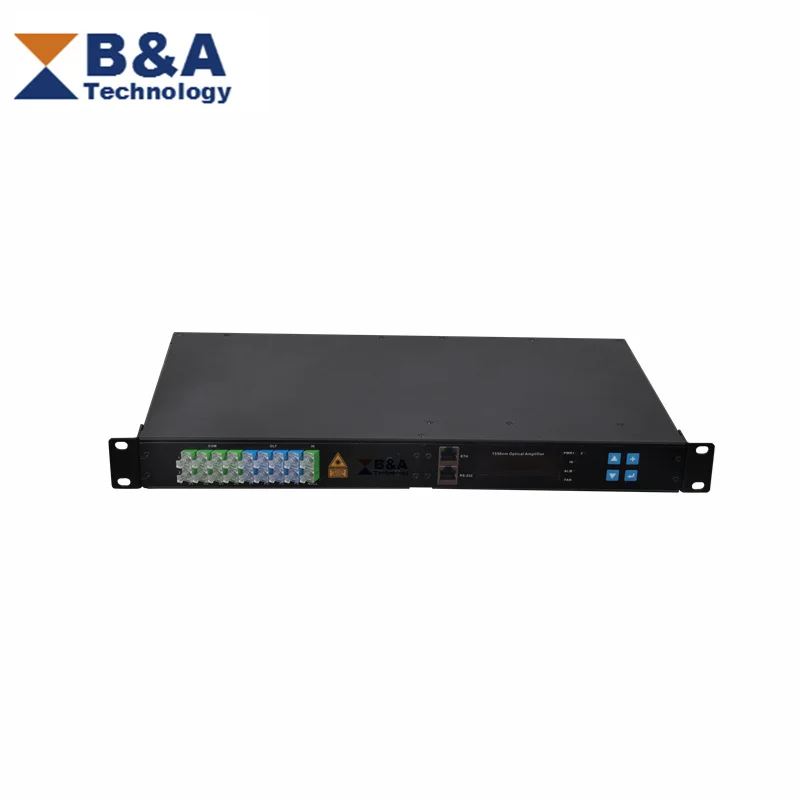

4 port 8 port catv optical amplifier with wdm high power edfa wdm 1550nm
Products Description
Overview:
The product is a high output power C-B and Er-Yb co-doped double cladding optical fiber amplifier. Individual optical design ensures the perfect performance: adopt high stable and high precision CPU system to ensure the control, adjustment and display are intelligent and user-friendly.

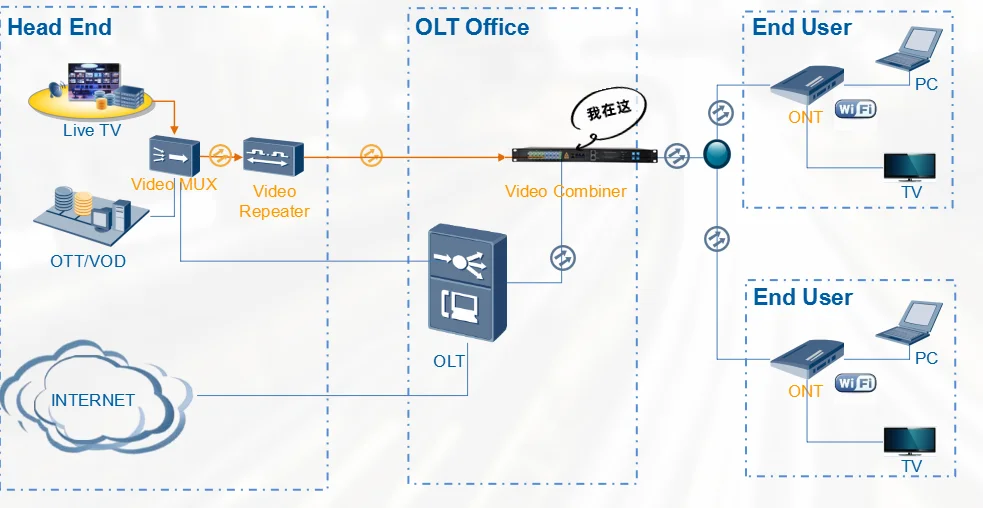

The product can realize different service wavelength (GPON/XGPON1/OTDR and CATV) multiplexing in FTTX network to maximize the value of optical distribution network (ODN). To suit multiple application scenarios, the GPON ports are compatible with the XGPON1 and OTDR wavelength.
The product can realize different service wavelength (GPON/XGPON1/OTDR and CATV) multiplexing in FTTX network to maximize the value of optical distribution network (ODN). To suit multiple application scenarios, the GPON ports are compatible with the XGPON1 and OTDR wavelength.
Application:
Features:
1.Suitable for CATV, PON system and video combiner which is optional
2.Power Supply: Redundancy Hot Swap Power module

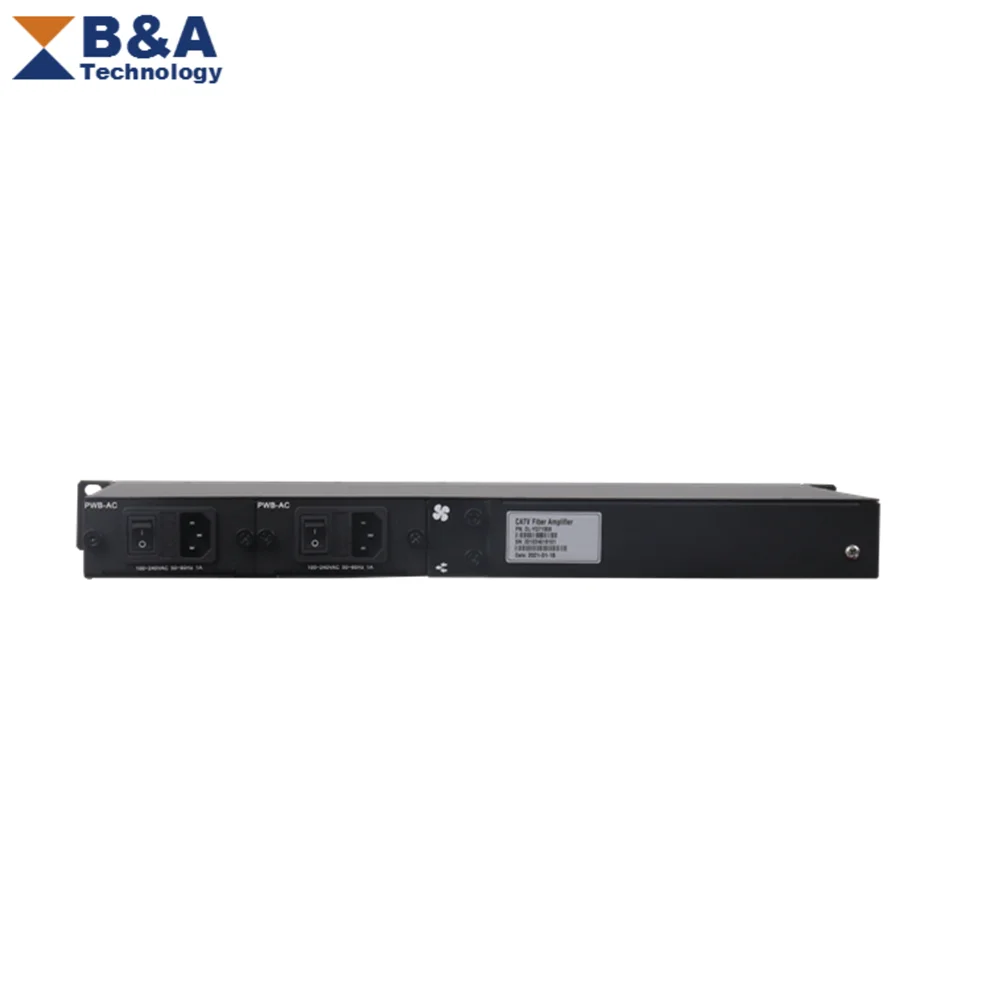

3.All front panel access, and works for 19’ or 21’ racks
4.The Fan and power supplies can be plugged in 1U rack, which is very convenient to the maintain
5.LCD display shows and controls the system parameters, and LED status indication shows the alarm status
6.Support ETH, RS232 and Monitor ports
7.Network Management interface supporting SNMP via ETH port.
8.APC（Automatic Power Control）optical output
9.High power components, high reliability, low noise
3.All front panel access, and works for 19’ or 21’ racks
4.The Fan and power supplies can be plugged in 1U rack, which is very convenient to the maintain
5.LCD display shows and controls the system parameters, and LED status indication shows the alarm status
6.Support ETH, RS232 and Monitor ports
7.Network Management interface supporting SNMP via ETH port.
8.APC（Automatic Power Control）optical output
9.High power components, high reliability, low noise
Technical Specification
No. | Item | Min | Typ. | Max | Unit | ||||
1 | CATV EDFA Optical Specifications | ||||||||
1.1 | CATV Port Wavelength Range(λ1) | 1545-1565 | nm | ||||||
1.2 | Input power | -10 | 0 | 10 | dBm | ||||
1.3 | Output power(Every port) | ---- | ---- | 23 | dBm | ||||
1.4 | Total Output power | ---- | ---- | 37 | dBm | ||||
1.5 | Numbers of output | ---- | ---- | 32 | dBm | ||||
1.6 | Output power Uniformity(Among Output ports) | ---- | ±1 | ---- | dB | ||||
1.7 | Output power stability | -0.5 | ---- | 0.5 | dB | ||||
1.8 | NF(In=0 dBm,λ=1550nm) | ---- | 5.5 | 6.0 | dB | ||||
1.9 | Pump Leakage @Input/output port | ---- | ---- | -30 | dBm | ||||
1.10 | Isolation@Input/output port | 30 | ---- | ---- | dB | ||||
1.11 | PMD | ---- | ---- | ps | |||||
1.12 | PDG | ---- | ---- | dB | |||||
1.13 | RL | 50 | ---- | ---- | dB | ||||
1.14 | Output power Adjustable | Output power can control 5 dBm | |||||||
2 | Built-in WDM Specifications(Optional in PON system) | ||||||||||
2.1 | CATV Port Wavelength Range(λ1) | 1545-1565 | nm | ||||||||
2.2 | PON Port Wavelength Range(λ2) | 1260-1360&1480-1500&1575-1581&1616-1660 | nm | ||||||||
2.3 | Insertion Loss | Pass Band | ----- | ----- | 1.2 | dB | |||||
Reflection Band | ----- | ----- | 1.2 | dB | |||||||
2.4 | PDL | ----- | ----- | 0.1 | dB | ||||||
2.5 | PMD | ----- | ----- | 0.1 | ps | ||||||
2.6 | Isolation(Com→PON@λ1) | 15 | ----- | ----- | dB | ||||||
2.7 | Isolation(Com→CATV@λ2) | 40 | ----- | ----- | dB | ||||||
2.8 | Directivity | 50 | ----- | ----- | dB | ||||||
2.9 | PON Signal that passes through when edfa is turned off | 1577,1270&1310,1490&1625/1650 | nm | ||||||||
2.10 | Power Tolerance | ----- | ----- | 26 | dBm | ||||||
2.11 | Constant Output | @variable input:-6~+8 dBm | |||||||||
Manufacturing Technique
International market: Our partner
Company profile and factory
We are the manufacturer about edfa fiber amplifier in China and our company has long focused on the innovation and engineering of light amplification technology, optical fiber transmission technology, and optical fiber detection technology.
What we have achieved:
What we have achieved:
1. Independently developed aerospace-grade optical fiber amplifier equipped with Tiangong-2
2. Cooperative supplier of many leading enterprises
3. Obtained special support for major instruments from the Ministry of Science and Technology
4. EYDFA achieved the largest shipment in China and launched a series of optical fiber communication subsystems.
5. Revolutionary breakthroughs have been made in technologies such as high-speed scanning light sources and pulse energy detection
6. The first supplier in China to develop commercial EYDFA products.
R&D
Quality Inspection
Exhibition
