Laboratory Chemical Dosing Liquid Transfer Food Grade Speed Adjustable peristaltic pump
- Category: >>>
- Supplier: Hangzhou Cheer Sure Intelligent Machinery Co. Ltd.
Share on (1600522605287):
Product Overview
Description
Product Description

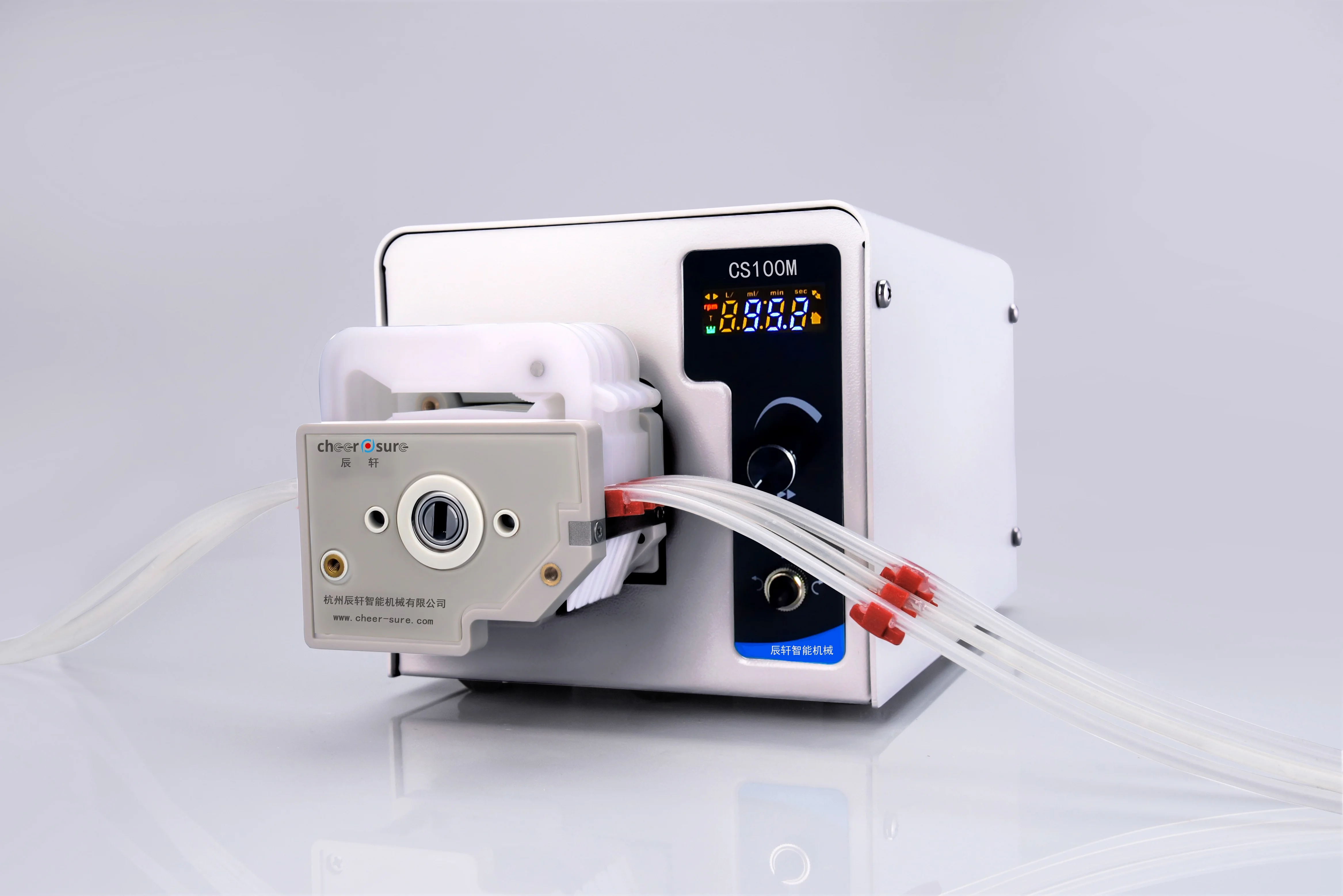

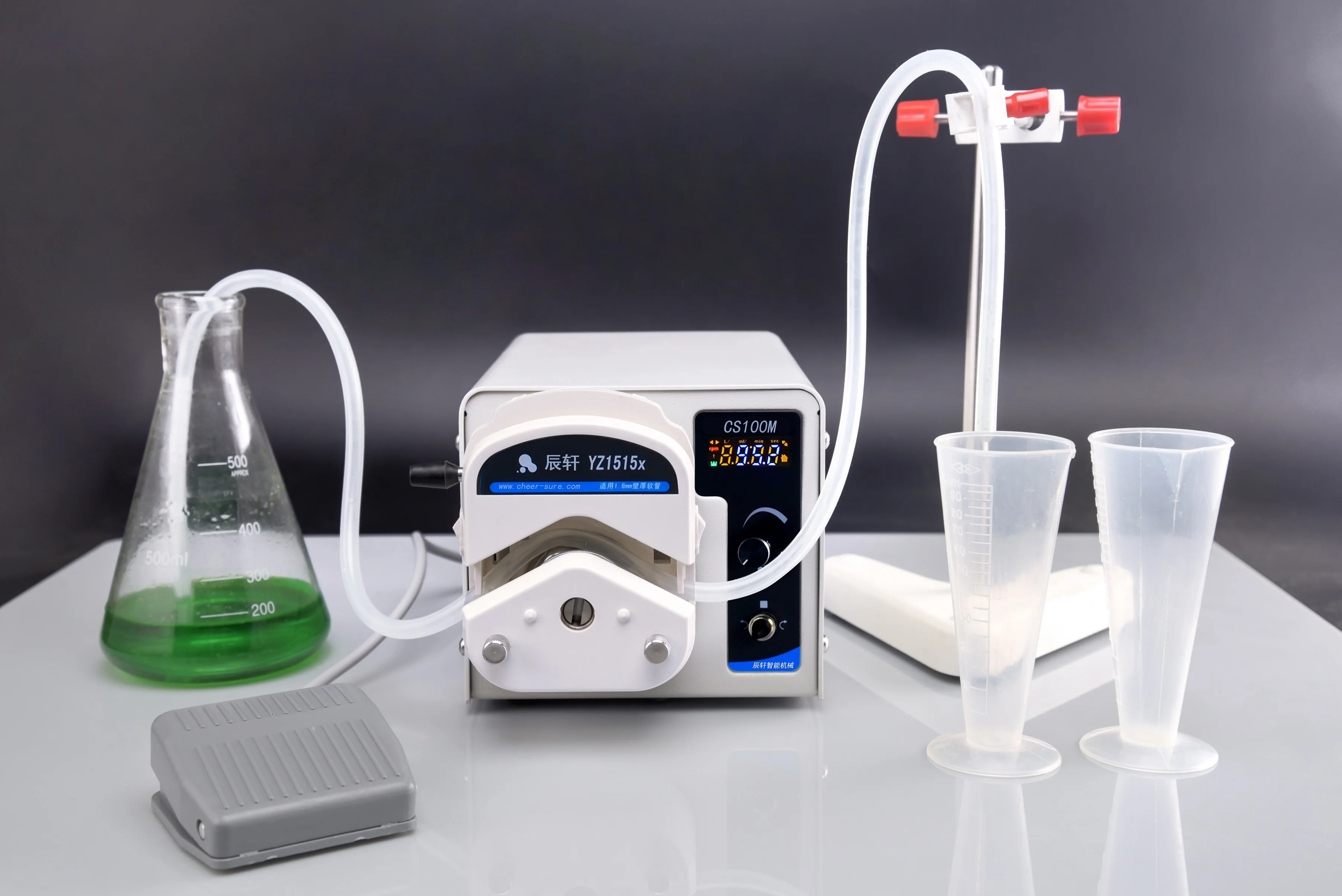

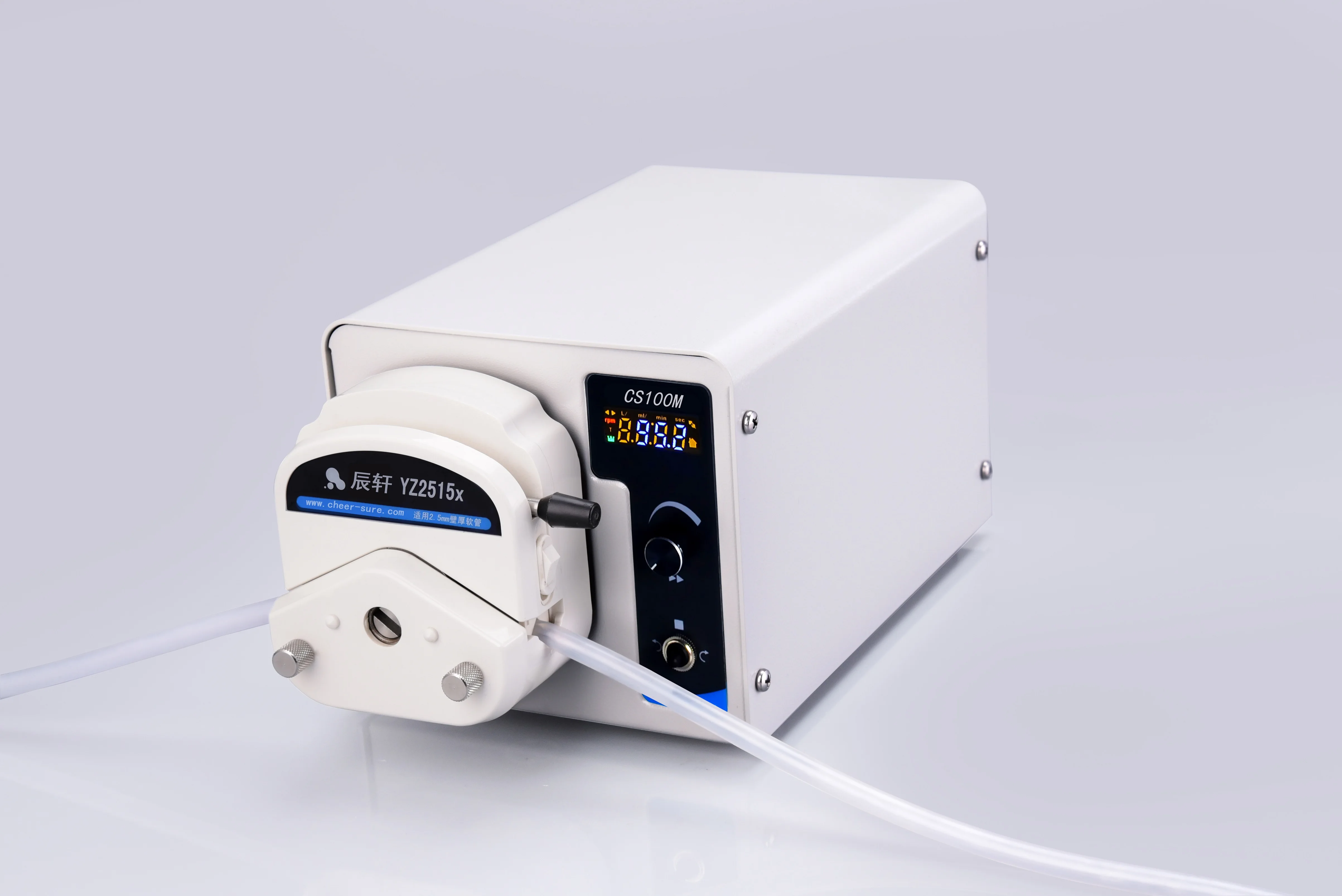

Peristaltic Pump CS100M, which is widely used in research laboratory,water treatment sampling, industrial production and so on.It can match various pump heads, to realize different pump head and drive combinations. It has
RS485 communication interface and can be customized according to customer requirements.The transfer peristaltic pump will not touch the liquid, ensuring the pollution-free operation, and the low shear force will not damage the carrier cells. it is an ideal tool for aggressive fluids. The constant flow peristaltic pump has a good self-priming
ability, can be idling, can prevent backflow, which has no valves and seals, and is simple to maintain.
RS485 communication interface and can be customized according to customer requirements.The transfer peristaltic pump will not touch the liquid, ensuring the pollution-free operation, and the low shear force will not damage the carrier cells. it is an ideal tool for aggressive fluids. The constant flow peristaltic pump has a good self-priming
ability, can be idling, can prevent backflow, which has no valves and seals, and is simple to maintain.
Specification
Model | CS100M | |

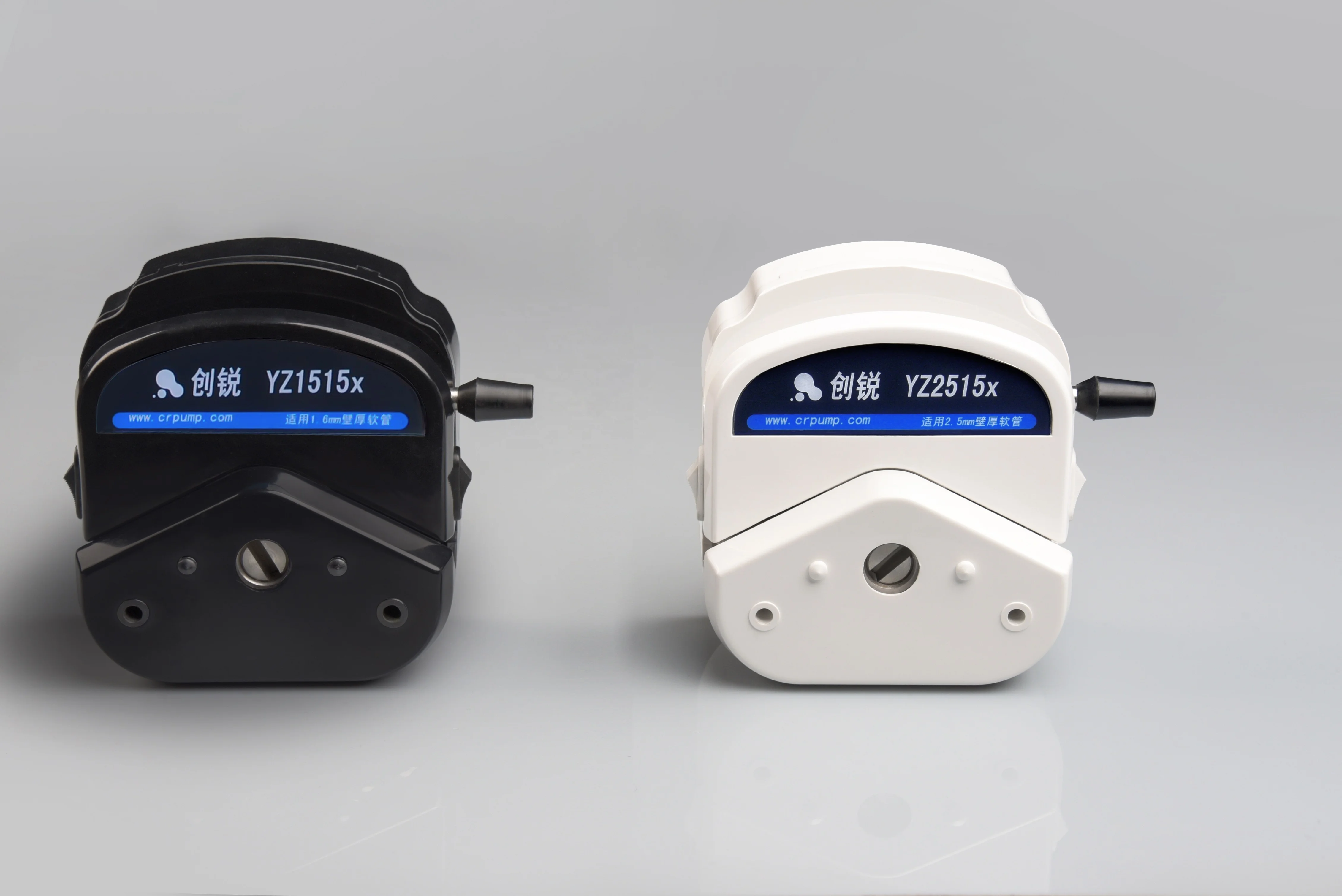

Pump Head Model | YZ1515x（Default black） | |
Speed range | 0.1~100rpm（reversible） | |
speed resolution | 0.1rpm | |
Flow range | 0.007-380 ml/min | |
Suck back speed | 10~100rpm | |

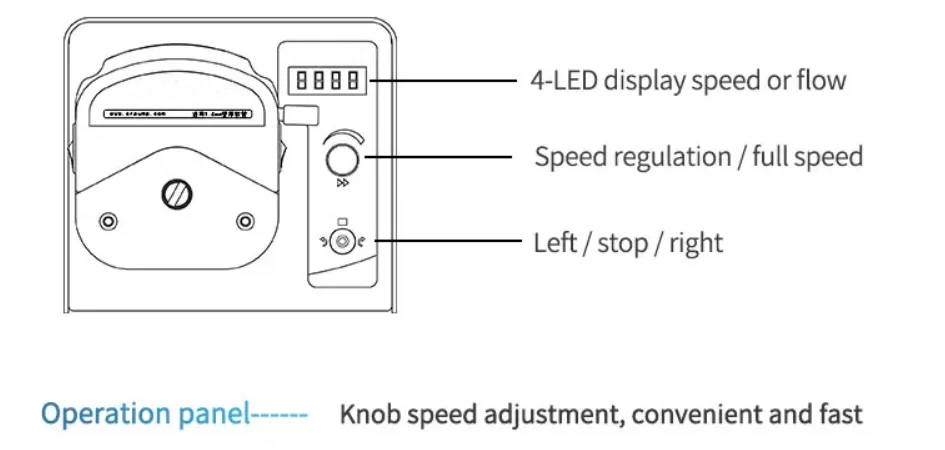

Control Method | Knob+Switch | |

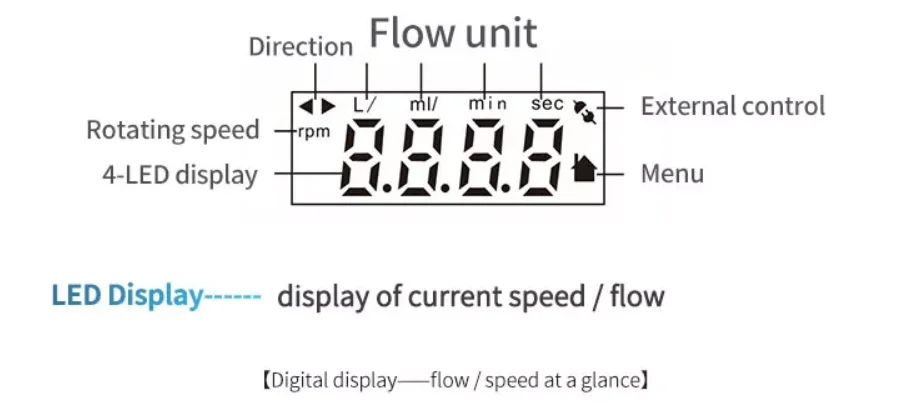

Display Mode | 4-LED display | |
Power supply | AC220V/AC110V Optional | |
Work Temperature | 0~40℃ | |
Function | Transfer Only | |
IP grade | IP31 | |
External control Support RS485/MODBUS communication protocol/ analog quantity control (0-5V / 0-10V / 4-20mA ...), Start/stop Optional. | ||
Hose Model | ID (mm) | Wall Thickness (mm) | Max Flow(ml/min) | Speed（rpm） |
13# | 0.8 | 1.6 | 7 | 100 |
14# | 1.6 | 1.6 | 27 | 100 |
19# | 2.4 | 1.6 | 51 | 100 |
16# | 3.1 | 1.6 | 82 | 100 |
25# | 4.8 | 1.6 | 170 | 100 |
17# | 6.4 | 1.6 | 290 | 100 |
18# | 7.9 | 1.6 | 380 | 100 |
Kindly reminder:
All the data in the Above chart is based on the water.
If your liquid is viscous or corrosive, then this selection guide is not suitable for you.
Please contact us, we will help you with better selection.
All the data in the Above chart is based on the water.
If your liquid is viscous or corrosive, then this selection guide is not suitable for you.
Please contact us, we will help you with better selection.

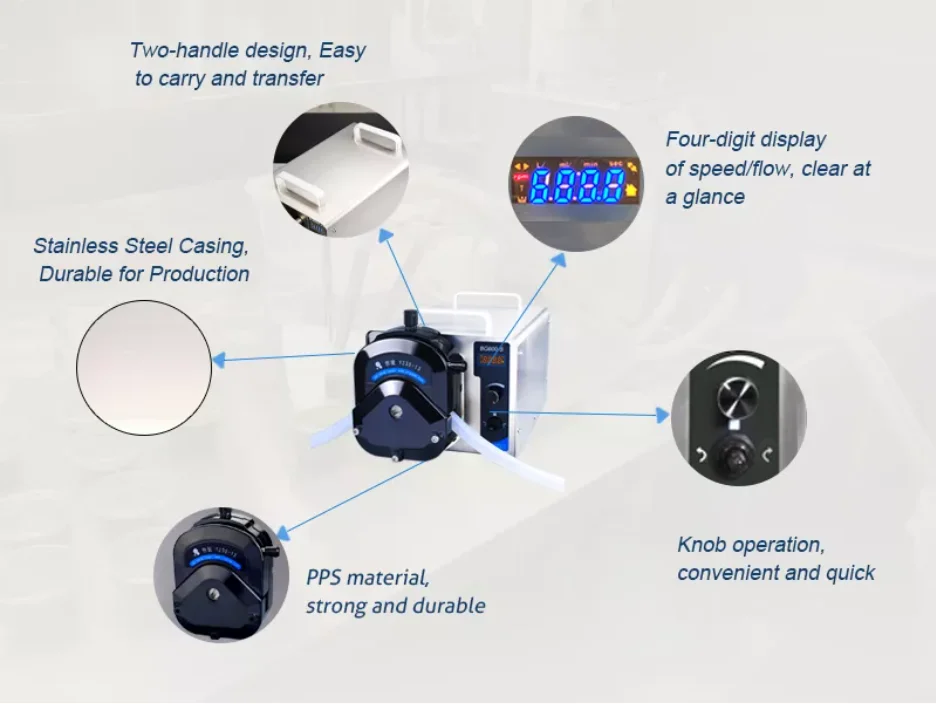

Details Images

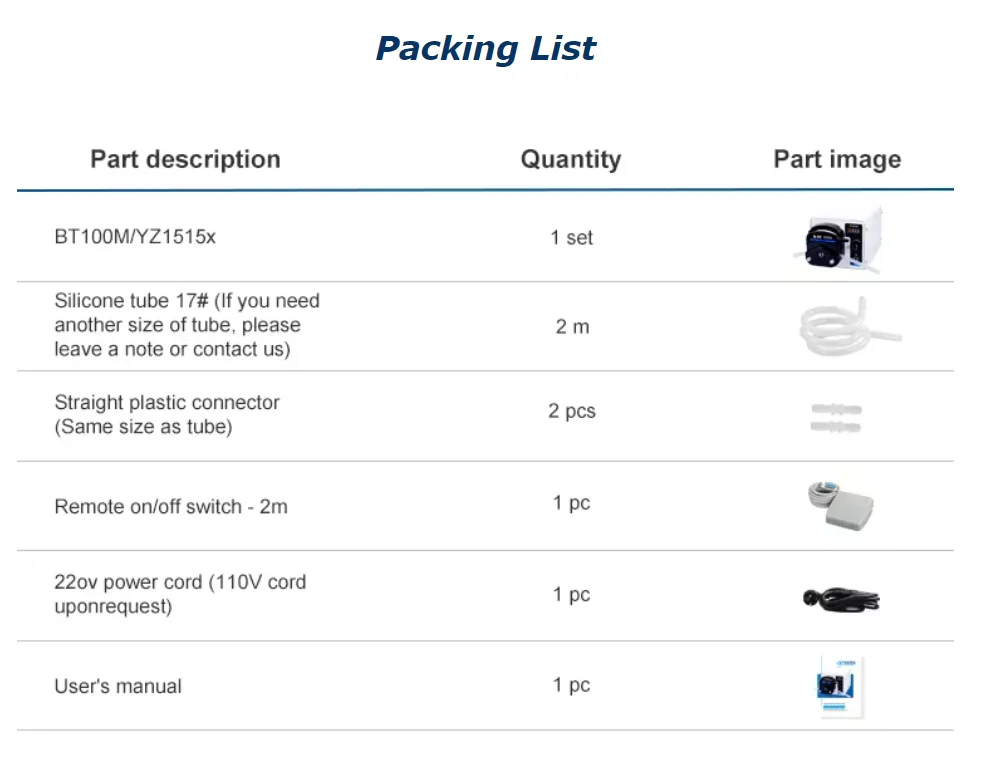

Packing & Delivery

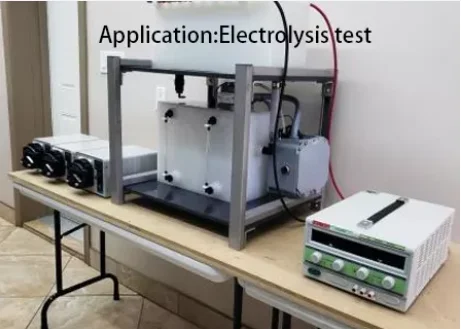

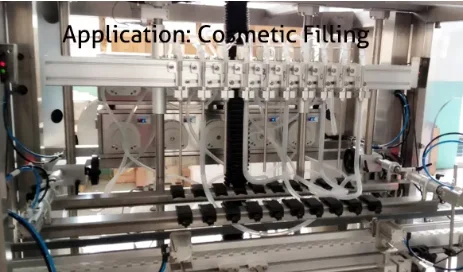

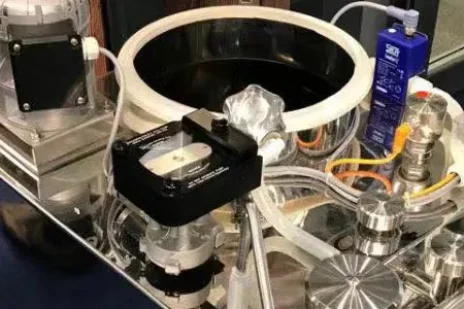

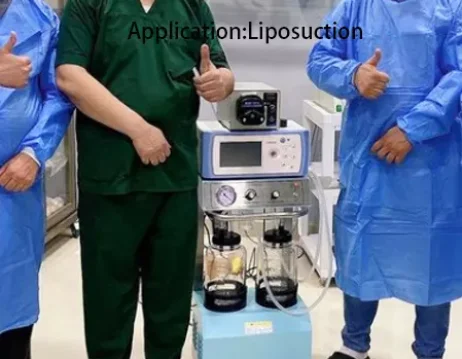

Project Cases

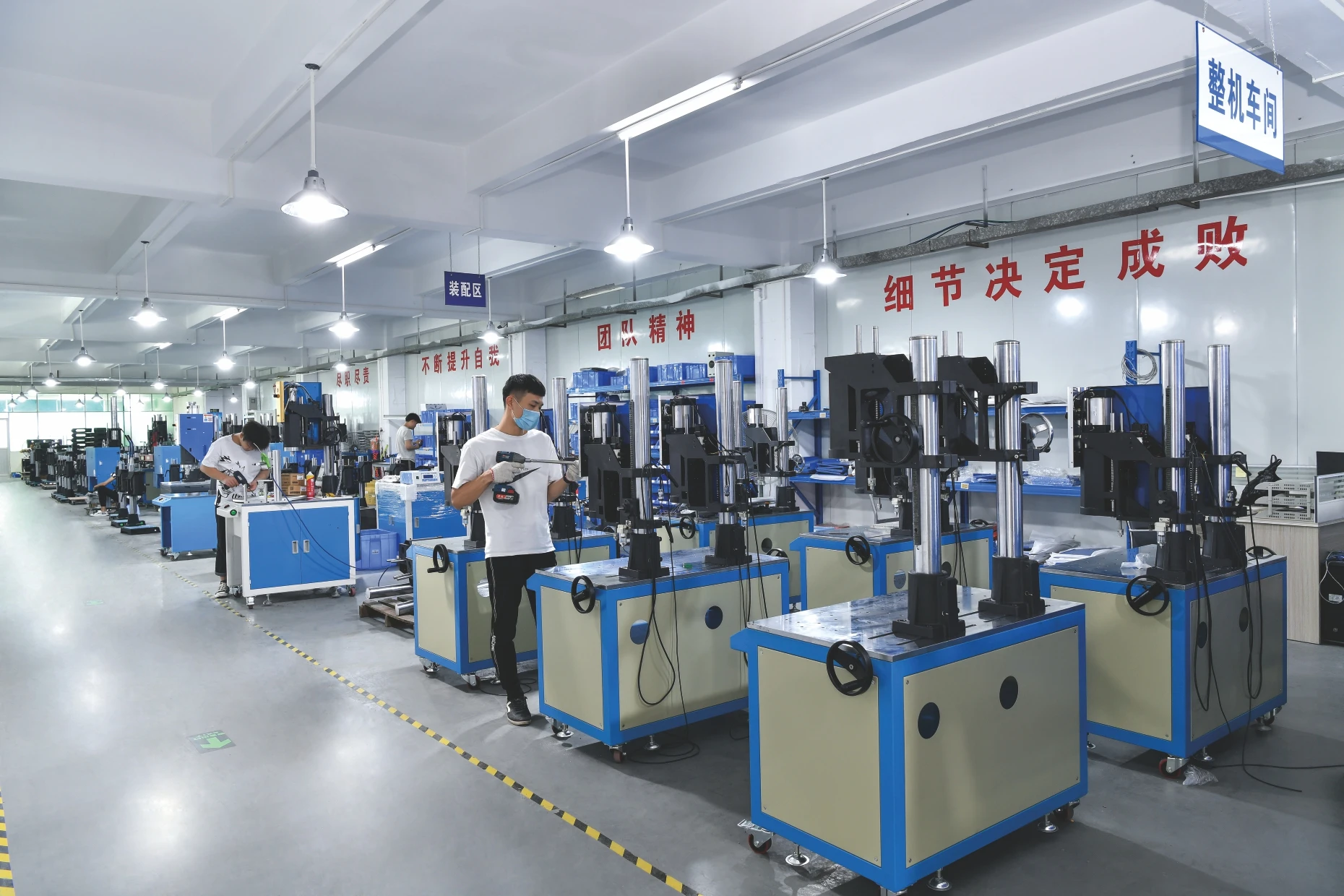

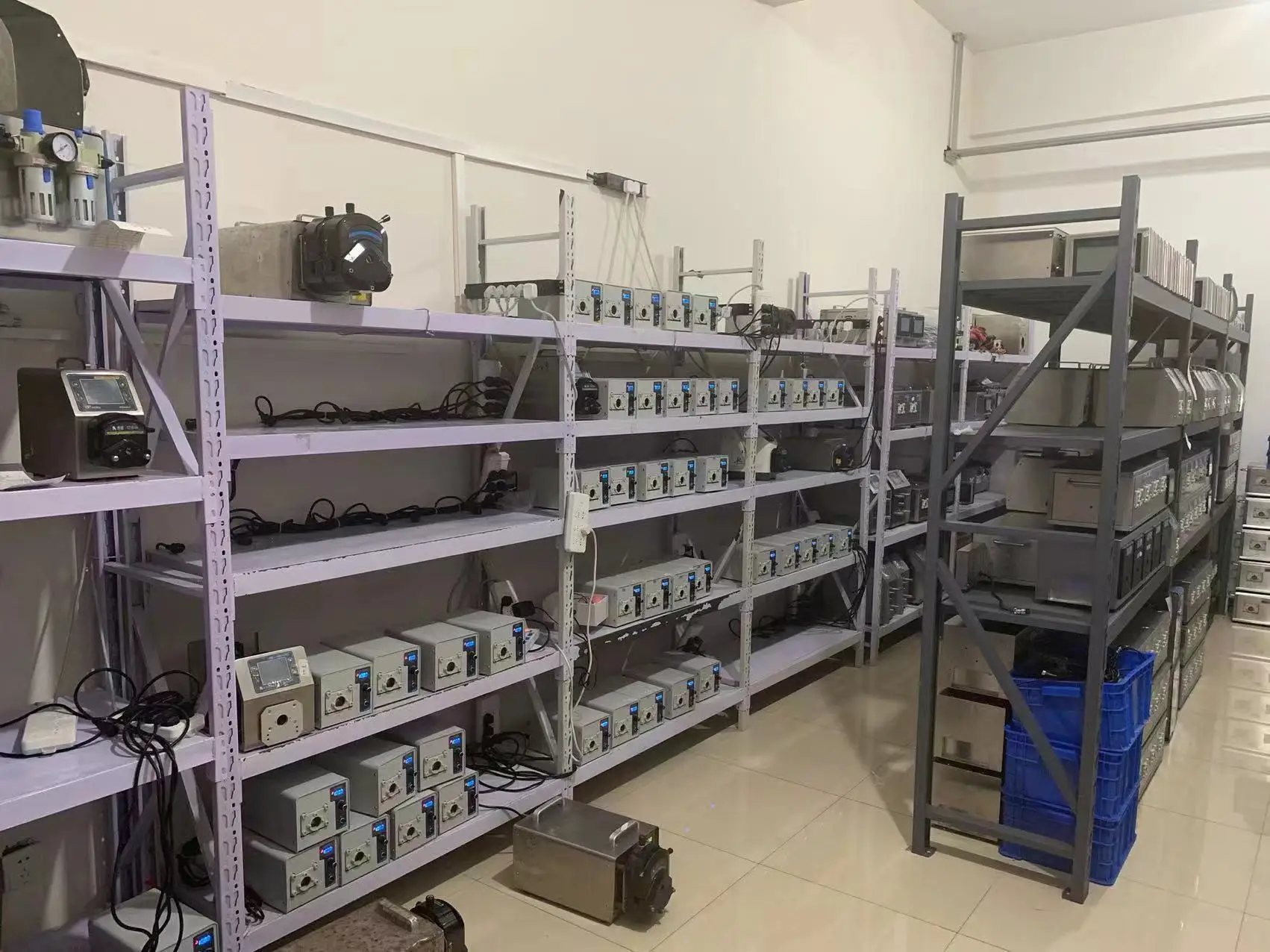

Company Profile

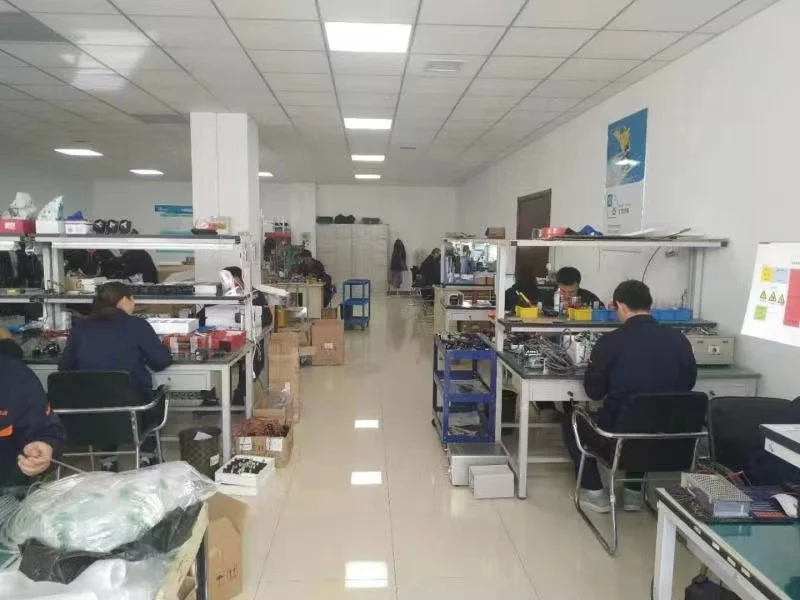

Hangzhou Cheer Sure Intelligent Machinery Co.,Ltd. is a factory direct store. Its predecessor is a large offline processing factory. Our products include peristaltic pump, explosion-proof camera, ultrasonic welding, cleaning, liquid treatment equipment, all kinds of reactors and so on. Since 2019, the company has established its own marketing team to provide better and more direct services to customers at home and abroad. Our advantage is stable and controllable product quality; First hand factory direct selling price; Professional point-to-point pre-sales and after-sales service.
FAQ
1. Can I buy extra hose for peristaltic pump?
The standard configuration of hose is 2m, and it is 15m / roll when bought separately.
2. What's the delivery time?
Less than 30 sets, within 7days. Otherwise be negotiated.
3. Can I make my logo on the pump?
You pls give us your logo's art workfile, let's make for you.
4. What's the payment terms do you accept? Can I pay by PayPal?
TT/PayPal/ Alipay/Wechat are all accepted.
