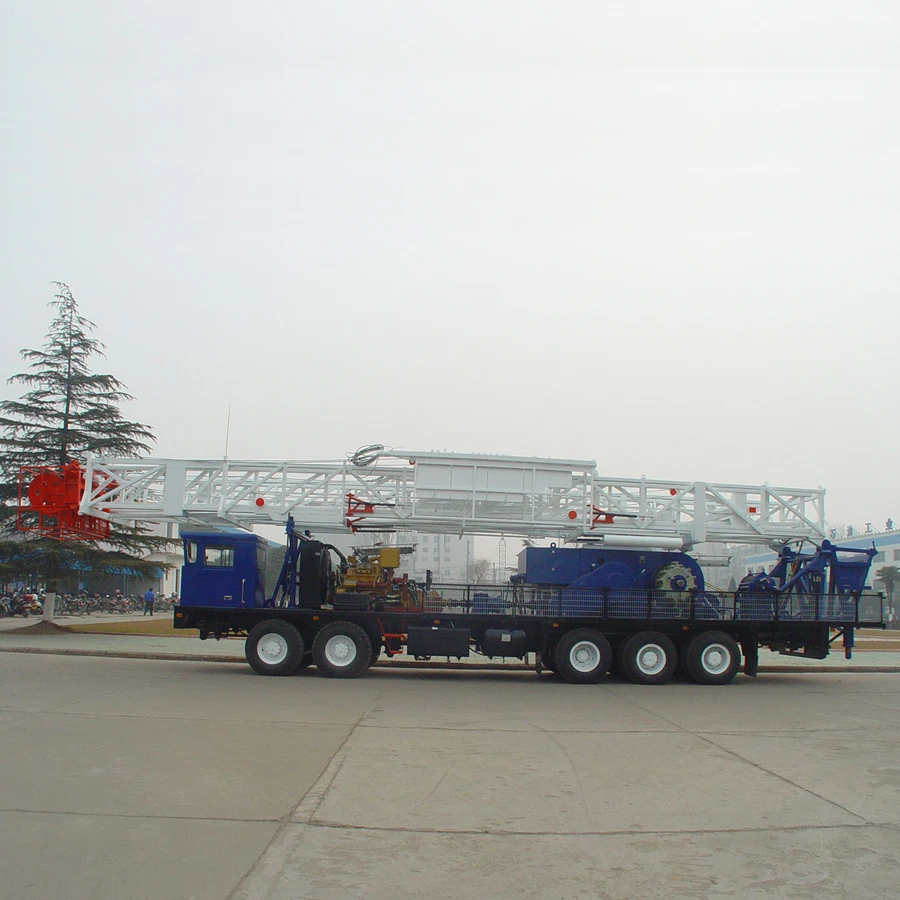

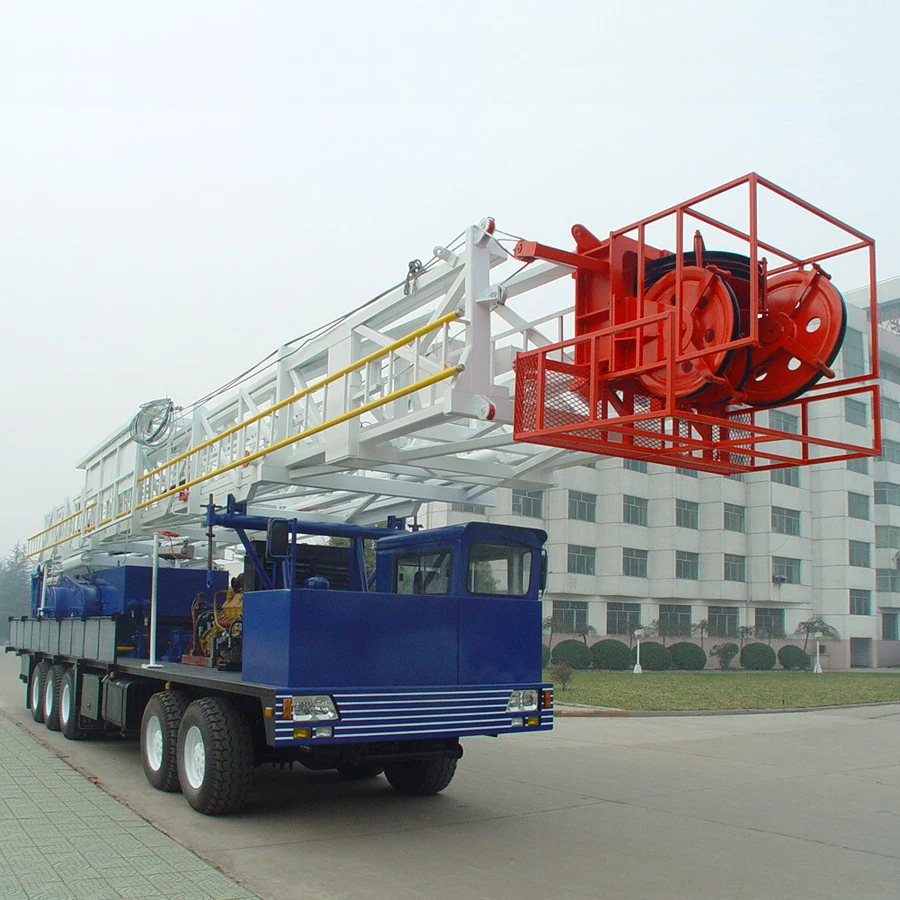

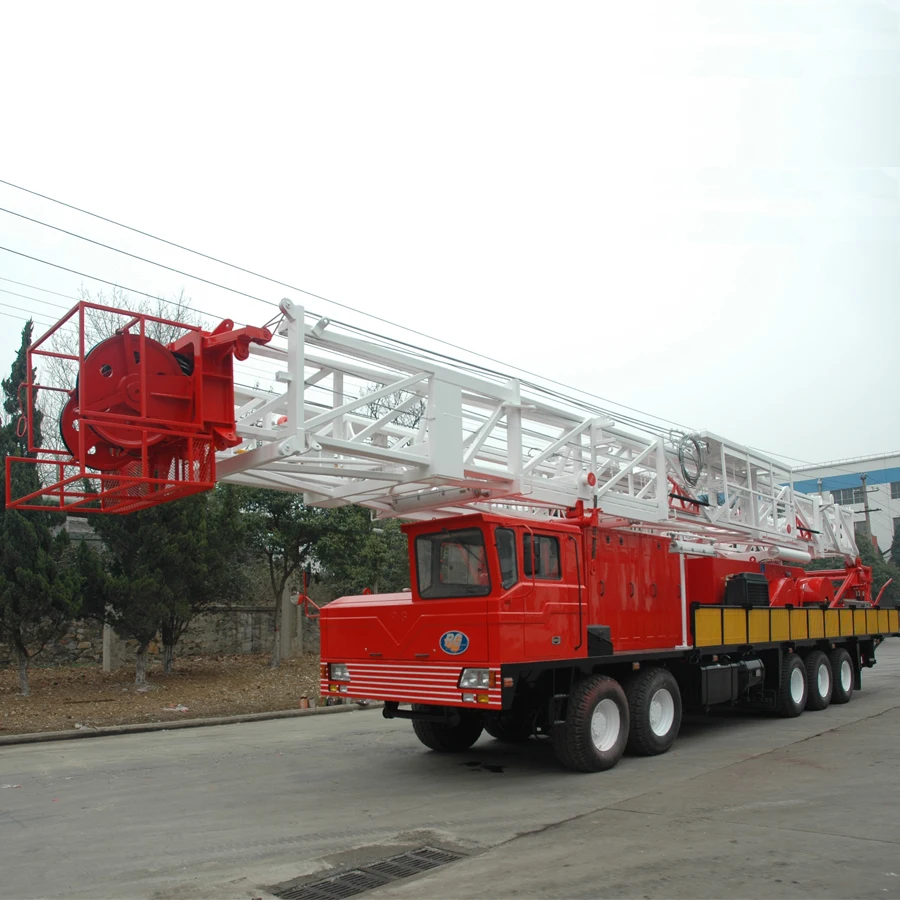

RG Petro API Standard Oil Field truck mounted drilling rig and XJ80 Workover Rig
- Category: >>>
- Supplier: Beijing Rg Oil& Gas Technology Development Co. Ltd.
Share on (1600522615195):
Product Overview
Description
Product Description
1. The truck mounted workover rig is driven by diesel engine, with reasonable power matching, high transmission efficiency, high reliability, compact structure, high degree of assembly and small footprint.
2. The heavy-duty chassis specially used for petroleum is equipped with hydraulic power steering system, which has good mobility, off-road and transverse stability.
3. The main brake adopts belt brake or hydraulic disc brake, and the auxiliary brake adopts pneumatic push-disc brake, pneumatic clamp disc brake or water brake.
4. The mast set with two sections at the front opening, tilting forward or standing upright, lifting and stretching of the hydraulic cylinder, and is equipped with wind tight rope and anti-overturn tight rope.
5. The rotary table drive system can realize the positive rotation, reverse rotation, suspension and disconnection of the rotary table, and is equipped with the reverse torque release device to ensure the safe release of the rotary table drilling string torque.
6. The drilling floor adopts the telescopic or spiral lifting structure, the floating platforms on both sides can be turned over, and the sledding can be hoisted and transported. Table height, size, layout can be customized.Optional light work table as required.
7. Drilling floor, rotary table and transmission system can be selected as required or customized.
| Model | XJ1100 |
|---|---|
| Max hook load (kN) | 1100 |
| Rated hook load (kN) | 800 |
| Nominal Workover depth (73 mm) m | 4500 |
| Engine Power (kW) | 403 |
| Lines | 8 |
| Wireline dia (mm) | 26 |
| Mast Height (m) | 33 |
| Max hood speed (m/s) | 1.5 |
| Substructure height (m) | 4.5, 5, 6 |
| RT hole dia. (mm) | 444.5 |
| Main brake | band and disc brake |
| auxiliary brake | 224WCB |
| carrier model | XD50/10×8 |
| Min ground clearance (mm) | 311 |
| Min diameter of turning circle (m) | 30 |
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Information
BEIJING RG OIL & GAS TECHNOLOGY CO., LTD. is a subsidiary of RG PETRO-MACHINERY GROUP CO. LTD. It was established in Beijing in 2013 with a registered capital of 5 million yuan. The company was established to provide customers with more efficient spares supply and technical services for the equipment, as well as for wider range of import and export trade
FAQ
1. who are we?
We are based in Beijing, China, start from 2013,sell to Domestic Market(20.00%),South Asia(20.00%),Southern Europe(20.00%),Northern Europe(20.00%),Central America(20.00%),Western Europe(20.00%),Eastern Asia(20.00%),Mid East(20.00%),Oceania(20.00%),Africa(20.00%),Southeast Asia(20.00%),Eastern Europe(20.00%),South America(20.00%),North America(20.00%). There are total about 5-10 people in our office.
2.what can you buy from us?
drilling rig,workover rig,mud pump,water well drilling rig,logging unit
3. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
