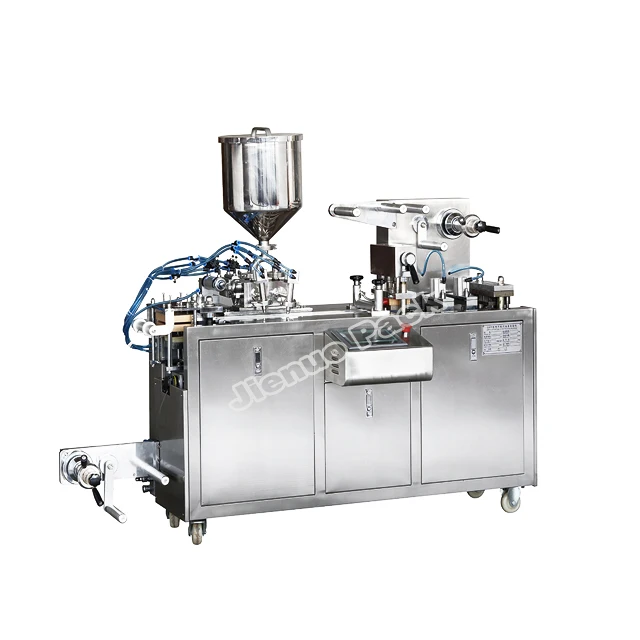

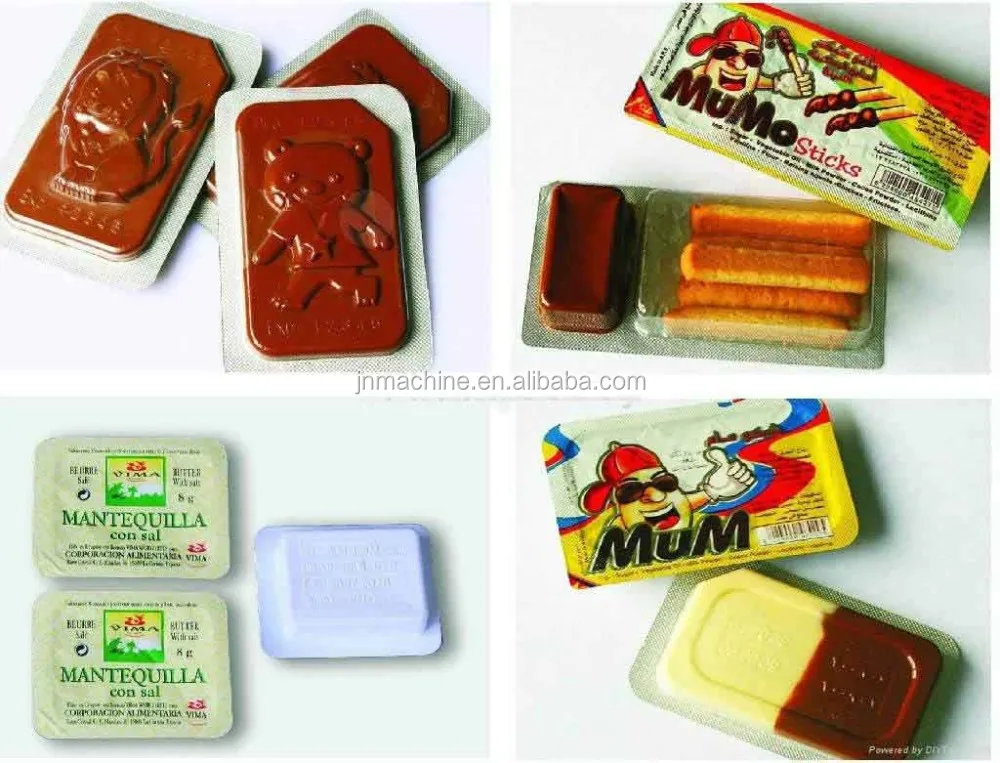

Multi function liquid paste honey butter blister packing machine
- Category: >>>
- Supplier: Wenzhou Jienuo Machinery&Technology Co. Ltd.
Share on (1600522620894):
Product Overview
Description
Product Description
Features:

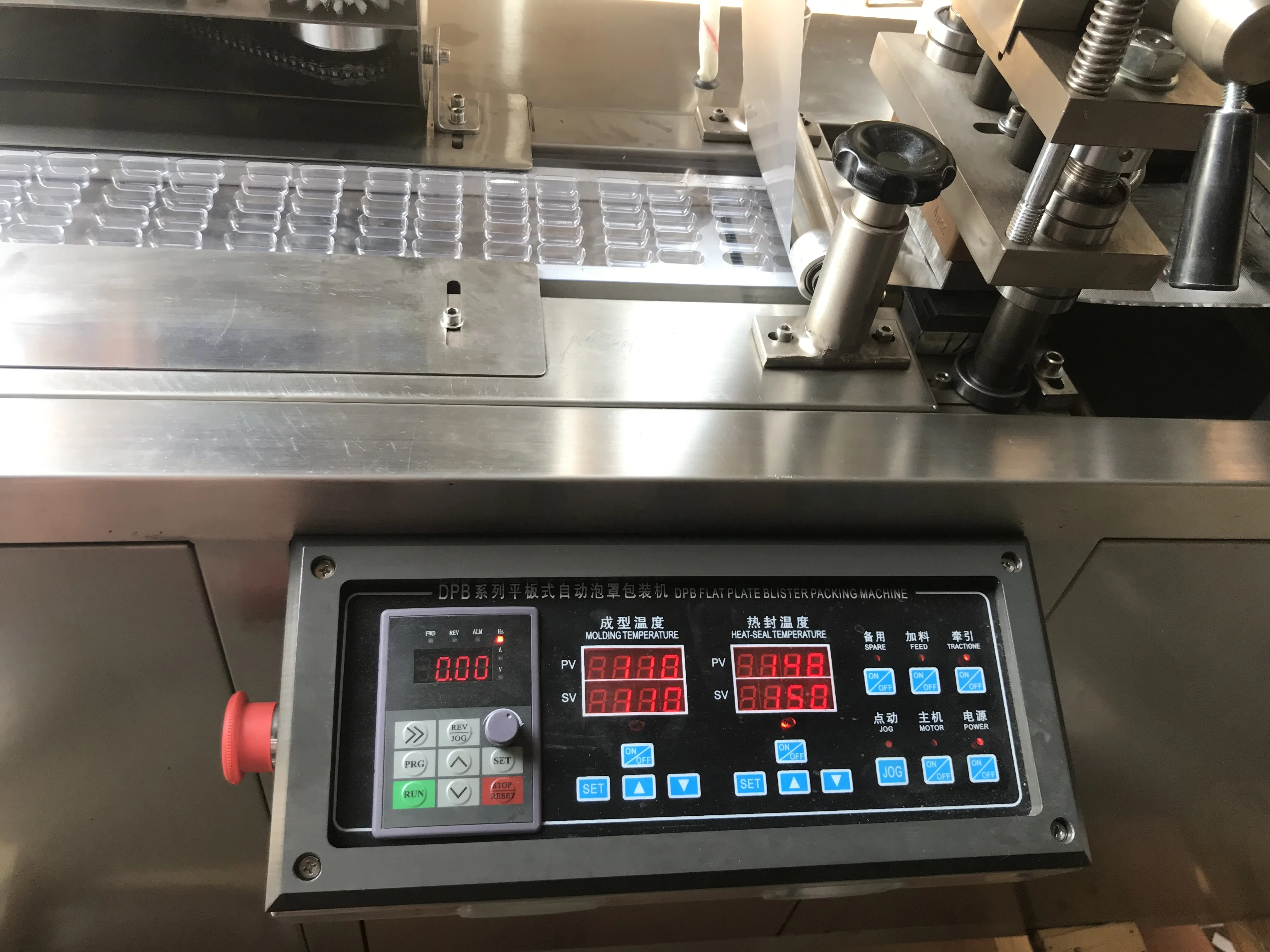

1. Adopts top brand PLC controller with touch screen displayed in Chinese and English,
Frequency inverter for speed control,servo traction,which can ensure the length of blister
traction adjustable within the range.
2. With thermal temperature control and test,main machine over loading protect,PVC and PTP
packing material position test,feeder material position test,failure automatic debug and alarm,
automatic protection and stop running.
3. The machine station module type design of level frame,good sight,safe and convenient
operation.

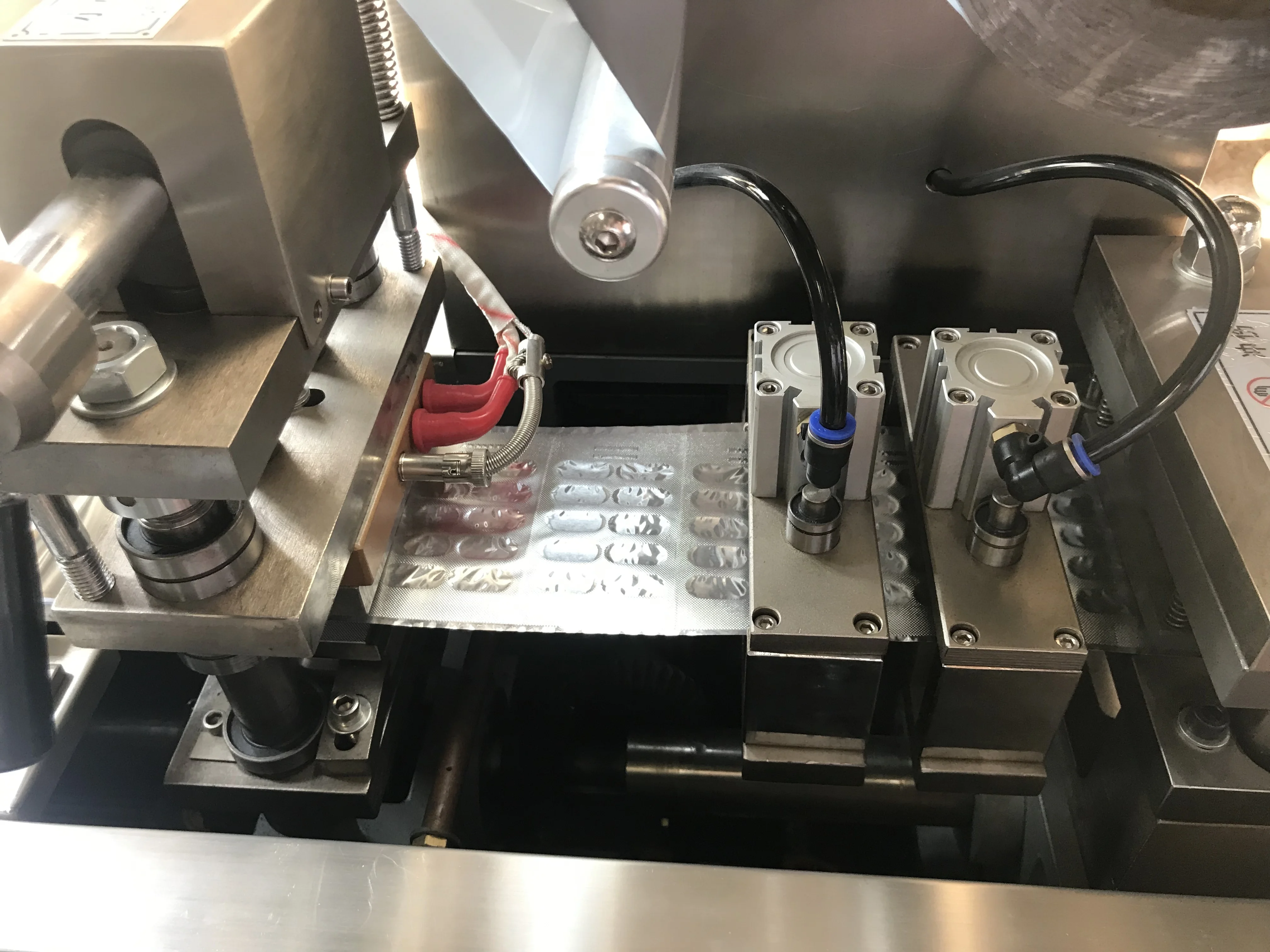

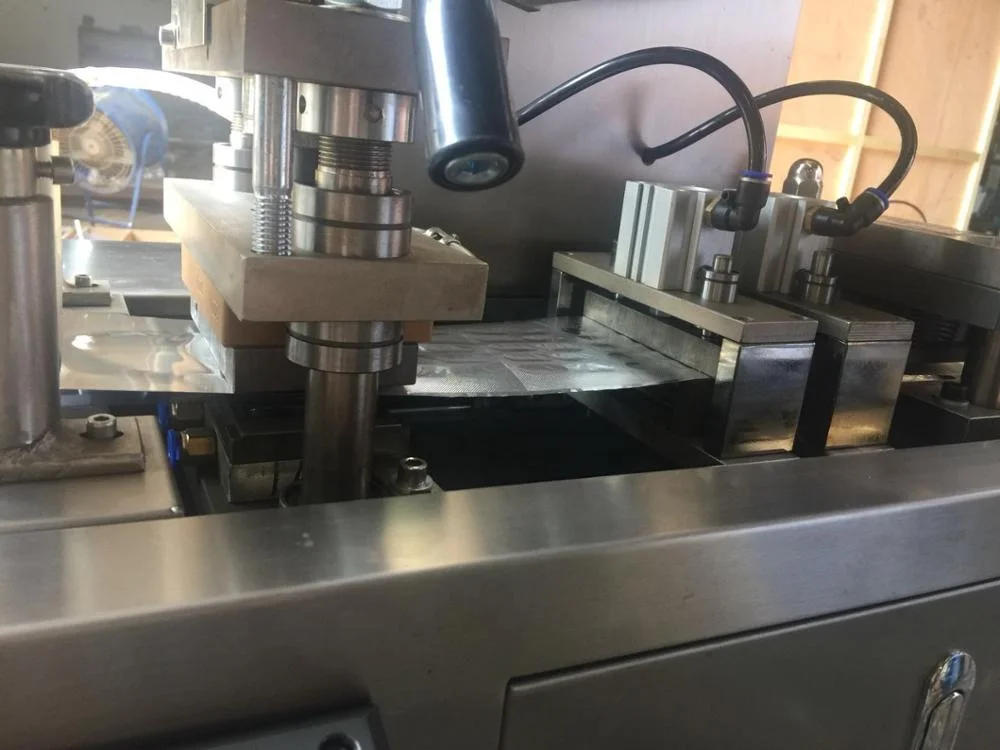

4. Thermal with contact type,positive press formed,air cushion thermal seal upper and lower net,
photo register make your product package better.
5. PVC exchange support with bigger type material support, whole roller, which makes the
equipment more practicability.
6. The special design of moulds in rectangle shape,ladder type fixing,provide much convenience
and ease to moulds replacement.All material contact parts adopt high quality stainless steel and
aluminum metal,slap-up surface treatment craft
7. Discharging finished product in right order,automatic collection of bad products,auto rewinding
of strap material to ensure easy collection.
1. Adopts top brand PLC controller with touch screen displayed in Chinese and English,
Frequency inverter for speed control,servo traction,which can ensure the length of blister
traction adjustable within the range.
2. With thermal temperature control and test,main machine over loading protect,PVC and PTP
packing material position test,feeder material position test,failure automatic debug and alarm,
automatic protection and stop running.
3. The machine station module type design of level frame,good sight,safe and convenient
operation.
4. Thermal with contact type,positive press formed,air cushion thermal seal upper and lower net,
photo register make your product package better.
5. PVC exchange support with bigger type material support, whole roller, which makes the
equipment more practicability.
6. The special design of moulds in rectangle shape,ladder type fixing,provide much convenience
and ease to moulds replacement.All material contact parts adopt high quality stainless steel and
aluminum metal,slap-up surface treatment craft
7. Discharging finished product in right order,automatic collection of bad products,auto rewinding
of strap material to ensure easy collection.
Specification
Punch Frequency | 0-35 times/min |
Production Capacity | 2100 edition/hour |
Max. Formed area and Depth | 80*115*40（mm） |
Travel Range | 20-80 mm（adjustable） |
Standard Plate | 80*57mm （adjustable） |
Air Pressure | 0.6-0.8（M） |
Total Power | 380V/220V 50Hz 4.5KW |
Main Motor Power | 0.75KW |
PVC Hard Pieces | 0.15-0.5*80(mm) |
PTP Aluminum Foil | 0.02-0.035*80(mm) |
Dialysis Paper | 50-100g*80(mm) |
Mold cooling | Water cycle |
Overall Dimensions | 1700*600*1020(mm) |
Weight | 400（Kg） |
Noise target | <75dBA |
Packing & Delivery
Standard exported case
Certifications
Company Information
Company
Workshop
Office
FAQ
We have been the manufacturer of packing machine for 7 years. If you are interested in our Packing Machine, please contact me without hesitation. we will give you the best price.
Best regards
Wenzhou Wenzhou Jienuo Machinery & Technology Co. Ltd
Q1.What do you have any training?
We can train your staff to use our machine properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
Q2.what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF etc.
Q3.does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like how to operate PLC. And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
Best regards
Wenzhou Wenzhou Jienuo Machinery & Technology Co. Ltd
Q1.What do you have any training?
We can train your staff to use our machine properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
Q2.what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF etc.
Q3.does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like how to operate PLC. And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
