Lab manual lifting rotovap 5l vacuum rotary evaporator price
- Category: >>>
- Supplier: Shanghai Yuhua Instrument Equipment Co. Ltd.
Share on (1600522640053):
Product Overview
Description

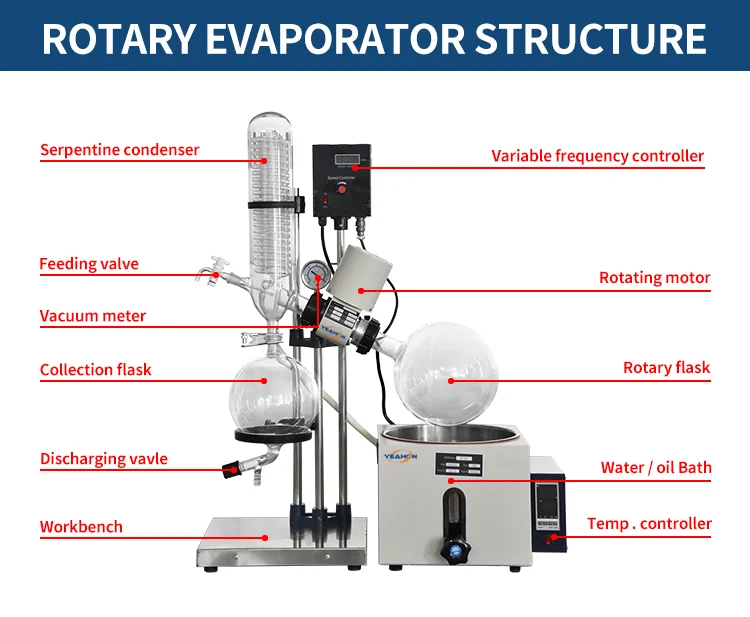

Rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It can constitute an evaporating system to meet the experiment and production conditions when working with vacuum pump and recirculating chiller.
The rotation under negative pressure forms a thin film on the surface of rotary flask through constant temperature heating. Then the solvent is recycled after condensation for purification and separation. Know more!
Product parameters
Model | RE-205 | RE-301 | RE-501 | RE-52AA | RE-2010 | RE-2000 | |||||
Rotating bottle (L) | 0.5/1/2 29# | 3 F50 | 5 F50 | 0.5/1 24# | 2 24# | 0.5/1 24# | |||||
Collection bottle | 1L | 2L | 3L | 1L | |||||||
Speed regulation(rpm) | 0~120 | ||||||||||
Evaporation capacity (L/H) | Water: 0.015 Ethanol: 0.02 | Water: 1.3 Ethanol: 4.5 | Water: 1.4 Ethanol: 5.2 | Water: 0.02 Ethanol: 0.025 | |||||||
Vacuum degree can be reached | <133pa(1.33mbar, Itorr) | ||||||||||
Temperature range (℃) | RT~99 | Customize 0~400 | |||||||||
Elevator function | Manual lifting of screw rod | Sliding lifting+manual lifting | |||||||||
Rotating power | 40(w) | 40(w) | 60(w) | 40(w) | |||||||
Heating power | 1.0 (kw) | 1.5 (kw) | 1.5 (kw) | 1.5 (kw) | |||||||
Power Supply | 220V/50HZ/60HZ | ||||||||||
Condensation area | 0.14(㎡) | 0.2(㎡) | 0.25(㎡) | 0.15(㎡) | |||||||
Size of wate bath pan | 6L | 8L | 10L | 6L | |||||||
Overall dimension (cm) | 64*32*88 | 84*36*106 | 84*36*106 | 57*38*88 | 58*40*88 | 65*41*84 | |||||
Model | RE-1002 | RE-2002 | RE-5002 | R-1010 | R-1020 | R-1050 | |||||
Rotating bottle (L) | 10 F125MM | 20 F125MM | 50 F125MM | 10 F125MM | 20 F125MM | 50 F125MM | |||||
Collection bottle | 5L | 10L | 20L | 5L | 10L | 20L | |||||
Speed regulation | 0~120 (rpm) | 10~180 | 0~120 | 20~120 | 20~120 | 20~110 | |||||
Evaporation capacity (L/H) | Water: 3.2 ethanol: 8.6 | water: 5.0 ethanol: 14.3 | water: 9.0 ethanol: 14.5 | water: 3.2 ethanol: 8.6 | water: 5.0 ethanol: 14.3 | water: 9.0 ethanol: 14.5 | |||||
Vacuum degree can be reached | <133pa(1.33mbar, Itorr) | ||||||||||
Temperature range (℃) | Room temperature~99 (200) ± 1 | 0-199 (0-400 customizable) | |||||||||
Elevator function | Manual lifting of screw rod | Electric lifting | Electric lifting | ||||||||
Rotating power | 200(w) | 60(w) | 40(w) | 250(w) | 40 | 60(w) | |||||
Heating power | 3.0 (kw) | 1.5 (kw) | 6.0/9.0(kw) | 3.0(kw) | 5.0(kw) | 6.0/9.0(kw) | |||||
Power Supply | 220V/50HZ/60HZ | 380V/50HZ | |||||||||
Overall dimension | 122*51.5*162(cm) | 135*53.5*173(cm) | 145*65.5*188(cm) | 99*55*174(cm) | 112*74*190(cm) | 134.5*77*223(cm) | |||||
Product Description

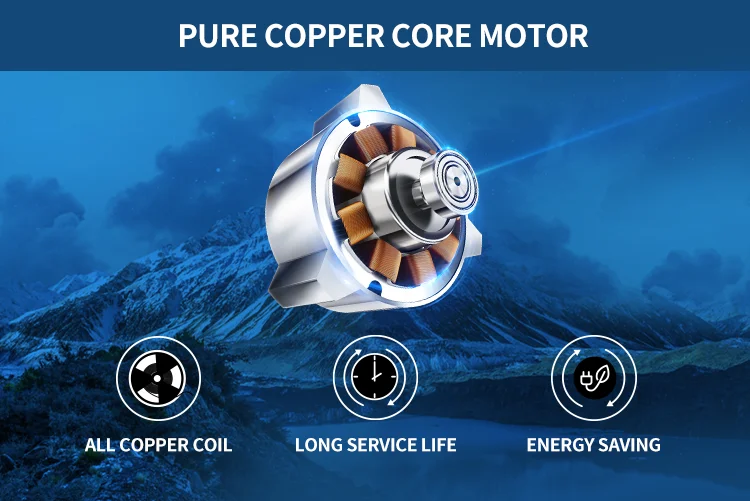

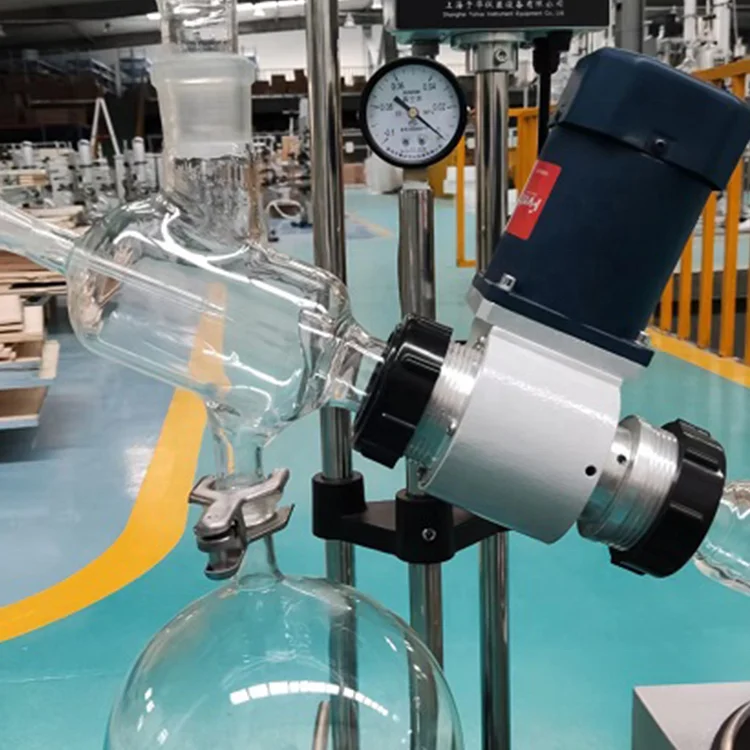

Pure copper core motor
All copper brushless variable-frequency speed regulating motor, no brush, no spark, low noise, safety, stability, long life, overload protection, constant speed, stable starting. Explosion proof motor is optional.

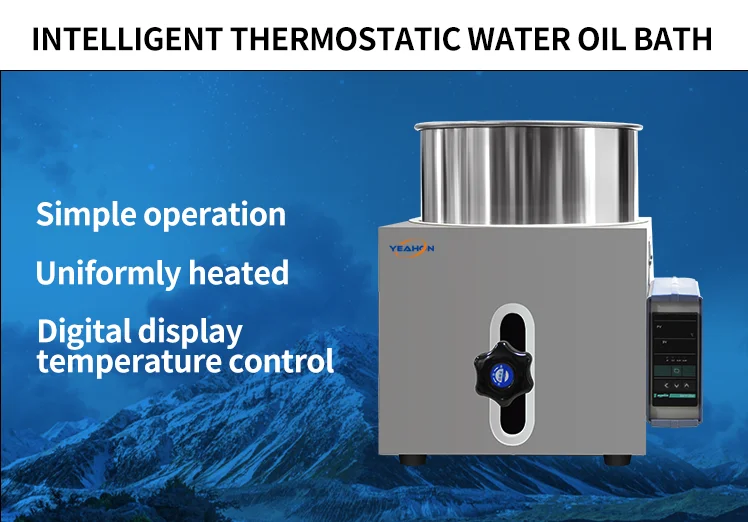

Thermostatic Water/Oil Bath
Thermostatic Water/Oil Bath is a water & oil bath specially used for RE series rotary evaporator that manufactured by our company. It can heat up the heat-sensitive materials under precise constant temperature conditions to achieve a desired result. It’s placed under the rotary flask, the flask can be immersed in water/oil for 1/3~1/2 liquid level by manually lifting and dropping the bath. This instrument can be used in other occasions that constant temperature is required. The instrument adopts stainless steel liner, stainless steel heating ring, built-in electronic temperature sensor and digital temperature control, which is convenient, safe and reliable.

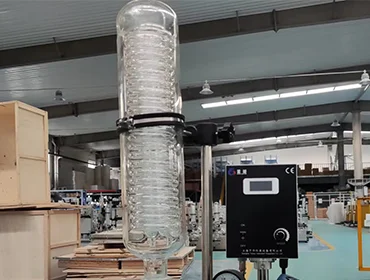

Serpentine coil condenser, excellent air tightness, high vapor condensation efficiency.

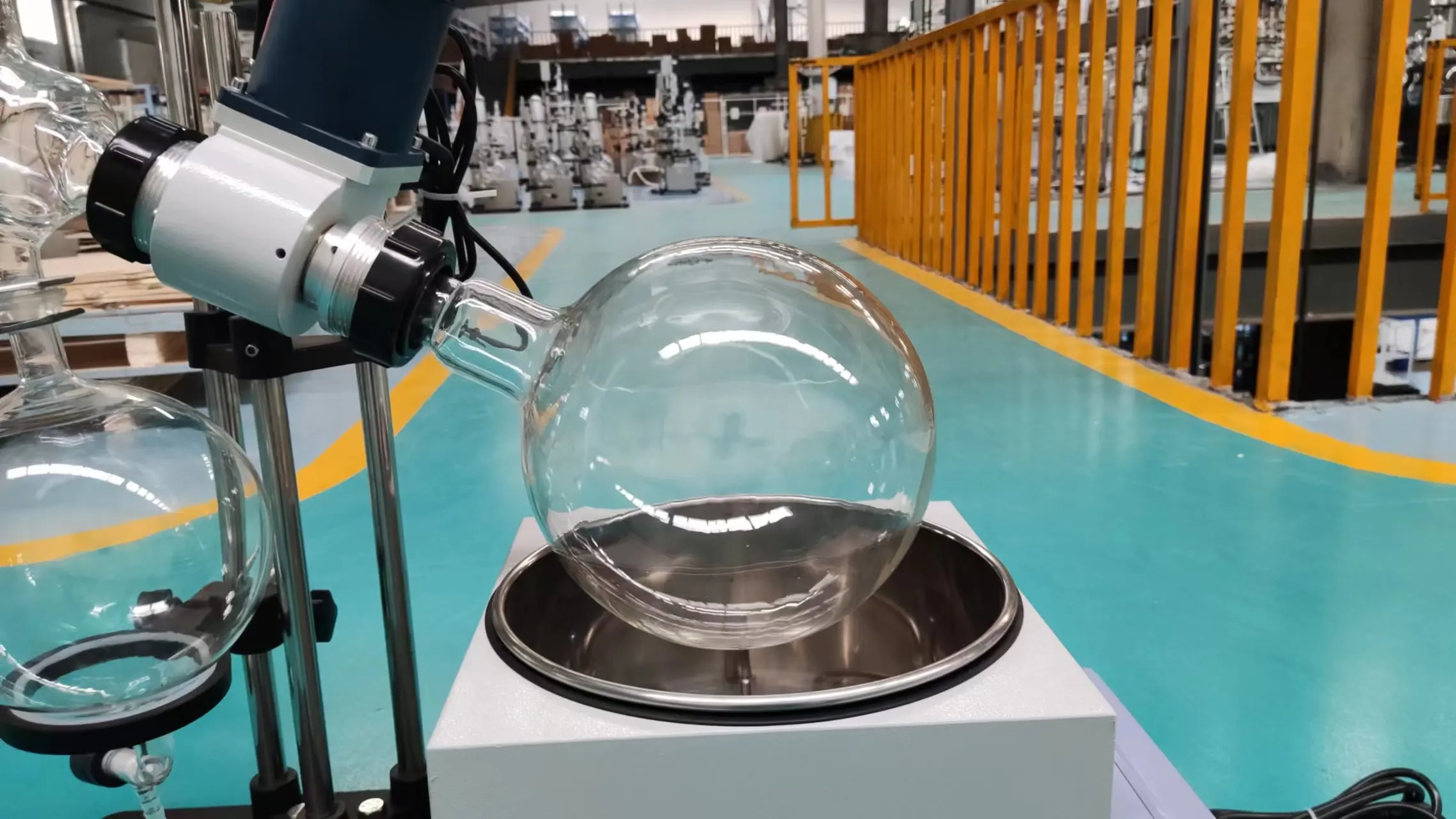

Rotating reaction bottle
High borosilicate glass, high temperature resistance, corrosion resistance, low expansion rate.

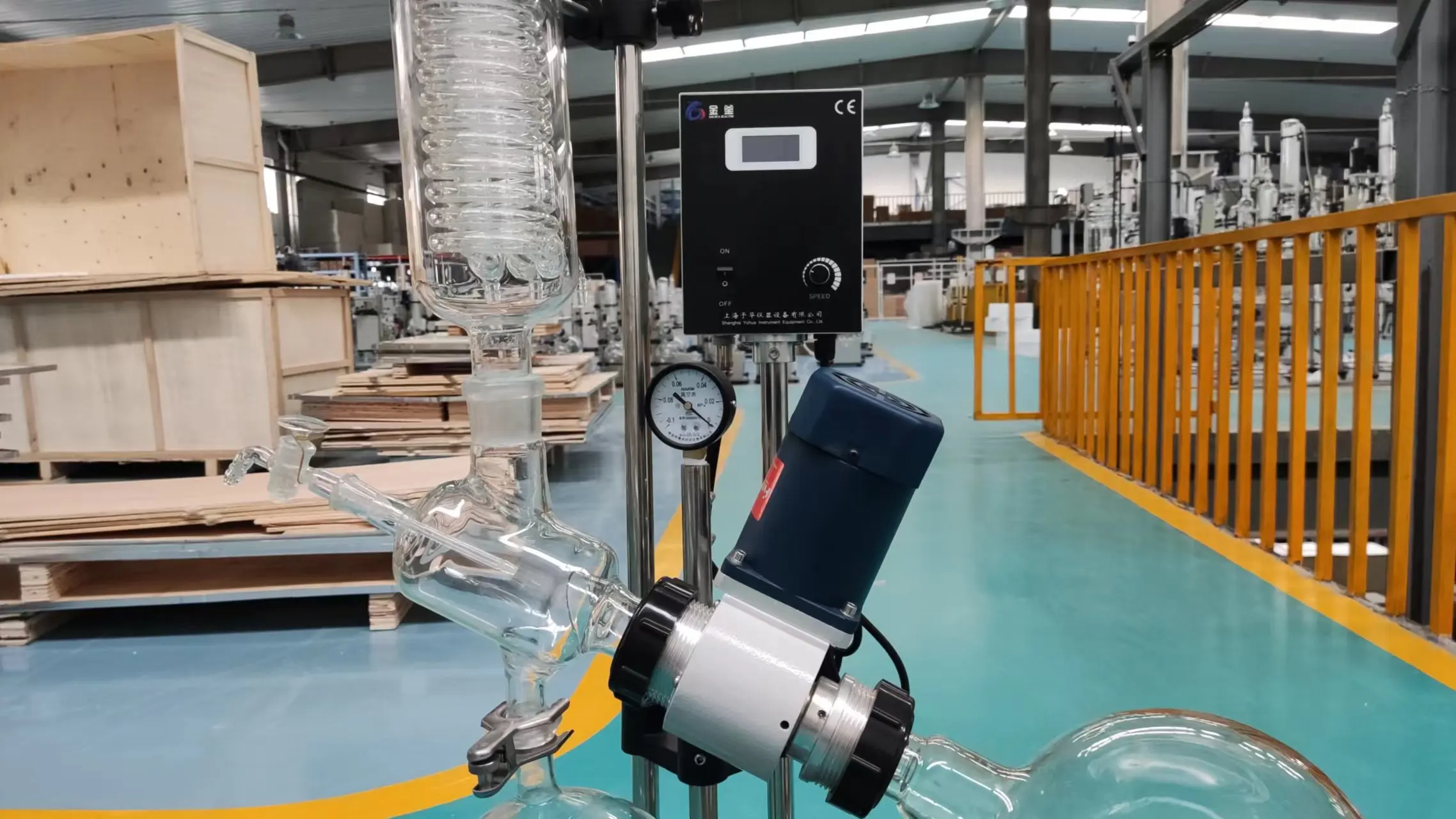

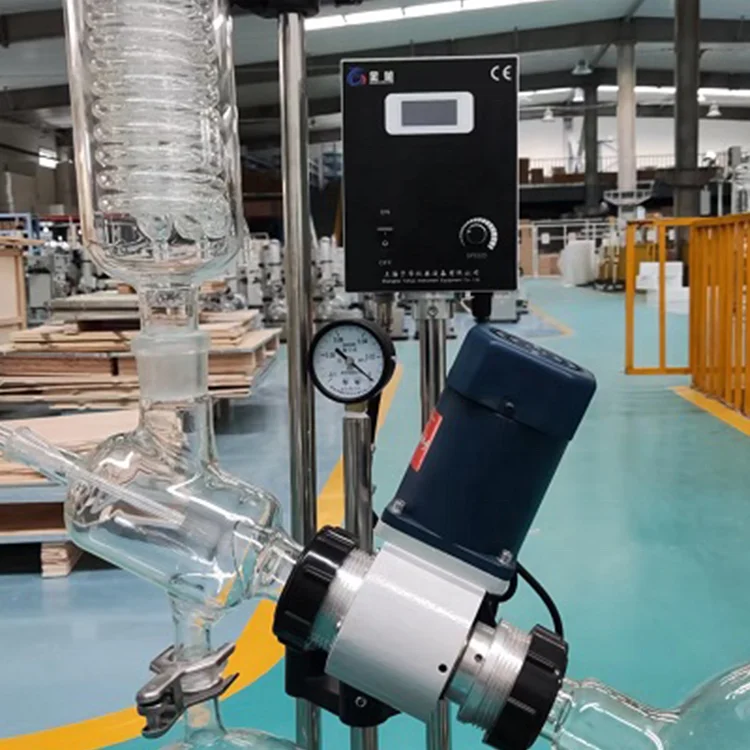

Digital display frequency controller
The motor is equipped with a frequency controller, so the rotation speed can be regulated through the speed regulating knob easily. Also the rotation speed and temperature are digital displayed in the controller.

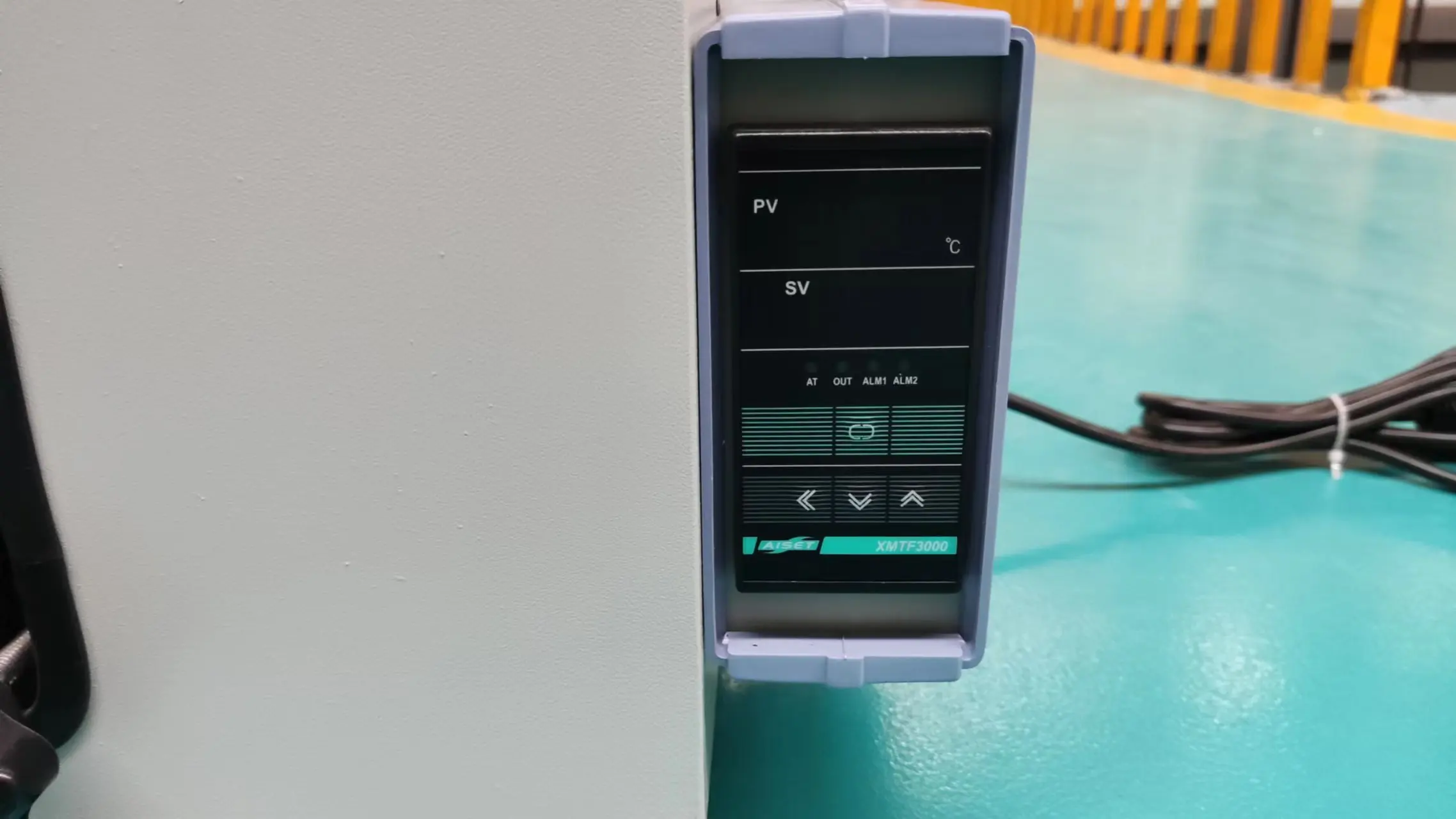

PID temperature control
Intelligent temperature control digital display, water (oil) temperature control & display intuitive.

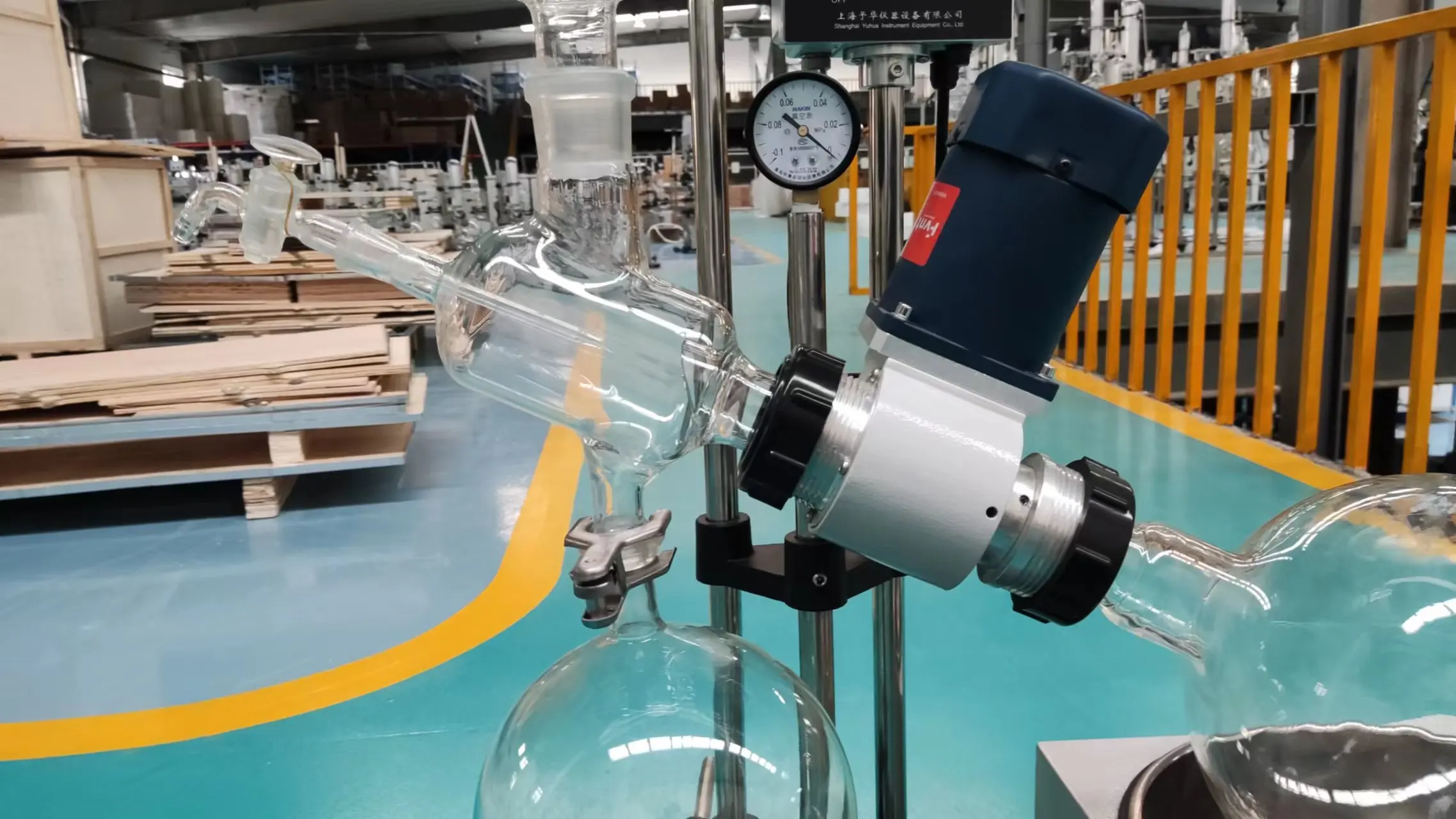

Vacuum gauge clearly shows the accurate vacuum degree.

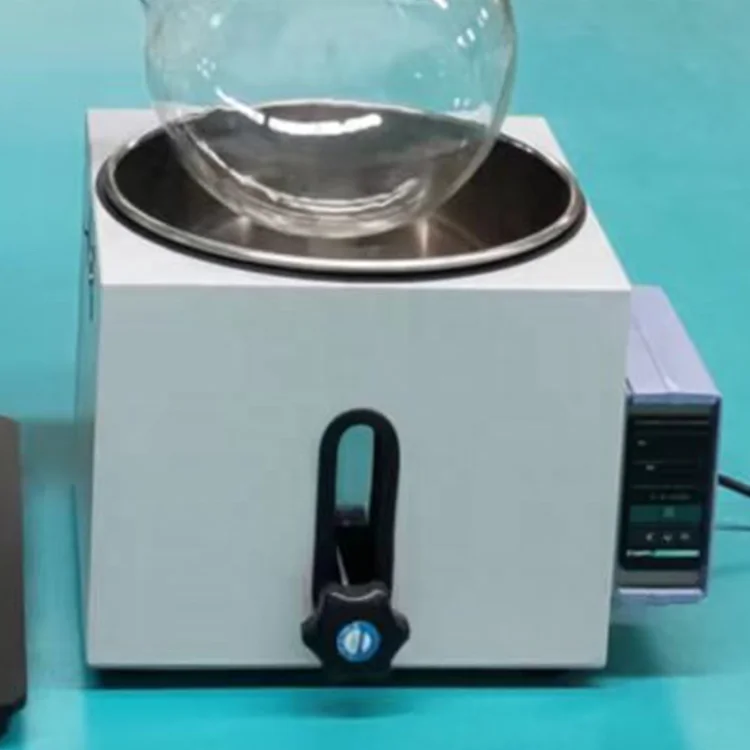

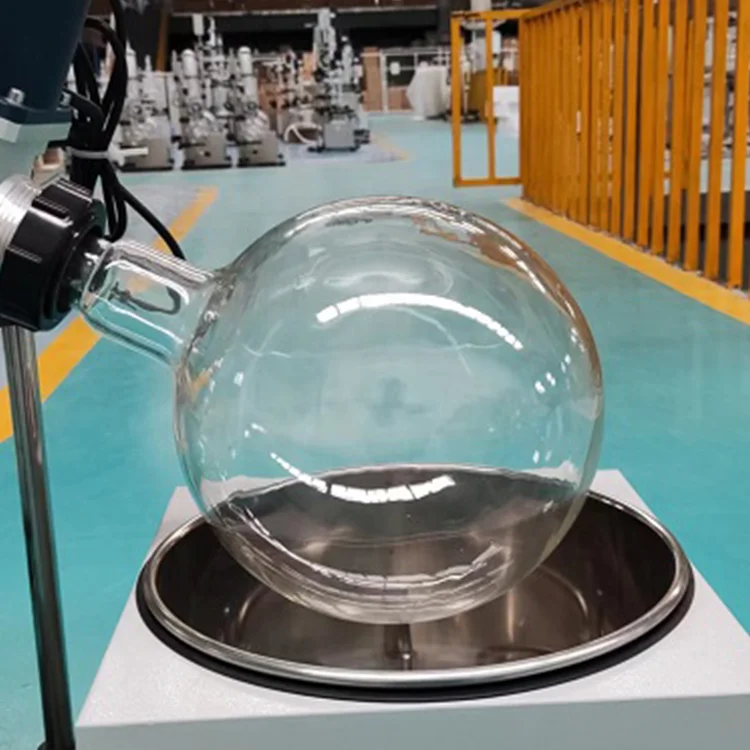

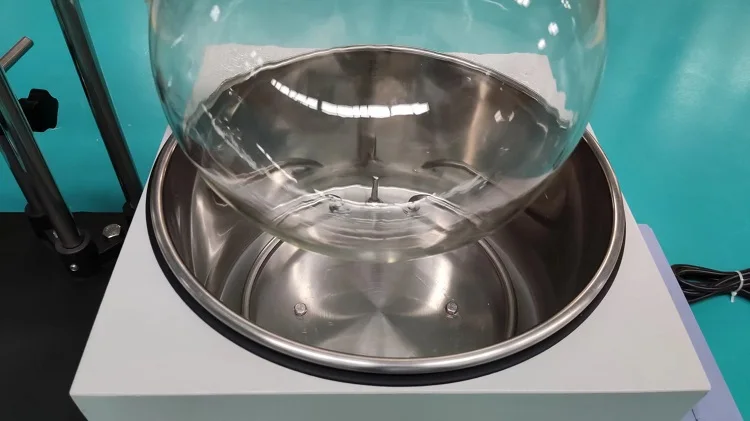

Water/oil bath
SS304 material heating water/oil bath, manual lift, easy to use.

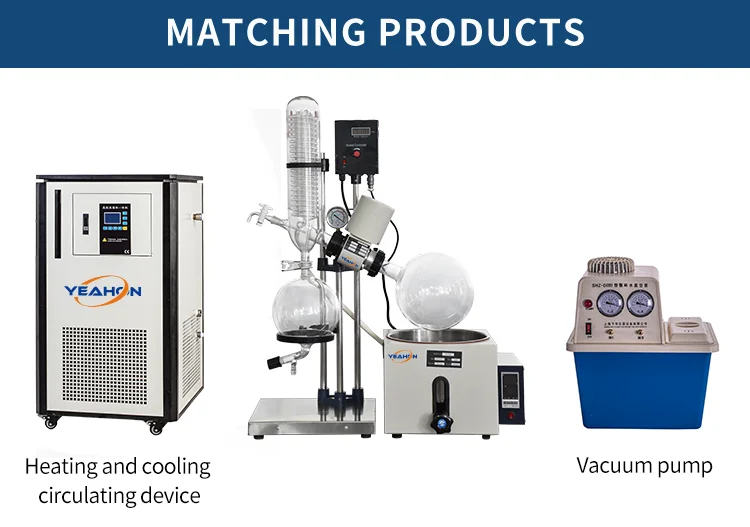

Matching products
Other styles
We are direct manufacturer, many kinds of rotary evaporators are provided. The rotary evaporator can also be customized according to customer requirements. Feel free to contact us to get more information.
