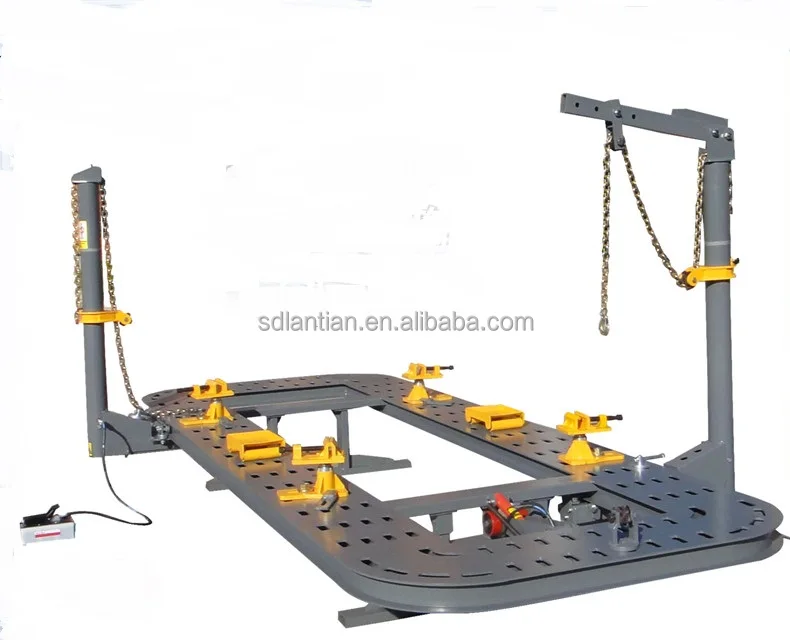

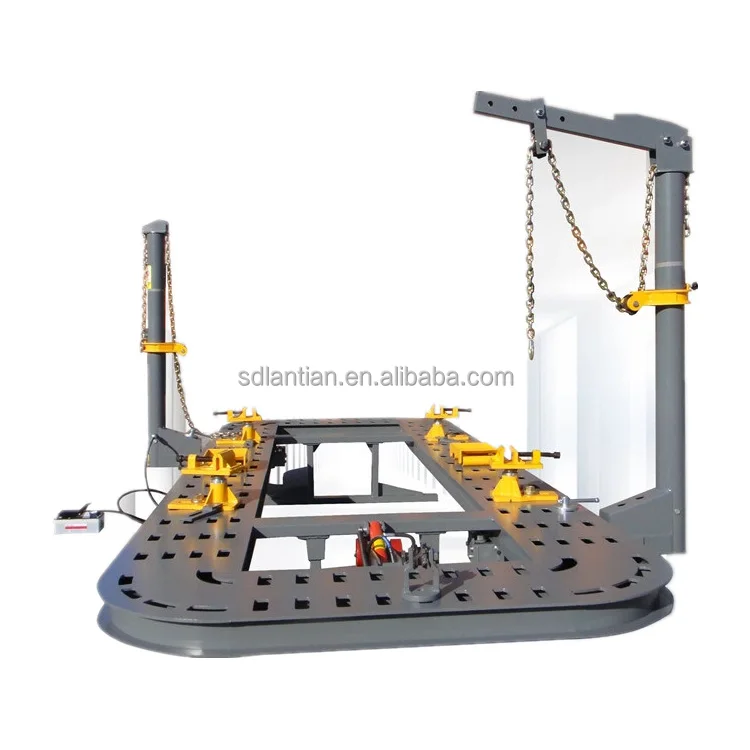

Auto Body Repair Car Measuring System Car Straightening Frame Straightening Frame Machine
- Category: >>>
- Supplier: Shandong Lantian Huaer Environmental Protection Equipment Co. Ltd.
Share on (1600522652691):
Product Overview
Description
Product Description
Factory Direct Sale Hot Selling
Cheap Auto Body Car Frame Machine
Specification
Working length | 5600MM | 5800MM | 6100MM | ||||||||
Working width | 2200MM | 2200MM | 2200MM | ||||||||
Working height | 560MM | 560MM | 560MM | ||||||||
Max. load | 3500KG | 3500KG | 3500KG | ||||||||
Max. pulling capacity | 95KN | 95KN | 95KN | ||||||||
Tower pulling range | 360° | 360° | 360° | ||||||||
Air source pressure | 0.8MPa | 0.8MPa | 0.8MPa | ||||||||
Max hydraulic working pressure | 70MPa(10000psi) | 70MPa(10000psi) | 70MPa(10000psi) | ||||||||
Features
No notice for changed physical object ang parameters,etc.
1. The platform is Manganese plate with its panel formed by the large-scale CNC cutting machine from a single cut. The notch is smooth with no heat deformation.
2. All parts are treated with shot blasting to eliminate welding stress and increase surface strength, which improves the painting adhesion.
3. The towers are 360°movable,freely and flexibly,the cylinder works vertically without any components forces consumption,powerful and accurate tensile force.
4. Hydraulic system with good design is powerful and gives it a long useful life and low failture rate.
5. Portable measuring system is easier for workers,3D mechanical measuring system optional.
6. High quality chain (T8) and forged sheet metal tools (45#) are easy and convenient to operate with long service life.
7. Strength needed parts like tower guiding ring, main clamp support and tower rear coverplate adopt inblock cast to ensure high strength and deformation resistance.
8. The principal clamp can fix position and clamp the cars rapidly,accurately and firmly. Many clamps such as ABB optional.
9. Appropriate for operating maintenance of medium or small cars.
1. The platform is Manganese plate with its panel formed by the large-scale CNC cutting machine from a single cut. The notch is smooth with no heat deformation.
2. All parts are treated with shot blasting to eliminate welding stress and increase surface strength, which improves the painting adhesion.
3. The towers are 360°movable,freely and flexibly,the cylinder works vertically without any components forces consumption,powerful and accurate tensile force.
4. Hydraulic system with good design is powerful and gives it a long useful life and low failture rate.
5. Portable measuring system is easier for workers,3D mechanical measuring system optional.
6. High quality chain (T8) and forged sheet metal tools (45#) are easy and convenient to operate with long service life.
7. Strength needed parts like tower guiding ring, main clamp support and tower rear coverplate adopt inblock cast to ensure high strength and deformation resistance.
8. The principal clamp can fix position and clamp the cars rapidly,accurately and firmly. Many clamps such as ABB optional.
9. Appropriate for operating maintenance of medium or small cars.
Details Images

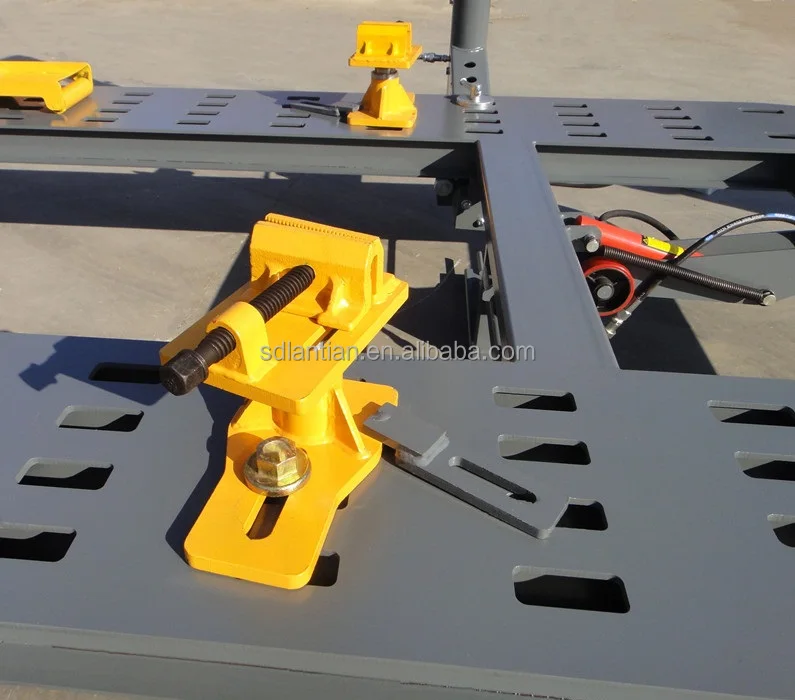

Universal Clamps
Multi-tooth vise jaws to fix the body more firmly 45# steel lathe machining screw, strong clamping force of tiger clamp Vise
auxiliary platen design Spiral height adjustment structure Removable movable base
auxiliary platen design Spiral height adjustment structure Removable movable base

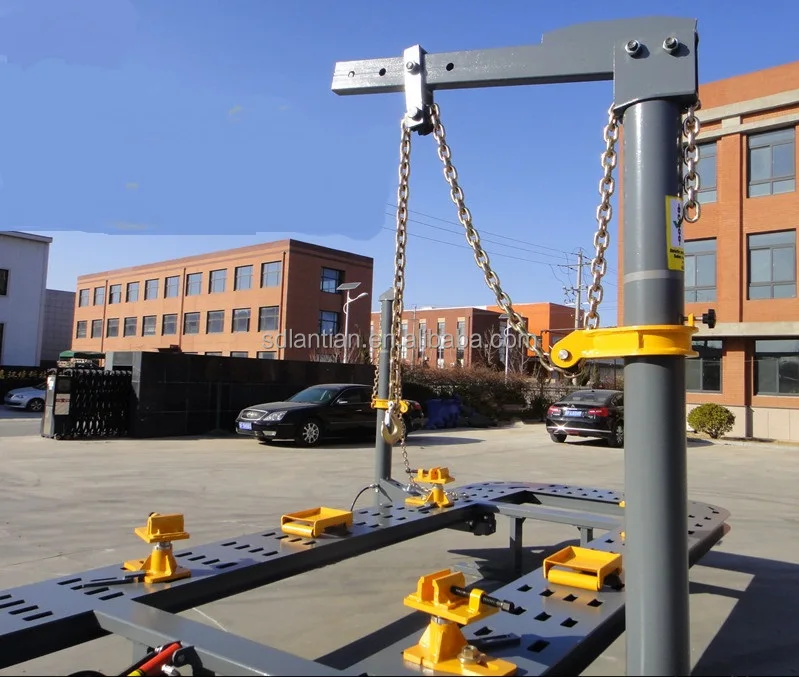

Pulling tower
Pulling tower adds two load-bearing wheels, making it more sturdy and stable 360° rotation of double pull tower, made of national
standard seamless steel tubeThe load-bearing capacity of the pull tower is large, the diameter is increased by 65mm, and the width
is increased by 25mm, height can be raised for free.
standard seamless steel tubeThe load-bearing capacity of the pull tower is large, the diameter is increased by 65mm, and the width
is increased by 25mm, height can be raised for free.
Packing & Delivery
5600mm frame straightening machine packing,
Two Packages
Packing size: 5650x2150x300mm,1600kg
2200x1300x400mm,450kg
4.78CBM, 2050KGS
Packing size: 5650x2150x300mm,1600kg
2200x1300x400mm,450kg
4.78CBM, 2050KGS
Customer Feedback
Company Profile
Shandong Lantian Huaer Environmental Protection Equipment Co.,Ltd is professional auto maintenance & repairing equipment manufacture since 2000 with brand “BLUESKY”, in Chinese Lantian means Bluesky.
Our factory covers an area of more than 2,500 squares metters and with our up today manufacturing facilities, high-tech
industrial, product developing manufacturing sales and perfect after-service with total capital of more than ten millions, For many years our copany have been awarded as”Enterprise with high reputation” ”Enterpris with high credit in quality” and “China national grade AAA enterprise” ....etc. Besides, we have passed ISO9001, authenticated by 2000 international quality control system.
industrial, product developing manufacturing sales and perfect after-service with total capital of more than ten millions, For many years our copany have been awarded as”Enterprise with high reputation” ”Enterpris with high credit in quality” and “China national grade AAA enterprise” ....etc. Besides, we have passed ISO9001, authenticated by 2000 international quality control system.
We are mainly dealing BLUESKY products development, center of auto body repair machines like Spray Booth/ Powder Coating Line/ Curing Oven/ Auto Sheet Metal Spray Line/ Car Bench/ Car Lift/ Tire Changer/ Wheel Balancer/ Wheel Aligner/ Others. As well as OEM/ODM manufacturing for Europe and North America brands.... All the product have been exported to worldwide(Europe, North&South America, Africa, Australia, Middle East, Asia as well as market in China).
Recommend Products
FAQ
1, Are you manufacturer or trading company?
We have been in producing auto repair equipments for more than 10 years.
2, What other machines do you have?
Otherwise car bench, we also have car spray booth, tire changer, lift, etc.
3, Can I make my own color and logo?
Yes, Color, size, logo and voltage accept customize as customers’ requirement.
3, How can i install it?
We have operation and install manuals delivered with the goods, customers can install by themselvers, we also can supply online guide.
4, How about the shipping?
If you order with spray booth, the car bench can be packed together in one 20’GP container, FCL.
If order seperately, kindly tell us your nearest sea port, we would check the shipping freight for you. Shipping by sea, LCL.
We have been in producing auto repair equipments for more than 10 years.
2, What other machines do you have?
Otherwise car bench, we also have car spray booth, tire changer, lift, etc.
3, Can I make my own color and logo?
Yes, Color, size, logo and voltage accept customize as customers’ requirement.
3, How can i install it?
We have operation and install manuals delivered with the goods, customers can install by themselvers, we also can supply online guide.
4, How about the shipping?
If you order with spray booth, the car bench can be packed together in one 20’GP container, FCL.
If order seperately, kindly tell us your nearest sea port, we would check the shipping freight for you. Shipping by sea, LCL.
