Guide TN450 laser rangefinder for hunting infrared thermal binoculars handheld thermal imaging binoculars
- Category: Night Vision >>>
- Supplier: Yiwu,Runxing,Trade,Co.,Ltd.
Share on:
Product Overview
Description
Why Choose Us
We have licenses for many brands
We can help you save time, quickly understand each product, provide you with better prices, better quality and faster delivery, and we also support customized services.
Professional team
We have a professional service team that understands every product and delivery process very well, and can provide you with a complete set of services from sales to delivery and after-sales. We will serve you wholeheartedly and cherish cooperation with you.
Original guarantee
Our products are all brand new and authentic, you don't need to worry about the quality of the product, it will be inspected at least three times before shipment to ensure that there will be no problems after you receive it
Product parameters
Model | TN450 | |||||
Infrared Detector | ||||||
Detector type | VOx | |||||
Detector resolution and pitch | 400 × 300, 17 μm | |||||
Spectral range | 8 to 14 μm | |||||
NETD | ≤30mk @ F1 25℃ | |||||
Lens | ||||||
Focal length | 50 mm; F1.2 | |||||
Focus | Manual | |||||
Field of view | 7.78° × 5.84° | |||||
Frame Rate | ||||||
Output frame frequenc | 50 Hz | |||||
Zoom | ||||||
Optical zoom | 3.2x | |||||
Digital zoom | 1 – 4x | |||||
Visual effect | It's like viewing at a 22’‘ screen at 1 meter | |||||
Power | ||||||
Battery type | 2 replaceable 18650 batteries (65mm) | |||||
Battery life | ≥ 5.5 hours at 25 ℃ | |||||
Interface | ||||||
USB | Type C (USB 2.0 standard), supporting power supply and data access | |||||
Video interface | micro HDMI | |||||
External expansion | External display and Bluetooth remote control | |||||
Mechanical interface | appendix | |||||
Display screen | ||||||
Display screen | OLED, 0.39’’ × 2 | |||||
Resolution ratio1 | 1024*768 | |||||
Eyepiece | Monocular, exit pupil distance ≥16mm, adjustable diopter -4~＋2 | |||||
Video output system | HDMI | |||||
Button | ||||||
Button functi | Power / Up / Menu / Down / Photo / Video / Ranging | |||||
Functions | ||||||
Smooth zoom | Available | |||||
Screen brightness adjustment | 10 levels | |||||
Detector brightness adjustment | 10 levels | |||||
Detector contrast adjustment | 10 levels | |||||
Image enhancement | Available | |||||
Scene modes | Enhanced, Highlight and Natural | |||||
Image capturing | Available | |||||
Video recording | Available | |||||
WIFI | Transmission of real-time video via WiFi for remote control in the 2.4G frequency band and within 15 meters | |||||
Color palettes | Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot | |||||
Hot spot tracking | Available | |||||
Working indicator | On/Off | |||||
Compensation modes | Automatic, shutter and scene compensation | |||||
Rough ranging | Available | |||||
Automatic shutdown | Closed, 15, 30 or 60 mins | |||||
Automatic sleep | Closed, 5, 10, or 15 mins | |||||
Language settings | Chinese / English / Russian / German / French | |||||
System | ||||||
Time setting | Available | |||||
Watermark settings | Closed, setting of date or date and location | |||||
PIP | Upper left, Upper middle, Upper right, Closed | |||||
Restore to default | Available | |||||
Start up | 2 s | |||||
Memory capacity | 16 GB | |||||
Environmental parameters | ||||||
Working temperature | -30℃~50℃ | |||||
Storage temperature | -40℃~60℃ | |||||
Humidity | 10%~95%, non-condensing | |||||
Impact | 30G/1ms semi-sinosoidal IEC60068-2-27 | |||||
Vibration | 10Hz~150Hz~10Hz 0.15mm as per IEC60068-2-6 | |||||
Drop | 1m | |||||
Encapsulation | IP66 | |||||
Certificati | IP66/FCC/CE/Rohs/EAC/un38.3 | |||||
Physical parameters | ||||||
Weight | ≤880g | |||||
Size | ≤162*146*70mm | |||||
Standard | Equipped with a power adapter (compliance with FCC, CE, EAC, ROHS, etc.), a Type C cable, a micro HDMI, a lens cover;a shoulder strap, 2 * detachable light-blocking eye masks, a carrying bag, 2 * 18650 batteries (UN38.3), a Quick User Guide | |||||
Optional | Bluetooth remote control | |||||
Product Features

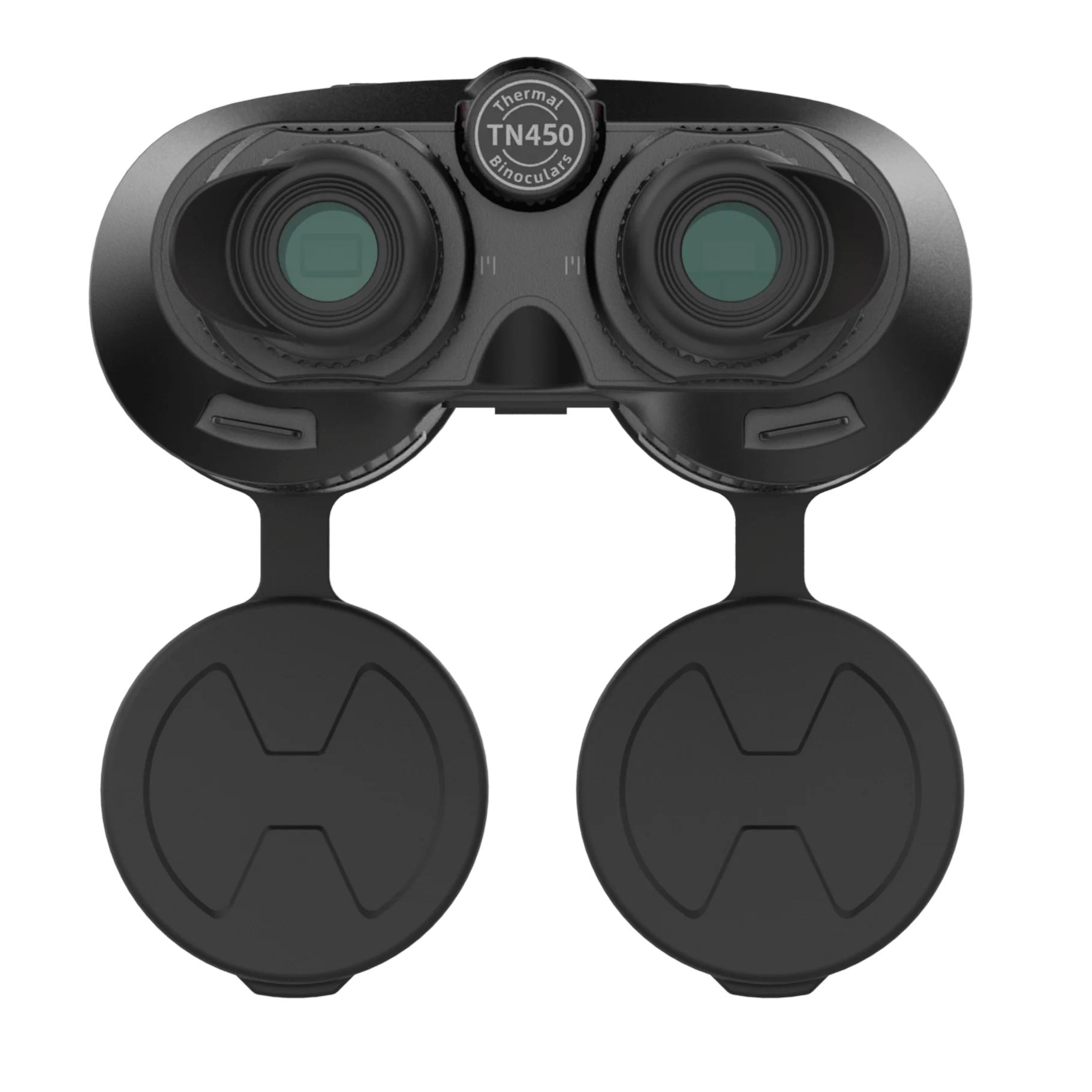

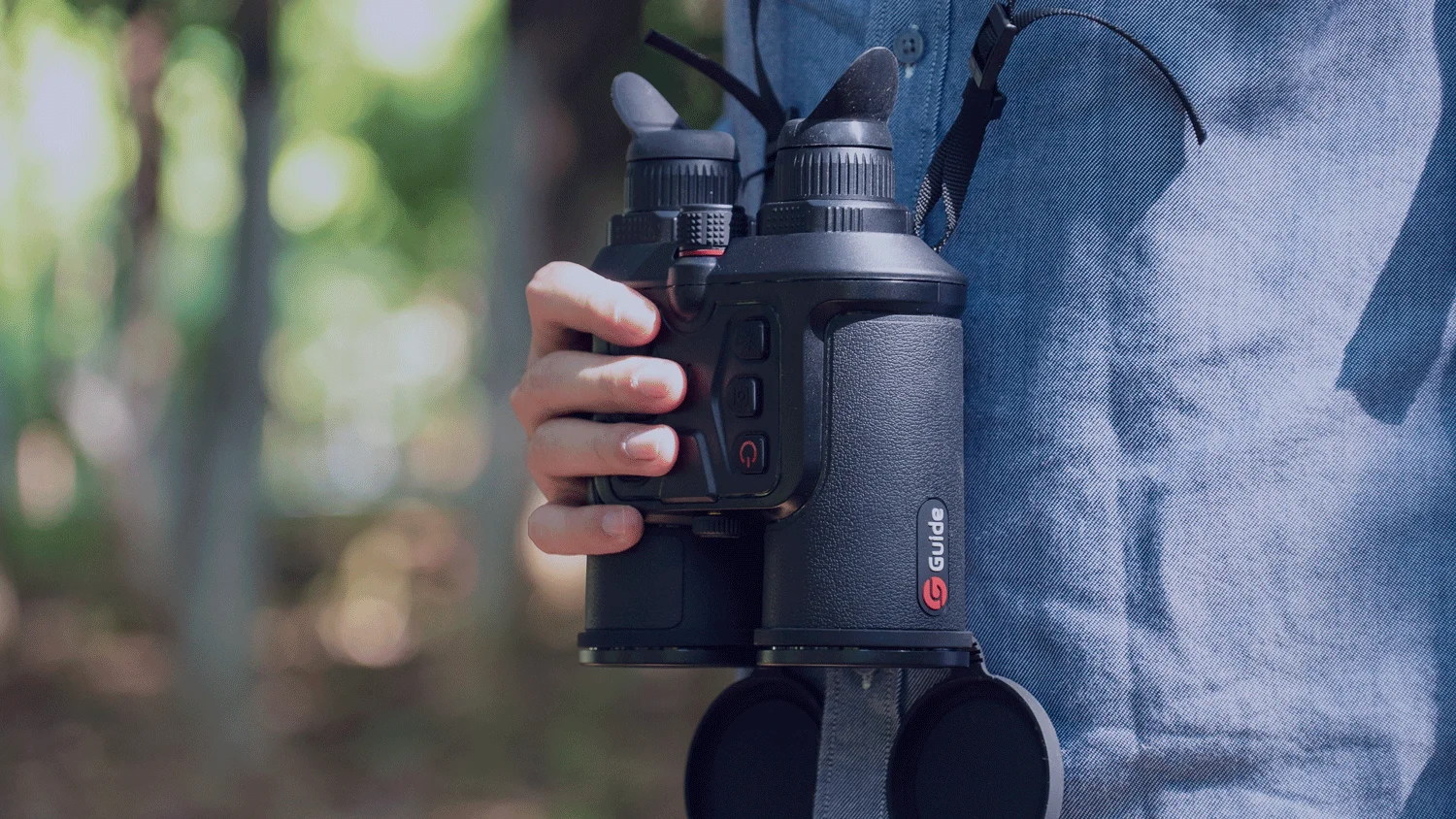

★Ergonomic design Easy observation
★High Quality Imaging In Day and Night
★Well-designed PIP mode, highlighting the target
★Photo and Video Recording
★Quick location，All new experience
★Full-color OLED display
★Smooth Zoom For Flexible Searching
★IP66, 1-meter Drop test
★Full-color OLED display
★Smooth Zoom For Flexible Searching
★IP66, 1-meter Drop test
product description

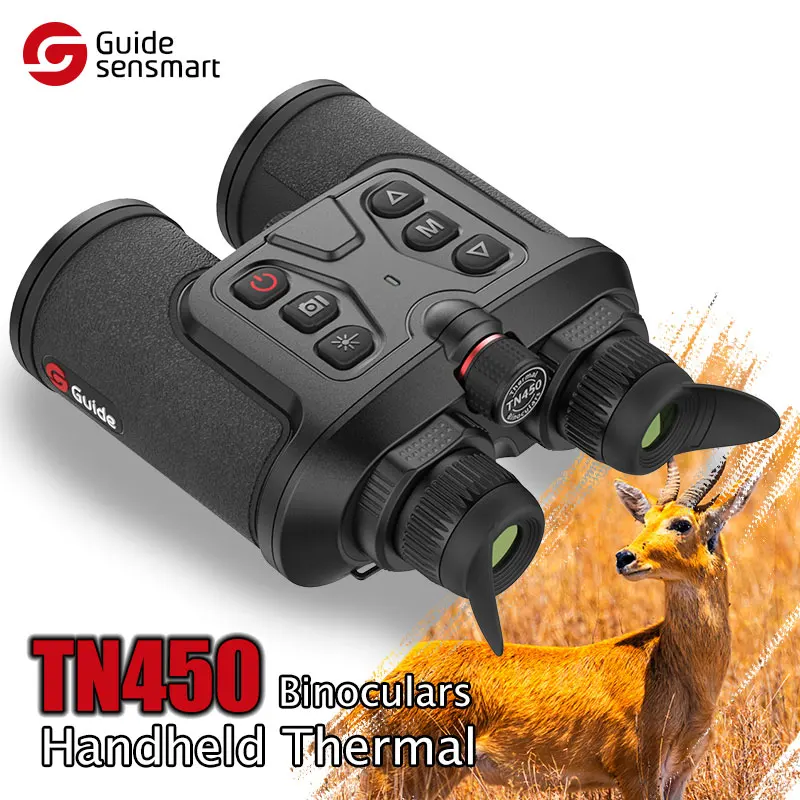

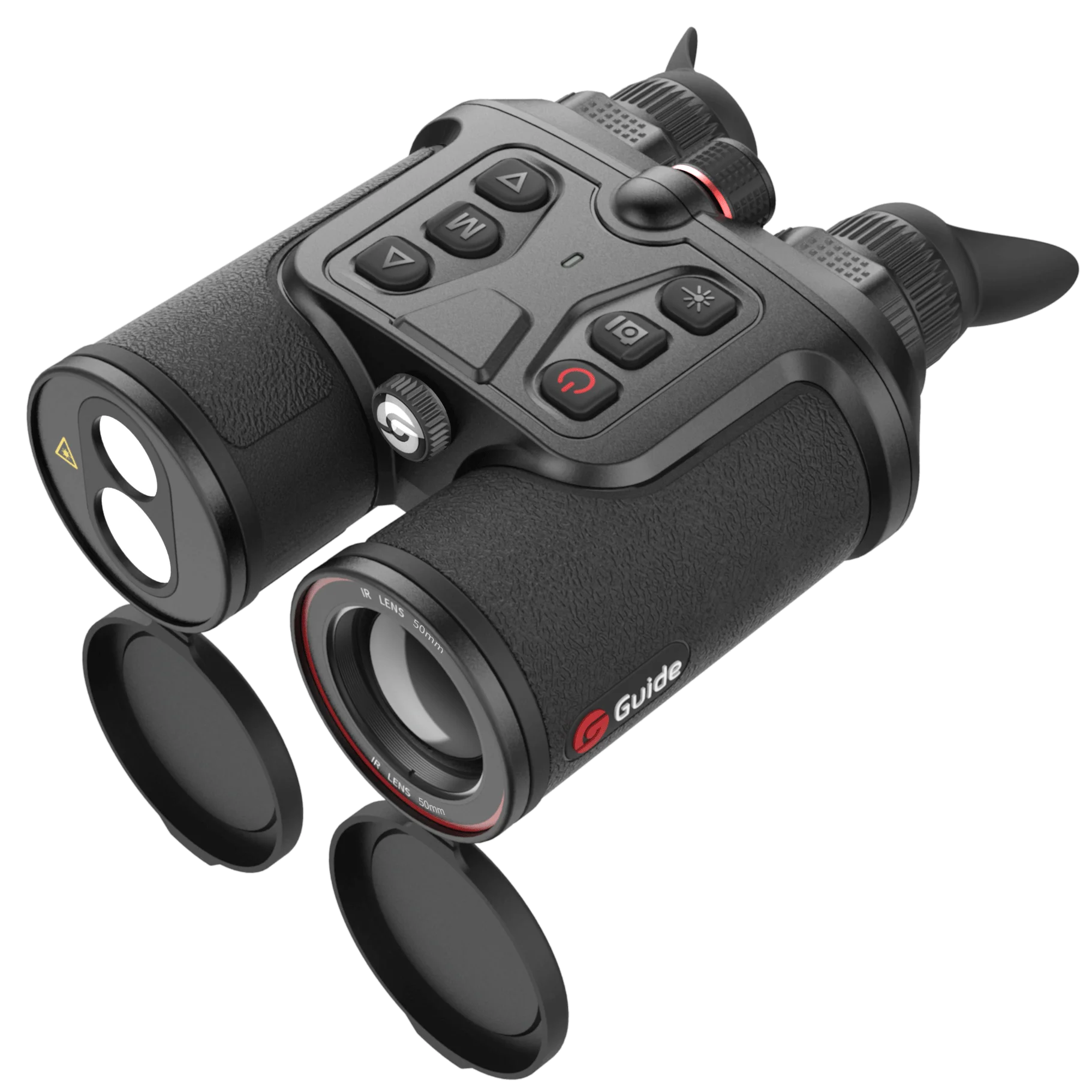

TN450 Handheld Thermal Binoculars
TN Normae Series follows classic binocular design, greatly reducing the fatigue feeling of long-time observation. It adopts high-sensitivity VOx uncooled IR detector, bring you high quality imaging and immersive observation experience with full color OLED 1024×768 high-definition display. A variety of functions to meet all your needs, such as taking photos, videos, WIFI, laser ranging, GPS, compass, etc.
High Quality Imaging In Day and Night
Up to 400× 300 VOx uncooled IR resolution and 50Hz image frame rate, ensure the observation of moving target smoothly. The picture is crisp and bright, quickly identifying animals, limbs and even the smallest details such as branches, leaves, grass and terrain.

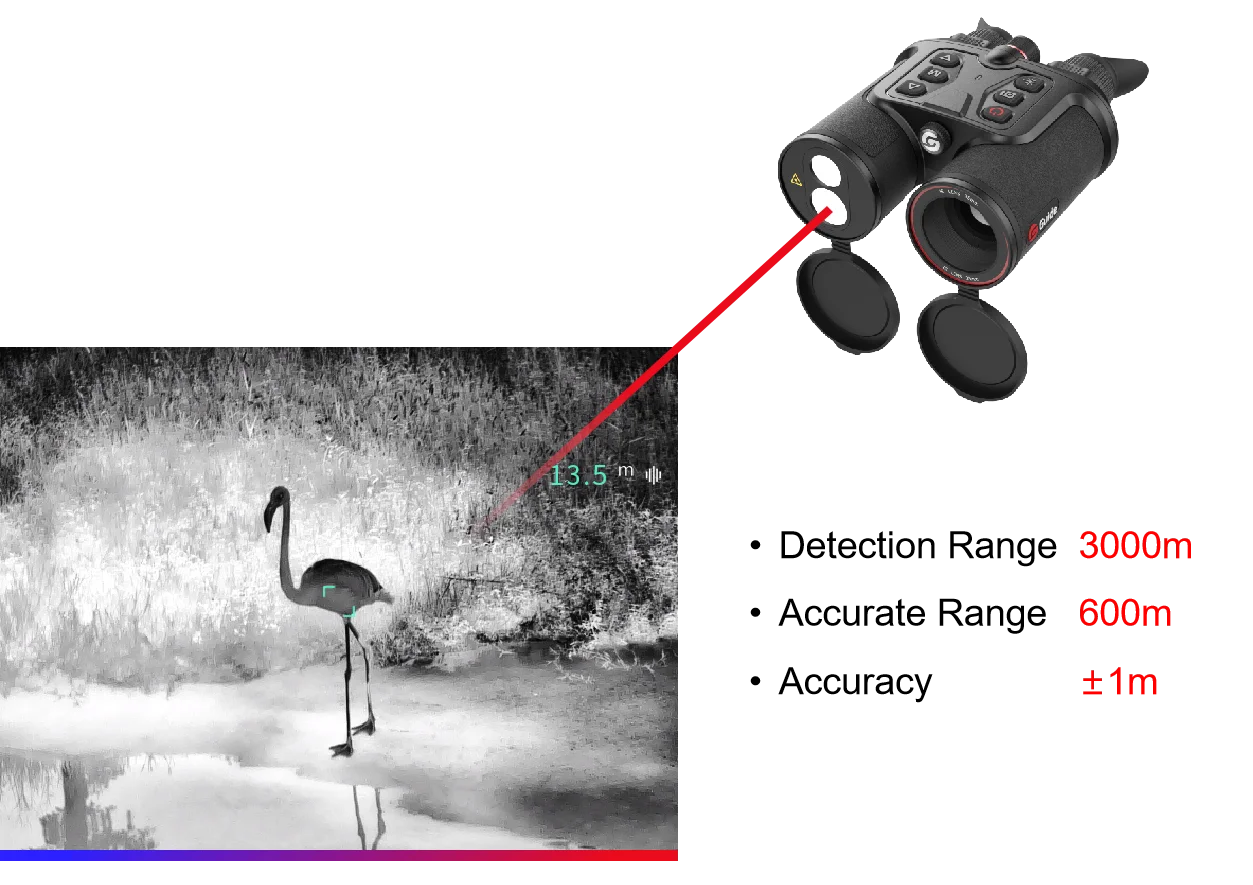

Fast ranging, built-in precision laser rangefinder
In a dark environment, knowing the target distance is an important factor for correct decision-making. Press the button to turn on the laser ranging function. The maximum range is 600m. Evaluate the target position by mistake, and enjoy the pleasure of locking with more scientific distance information blessing.
Full color high resolution OLED display
1024×768 full color OLED display with high contrast ratio and detailed image, can identify thermal details even in the worst weather, targets can be accurately detected during rain, fog, cold or other harsher thermal imaging conditions It greatly improves the human eye observation experience.

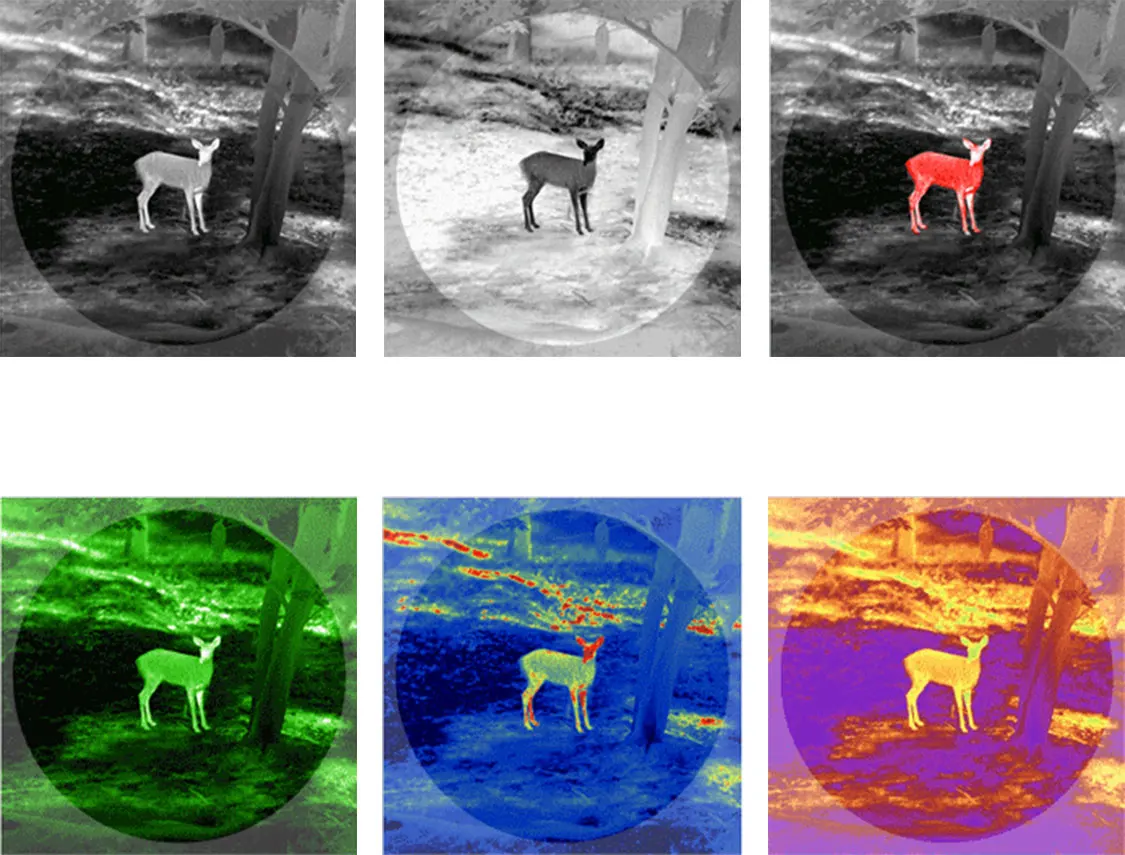

Multiple color palettes highlight goals
• User-selectable 6 color palettes allow users to observe their field of vision more efficiently and respond to changing viewing conditions. White heat and black heat are the best choices for object detection, and green heat and blue heat help increase the chances of identification and recognition. Red hot and iron red are best for extended viewing at night.
• Support one-key switching, instantly identify the target location, and realize all-weather observation.
• Support one-key switching, instantly identify the target location, and realize all-weather observation.
Well-designed picture-in-picture mode
In the picture-in-picture image mode, even in outdoor scenes with a large field of view, it can easily identify and accurately locate the position of the specified target, and supports three positions: upper left, upper middle, and upper right.

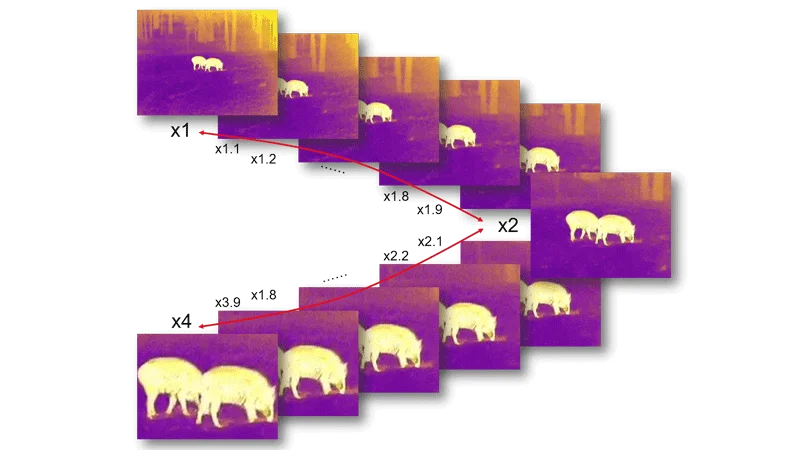

Smooth zoom, flexible search
Long press up/down buttons smoothly zoom in and out, 1х-4x variable magnification for a truly optimal, customized field of view for a specific situation, making searches more flexible and pinpointing targets faster.

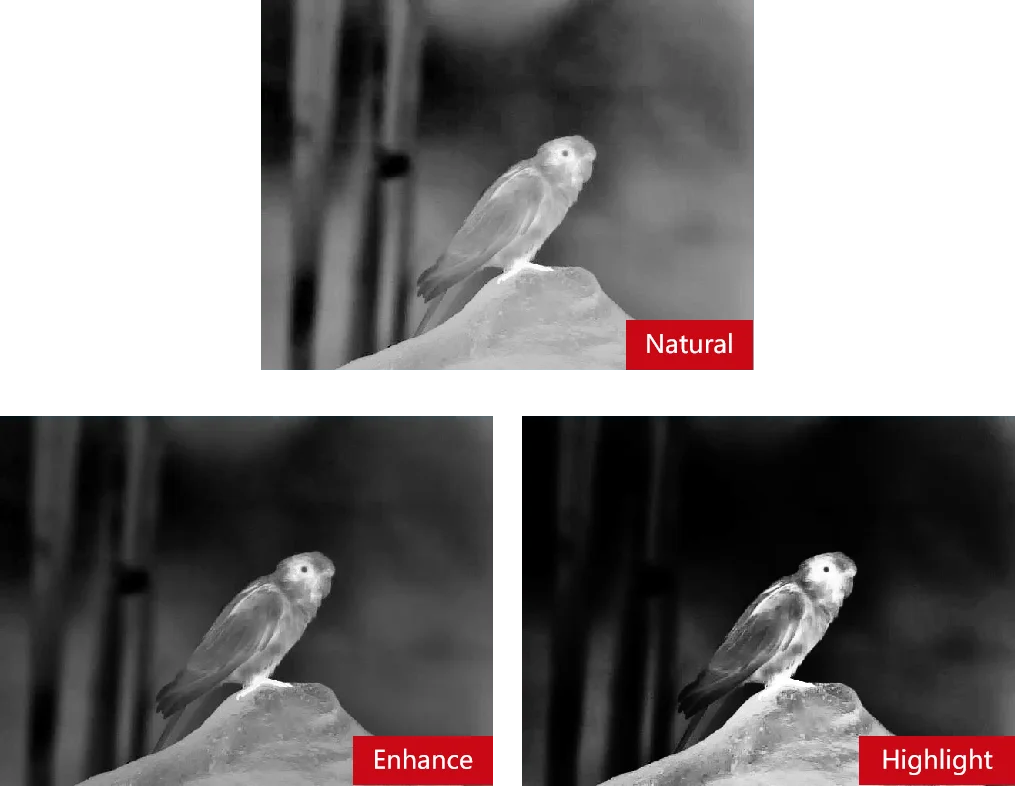

Multiple image modes highlight targets
"Enhanced/Highlight/Natural" three scene modes can be quickly switched with one key, and the screen image can be adaptively adjusted for different scenes. "Enhance/Highlight" two modes can effectively reduce image impurities, highlight objects in the background, clearly identify outlines and display small object details in the field of view (twigs, dead wood, wires) and areas with small temperature differences.
Photo and Video Recording

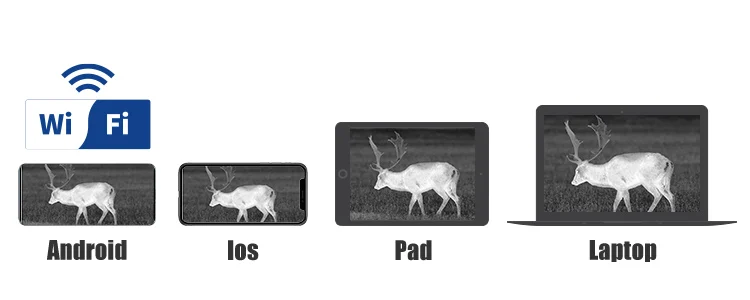

Support photos and videos, recording wonderful moments at any time. Realize remote control, live image and video transmission via WIFI connection, can share to your social media by APP.
IP66, 1-meter Drop test
With IP66 waterproof-rated for protection from heavy-rainfall, dust, and impact. Working temperature is -30°C~50°C ,suitable for all kinds of harsh weather. It also passed UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed.
Built-in Video Recorder and WiFi Connection
The monocular has 8 GB build-in memory to store the captured still images and video recording and WiFi module which allows 4 connections simultaneously.

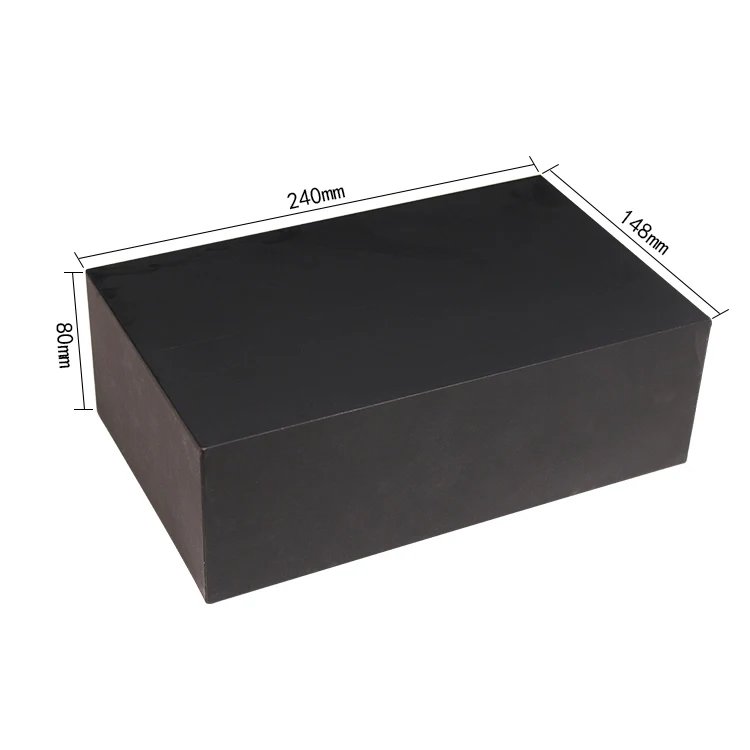

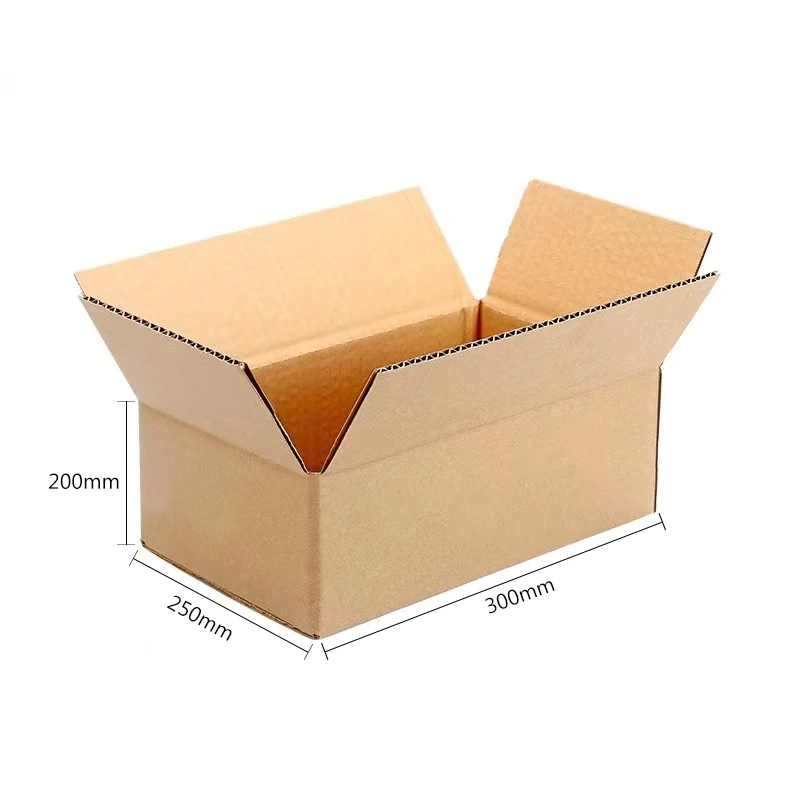

package
