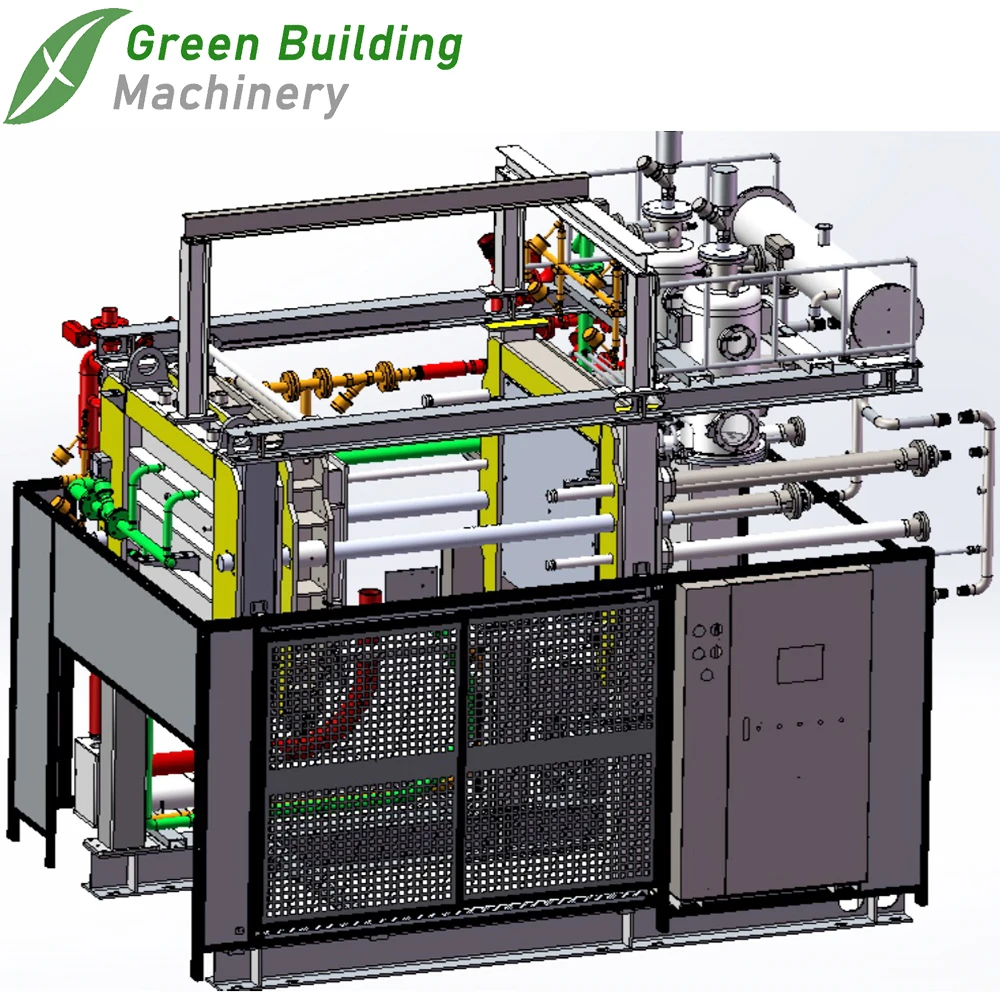

EPP moulding machine Expanded polypropylene (EPP)
- Category: >>>
- Supplier: Lanxi Green Building New Material Co. Ltd.
Share on (1600522688027):
Product Overview
Description
- EPS Pelletize Machine -
High speed compression, rapid melting
EPP production line
its\t Machine and type Qty Note：
1.Pressurized tank and storage tank
Single tank 1 set\tClient only require single tank . So the tank will be pressurized 8-12 hours, after that , you can use this material for the molding machine.
2\tControl system
PLC and touch screen Valve and gauge \t1 set Program and electrical Designed for 4 tanks control . valves and gauges only for one tank.

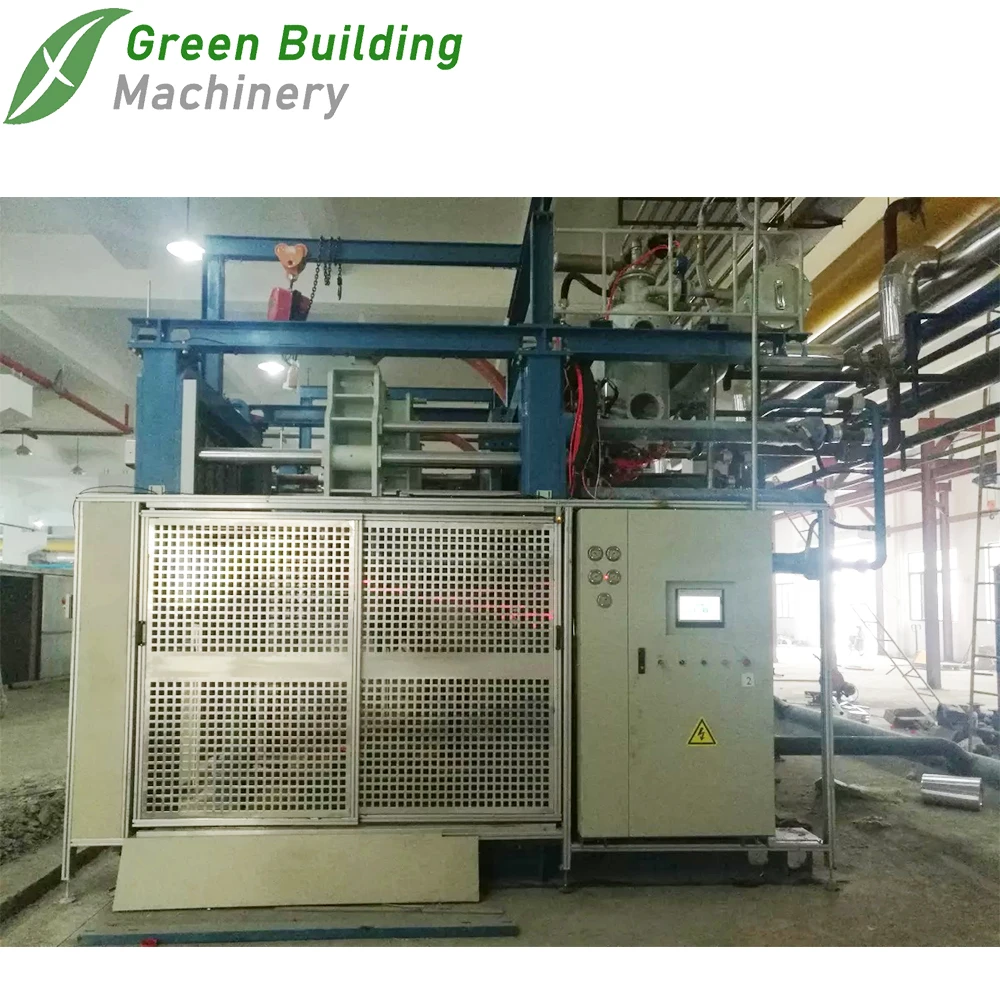

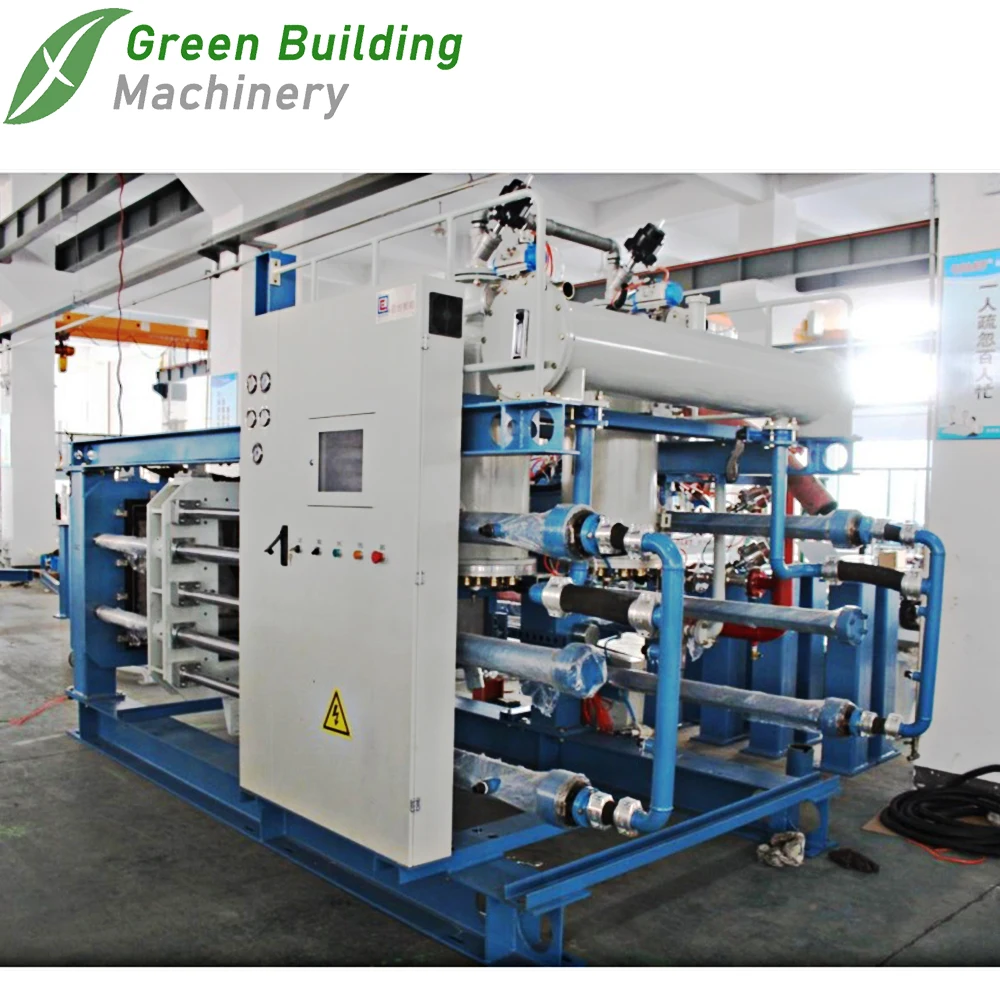

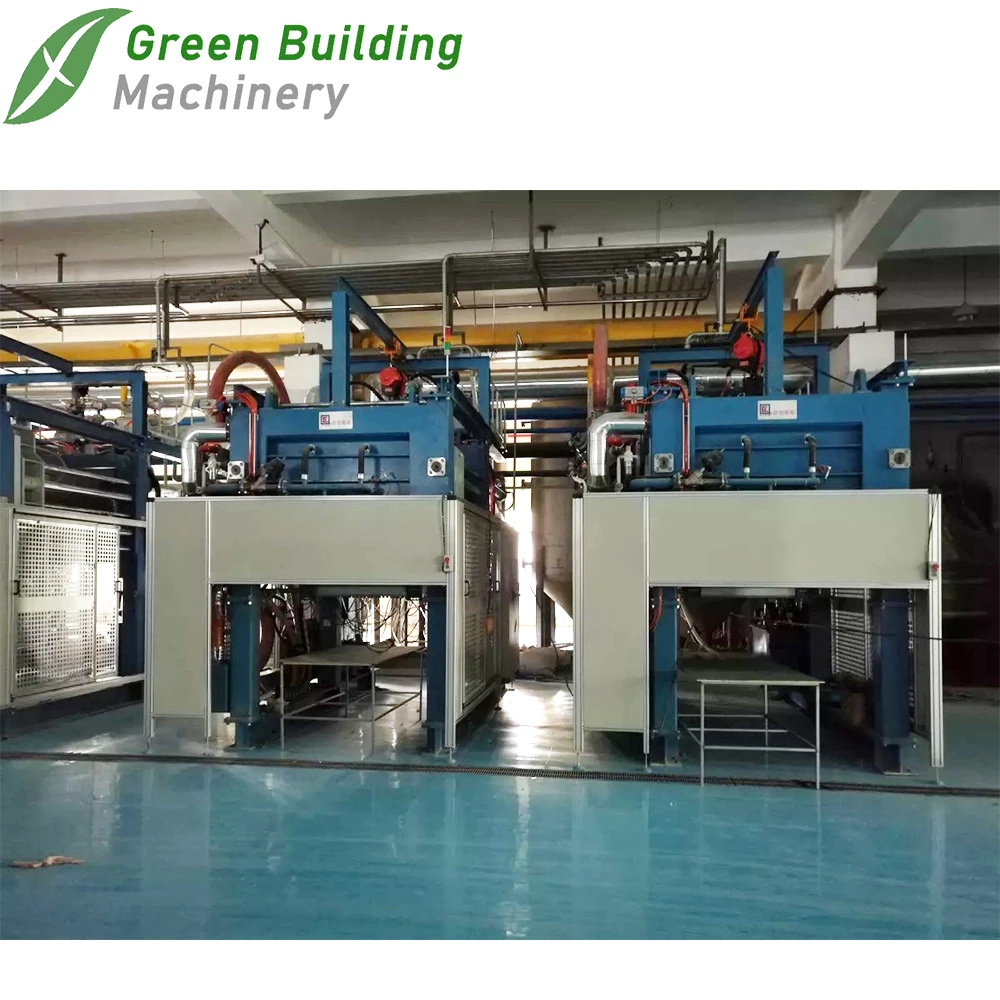

3\tEPP Shape molding machine
Type:K813 Max product size: 1150x650mm
With chamber inside machine 1 set With chamber inside machine.
4\tEPP tool package box
2 pecs per shot
Include feeder and ejector 1 set Include feeder and ejector
Condition for EPP production :
Prepare steam pressure : > 6 bar
Pressure hot room or oven : 85 degree , area > 10 m2
Cooling water and compressed air .
1.Pressurized tank and storage tank
Single tank 1 set\tClient only require single tank . So the tank will be pressurized 8-12 hours, after that , you can use this material for the molding machine.
2\tControl system
PLC and touch screen Valve and gauge \t1 set Program and electrical Designed for 4 tanks control . valves and gauges only for one tank.
3\tEPP Shape molding machine
Type:K813 Max product size: 1150x650mm
With chamber inside machine 1 set With chamber inside machine.
4\tEPP tool package box
2 pecs per shot
Include feeder and ejector 1 set Include feeder and ejector
Condition for EPP production :
Prepare steam pressure : > 6 bar
Pressure hot room or oven : 85 degree , area > 10 m2
Cooling water and compressed air .
Machine details and specification
1, Pressurized Material Tank
EPP-8 m3 Pressurizing Foaming System
Main Technical Date:
Pressurizing tank 1 pcs
Volume: 8m3 (Q235) Max 6 bar
Pre-press Time: 8-20h
Computerized Control System 1 set
5kw Vortex blower 1pcs
Outline Size: 8m*2.5m*4m
Power: 5kw
Weight: 5000kg
1.2 Photos of machine
2, CONTROL SYSTEM FOR PRESSURING CONVEY RAW MATERIAL
For single machine
With Touch screen and PLC
With Control box
With convey pipe and valve
With pressure monitor and controller for material tank and air pressure tank
EPP-8 m3 Pressurizing Foaming System
Main Technical Date:
Pressurizing tank 1 pcs
Volume: 8m3 (Q235) Max 6 bar
Pre-press Time: 8-20h
Computerized Control System 1 set
5kw Vortex blower 1pcs
Outline Size: 8m*2.5m*4m
Power: 5kw
Weight: 5000kg
1.2 Photos of machine
2, CONTROL SYSTEM FOR PRESSURING CONVEY RAW MATERIAL
For single machine
With Touch screen and PLC
With Control box
With convey pipe and valve
With pressure monitor and controller for material tank and air pressure tank
- Parameters -
Mechanical model K1012P | ||
Steam chamber dimension：1000x1200mm | Max molding area：850x1050mm*mm | |
Max thickness product dimension：400mm | Total output:60-90Kg/h | |
Outside dimension：5200x2700x4300mm | Equipment N.W kg About 10500 | |
Product Details

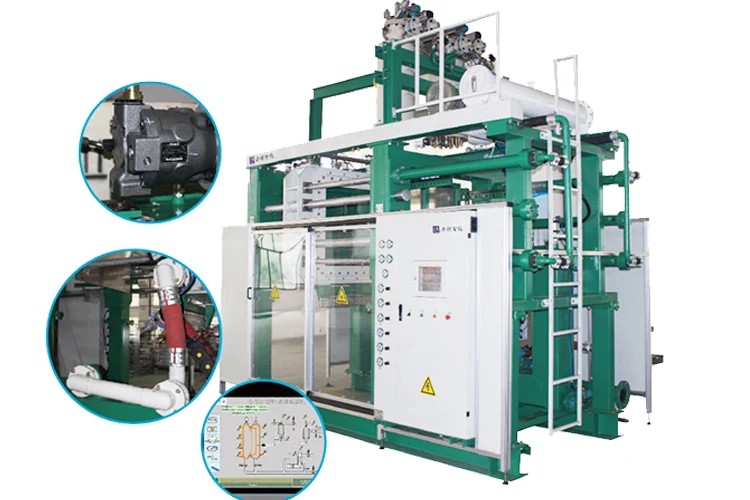

- Product detail drawing and effect display -
The source manufacturer has complete technology, reliable quality, after-sales patic
Company Profile
- 20+ Years Experience in EPS industry -
We have 20 years EPS industry’s experience. We can provide you full solution of EPS industry. Especially EPS exterior wall decoration projects. We believe , our professional service, qualified products and reliablity of team work will really benefit both side.
- After Service -
We will take reponsiblity for what we offer. Ensure to provide the qualified products to your side. What is more, the qualified
start-up and training service can be provided from our side. In case , any problem in future, fast on- line service avaible.
start-up and training service can be provided from our side. In case , any problem in future, fast on- line service avaible.

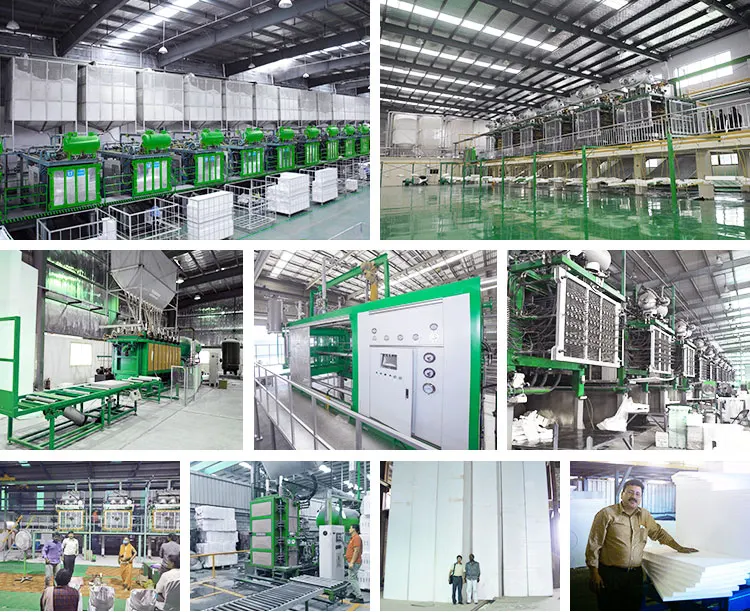

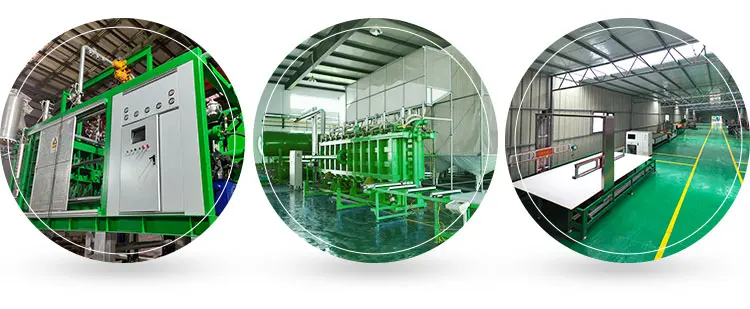

- Customer Case -
- Our Customer -

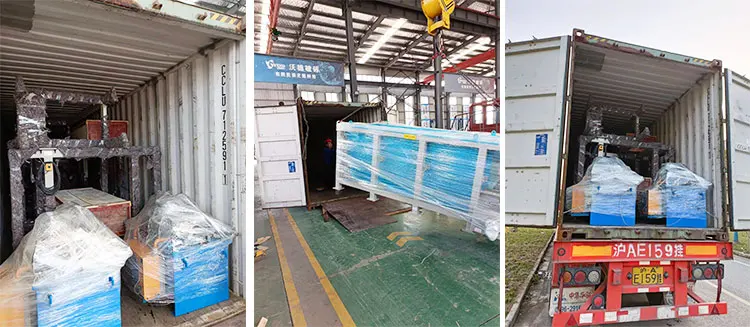

Product packaging
FAQ
1.What is full business range ?
EPS decorative elements (column , cornice, trim) , EPS decorative machine and projects, EPS foam relative machinery.
2.Why we select your company ?
Our qualified products, our professional service and our reliablity will benefit your side more.
3.Where is your location, and sea port or airport?
We are 300KM far from shanghai, jinhua city ,zhejiang province. Ningbo port is not far from us.
4.If you visited, ?You can take international flight to shanghai or hangzhou airport?
Our nearest domestic airport is Yiwu city.
5.How is payment term?
T/T , L/C payment is avaible
6.How is gurantee ?
All machinery gurantee is one year. In case any problem owing to quality issue during gurantee. We will take free changes.
