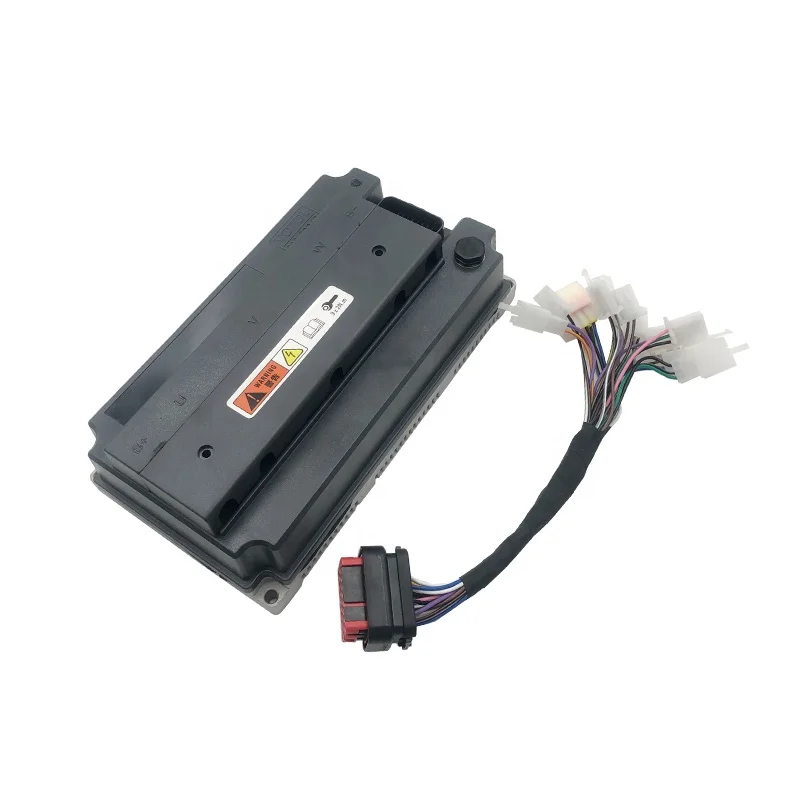

VOTOL EM 200/2 V2 DC 200A Boost 250A 5 8KW EMC BLDC Controller For PMSM Brushless Motor
- Category: >>>
- Supplier: Wuxi Yuma Power Technology Co. Ltd.
Share on (1600522705256):
Product Overview
Description
VOTOL EM-200/2 V2 DC 200A Boost-250A 5-8KW EMC BLDC Controller For PMSM Brushless Motor
EM series controller is sine wave type controller, which is brushless DC controllerwith flux-weakening. Generally, it matches well with Almost Brushless DC PMSM Motors, if you want to match with new brand motor, some parameters should be tested by yourself.
Note: this price not including a USB cable for program.
Key Features
1). The materials are imported.
2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board.
3). Small in size
4). High efficiency, low temperature rise, small running current
5). With flux weakening function
2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board.
3). Small in size
4). High efficiency, low temperature rise, small running current
5). With flux weakening function
Specification
Controller Type | Sine Wave Brushless DC Motor Controller | ||||||
Controller Design | Sine Wave, Programmable by PC, with regen function | ||||||
Controller Brand | Votol | ||||||
Model | EM-200/2 | ||||||
Matched Motor | 4KW-5KW | ||||||
DC current | 200A, boost 250A | ||||||
Phase current | 600A | ||||||
Net weight | 2.45kgs | ||||||
Instaliing Size | 249mmx138mmx74mm | ||||||
Max. Power | 18000W | ||||||
Degree of protection | IP67 | ||||||
Flux Weakening Ratio | 100~150% | ||||||
Max. Efficiency | 89~93% | ||||||

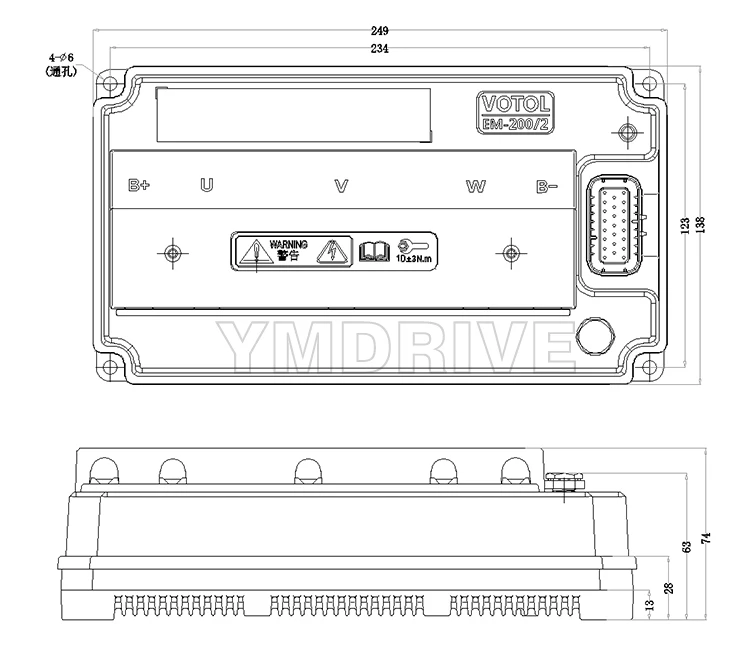

Drawing
Comparsion
1. materials
The materials of EM-200/2 are imported, which with the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate
and then placed on the PCB board.
and then placed on the PCB board.

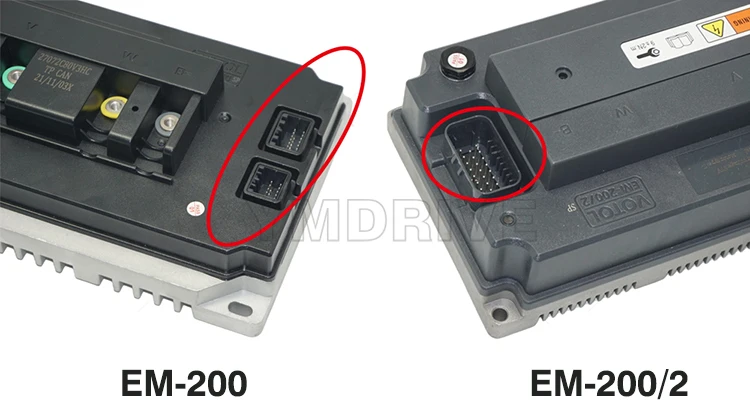

2. harness

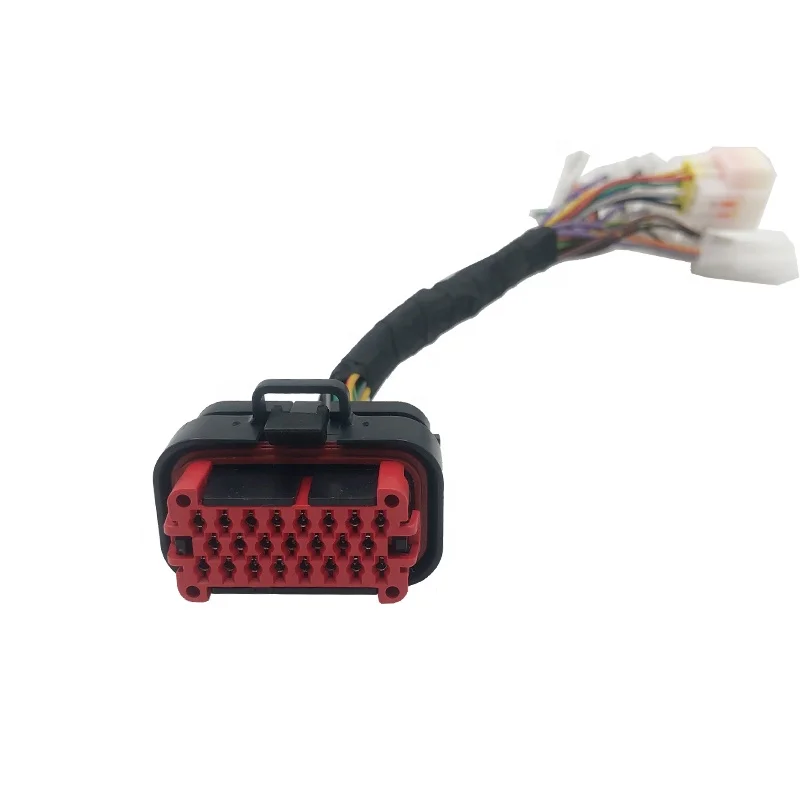

AMP connector is used in EM-200/2, which make the wiring harness more stable in vehicle use, and reduce the bad contact problems caused by traditional wiring harness.
3. usb cable

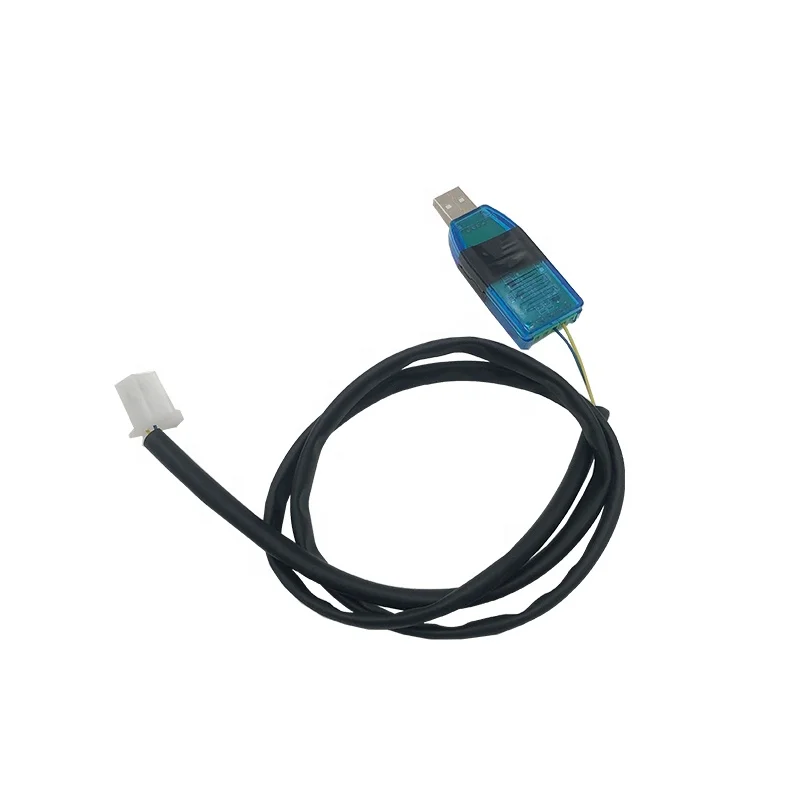

The USB cable is different for EM-200 and EM-200/2, while EM-200/2 with 485 program cable for debugging.
4. heat dissipation performance
EM-200/2 has better heat dissipation performance
5. waterproof performance
EM-200/2 with better performance on waterproof.
6. size and weight
EM-200/2 with smaller size than EM-200, and a little bit lighter weight.

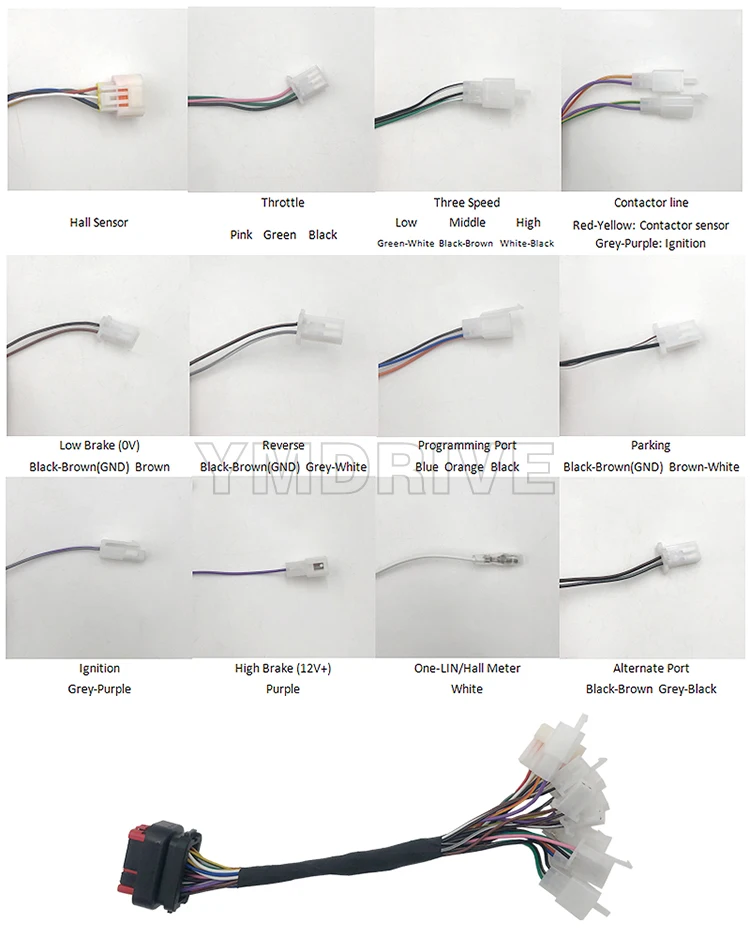

Wiring Definition

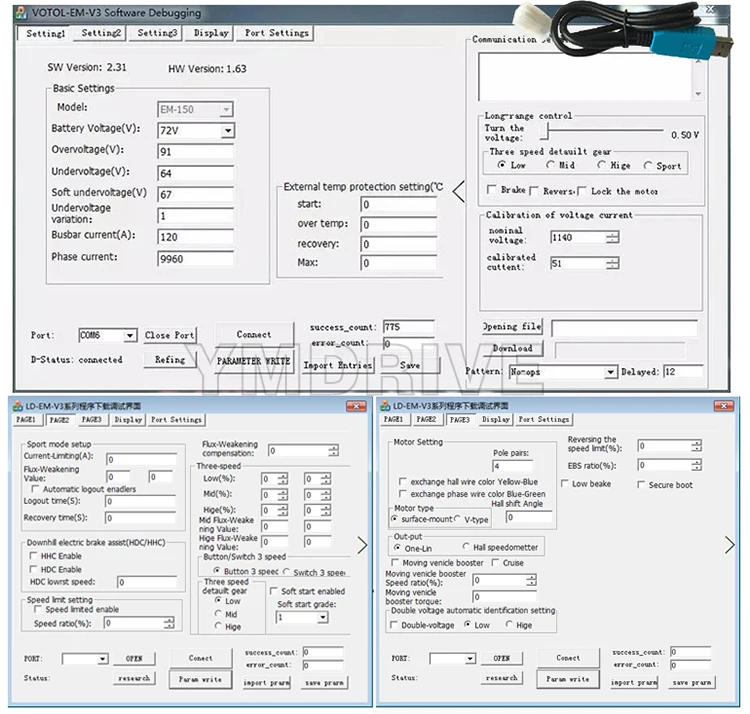

Software Surface
This controller can be programmable by PC, so that you can adjust lots controller parameters according to your motor specification.
Q1. Are you trader or manufacture?
A: We're motor manufacture and also have professional export department.
Q2. What is your warranty policy?
15months for motors, other parts with 1 year warranty time.
Q3. Can I get some samples?
Yes, we offer sample for quality check, but we do not supply free sample. Moreover, some samples support to customized.
Q4. What is the delivery time?
It usually takes 10-15 days, but the exact delivery time might be different for customized products. Once we confirmed the all details of order, we will put all source into it.
Q5. What is your terms of payment?
For big order T/T 30% as deposit, and 70% before delivery, for small order pay by T/T or paypal 100% in advance.
Q6. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001.
