customized 22MM 24MM 28MM 32MM 36MM 42MM DC 3V 12V 24V planetary gear motor speed reducer brushless motor reduce gear box
- Category: Motors >>>
- Supplier: Guangdong Siggear Drive Intelligent Technology Co. Ltd.
Share on (1600522706464):
Product Overview
Description
Product Description
Planetary Gear Head's Parameter
Material | Metal /Steel |
Outer diameter | Customized or choose from below specification table |
Backlash | can lower than 1° |
Test Request | RoHs , Salt Spray or customer require |
Protect Requirement | Water proof , dust proof , basic protect ,explosion proof or customized request |
Sample Time | Usually need 30-40days . |
Work Temperature | -40~120°C |

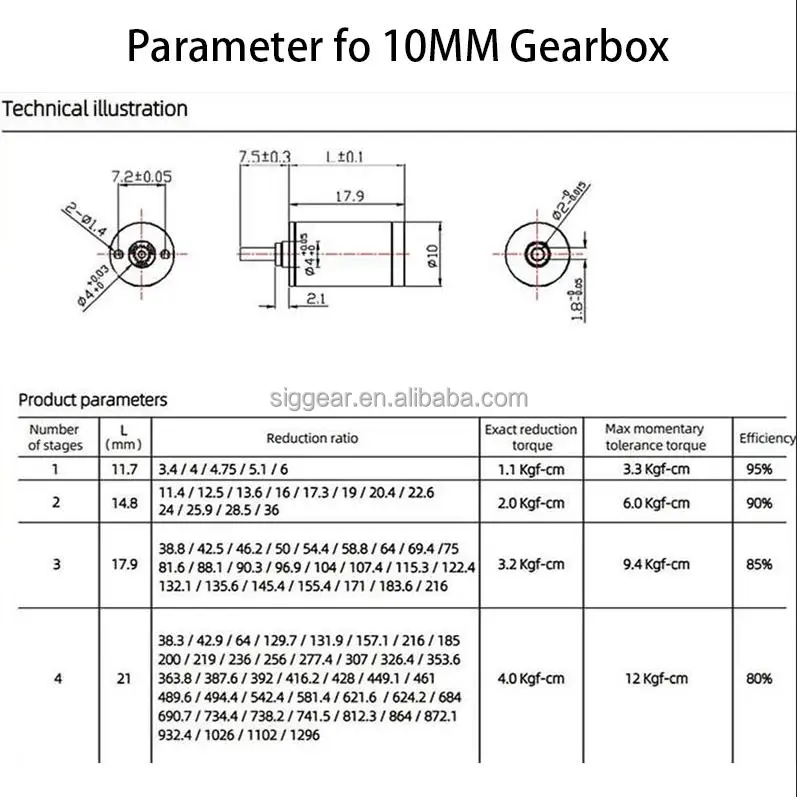

Diameter | 10MM |
Housing materal | Steel |
Gear materal | Steel |
Redial load (10mm from flange) | ≤0.6 Kgf |
Radial play of shaft | ≤0.04 mm |
Backlash,at no-load | ≤1° |
Max permissible spees at continuous working | ≤20000 rpm |
Operating temperature range | -40~120°C |

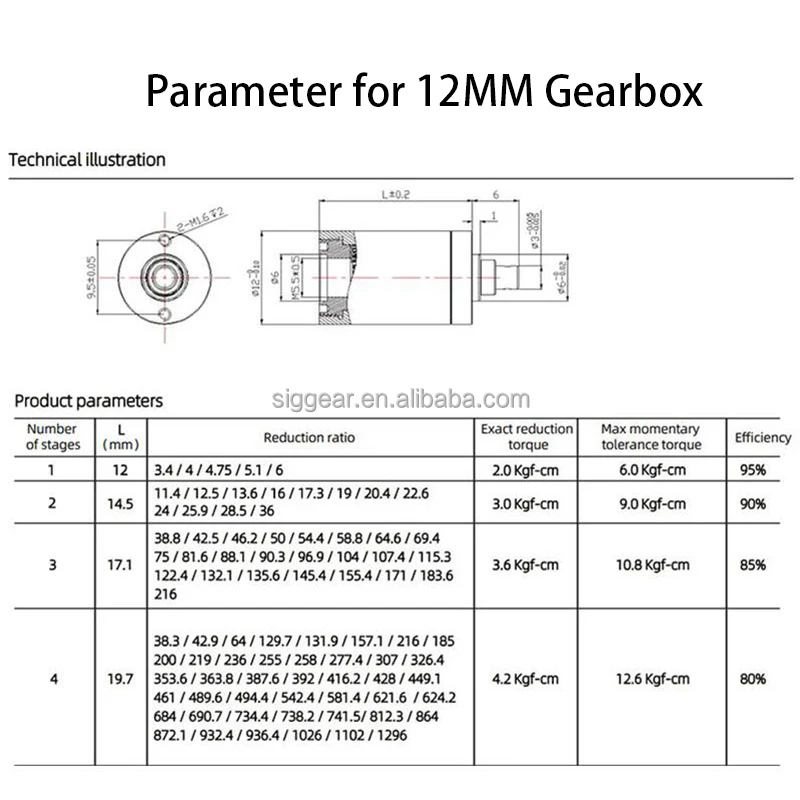

Diameter | 12MM |
Housing materal | Steel |
Gear materal | Steel |
Redial load (10mm from flange) | ≤0.8 Kgf |
Radial play of shaft | ≤0.04 mm |
Backlash,at no-load | ≤1° |
Max permissible spees at continuous working | ≤42000 rpm |
Operating temperature range | -40~120°C |

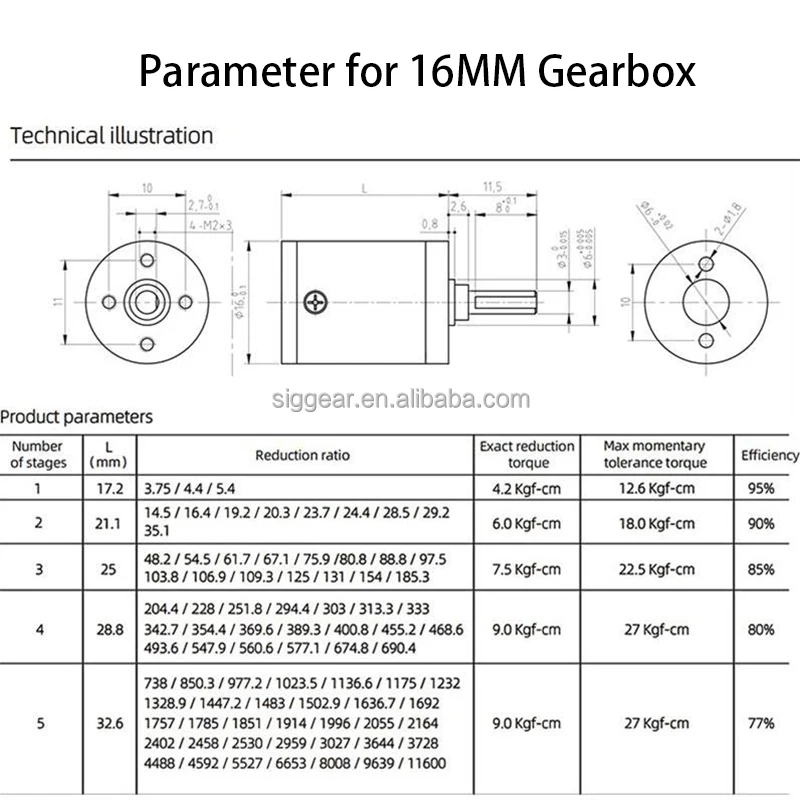

Diameter | 16MM |
Housing materal | Steel |
Gear materal | Steel |
Redial load (10mm from flange) | ≤1.6 Kgf |
Radial play of shaft | ≤0.04 mm |
Backlash,at no-load | ≤1.5° |
Max permissible spees at continuous working | ≤42000 rpm |
Operating temperature range | -40~120°C |

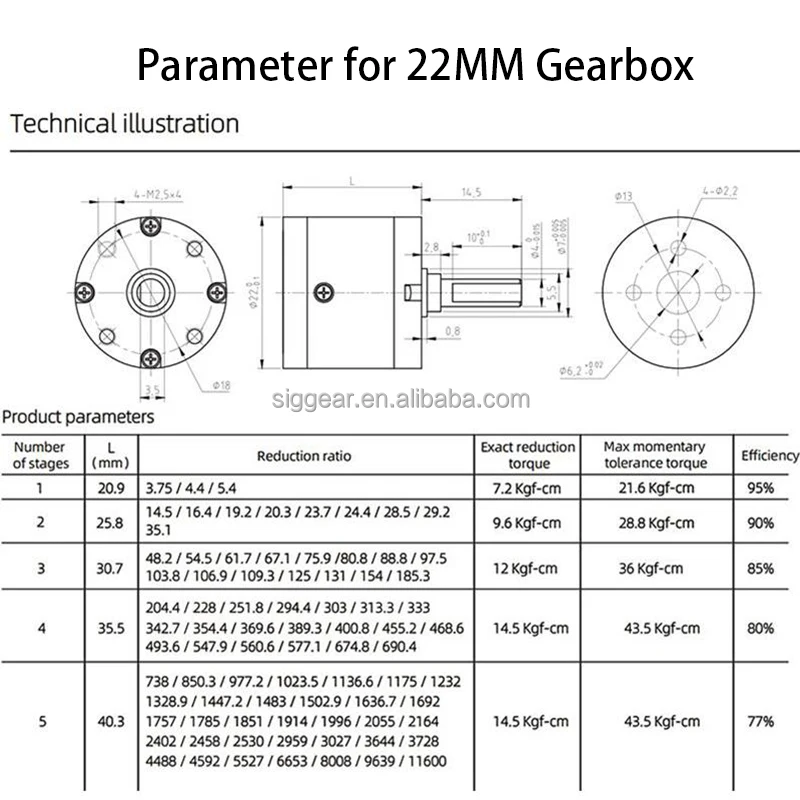

Diameter | 22MM |
Housing materal | Steel |
Gear materal | Steel |
Redial load (10mm from flange) | ≤1.6 Kgf |
Radial play of shaft | ≤0.04 mm |
Backlash,at no-load | ≤1.5° |
Max permissible spees at continuous working | ≤42000 rpm |
Operating temperature range | -40~120°C |

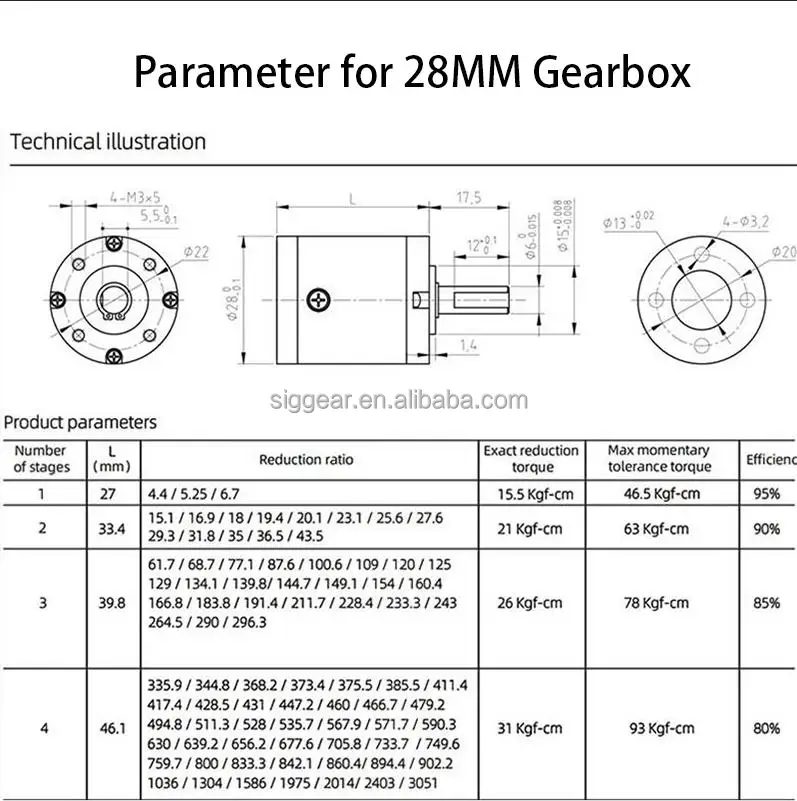

Diameter | 28MM |
Housing materal | Steel |
Gear materal | Steel |
Redial load (10mm from flange) | ≤6.0 Kgf |
Radial play of shaft | ≤0.04 mm |
Backlash,at no-load | ≤1.5° |
Max permissible spees at continuous working | ≤35000 rpm |
Operating temperature range | -40~120°C |

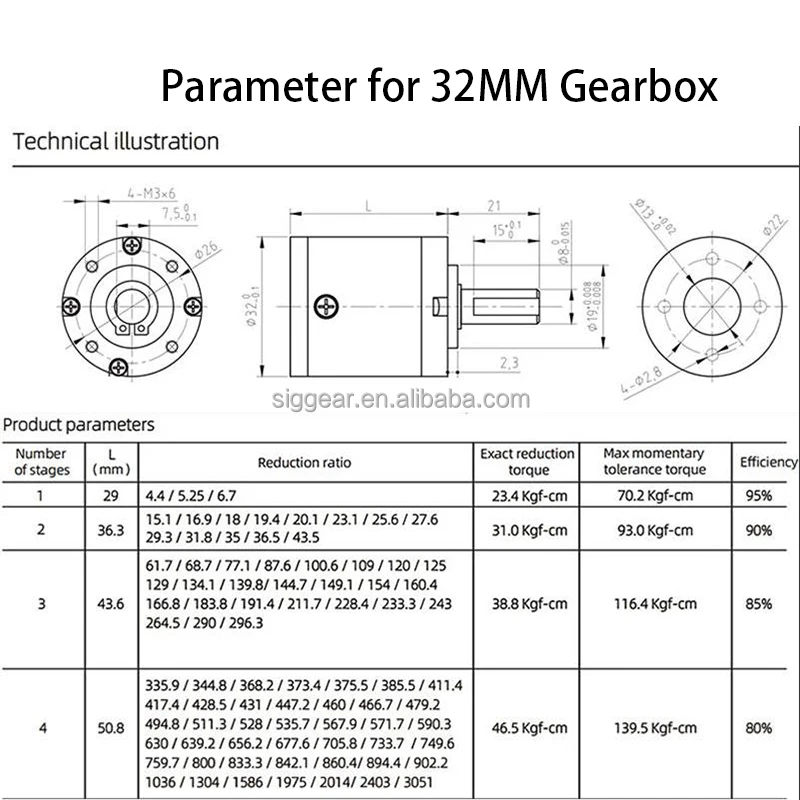

Diameter | 32MM |
Housing materal | Steel |
Gear materal | Steel |
Redial load (10mm from flange) | ≤8.0 Kgf |
Radial play of shaft | ≤0.04 mm |
Backlash,at no-load | ≤1.5° |
Max permissible spees at continuous working | ≤35000 rpm |
Operating temperature range | -40~120°C |

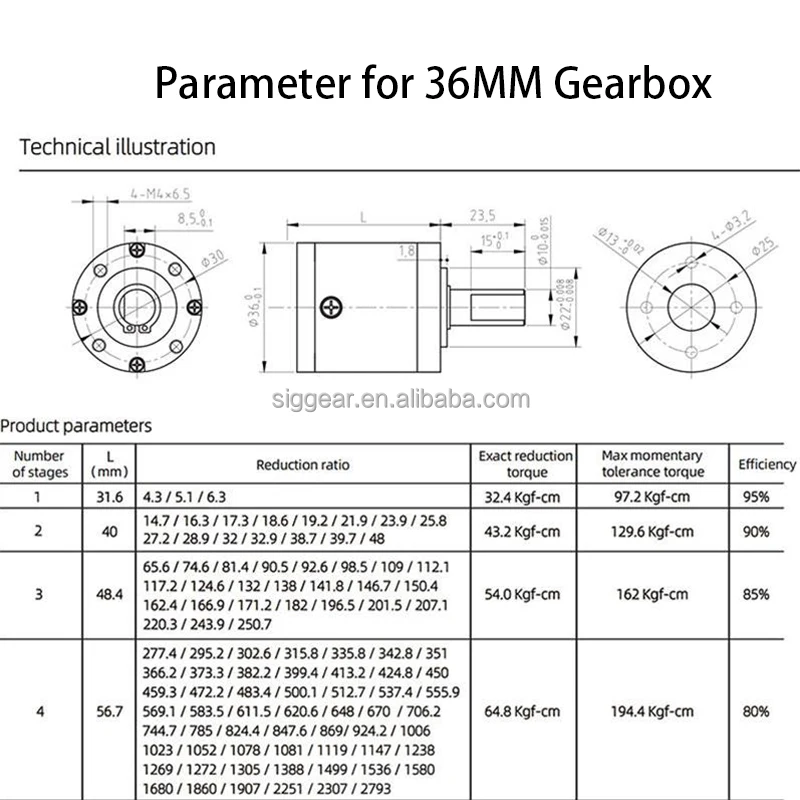

Diameter | 36MM |
Housing materal | Steel |
Gear materal | Steel |
Redial load (10mm from flange) | ≤10 Kgf |
Radial play of shaft | ≤0.04 mm |
Backlash,at no-load | ≤1.5° |
Max permissible spees at continuous working | ≤30000 rpm |
Operating temperature range | -40~120°C |

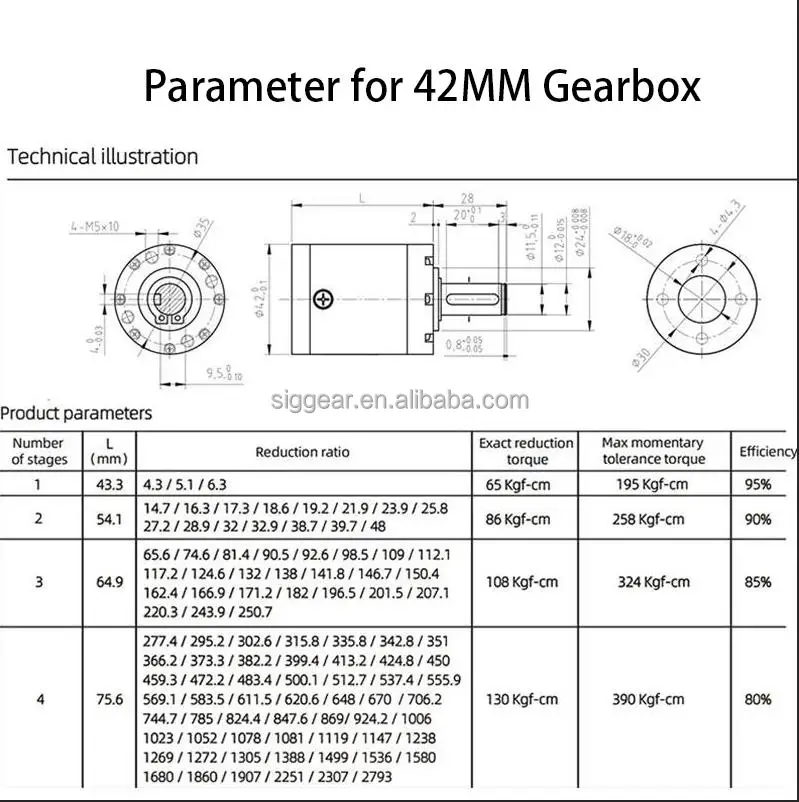

Diameter | 42MM |
Housing materal | Steel |
Gear materal | Steel |
Redial load (10mm from flange) | ≤16 Kgf |
Radial play of shaft | ≤0.04 mm |
Backlash,at no-load | ≤1.5° |
Max permissible spees at continuous working | ≤30000 rpm |
Operating temperature range | -40~120°C |
Related Products
Company Profile
Packing & Delivery
FAQ
Q: What're your main products?

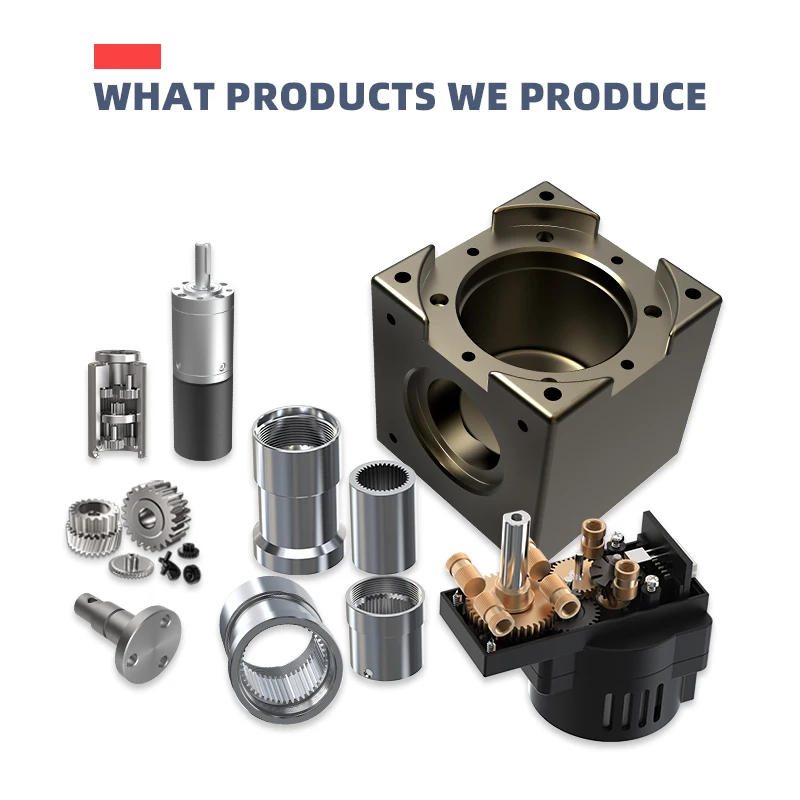

A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, AC Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, AC Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
