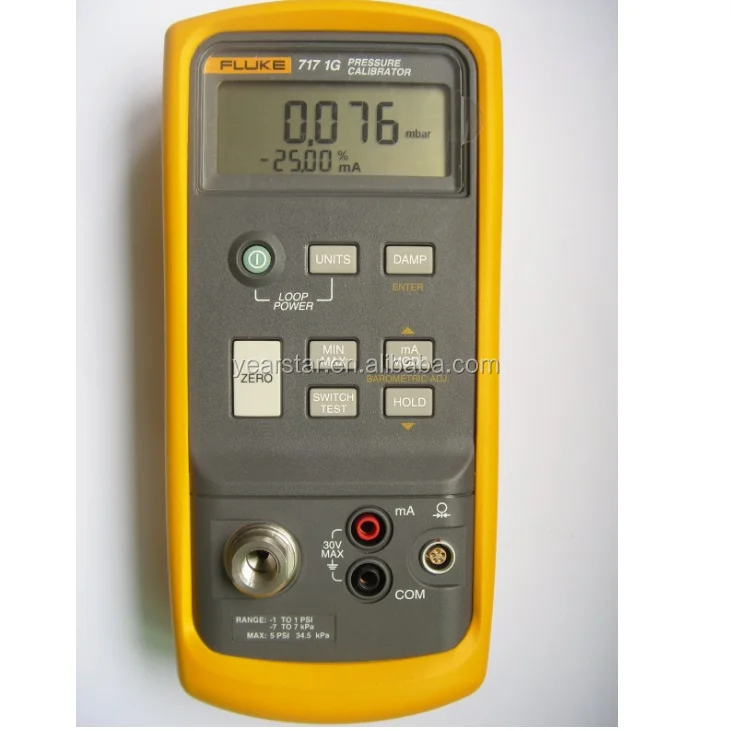

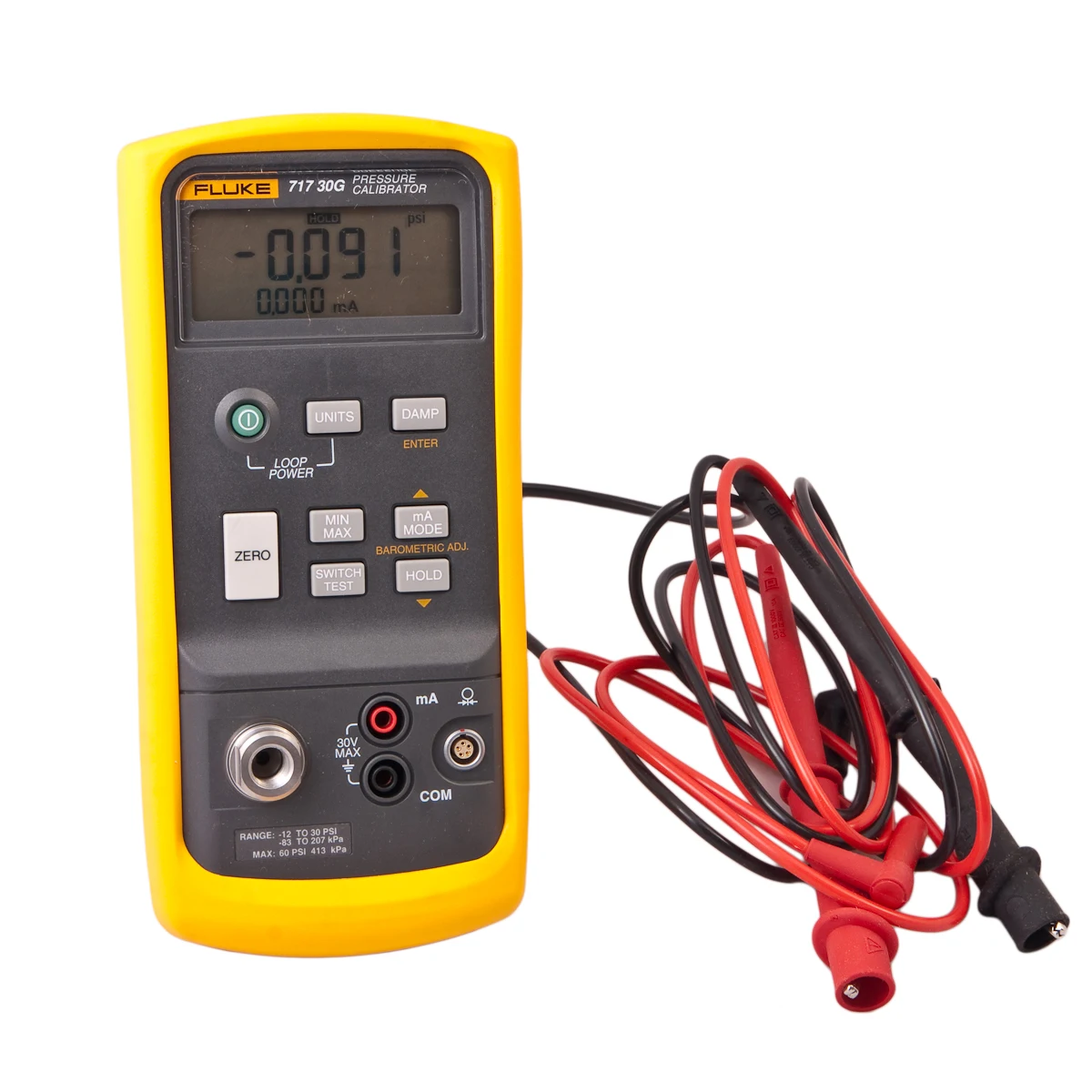

Calibrate P/I instruments1/8 NPT female pressure fitting measuring pressure up to 5000 psi/345 bar Fluke 717 Pressure Calibrator

The Fluke 717 Pressure Calibrators delivers outstanding performance, durability and reliability. These calibrators are compact, lightweight, and easy to carry. With a push button interface similar to the multifunction Fluke 740 Series Documenting Process Calibrators, the 717s are easy to use. They are EMI tolerant, dust and splash resistant, and feature a removable battery door for quick battery changes.

These calibrators come in 9 models measuring pressure up to 5000 psi/345 bar and are compatible with Fluke 700Pxx differential, gauge and absolute pressure modules to increase functionality.

*****Features at a Glance:

• Measure pressure, 0.05% of full scale with internal sensor up to 5000 PSI/345 bar sensor (5000G model)


• Measure mA with 0.015% accuracy and 0.001 mA resolution, while sourcing 24V loop power


• Measure pressure to 10,000 psi/700 bar using one of 29 Fluke 700Pxx Pressure Modules


• 1/8 NPT female pressure fitting


• Compatible with non-corrosive Gases and liquids


• Select eleven different engineering units


• Zero, min, max, and hold functions


• Calibrate P/I instruments with simultaneous pressure and current measurement


• Pressure switch test function captures set, reset and Deadband values of a pressure switch


• Error% calculation of mA measurements for quick pass-fail decisions


• Long lasting battery life


• Holster features test lead storage


• Compatible with Toolpack magnetic hanging system


• New switch test

-------------------------------------------
