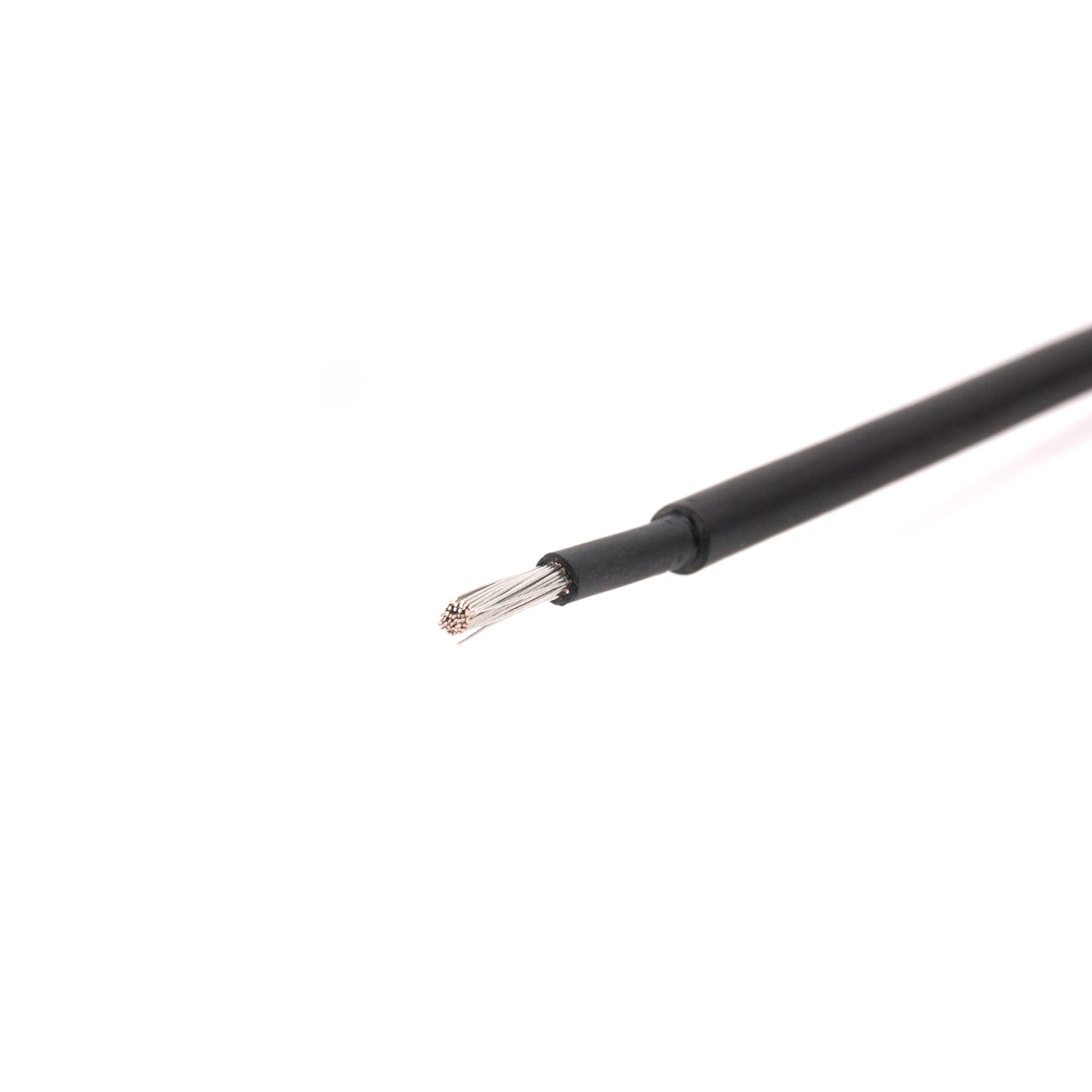

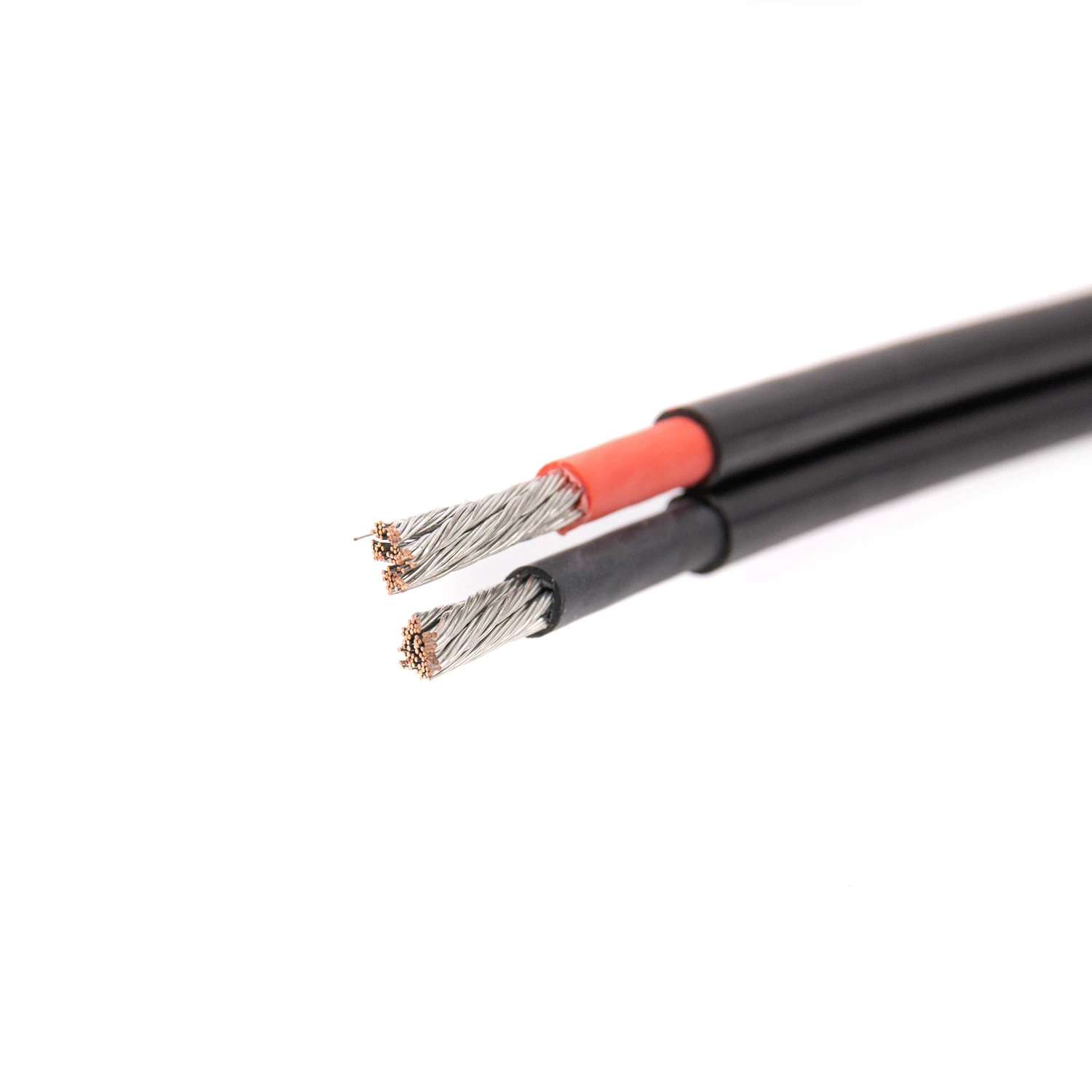

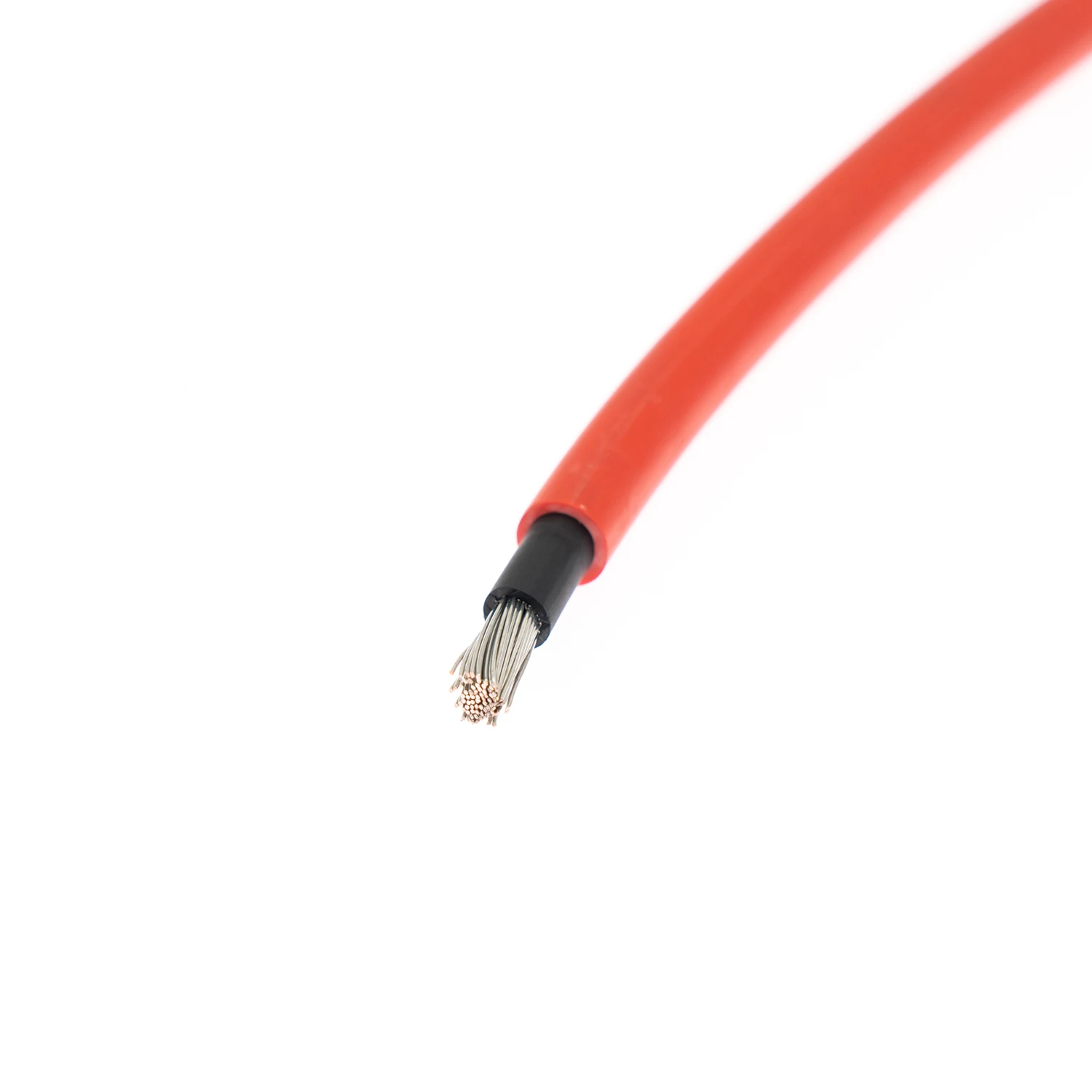

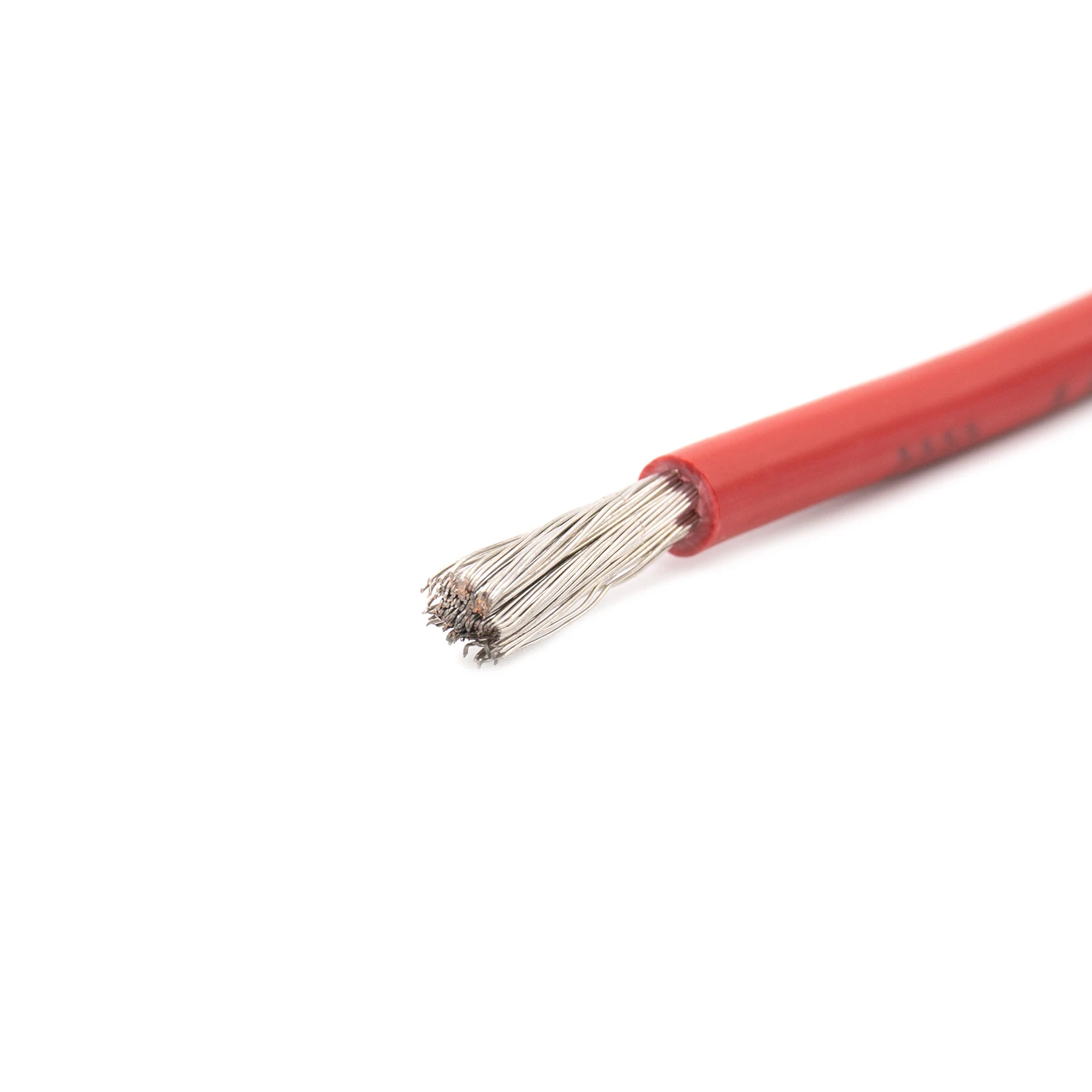

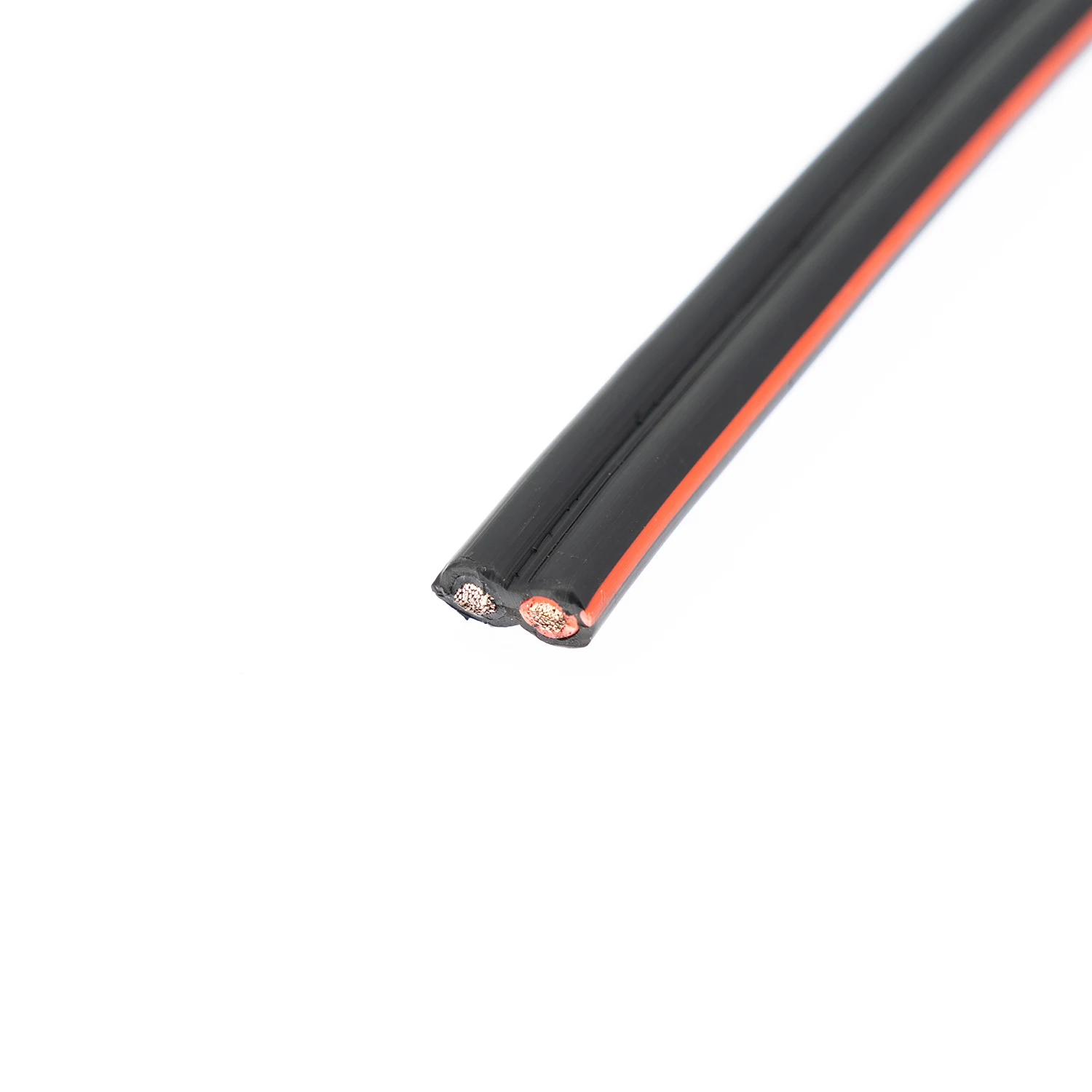

4mm2 6mm2 DC Cable Xlpo Solar PV Cable

Size

Max. of

copper wires

Insulation thickness

Sheath thickness

Max.Outer diameter

Max cond.

Resistance at 20oC

Approx.. cable weight

mm2

mm

mm

mm

mm

Ohms/km

Kg/km

1.5

0.31

0.7

0.8

5.4

13.70

37

2.5

0.31

0.7

0.8

5.9

8.21

49

4

0.31

0.7

0.8

6.6

5.09

67

6

0.31

0.7

0.8

7.4

3.39

90

10

0.41

0.7

0.8

8.8

1.95

134

16

0.41

0.7

0.9

10.1

1.24

199

25

0.41

0.9

1

12.5

0.795

316

35

0.41

0.9

1.1

14.0

0.565

428

50

0.41

1.0

1.2

16.3

0.393

594

70

0.51

1.1

1.2

18.7

0.277

803

95

0.51

1.1

1.3

20.8

0.210

1049

120

0.51

1.2

1.3

22.8

0.164

1304

150

0.51

1.4

1.4

25.5

0.132

1634

185

0.51

1.6

1.6

28.5

0.108

2012

240

0.51

1.7

1.7

32.1

0.0817

2575
