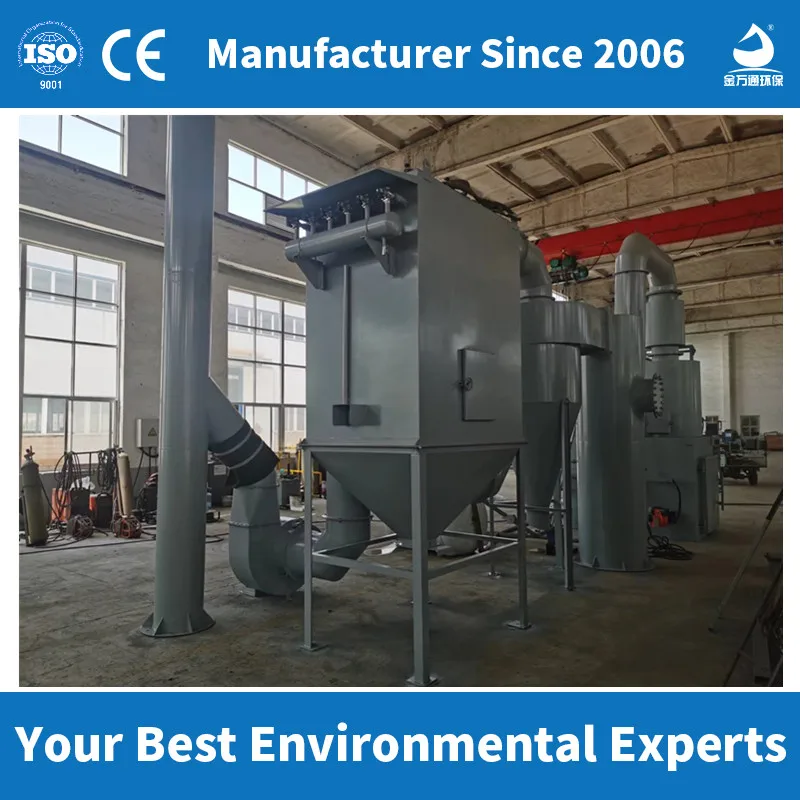

small garbage incinerator waste incineration machine Shuliy liquid waste smoke free biomass waste incinerator to energy
- Category: >>>
- Supplier: Qingdao Jinwantong Environmental Science And Technology Co. Ltd.
Share on (1600522750502):
Product Overview
Description
Products Description
It has best burning performance on the following waste:
1.Medical waste.(disposable syringes, infusion sets processing, cotton
yarn, the operating room, the residual limb, waste rubber gloves, protective clothing and infectious and harm venereal hospital
bed supplies, etc)
2.Dead animal body and waste.(all kinds of animal body and waste generated from farms, slaughterhouses, test
laboratories,veterinary hospitals, zoos and others ,also as pathological waste.)
3.Industrial waste.(made of plastic, tar, resins,paints textiles fabrics ,the solid waste such as plastic ,PVC, rubber, boards,
wood,clothes.)
yarn, the operating room, the residual limb, waste rubber gloves, protective clothing and infectious and harm venereal hospital
bed supplies, etc)
2.Dead animal body and waste.(all kinds of animal body and waste generated from farms, slaughterhouses, test
laboratories,veterinary hospitals, zoos and others ,also as pathological waste.)
3.Industrial waste.(made of plastic, tar, resins,paints textiles fabrics ,the solid waste such as plastic ,PVC, rubber, boards,
wood,clothes.)

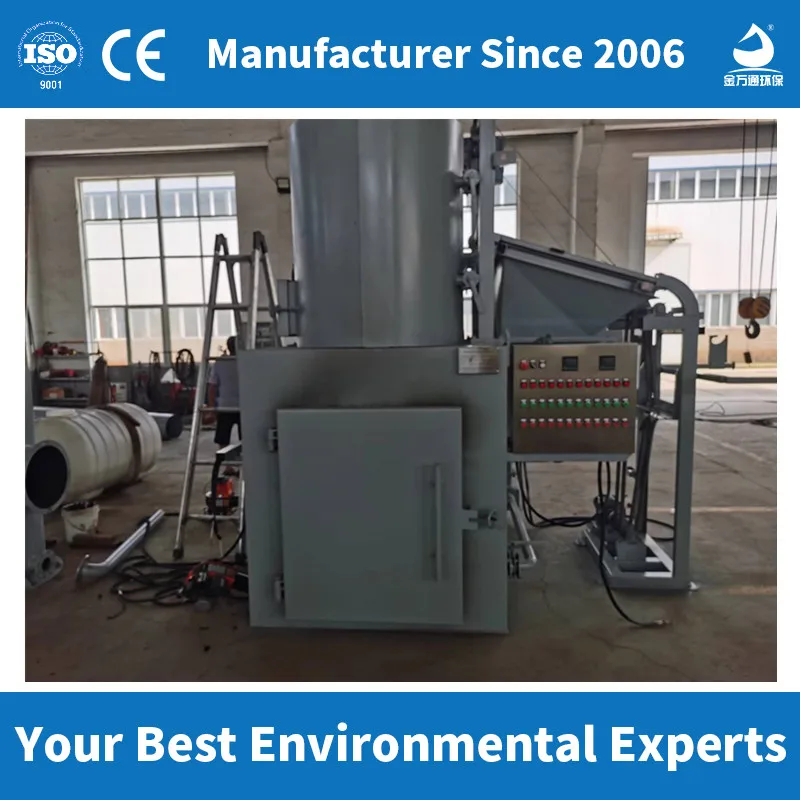

Details Images
1. Professional multi-stage combustion, reasonable structure, ensuring environmental protection and reliability; 2. The flue gas purification device is customized according to different wastes, reducing equipment construction costs and ensuring environmental protection standards;
3. The structure is beautiful and compact, with the advantages of overload protection;
4. The equipment components are imported well-known brands, with fast action and low failure rate;
5. Advanced pyrolysis gasification technology, the calorific value of waste is above 3000 calories, no burning is required, and the operating cost of equipment is reduced;
6. The refractory material of the combustion chamber is poured by four layers of refractory material at one time, and the warranty is ten years;
1. The garbage incinerator is equipped with an automatic feeding and discharging system to reduce the pollution caused by manual operation. 2. The cycle combustion design of the waste incinerator, the maximum temperature in the furnace can reach above 1300 ℃, the flue gas is reprocessed, colorless and non-toxic, the combustibles are completely ashed, and the volume reduction ratio is greater than or equal to 97%.
Product Paramenters
model item | XJY-30 | XJY-50 | XJY-150 | |
Incineration capacity | 30-50 kg | 50-100 kg | 150-200 kg | |
size (L×B×H)(m) | 1.45×0.9×1.75 | 1.8×1.15×3 | 2×1.4×3.5 | |
Input port size（mm） | 480×600 | 620×800 | 760×960 | |
Chimney size（mm） | Outside diameter ø280 | ø280 | ø300 | |
The power Of the fan | 0.37kw | 0.37kw | 0.5kw | |
Combustion burner | Power 0.11kw Fuel consumption 4-6kg/h | Power 0.11kw 4-10kg/h | Power 0.11kw 4-10kg/h | |
Reburning burner | Power 0.11kw Fuel consumption 4-6kg/h | 0.11kw 4-10kg/h | 0.22kw 7-14kg/h | |
Voltage | 380V or 220V | 380V or 220V | 380V or 220V | |
Weight（kg） | 2300 | 4000 | 7000 |
model item | XJY-300 | XJY-500 | XJY-600 | |
Incineration capacity | 200-300kg | 300-500kg | 500-600kg | |
size (L×B×H)(m) | 2.2×1.4×3.8 | 3×2×4.8 | 3.3×2.3×4.8 | |
Input port size（mm） | 900×1100 | 1080×1280 | 1400×1300 | |
Chimney size（mm） | Outside diameter ø400 | ø460 | ø480 | |
The power Of the fan | 1.1kw | 1.1kw 0.55kw | 1.1kw 0.55kw | |
Combustion burner | Power 0.22kw Fuel consumption 7-14kg/h | 0.22kw 7-14kg/h | 0.22kw 7-14kg/h | |
Reburning burner | Power 0.37kw Fuel consumption 10-20kg/h | 0.37kw 15-26kg/h | 0.37kw 15-26kg/h | |
Voltage | 380V or 220V | 380V or 220V | 380V or 220V | |
Weight（kg） | 8000 | 13000 | 17000 |

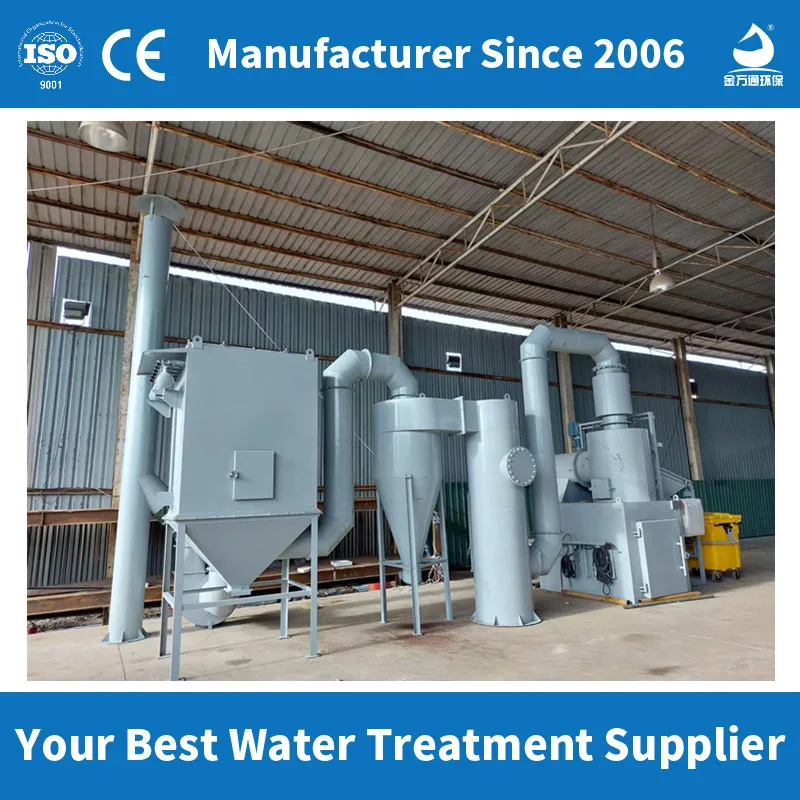

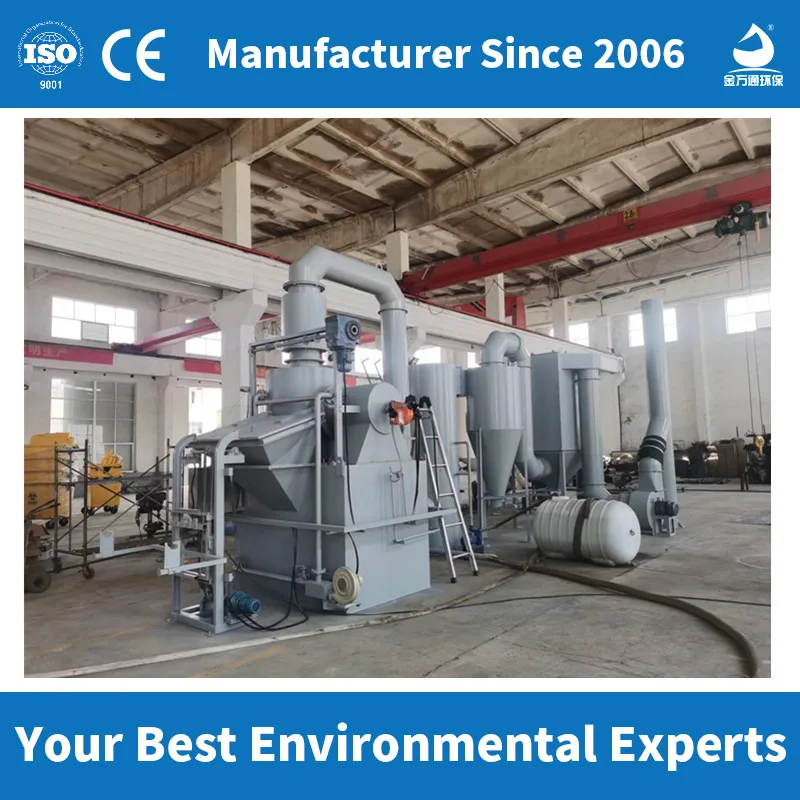

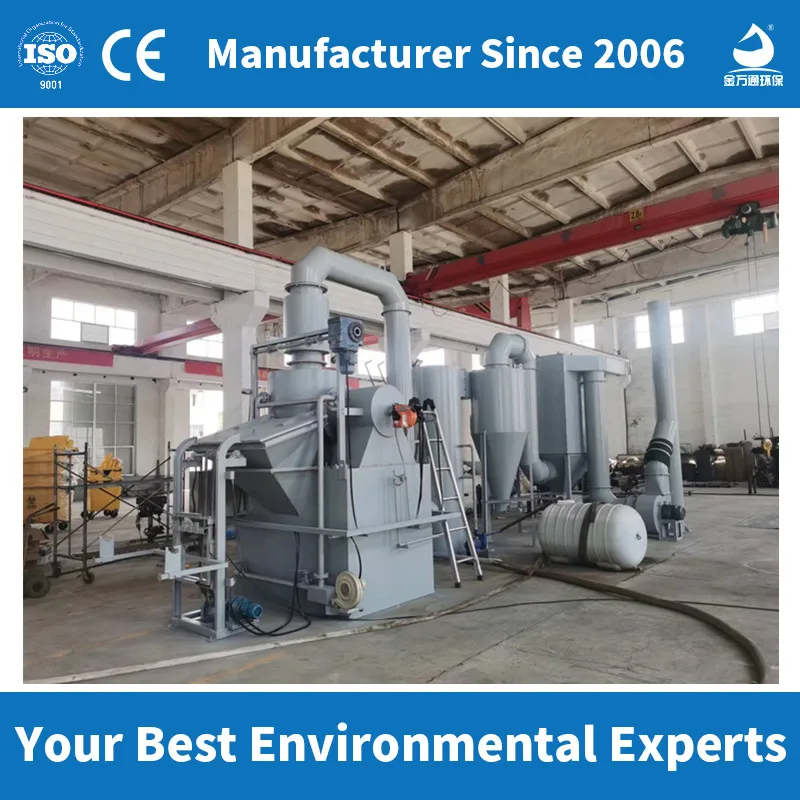

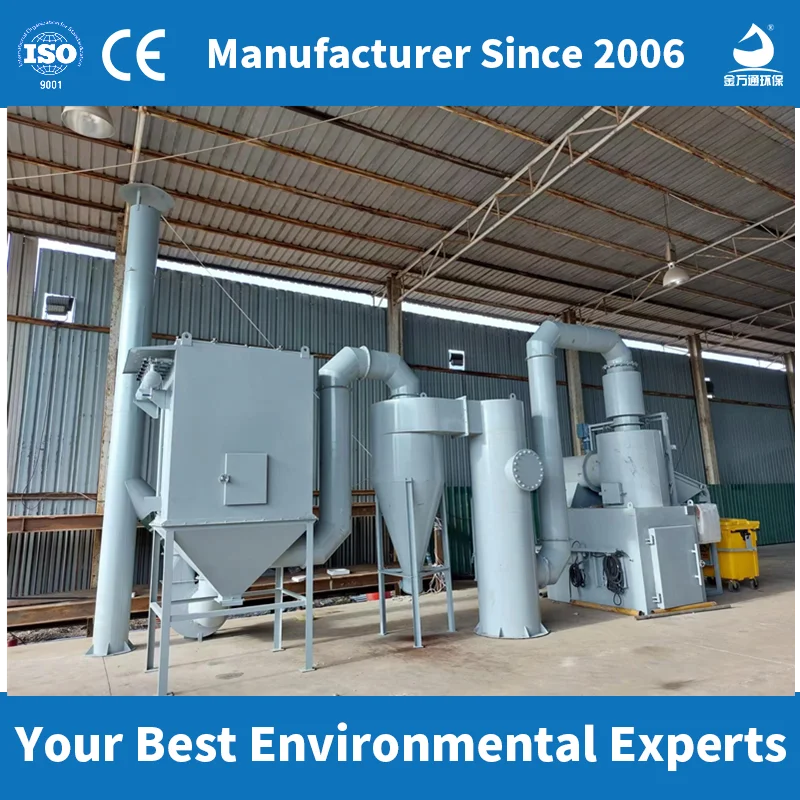

Customer installing plant view 300kgs per hour
