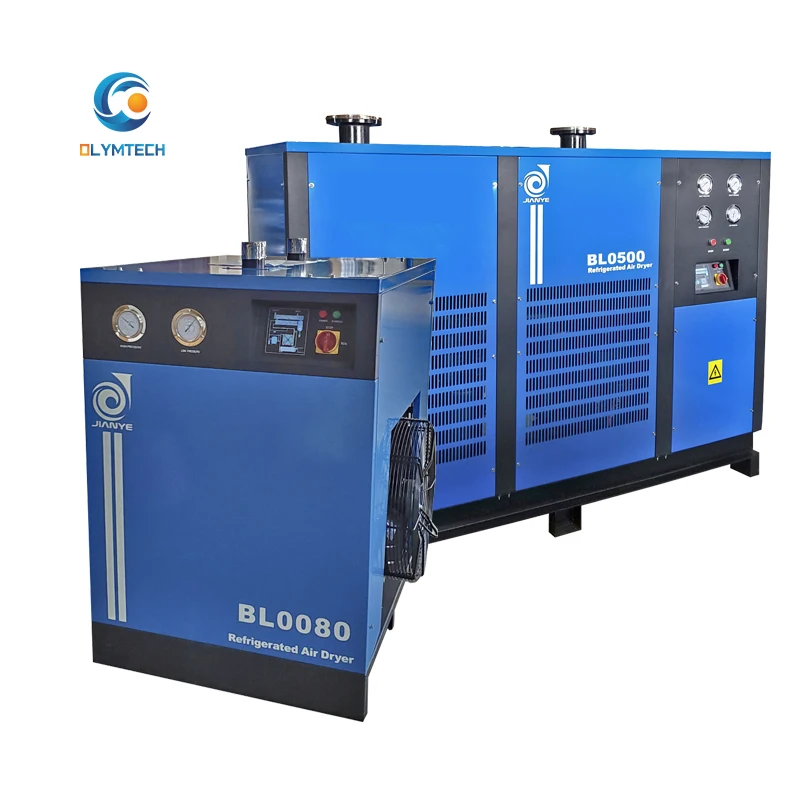

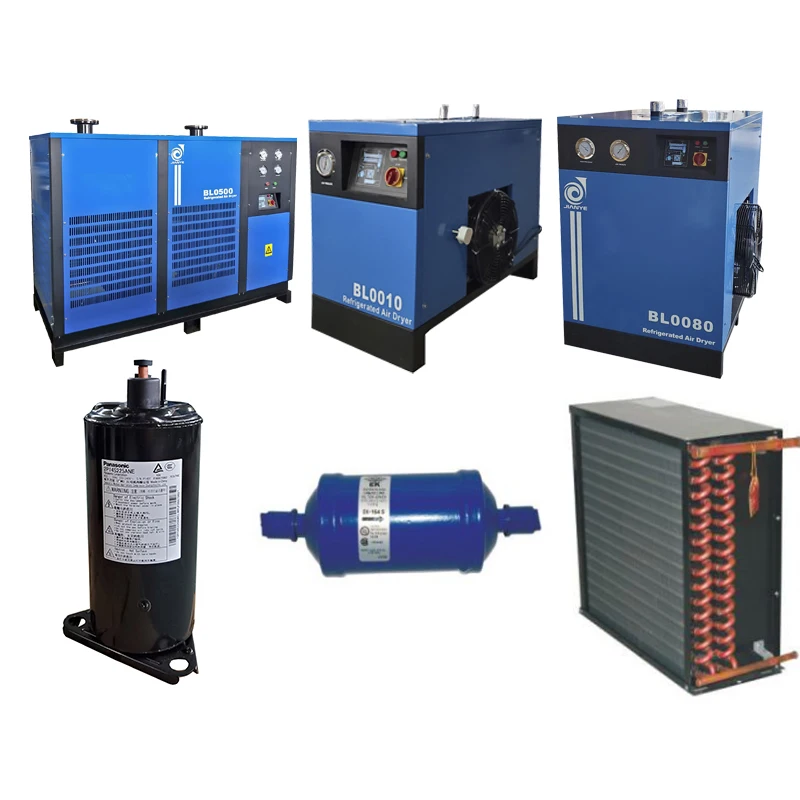

Stable air compressed air dryer filter dryer refrigerant air dryer
- Category: >>>
- Supplier: Olymtech Technology Development Co. Ltd.
Share on (1600522757824):
Product Overview
Description
WHY NEED TO USE THE REFRIGERATED AIR DRYER
※Usually compressed air contains 100% vapor, these vapors are condensed together when the air would be cooled. The condensed water not only damages the compressor system, reduces tool efficiency, but also destroys your terminal products, corrodes piping and increases your maintenance costs.
※More than 90L water will enter into the compressor system everyday if without the air dryer refrigerated air dryer removes approximately 90% of water and ensures your application in good performance.
Specification
High pressure switch High-low pressure switch
Electric auto-drain

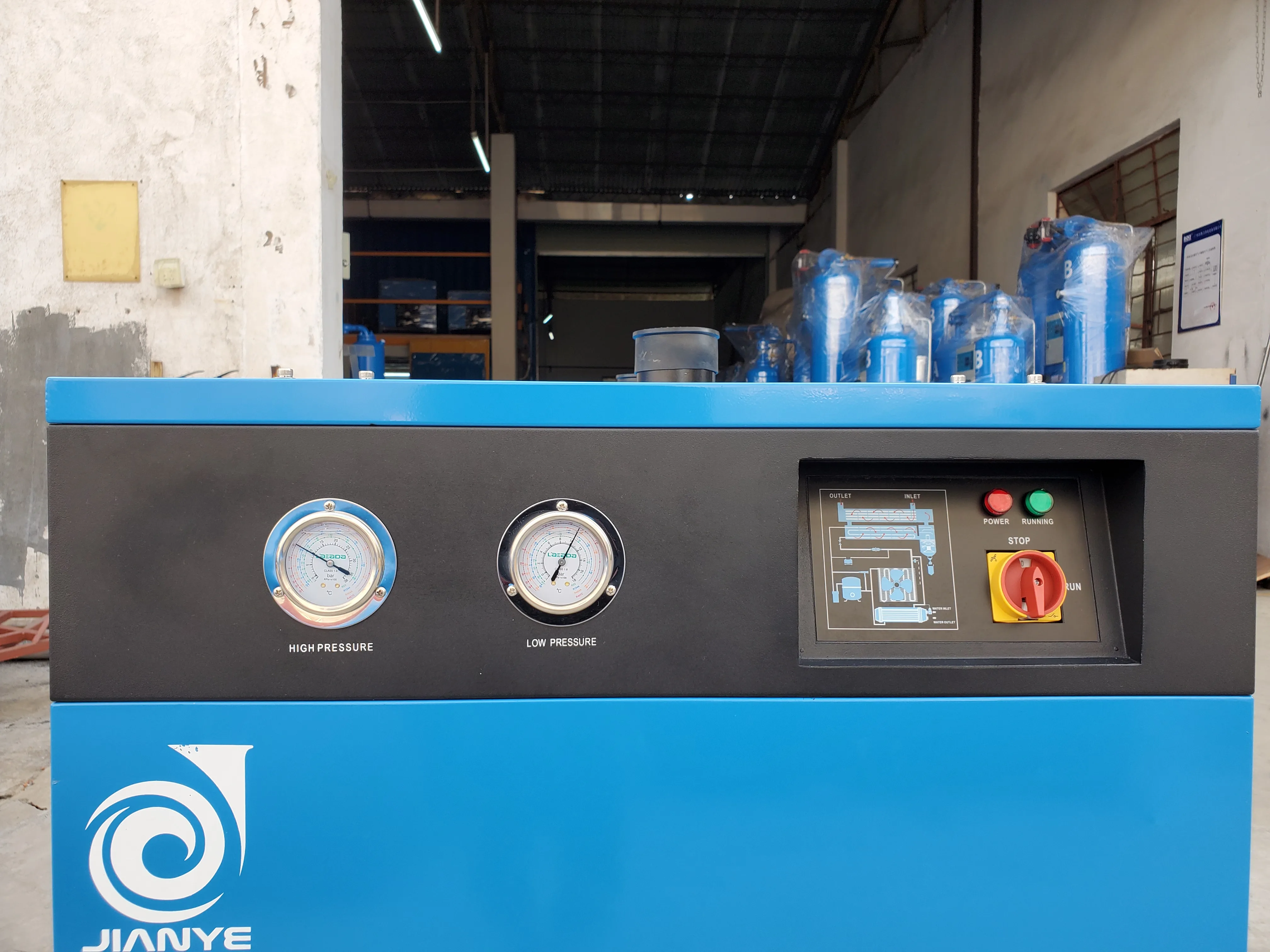

Control panel

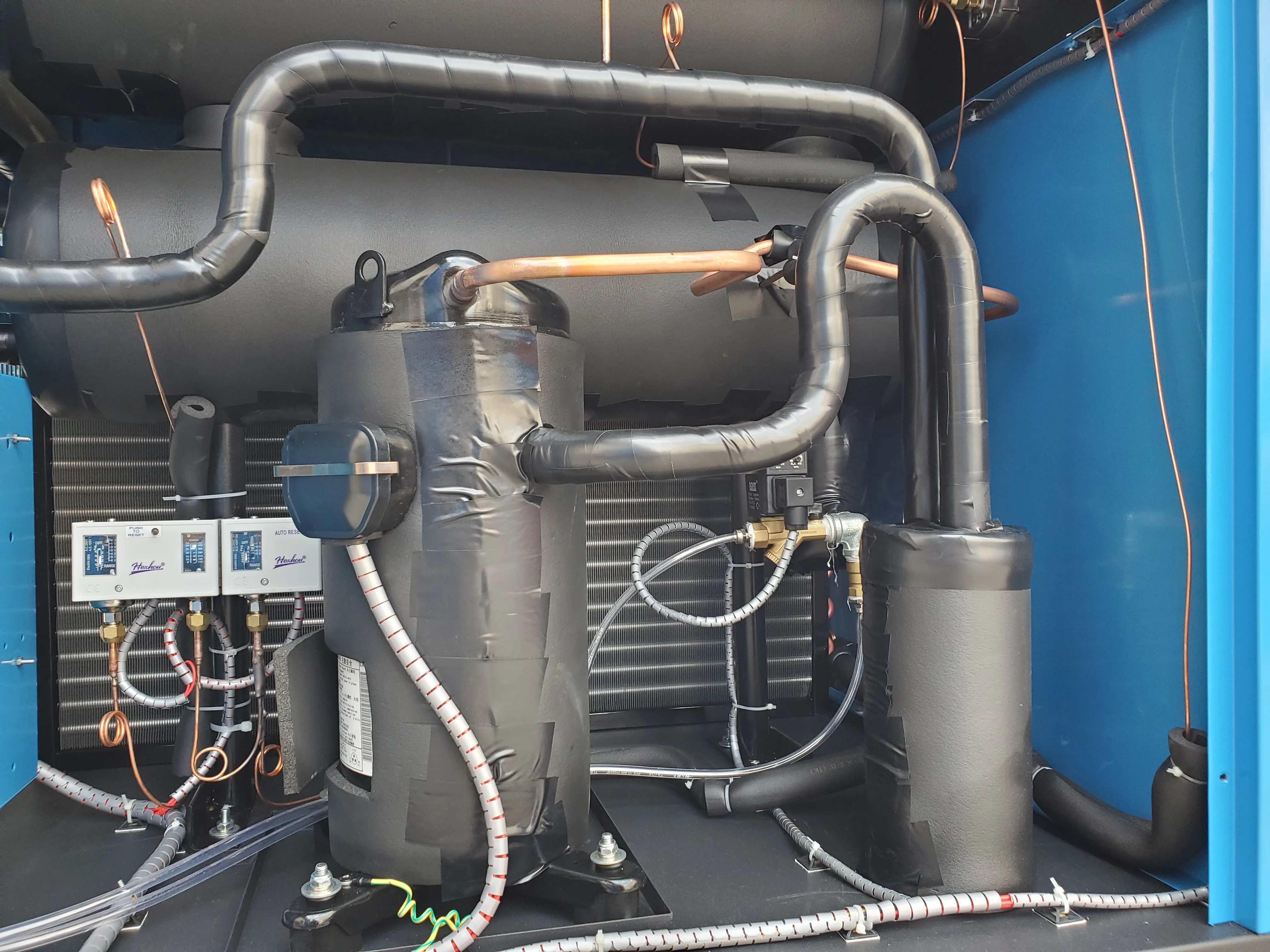

Refrigerant compressor
Dry filter
Refrigerant pressure
Model | -- | BL0005 | BL0010 | BL0020 |
Air capacity | m3/min | 0.8 | 1.8 | 2.8 |
CFM | 28 | 64 | 99 | |
Compressor Power | hp | 0.25 | 0.35 | 0.5 |
Power Supply | v/hz/ph | 220v /50hz /3ph | 220v /50hz /3ph | 220v /50hz /3ph |
Air Connection | -- | DN20 (G3/4'') | DN20 (G3/4'') | DN25 (G1'') |
N.W. | kg | 50 | 55 | 65 |
Dimension (L*W*H) | mm | 400x800 x640 | 400x800 x640 | 400x800 x780 |
Operating Range:
Working Pressure:0.6-1.3Mpa(normal pressure type)
3.0-4.0Mpa(high pressure type)
Working Pressure:0.6-1.3Mpa(normal pressure type)
3.0-4.0Mpa(high pressure type)
Ambient Temperature:5-45℃
Max.Inlet Temperature:<80℃
Standard Conditions：
Air Inlet Temperature:38℃
Max.Inlet Temperature:<80℃
Standard Conditions：
Air Inlet Temperature:38℃
Ambient Temperature:35℃
Working Pressure:0.7Mpa
Pressure Dew Point:2-10
Pressure Dew Point:2-10
Refrigerant:R22
Cooling Method:air-cooled
Please contact us for any specification that is not within the above mentioned standards.
Please contact us for any specification that is not within the above mentioned standards.
20+ EXPERIENCE
Olymtech Technology Development Co.,Ltd is a professional manufacturer for air compressor and after treatment equipment. We have more than 20 years experience in air compressor, air dryer, air filter producting and exporting.
PROFESSIONAL MANUFACTORY
Our factory is located in Guangdong China, we have research and develop center,advanced processing equipment,professional technicians, rich experience workers and after-sales team to offer good quality products and good service to our customers.
Recommend Products
FAQ
Q1: Why customer choose us?
O: Olymtech Technology Development Co, Ltd is a professional manufacturer for air compressor and after treatment equipment. We have more than 20 years experience in producing and exporting air compressor, air dryer and air filter.
Q2: Are you a manufacturer or trading company?
O: Our factory is located in Guangdong China, we have research and develop center, advanced processing equipment, professional technicians, rich experience workers and after-sales team to offer good quality products and good service to our customers. We also can provide you the OEM&ODM service.
Q3: What's your delivery time?
O: Generally 10 days, if urgently order, pls contact our sales in advance
Q4: How long is your air compressor warranty?
O: One year for the whole machine when the compressor leave our factory.
Q5: How long could your air compressor be used?
O: Generally, more than 10 years
Q6: What's payment term?
O: T/T, L/C, Paypal and etc. Also we could accept USD, RMB, Euro and other currency (Pls contact our sales for more information
Q7: How about your customer service?
O: 24 hours on-line service available
Q8: How about your after-sales service?
O: 1. Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service
3. World wide agents and after service available
