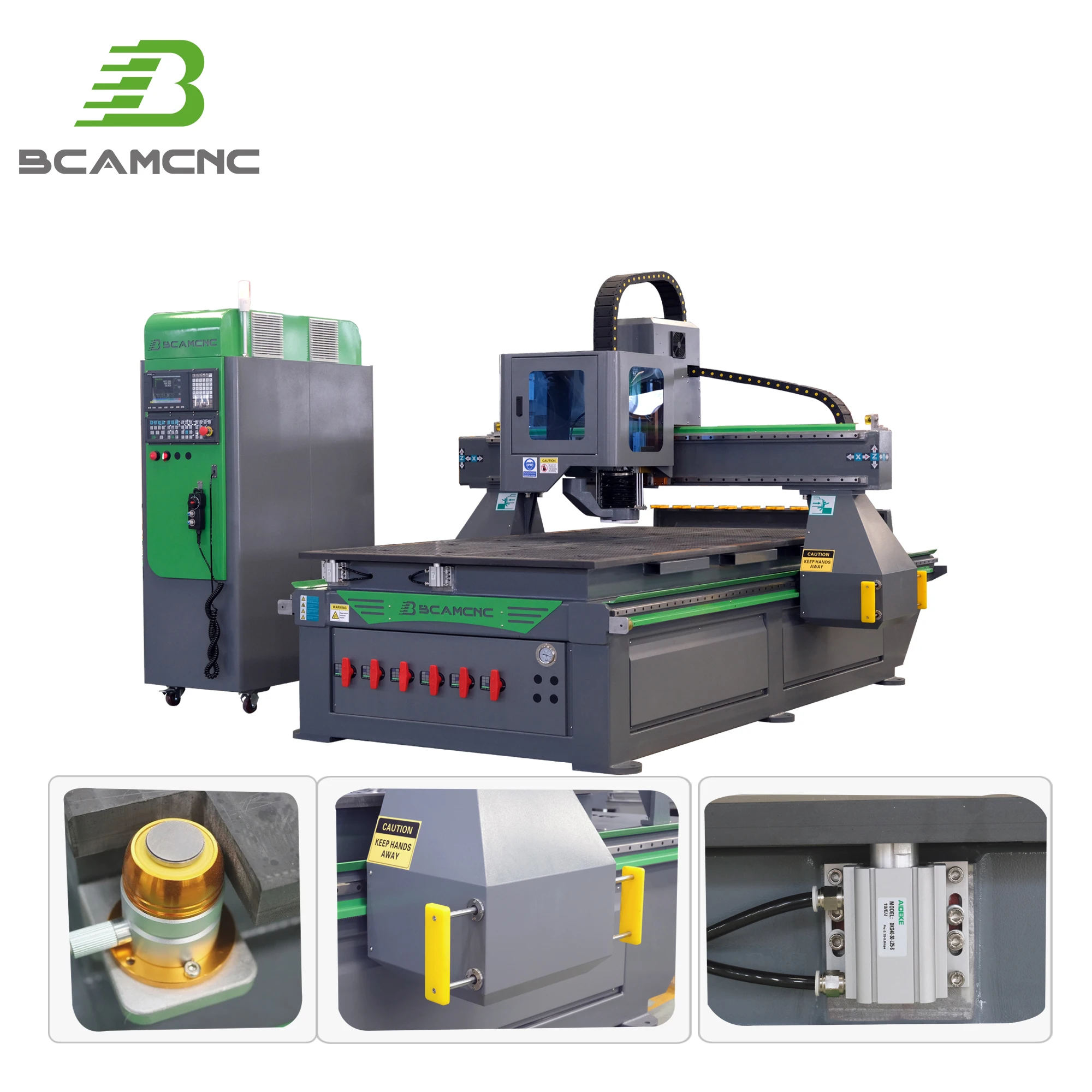

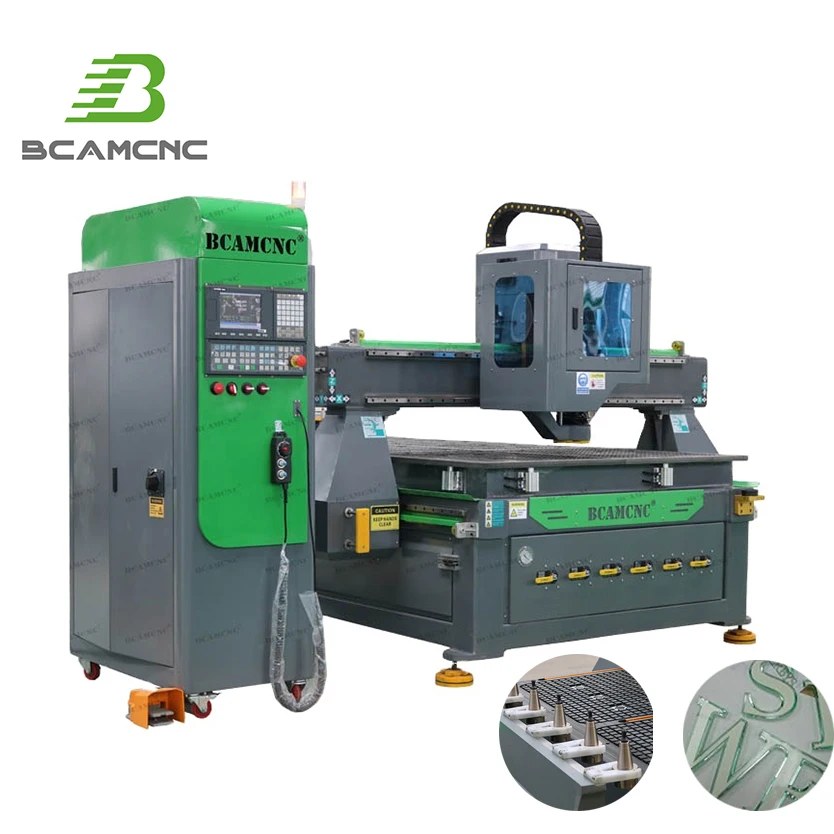

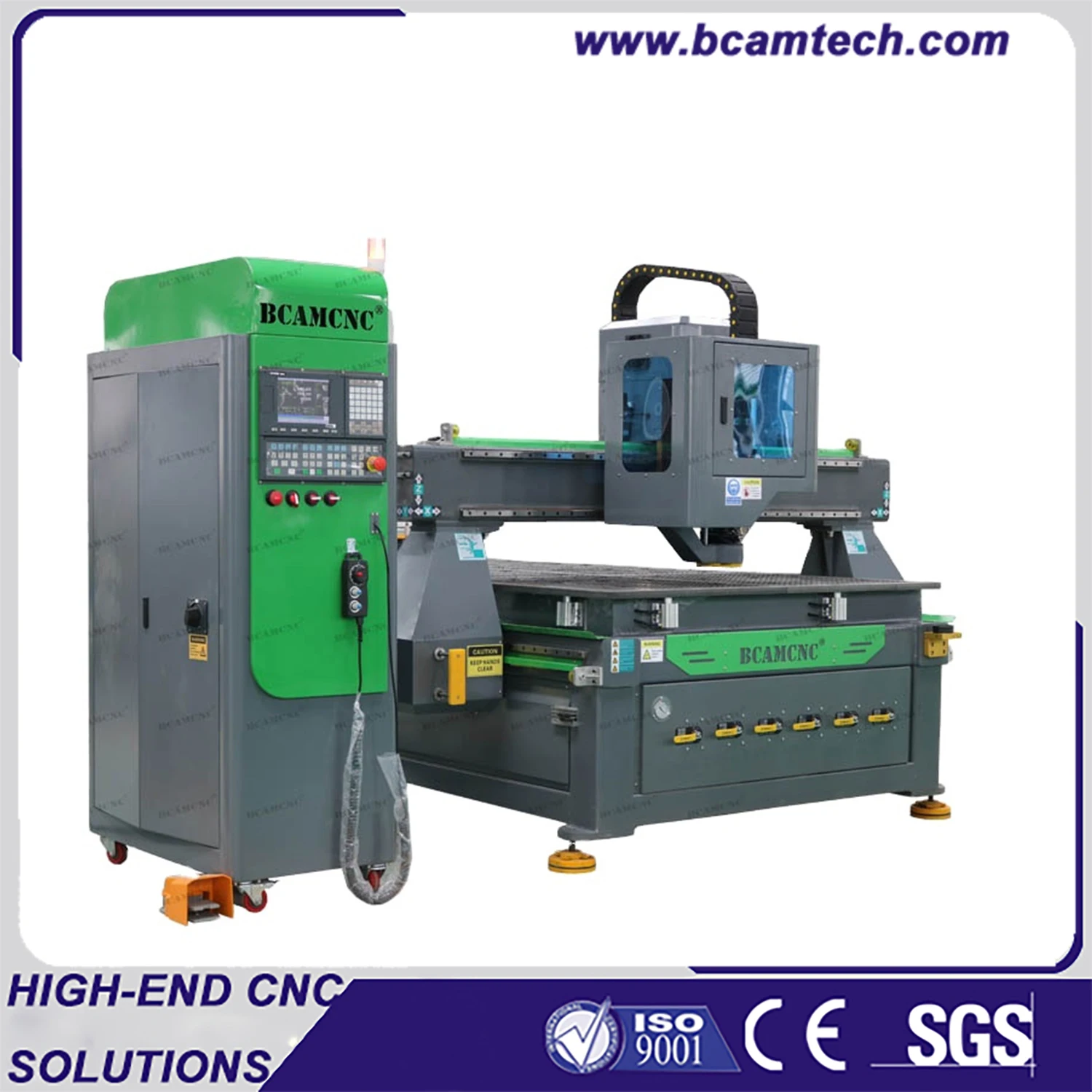

wood cnc router cutter carving machine for woodworking furniture door cabinet
- Category: >>>
- Supplier: Spower Machinery Technology Co. Ltd. (jinan)
Share on (1600522757878):
Product Overview
Description
Product Description
Advantages:
This is an automatic tool changer engraving machine with atc spindles. It has the advantages of fast tool change speed, high production efficiency, and good processing quality. It is suitable for users with large production volume and high processing accuracy requirements.Features :
1. Adopting 9.6kw Italy air cooled spindle and imported bearings, which effectively prolongs the service life of the machine.
2. Linear tool changer magazine saves more time and makes workpiece processing more efficient;
3. 8mm Heavy-duty frame,which makes the machine operate more stably;
4. Adopting 850w Japan Yaswaka servo motor, it has the features of sufficient power, fast speed, which ensure the better performance of the machine;
5. Vacuum worktable is divided into 4/6 zones, with strong absorption ability.

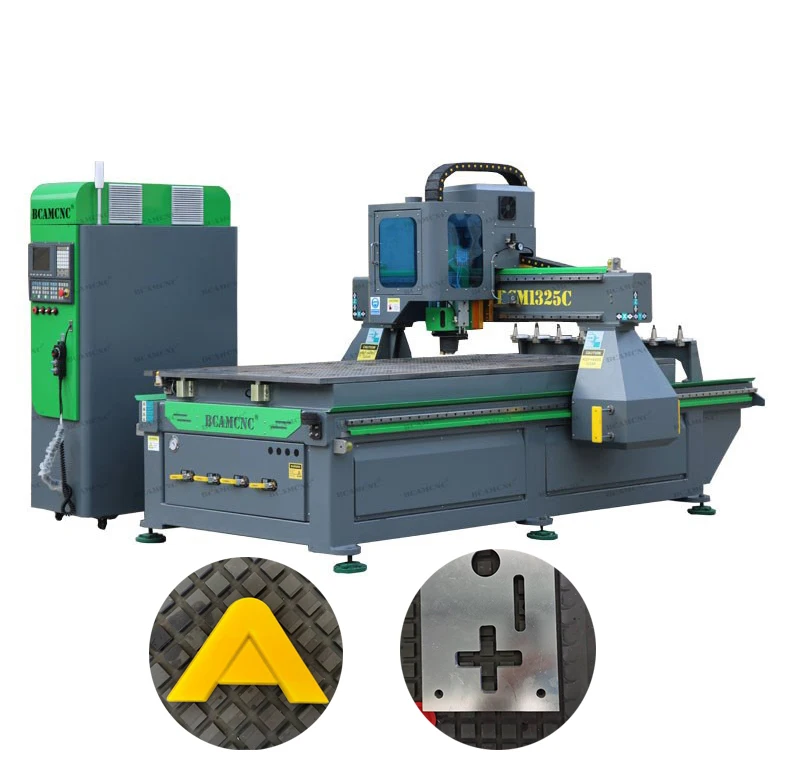

Model | BCM1325C cnc router | ||||||
Working area | 1300*2500*200mm | ||||||
Spindle power | 9.6kw Italy air cooling spindle | ||||||
X/Y/Z axis Traveling Positioning Accuracy | ±0.03/2000mm | ||||||
Table surface | Vacuum+ T-slot table | ||||||
X/Y/Z Rail and Transmission | X/Y axis helical rack and gear transmission, Z axis Taiwan TBI ball screw transmission | ||||||
Max. Rapid Travel Rated | 80m/min | ||||||
Max. Working Speed | 60m/min | ||||||
Automatic tool changer | Linear automatic tool changer and ISO30 tool holder | ||||||
Spindle Speed | 6000-24000RPM | ||||||
Drive Motors | Yaskawa servo motors and drivers | ||||||
Working Voltage | AC380V/50HZ/3 Phase | ||||||
Command Language | G Code | ||||||
Operating system | Taiwan Syntec control system | ||||||
Software compatibility | Optional: Type3, UcanCam, VCarve, Solidwork, AlphaCam, etc | ||||||
Details Images
Details for 3d wood carving engraving machine cnc router
Italt 9.6kw air cooling spindle
Italy automatic tool changer spindle makes machine with high precision, long service time and stable movement. one best brand and has many after service department all over the world.
Linear tools changer
Configured with Linear tool magazine of 8 tools the machine can change tools speedy and freely. Changing tools in 5 seconds.
Taiwan Syntec control system
Human - machine touch screen is easy to operate. Can support *.g;*.nc*.ug;*.demo;*.iso; *.eng;*.cut; *.dxf;*.plt; *.txt etc.it has break-point continuous carving,power failure recovery,processing time prediction,etc.
Heavy duty machine structure
Hundred times' special vibrate experiments with enhanced welding technical, ensure that the lathe will not deformed during their long time working hours, and good stability, long life and amazing accuracy rate.
Active safety system
When people enter machine working area and impacted by the gantry, the machine would stop immediately to keep safe. Provide external emergency stop function for equipment users. meets European safety CE standards, and is very popular among users.
Japan Yaskawa servo motor and drivers
With high-performance Japan YASKAWA servo motor, the machine can work in high precision. servo motor runs smoothly, no vibration phenomenon even in the low speed. it has a strong ability of overload.
Airtech Pro Dust Hood
Adsorption is three times that of ordinary dust collector, can clean dust very clearly when machine working and protect humans’ healthy.
Galvanized
Z axis board and T-slot use galvanized: aluminum alloy, more durable, beautiful, and strong.
Application&Sample
The Making doors cabinets 3d wood carving engraving machine cnc router is widely used:
* Advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.
* Other Industry: a variety of large-scale relief sculpture, shadow carving, widely used in the craft industry.
* Woodworking: three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint doors, screens, craft fan window processing, shoe polisher, game cabinets and panels, mahjong table, computer desk and furniture products, auxiliary processing .
* Other Industry: a variety of large-scale relief sculpture, shadow carving, widely used in the craft industry.
* Woodworking: three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint doors, screens, craft fan window processing, shoe polisher, game cabinets and panels, mahjong table, computer desk and furniture products, auxiliary processing .
Related Product
Company Profile
Jinan BCAMCNC Machinery Co., Ltd., established in 2002, specializing in CNC machinery with rich experience!The company has two factories: CNC Router and laser machine factories and plants.
BCAMCNC is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficienct CNC machines worldwide. With a strong staff team, "Brand BCAMCNC" gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.
BCAMCNC has already established branches in Shanghai , Dongguan, as well as foreign countries, such as Armenia , UK and Georgia. This year, BCAMCNC established long-term cooperative relationship with internationally renowned company, Shanghai Bcamtech CO.,LTD
. In addition, we have established long-term cooperative relations in the field of laser machines with BCMTECH to develop CNC solution .
BCAMCNC always adhere to the principle --- First class reputation, first-class service and excellent products.
BCAMCNC is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficienct CNC machines worldwide. With a strong staff team, "Brand BCAMCNC" gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.
"BCAMCNC Products are widely used in the fields of advertising, furniture, jewelry pieces, gifts, packaging etc., materials of metal, wood, stone, leather etc."BCAMCNC"is wellknown not only in China, but also in Russia, Southeast Asia, Middle East, Africa, the Americas, India and other foreign countries.
BCAMCNC has already established branches in Shanghai , Dongguan, as well as foreign countries, such as Armenia , UK and Georgia. This year, BCAMCNC established long-term cooperative relationship with internationally renowned company, Shanghai Bcamtech CO.,LTD
. In addition, we have established long-term cooperative relations in the field of laser machines with BCMTECH to develop CNC solution .
BCAMCNC always adhere to the principle --- First class reputation, first-class service and excellent products.
By Global High-Tech CNC Equipment Supplier---BCAMCNC
Our Service
BCAMCNC machine production process (Design, Machining, Assembly, Test. ), ensure high quality cnc router machines for customers. ( rigorous production process could ensure good quality machines.)
Service
About installation, training:
#. Installation:
The BCM1325C machine has been installed and test for many times before shipping to your factory, don't need to buy any other accessories. when the machine arrives at your factory, to connect some external device, such as dust collector, vacuum pump, etc , then connect it to power source to operate. about external device, there is video and manual to show how to connect, our engineers can also open video to guide you to operate.
#. Training: (BCM1325C is simple CNC machine.)
1). English manual and operating video will be sent to you with the machine together, the machine are lifetime maintenance.
2). We have professional technical team to deal with after-sale problem, provide technical support by online 24 hours, all these technicians can service by English, can also open the video to help you to solve your questions.(By Skype, by WhatsApp, by WeChat etc.)
3). After sales service door to door if there is any question can be not solved online. when our engineers go to your factory, they will provide technical training to your staffs, about operating, maintain, etc, can make your staffs skilled in operating and maintaining the machine.
4). Our engineers spend 15 days per month to go abroad to provide technical support. If you have an emergency, it is very convenient for you to get service.
#. Installation:
The BCM1325C machine has been installed and test for many times before shipping to your factory, don't need to buy any other accessories. when the machine arrives at your factory, to connect some external device, such as dust collector, vacuum pump, etc , then connect it to power source to operate. about external device, there is video and manual to show how to connect, our engineers can also open video to guide you to operate.
#. Training: (BCM1325C is simple CNC machine.)
1). English manual and operating video will be sent to you with the machine together, the machine are lifetime maintenance.
2). We have professional technical team to deal with after-sale problem, provide technical support by online 24 hours, all these technicians can service by English, can also open the video to help you to solve your questions.(By Skype, by WhatsApp, by WeChat etc.)
3). After sales service door to door if there is any question can be not solved online. when our engineers go to your factory, they will provide technical training to your staffs, about operating, maintain, etc, can make your staffs skilled in operating and maintaining the machine.
4). Our engineers spend 15 days per month to go abroad to provide technical support. If you have an emergency, it is very convenient for you to get service.
Packing & Delivery
Packing & Delivery
Firstly, Packed the machine with plastic sheet for clearing and damp proofing. Secondly, Then put the machine in the plywood case for safety and clashing. Thirdly, Transport the plywood case into the container..
FAQ
Q1. Delivery time of CNC router machine?
Aplus and S series standard size and configuration CNC router machine delivery time is 7 days, C,D,E series machine delivery time is 15 days, F,4 axis and 5 axis series machine delivery time is 20 days. So we suggestion client pay 100% money, because we can can arrange machine delivery immediately.
Q2. Can you sent machine to my home?
Yes, we have cooperation long time shipping agent, famous team in China, them can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.
Q3. This is the first time to use cnc router machine,is it easy to operate?
Yes, it is easy, if you can draw with software, the machine operate is no problem, because we will support:
1).English guide video and instruction book are sent to you free together with the cnc router.
2).Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side.
3).We have our own after-sales service team,24 hours technical support by calling, video and email.
Q4. Can you please tell me if it’s possible to make a 1530C machine with 240v single phase? If so what is the power consumption?
The power consumption of 240V/single phase and 380V/3Phase is same(but the power of a single phase voltage pump is limited to no more than 3kw). I recommend you choose 3 2.2kw air pumps. We will adopt some machine parts different from 380V because of 240V current will become bigger.
Aplus and S series standard size and configuration CNC router machine delivery time is 7 days, C,D,E series machine delivery time is 15 days, F,4 axis and 5 axis series machine delivery time is 20 days. So we suggestion client pay 100% money, because we can can arrange machine delivery immediately.
Q2. Can you sent machine to my home?
Yes, we have cooperation long time shipping agent, famous team in China, them can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.
Q3. This is the first time to use cnc router machine,is it easy to operate?
Yes, it is easy, if you can draw with software, the machine operate is no problem, because we will support:
1).English guide video and instruction book are sent to you free together with the cnc router.
2).Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side.
3).We have our own after-sales service team,24 hours technical support by calling, video and email.
Q4. Can you please tell me if it’s possible to make a 1530C machine with 240v single phase? If so what is the power consumption?
The power consumption of 240V/single phase and 380V/3Phase is same(but the power of a single phase voltage pump is limited to no more than 3kw). I recommend you choose 3 2.2kw air pumps. We will adopt some machine parts different from 380V because of 240V current will become bigger.
