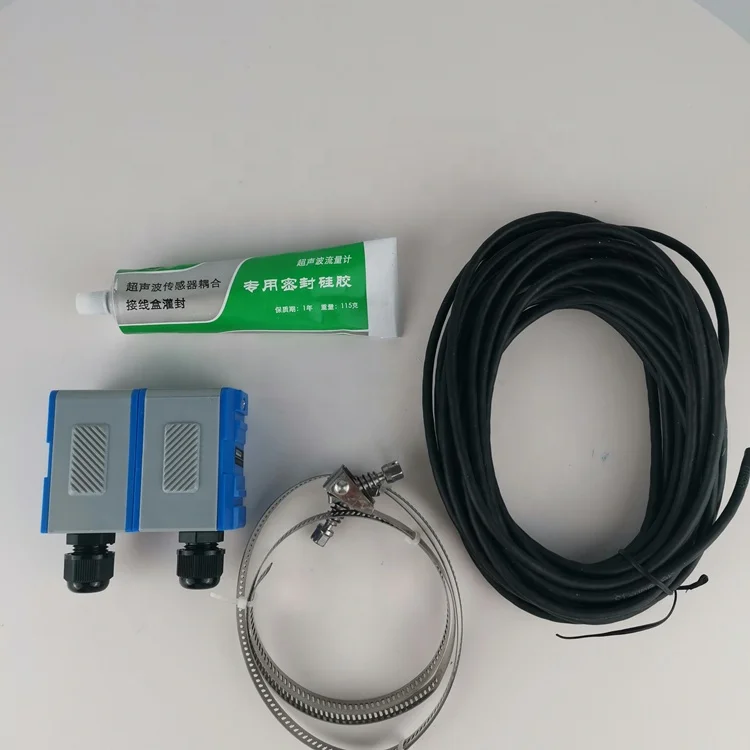

Clamp On Water Ultrasonic flowmeter with RS232 for water ultrasonic flow meter
- Category: >>>
- Supplier: Kaifeng Hollysys Industrial Instrument Co. Ltd.
Share on (1600522765120):
Product Overview
Description
Product Description

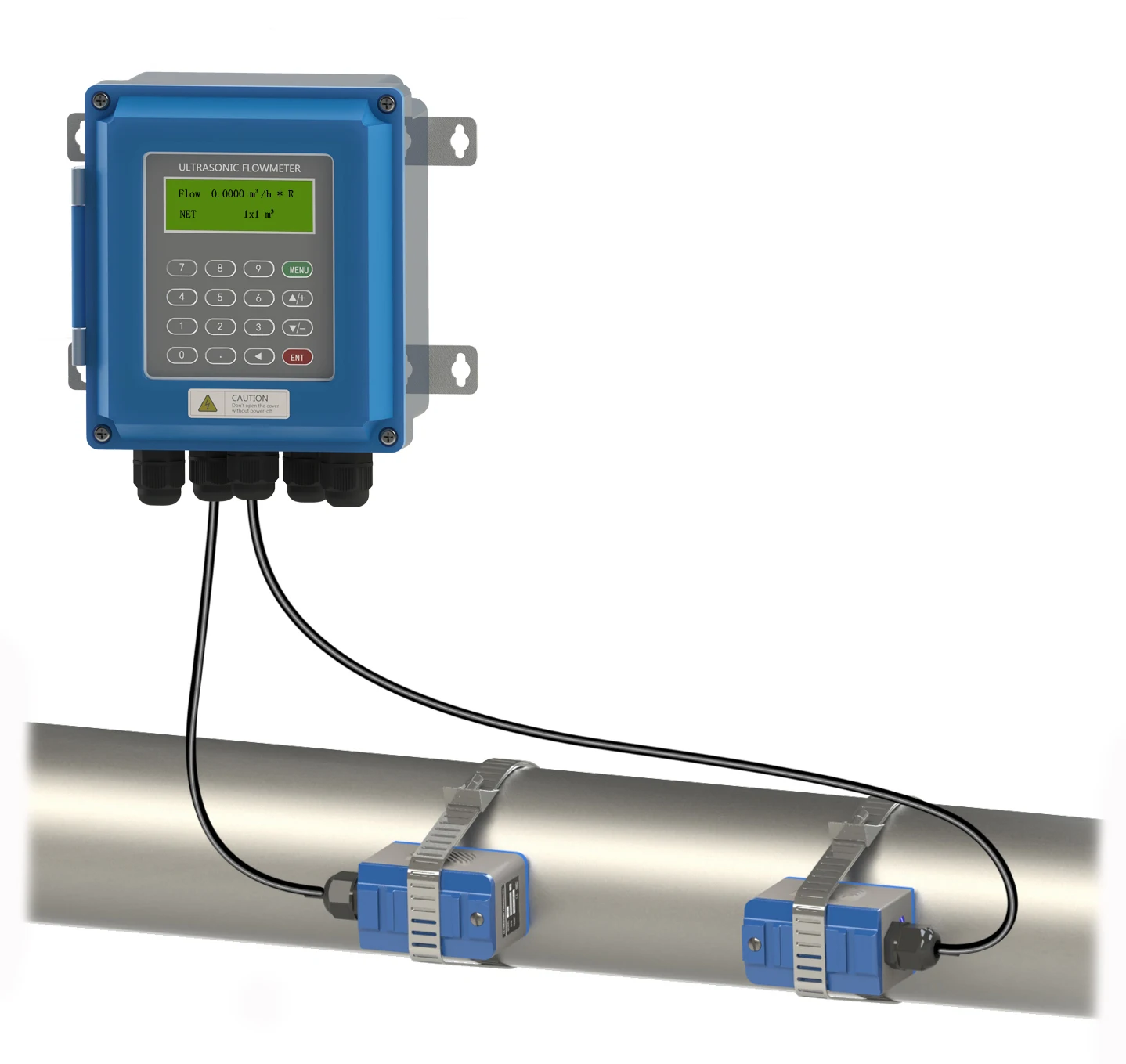

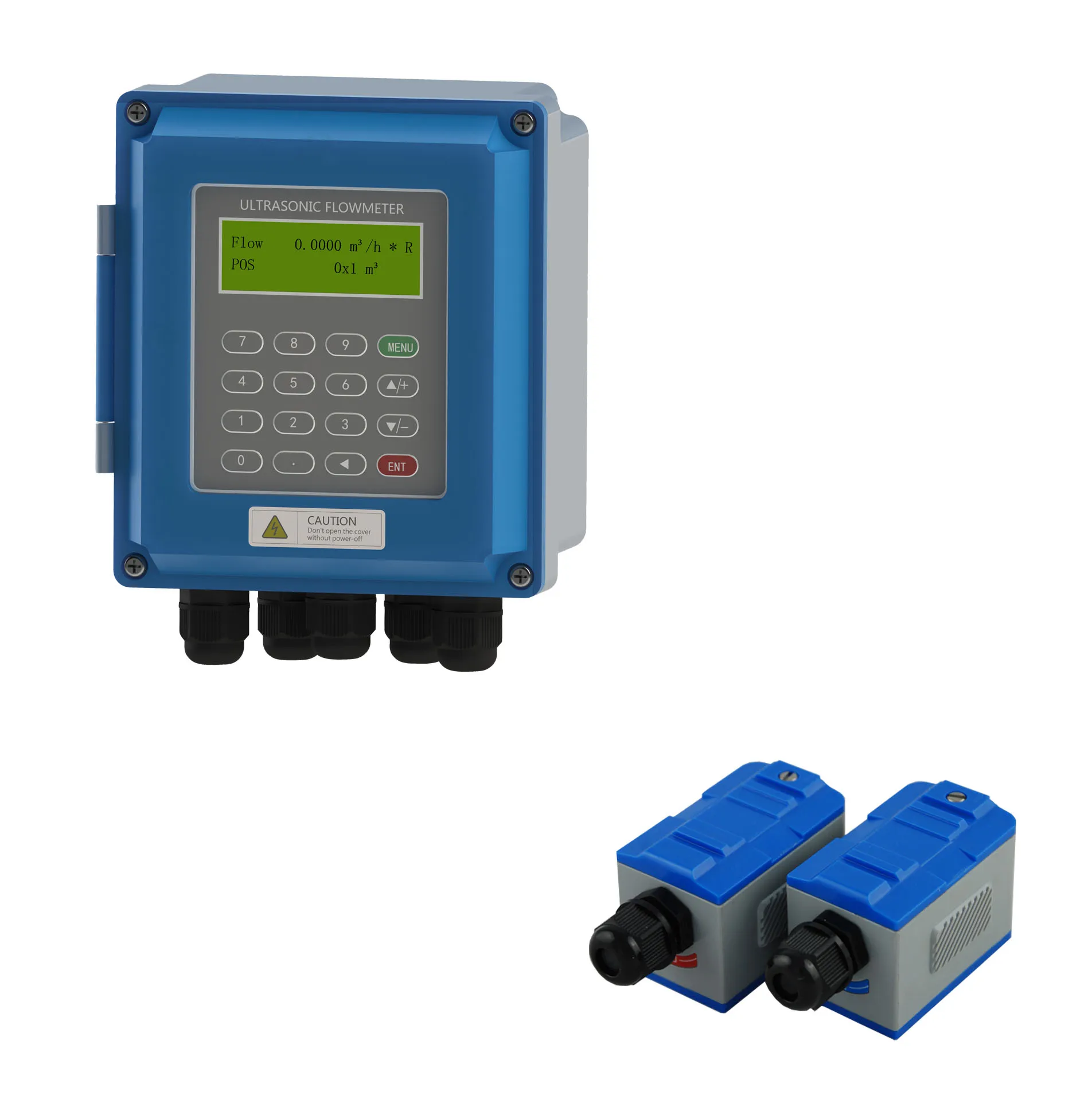

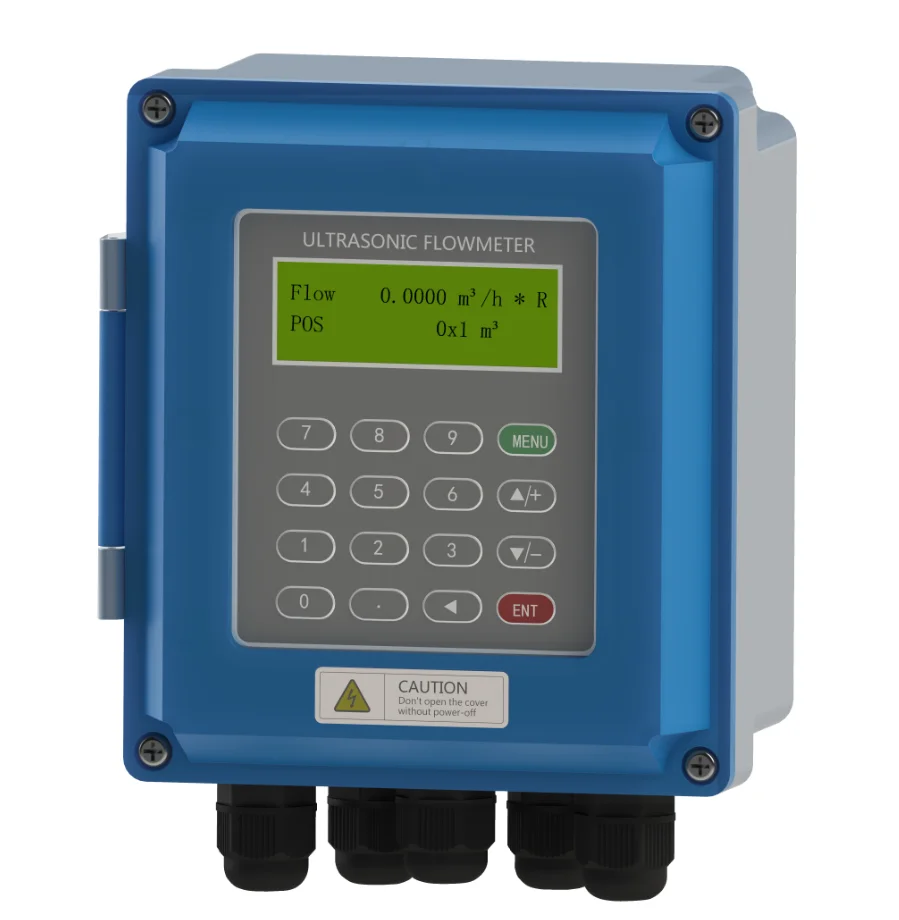

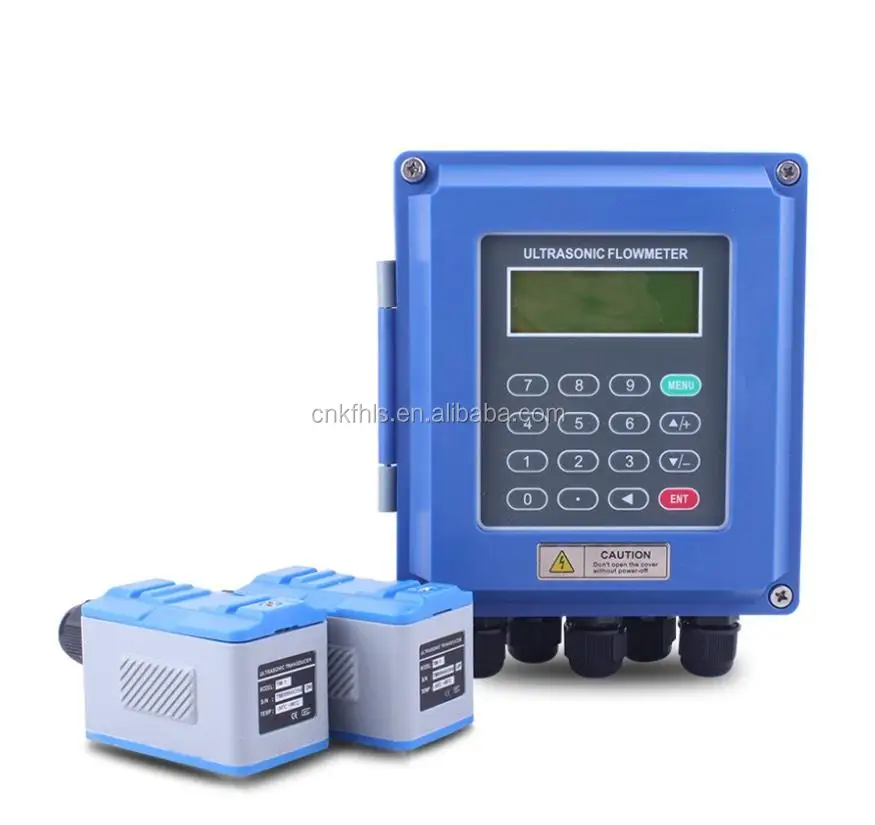

TUF-2000B ultrasonic flowmeter
TUF-200B Flowmeter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids ,portable water,chemicals,raw sweage,reclaimed watere,cooling water,river water,plant.etc.
Display | 2*16 lines display |
Keypad | 4*4 keys |
Power supply | DC8~36V or AC85~264V |
Signal outputs | 4~20mA, OCT, relay, RS485(support MODBUS) |
Signal intputs | 3 WAY 4-20mA |
Data storage | SD card |
Easy installation, no maintenance is needed. |
High accuracy within ±1% |
High protection class: Main unit:IP67; Transducers:IP68 |
GPRS-based design, multiple signal output, achieve remote monitoring. |
Achieve heat measurement by connecting 3-wired heat transducers PT100. |
Technical parameter
Convertor | Principle | Transit-time ultrasonic flowmeter | |
Accuracy | ±1% | ||
Display | 2x20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish | ||
Signal output | 1way 4-20mA output, electric resistance 0-1K, accuracy0.1% | ||
1 way OCT pulse output(Pulse width-1000ms, default is 200ms)) | |||
1 way Relay output | |||
Signal input | 3 way 4-20mA input, accuracy 0.1%, acquisition signal such as temperature, press and liquid level | ||
Connect the temperature transducer P100, can finish the heat/energy measurement. | |||
Data Interface | Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS. | ||
Special Cable | Twisted-pair cable, generally, the length under 50 meters, select the Rs485, transmission distance can over 1000m | ||
Pipe Installation Condition | Pipe material | Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed | |
Pipe diameter | 25-6000mm | ||
Straight pipe | Transducer installation should be satisfied: upstream10D, downstream5D, 30D from the pump. | ||
Measuring Medium | Type of liquid | Single liquid can transmit sound wave; such as water (hot water ,chilled water, city water, sea water, waste water, etc); sewage with small particle con tent, oil(curde oil, lubricating oil, diesel oil, fuel oil, etc); chemicals(alcohol, etc); plant effluent; beverage; Ultra-pure liquids, etc | |
Temperature | -30-160℃ | ||
Turbidity | No more than 10000ppm and less bubble | ||
Flow rate | 0-±7m/s | ||
Temperature | Convertor; -20-60℃; Flow Transducer: -30-160℃ | ||
Humidity | Convertor: 855RH; Flow Transducer: can measure under water, water depth≤2m | ||
Working Environment | Temperature | Convertor; -20-60℃; Flow Transducer: -30-160℃ | |
Humidity | Convertor: 855RH; Flow Transducer: can measure under water, water depth≤2m | ||
Power Supply | DC8-36V or AC85-264V(Optional) | ||
Power Consumption | 1.5W | ||
Dimension | 132*150*85mm(convertor) | ||

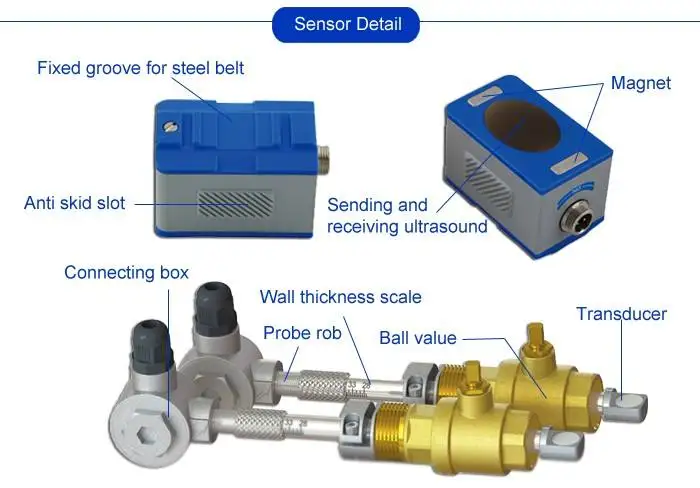

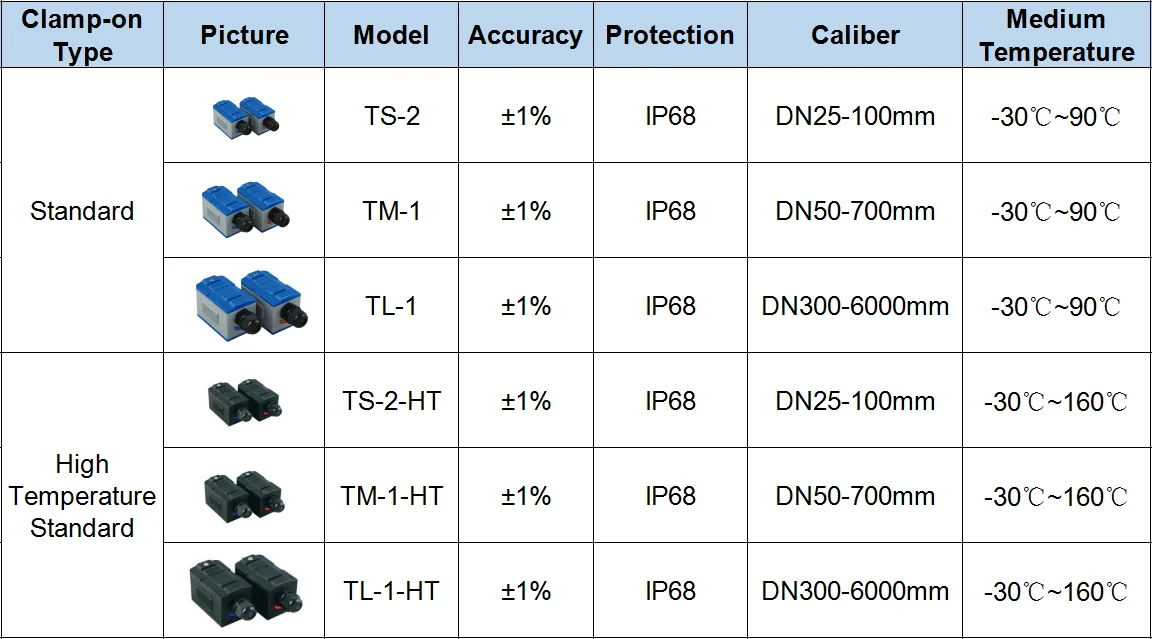

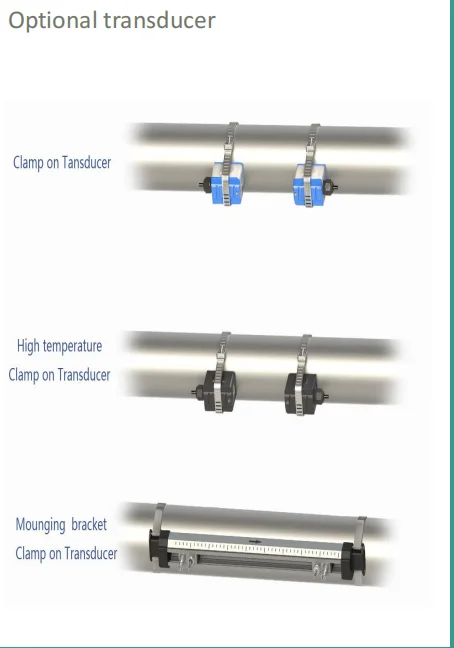

Sensor selection
Scope of application
Packing & Delivery

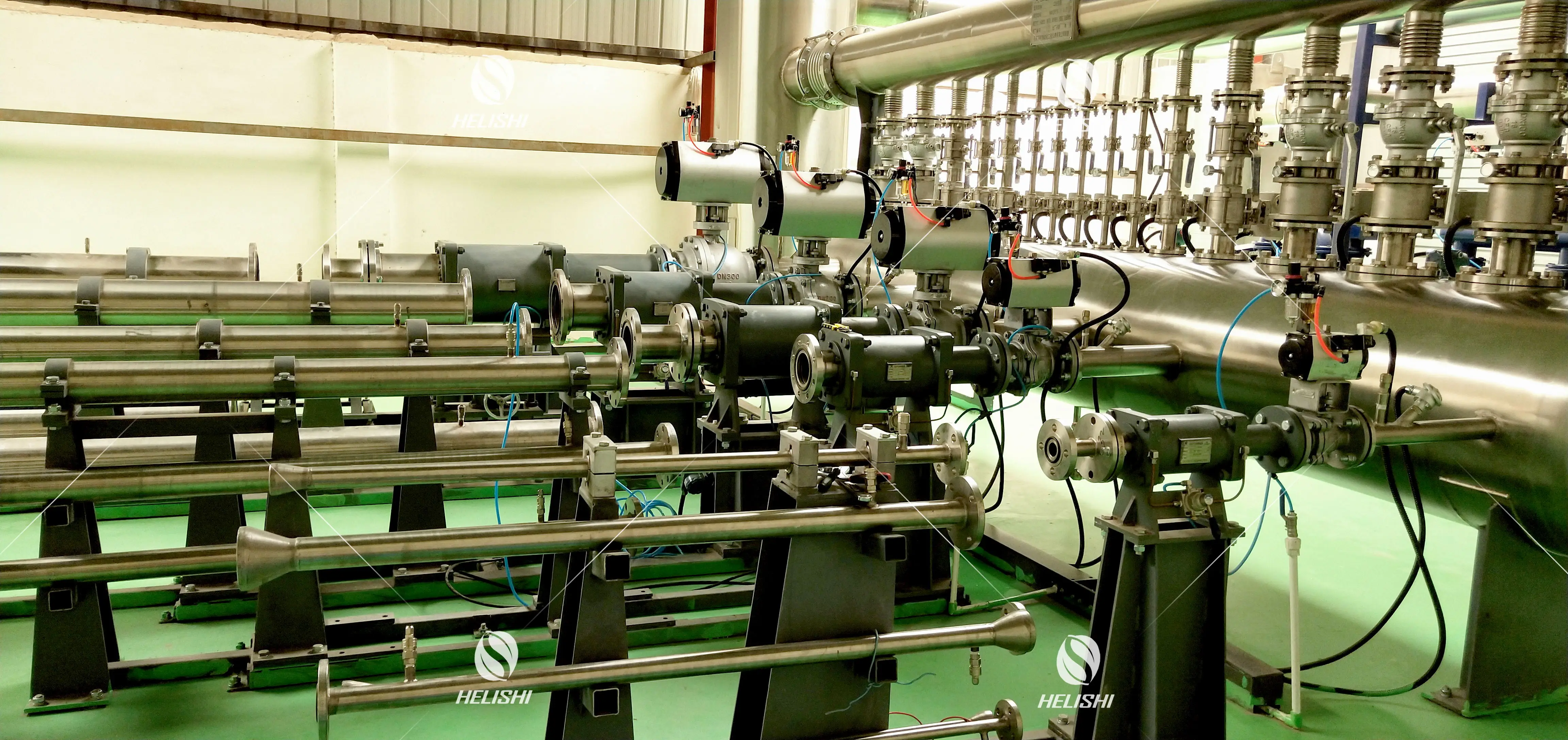

Company Information
FAQ
1.Q:Quality warranty time？ A: We have a one-year guarantee of quality. If you have any questions, you can contact us at any time.We will serve you one—one service |
2.Q:What is your advantage？ A: We have our own independent factory and have been established for 20 years to ensure that you have high quality and low price |
3.Q:Could I have a visit of your factory？ A: I am honored to serve you and welcome your visit |
4.Q:Order service？ A:(1) We will give you the fastest reply (2)Payment : 100%T/T in advance (3)fast delivery: we can make delivery when your payment arrived |
5.Q:Maintenance&After-sales services? A:We provide life-long maintenance and after-sales service, please contact us if you have any questions about the product. |
6.Q: If I have paid, when will you help me to produce? A:When we have received the money in our account, we will give you the receipt and arrange to produce immediately. |
